P 100
EVERBESTEN/SUNCOME
009
Warehouse / Factory / Outdoor Or Semi-outdoor Openings
High-cycle Industrial Operation
Customized Pvc Curtain Thickness
0.8- 1.2 MM Thickness PVC & Pvc Curtain With Wind Bars
Invertor and Servo System
220V/Single Phase/60Hz(Custom)
Wind Bars Enhance Curtain Stability And Wind Resistance
Better Wind Resistance, Stable Operation For Large Openings
CE/ ISO9001 / ISO
Customized Size and Color
Product Description

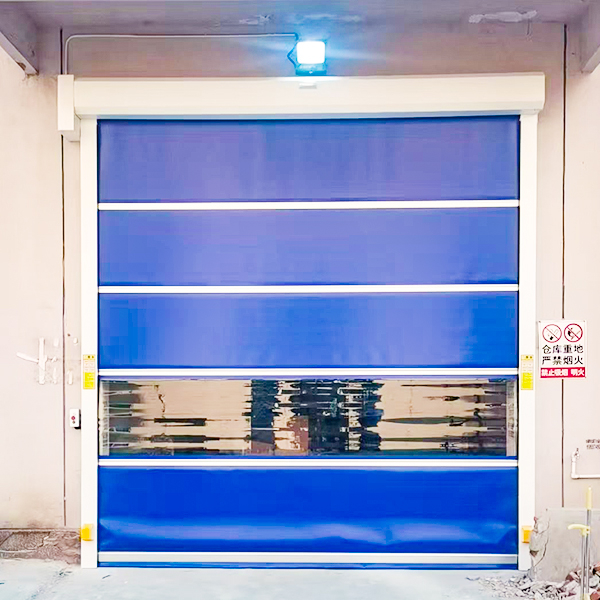

High Speed Roll-Up Doors for Industrial & Commercial Applications
High speed roll-up doors are designed for fast, reliable access control in industrial and commercial environments. By combining rapid opening speed, high cycle durability, and flexible curtain construction, these doors help improve workflow efficiency, reduce energy loss, and enhance safety in high-traffic areas.
A high speed roll-up door is an industrial door system designed for rapid opening and closing to separate different areas while maintaining traffic efficiency, safety, and environmental control. It uses a flexible curtain that rolls vertically at high speed, driven by an automatic motor and control system, allowing frequent operation in high-cycle industrial environments.
Unlike standard roll-up doors, high speed roll-up doors are engineered for continuous operation rather than occasional access. The door curtain, typically made from PVC, fabric, or insulated materials, rolls upward into a compact housing, saving space and minimizing air exchange between zones.
The door operates through an electric motor combined with a control system that responds to sensors, motion detectors, or access commands. Once activated, the curtain opens quickly to allow vehicles or personnel to pass and then closes immediately to restore environmental separation.
High speed roll-up doors are used in industrial facilities to improve traffic flow, reduce energy loss, and enhance operational safety in high-frequency access areas. Their fast operation allows smooth movement of forklifts, vehicles, and personnel while maintaining separation between different working environments.
In warehouses and manufacturing plants, traditional doors can slow down operations and create bottlenecks. High speed roll-up doors minimize waiting time at openings and support continuous material handling.
Rapid opening and closing also reduces air exchange between temperature-controlled and ambient areas, helping facilities lower heating and cooling costs. In busy industrial environments, integrated safety systems and soft curtain materials further reduce the risk of damage or injury.
High speed roll-up doors are commonly used in facilities where frequent access, environmental separation, and efficient traffic flow are required.
Typical applications include:
Warehouses and logistics centers
Manufacturing and production facilities
Clean rooms and hygienic processing zones
Cold storage rooms and freezers

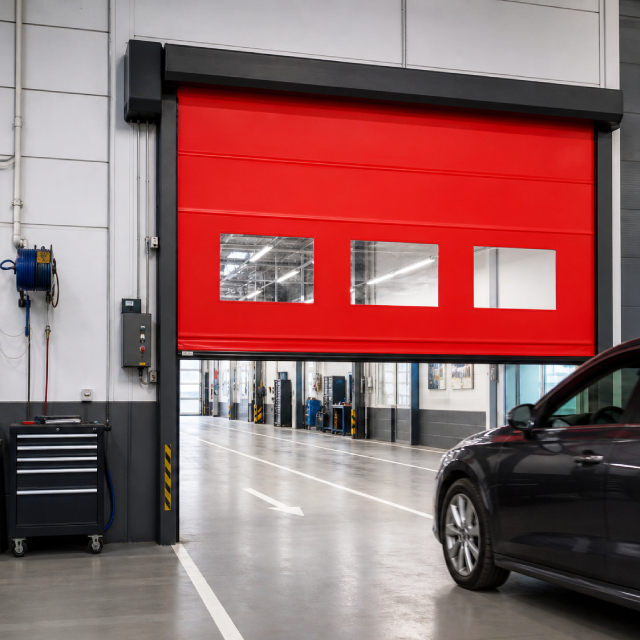

Auto shops, parking areas, and internal industrial passages
In these environments, the combination of speed, durability, and compact design makes roll-up doors a practical and reliable solution.
Industrial high speed roll-up doors are designed for fast operation, high cycle frequency, and long-term reliability.
Key features include:
Rapid opening and closing speed for continuous traffic
Automatic electric drive systems for consistent performance
High cycle components designed for industrial use
Integrated safety protection for personnel and vehicles
Space-saving vertical roll-up design
These features allow the door to operate efficiently even in demanding industrial conditions.
High speed roll-up doors are available with various curtain materials and structural configurations to match different operating environments.
Common curtain options include PVC, fabric, vinyl, and insulated constructions. PVC and fabric curtains are lightweight and flexible, making them suitable for high-frequency internal openings. Vinyl and rubber-based materials offer enhanced durability in harsher environments.
Vision panels can be integrated into the curtain to improve visibility and safety at busy doorways. Frames and guide structures are typically manufactured from galvanized steel, stainless steel, or aluminum to ensure corrosion resistance and long service life.

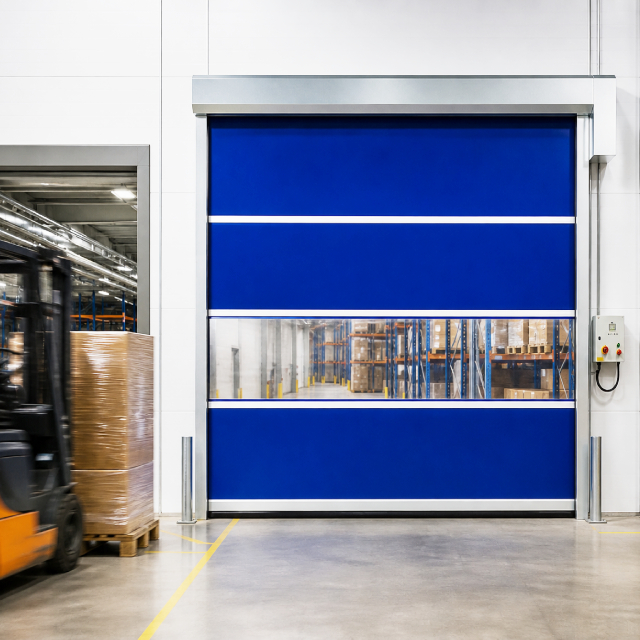

High Speed Door PVC Curtain
High Speed Door Photo Cell
High Speed Door Invertor S 180 FU Control Panel
Servo Control Panel
High Speed Door Heavy Duty Wind Bar
High Speed Door Frame Design
S180 Control Panel
ABB Motor/S180 Control System
Key technical specifications determine whether a high speed roll-up door can meet industrial performance requirements.Important considerations include opening speed, door size, operating frequency, motor performance, and environmental resistance. High speed roll-up doors are typically customized to fit specific opening dimensions and site conditions.Motor and control systems must support high cycle operation with consistent performance. Environmental factors such as wind resistance, temperature range, and humidity tolerance are especially important for outdoor or cold storage applications.
| Product Type | Rapid Roll Door, High Speed Fabric Door, PVC High Speed Door |
| Opening/Closing Speed | Opening: 0.8–2.0 m/s; Closing: 0.5–2.0 m/s (adjustable) |
| Door Curtain Material | PVC, Reinforced Fabric (with anti-tear, flame-retardant, or transparent options) |
| Frame Material | Aluminum Alloy, Galvanized Steel, Stainless Steel (304) |
| Sealing Performance | Bottom Rubber Seal, Side Brush Seal; Dust-proof, Insect-proof, Wind-proof (Grade 3–5) |
| Safety Features | Safety Light Curtain, Emergency Stop Button, Anti-pinch Sensor, Manual Release |
| Working Temperature | -30°C to +60°C (special low-temperature models: -40°C to +50°C) |
| Protection Level | IP54–IP65 (motor and control system) |
| Customization Options | Transparent Window Panels, Logo Printing, Anti-static Coating, Anti-UV Treatment |
| Application Environment | Industrial Warehouses, Cold Storage, Clean Rooms, Logistics Terminals, Food Processing Plants |
The main difference between insulated and standard high speed roll-up doors is their ability to control temperature and reduce energy loss.
Standard high speed roll-up doors focus on speed, durability, and traffic efficiency in ambient environments. They are commonly used in warehouses, workshops, and internal industrial areas.
Insulated high speed roll-up doors incorporate thermal insulation within the curtain or panel structure. These doors are designed for cold rooms, freezers, and temperature-sensitive facilities, where maintaining stable conditions is critical. While insulated doors may operate slightly slower, they provide significant energy savings in controlled environments.
High Speed Roll- UP Door

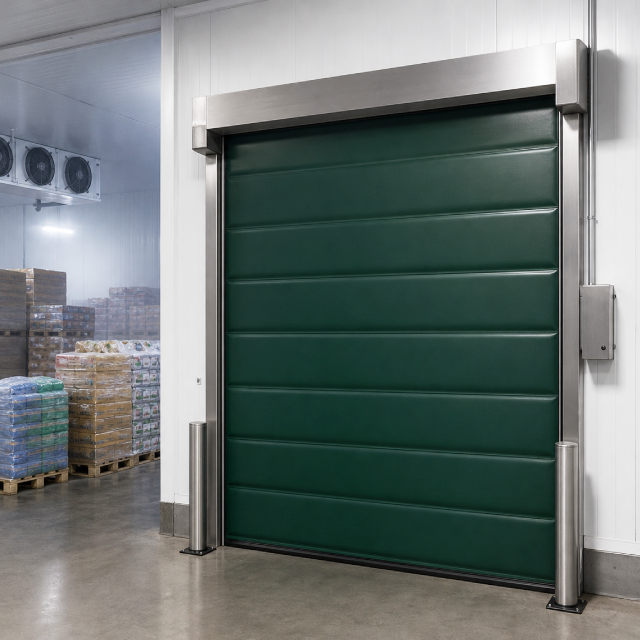

Insulated high speed roll-up door
The cost of a high speed roll-up door depends on factors such as door size, curtain material, insulation requirements, operating speed, control systems, and installation conditions. Industrial-grade doors are typically customized, so pricing varies by configuration rather than fixed models.
Standard PVC or fabric high speed roll-up doors generally cost less than insulated or freezer-rated versions. Additional options such as vision panels, safety sensors, wind resistance, or advanced controls can affect the final price.
For accurate pricing, manufacturers usually provide project-based quotations based on specific application requirements.
High speed roll-up doors are commonly customized to match site conditions, workflow patterns, and safety requirements.
Customization options may include door dimensions, frame material, curtain thickness, color selection, and control systems. Safety accessories such as light curtains, sensors, and access controls can be integrated to improve operational safety.
Custom configuration ensures the door performs reliably within the intended industrial environment.
High Speed Roll-Up Door Drawing.pdf
Selecting a qualified manufacturer is essential to ensure the performance and durability of high speed roll-up doors.
Factory-based production allows better control over materials, quality, and lead time. Manufacturers typically support OEM supply, project-based production, and custom engineering for industrial applications.
Direct factory supply also simplifies technical support, spare parts availability, and long-term service.
Proper installation and maintenance are critical for long-term door performance.
Professional installation ensures correct alignment, safe operation, and optimal opening speed. Routine maintenance usually involves inspection of the curtain, motor, and safety systems.
High speed roll-up doors are designed for low maintenance, but regular checks help prevent downtime in high-traffic industrial environments. Manufacturers often provide technical documentation and after-sales support throughout the product lifecycle.
High Speed Door Operator Manual_EN control system0.75 KW.pdf
For detailed technical information or project-specific pricing, you can request a customized quotation or download the product specifications.Providing details such as opening size, operating environment, and usage frequency helps ensure the door configuration matches your operational requirements.
A high speed roll-up door is a fast-opening industrial door designed for warehouses, factories, and logistics areas to improve efficiency and reduce energy loss.
Wind bars help strengthen the door curtain and improve wind resistance, making the door more stable in larger openings or windy environments.
They are widely used in warehouses, logistics centers, manufacturing plants, workshops, and loading dock areas.
Yes. Door size, color, opening speed, and control options can be customized based on project requirements.
Available options include radar sensor, remote control, push button, pull cord, induction loop, and access control systems.
Yes. Wind-resistant high speed roll-up doors with wind bars are suitable for outdoor or semi-outdoor applications.
Yes. We support global shipping with export packaging.
