Roller Shutter Door vs Sectional Door

Key Differences, Applications, and Selection Guide
When selecting an industrial door system, two commonly considered options are roller shutter doors and sectional doors. While both are used for industrial and commercial applications, their structure, insulation performance, space requirements, and operating characteristics differ significantly.

This guide explains the key differences between roller shutter doors and sectional doors to help determine which solution is more suitable for your project.

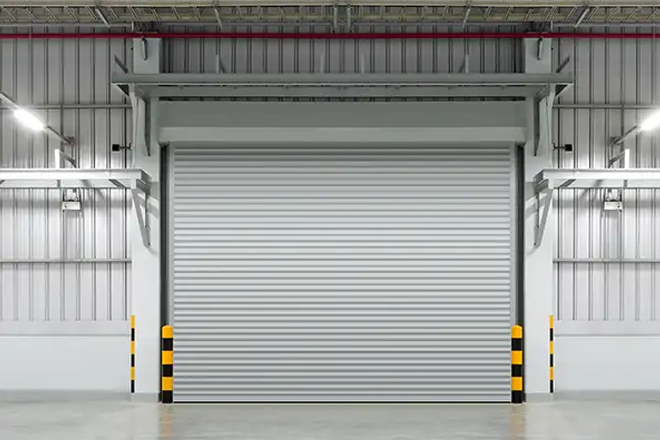

Roller Shutter Door

What Is a Roller Shutter Door

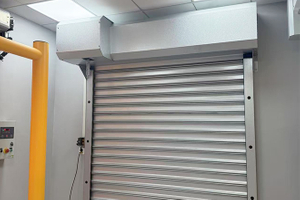

A roller shutter door is a door system that opens vertically by rolling interlocking slats into a compact coil above the opening. The curtain typically consists of steel, aluminum, or other rigid slats connected together.
Roller shutter doors are often selected for security-focused applications and spaces with limited headroom.

What Is a Sectional Door

A sectional door consists of multiple horizontal panels connected by hinges. The door opens vertically and then moves along ceiling-mounted tracks, resting parallel to the ceiling when fully open.
Sectional doors are widely used in warehouses, logistics centers, and industrial facilities where insulation, sealing performance, and controlled access are important.

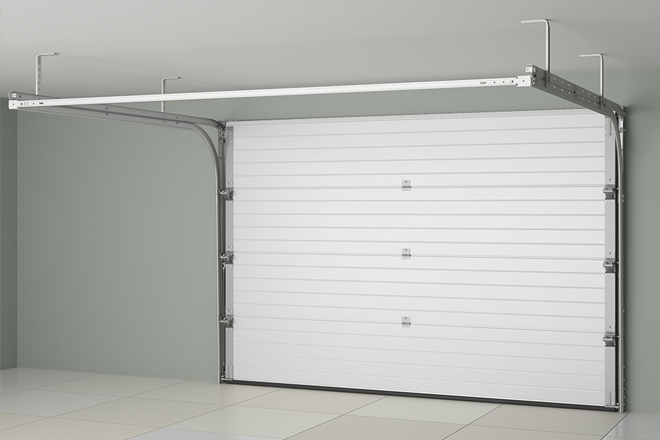

Sectional Door

Structural Differences

The main structural difference lies in how the door curtain operates.
Roller Shutter Door vs Sectional Door4

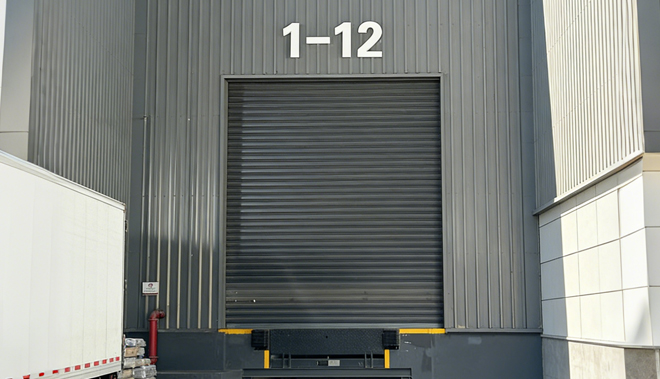

Roller shutter doors roll upward into a coil.
Roller Shutter Door vs Sectional Door5
Sectional doors move upward and then slide horizontally along tracks.
Because sectional doors do not form a tight roll, they typically provide better panel thickness options and improved insulation performance.

Space Requirements

Selecting between the two depends primarily on available headroom, ceilinglayout, and overall interior space configuration.

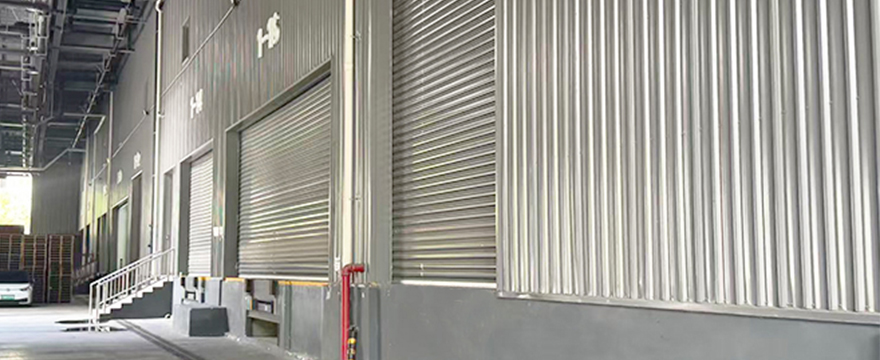

Roller Shutter Door
 Requires clear headroom above opening for the rolled curtain
  1.  Does not occupy interior ceiling track space
  2.  Suitable for buildings with limited internal ceiling clearance
  3.  Compact vertical rolling mechanism
​​​​​​​
1180
1180
Sectional Door
 Requires overhead track space inside the building
  •  Panels move vertically and then horizontally along ceiling rails
  •  Typically requires less headroom directly above the opening
  • Suitable for loading bays and insulated environments

Insulation and Energy Efficiency

Sectional doors generally offer better thermal insulation due to thicker insulated sandwich panels and improved sealing systems.Roller shutter doors may provide basic insulation depending on slat type, but they are typically less thermally efficient compared to insulated sectional doors.For temperature-controlled environments, sectional doors are often the preferred choice.
Roller Shutter Door vs Sectional Door-8

Sealing and Weather Protection

  • 2

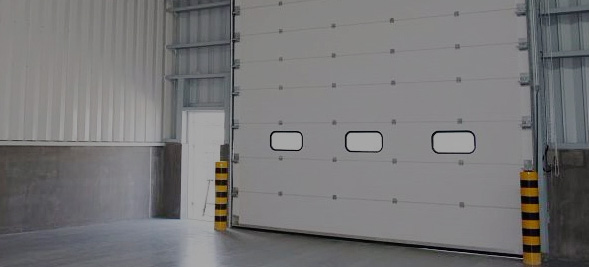

    Sectional doors​​​​​​​
    Sectional doors usually provide more consistent perimeter sealing, reducing air infiltration and improving environmental control.​​​​​​​
  • 1

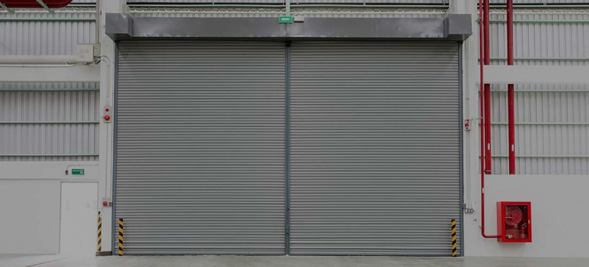

    Roller shutter doors​​​​​​​
    Roller shutter doors are more commonly used in applications where security and durability are prioritized over tight environmental sealing.

Durability and Usage Frequency

Both door types can be motorized and designed for industrial use. However:
  • Roller shutter doors are often selected for high-security environments and exterior openings.
  • Sectional doors are frequently used in loading docks and industrial bays with regular vehicle traffic.
For high-frequency operations with strong insulation requirements, sectional doors may provide better long-term performance.
Roller Shutter Door vs Sectional Door8jpg

Typical Applications

Roller Shutter Doors Are Commonly Used In:
- Industrial storage facilities
- Commercial buildings requiring security
- Retail shutters
- Exterior access points
Sectional Doors Are Commonly Used In:
- Warehouses and distribution centers
- Loading dock areas
- Manufacturing plants
- Commercial garages

Maintenance Considerations

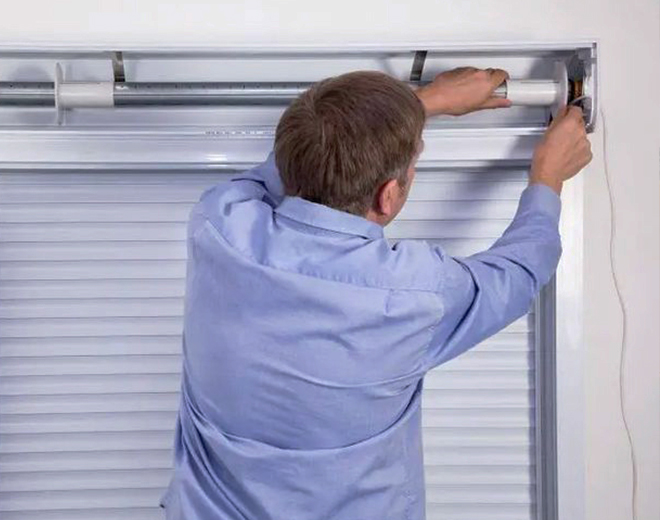

Roller shutter doors rely on slat alignment and rolling mechanisms, requiring inspection of the coil and guides. Regular checks of the slats, end locks, and drive motor help ensure smooth rolling performance and reduce wear over time.

Sectional doors require periodic inspection of tracks, rollers, hinges, and torsion systems. Proper lubrication and tension adjustment are important to maintain balanced movement and prevent uneven panel stress.

Maintenance requirements vary depending on usage frequency and environmental conditions. High-traffic industrial environments may require more frequent inspection schedules, while clean and controlled environments generally extend service intervals.
Roller Shutter Door vs Sectional Door12jpg

Which Door Should You Choose

Choosing between a roller shutter door and a sectional door depends on several factors:
Design
Material
Printing
Surface Treatment
Die-cutting
Molding
Logistic
Other
  • Security priority
  • Insulation and temperature control requirements
  • Available headroom and ceiling space
  • Traffic frequency
  • Loading dock integration needs
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • End-to-end-solution
    End-to-end-solution
    From concept to your door, we simplify your project by handling everything for you.
  • Custom sizing
    Custom sizing
    Fully control the size of your packaging with no limitations to tailor to your product.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
  • Extensive option library
    Extensive option library
    Access over 50+ options that you can utilize to create your very own unique box experience.
  • The PakFactory Promise
    The PakFactory Promise
    We guarantee the highest quality product and customer experience with every order!
For security-focused exterior openings with limited internal space, roller shutter doors are often suitable.
For insulated warehouse environments and loading dock operations, sectional doors are generally preferred.

Related Door Solutions

Understanding the differences between these door systems helps ensure the correct solution for specific industrial applications.

Request Technical Support

If you are evaluating roller shutter doors and sectional doors for a project, technical support and solution guidance are available. Providing opening size, usage environment, and performance requirements helps determine the most suitable configuration.
