H 50
EVERBESTEN
003
Inside Door Logistics Access Door & Warehouse / Factory / High-traffic Areas
More than 300 Cycles Per Day
0.8- 1.2 MM Thickness PVC
Invertor and Servo System
220V/Single Phase/60Hz(Custom)
Fast Opeation and Low Noise and High Cycles
Self Repaired Function to Avoid Broken & Improved safety, reduced maintenance
ISO & CE
Customized Size and Color
Product Description

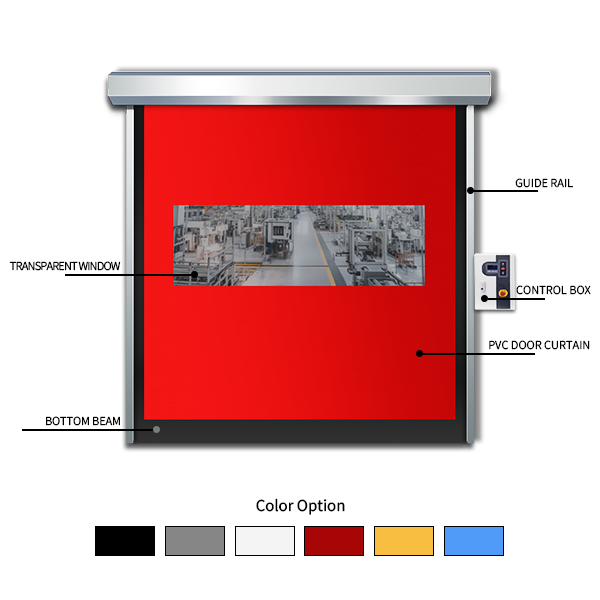

A Zipper High Speed Door is a high-performance industrial door designed for areas with intensive traffic and frequent forklift operation.
It features a zipper-guided structure that allows the curtain to automatically reset into the side tracks after accidental impact, minimizing downtime and maintenance costs.
This self repairing design makes zipper high speed doors especially suitable for logistics centers and high-traffic industrial environments.
The zipper structure integrates the curtain edges with flexible side guides.
If the curtain is impacted by a forklift or vehicle, it can disengage safely and automatically reinsert itself during the next opening cycle, without manual intervention.
This system significantly reduces repair time and ensures continuous operation.
Self repairing curtain system
High opening and closing speed
Excellent wind resistance for internal use
Flexible and durable PVC curtain
Designed for frequent forklift traffic
| Curtain Material | High-strength PVC / Optional reinforced PVC |
| Track System | Zipper-guided self-repairing track |
| Opening Speed | 1.0–1.5 m/s (customizable) |
| Closing Speed | 0.6–1.0 m/s |
| Motor Type | Servo motor / High-performance drive motor |
| Control System | Smart control panel with VFD |
| Power Supply | 220V / 380V, 50/60Hz |
| Safety Device | Light curtain / Bottom soft edge / Emergency stop |
| Wind Resistance | Level 3–5 (depends on size) |
| Seal Performance | Continuous zipper sealing on both sides |
| Vision Windows | Optional transparent panels |
| Frame Material | Galvanized steel / Powder-coated steel / Aluminum |
| Color Options | Yellow / Blue / Grey / Custom |
| Max Door Size | Customizable based on application |
| Installation Method | Surface-mounted / In-wall installation |
| Application Area | Workshop / Warehouse / Clean room / Logistics |
| Maintenance | Low-maintenance, auto-reset after collision |
| Operating Temperature | –10°C to +50°C (customizable) |
Logistics and distribution centers
Warehouses with forklift traffic
Internal factory passages
High-frequency material flow areas
Photoelectric sensors
Bottom safety edge
Emergency stop button
Radar sensor or pull cord activation
Automatic stop and reverse function

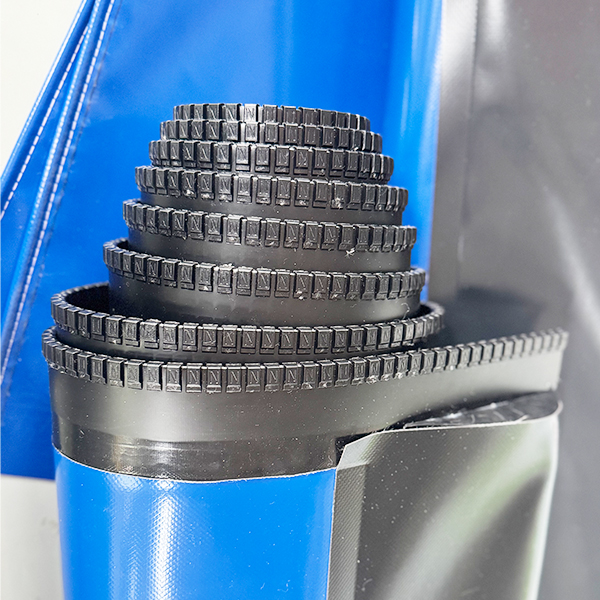

Zipper Features

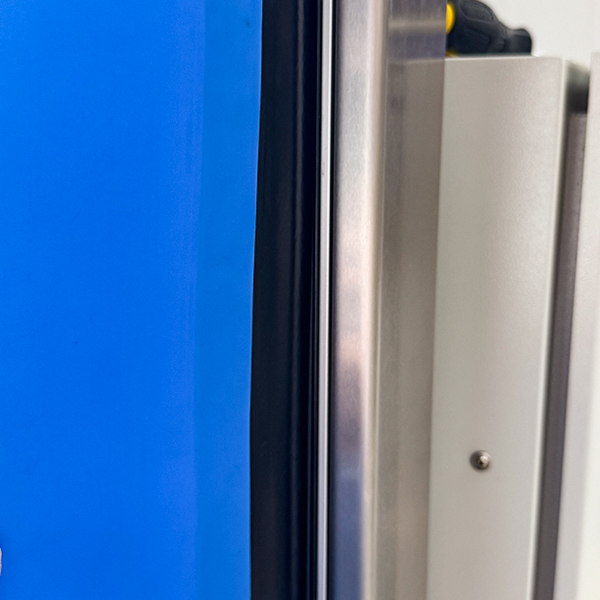

304 Stainless Steel Side Tracks

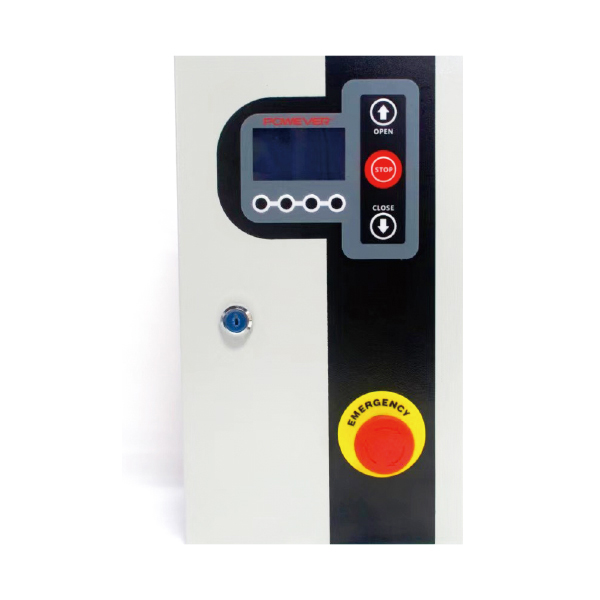

Control Box

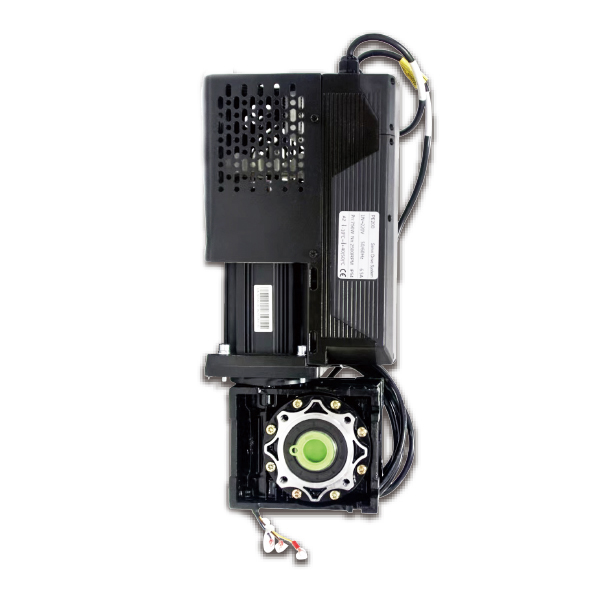

Motor

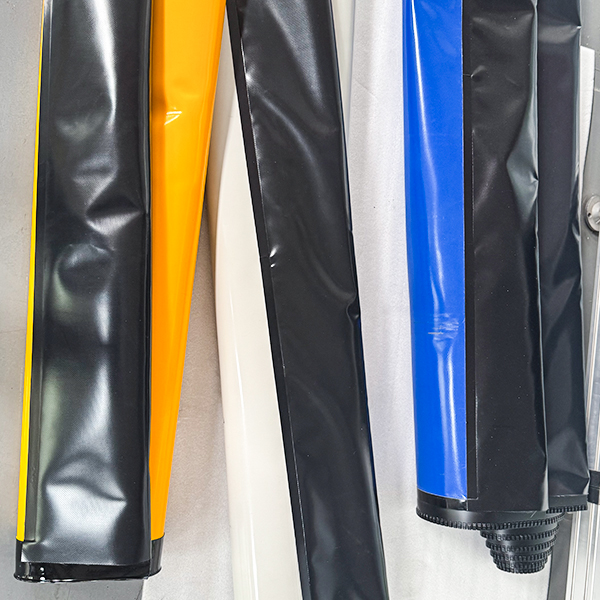

Soft Bottom Beam

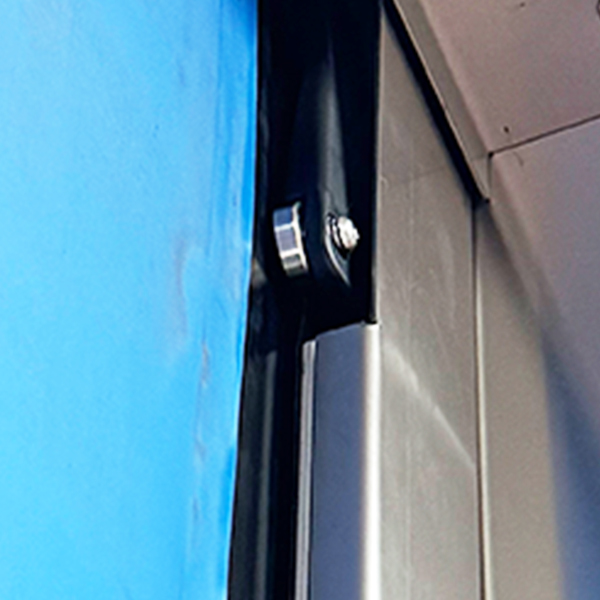

Self-Repair Funtion
Vision windows
Safety light curtain
UPS emergency power supply
Custom colors and curtain thickness
Zipper High Speed Door Drawing.pdf
A high speed zipper door is a self repairing industrial door designed for warehouses and high-traffic areas. The curtain can automatically reset after accidental impact.
They are commonly used in warehouses, logistics centers, workshops, clean rooms, and areas with frequent forklift traffic.
If the curtain is impacted, it automatically reinserts into the side tracks during the next opening cycle, reducing downtime.
Yes. They are designed for busy industrial environments with frequent daily operation.
Options include radar sensors, pull cords, push buttons, remote control, and induction loops.
Yes. Door size, curtain color, vision windows, and control options can be customized.
Yes. The self repairing system helps reduce downtime and maintenance costs after accidental impacts.
Yes. We support global shipping with export packaging and technical support.
