CRP-01
Everbesten
049
Chiller Room, Freezer Room, Processing Room and Cold Storage
Long-term cold room insulation use
Suitable for commercial and industrial cold rooms
Color steel / galvanized steel / stainless steel surface
Cam-lock connection for quick installation
50–200 mm
PU / PIR insulated sandwich panel
Not required
Not required
High thermal insulation and modular installation
Lightweight, moisture-resistant and easy to install
CE / ISO9001 / SGS
Custom size, thickness, surface finish and color available
Product Description

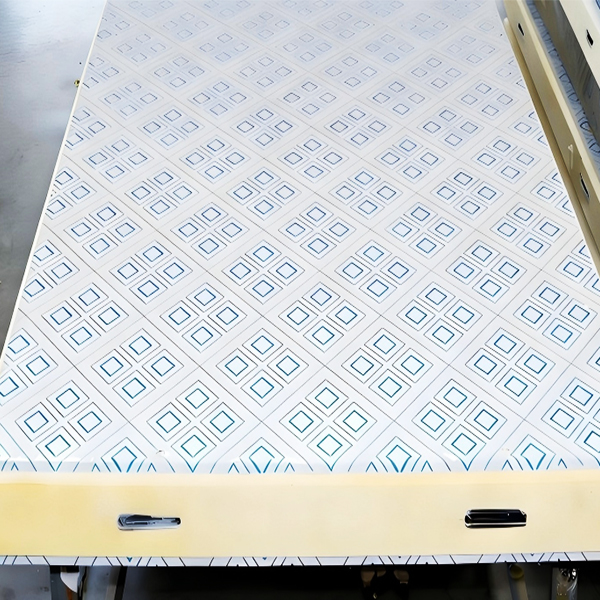

Cold Room Panels are insulated sandwich panels used to build cold rooms, freezer rooms and processing areas. Available with PU or PIR insulation cores, they provide reliable thermal insulation, durable surfaces and fast modular installation.
PU and PIR insulation cores help maintain stable room temperatures and reduce refrigeration energy loss.
Cam-lock PU panels connect quickly and can be assembled or dismantled with simple tools.
Choose color steel, stainless steel, galvanized steel or embossed aluminum according to hygiene, corrosion resistance and budget requirements.
Panel thicknesses from 50 mm to 200 mm are available for chillers, freezers and low-temperature cold rooms.
PU panels combine thermal insulation, lightweight construction and flexible installation. The cam-lock connection makes them suitable for small and medium cold-room projects.
PIR panels provide strong insulation performance and use a continuous connection structure. They are suitable for medium and large cold-storage projects.
Item | PU Panel | PIR Panel |
|---|---|---|
Core Material | Polyurethane | Polyisocyanurate |
Panel Thickness | 50–200 mm | 50–200 mm |
Listed Density | 42 kg/m³ | 42 kg/m³ |
Connection | Cam Lock | Continuous |
Recommended Use | Small and medium projects | Medium and large projects |

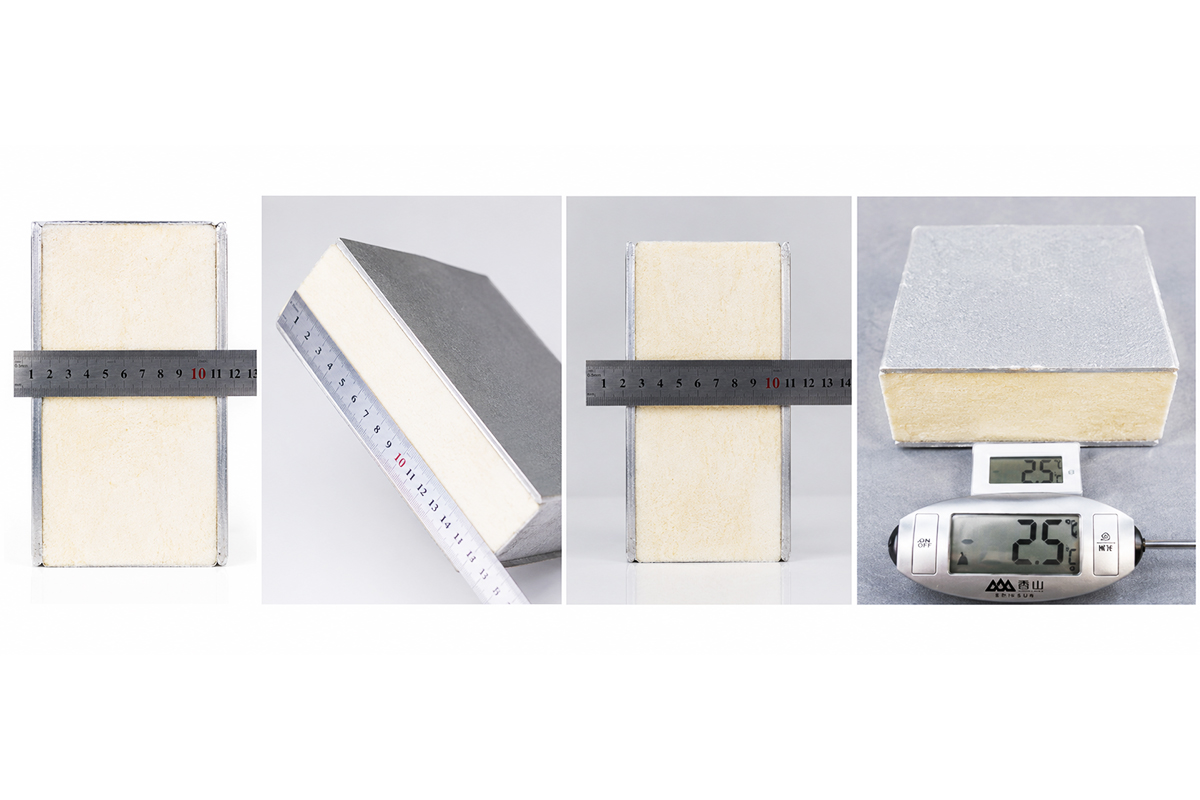

Each panel consists of an insulated core bonded between two protective metal surfaces.
Embedded cam locks pull adjacent PU panels together, creating a firm and convenient modular connection.
The closed-cell insulation core helps reduce moisture absorption in cold and humid environments.
The insulated sandwich structure provides thermal performance without requiring heavy building materials.
Panel thickness should be selected according to room temperature, ambient temperature and project conditions.
Panel Thickness | Supplier-Listed Application Temperature |
|---|---|
75 mm | -5°C to +25°C |
100 mm | -15°C to +25°C |
150 mm | -25°C to +25°C |
180 mm | -35°C to +25°C |
200 mm | -50°C to +25°C |
Final thickness must be confirmed according to the cold-room design and local operating conditions.

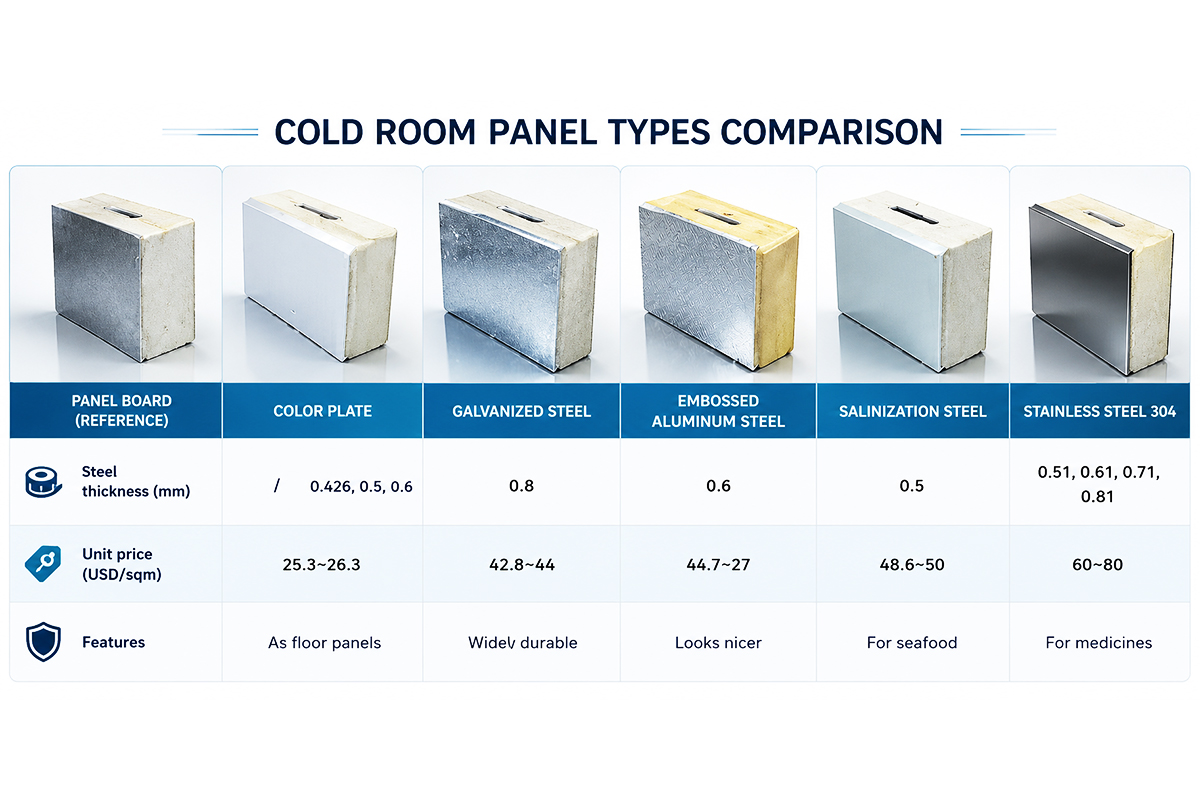

A practical and economical surface for standard cold-storage projects.
Suitable for food-processing and hygienic environments requiring easy cleaning and corrosion resistance.
Provides a durable protective surface for general cold-room applications.
A lightweight, corrosion-resistant option for humid cold-storage environments.
Reliable thermal insulation
Fast modular installation
Multiple surface materials
Lightweight construction
Good moisture resistance
Custom panel thickness
Easy expansion and replacement
For vegetables, fruits, beverages, dairy products and other chilled goods.
For frozen meat, seafood and long-term low-temperature storage.
For temperature-controlled production, preparation and packaging areas.
For modular cold-storage and logistics projects of different sizes.

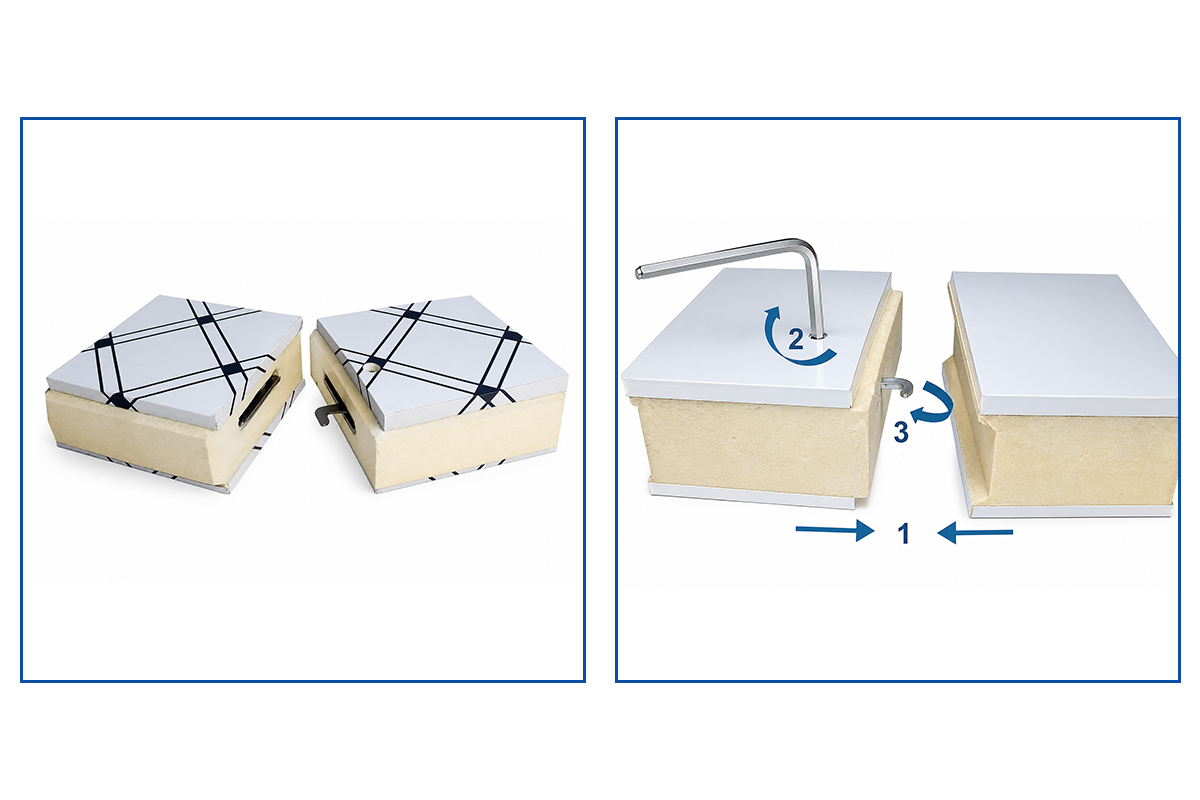

Align two adjacent panels.
Insert the Allen key into the cam-lock opening.
Turn the key clockwise to tighten the connection.
Seal the joint according to the installation requirements.
Item | Specification |
|---|---|
Product Type | Insulated cold room sandwich panel |
Insulation Core | PU or PIR |
Panel Thickness | 50–200 mm |
Listed Density | 42 kg/m³ |
Surface Material | Color steel, stainless steel, galvanized steel or embossed aluminum |
PU Connection | Cam Lock |
PIR Connection | Continuous |
Application | Chiller, freezer, processing room and cold storage |
PU or PIR insulation core
Panel thickness
Metal surface material
Inner and outer surface combination
Panel dimensions
Joint and installation configuration

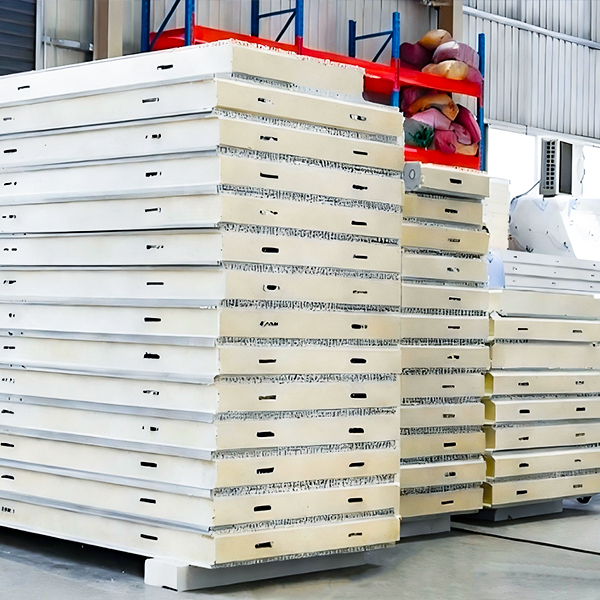

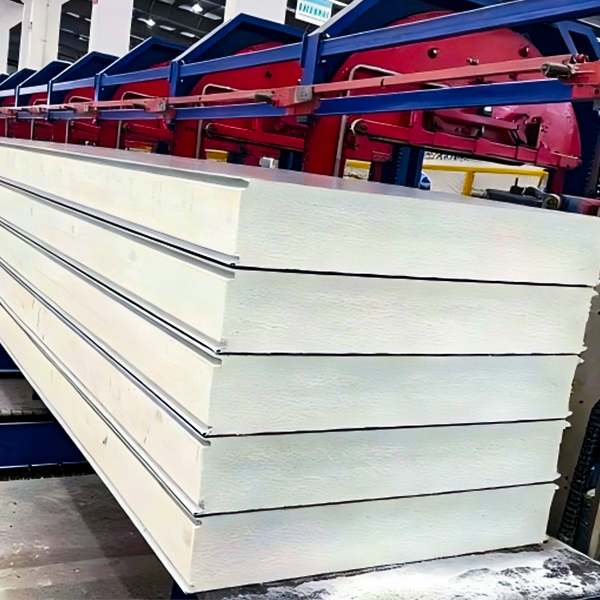

Cold-room panels are manufactured using dedicated insulated-panel production lines.
Panel core, thickness and surface material can be selected according to room temperature and application.
Panel dimensions, surface condition, density and connection components are checked before delivery.

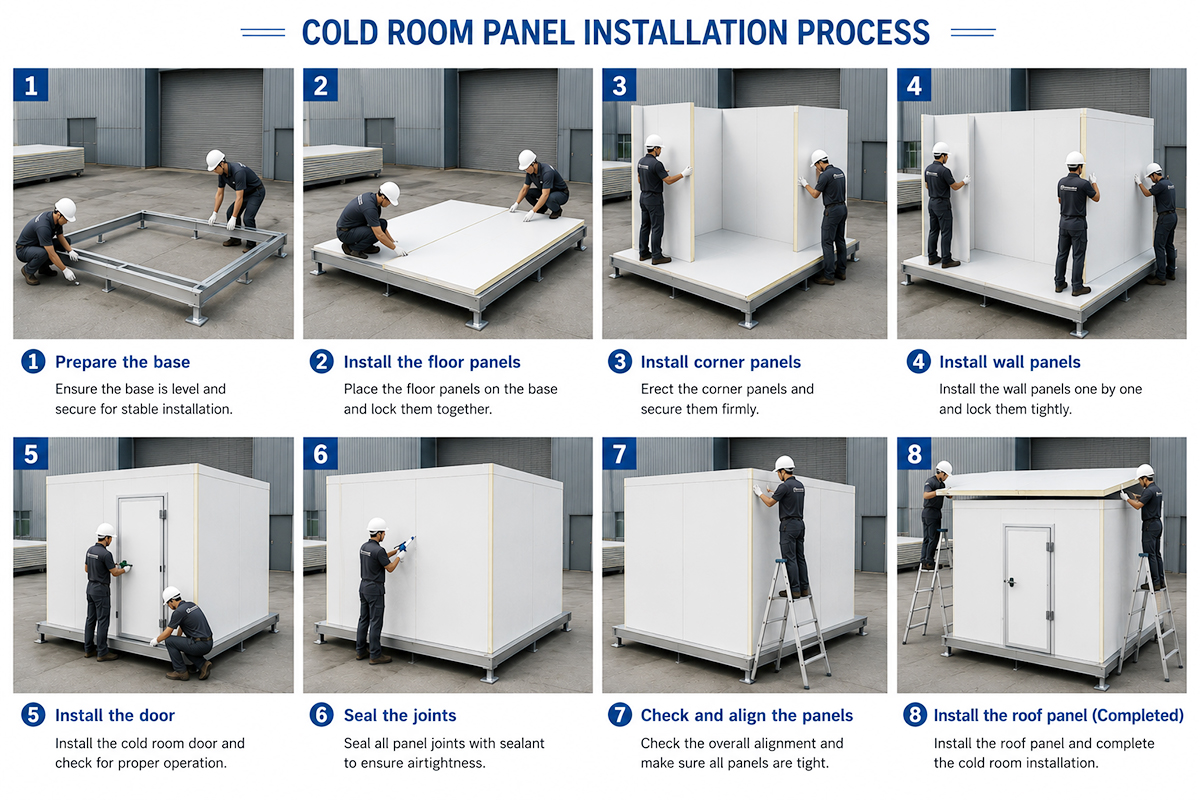

Panel selection, installation drawings and cold-room assembly guidance are available.
Contact Us
PU panels offer flexible cam-lock installation. PIR panels are commonly selected for larger projects requiring continuous panel construction.
The correct thickness depends on room temperature, ambient conditions and cold-room size.
Yes. Stainless steel is suitable for hygienic and moisture-sensitive environments.
Yes. The inner and outer surfaces can be selected separately according to application and budget.
PU panels use cam-lock connections that allow fast modular assembly.
Provide the room dimensions, operating temperature, panel thickness, surface materials and project location.
