VD-01
EVERBESTEN
012
Cold Storage, Food Warehouse and Logistics Center
8-15 Ton/Dynamic Capacity
Q235 6-8 MM Thickness Anti-Slip Steel Plate
Q235 12-15 MM Thickness Anti-Slip Steel Plate
Unqiue Dock Leveler Control System/One Key Push Button
380V/3 Phase/60Hz
Vertical Storing, Dock Door Sealing Improvement
Better Insulation, Easy Pit Cleaning
CE / ISO9001 / SGS
Customized Size and Color
Product Description

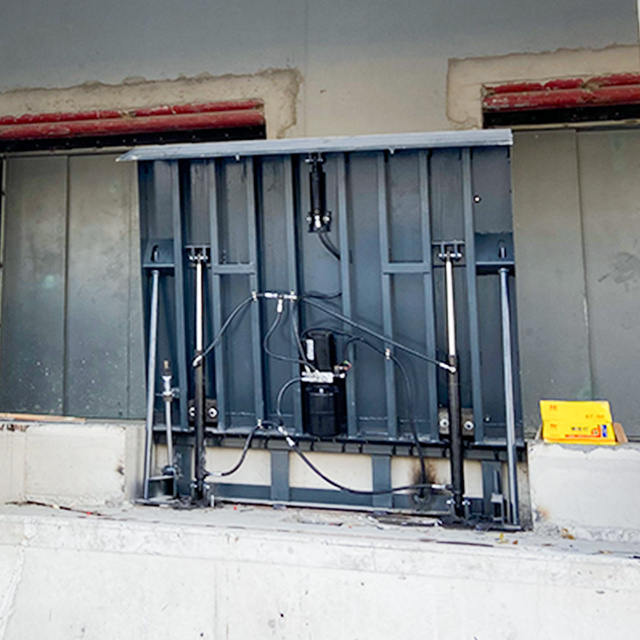

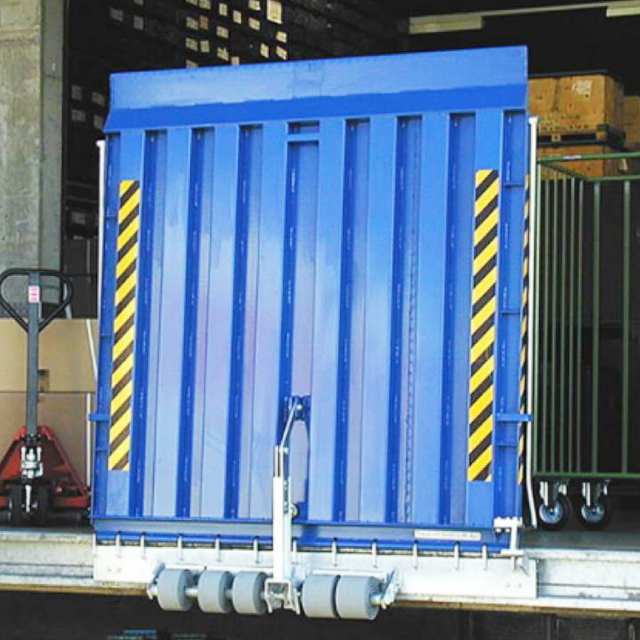

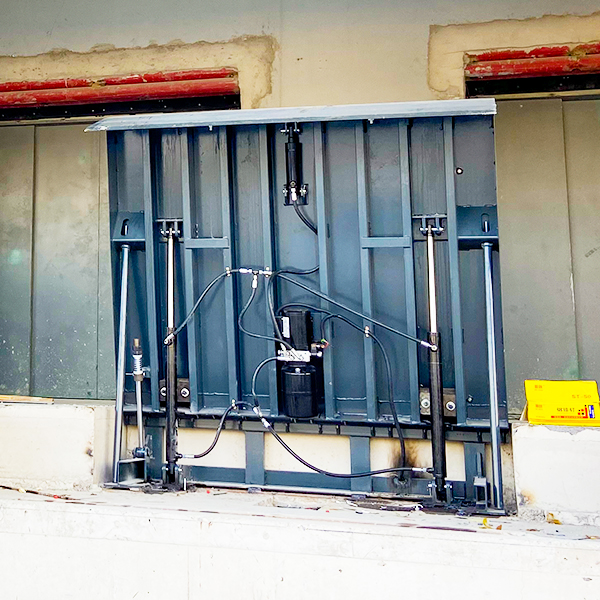

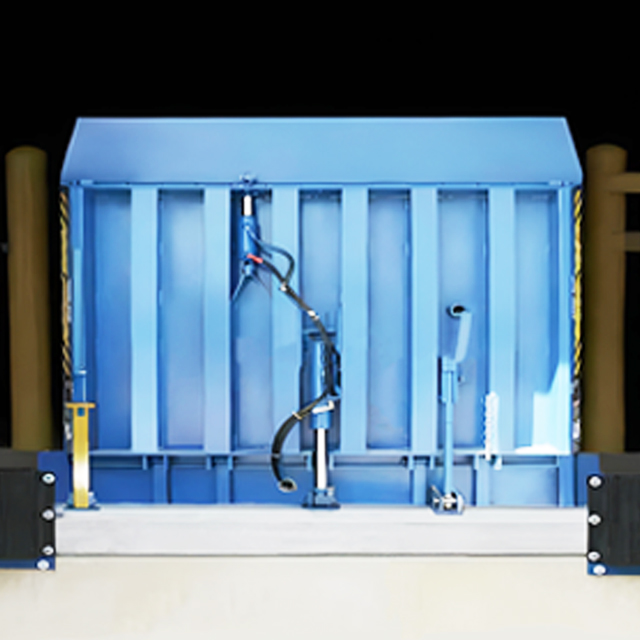

The EVERBESTEN vertical dock leveler stores upright inside the building when not in use.
This design allows the dock door to close to the pit floor, helping reduce air exchange, debris entry and temperature loss. It is ideal for cold storage, food warehouses and temperature-controlled loading docks.

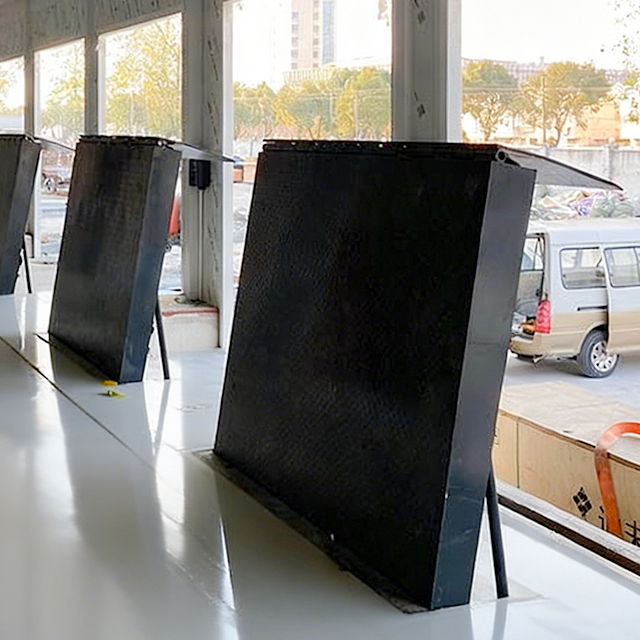

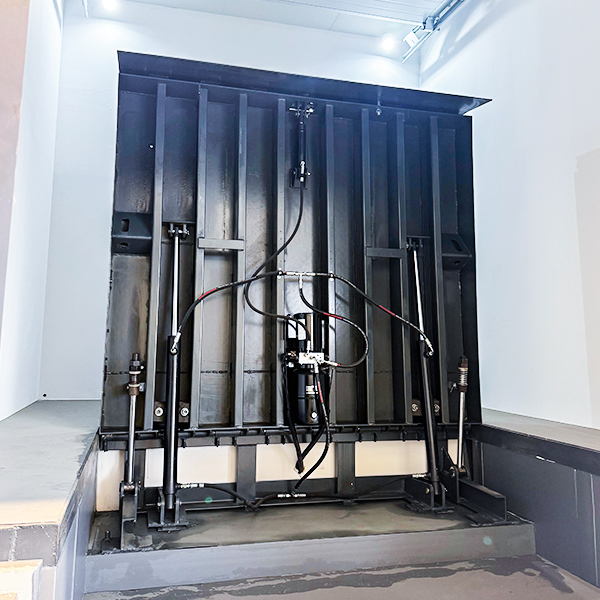

When the loading dock is inactive, the platform remains upright and the dock door closes to the floor.
During loading, the truck is positioned at the dock, the door opens and the hydraulic system lowers the platform. The lip then rests on the truck bed to create a stable passage for forklifts.
After loading, the platform returns to its vertical position and the dock door closes.
Vertical dock levelers provide:
Better sealing performance
Cleaner loading dock areas
Improved energy efficiency
Better compatibility with cold storage facilities
Vertical dock levelers are selected where hygiene, safety, and energy efficiency are critical. Keeping the platform upright allows dock doors to close completely, improving environmental control and security.
They are especially suitable for food processing, cold storage, and high-security loading docks.

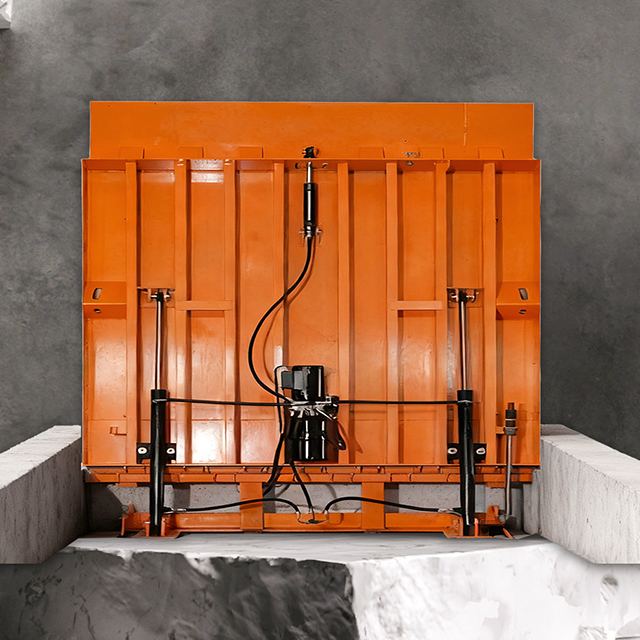

The upright storage position keeps the dock pit accessible and allows the door to close behind the leveler.
The hydraulic power system provides controlled lifting and lowering through push-button operation.
The main deck uses a 6–8 mm Q235 anti-slip steel plate for stable forklift movement.
The 12–15 mm Q235 steel lip provides a strong connection between the dock and truck bed.
When combined with an insulated dock door and dock shelter, the vertical design helps reduce outside air, dust and debris entering the facility.
Technical Specifications
| Structure | Heavy-duty reinforced frame |
| Rated Capacity | 8–20 tons (customizable) |
| Platform Size | Standard 2000×2500 mm (customizable) |
| Platform Material | High-strength anti-slip steel plate |
| Lip Length | 400 mm (customizable) |
| Working Range | Pit-mounted with vertical storage design |
| Power Unit | Hydraulic power pack with single or double cylinder |
| Material | High-strength steel, anti-slip surface |
| Voltage | 380V / 220V (customizable) |
| Control System | Push-button control |
| Storage Position | Fully vertical, door closes to the floor |
| Hydraulic System | Smooth lifting, low-maintenance design |
| Finish | Powder coated, color customizable |
| Operation | Smooth hydraulic lifting and lowering |
| Options | Lip size, platform size, voltage, color, and logo all customizable |
Applications of Vertical Dock Levelers
Vertical dock levelers are commonly used in:
Food and beverage facilities & Food Processing Warehouses
Pharmaceutical Logistics Centers
Temperature-Controlled Warehouses
Clean Industrial Facilities
Energy-Efficient Loading Docks
Vertical dock levelers are typically hydraulically operated and controlled via a dock control box. Safety features may include emergency stop functions, safety valves, and controlled platform movement.
The vertical position also helps reduce accidental forklift entry when the dock is not active.

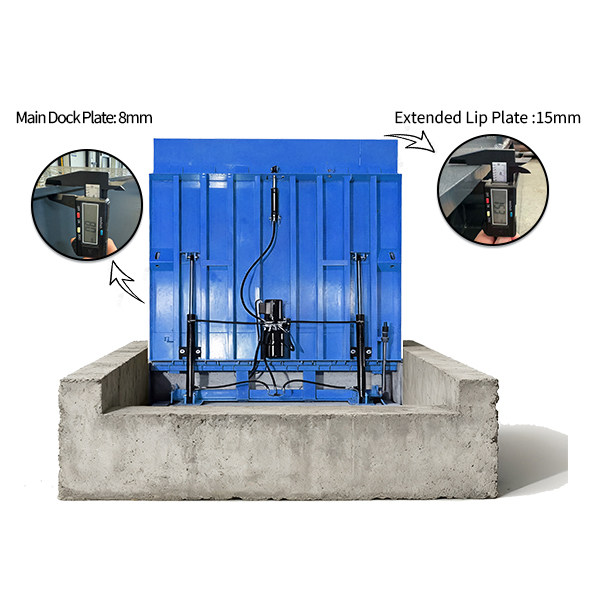

Main Stable Structure

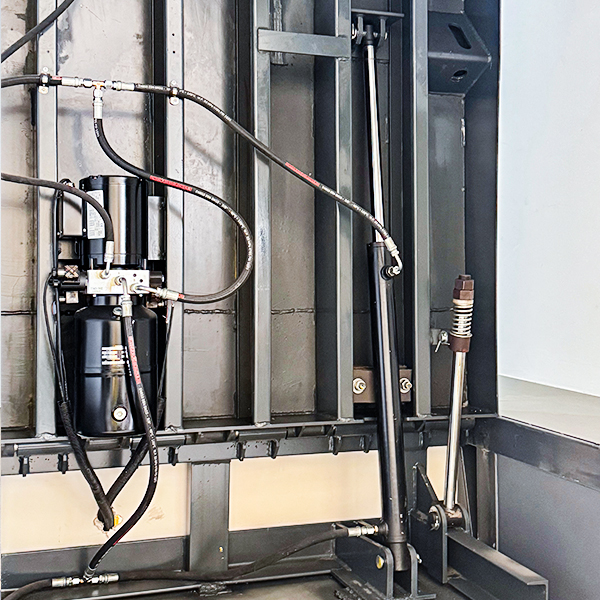

Head Hydraulic Spare Part

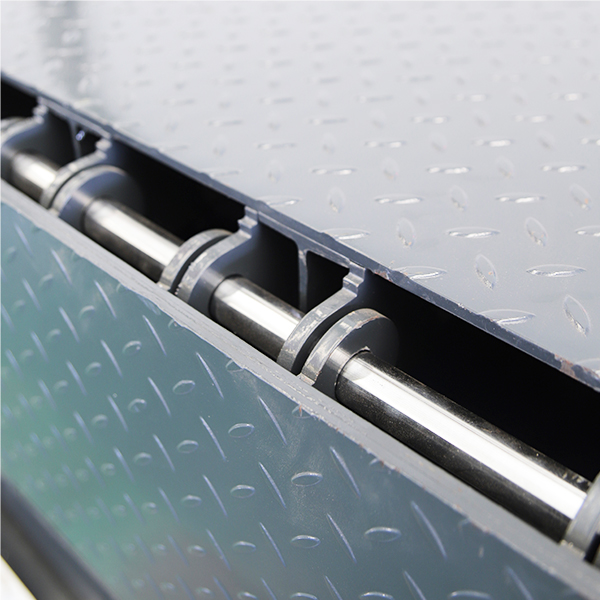

Opening Hinge

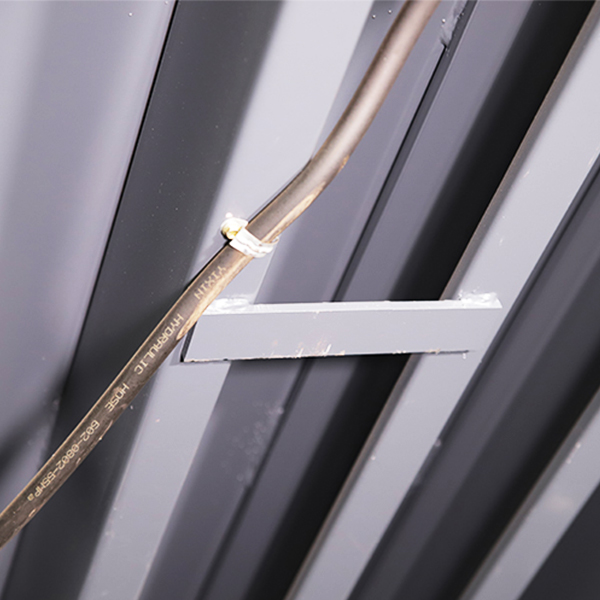

I-beam

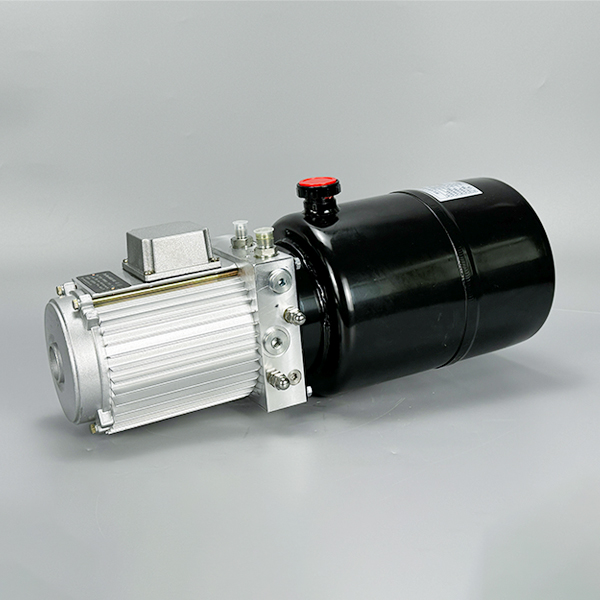

Motor

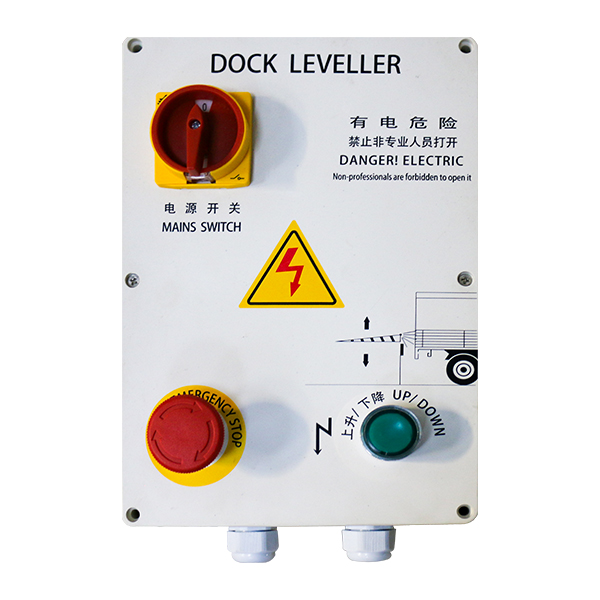

Control Box
| Feature | Vertical Dock Leveler | Standard Dock Leveler |
|---|---|---|
| Storage Position | Upright | Horizontal in the pit |
| Dock Door Position | Closes to the pit floor | Usually closes in front of the platform |
| Sealing Performance | Better | Standard |
| Pit Cleaning | Easier access | More limited access |
| Environmental Control | Better suited to controlled areas | General warehouse use |
| Recommended Application | Cold storage and clean facilities | Standard loading docks |
The vertical dock leveler can be combined with:
Insulated sectional doors
High-speed doors
Dock shelters or dock seals
Vehicle restraints
Dock bumpers
Loading dock lights
A complete configuration helps improve dock sealing, loading control and cold-chain operation
EVERBESTEN provides project-based loading dock solutions for cold storage and industrial facilities.
Product selection based on dock layout
Customized platform and lip dimensions
Matching support for doors and dock shelters
Reinforced steel fabrication
Factory inspection before delivery
Installation drawings and technical documents
Export packaging and international project support
Vertical dock levelers can be customized based on dock pit size, load capacity, platform dimensions, and operating conditions. Custom configurations ensure compatibility with different dock layouts.
Vertical Dock Leveler Drawing.pdf
For project-based pricing or technical specifications, you can request a customized vertical dock leveler solution. Providing dock layout and vehicle information helps ensure correct configuration.
It is a hydraulic loading platform that stores upright inside the building when not in use.
The vertical position allows the dock door to close to the floor, helping reduce cold-air loss and outside air infiltration.
A standard leveler remains horizontal in the pit. A vertical model stores upright for better door sealing and pit access.
The confirmed dynamic capacity is 8–15 tons. Final selection depends on the forklift, cargo and operating conditions.
Yes. It can be combined with dock shelters, dock seals and insulated doors for a more complete loading dock seal.
Yes. The improved sealing and accessible pit support cleaner loading environments.
Regularly inspect the hydraulic system, cylinders, hoses, hinges, control system, platform and lip structure.
Please provide the pit dimensions, dock height, door size, truck height range, rated load, voltage and required operating sequence.
Yes. We support global shipping with export packaging and technical support.
