ED-045
EVERBESTEN
Small Loading Docks and Limited-Space Facilities
Moderate Daily Use
3–6 Ton Dynamic Capacity
6–8 mm Q235 Anti-Slip Steel Plate
12–15 mm Q235 Anti-Slip Steel Plate
Manual or Hydraulic Operation
380V / 3 Phase / 60Hz for Hydraulic Model
Compact Dock-Face Installation
No Recessed Dock Pit Required
CE / ISO9001 / SGS
Customized size available
| Availability: | |
|---|---|
Product Description
The EVERBESTEN edge of dock leveler mounts directly to the loading dock face, eliminating the need for a recessed dock pit.
Its compact design makes it suitable for existing warehouses, renovation projects and loading areas with limited installation space.
The hinged lip extends from the dock edge onto the truck bed, creating a passage for forklifts and pallet trucks.

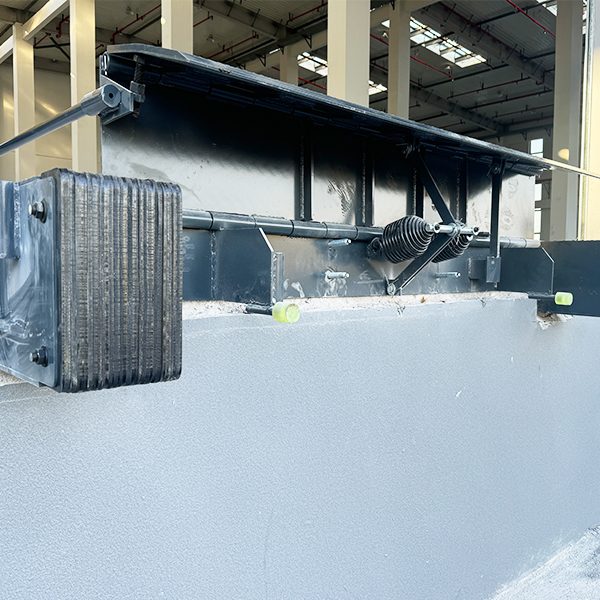

The operator uses a steel handle to raise the platform and position the lip. No electrical power is required.

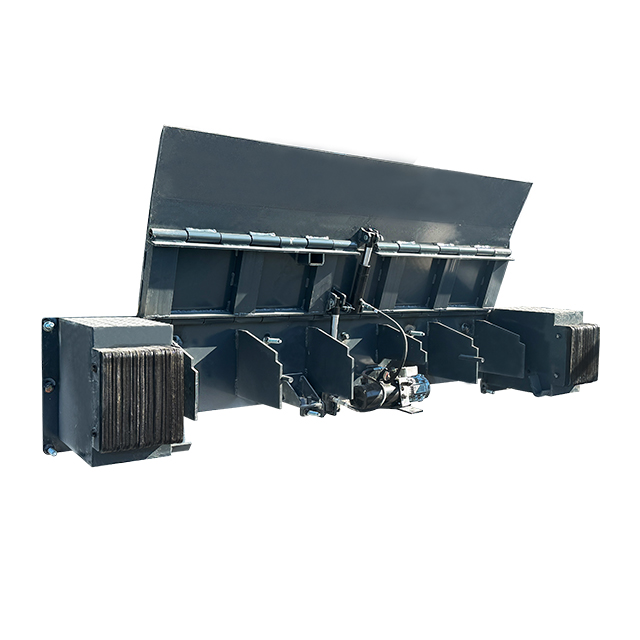

The hydraulic model uses push-button control to raise the platform and extend the lip. It is suitable for facilities requiring easier powered operation.
Why Choose Edge-of-Dock Levelers
Edge-of-dock levelers provide an affordable alternative to traditional pit-style dock levelers.
They help improve loading efficiency without requiring major construction work.
Unlike pit-mounted dock levelers, edge-of-dock levelers can be installed directly onto the dock face.
This makes them ideal for retrofit projects and existing warehouses.
Edge-of-dock levelers work well in facilities with lighter loading requirements and moderate daily traffic.
Their compact structure helps maximize loading dock space while maintaining stable truck access.
Edge-of-dock levelers provide several operational benefits:
No recessed dock pit required
Direct dock-face installation
Manual or hydraulic operation
3–6 ton dynamic capacity
Compact and space-saving design
Suitable for existing dock upgrades
Customized platform dimensions
These advantages make edge-of-dock levelers a popular choice for smaller loading docks and flexible operations.

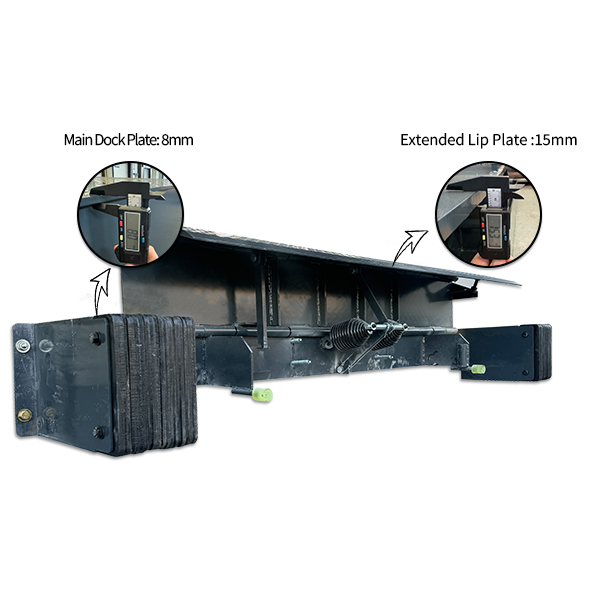

Main Stable Structure

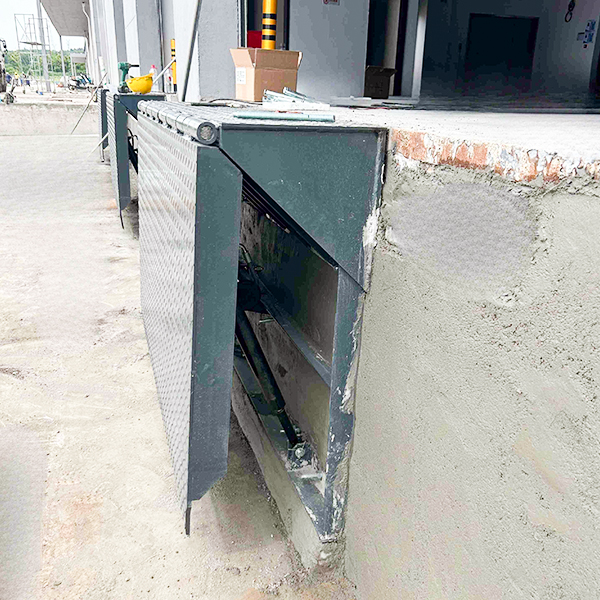

Extra Lip Edge Of Dock Leveler

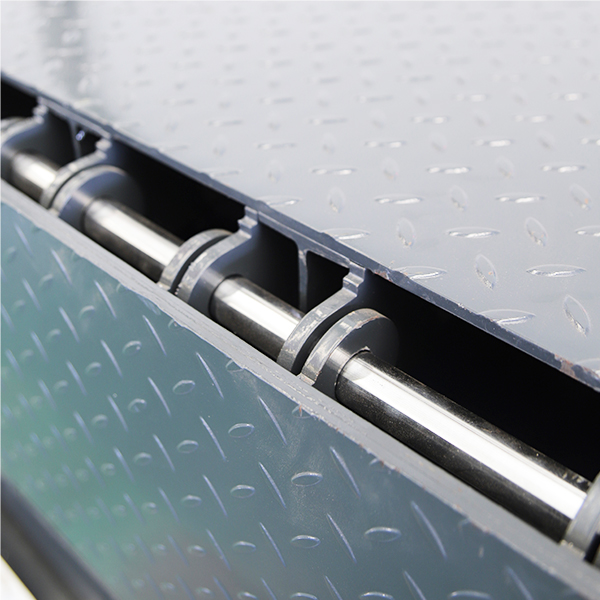

Opening Hinge

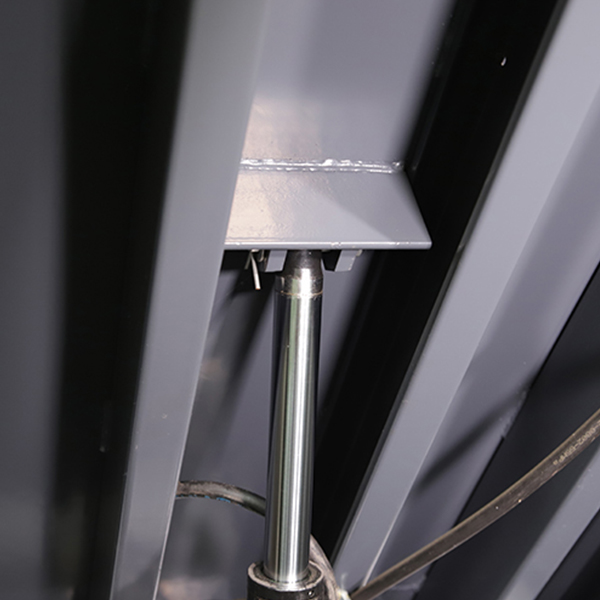

Head Hydraulic Cylindar

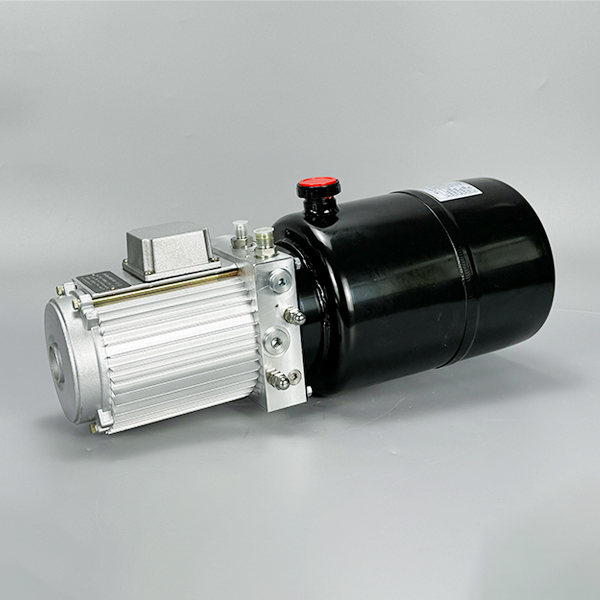

Motor
Control Box
The primary difference between edge-of-dock levelers and pit-mounted dock levelers lies in installation and load capacity.
Pit-mounted dock levelers, such as hydraulic or mechanical types, are designed for heavier loads and higher traffic frequency. Edge-of-dock levelers are better suited for lighter loads and moderate usage where a recessed pit is not feasible.
Choosing the right solution depends on loading frequency, load weight, and dock structure.

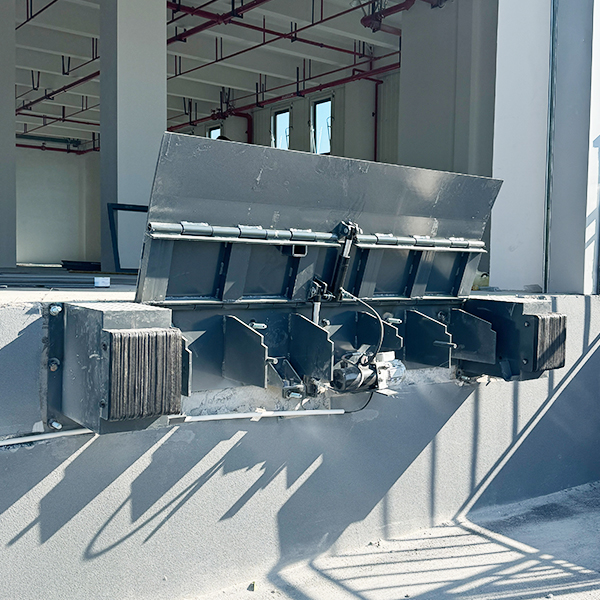

Edge-of-Dock Leveler

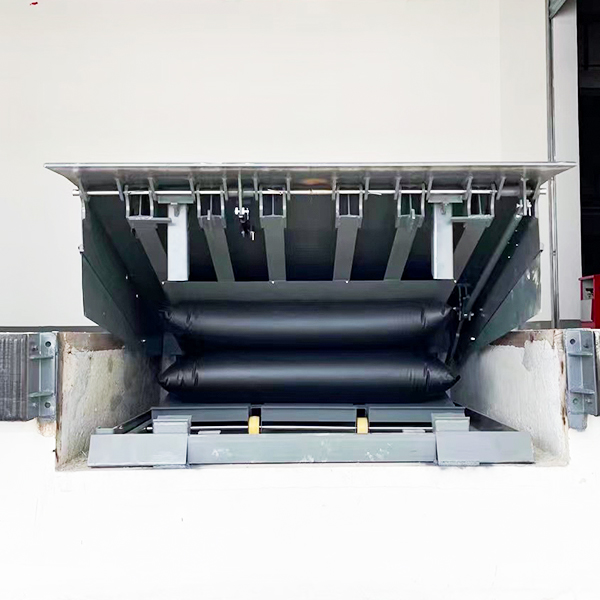

Pit-Mounted Dock Leveler Edge-of-dock levelers are commonly used in:
Warehouses without recessed dock pits
Retrofit or renovation projects
Small distribution centers
Facilities with light to moderate loading requirements
Temporary or flexible loading dock setups
These environments benefit from the simplicity and adaptability of edge-of-dock leveling systems.
Edge-of-dock levelers are available in different load capacities to match various forklift and pallet truck requirements. The dock height and truck bed range should be carefully evaluated to ensure proper compatibility.
Because the leveler is mounted on the dock edge, accurate measurement is essential for safe and effective operation.
| Item | Specification |
|---|---|
| Model | ED-045 |
| Dynamic Capacity | 3–6 Ton |
| Using Cycles | Moderate Daily Use |
| Main Plate | 6–8 mm Q235 Anti-Slip Steel |
| Lip Plate | 12–15 mm Q235 Anti-Slip Steel |
| Installation | Dock-Face Mounted |
| Operation | Manual or Hydraulic |
| Manual Model | Steel Handle Operation |
| Hydraulic Model | Push-Button Control |
| Hydraulic Power Supply | 380V / 3 Phase / 60Hz |
| Size | Customized |
Safety remains a critical consideration in edge-of-dock leveler design. Common safety features include:
Anti-slip platform surfaces
Lip safety locking mechanisms
Maintenance support devices
High-visibility markings
Anti- Slip Steel Plate
Close/Open Hinge
Hinge Details

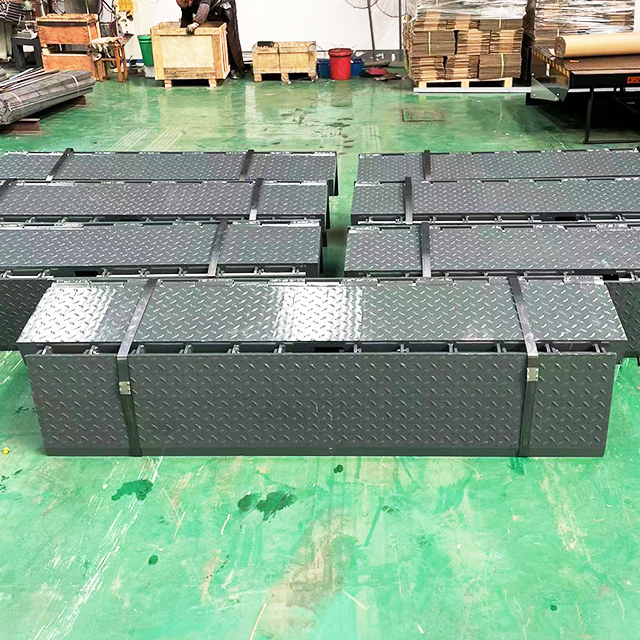

Assembling Spare Parts
| Feature | Edge of Dock Leveler | Pit-Mounted Dock Leveler |
|---|---|---|
| Installation | Mounted on dock face | Installed inside a dock pit |
| Recessed Pit | Not required | Required |
| Dynamic Capacity | 3–6 Ton | Higher capacities available |
| Height Adjustment | Limited | Wider range |
| Daily Usage | Moderate | Moderate to high frequency |
| Operation | Manual or hydraulic | Hydraulic, mechanical or air-powered |
| Best Application | Existing docks and limited space | Heavy-duty loading operations |
This model is suitable when:
A recessed dock pit is not available
The dock and truck bed heights are relatively close
Loading frequency is moderate
The required dynamic capacity is within 3–6 tons
Major construction work should be avoided
For large height differences, heavy loads or high-frequency operation, a pit-mounted hydraulic dock leveler is generally more suitable.
Edge-of-dock levelers can be customized to suit specific dock layouts and operational needs. Custom options may include platform width, lip length, load rating, and surface treatment.
Customization helps ensure compatibility with different truck types and dock configurations.
Edge of Dock Leveler Drawing.pdf
Installation of edge-of-dock levelers is typically faster than pit-mounted systems due to the absence of a dock pit. Regular maintenance includes inspection of hinges, lips, and mounting hardware.
With proper use and routine inspection, edge-of-dock levelers provide reliable performance in light to moderate loading applications.
EVERBESTEN provides project-based loading dock equipment and configuration support.
Selection based on dock and truck height
Manual and hydraulic operating options
Customized platform and lip dimensions
Reinforced steel fabrication
Factory inspection before delivery
Installation drawings and technical documents
Matching dock bumpers, shelters and industrial doors
Export packaging and international project support
For detailed specifications or project-based pricing, you can request technical documentation or a customized quotation. Providing information about dock height, load requirements, and operating frequency helps ensure the correct edge-of-dock leveler configuration.
It is a compact loading platform mounted directly to the dock face rather than inside a recessed pit.
No recessed dock pit is required. However, the dock face and mounting structure must be evaluated before installation.
The confirmed dynamic capacity is 3–6 tons.
Yes. The manual model uses a steel handle, while the hydraulic model uses push-button control.
Yes. It is especially suitable for existing dock upgrades and renovation projects.
It is recommended for light- to moderate-duty loading. A pit-mounted leveler is more suitable for heavier loads and frequent operation.
Edge-mounted models have a limited adjustment range. The dock height and truck bed height must be confirmed before selection.
Please provide the dock height, dock-face structure, truck bed height range, required capacity, operating frequency and preferred operation type.
