H7200
EVERBESTEN
002
Safety Exterior/Outside Entrance Door & Industrial Building / Logistics Center
More than 300 Cycles Per Day
40-50 MM Thickness Panel/ Steel+ Polyeaster Foam
Aluminum alloy panels
Invertor and Servo System
220V/Single Phase/60Hz(Custom)
Stable& Reliable Routine Using
High Speed, Good Insulation, Strong Wind Resistance
ISO & CE / ISO
Customized Size and Color
Product Description

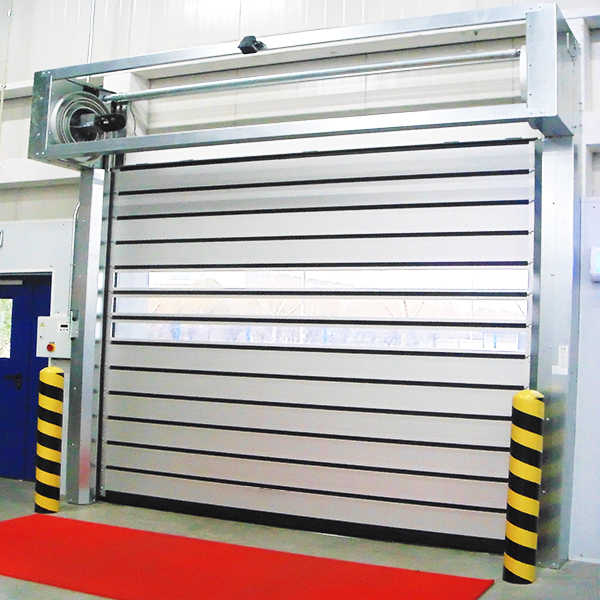

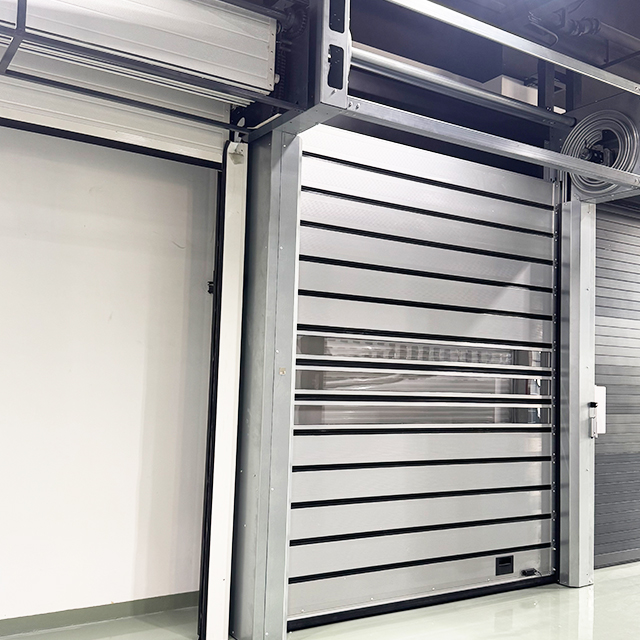

Spiral high speed doors are rigid high-performance industrial doors designed for fast operation, high durability, and long service life. Using aluminum panels and a spiral track system, these doors provide smooth, reliable performance without curtain wear, making themideal for demanding industrial and commercial environments.
spiral high speed door is a type of rigid high speed industrial door that uses aluminum panels guided by a spiral track system. Instead of rolling a flexible curtain, the door panels travel upward along a spiral path, preventing contact between panels and reducing mechanical wear.
This design allows the door to operate at high speed while maintaining structural stability. Because the panels do not rub against each other, spiral high speed doors offer quieter operation and longer service life compared to flexible roll-up doors.
The door is driven by an electric motor and controlled by an automatic control system. When activated, the door opens rapidly to allow traffic through and closes immediately to restore security and environmental separation.

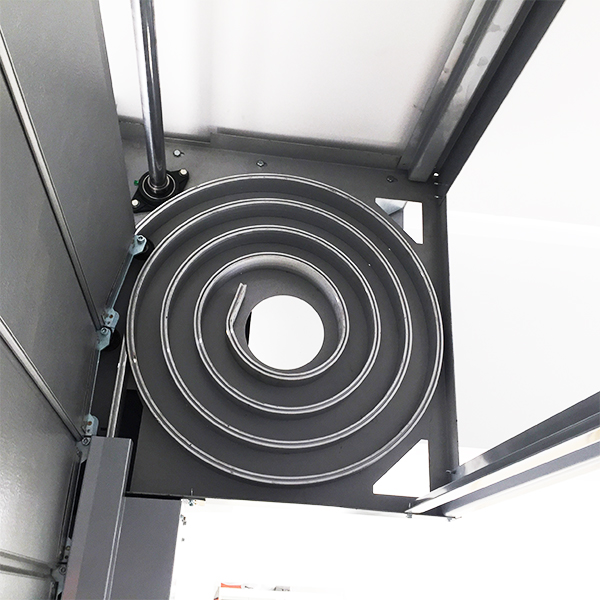

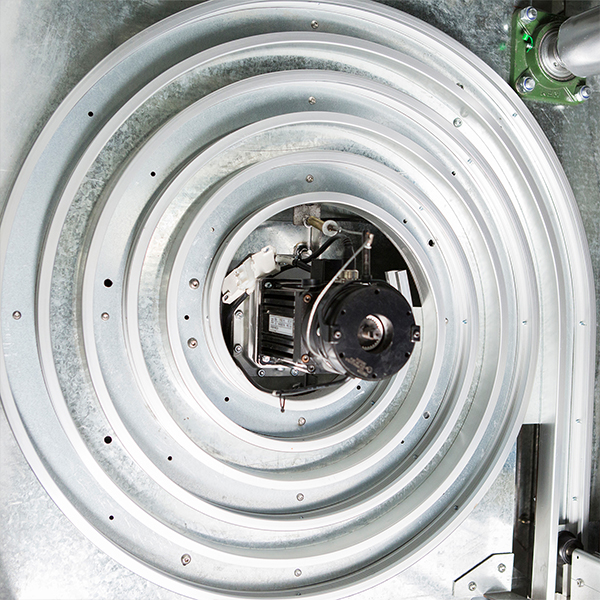

Spiral Track System
Spiral Track System

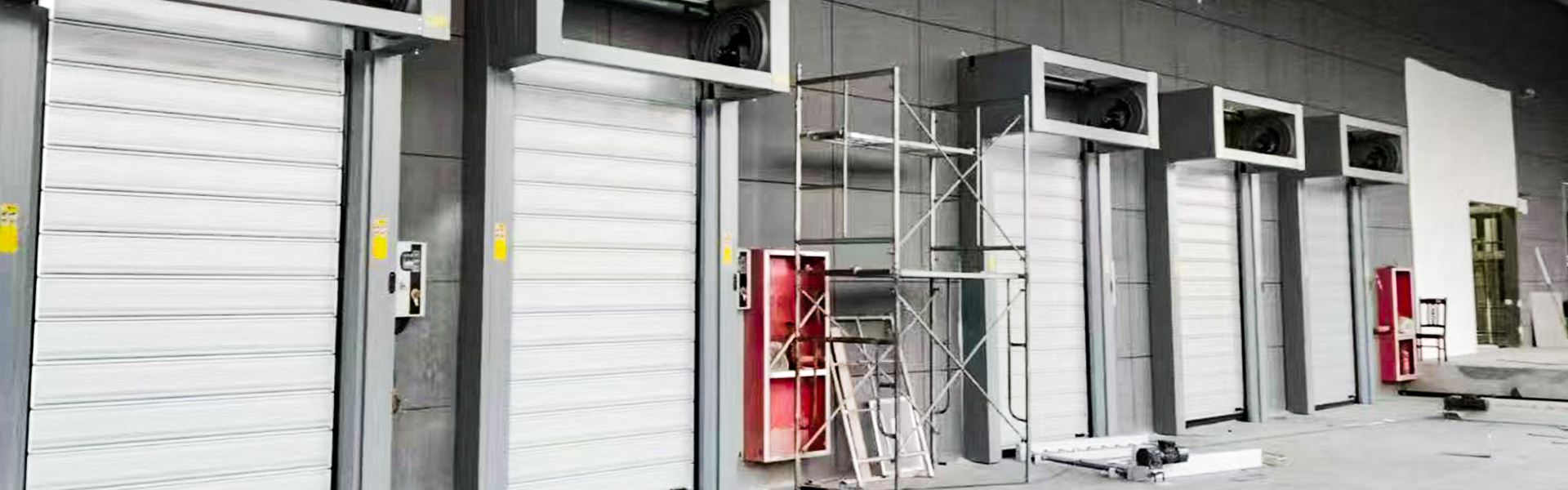

Spiral high speed doors are used in industrial facilities where durability, security, and high operational frequency are required. Their rigid aluminum construction makes them suitable for environments where flexible curtains may wear out quickly.

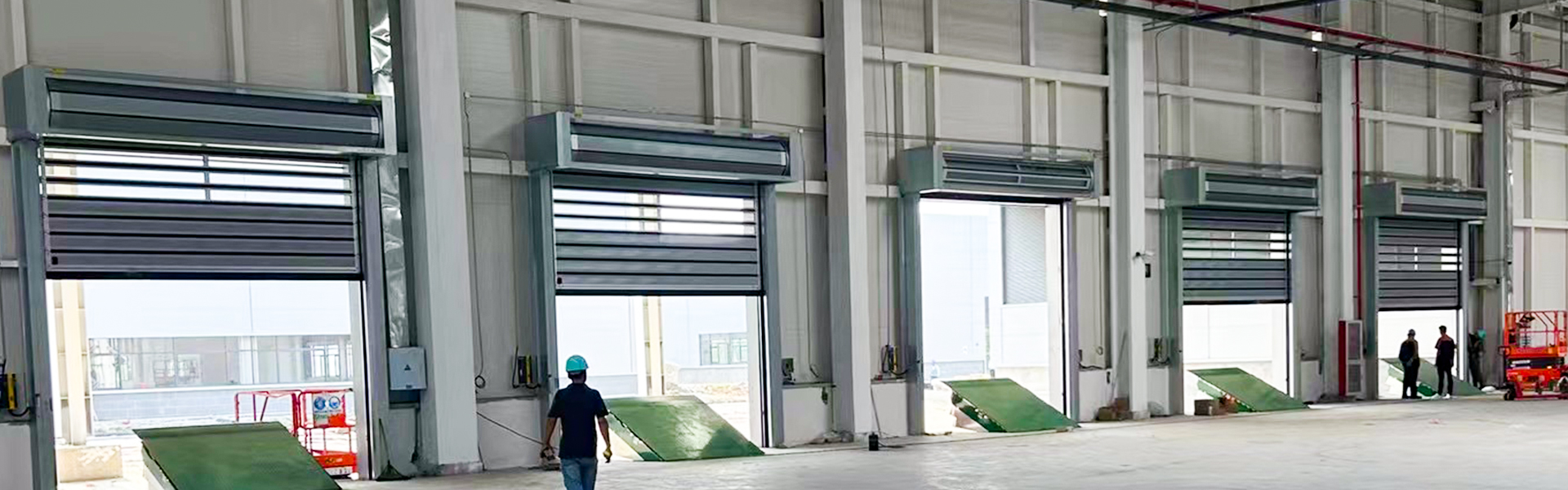

In logistics centers and manufacturing plants, spiral high speed doors support continuous traffic flow while maintaining stable operation. The rigid panels provide better resistance to wind pressure and impact compared to soft curtain doors.
Spiral high speed doors are also valued for their low maintenance requirements and consistent performance in high-cycle applications, making them a long-term solution for industrial access points.
Spiral high speed doors are commonly installed in industrial and commercial locations that require fast access combined with structural strength.
Typical applications include:
Warehouses and logistics centers
Manufacturing and production facilities
Distribution hubs and loading areas
Industrial garages and security-sensitive openings
Commercial buildings with high traffic flow
These doors are particularly suitable for environments where durability and appearance are equally important.
Spiral high speed doors are engineered to combine speed, strength, and reliability.
Key features include:
Rigid aluminum panel construction
Spiral track system preventing panel contact
Fast opening and closing speed
Smooth and quiet operation
Long service life with reduced maintenance
These features make spiral high speed doors ideal for intensive industrial use.

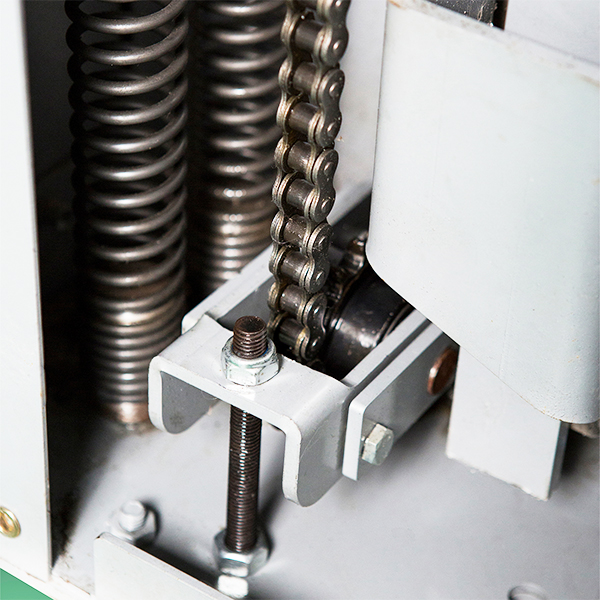

Spring Balance System
Servo Motor+ Reducer

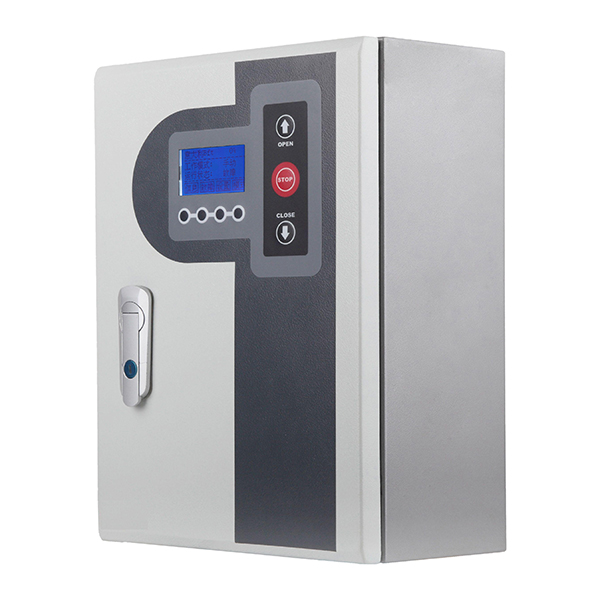

Unique Servo Control Panel
The core of a spiral high speed door is its aluminum panel structure and spiral guiding system. Panels are manufactured from aluminum alloy materials to provide strength, corrosion resistance, and lightweight operation.
As the door opens, the panels move along a spiral track, ensuring that each panel remains separated. This design minimizes friction, reduces noise, and prevents surface damage over time.
The rigid structure also improves wind resistance and operational stability, especially in large door openings.

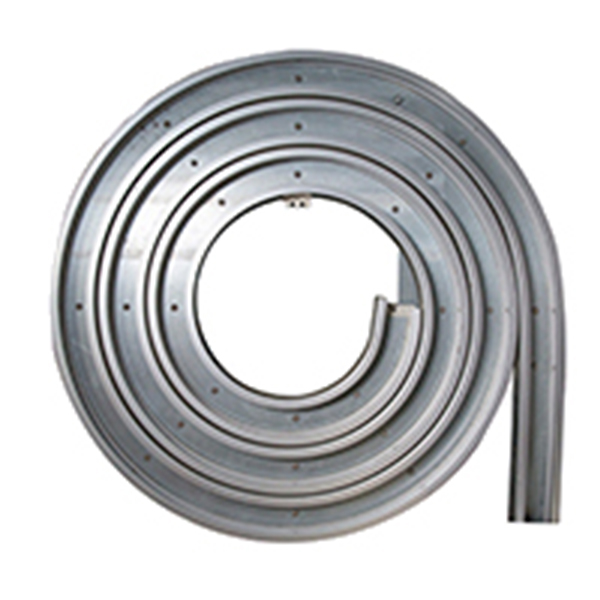

Spiral Guiding System

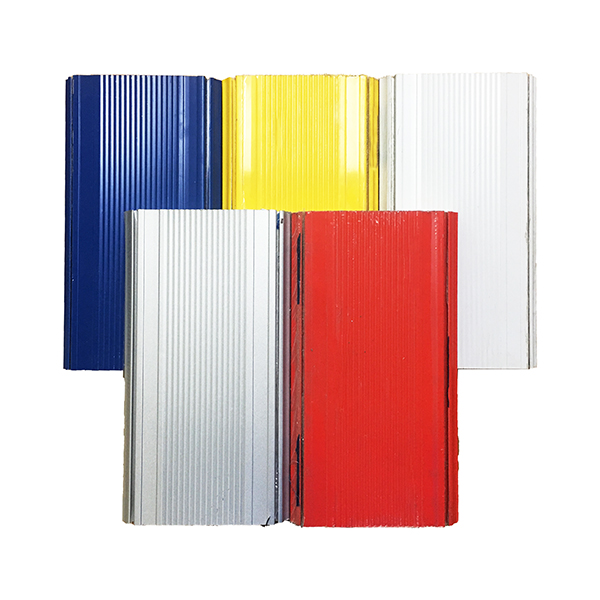

Aluminum Alloy Panel
Key technical specifications determine the performance of a spiral high speed door in industrial environments.
Important factors include opening speed, maximum door size, panel thickness, motor performance, and control system reliability. The spiral guiding system must support high cycle operation without deformation or excessive wear.
Environmental conditions such as wind load, temperature range, and installation location should be considered when selecting a spiral high speed door configuration.
| Product Name | High Speed Spiral Door |
| Opening Speed | 1.5-2.5M/S(based on door size) |
| Closing Speed | 0.8-1.2M/S(based on door size) |
| Max Size | 8000*8000 MM/ (customizable) |
| Door Panel | Rigid aluminum slats with thermal insulation |
| Track System | Spiral track, non-contact operation |
| Wind Resistance | Up to Class 10 (EN12424) |
| Power Supply | 220V / 60Hz / Single Phase (customizable) |
| Control System | Inverter control with soft start & stop |
| Operation Mode | Push button / Radar / Remote / Pull cord / Loop detector |
| Safety Devices | Photocell sensor, bottom safety edge, emergency release |
| Working Temperature | -25°C to +70°C |
| Protection Level | IP54 (control box) |
The main difference between spiral high speed doors and roll-up high speed doors lies in their structure and durability.
Roll-up high speed doors use flexible curtains and are suitable for internal, high-traffic environments. Spiral high speed doors use rigid aluminum panels, offering greater durability, improved security, and reduced maintenance.
For applications requiring long-term reliability, wind resistance, and a solid door structure, spiral high speed doors are often the preferred solution.

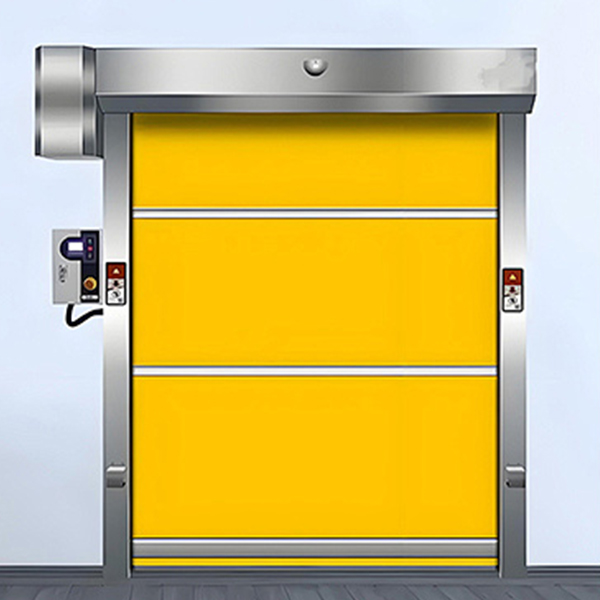

Roll-UP High Speed Door

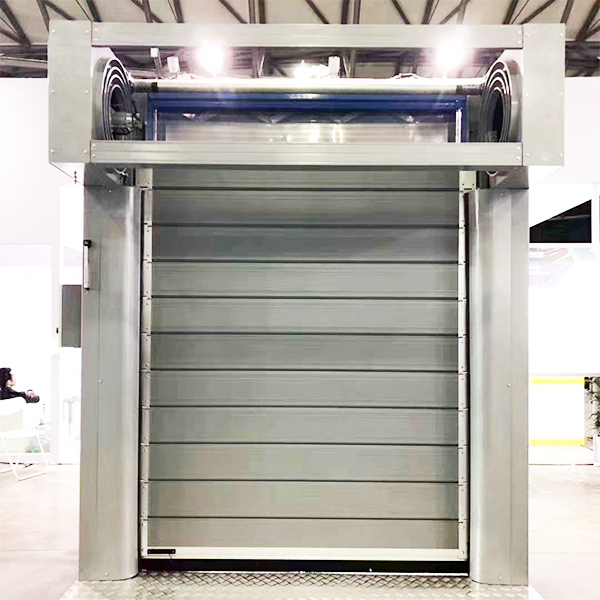

Spiral High Speed Door
The cost of a spiral high speed door depends on factors such as door size, aluminum panel specifications, operating speed, control system, and installation conditions.
Spiral high speed doors typically cost more than flexible roll-up doors due to their rigid construction and advanced guiding system. However, their long service life and reduced maintenance requirements often result in lower total cost of ownership.
Most manufacturers provide customized quotations based on project requirements.
Spiral high speed doors are commonly customized to meet specific industrial and architectural requirements.
Customization options may include door dimensions, panel finish, control systems, safety devices, and integration with access management systems. Special configurations are available for freezer environments and high-security applications.
Custom design ensures optimal performance in demanding operating conditions.
Spiral High Speed Door Drawing.pdf
Working with a professional spiral high speed door manufacturer ensures consistent quality and reliable performance.
Factory-based production supports OEM and ODM supply, customized engineering, and project-based manufacturing. Manufacturers typically offer wholesale supply and export services for international industrial projects.
Choosing a qualified manufacturing plant helps ensure stable lead times, quality control, and long-term technical support.
Proper installation is essential for the performance and longevity of spiral high speed doors.
Routine maintenance typically involves inspection of aluminum panels, spiral tracks, motor systems, and safety devices. Due to the rigid panel design, spiral high speed doors generally require less frequent maintenance than flexible curtain doors.
Manufacturers often provide installation guidance, technical documentation, and after-sales support throughout the product lifecycle.
For project-specific pricing or detailed technical information, you can request a customized quotation or download the product specifications.
Providing details such as opening size, operating environment, and usage frequency helps ensure the spiral high speed door configuration meets your requirements.
High Speed Spiral Door Catalogue.pdf
