Product Description

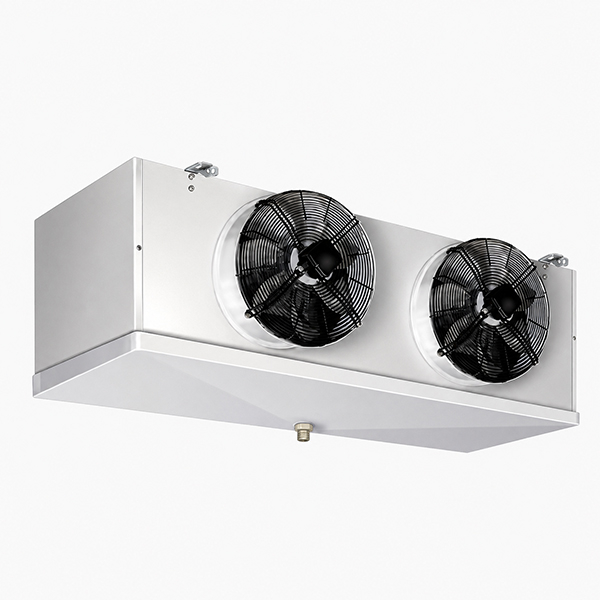

The Cold Room Evaporator circulates cooled air and removes heat from temperature-controlled rooms. DL, DD and DJ series are available for chiller rooms, freezer rooms and blast freezer rooms.
Designed for chiller rooms operating from -5°C to +5°C.
Designed for freezer rooms operating from -15°C to -25°C.
Designed for blast freezer rooms operating from -25°C to -40°C.
Series | Temperature | Fin Spacing | Application |
|---|---|---|---|
DL | -5°C to +5°C | 4.5 mm | Chiller Room |
DD | -15°C to -25°C | 6.0 mm | Freezer Room |
DJ | -25°C to -40°C | 9.0 mm | Blast Freezer Room |
DL, DD and DJ models cover chilled, frozen and quick-freezing applications.
Mechanically expanded tubes and aluminum fins provide firm contact for reliable heat transfer.
The plastic-coated steel cabinet protects internal components in humid cold-room environments.
Stainless steel electric heaters help remove frost and maintain airflow during low-temperature operation.
DL, DD and DJ series
Cooling capacity from 1 kW to 100 kW
Aluminum fins
Mechanically expanded tubes
Plastic-coated steel cabinet
Stainless steel defrost heaters
Double drain trays
Optional long-distance air throw
R22, R404A and R507A compatibility

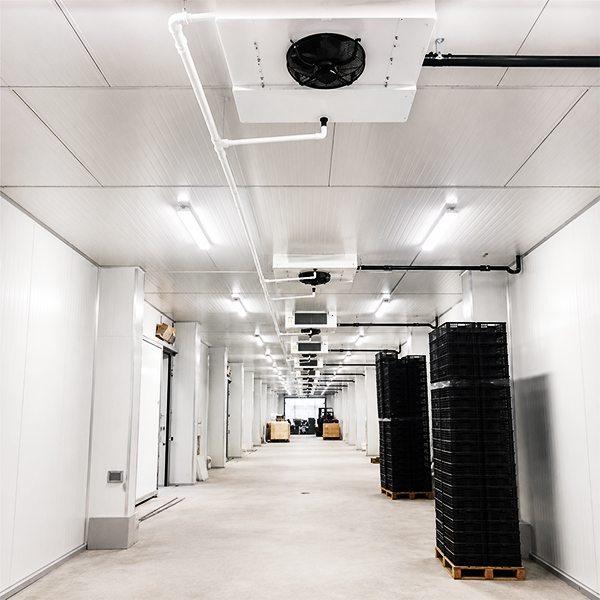

Axial fans distribute cooled air throughout the room to maintain a consistent temperature.
Fin spacing is matched to the operating temperature to help preserve airflow during frost formation.
Double drain trays collect water produced during the defrosting cycle.
Cooling capacity and fan configuration can be selected according to room conditions.
DL series evaporators are suitable for fruit, vegetables, beverages and dairy products.
DD series evaporators are suitable for frozen meat, seafood and general frozen storage.
DJ series evaporators are suitable for rapid-freezing and low-temperature applications.
Different evaporator configurations are available according to temperature and airflow requirements.

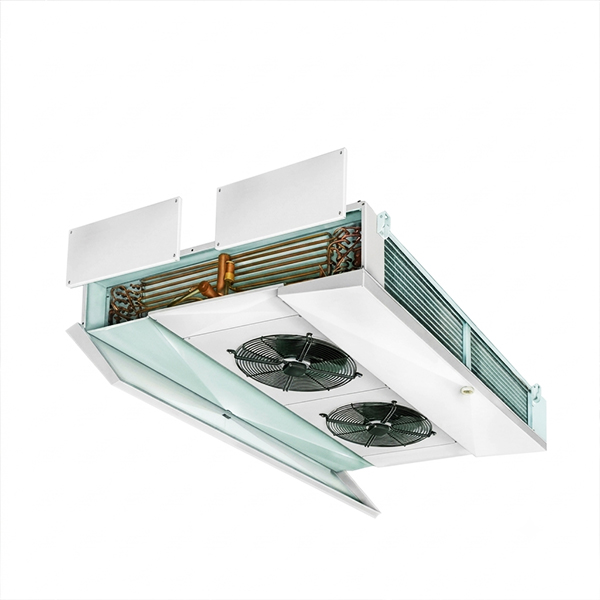

Tubes and aluminum fins transfer heat between the room air and refrigerant.
The fans draw air through the coil and distribute cooled air inside the room.
The coated cabinet supports and protects the internal components.
Stainless steel heaters remove frost from the coil.
Double drain trays collect and discharge defrost water.

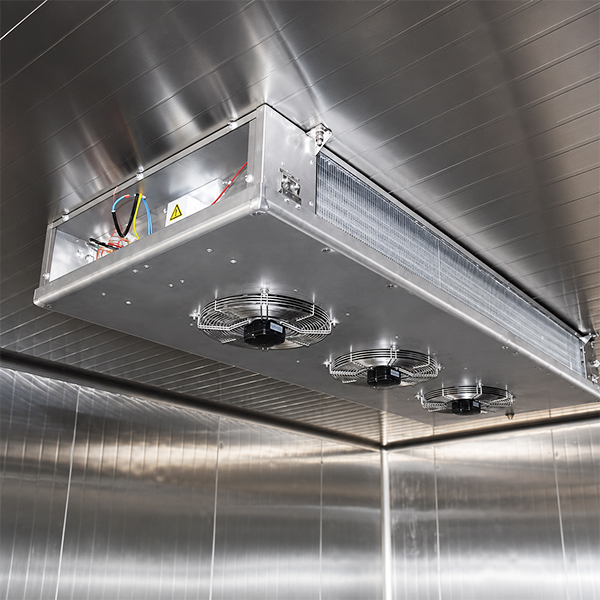

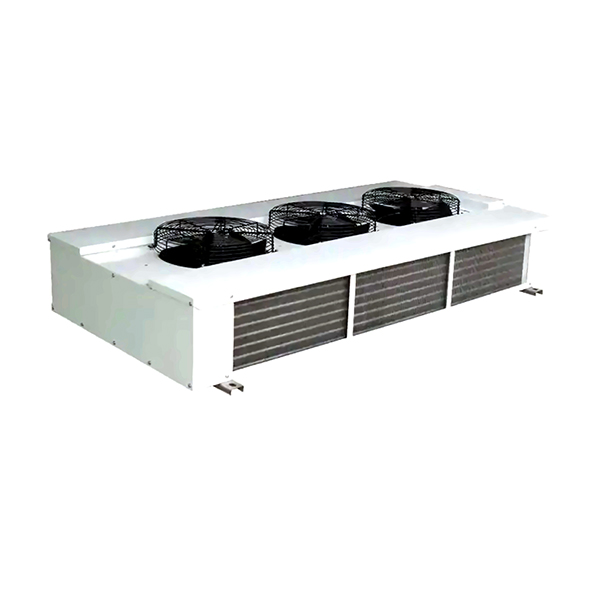

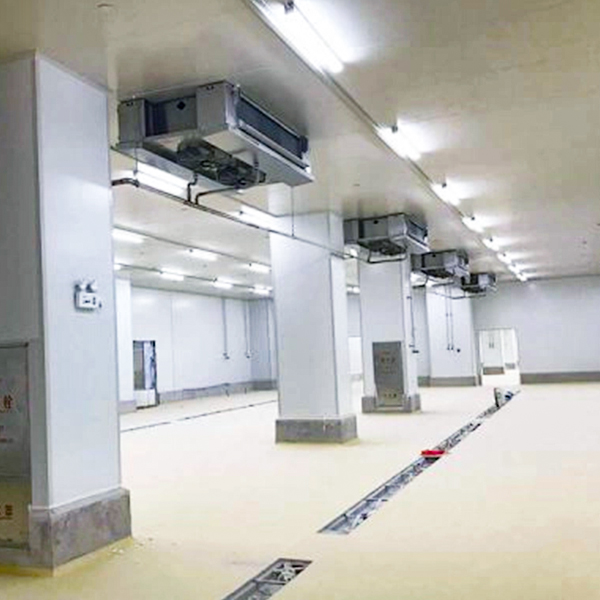

Roof-mounted evaporator
Vertical evaporator
Double-side blowing evaporator
Floor-standing evaporator
Optional long-distance air throw
Different fan quantities
The suitable DL, DD or DJ model is selected according to room temperature, cooling load, refrigerant, airflow and installation conditions. Please provide your project requirements for accurate selection.
Item | Specification |
|---|---|
Product Type | Cold room evaporator / unit cooler |
Series | DL / DD / DJ |
Temperature Range | +5°C to -40°C |
Cooling Capacity | 1–100 kW |
Fin Spacing | 4.5 / 6.0 / 9.0 mm |
Fin Material | Aluminum |
Cabinet | Plastic-coated steel plate |
Defrosting | Stainless steel electric heater |
Refrigerant | R22 / R404A / R507A |
Application | Chiller, freezer and blast freezer room |
DL, DD and DJ series are available for different cold-room temperatures.
Each evaporator is selected according to cooling load, room temperature and application.
The coil, cabinet, fan, heater and drainage components are checked before delivery.
Product selection and installation guidance are available for each project.
They are designed for different temperature ranges and use different fin spacing.
Choose the DL series for temperatures from -5°C to +5°C.
Choose the DD series for temperatures from -15°C to -25°C.
Choose the DJ series for temperatures from -25°C to -40°C.
The supplier lists stainless steel electric heaters for defrosting.
Provide the room dimensions, target temperature, product load, refrigerant and condensing-unit information.
