MDR-01
Everbesten
054
Truck, Container and Ground-Level Forklift Loading
Mobile Ground-to-Truck Loading Access
No Permanent Loading Dock Required
Customized Size and Color
| Availability: | |
|---|---|
Product Description

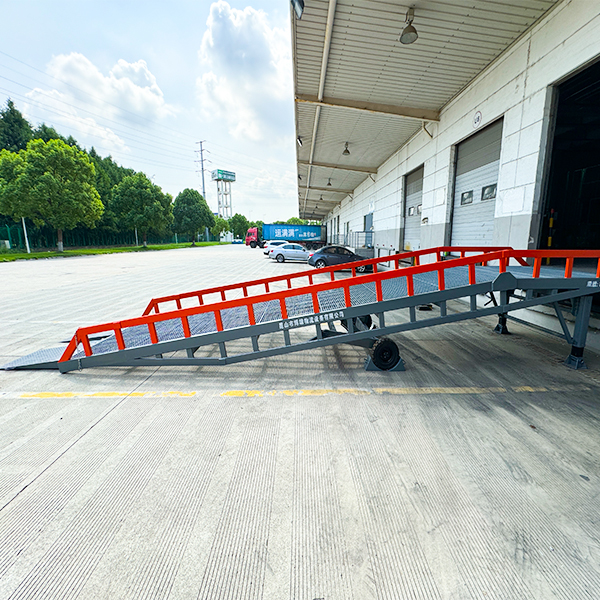

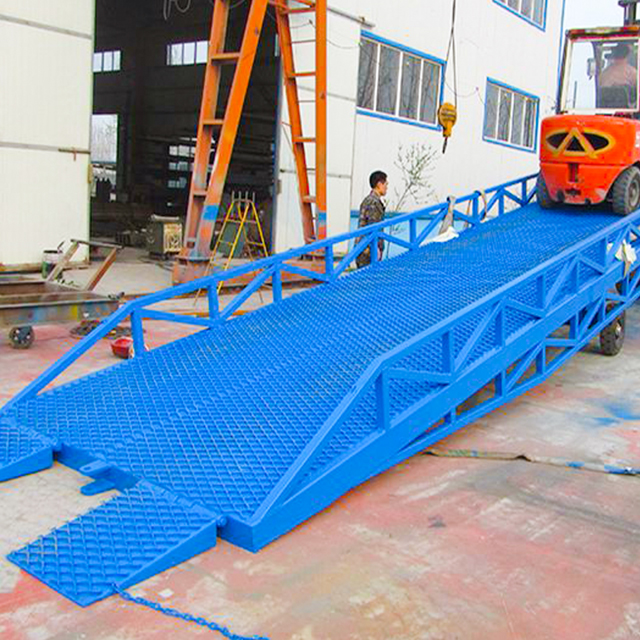

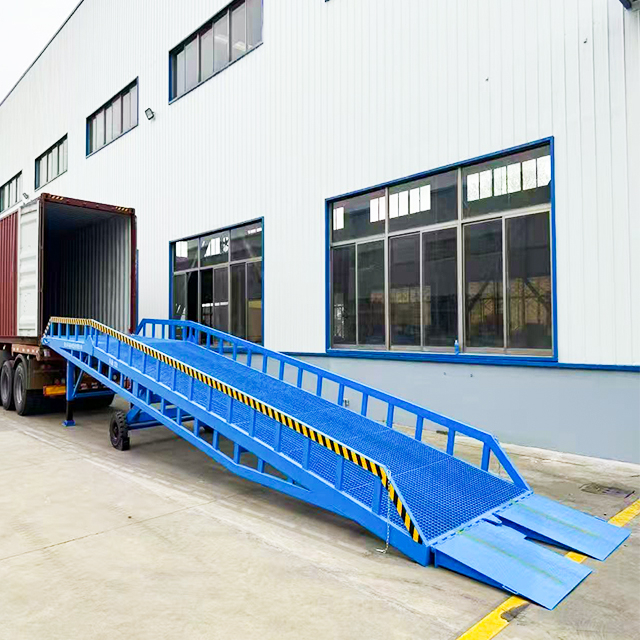

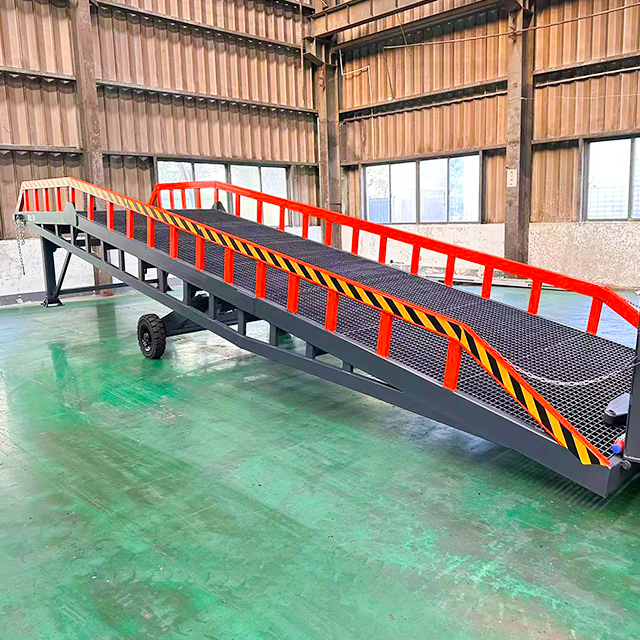

The EVERBESTEN mobile dock ramp creates a temporary loading passage between ground level and a truck or shipping container.
Its movable structure allows warehouses, logistics yards and industrial facilities to load cargo by forklift without constructing a permanent loading dock.
No permanent loading dock required
Adjustable working height
Movable between loading locations
Suitable for forklifts and palletized cargo
Connects ground level with trucks and containers
Heavy-duty steel ramp structure
Project-based size and capacity selection
The ramp is moved to the required loading position and aligned with the truck or container.
The height adjustment system raises or lowers the upper platform to match the vehicle floor. After the ramp is correctly positioned and secured, forklifts can travel between the ground and vehicle.
The ramp must be returned to a safe position before it is moved.

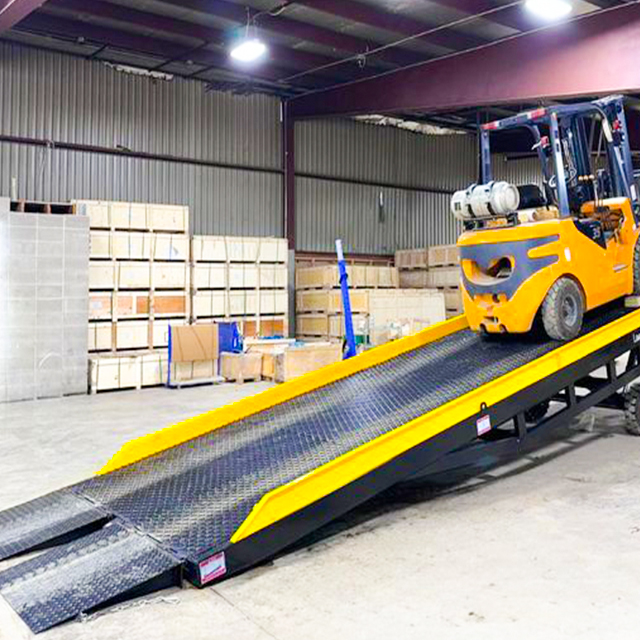

The reinforced steel structure supports forklift movement during loading and unloading.
The height adjustment system allows the ramp to match different truck and container floor heights.
The ramp surface provides traction for forklifts operating on an incline.

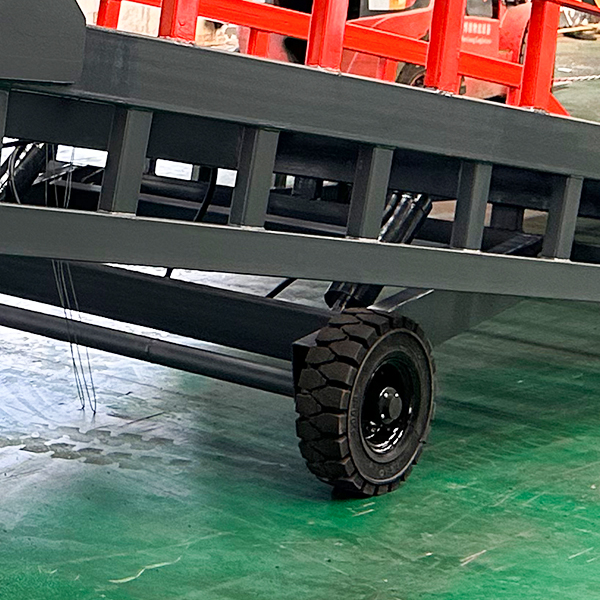

The wheel assembly allows the ramp to be repositioned between different loading areas.

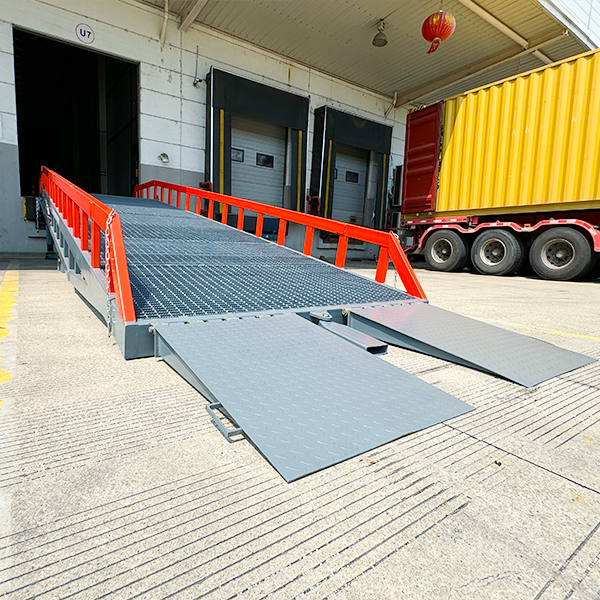

The upper platform creates a transition between the inclined ramp and the vehicle floor.
Ground-to-truck forklift loading

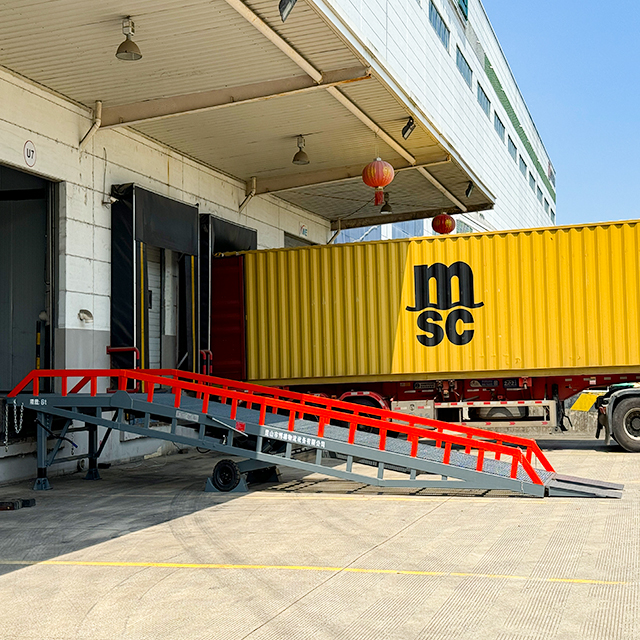

Shipping container loading
Warehouses without loading docks
Logistics and distribution yards
Manufacturing facilities
Temporary loading locations
Seasonal or overflow loading operations
Feature | Mobile Dock Ramp | Dock Leveler |
|---|---|---|
Installation | Mobile or portable | Fixed installation |
Loading Position | Ground level | Raised loading dock |
Construction Work | No permanent dock required | Dock platform or pit required |
Mobility | Can be repositioned | Fixed at one loading bay |
Main Application | Ground-to-truck loading | Dock-to-truck loading |
Height Adjustment | Ramp height adjustment | Platform height adjustment |
Choose a mobile dock ramp when loading starts from ground level. Choose a dock leveler when the facility already has a raised loading platform.
The following information should be confirmed before production:
Required Information | Description |
|---|---|
Load Capacity | Forklift weight plus maximum cargo weight |
Vehicle Type | Truck, trailer or shipping container |
Vehicle Floor Height | Minimum and maximum loading height |
Working Width | Forklift width plus safety clearance |
Ramp Length | Selected according to height and operating slope |
Ground Condition | Indoor, outdoor, concrete or uneven yard |
Operating Frequency | Daily loading cycles |
Adjustment Method | Manual or powered hydraulic system |
Surface Treatment | Selected according to indoor or outdoor use |
Rated load capacity
Ramp length and working width
Adjustable height range
Hydraulic adjustment system
Driving surface
Wheel configuration
Connection lip
Side protection
Surface treatment
Product color
Final specifications should be based on the forklift, cargo, vehicle height and working environment.
EVERBESTEN provides project-based material handling and loading dock solutions.
Selection based on forklift and cargo weight
Customized ramp dimensions and working height
Reinforced steel fabrication
Factory inspection before delivery
Technical drawing support
Matching dock levelers and loading equipment
Export packaging and international project coordination
A mobile dock ramp is an adjustable loading ramp used to connect ground level with a truck, trailer or shipping container.
No. The ramp provides forklift access where a raised loading dock is unavailable.
Yes. It can connect the ground with a shipping container when the height and capacity are correctly selected.
Depending on the configuration, the ramp may use a manual or powered hydraulic adjustment system.
Capacity must include the forklift weight, maximum cargo weight and an appropriate project safety margin.
Yes. A mobile ramp can be repositioned, provided the site has suitable ground conditions and moving space.
Yes. Ramp length, working width and height range should be selected according to the vehicle and forklift.
Please provide the forklift weight, maximum cargo weight, vehicle height range, required width, operating frequency and site conditions.
