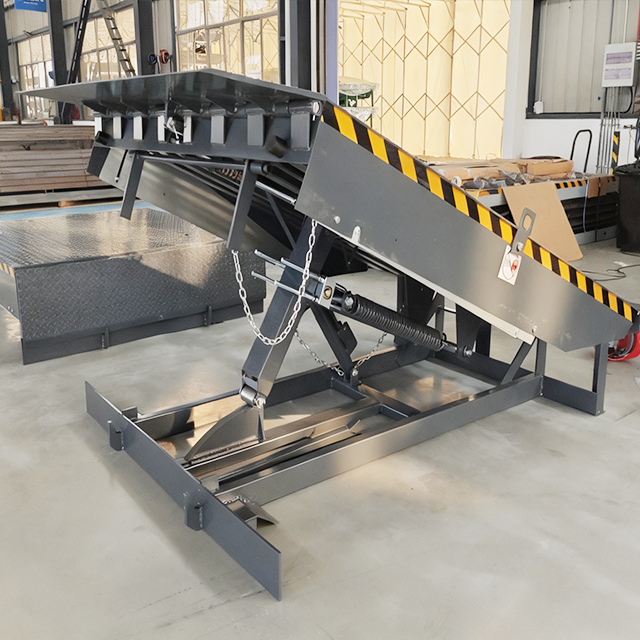

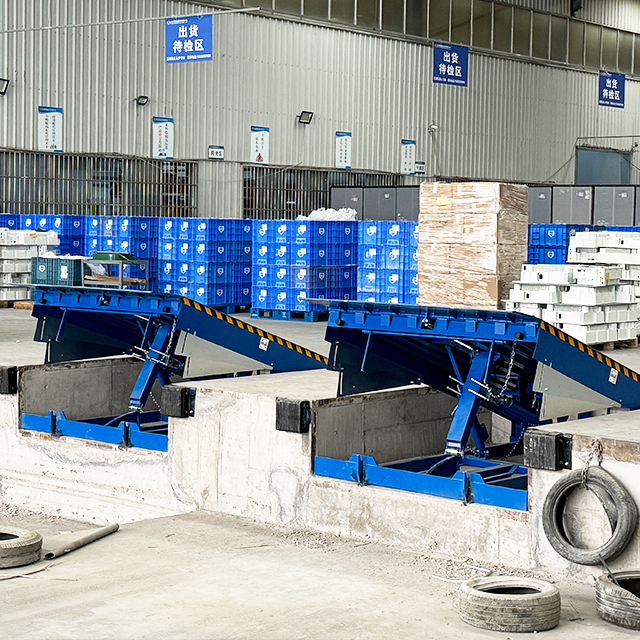

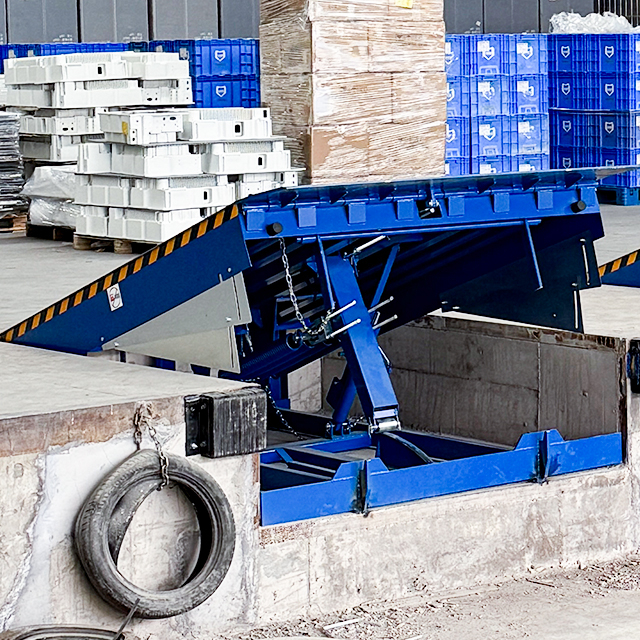

Mechanical Dock Leveler

Mechanical dock levelers are traditional loading dock solutions designed for reliable and cost-effective operation. Using a spring-assisted mechanism, these dock levelers provide a stable transition between the dock and truck bed for warehouses and industrial facilities with moderate loading frequency.

What Is a Mechanical Dock Leveler and How Does It Work

A mechanical dock leveler is a dock leveling system operated by a spring mechanism and manual activation. The operator pulls a release chain to raise the platform, allowing the lip to extend onto the truck bed and create a secure bridge.

Once positioned, the dock leveler adjusts naturally with truck movement during loading and unloading. The simple mechanical structure makes it a durable and widely used solution in traditional loading docks.

Why Mechanical Dock Levelers Are Used in Loading Docks

Mechanical dock levelers are commonly used in facilities that require a dependable and economical dock solution. Their simple design reduces initial investment while still providing safe and functional dock leveling performance.

For operations with moderate traffic frequency, mechanical dock levelers offer a balance between reliability and cost efficiency.

Key Advantages of Mechanical Dock Levelers

Mechanical dock levelers provide practical benefits for many industrial applications.

Key advantages include:

• Cost-effective dock leveling solution

• Simple and durable mechanical structure

• No hydraulic power unit required

• Reliable performance for moderate traffic

• Widely used and easy to operate

These advantages make mechanical dock levelers suitable for traditional warehouses and distribution facilities.

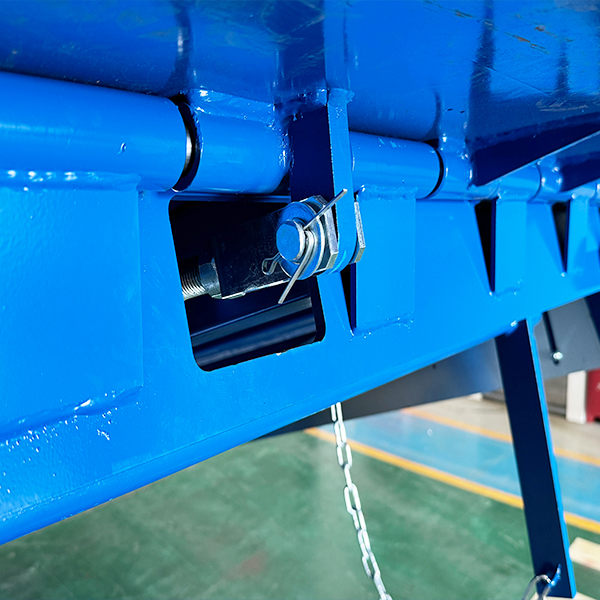

Mechanical System

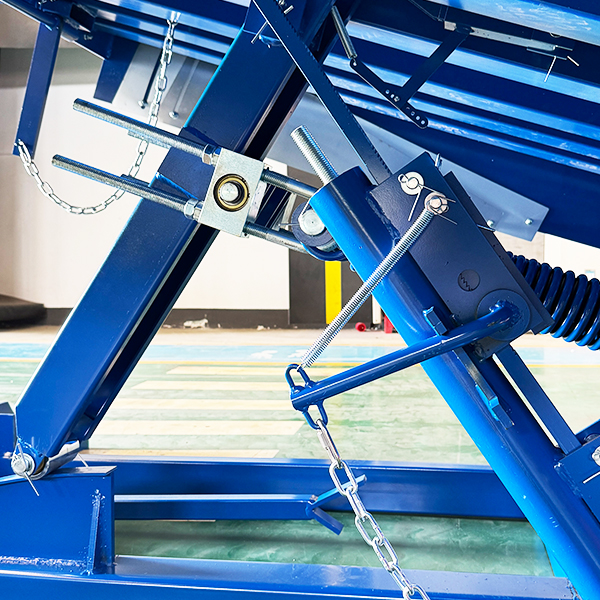

Blancing System

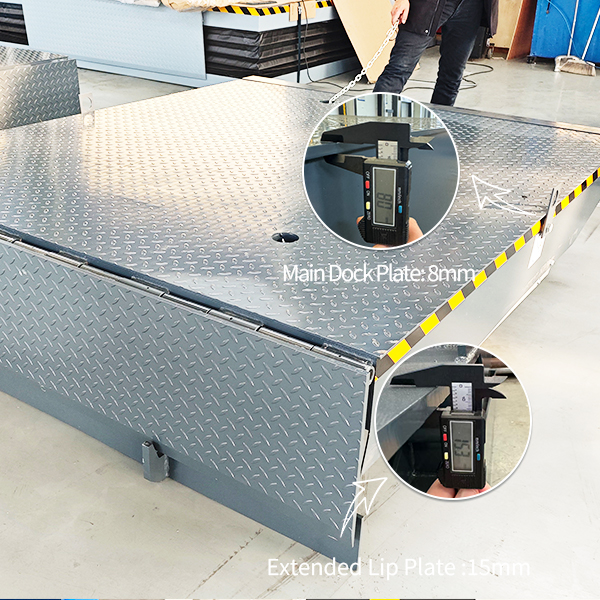

Stable Structure

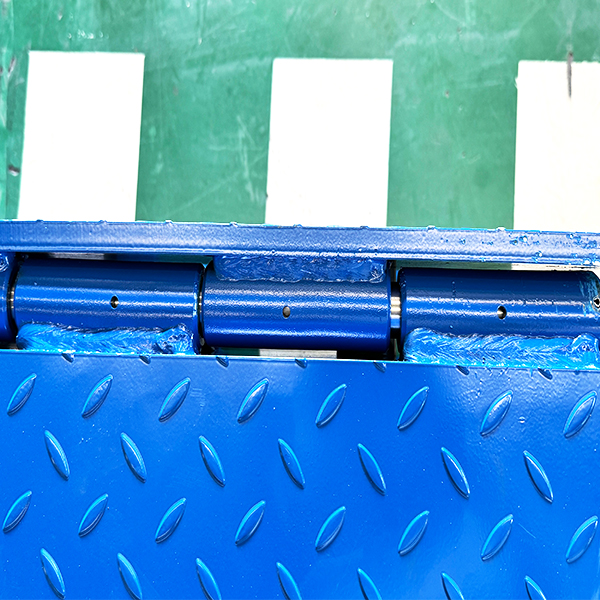

Opeing Hinge

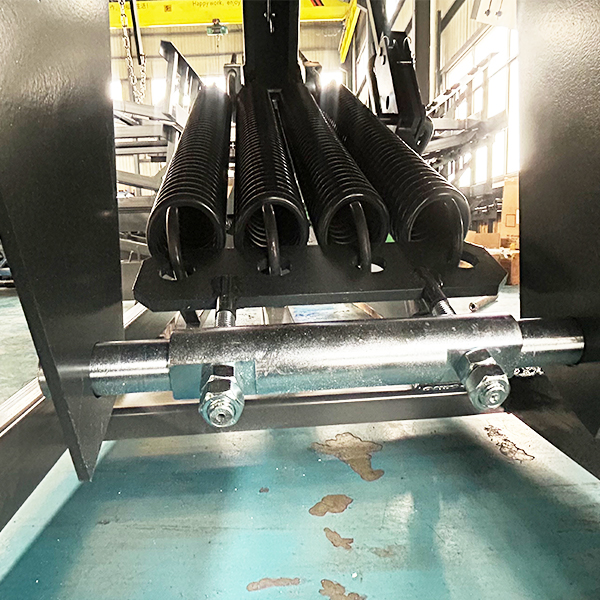

S pring System

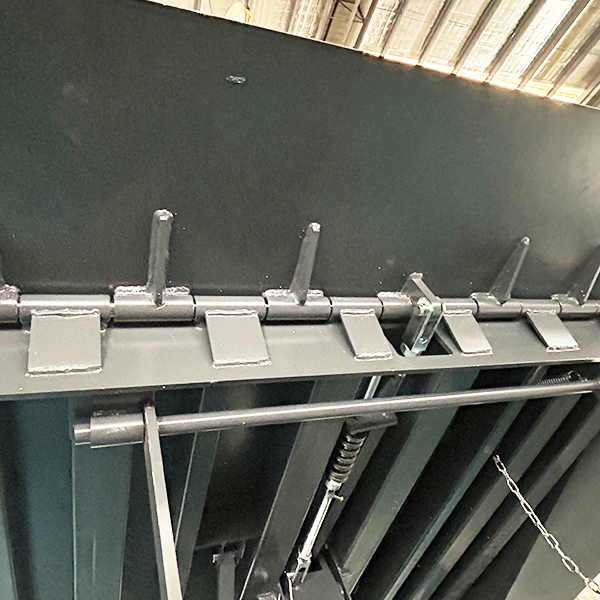

Structure Display

Mechanical Dock Leveler vs Hydraulic Dock Leveler

The primary difference between mechanical and hydraulic dock levelers is the operating system.

Mechanical dock levelers rely on spring tension and manual activation, while hydraulic dock levelers use powered cylinders for smoother and more controlled movement. Hydraulic systems are preferred for high-frequency operations, while mechanical dock levelers are often selected for lower to medium usage environments.

Choosing between the two depends on traffic volume, load requirements, and budget considerations.

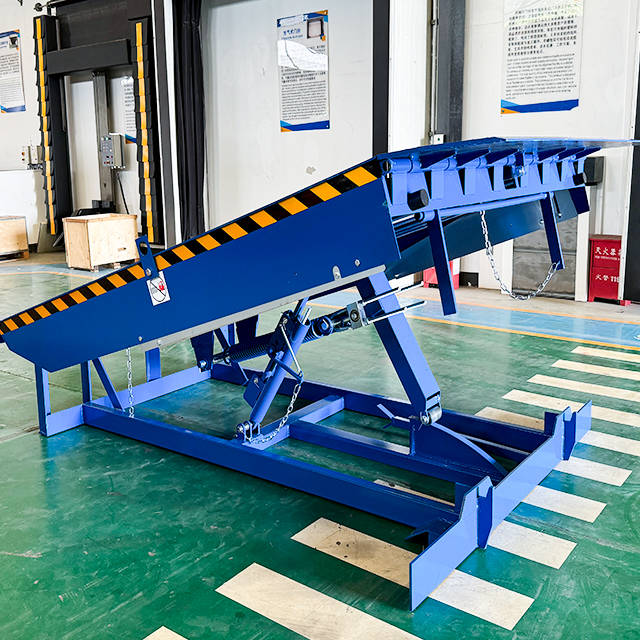

Mechanical Dock Leveler

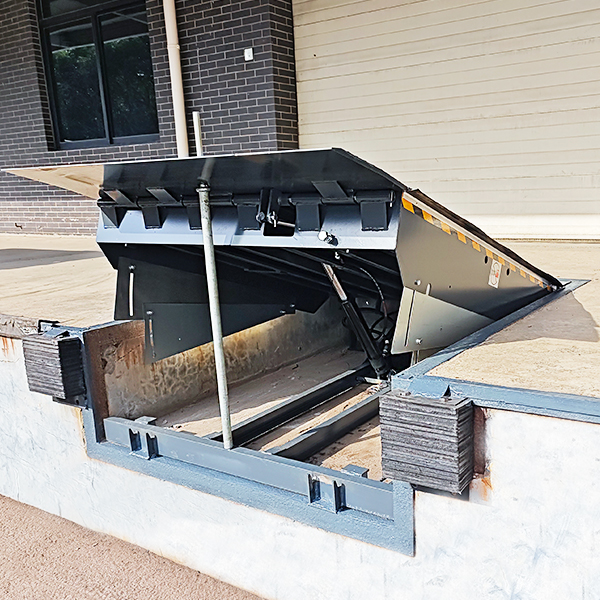

Hydraulic Dock Leveler

Typical Applications of Mechanical Dock Levelers

Mechanical dock levelers are commonly installed in:

• Warehouses and storage facilities

• Distribution centers with moderate traffic

• Manufacturing plants

• Retail distribution warehouses

• Facilities with standard loading dock operations

These environments benefit from the simplicity and reliability of mechanical dock leveling systems.

Load Capacity and Platform Construction

Mechanical dock levelers are available in various load capacities to support different forklift and pallet truck requirements. The platform is typically constructed from heavy-duty steel to ensure structural strength and long-term durability.

The lip design allows secure contact with a range of truck bed heights, supporting safe material handling operations.

Safety Features of Mechanical Dock Levelers

Safety is an important aspect of mechanical dock leveler design. Common safety features include:

• Maintenance support struts

• Toe guards and side guards

• Anti-slip platform surfaces

• Lip safety mechanisms

Proper operation and routine inspection help maintain safe working conditions at the loading dock.

Custom Mechanical Dock Leveler Configuration

Mechanical dock levelers can be customized based on dock dimensions, load capacity, and operational needs. Custom options may include platform size, lip length, and surface finishes.

Customization ensures compatibility with existing dock structures and vehicle types.

Mechanical Dock Leveler-Drawing pdf

Installation, Maintenance and Service Life

Professional installation ensures correct alignment and safe operation. Mechanical dock levelers require periodic inspection of springs, pivots, and structural components.

With proper maintenance and correct usage, mechanical dock levelers are designed for long-term operation in industrial environments.

Explore Related Dock Leveler Solutions

• Hydraulic Dock Leveler

• Edge-of-Dock Leveler

These solutions address different loading dock requirements and operational conditions.

Request Technical Information or a Quotation

For detailed specifications or project-based pricing, you can request technical documentation or a customized quotation. Providing information about dock height, load capacity, and usage frequency helps ensure the correct mechanical dock leveler solution.
