In cold storage environments, the door is not just an access point for forklifts and personnel. It is actually one of the most critical components that determines how stable the internal temperature remains and how much energy the refrigeration system consumes over time. Even a well-designed cooling system can become inefficient if the door system is not properly matched with the operation pattern.
The main issue in cold chain logistics is not maintaining low temperature when the door is closed, but preventing energy loss during every single opening cycle. Each opening creates a temporary “thermal imbalance zone” where cold air escapes and warm air enters, forcing the refrigeration system to work harder afterward.
When a cold storage door opens, the temperature difference between inside and outside creates an immediate physical reaction. Cold air, being denser, naturally moves downward and flows out of the opening, while warmer air rises and enters the space. This movement does not require time to develop; it happens instantly as soon as the barrier is removed.
Over time, this repeated airflow pattern creates a consistent energy drain, especially in facilities with frequent door cycles. The more often the door opens, the more unstable the internal environment becomes, regardless of how powerful the cooling system is.
Even a very short opening duration can still have a noticeable impact on energy efficiency. This is because cold air does not need a long time to escape; the initial few seconds of exposure are usually enough to trigger a full air exchange cycle. Once warm air enters, the refrigeration system must work not only to cool the air again, but also to re-stabilize humidity levels and internal pressure conditions.
This is why cold storage design is extremely sensitive to door cycle time. The difference between a fast and slow door is not just operational speed—it directly translates into energy cost over the long term.

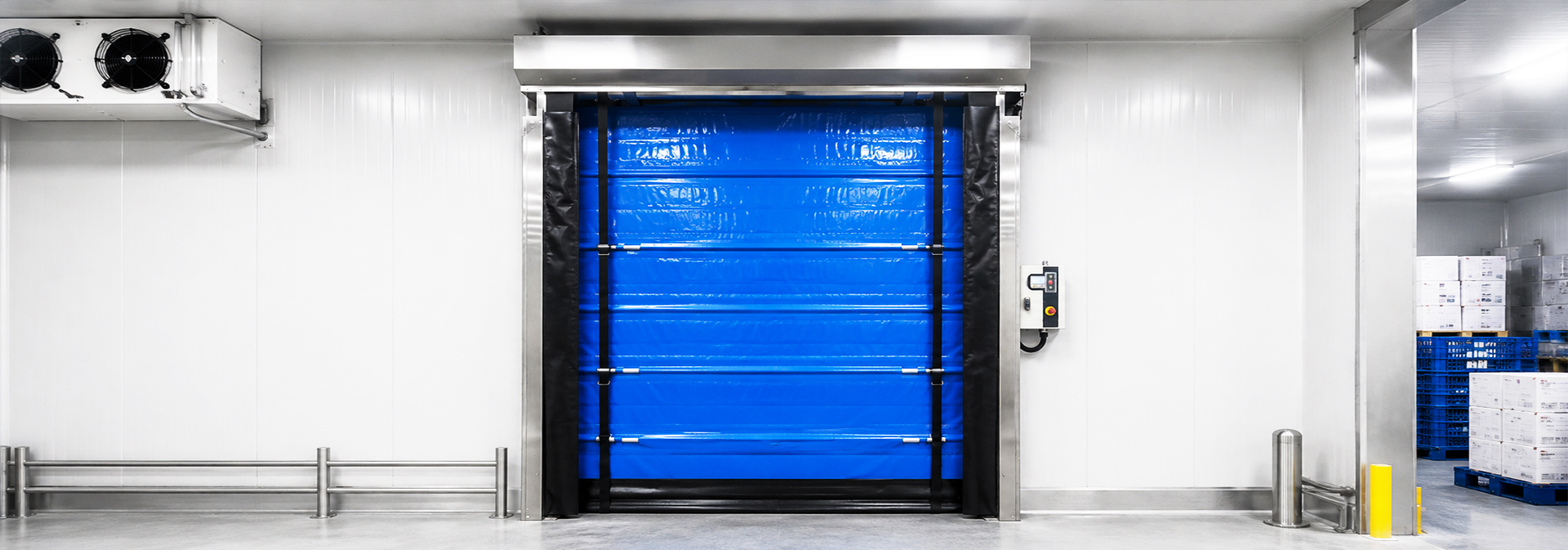

High Speed Doors are designed around a very simple engineering principle: if air exchange cannot be fully prevented, then the exposure time should be minimized. By opening and closing within seconds, the door significantly reduces the window in which air can move between inside and outside environments.
In cold storage applications, this approach is particularly effective in high-frequency areas where the door cannot remain closed for long periods. Instead of relying on heavy insulation, the system reduces loss by controlling the duration of each opening cycle.

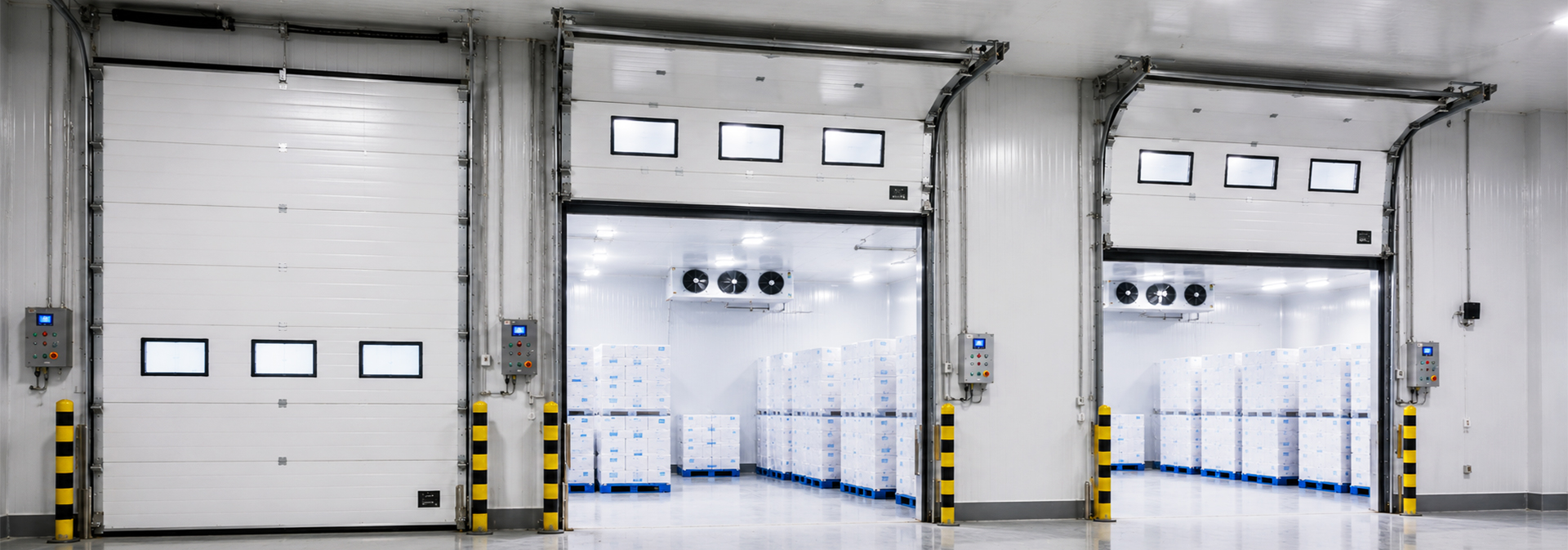

Sectional Doors take a completely different approach. Instead of prioritizing speed, they focus on building a strong physical barrier that reduces heat transfer when the door is fully closed. The insulated panels and tight sealing system ensure that once the door is shut, external temperature influence is minimized as much as possible.
This makes sectional doors more suitable for environments where the door remains closed for longer periods, and where structural stability and insulation performance are more important than rapid cycling.
High Speed Doors are widely used in modern cold storage systems not because they provide the strongest insulation, but because they improve operational efficiency in environments where doors are constantly in motion.
In real cold chain operations, a door may open dozens or even hundreds of times per day. In such cases, the total energy loss is not caused by a single opening, but by the accumulation of repeated exposure cycles. A high speed door reduces this cumulative loss by minimizing each individual cycle duration.
This means that even if insulation performance is not extremely thick, the overall system can still maintain good energy efficiency simply because the door spends less time open.
High speed doors are typically installed in internal zones where goods are constantly moving between temperature-controlled areas. These include sorting zones, packaging areas, and buffer rooms that connect different temperature stages. In these locations, workflow efficiency is just as important as temperature control.
Modern high speed door systems rely heavily on automation, using sensors such as radar or photoelectric detection to trigger door movement. This ensures that the door only opens when necessary and closes immediately after passage.
This type of control reduces human delay and prevents situations where the door remains open longer than required, which is one of the hidden causes of energy loss in many warehouses.
Sectional Doors are more commonly used in external or structural access points where environmental protection and insulation are more important than fast cycling.
The core of a sectional door is its insulated panel structure, typically filled with polyurethane foam. This material acts as a thermal barrier, reducing heat transfer between the interior and exterior environment when the door is closed.
Unlike flexible curtain systems, this rigid structure maintains stable insulation performance over long periods, making it suitable for areas where temperature consistency is critical.
The thickness of the panel directly affects how effectively heat transfer is slowed down. In cold storage environments, even small improvements in insulation can significantly reduce refrigeration workload over time, especially in facilities with large door openings exposed to outdoor conditions.
Sectional Doors are commonly used at main entrances and loading docks because these areas are exposed to outdoor temperature fluctuations, wind pressure, and security requirements. The rigid structure ensures that the door remains stable even under harsh environmental conditions.
This makes it more suitable for long-duration closure scenarios where insulation performance matters more than operational speed.
High Speed Doors reduce energy loss by shortening the time during which air exchange can occur. The faster the door operates, the smaller the exposure window, which directly reduces dynamic heat loss in high-frequency environments.
Sectional Doors reduce energy loss by maintaining a strong thermal barrier when closed. Instead of focusing on cycle speed, they ensure that heat transfer is minimized during long periods of inactivity.
In modern cold storage design, it is increasingly common to combine both systems rather than choosing one over the other.

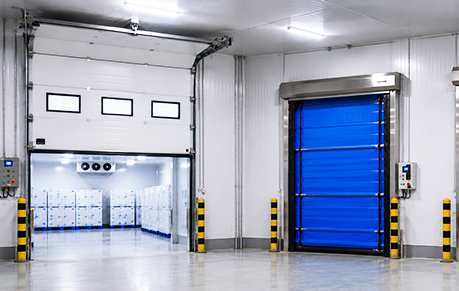

A typical configuration uses a sectional door as the external barrier to handle environmental protection, while a high speed door is installed internally to manage frequent operational flow. This combination allows the system to separate “environment control” from “logistics control,” resulting in better overall efficiency and stability.
High Speed Doors and Sectional Doors are not competing technologies but two different engineering strategies designed to solve different problems in cold storage environments.
One focuses on reducing energy loss through speed, while the other focuses on reducing heat transfer through structure. In most real-world applications, the most efficient solution is not selecting one, but applying both based on functional zones to achieve a balanced system that optimizes energy consumption, operational efficiency, and long-term stability.
