Insulated sectional door panels are the foundation of modern industrial sectional doors. Whether used in warehouses, logistics centers, manufacturing facilities, fire stations, aircraft hangars, or commercial buildings, the performance of a sectional door largely depends on the quality and engineering of its panels.
Today's industrial facilities demand more than just a door that opens and closes. They require thermal insulation, structural strength, wind resistance, noise reduction, safety, and long-term durability. This is why insulated sectional door panels have become the industry standard for modern industrial and commercial buildings.
In this guide, we'll explore how insulated sectional door panels are constructed, what performance factors matter most, and how to choose the right panel solution for your project.

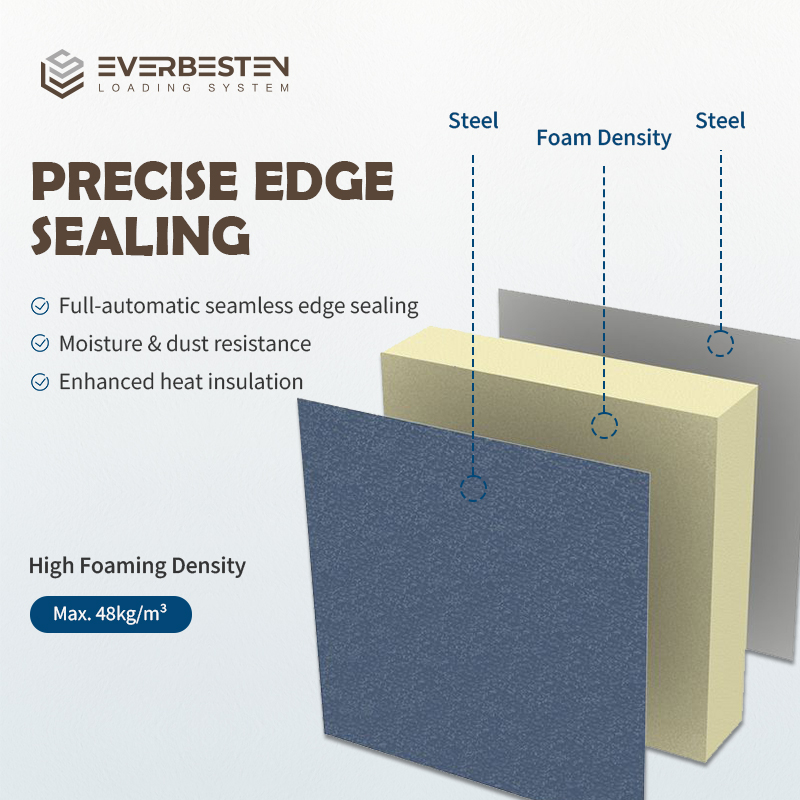

An insulated sectional door panel is typically composed of three primary layers:
The exterior steel sheet provides structural strength and impact resistance. Most industrial sectional doors use galvanized steel with a powder-coated finish to improve corrosion resistance and durability.

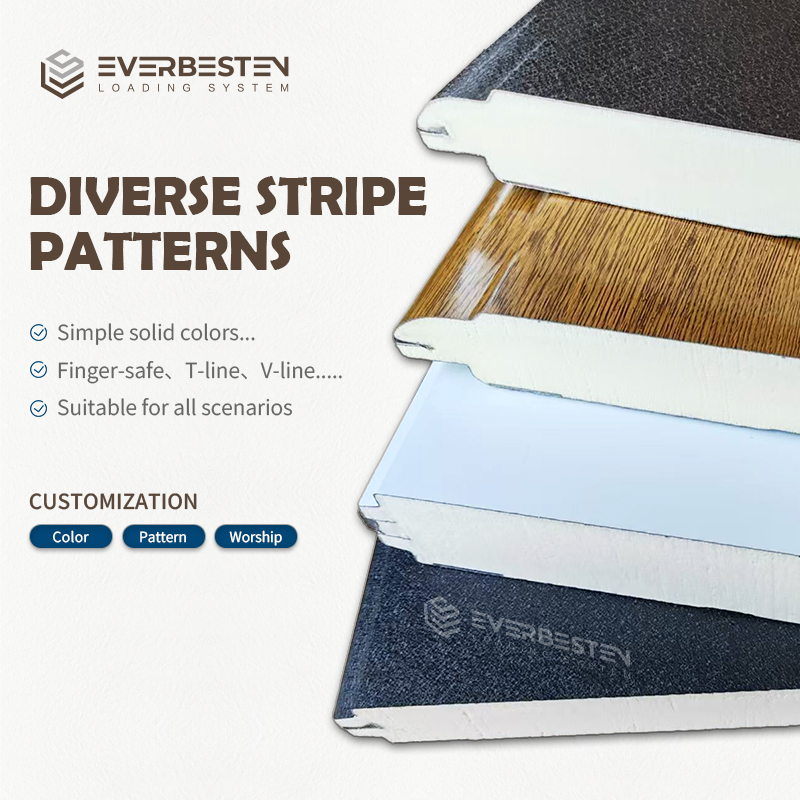

The outer skin also determines the appearance of the door and can be customized with different colors, embossing patterns, and surface textures.
The center of the panel is filled with high-density polyurethane foam (PU foam). This insulation layer is responsible for reducing heat transfer and improving energy efficiency.
Unlike non-insulated doors, PU-filled panels create a thermal barrier that helps maintain stable indoor temperatures throughout the year.
The interior steel layer adds rigidity and creates a sandwich structure that significantly improves panel strength.
Combined with the insulation core, the inner and outer steel skins form a durable panel capable of withstanding daily industrial use.
The sandwich panel design distributes loads more evenly across the entire panel surface.
Compared with single-layer steel doors, insulated sectional door panels offer significantly greater rigidity and resistance to bending or deformation.
The continuous PU foam core minimizes thermal bridging and helps maintain a consistent indoor environment.
This is especially important for facilities that rely on temperature control, such as food processing plants, pharmaceutical warehouses, and cold storage facilities.
The combination of steel skins and PU insulation creates a robust structure that can withstand years of operation with minimal maintenance.
Energy efficiency has become a major concern for industrial building owners. Large door openings can account for significant heat loss if the door panels are poorly insulated.
High-quality insulated sectional door panels help reduce energy consumption while improving indoor comfort.
Polyurethane foam remains the preferred insulation material for industrial sectional doors due to its:
High thermal resistance
Excellent adhesion to steel surfaces
Lightweight structure
Long-term insulation performance
Compared with traditional insulation materials, PU foam provides superior thermal efficiency while maintaining panel strength.
When comparing insulated door panels, two important measurements are often used:
U-Value
The U-value measures heat transfer through the panel. Lower values indicate better insulation performance.
R-Value
The R-value measures thermal resistance. Higher values indicate better insulation capability. Modern insulated door panels typically achieve significantly higher R-values than single-layer steel doors.
Industrial sectional doors are frequently installed on exterior walls exposed to wind pressure.
In regions with strong winds, insufficient panel strength can lead to deformation, excessive vibration, or operational issues.
High-performance sectional door panels often incorporate:
Internal reinforcing struts
Galvanized steel reinforcement
Enhanced panel connections
Heavy-duty hinges
These reinforcements improve the overall wind resistance of the door system.
Logistics centers
Coastal facilities
Aircraft hangars
Industrial warehouses
Distribution hubs
Industrial environments often generate significant noise from machinery, forklifts, and loading activities.
Insulated sectional door panels help absorb sound and reduce noise transmission between indoor and outdoor environments.
Improved acoustic performance can:
Create a more comfortable work environment
Reduce noise pollution
Improve office and administrative areas adjacent to warehouses
The dense PU foam core helps dampen vibration and reduce sound transmission.

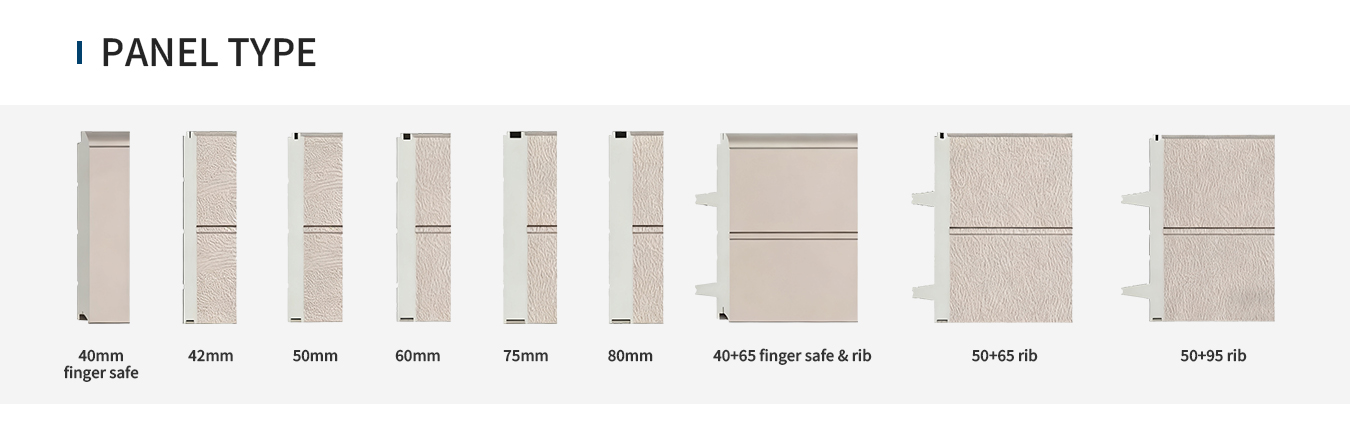

40mm panels are widely used in standard industrial applications.
They offer:
Good thermal performance
Competitive pricing
Reliable structural strength
Suitable insulation for most warehouses
Warehouses
Manufacturing facilities
Logistics centers
Thicker panels provide improved insulation and structural performance.
Benefits include:
Lower heat transfer
Better sound insulation
Enhanced rigidity
Increased energy savings
Temperature-controlled warehouses
Food processing facilities
Pharmaceutical facilities
For demanding thermal environments, thicker insulated panels provide superior performance.
Cold storage facilities
Frozen food warehouses
Pharmaceutical cold chain operations
Modern industrial sectional doors often feature finger-safe panel profiles.
These designs reduce pinch points between panels during door movement and help improve operator safety.
Although standard insulated panels are not fire-rated, high-quality steel skins and PU foam formulations can contribute to improved overall safety performance.
Specialized fire-rated door systems are available for facilities requiring additional fire protection.
Industrial sectional doors frequently encounter forklifts and loading equipment.
Reinforced panel structures help reduce the risk of dents, deformation, and accidental damage.
Different facilities have different performance requirements.
For example:
Focus on durability, insulation, and operational reliability.
Require strong structural performance and long service life.
Need maximum thermal insulation and sealing performance.
Often prioritize aesthetics in addition to functionality.
The cheapest panel is not always the most cost-effective option.
Higher-quality insulated panels can:
Reduce energy consumption
Minimize maintenance costs
Extend door lifespan
Improve overall facility efficiency
EVERBESTEN sectional door panels are engineered for industrial and commercial applications requiring reliability, energy efficiency, and long-term performance.
Our panel solutions feature:
High-density PU foam insulation
Galvanized steel construction
Finger-safe panel profiles
Reinforced structural design
Custom panel thickness options
Multiple color and finish selections
Whether you operate a warehouse, manufacturing facility, logistics center, or cold storage project, EVERBESTEN insulated sectional door panels provide the strength, insulation, and durability needed to support efficient daily operations.
Insulated sectional door panels are far more than simple door components. They determine the thermal performance, structural strength, safety, durability, and overall efficiency of an industrial door system.
By understanding panel construction, insulation technology, wind resistance, and performance characteristics, facility owners can make more informed decisions when selecting sectional doors for their projects.
Investing in high-quality insulated sectional door panels not only improves building performance but also delivers long-term value through reduced energy costs, enhanced durability, and improved operational efficiency.
