Condensation and ice around a freezer door are usually symptoms of a larger moisture-control problem.
In a low-temperature room, warm and humid air from outside contains much more moisture than the cold air inside. When that humid air reaches a sufficiently cold door surface, frame, floor, or surrounding structure, water vapor can condense. If the surface temperature is below freezing, that moisture can quickly turn into frost or ice.
This is why freezer door condensation should not be treated only as a door-surface problem.
Repeated frost around the frame, ice on the floor, moisture on the warm side of the opening, or heavy ice formation inside the doorway can point to different causes. The correct solution depends on where the moisture appears, when it appears, and how air is moving through the opening.
A practical diagnosis should normally review five areas:
Moist-air infiltration
Pressure difference between spaces
Door and frame sealing
Heating systems
Drainage and water accumulation
The location of the condensation often gives the first clue.
Before changing heaters, seals, or door settings, record the exact location of the problem.
Condensation at the upper frame can have a different cause from ice forming at the threshold. Frost along one side column may indicate a local sealing problem, while widespread ice on the cold-room side may point to excessive warm-air infiltration.
Photographs should be taken before the area is cleaned.
It is also useful to record:
Freezer temperature
Temperature outside the freezer
Relative humidity outside the freezer
Time of day
Door opening frequency
Whether the refrigeration system was in normal operation
Whether the problem is continuous or only appears during busy periods
These observations help separate a permanent construction problem from an operational condition.
For example, a freezer door that remains dry overnight but develops frost during a busy loading shift may be experiencing excessive air exchange rather than a permanent heater failure.

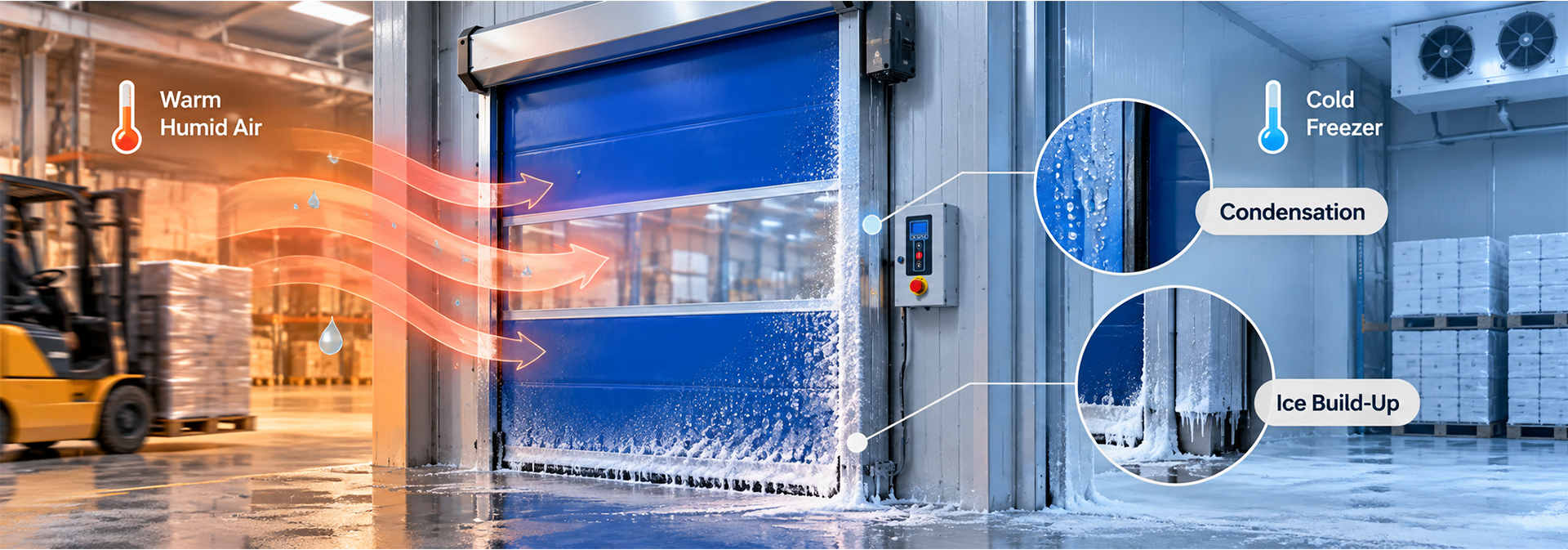

Warm air naturally carries more moisture than cold freezer air.
Every time a freezer door opens, some amount of warm humid air can enter the cold space. Once inside, the air cools rapidly and can no longer hold the same amount of moisture.
That moisture then appears as condensation, frost, or ice.
The severity depends on several factors:
Outside temperature and humidity
Freezer temperature
Door opening duration
Opening frequency
Door size
Air movement through the opening
Traffic volume
A freezer operating at very low temperature can be particularly sensitive because the temperature difference between the two spaces is large.
A door that opens frequently but closes quickly may allow less moisture infiltration than a door that remains open for long periods.
This is one reason high speed freezer doors are often used in busy cold-storage passages.
Fast operation reduces the time the opening is exposed, but fast speed alone does not eliminate moisture problems.
If the door is held open unnecessarily, triggered too early, or repeatedly activated by nearby traffic, humid-air infiltration can still be significant.
Sensor settings should be reviewed when a freezer door opens more often than necessary.
A radar detection zone that is too large may trigger the door for traffic passing nearby rather than entering the freezer.
Reducing unnecessary opening cycles can sometimes improve condensation conditions without changing the refrigeration system.
Air does not enter a freezer only because the door is open.
Pressure differences between the freezer, adjacent room, and building can continuously move air through small gaps around the door.
This can happen even when the door is closed.
Possible sources of pressure imbalance include:
Refrigeration airflow
Exhaust systems
Air curtains
Ventilation equipment
Adjacent production areas
Temperature-driven air movement
Building pressure conditions
If the freezer is under negative pressure relative to the surrounding space, warm humid air may be pulled through gaps around the curtain, side guides, header, or threshold.
In that situation, replacing a seal may reduce the problem but not remove the underlying cause.
Pressure-related infiltration often leaves visible clues.
Frost may repeatedly develop along one side of the opening or around a specific gap where outside air enters.
A smoke test or other suitable airflow check can sometimes help identify leakage paths during site inspection.
If strong airflow can be felt around the edges even while the door is fully closed, the pressure condition should be investigated before focusing only on the door components.
The freezer and surrounding building should be considered together.
A freezer door must limit air leakage when closed.
For high speed freezer doors, this may involve side seals, curtain edges, bottom seals, guide systems, and the connection between the frame and surrounding wall.
Wear, damage, misalignment, or ice contamination can reduce sealing performance.
A good inspection should not simply ask whether a seal is present.
It should check whether the seal is actually making continuous contact.
If frost is concentrated along the side columns, inspect the contact between the curtain and the side sealing structure.
Possible issues include:
Damaged seals
Curtain misalignment
Ice preventing proper closure
Worn guide components
Incorrect installation alignment
A small gap can allow a continuous stream of humid air into a freezer.
Over many hours, even minor leakage can create substantial frost accumulation.
Ice around the bottom of the door often requires closer inspection of both the bottom seal and the floor condition.
The floor may be uneven, the bottom edge may not contact consistently, or existing ice may prevent the door from closing properly.
This can create a cycle:
water enters or condenses → ice forms → the seal no longer closes properly → more humid air enters → additional ice forms.
A door should be inspected after accumulated ice has been safely removed.
Otherwise, it may be difficult to determine whether the poor seal caused the ice or the ice is now causing the poor seal.
Freezer door systems may use heating elements around areas that are particularly vulnerable to condensation and freezing.
Typical heated areas can include:
Door frame
Side columns
Header
Bottom area
Threshold or floor zone
Drainage components
The purpose of heating is not to warm the freezer.
It is to keep critical surfaces above the temperature at which excessive condensation or ice forms.
Simply adding more heating is not always the correct solution.
If large amounts of humid air are continuously entering through a poorly sealed opening, the heater may not have enough capacity to keep the surface dry.
Similarly, a heater may be functioning correctly but still appear ineffective during periods of unusually high humidity.
The diagnosis should therefore check both heater performance and the moisture load.
A heater should be verified under actual operating conditions.
Depending on the design, checks may include:
Heater supply
Surface temperature
Controller settings
Thermostat operation
Cable continuity
Heated-zone coverage
A heater that is powered but poorly positioned may leave cold spots where condensation continues to form.
Ice at floor level can create both operational and safety problems.
Unlike frost on a frame, floor ice can interfere directly with door sealing, pedestrian movement, pallet trucks, and forklifts.
The source should be identified before repeatedly removing the ice.
Water at the threshold may come from several different sources:
Condensation
Meltwater
Cleaning operations
Refrigeration defrost
Poor drainage
Exterior rainwater
Water carried in by vehicles or equipment
The correct solution depends on which source is present.
A floor that appears almost flat may still direct water toward the freezer doorway.
Drainage channels can also become blocked by ice, dirt, packaging debris, or damaged floor surfaces.
If water remains near a sub-zero opening, it will eventually freeze.
A heated threshold may control limited condensation, but it is not a substitute for proper drainage.
If water continuously collects around the opening, the drainage problem should be corrected.
The side on which moisture appears can help narrow the diagnosis.
Water droplets on the exterior or warm side of the door can indicate that the surface temperature is below the dew point of the surrounding air.
This can happen around cold metal components, frame sections, or areas with insufficient thermal separation.
The warmer and more humid the surrounding space, the easier it is for condensation to occur.
For this type of problem, useful measurements include:
Warm-side air temperature
Relative humidity
Frame surface temperature
Door operating frequency
These values help determine whether condensation is mainly caused by surface temperature or by excessive air exchange.
Heavy frost inside the freezer often points toward moisture entering the cold room.
The source may be repeated door opening, sealing gaps, pressure difference, or a combination of these factors.
If frost is distributed far beyond the doorway, the problem may not be limited to one seal or one heater.
The overall air-exchange condition should be reviewed.
Condensation problems can change significantly from one day to another.
A door may appear to perform normally in dry winter weather and show severe condensation during a humid summer period.
For this reason, temperature and humidity data are extremely useful.
A simple record can include:
Measurement | Freezer Side | Warm Side |
|---|---|---|
Air temperature | ___ °C | ___ °C |
Relative humidity | ___ % | ___ % |
Door opening frequency | ___ / hour | — |
Average open time | ___ sec | — |
Surface temperature at problem area | ___ °C | ___ °C |
Condensation / ice location | Description | Description |
The measurements should ideally be taken when the problem is actually occurring.
A photograph and environmental record from the same time period can be much more useful than a general statement that “the freezer door is icing.”
When condensation or ice becomes a recurring problem, changing multiple components at the same time can make the real cause difficult to identify.
A more useful approach is to work through the likely causes in sequence.
First, inspect the location and pattern of the condensation.
Then confirm the temperature and humidity conditions on both sides of the door.
Next, check how frequently the door opens and whether the opening time is longer than necessary.
After that, inspect sealing contact around the sides, header, and bottom of the door.
If airflow is still noticeable when the door is closed, investigate pressure differences.
Heating systems should then be checked for correct operation and sufficient coverage.
Finally, inspect the threshold, floor slope, and drainage for standing water or refreezing.
This order helps separate air-infiltration problems from local heating or drainage problems.
A symptom table can provide a useful starting point during site diagnosis.
Observed Condition | Areas to Check First |
|---|---|
Frost mainly along one side column | Side seal, alignment, local air leakage |
Ice concentrated at threshold | Bottom seal, floor level, drainage, threshold heater |
Water droplets on warm-side frame | Surface temperature, humidity, frame heating |
Heavy frost after frequent traffic | Opening duration, sensor settings, humid-air infiltration |
Frost while door remains closed | Sealing gaps, pressure difference |
Repeated ice after cleaning | Water source, drainage, heater performance |
Wide frost area inside freezer | High air exchange, pressure imbalance, prolonged opening |
One cold frame section repeatedly wets | Heater coverage, thermal bridge, local seal condition |
This table should be used as a diagnostic guide rather than as a substitute for site inspection.
Several causes can occur at the same time.
A freezer door is one part of the cold-room envelope.
There are situations where repeated condensation is mainly driven by the surrounding environment.
For example, a freezer opening directly into a very warm and humid loading area will experience a much greater moisture load than the same door installed inside an air-conditioned warehouse.
Likewise, strong negative pressure inside the freezer can continue pulling outside air through small gaps even when the door itself is correctly installed.
In these situations, the solution may require reviewing:
Building ventilation
Room pressure
Dehumidification
Air movement
Adjacent room conditions
Drainage
Operating procedures
The door should therefore be evaluated as part of the actual environment rather than in isolation.
The most effective way to reduce freezer door condensation is to control how much moisture reaches cold surfaces in the first place.
Heating can help protect vulnerable areas, and good seals can reduce leakage, but neither measure will fully solve a severe moisture-infiltration problem on its own.
A reliable diagnosis should answer four questions:
Where is the moisture entering?
Why is air moving through the opening?
Which surface is cold enough for condensation or freezing?
Where does the resulting water go?
For an operating freezer door, the most useful troubleshooting materials are clear photographs of the condensation location, temperature and humidity records, door-cycle information, and details of the existing seals, heaters, and drainage.
With these conditions documented, it becomes much easier to determine whether the problem is primarily caused by humid-air infiltration, pressure imbalance, sealing failure, insufficient heating, drainage, or a combination of several factors.
