The service life of an industrial sectional door depends on much more than the door panel itself.
For many projects, the parts most affected by repeated operation are the spring system, cables, rollers, hinges, bearings, tracks, and drive components. A door used only a few times per day may remain mechanically stable for many years, while the same basic door configuration can require earlier service when used dozens of times per hour.
For this reason, industrial sectional door cycle life should be considered during equipment selection rather than only after the door has been installed.
The key questions are:
How many times will the door open and close each day?
What cycle life is expected from the spring and hardware system?
Which components are likely to require inspection or replacement first?
How should maintenance be budgeted over the expected service period?
Cycle life is not a single fixed number for every industrial sectional door. It depends on the actual configuration, operating frequency, door size, weight, hardware selection, environment, and maintenance history.
The first step is to estimate how often the door will operate.
A cycle generally refers to one complete opening and closing sequence.
If a door opens and closes 20 times per day, that represents roughly 20 cycles per day. If it operates 100 times per day, annual usage is significantly higher even if the door size and hardware are identical.
A simple estimate can help translate daily operation into annual demand.
Daily Cycles |
Approx. Annual Cycles* |
|---|---|
10 |
3,650 |
20 |
7,300 |
50 |
18,250 |
100 |
36,500 |
200 |
73,000 |
Based on daily operation throughout the year. Actual working days should be used for project calculations.
This calculation is useful because many spring systems and hardware components are specified according to expected operating cycles.
A low-use warehouse door and a frequently operated production door should not automatically use the same maintenance plan.
For a door that opens only a few times each day, inspections may focus more heavily on corrosion, impact damage, alignment, and environmental wear.
For a door with much higher cycle frequency, fatigue and wear become more important.
The service plan should therefore reflect actual usage rather than relying only on a fixed calendar interval.
Cycle life normally refers to the number of opening and closing operations a mechanical component is designed or tested to perform under specified conditions.
The torsion spring system is often one of the main cycle-rated components because the spring is repeatedly loaded and unloaded during door operation.
However, the rated spring life should not be confused with the guaranteed life of the complete door.

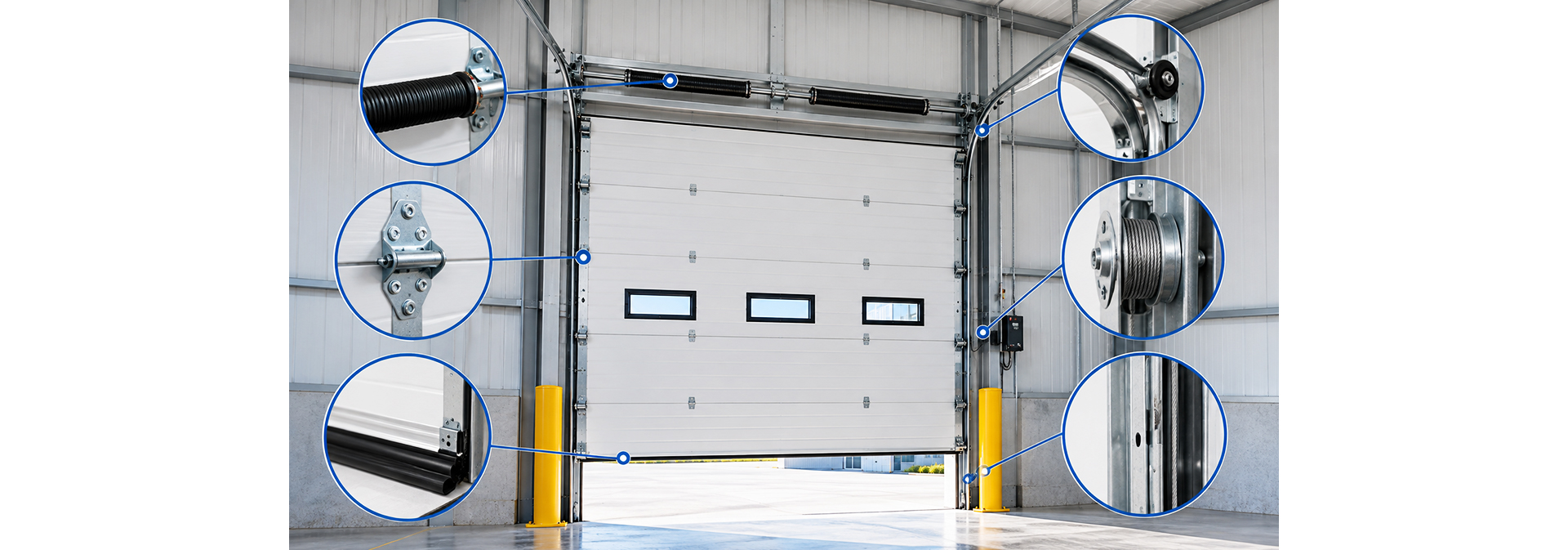

Other components also wear over time, including:
Lift cables
Hinges
Rollers
Bearings
Track components
Bottom fixtures
Shaft components
Motor and gearbox parts
Seals
The complete door therefore needs to be evaluated as a system.
A cycle rating is useful for comparing configurations and estimating service intervals, but it should not be treated as an exact failure date.
Actual life can be affected by:
Door balance
Installation accuracy
Door weight
Door width and height
Environmental temperature
Corrosion
Impact
Track alignment
Maintenance quality
A properly maintained door may perform differently from a similar door operating under poor alignment or heavy impact conditions.
Industrial sectional doors commonly use torsion springs to balance the weight of the door.
The spring system reduces the force required to raise and lower the panels and helps the door move in a controlled manner.
Because the springs work during every cycle, their rated life is an important part of long-term planning.
For EVERBESTEN industrial sectional doors, spring configurations can be selected according to project requirements. A common configuration uses 60Si2Mn spring steel with a rated cycle life of at least 20,000 cycles, subject to the specific model and confirmed engineering configuration.
Higher-cycle spring options may also be considered where the project operating frequency requires them.
A cycle rating becomes more meaningful when compared with actual daily usage.
For example, a spring system rated for 20,000 cycles would theoretically reach that number much faster on a door operating 100 times per day than on one operating 10 times per day.
The basic planning calculation is:
Expected service period = rated cycles ÷ average daily cycles
For example:
20 cycles/day → 1,000 operating days for 20,000 cycles
50 cycles/day → 400 operating days
100 cycles/day → 200 operating days
These figures are only planning estimates. They do not replace inspection or manufacturer service recommendations.
For existing facilities, controller logs or maintenance records can provide more useful information than estimates.
For new projects, expected traffic should be discussed with the customer before finalizing the spring configuration.
Cycle count alone does not tell the full story.
A large sectional door places different loads on springs, cables, hinges, and tracks than a smaller door.
Panel construction, insulation thickness, reinforcement, windows, and door dimensions all affect the overall moving weight.
A wider door may also require additional reinforcement to control panel deflection.
This means two doors with the same nominal cycle requirement may still use different spring and hardware configurations.
For large industrial doors, the supplier should confirm:
Door weight
Spring torque
Shaft configuration
Cable size
Roller specification
Hinge arrangement
Track strength
Motor output
These components should be matched as a system rather than selected independently.
Spring life receives a lot of attention, but the rest of the hardware also contributes to reliability.
A door can have springs with remaining cycle capacity while still developing problems elsewhere.

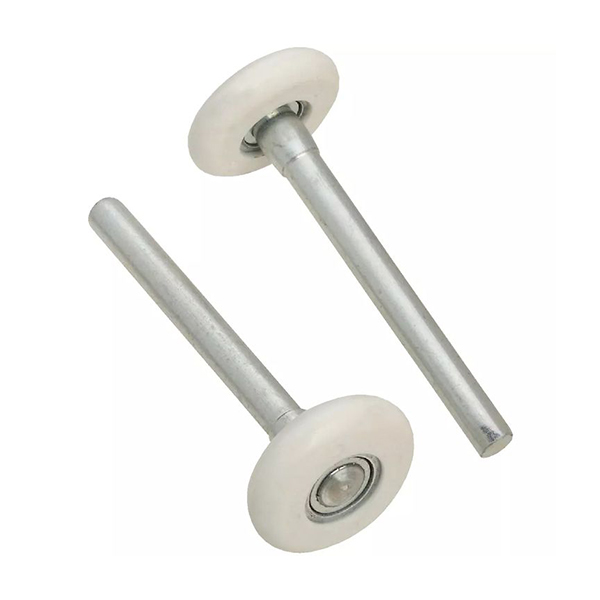

Rollers guide the panels through the track system.
Wear, contamination, damaged bearings, or misaligned tracks can increase friction and create additional load on the drive and spring system.
Regular inspection should look for abnormal noise, uneven movement, or visible wear.
Hinges connect the individual door sections and move during every cycle.
Repeated load, loose fasteners, impact, and corrosion can affect their condition.
Heavy or wide doors may place greater demand on the hinge system.
Lift cables are critical load-bearing components.
They should be included in routine inspection for wear, damage, corrosion, or abnormal winding.
Cable condition should never be judged only by age.
A relatively new cable can still require attention if it has been damaged or incorrectly aligned.
Bearings and shaft assemblies support repeated rotational movement.
Their service life depends on load, alignment, lubrication requirements, and environment.
Noise or uneven operation can be an early sign that further inspection is needed.
A maintenance plan should combine calendar-based inspection with cycle-based review.
For low-use doors, time-based servicing may be sufficient for many checks.
For higher-use doors, cycle count becomes much more important.
A useful maintenance record can include:
Record Item |
Example |
|---|---|
Door model |
__________ |
Installation date |
__________ |
Average cycles/day |
__________ |
Estimated annual cycles |
__________ |
Spring rated cycles |
__________ |
Last inspection |
__________ |
Cable condition |
Good / Monitor / Replace |
Roller condition |
Good / Monitor / Replace |
Hinge condition |
Good / Monitor / Replace |
Track alignment |
Normal / Adjustment required |
Next planned service |
__________ |
This makes maintenance more predictable and helps identify repeated problems.
Maintenance budgeting should not only include emergency repairs.
A more practical approach is to identify the components that are expected to wear during the door's service life and plan for periodic inspection and replacement.
Typical budget items may include:
Preventive inspection
Spring replacement
Lift cable replacement
Roller replacement
Hinge replacement
Seal replacement
Bearing service
Track repair
Motor and control service
Emergency call-out support
The actual cost depends on door size, component specification, labor rates, travel, and site access.
As operating frequency increases, reactive maintenance becomes more disruptive.
For a frequently used door, a planned replacement of wear components during scheduled downtime may be more economical than waiting for an unexpected failure.
This is especially relevant where the door is connected to a critical production, warehouse, or logistics route.
The direct price of a spring or roller is only part of the maintenance cost.
Unexpected failure can also cause:
Loading delays
Production interruption
Temporary traffic rerouting
Additional labor
Emergency service charges
Maintenance planning should therefore consider operational downtime as well as component cost.
A door installed in a clean, dry warehouse will experience different conditions from a door exposed to moisture, dust, chemicals, salt, or large temperature variations.
Corrosion can affect springs, cables, tracks, and fasteners even when cycle count remains relatively low.
Dust and debris can also increase roller and track wear.
For demanding environments, hardware protection and material selection should be discussed during the specification stage.
Depending on the project, components may use galvanized finishes or other protective treatments.
The correct choice depends on the environment rather than cycle life alone.
A low-cycle door in a corrosive environment may require more maintenance attention than a higher-cycle door in a clean indoor facility.
A sectional door should operate in a properly balanced condition.
If the door becomes noticeably heavy, moves unevenly, makes unusual noise, or no longer follows its normal operating pattern, it should be inspected by qualified service personnel.
An unbalanced system can increase stress on multiple components.
Torsion springs store significant mechanical energy.
Spring tension, cable replacement, shaft work, and balance adjustment should be handled by trained technicians using the correct procedures and tools.
The maintenance plan for the customer should focus on inspection, service scheduling, and identifying abnormal operation rather than instructing operators to adjust the spring system themselves.
For facilities with multiple sectional doors, service records can provide useful long-term data.
Over time, the maintenance team can compare:
Actual cycle counts
Spring replacements
Cable replacements
Roller wear
Impact incidents
Downtime
Repair costs
This makes it possible to identify doors that are operating under more demanding conditions than originally expected.
A door specified for moderate usage may later become part of a much busier traffic route.
In that case, maintenance frequency or future replacement specifications can be adjusted based on real operating history.
When evaluating an industrial sectional door, cycle-life claims should be supported by the relevant product configuration.
A general statement that a sectional door is “high cycle” is not enough.
The useful information is:
Which model was tested
Which spring configuration was used
What cycle rating applies
Which major hardware components were included
What operating conditions were used
Whether the specification matches the actual project door
This is why model-level test information is more valuable than a broad marketing claim.
For project documentation, EVERBESTEN can provide the relevant configuration information according to the confirmed door size and hardware selection.
Before selecting the door configuration, the project team should answer four questions:
How many cycles will the door complete per day?
How many operating days are expected each year?
What service life is expected before major wear-component replacement?
How costly would unexpected downtime be?
From there, the supplier can review whether the standard spring and hardware configuration is appropriate or whether a different specification should be considered.
This also helps create a realistic maintenance budget from the beginning of the project.
The expected industrial sectional door cycle life cannot be determined by the spring rating alone.
Springs are an important reference point, but real service life also depends on cables, rollers, hinges, bearings, tracks, motor components, installation quality, operating environment, and maintenance.
The most reliable planning method is to combine:
Real daily cycle data
Model-specific spring ratings
Correct hardware configuration
Periodic inspection
Service records
Planned replacement of wear components
For low-frequency doors, this approach helps prevent unnecessary maintenance.
For higher-use doors, it helps reduce unexpected downtime and makes lifecycle costs more predictable.
Before production, the expected operating frequency should therefore be confirmed together with the door size and hardware configuration so that the spring and component specification matches the actual application.
