A loading dock is safest and easiest to operate when the vehicle restraint, dock door, dock leveler, traffic lights, and control panel do not work as completely independent devices.
A loading dock interlock system coordinates these components so that each operation is allowed only when the required previous condition has been confirmed.
For example, a typical sequence may require the trailer to be secured before the dock door can open, and the door to be fully open before the dock leveler can operate.
The exact sequence depends on the equipment configuration, site operating procedure, and local safety requirements. For this reason, interlock logic should always be reviewed and approved for the specific project rather than copied from a generic wiring diagram.
A loading dock interlock system uses control signals from multiple pieces of dock equipment to manage the operating sequence of the loading bay.
The system can coordinate equipment such as:
Vehicle restraints
Industrial doors
Dock levelers
Traffic lights
Warning lights or alarms
Position sensors
Control panel commands
The objective is to reduce situations where equipment is operated in the wrong sequence.
Traffic lights mainly communicate status to drivers and warehouse personnel.
An interlock system goes further by controlling whether certain equipment functions are permitted.
A red exterior traffic light may tell the driver not to leave.
At the same time, the control system may prevent the dock leveler from returning to its stored position until the loading process has been completed.
The traffic light communicates the condition, while the interlock controls the sequence.
Without interlocking, each device may still function correctly on its own, but the loading bay can be operated in an unsafe or inefficient order.
If the vehicle has not yet been secured, opening the dock door may expose the loading area before the trailer position is confirmed.
The door-open command can be enabled only after the required vehicle-secured signal is received.
The dock leveler should normally operate only after the door has reached the required open position.
The leveler control remains disabled until the door-open status has been confirmed.
The vehicle should not normally be released while the dock leveler remains engaged with the trailer.
The restraint release sequence can require the leveler to return to its stored position first.
The operating sequence should be defined before the control system is programmed.
A typical coordinated loading process may follow the stages below.
The truck reverses into the loading bay and stops against the dock bumpers.
The loading dock is normally in a stored condition:
Dock door closed
Dock leveler stored
Vehicle restraint released
Interior status indicates the bay is not yet ready for loading
The operator activates the vehicle restraint where one is installed.
The system checks whether the required secure condition has been reached.
The system can allow the next operating step.
The normal automatic sequence should stop.
Depending on the approved site procedure, the operator may need to follow an exception process.
Once the required vehicle condition is confirmed, the dock door can be opened.
A suitable position signal can indicate that the door has reached the required operating position.
This helps prevent the dock leveler from being raised while the door is still closed or partially open.
The operator activates the dock leveler.
The platform raises, the lip extends or deploys, and the leveler is positioned onto the trailer bed according to its design.
Once the leveler is properly positioned, loading or unloading can begin.
During this stage, the restraint should remain in the secured condition according to the project control logic.

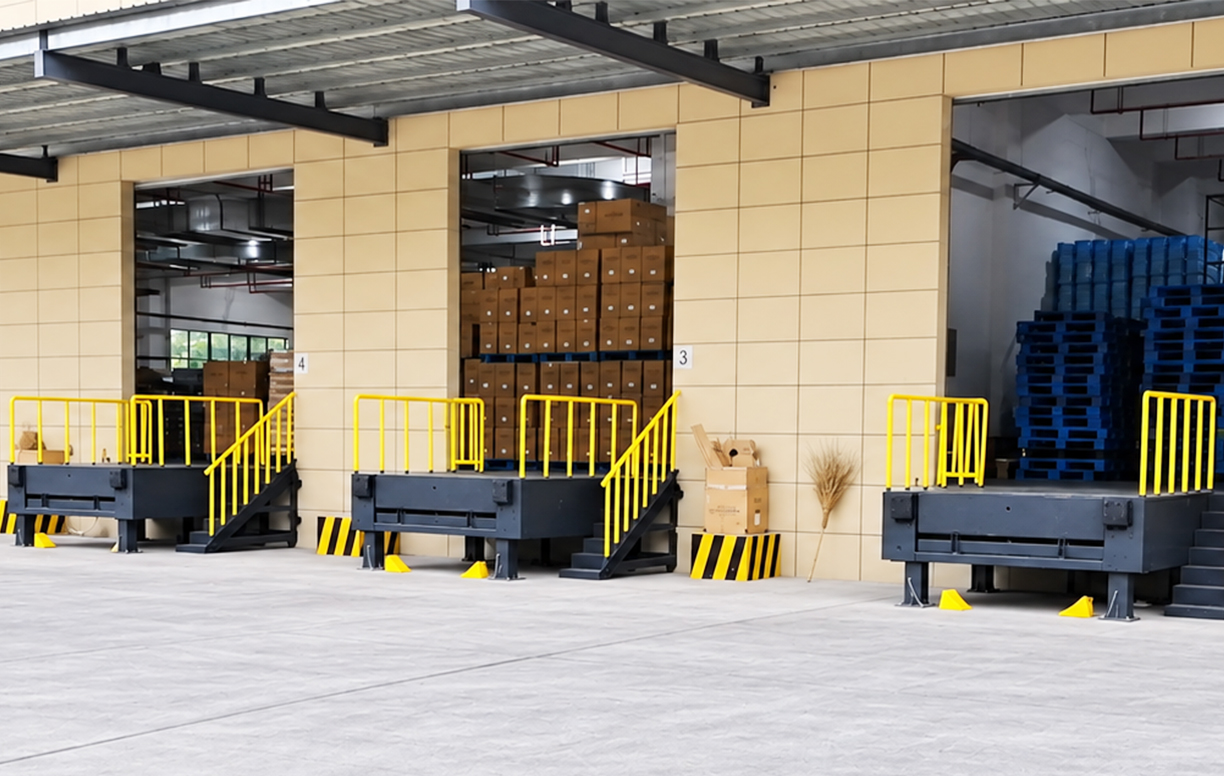

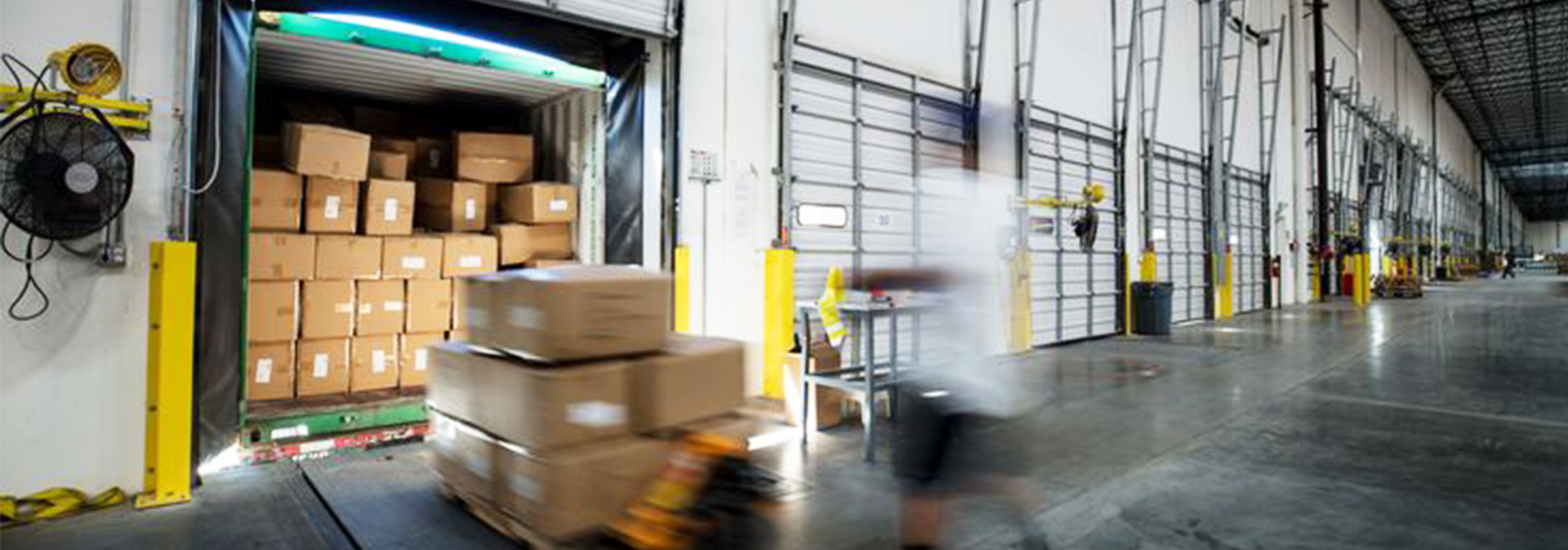

Warehouse personnel move goods between the building and the trailer.
During this period, the system maintains the required operating states.
Internal and external signals may show different information.
For example, warehouse personnel may see that loading is permitted while the driver receives a stop indication.
The traffic light should communicate the actual equipment state rather than operate independently from the loading dock sequence.
After loading is complete, the dock leveler is returned to its stored position.
The system checks whether the platform and lip have returned to the required position.
The next step should only be enabled once the leveler is safely stored.
The operator closes the dock door.
The control system confirms the required closed position.
Once the leveler and door are in their required stored states, the system can allow the vehicle restraint to release.
After the restraint has released, the external traffic signal can change to indicate that the vehicle may depart.
The following table illustrates how a project-specific loading dock sequence can be documented.
It is a control logic example only. Actual interlock states, sensor requirements, overrides, and control signals must be confirmed by the equipment supplier and project engineer.
Operating Stage | Vehicle Restraint | Dock Door | Dock Leveler | Driver Status | Operator Action |
|---|---|---|---|---|---|
Bay ready | Released | Closed | Stored | Approach / site instruction | Wait for vehicle |
Vehicle positioned | Awaiting secure signal | Closed | Stored | Stop | Secure vehicle |
Vehicle secured | Locked / confirmed | Closed | Stored | Stop | Open door |
Door open | Locked | Open confirmed | Stored | Stop | Activate leveler |
Loading position | Locked | Open | Engaged | Stop | Load / unload |
Loading complete | Locked | Open | Returning | Stop | Store leveler |
Leveler stored | Locked | Open | Stored confirmed | Stop | Close door |
Door closed | Locked | Closed confirmed | Stored | Stop | Release restraint |
Vehicle released | Released | Closed | Stored | Depart | End cycle |
This type of table is useful because it shows what equipment state is expected before the next operation becomes available.
A complete interlock strategy should consider not only the normal loading sequence but also abnormal conditions.
A trailer may not always be compatible with the restraint.
This can occur because of vehicle geometry, obstruction, damage, or positioning.
The control system should identify that the expected secured condition has not been confirmed.
Any alternative procedure should follow the site's approved operating rules.
If the door does not fully open, the dock leveler should not automatically be assumed safe to operate.
The issue may involve:
Door obstruction
Position sensor condition
Mechanical fault
Control fault
Power interruption
The leveler command can remain unavailable until the required door status is confirmed.
The loading cycle should not proceed directly to vehicle release if the leveler remains engaged.
The operator should receive a clear fault or incomplete-cycle indication.
The vehicle should remain controlled until the equipment condition is resolved according to the approved system logic.
An interlock system depends on reliable status information.
A failed sensor can create uncertainty even when the mechanical equipment appears to be in the correct position.
Where appropriate, loss of a required confirmation signal should prevent the next operation rather than automatically assume that the condition is safe.
Sensor logic, fault handling, and bypass functions should be defined during engineering.
Some loading dock systems include a controlled override for maintenance or exceptional operating conditions.
This should not be treated as a normal operating shortcut.
Where an override is provided, it should normally be restricted to authorized personnel.
Operators should be able to recognize when the loading bay is operating outside the normal automatic sequence.
An emergency stop can be included in the dock control panel depending on system design.
Its effect on each device should be defined during project engineering.
The interlock manages the correct operating sequence.
The emergency stop addresses a different control function.
After an emergency stop is reset, the system should verify the actual equipment states before normal operation resumes.
Traffic lights are an important part of dock communication, but their signals should correspond to the actual equipment status.
The exterior light normally communicates whether the driver should remain stationary or may leave.
A light that changes independently from the restraint or leveler state can create conflicting information.
The internal signal can show whether the loading process is ready to begin.
The operator indication should correspond to the actual state of the restraint, door, and leveler.
For a detailed discussion of driver and warehouse communication, this section can internally link to the separate article on loading dock traffic light systems.
The control panel is the operator's main interface with the loading dock system.
A well-designed panel should make the operating sequence easy to understand.
Depending on the project, the panel may include:
Vehicle restraint controls
Door open and close controls
Dock leveler controls
Status indicators
Fault indicators
Emergency stop
Reset functions
Controls should make it easy for the operator to understand which step is currently available.
An interlock should be based on confirmed equipment conditions rather than timing assumptions alone.
Suitable sensors can confirm important states such as:
Door open
Door closed
Leveler stored
Restraint secured
Restraint released
The exact sensor type and signal arrangement should be determined during engineering.
Loading dock interlock systems vary significantly between projects.
The required logic depends on the equipment combination, controller type, electrical system, operating procedure, and safety strategy.
Two loading bays may use similar dock levelers but different doors or vehicle restraints.
The control system should be engineered according to the actual equipment supplied.
A blog article can explain the operating logic, but it should not replace project electrical drawings.
Terminal assignments, PLC logic, relay connections, sensor wiring, voltage requirements, and override circuits should be defined in the approved technical documentation.
A supplier should first understand how the loading bay is expected to operate.
Confirm which equipment will be included in the control sequence.
This may include the door, dock leveler, vehicle restraint, traffic lights, dock shelter controls, and external signals.
Define which action should occur before the next action becomes available.
The control sequence should explain what happens when the expected status is not achieved.
Provide the available voltage, phase, frequency, and existing control system information.
When upgrading an existing loading bay, the old control interfaces and field wiring should also be documented.
One of the clearest ways to confirm a loading dock control strategy is to create a project-specific state table before production.
The table should identify the required condition of every major device.
For each stage, the project team can verify which operator commands should be available.
Fault cases should be reviewed separately from the normal sequence.
The final state table should be approved before PLC programming, control panel assembly, or site commissioning.
Commissioning should test the system as a complete loading bay rather than testing each device only in isolation.
The full sequence should be checked from vehicle arrival through vehicle release.
A blocked command should remain unavailable until the required condition is achieved.
Selected fault scenarios should also be tested according to the approved commissioning procedure.
Warnings, lights, and operator messages should correspond to the real equipment condition.
A reliable loading dock system depends on more than selecting a good door, restraint, or dock leveler.
The way these devices interact is equally important.
A properly designed loading dock interlock system defines the relationship between vehicle securing, door operation, dock leveler positioning, loading, equipment reset, and final vehicle release.
The most effective way to document this logic is through a project-specific operating sequence and an engineering-approved interlock state table.
Before manufacturing or programming the control system, the equipment supplier, project engineer, and site operator should confirm the required sequence together.
This provides a much clearer basis for control panel design, commissioning, and long-term operation than relying on a generic wiring diagram.
