Industrial doors are often treated as simple access equipment, but in a modern warehouse they influence much more than whether vehicles can move through an opening.
The type of door installed at each entrance can affect forklift traffic, temperature separation, weather protection, available building space, loading dock operation, and the way employees interact with the surrounding area.
The important point is that not every warehouse opening has the same job. A main exterior entrance may need a rigid insulated closure. An internal transfer route may need fast opening and closing. A loading dock door needs to work around trailers, dock levelers, bumpers, and shelters. A temperature-controlled area may place greater importance on reducing uncontrolled air exchange.
For this reason, choosing an industrial door should begin with the function of the opening rather than simply comparing door size, price, or motor specifications.
Before selecting a door type, it is useful to understand what happens around the opening during a normal working day.
How often does it open? What passes through it? Is it indoors or outdoors? Are temperatures different on each side? Is the opening part of a loading dock? These questions usually have more influence on the final door choice than any single product specification.
A warehouse may contain several large openings with similar dimensions but completely different requirements.
One entrance may open only a few times per hour for vehicle access, while another may have forklifts passing through continuously. Their dimensions may be similar, but using the same door system for both locations may reduce efficiency.
An exterior warehouse door is directly exposed to wind, temperature changes, rain, dust, and yard conditions.
When the door is closed, it becomes part of the building envelope. Panel construction, perimeter sealing, structural support, and weather exposure therefore become important selection factors.
A rigid insulated sectional door may be appropriate where the entrance needs a substantial closed barrier and regular vehicle access.
Internal warehouse openings are generally less exposed to weather but may experience much more frequent forklift traffic.
In these areas, keeping vehicles moving and reducing unnecessary open time may be more important than providing the same rigid closure required at an exterior wall.
A high speed door is often more suitable for this type of traffic pattern.
A door should support the way the facility already operates rather than forcing employees to change their entire traffic pattern around the door.
The vehicle approach direction, available waiting space, pedestrian routes, maximum load dimensions, and peak traffic periods should all be considered.
A door that performs well during quiet periods may still create congestion during dispatch or receiving peaks if its operating cycle does not match real traffic.

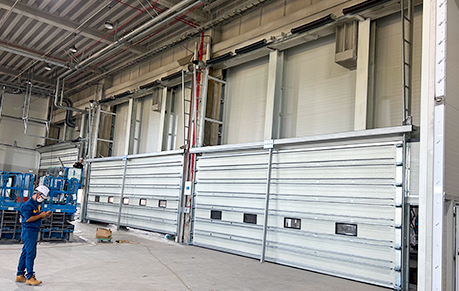

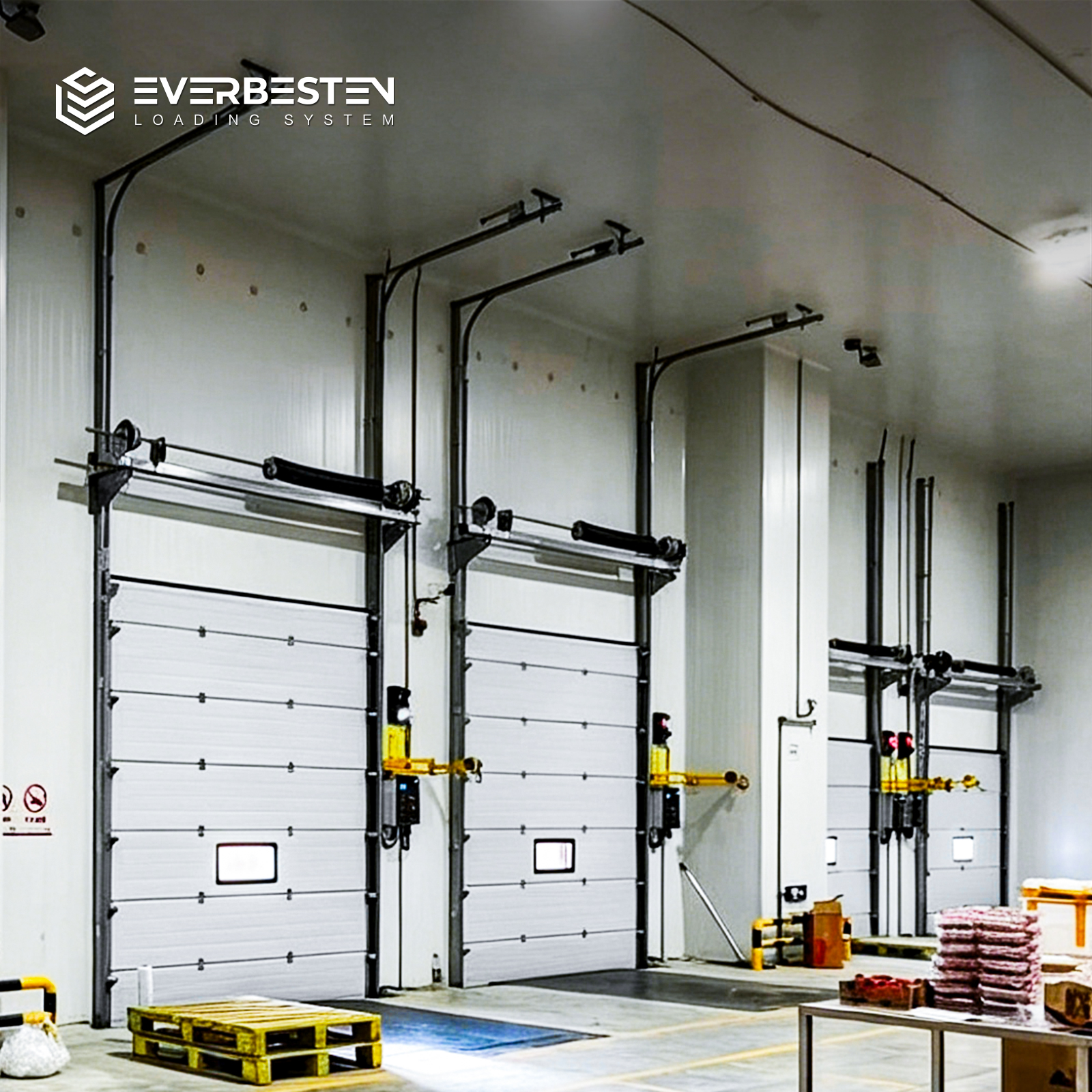

Industrial sectional doors are widely used at warehouse exterior openings because they combine vertical movement with a rigid panel structure.
The connected panels rise along tracks instead of swinging outward, allowing the entrance area to remain available for normal vehicle and material movement.
Warehouse floor space is valuable, particularly close to major entrances where forklifts, vehicles, pallets, and employees frequently move.
A sectional door does not require a large swing radius in front of or behind the opening.
Because the panels move vertically, trucks and forklifts do not need to remain outside a large door swing area.
This can make vehicle positioning easier at exterior warehouse entrances and loading bays where the available approach space is limited.
Sectional door tracks can be arranged differently depending on available headroom and the internal building structure.
A standard lift arrangement may suit conventional buildings, while high lift or vertical lift configurations can use more of the wall height and keep horizontal tracks farther away from the working area.
The final track design should take roof beams, pipes, lights, cranes, cable trays, and other equipment into account before production.
When the sectional door is closed, the insulated panel structure helps reduce heat transfer through the opening.
This can be valuable in conditioned warehouses, production buildings, loading bays, and other facilities where indoor temperature needs to remain more stable.
The thickest panel is not automatically the best choice for every project.
A general warehouse may require moderate insulation, while a more tightly temperature-controlled space may benefit from greater thermal separation.
Panel thickness should therefore be selected according to actual indoor and outdoor conditions, door dimensions, building design, and project budget.
Even a well-insulated door can perform poorly if large gaps remain around the perimeter.
Side seals, top sealing, bottom seals, track alignment, and finished floor condition all affect how well the closed door separates indoor and outdoor environments.
An uneven threshold can leave a continuous gap beneath the door even when the panel itself is properly insulated.
High speed doors solve a different warehouse problem.
Their main advantage is reducing the time an opening remains exposed during repeated traffic. This makes them particularly useful at internal logistics routes, production passages, temperature-controlled transfer areas, and other frequently used openings.
At a busy transfer point, even a small delay at every passage can accumulate across an entire shift.
A properly configured high speed door can begin opening as a forklift approaches and close shortly after the vehicle clears the doorway.
Opening speed alone does not determine how smoothly a forklift can pass.
If the sensor detects the vehicle too late, the operator may still need to stop and wait. If the detection area is too large, the door may open unnecessarily for vehicles travelling nearby.
Radar sensors, induction loops, or other activation devices should therefore be positioned around the actual approach route.
A door that opens quickly but remains open for a long time does not fully solve the problem.
Closing delay should provide enough time for safe vehicle passage without leaving the opening exposed longer than necessary.
For closely spaced forklift traffic, detection logic should be adjusted to recognize continuing movement instead of simply setting a very long hold-open timer.
“High speed door” describes a category rather than one universal product.
A flexible PVC fabric door can work well at protected internal openings. A self-repairing zipper door may be useful where minor forklift contact is a realistic concern. A folding high speed door can be considered for larger openings requiring greater stability.
For exterior applications where faster movement needs to be combined with rigid insulated panels, a spiral high speed door may be a better choice.
The door structure should follow the environment instead of selecting solely from opening speed.
Warehouse environmental conditions depend on HVAC, refrigeration, ventilation, insulation, pressure control, and operating procedures.
Industrial doors cannot replace these systems, but they can help prevent the doorway from becoming a major weak point.
When a large exterior opening remains open, outdoor air can enter the warehouse directly.
Wind, temperature differences, and pressure conditions can make the effect more noticeable.
Closing the door when access is not required restores the physical separation between the warehouse and exterior.
As the doorway becomes larger, small perimeter gaps can represent a significant total leakage area.
Correct frame installation and seal maintenance therefore become increasingly important on large industrial doors.
A protected warehouse entrance and an exposed external opening can experience very different wind conditions.
For exposed locations, door size, panel or curtain structure, guides, track supports, fixing points, and building structure should be reviewed together.
Wind resistance should not be assumed from the product category alone.
Warehouses often contain areas with different temperatures, cleanliness requirements, or operating functions.
Doors can help maintain separation between production, storage, packaging, chilled areas, and main logistics routes while still allowing controlled movement between them.
Where traffic frequency is high, reducing open time may be more valuable. Where the door remains closed for long periods, insulation and sealing may become the higher priority.
A loading dock door does not operate independently.
It shares the loading position with the trailer, dock leveler, dock bumpers, shelter or seal, and sometimes a vehicle restraint and traffic-light system.
For this reason, loading dock entrances should be designed as a coordinated system.
When the sectional door is fully open, the panels, tracks, seals, sensors, and other components should remain clear of the forklift travel path.
The dock leveler then bridges the warehouse floor and trailer bed to create the working transition.
The loading opening needs enough clear width and height for the actual forklift and load.
At the same time, the lower door area should not interfere with the dock leveler or surrounding steel structure.
Checking these dimensions before production reduces the need for modification during installation.
Dock bumpers determine how close the trailer stops to the building.
That position affects dock leveler lip overlap, shelter compression, and the relationship between the trailer and warehouse opening.
Changing bumper projection later can therefore affect several other dock components.
A mechanical dock shelter, inflatable dock shelter, or foam dock seal helps reduce the gaps between the trailer and warehouse during loading.
The warehouse door remains responsible for closing the building opening when loading is not taking place.
These products have different functions but depend on the same dock geometry, so trailer dimensions, bumper projection, dock height, and door opening should be planned together.
Industrial door safety is not simply a checklist of optional accessories.
The correct safety configuration depends on whether the doorway is used by pedestrians, forklifts, pallet trucks, automated vehicles, or mixed traffic.
Photocells can monitor a defined position across an opening, while light curtains can provide broader detection coverage.
The appropriate solution depends on the vehicle type, load dimensions, operating speed, and traffic pattern.
A low-mounted photocell may detect forklift wheels but may not detect a load projecting into the opening at a higher position.
Facilities handling irregular or oversized pallets should consider whether wider detection coverage is needed.
Dust, condensation, impact, or misalignment can affect detection reliability.
A sensor should not be considered maintenance-free simply because it has no major moving components.
Testing and cleaning should be included in the normal door maintenance program.
Pedestrian routes, forklift lanes, mirrors, warning lights, guardrails, speed control, and loading dock communication all influence the safety of the area.
A properly equipped door cannot compensate for an unsafe traffic layout.
The best results come when the door system supports a clear operating procedure for both employees and vehicles.
A door that fits the clear opening dimensions may still be unsuitable for the building if the surrounding structure cannot support it or if there is insufficient installation space.
Site information should therefore be collected before the final door design is approved.
Clear opening width and height are essential, but they are only the starting point.
Available side room, headroom, backroom, wall material, structural steel, floor level, and nearby building services can all affect the installation.
Many modern warehouses use insulated sandwich panels as part of the external wall.
These panels may not provide enough structural support for a large or heavy door by themselves.
Where necessary, additional steel framing should transfer the door loads to the main building structure.
The bottom seal closes against the final floor.
Drain channels, slopes, uneven concrete, or unfinished thresholds can prevent continuous contact and should be identified before commissioning.
Trying to correct a poor floor condition only through door adjustment can increase wear without solving the underlying problem.
Motors, controls, guides, tracks, springs, sensors, and other components need to remain accessible after the building is completed.
Installing fixed racks, pipes, or equipment directly against service areas can turn a simple maintenance task into a longer shutdown.
Maintenance access should therefore be considered part of door layout planning rather than something addressed after installation.
An industrial door affects operating cost through more than purchase price.
Traffic delays, maintenance requirements, replacement parts, environmental performance, downtime, and service accessibility all contribute to long-term value.
A better motor, thicker panel, or larger number of sensors cannot fully compensate for selecting the wrong door type.
For example, using a slower rigid door on an opening crossed continuously by forklifts may create operating delays regardless of the quality of the components.
Similarly, installing a lightweight internal traffic door at a highly exposed exterior opening may not provide the structural or environmental performance required.
The selection process should normally follow this order:
First understand the opening function and environment. Then choose the door type. After that, determine panel or curtain structure, track arrangement, controls, sensors, sealing, and optional accessories.
This creates a more coherent specification than starting from a list of product features.
Warehouse traffic can vary significantly throughout the day.
A door that opens only occasionally during normal periods may become a bottleneck during receiving or dispatch peaks.
Traffic frequency should therefore reflect the busiest realistic operating period rather than only the daily average.
Many warehouse door problems begin during selection rather than after installation.
One common mistake is using the same specification for several openings simply because their dimensions are similar. An internal transfer route and an exterior loading entrance may be the same size but need completely different doors.
Another mistake is comparing only one specification. Opening speed does not describe insulation. Panel thickness does not describe traffic efficiency. Motor power does not describe structural suitability.
Buyers should also avoid treating every warehouse entrance as a standalone product. At loading docks in particular, the door interacts with bumpers, dock levelers, shelters, vehicle restraints, trailers, and traffic controls.
A warehouse can reasonably use several industrial door types.
Sectional doors may be used at exterior loading bays, PVC high speed doors at internal forklift routes, insulated high speed doors around temperature-controlled areas, and rigid spiral doors at certain exposed entrances.
This does not make the facility unnecessarily complicated. It means each opening is being treated according to its actual function.
More features do not automatically mean better performance.
A warehouse that does not need extensive access control should not add unnecessary control complexity. Similarly, selecting extremely heavy insulation for a moderate environment may increase cost and weight without delivering meaningful operational value.
Specifications should be connected to a clear project requirement.
A good industrial door recommendation requires more than the basic opening dimensions.
Providing complete project information allows the supplier to evaluate the product, building structure, traffic, and installation conditions together.
Useful information includes clear width and height, available side room, headroom, wall material, structural steel, finished floor condition, and photographs of both sides of the opening.
This helps determine whether the proposed door can be installed without conflicting with the building.
Photographs that include the ceiling and surrounding walls can reveal pipes, beams, cable trays, lights, racks, and other obstacles.
These details are particularly important for sectional door tracks and larger drive systems.
The supplier should know whether the door will be fixed to concrete, structural steel, masonry, or insulated wall panels.
Where additional steel support is required, it is much easier to plan before the door is produced.
Describe the vehicles using the opening, maximum normal load size, traffic direction, approximate peak frequency, and whether the installation is indoors or outdoors.
For temperature-controlled areas, provide the conditions on both sides of the doorway.
For external doors, describe expected wind and weather exposure.
The more accurately the actual application is explained, the easier it becomes to recommend the right door instead of simply quoting a standard model.
There is no single best industrial door for every warehouse opening.
The correct choice depends on which problem needs to be solved.
A sectional door is often suitable where a rigid insulated exterior closure and efficient use of building space are important. A high speed door is usually more appropriate where frequent traffic and short opening times are the main priorities. A self-repairing zipper door can reduce disruption at impact-prone internal routes, while a folding high speed door can serve larger openings requiring greater curtain stability.
Rigid spiral doors can be considered where fast operation needs to be combined with stronger insulated panels and more demanding exterior conditions.
Instead of asking, “Which industrial door is best?”, a more useful question is:
What does this particular warehouse opening need to do every day?
Once that question is answered, door speed, insulation, structure, control system, safety devices, and installation requirements become much easier to define.
Industrial doors contribute to warehouse protection and efficiency in different ways, but their value depends on correct application matching.
Sectional doors can provide rigid insulated closure and efficient vertical movement at many exterior entrances and loading bays. High speed doors can reduce waiting and open time at frequently used warehouse passages. Specialized configurations can address temperature-controlled zones, larger openings, impact-prone traffic, or exposed exterior locations.
The most effective warehouse door strategy is therefore not to install the same product everywhere. It is to evaluate traffic, environmental conditions, building structure, loading equipment, safety requirements, and maintenance needs for each opening.
When these factors are considered together, industrial doors become part of the warehouse operating system rather than simply equipment used to open and close a wall.
