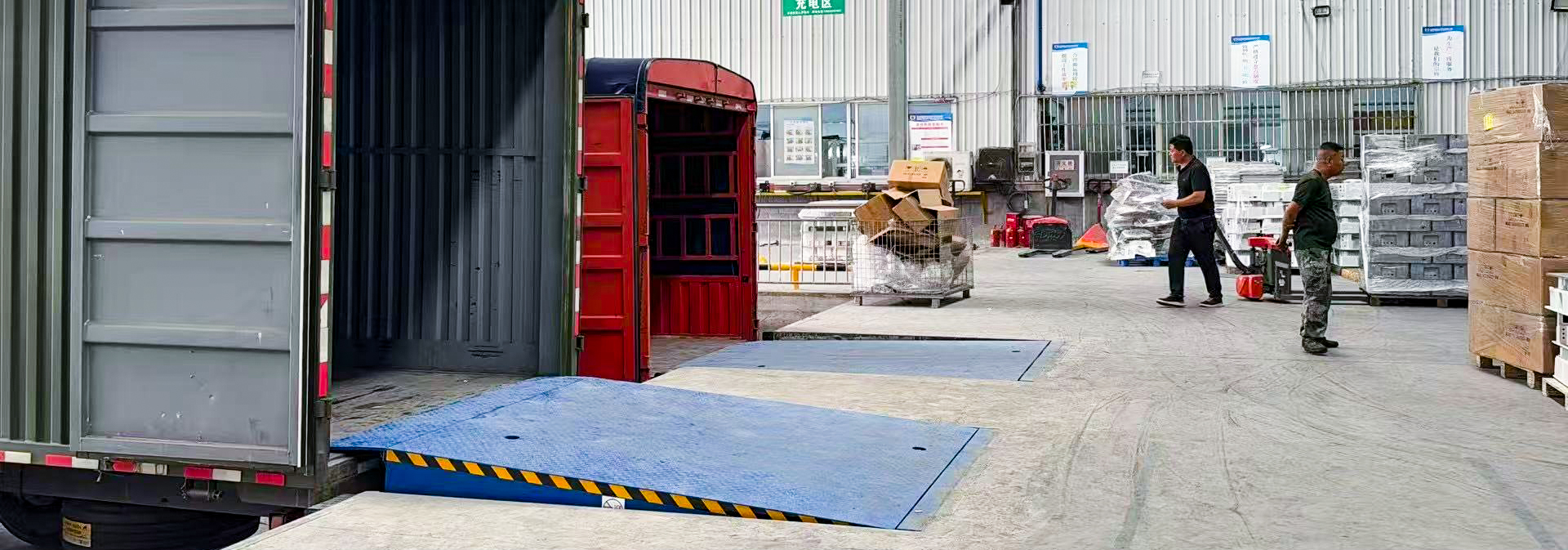

A dock leveler creates a working bridge between the warehouse floor and the trailer bed. During loading, forklifts, pallet trucks, employees, and cargo repeatedly cross this bridge while the trailer may move vertically or horizontally.
Because the leveler becomes part of the traffic route, its safety depends on more than whether the platform can lift and lower. The structural design, hydraulic system, lip engagement, surface condition, maintenance supports, controls, and surrounding dock equipment must all work together.
Buyers should therefore evaluate how the leveler behaves during normal loading, trailer movement, power failure, maintenance, and unexpected equipment faults.
The most obvious risk occurs when a forklift is crossing the platform, but hazards can also develop while the leveler is being positioned or returning to its stored position.
A safe design should provide controlled movement and stable support at every stage rather than relying entirely on operator judgment.
A platform may look well finished while still lacking adequate structural reinforcement, dependable hinges, or suitable hydraulic protection.
Buyers should review the platform structure, support beams, lip connections, cylinder arrangement, and safety devices rather than evaluating only the paint finish or exterior appearance.
A lightly used dock serving hand pallet trucks does not experience the same loads as a busy logistics center handling heavy forklifts and concentrated pallet loads.
The leveler should be specified according to actual vehicle weight, cargo weight, traffic frequency, trailer types, and environmental conditions.
Training is essential, but equipment should not depend on perfect operator behavior during every loading cycle.
Clear controls, mechanical supports, hydraulic safety devices, and reliable position feedback reduce the chance that one incorrect action will create a dangerous condition.
Operators should be able to understand how to raise the platform, extend the lip, lower it onto the trailer, and return it to storage.
An overly confusing control sequence increases the risk of incomplete lip placement, premature release, or misuse during maintenance.
Automatic return and one-button operation can make the leveler easier to use, but the movement sequence must remain controlled.
The platform should not retract or return unexpectedly while a forklift, employee, or trailer remains in an unsafe position.
The rated capacity is one of the first specifications buyers compare, but the number should be understood correctly.
A leveler must support the combined weight of the forklift, operator, cargo, and any attachments while also resisting the dynamic forces created as the vehicle accelerates, brakes, and changes direction.
The forklift nameplate alone does not show the complete load applied to the platform.
The transported pallet, battery, attachments, and uneven wheel loading can all increase the force placed on individual sections of the deck.
The required leveler capacity should account for the heaviest forklift and the maximum load it carries.
Selecting capacity according to cargo weight alone can significantly underestimate the actual operating load.
A warehouse may purchase heavier forklifts or handle larger pallets several years after the dock is installed.
A small additional capacity margin can prevent the leveler from becoming unsuitable when operations expand, but the margin should be based on realistic plans rather than arbitrary oversizing.
A parked forklift applies a relatively stable load. A moving forklift creates additional forces as its wheels strike the leveler, cross hinges, brake, or change direction.
These dynamic forces can be concentrated over a small wheel contact area.
A forklift’s total weight is not distributed equally across the complete platform.
The front wheels may carry a large portion of the load, especially when the forklift is carrying a heavy pallet. Deck plate thickness and reinforcement spacing should account for these concentrated wheel loads.
Forklifts entering the leveler too quickly create stronger impact forces at the rear hinge, platform surface, and lip connection.
Even a correctly rated leveler can wear prematurely if traffic speed is uncontrolled. Dock safety should include vehicle speed limits and smooth approach routes.
The underside of the platform should contain enough structural beams to distribute loading forces to the frame and pit.
The number, spacing, material, and connection quality of these beams influence long-term deck stability.
A thick top plate alone does not guarantee a strong leveler. The plate and support beams must function as one structure.
Buyers should evaluate the complete deck assembly rather than comparing only one steel-thickness figure.
Poor or inconsistent welds can create weak points around reinforcement beams, hinges, cylinder brackets, and lip supports.
Welds should be uniform and positioned according to the structural design, especially in areas that experience repeated loading cycles.
Forklifts must maintain traction while crossing the leveler, particularly when the deck is wet, dusty, oily, or exposed to outdoor weather.
A suitable surface helps reduce wheel slip without creating difficult cleaning or maintenance conditions.

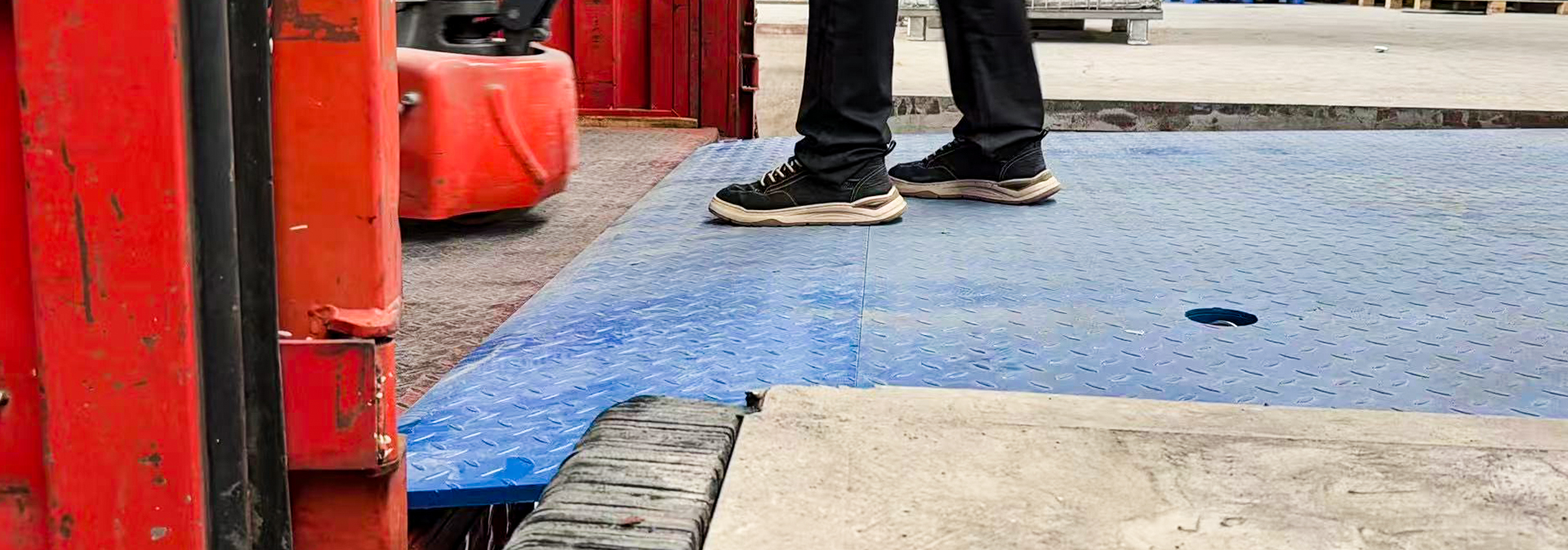

Many dock levelers use a raised-pattern steel deck to improve tire contact.
The pattern should provide useful traction across the full travel path, including the platform and lip.
Water, condensation, oil, snow, and product residue can significantly reduce grip on a smooth surface.
A patterned deck provides additional contact edges, but routine cleaning is still necessary because heavy contamination can fill the pattern and reduce its effectiveness.
The lip is part of the forklift route and may be exposed to water from the trailer or exterior environment.
Buyers should confirm that the lip has an appropriate anti-slip surface rather than focusing only on the main deck.
Paint, powder coating, galvanizing, or other surface treatments can protect the steel from corrosion.
The correct finish depends on whether the dock is dry, wet, refrigerated, exposed to salt, or frequently cleaned.
Rust is not only a cosmetic issue. Severe corrosion can thin steel plates, weaken welds, damage hinges, and make fasteners difficult to inspect.
The coating system should be appropriate for the site environment, and damaged areas should be repaired before corrosion spreads.
A heavy or incorrectly applied coating can reduce the definition of the anti-slip pattern.
The finished deck should retain sufficient texture while still receiving adequate corrosion protection.
The lip forms the final connection between the dock leveler and the trailer bed.
Its dimensions, movement, support, and overlap determine whether forklifts can cross the gap safely.
The lip must extend far enough onto the trailer bed to maintain support during loading.
The required length depends on bumper projection, trailer position, pit geometry, leveler design, and expected trailer movement.
An excessively long lip may interfere with trailer floors, rear doors, cargo, or internal obstructions.
The correct lip length should provide reliable overlap without extending unnecessarily into the trailer.
Thicker dock bumpers position the trailer farther from the dock.
If bumper dimensions change after the leveler has been selected, the remaining lip overlap may become insufficient. Buyers should evaluate the leveler, bumpers, and trailer position together.
The lip hinge and supporting structure experience repeated loading as forklifts enter the trailer.
A weak hinge connection or insufficient reinforcement can lead to deformation, cracking, or uneven movement.
The hinge should move smoothly while remaining strong enough for the rated load.
Excessive looseness, visible gaps, or poorly aligned hinge sections can create vibration and uneven load transfer.
The lip should not rely only on a flat steel plate.
Structural reinforcement beneath or around the lip helps distribute concentrated forklift wheel loads and reduces long-term bending.
Hydraulic dock levelers commonly extend the lip as the platform reaches its raised position.
The movement should be controlled and predictable rather than sudden or uncontrolled.
Employees should not stand near the front or sides of the leveler while the lip is extending or retracting.
Clear operating instructions and suitable controls help keep personnel away from moving components.
When loading is complete, the lip should retract and rest in its designated supports or keepers.
A lip that does not store correctly may leave the platform unstable for cross traffic or create unnecessary stress on the hydraulic system.
Hydraulic dock levelers use cylinders, hoses, valves, a pump, and control components to move the platform and lip.
A properly designed system should control normal movement and limit sudden platform descent if a hydraulic problem occurs.
A hydraulic velocity fuse or similar safety valve can restrict fluid flow if the platform begins descending too rapidly.
This is intended to reduce uncontrolled downward movement caused by certain hose or hydraulic failures.
A safety valve provides protection only when it is installed in the appropriate hydraulic circuit and adjusted for the leveler design.
Buyers should ask how the system responds to abnormal descent rather than simply confirming that a valve exists.
Damaged hoses, leaking fittings, contaminated oil, and worn cylinders should still be repaired promptly.
The velocity fuse is a protective measure for abnormal conditions, not permission to operate a poorly maintained hydraulic system.
Hydraulic hoses move or flex during each cycle and may be exposed to sharp edges, heat, dirt, or accidental impact.
Their routing and protection influence service life and reliability.
A hose placed between moving steel components can be crushed, cut, or worn through.
The routing should allow full platform movement without stretching, twisting, or rubbing against sharp surfaces.
Technicians should be able to see and reach fittings, hoses, and cylinders during planned maintenance.
Hidden leaks can remain unnoticed and gradually reduce lifting performance or create slippery surfaces inside the pit.
The cylinders must lift and support the platform through the required operating range, while the pump must provide controlled movement without excessive pressure or heat.
The design should match the platform size, capacity, and expected number of cycles.
Cylinder quantity should be evaluated together with cylinder size, mounting position, platform structure, and hydraulic circuit design.
A well-engineered system may use a different arrangement from another model while providing equivalent performance.
Frequent cycling, incorrect oil, mechanical resistance, or an undersized power unit can cause excessive heat.
Buyers should review the expected duty cycle and confirm that the hydraulic system is suitable for the dock’s traffic frequency.

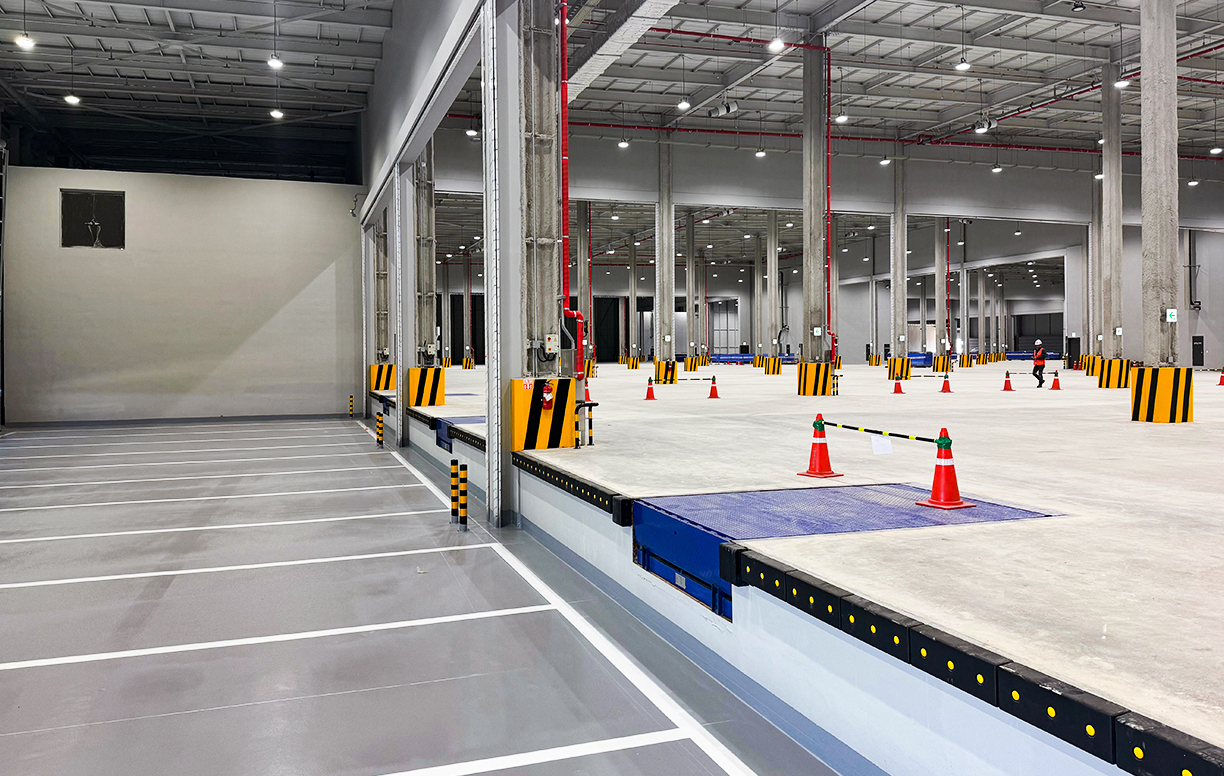

When no trailer is present, forklifts and employees may still travel across the dock floor near the leveler.
The platform should remain stable in its stored position and should not drop unexpectedly under cross traffic.
A pit-mounted leveler normally rests on designated supports when stored.
These supports carry cross-traffic loads without depending entirely on hydraulic pressure.
The stored lip may rest in steel keepers at the front of the pit.
The keepers should be strong, correctly aligned, and able to hold the platform level with the surrounding floor.
A platform that relies only on trapped hydraulic pressure can gradually settle if leakage occurs.
Mechanical stored-position support provides a more dependable condition for warehouse traffic.
Some hydraulic levelers can return automatically to the stored position after loading.
This function can reduce manual steps, but the sequence must remain controlled.
The leveler should not retract while a forklift, employee, or object remains on the platform or lip.
Operators must confirm that loading is complete and the trailer connection is no longer required before activating return.
A platform that stores too high or too low creates a bump or depression in the warehouse traffic path.
The stored position should be adjusted so forklifts can cross smoothly without repeated impact on the rear hinge or lip keepers.
Technicians may need to work beneath the raised platform to inspect hydraulic, structural, or electrical components.
The platform must be mechanically supported before anyone enters the pit.
A maintenance strut or support bar holds the platform in a raised position during service.
It should be designed specifically for the leveler and strong enough to support the platform without relying on the hydraulic cylinders.
Technicians should be able to engage the maintenance support without placing themselves beneath an unsupported platform.
The operating method should be clear in the service instructions and demonstrated during training.
A technician should be able to confirm visually that the maintenance strut is fully engaged.
Partial engagement or placement on an unsuitable component can create a false sense of security.
Mechanical support protects against platform descent, while electrical isolation prevents accidental activation.
Both measures are normally needed before service work begins.
Another employee should not be able to activate the leveler while a technician is inside the pit.
The power supply and control station should support the facility’s lockout procedure.
Switching off the electrical supply does not automatically remove stored hydraulic pressure or mechanical force.
Technicians should follow the manufacturer’s service procedure before disconnecting hoses, valves, cylinders, or structural components.
The control panel is the operator’s main interface with the dock leveler.
Controls should be clearly labeled, positioned with good visibility, and protected against accidental activation.
The operator should understand which button raises the platform, extends the lip, returns the leveler, or stops movement.
Buttons with unclear labels or inconsistent behavior increase the risk of operating errors.
Certain movements may require the operator to keep a button pressed while the leveler is moving.
This keeps the operator engaged with the process and allows movement to stop when the control is released, depending on the design.
The control station should be positioned so the operator can observe the platform, lip, trailer, and surrounding traffic.
A control box placed behind an obstruction may force the operator to move the leveler without seeing the complete area.
An emergency stop allows the operator to interrupt powered movement when an unsafe condition develops.
It should be easy to identify and reach without being activated accidentally during normal work.
Buyers should confirm what movement stops when the emergency button is pressed.
The response should match the control design and should not create an additional hazard through uncontrolled release or unexpected platform movement.
After the emergency stop is reset, the leveler should not begin moving without a new intentional command.
This prevents unexpected motion while personnel are still checking the dock area.
Moving platforms and lips create gaps around the sides, front, and rear of the leveler.
Safety guards and warning markings help reduce access to these areas and make movement more visible.
Side toe guards or skirts cover part of the gap created as the platform rises above the dock floor.
They help reduce the chance of a foot entering the area between the moving deck and pit structure.
A short guard may provide protection only at certain platform heights.
The design should follow the platform through its normal operating range while avoiding interference with movement.
Bent or missing toe guards can expose pinch points and may rub against the platform.
The guards should be included in routine inspections rather than treated as decorative side panels.
High-contrast markings along the side of the raised platform can help employees see that the leveler is above floor height.
This is particularly useful in busy or poorly lit dock areas.
Paint can fade, become dirty, or be covered by corrosion.
The visibility of safety markings should be checked during regular maintenance and restored when necessary.
Warning colors help draw attention to a hazard, but they do not prevent access.
Where a pinch or shear point can be physically guarded, mechanical protection should remain the primary measure.
The dock leveler can operate safely only when a suitable trailer is correctly positioned at the dock.
The trailer must remain close enough to support the lip and stable enough to prevent separation during loading.
Dock bumpers establish the normal distance between the trailer and the building.
Their projection determines how far the leveler lip must extend to reach the trailer bed.
As rubber bumpers compress or lose material, the trailer moves closer to the dock.
This can change lip overlap, dock shelter compression, and vehicle restraint engagement. Bumper condition should therefore be part of leveler safety inspections.
Installing thicker or thinner bumpers changes the trailer stopping position.
Before changing bumper size, confirm that the leveler lip still provides adequate overlap across the expected trailer range.
A vehicle restraint helps limit trailer creep and premature departure during loading.
The restraint and leveler can be connected through control interlocks and communication lights.
Where a restraint system is installed, the leveler can remain disabled until the trailer is successfully secured.
This reduces the chance that employees will place the leveler into an unsecured trailer.
At the end of loading, the lip should leave the trailer and the platform should return to its stored position before the restraint releases.
This sequence prevents the trailer from departing while the leveler remains connected.
The lip should maintain suitable support on the trailer throughout loading, including normal trailer movement.
A lip that barely touches the trailer bed at the beginning of the cycle may lose support as the trailer shifts.
Repeated forklift movement can gradually move an unsecured trailer away from the dock.
The remaining lip overlap becomes shorter until the lip may slip from the trailer bed.
Before a forklift enters the trailer, the operator should confirm that the lip is lying flat and securely supported.
A lip resting on an obstruction, trailer door component, or narrow edge should not be accepted as a normal loading condition.
Hydraulic, mechanical, telescopic, air-powered, vertical storing, and edge-of-dock levelers have different operating mechanisms.
The relevant safety features should match the selected design.
Hydraulic levelers offer powered platform and lip movement, reducing the physical effort required from operators.
Buyers should focus on hydraulic fall protection, emergency controls, hose routing, maintenance supports, and automatic return logic.
The platform and lip should move smoothly without sudden acceleration, uncontrolled descent, or excessive impact at the stored position.
Control valves and settings should be adjusted for the actual platform weight and design.
Oil beneath the leveler can indicate a hose, fitting, cylinder, or pump problem.
In addition to reducing performance, leaked oil creates slip hazards and can contaminate the pit area.
Mechanical levelers use springs and mechanical components to raise the platform and position the lip.
Their safety depends on correct spring adjustment, hold-down operation, structural condition, and operator control.
A platform that rises too aggressively can be difficult to control, while weak springs may prevent proper positioning.
Adjustment should be completed by trained technicians rather than through informal changes by operators.
Chains, springs, latches, hold-down mechanisms, and pivots can wear or loosen over time.
A mechanical leveler may not show hydraulic leakage, but it still requires planned maintenance to remain safe.
A telescopic leveler extends the lip horizontally, allowing more precise placement on the trailer bed.
This can be useful where trailer positions vary or where controlled lip extension is required.
The operator should be able to control how far the telescopic lip extends.
Excessive extension can interfere with cargo or trailer equipment, while insufficient extension reduces support.
The telescopic lip should fully retract before the leveler returns to its pit.
Incomplete retraction can damage the lip, pit frame, or storage supports.
A vertical storing leveler remains upright inside the building when not in use.
This design can support washdown, environmental control, and a more complete barrier at the dock opening.
The leveler must remain mechanically secure while stored vertically.
The locking system should prevent unintended descent while personnel are cleaning or working near the dock.
No employee, equipment, or cargo should remain within the leveler’s movement path.
Controls should be positioned so the operator can see both the platform and trailer area during lowering.
Even a well-designed leveler can become unsafe when the pit, electrical supply, concrete structure, or installation dimensions are incorrect.
Buyers should review site preparation before the leveler reaches the facility.
Pit length, width, depth, rear support, front frame, and embedded steel should follow the approved installation drawing.
An incorrect pit can leave the leveler unsupported or misaligned.
If the pit is too deep or shallow, the platform may not align with the warehouse floor.
Improvised packing or field modification can change load transfer and should not replace correct pit construction.
A twisted or uneven pit can cause the platform to bind, move diagonally, or contact the frame.
Measurements should be checked before installation rather than forcing the leveler into an unsuitable opening.
The pit frame transfers forklift and trailer-related forces into the building structure.
Weak concrete or poorly installed embedded steel can crack or move under repeated loading.
New equipment should not be welded or anchored to loose, cracked, or severely corroded supports.
The dock structure must provide a stable base for the leveler’s rated capacity.
Additional welds are not always beneficial. Excessive or incorrectly positioned welding can distort the frame and affect platform movement.
Installation should follow the approved connection points and sequence.
Water, oil, packaging debris, and broken pallet pieces can collect beneath the leveler.
These materials may damage components, block movement, and make inspection more difficult.
Standing water affects cylinders, hoses, steel supports, wiring, and fasteners.
Where moisture is expected, the pit should have a suitable drainage and corrosion-protection strategy.
Wood fragments, plastic film, stones, and product waste can interfere with hinges, supports, hoses, and sensors.
The pit should be inspected and cleaned on a planned schedule with the platform mechanically supported.
Safety devices remain effective only when they are inspected, tested, and maintained.
A leveler that operated correctly when installed may develop wear, leaks, loose fasteners, or alignment problems after repeated cycles.
Operators should observe the platform, lip, controls, bumpers, and trailer connection before use.
Unusual movement, noise, visible damage, or oil leakage should be reported before loading continues.
A stationary inspection may not reveal hinge movement, lip hesitation, hydraulic drift, or side contact.
Raise, position, and store the leveler while observing each stage from a safe location.
A forklift collision, trailer strike, or dropped load can damage the platform even when the leveler still moves.
The structure, lip, hinges, controls, and pit frame should be checked before normal operation resumes.
A busy loading dock requires more frequent inspection than a lightly used bay.
Maintenance intervals should reflect operating cycles, environment, equipment age, and manufacturer guidance.
Hinges and pivots may require lubrication, while other components should remain clean and dry.
Excess lubricant can collect dust and debris, so technicians should use the specified product and quantity.
Contaminated, degraded, or incorrect oil can affect valve performance, cylinder movement, and pump life.
Oil level alone does not confirm that the hydraulic fluid remains suitable.
Maintenance should verify that emergency stops, velocity controls, stored-position supports, interlocks, and signal lights respond correctly.
Visual presence alone does not confirm that a device still functions.
Test whether the leveler remains disabled when the trailer is unsecured and whether the restraint remains engaged until the leveler is stored.
Any unexpected sequence should be investigated rather than bypassed.
Check the support bar, hinges, locking point, labels, and engagement area for damage or corrosion.
A maintenance support that is bent or difficult to position may not provide dependable protection.
A quotation should provide enough information to evaluate the complete leveler rather than only price, platform dimensions, and capacity.
Buyers should ask how the product handles normal loading, abnormal descent, trailer movement, maintenance, and control integration.
The supplier should explain which mechanical, hydraulic, electrical, and maintenance protections are included as standard.
Optional features should be clearly separated from the base configuration.
The supplier should describe how the platform raises, how the lip extends, how the leveler lowers onto the trailer, and how it returns to storage.
This helps buyers identify missing steps, unclear controls, or unsuitable automation before production.
Drawings or product information should show the maintenance support, hydraulic safety valve, emergency stop, toe guards, lip keepers, and relevant sensors.
A feature is easier to evaluate when its position and function are clearly shown.
Buyers should understand how the stated capacity relates to the platform size, reinforcement, deck thickness, lip structure, and expected forklift traffic.
A capacity number without structural context provides limited information.
Ask whether the rating accounts for moving forklifts and concentrated wheel loads under normal use.
The supplier should know the forklift type, maximum cargo, traffic frequency, and operating environment before recommending a model.
If the site uses several forklift types, buyers should confirm whether one standard capacity covers all bays or whether heavier models are needed in selected positions.
Using the same model everywhere is convenient, but it may not match the real load at each dock.
The leveler should be supplied with approved pit drawings, electrical requirements, hydraulic information, operating instructions, and maintenance guidance.
These documents are important for both installation and long-term safety.
Concrete work should not begin from approximate dimensions or a previous project drawing.
The final pit dimensions must match the exact leveler model and configuration being supplied.
Hoses, seals, valves, switches, control components, and other wear parts may require replacement during the leveler’s service life.
Buyers should confirm how parts are identified and how technical support will be provided after installation.
A safe dock leveler combines sufficient structural capacity with controlled movement, reliable lip support, hydraulic protection, maintenance supports, clear controls, and correct trailer positioning.
Before purchasing, buyers should evaluate the complete loading system rather than one specification. When the leveler, bumpers, vehicle restraint, pit, controls, and operating procedures are properly coordinated, the dock can support safer and more reliable loading operations.
