A doorway may look like a small part of a food processing facility, but it connects areas with different hygiene levels, temperatures, humidity conditions, and production activities. Every time the opening remains exposed, air, dust, insects, moisture, employees, forklifts, and materials can move from one zone to another.
In a conventional warehouse, an open doorway may mainly affect comfort and energy use. In a food plant, it can also disturb sanitation procedures, increase condensation, interrupt controlled traffic routes, and allow particles from packaging or storage areas to enter cleaner production zones.
High speed doors help manage these risks by opening only when access is needed and closing shortly after traffic passes. Their value does not come from speed alone. The curtain material, frame design, sealing system, activation method, safety devices, and cleaning compatibility must all match the actual production environment.
A food processing doorway often separates two operating conditions rather than simply dividing physical spaces. One side may be chilled while the other is at room temperature. One area may handle raw materials while the next contains packaged products.
The correct door helps maintain that separation without creating unnecessary delays for employees or material-handling equipment.
Air can carry dust, moisture, odors, and small particles through an exposed opening. Pressure differences created by ventilation, refrigeration, or exhaust systems may increase this movement.
A high speed door reduces the time available for uncontrolled air exchange. It cannot replace a properly designed ventilation or hygiene system, but it can help the facility maintain the intended separation between production zones.
A manually operated door may be left open because employees do not want to stop, open it, move through, and close it again during every trip.
Automatic high speed doors remove much of this inconvenience. When the activation and closing logic are configured correctly, the door opens for approaching traffic and closes after the passage is clear.
A poorly selected door can slow forklifts, create queues, increase temperature fluctuations, and become difficult to clean. A damaged curtain or unreliable sensor may also force employees to leave the entrance open until repairs are completed.
The door should therefore be evaluated as part of the production process rather than as a separate building component.
A few seconds of waiting may appear unimportant, but a busy production route can complete hundreds of passages during one shift.
Repeated braking, waiting, and restarting reduce productivity and may encourage operators to disable automatic closing or leave the door open. Correct door speed and sensor positioning help avoid this pattern.
Even a well-planned hygiene zone loses effectiveness if the separating door remains open.
Reliable automatic closing makes environmental separation part of the normal workflow. Employees do not need to remember to close the door after every passage, reducing dependence on individual behavior.
A high speed door does not sanitize a room or eliminate contamination by itself. Its role is to support the facility’s zoning, cleaning, and traffic-control strategy.
The most suitable door should limit unnecessary exposure, avoid difficult-to-clean details, and tolerate the cleaning methods used around the doorway.
Food plants commonly divide operations into receiving, raw-material handling, processing, cooling, packaging, and finished-product storage areas.
Traffic may need to move between these zones without leaving the opening exposed for long periods.
Raw ingredients, waste, packaging materials, and finished products should not move randomly through the same uncontrolled passage.
High speed doors can support designated routes by opening only for authorized traffic or signals from the correct direction. Access-control devices can also be integrated when certain areas require restricted entry.
Installing a fast door in the wrong position will not correct a poorly planned production layout.
The opening should be located where it can reinforce the intended movement of people and materials. Traffic should not need to cross back and forth repeatedly between zones simply because the route is inconvenient.
Food processing environments may require frequent cleaning around doors, walls, floors, and equipment.
Frames, covers, curtains, seals, and control boxes should be selected according to the level of moisture, cleaning frequency, and chemicals used at the site.
Complicated joints, exposed fasteners, damaged coatings, and deep recesses can collect dust, grease, and product residue.
Smooth curtain surfaces and well-finished frames are easier to inspect and wipe down. This does not eliminate cleaning work, but it helps make sanitation procedures more consistent.
Stainless steel can be a practical option where the doorway is exposed to moisture, salt, food residue, or frequent washdown.
However, material selection should reflect the actual environment. A dry packaging area may not require the same frame specification as a wet meat-processing or seafood facility.
Some production areas are cleaned with low-pressure washing, while others use more intensive washdown procedures.
The curtain, motor position, control enclosure, sensor protection, and cable entries should all be reviewed before the cleaning plan is finalized.
Motors, control boxes, push buttons, photocells, and cable connections should not be exposed to cleaning methods beyond their intended protection level.
Even when the frame and curtain tolerate water, the electrical components may require additional protection or careful positioning.
Strong detergents and disinfectants may affect curtain surfaces, seals, coatings, transparent windows, and adhesives.
The plant should confirm that its cleaning chemicals are compatible with the selected materials. Damage caused by unsuitable chemicals can create rough surfaces, discoloration, cracking, or sealing problems.
A frequently touched handle or switch can become another contact point within the production area.
Automatic activation allows employees and vehicle operators to pass without touching the door directly.
Radar sensors, pull cords, remote controls, induction loops, and access-control systems can activate the door without requiring employees to touch the curtain or frame.
The best option depends on whether the doorway serves pedestrians, forklifts, pallet trucks, or mixed traffic.
A sensor that detects every movement around the doorway can create unnecessary opening cycles.
Contactless activation should be accurate enough to recognize intentional approach without responding continuously to workers or equipment moving beside the opening.
Food processing facilities may include ambient production rooms, chilled preparation areas, cold storage spaces, freezers, and heated processing zones.
When doors remain open, conditioned air escapes and the temperature around the entrance becomes less stable.
A high speed door reduces the length of time two temperature zones are directly connected.
The benefit depends on the complete cycle: detection, opening, vehicle passage, closing delay, and final sealing.
A door may open rapidly but remain raised for ten or fifteen seconds after traffic has passed.
In that situation, increasing the mechanical opening speed provides limited additional temperature control. Sensor accuracy and closing delay may have a larger effect on total exposure.
When a forklift is detected at the correct distance, the door begins opening before the vehicle reaches the entrance.
This allows the forklift to continue moving without stopping while also avoiding the need to leave the door open long in advance.
A closing delay that is too long increases air exchange. A delay that is too short may cause the door to begin closing between closely spaced forklifts or employees.
The correct setting should reflect actual traffic rather than a standard timer used throughout the facility.
A passage used by individual forklifts may allow the door to close soon after each vehicle clears the opening.
Photocells, radar, or presence detection should confirm that the passage is empty before the closing cycle begins.
During production peaks, several vehicles may pass with short gaps between them.
Repeatedly closing and reopening between vehicles wastes time and adds mechanical cycles. Presence detection or adjusted hold-open logic can keep the door open during active traffic and close it when the route becomes clear.
A fast door spends most of its time in the closed position. Heat transfer through the curtain or panels can therefore remain important, especially around refrigerated or frozen areas.
The appropriate level of insulation depends on the temperature difference and the amount of time the door remains closed.
A lightweight PVC curtain can perform well between production areas with moderate temperature differences and frequent traffic.
However, it does not provide the same thermal resistance as an insulated curtain or rigid panel system. For colder rooms, insulation and sealing may be more important than achieving the highest opening speed.
Low temperatures can affect curtain flexibility, bottom seals, batteries, cables, and lubricants.
A door described only as a general indoor high speed door may not remain reliable in freezer conditions. The actual operating temperature should be confirmed before the product is selected.
Warm humid air entering a chilled area may condense on the curtain, frame, floor, or nearby equipment.
Condensation can affect hygiene, visibility, sealing, and employee safety.
Water or frost appearing in the same location often points to a sealing gap, long open time, or pressure imbalance.
Wiping the moisture away treats the visible result but not the source. The door cycle, seals, and airflow around the opening should be inspected.
Water, uneven surfaces, and damaged flooring can prevent the lower seal from contacting the ground evenly.
A permanent gap allows continuous air exchange. The floor condition and door closing position should be evaluated together rather than forcing the lower bar harder against the surface.
Food processing plants often move ingredients, containers, pallets, packaging, waste, and finished products through the same shift.
The door must respond quickly enough to avoid production delays while controlling access and maintaining safe movement.
The first step is identifying who and what will use the opening.
Pedestrians, pallet trucks, forklifts, automated vehicles, and cleaning equipment approach at different speeds and require different activation methods.
A forklift should not have to brake sharply in front of the doorway.
The sensor should detect the vehicle early enough for the curtain to clear the required height. Detection distance, approach speed, vehicle height, and opening speed must work together.
Employees should be able to understand when the door will open and how long it will remain available.
A very wide radar zone may cause constant opening in busy work areas. Push buttons, card readers, or directional sensors may provide better control for pedestrian routes.
Mixed traffic creates more complex safety and timing requirements.
Pedestrians may move slowly or stop near the doorway, while forklifts require a wider and faster approach route.
When one doorway serves only forklifts, the radar or induction loop can be configured around vehicle movement.
A separate pedestrian entrance reduces the need for a very large detection field and helps prevent unnecessary cycles of the main industrial door.
A high speed door improves access, but it cannot replace clear traffic planning.

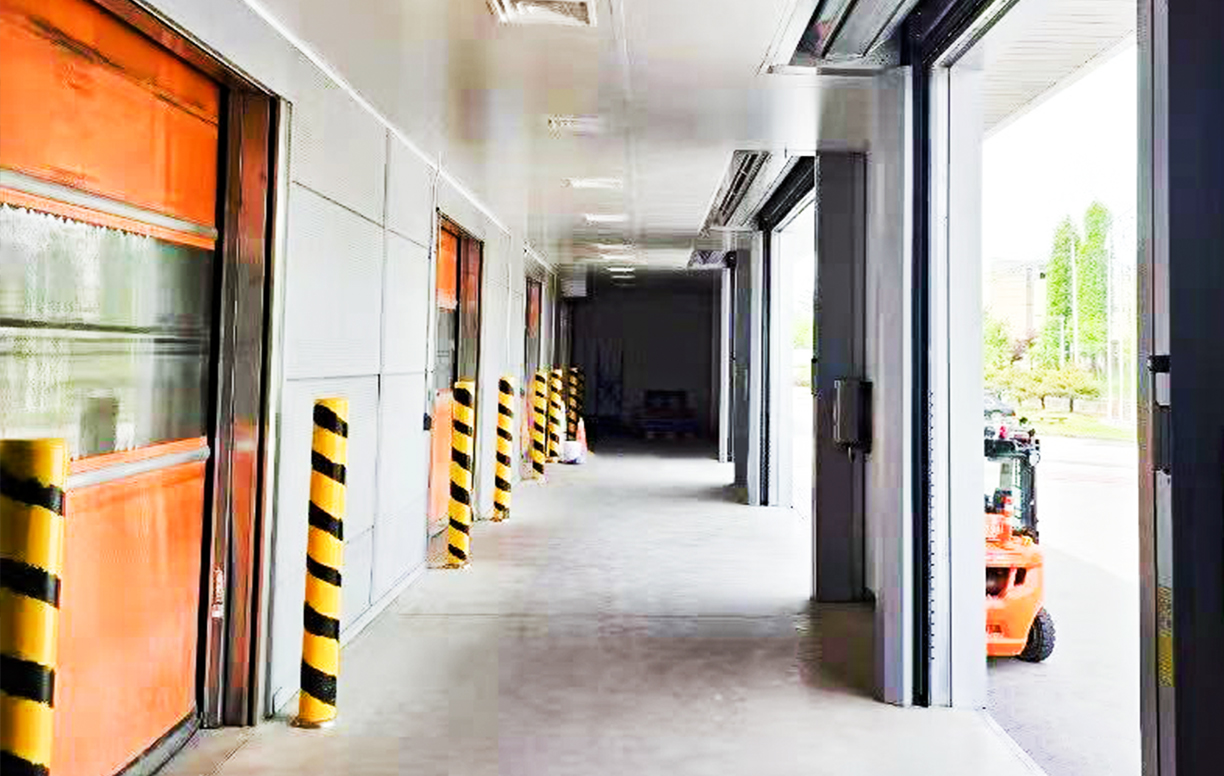

Floor markings, mirrors, warning lights, protective barriers, and one-way routes can reduce conflicts around the opening and protect the door guides from impact.
Some doorways serve traffic approaching from both directions, while others should allow movement in only one direction during certain processes.
The activation and access system should reflect these rules.
Directional sensors can distinguish between traffic approaching the door and traffic moving away from it.
This helps prevent the door from reopening immediately after a forklift has passed or reacting to vehicles moving parallel to the entrance.
Card readers, keypads, remote controls, or production-system signals can limit entry to authorized employees or approved vehicle routes.
This is useful where hygiene zones, allergen-control areas, or controlled production rooms require more deliberate access.
A larger opening may appear more convenient, but it also allows more air, dust, and moisture to move between zones.
The opening should accommodate the largest expected vehicle and load with a practical safety margin, without being unnecessarily wide or tall.
The forklift itself may fit easily while the raised mast, stacked cartons, or irregular product load requires more clearance.
The opening size should be based on the largest normal operating condition rather than the smallest vehicle.
A door programmed to travel far above the required clearance takes longer to complete its cycle.
Setting an appropriate fully open position can reduce movement time while maintaining safe passage for the intended traffic.
Food processing facilities do not all need the same door.
The correct design depends on temperature, moisture, traffic frequency, impact risk, air pressure, cleaning procedure, and the required level of environmental separation.
PVC fabric high speed doors are commonly used for internal production and warehouse passages.
Their lightweight curtains support rapid opening and closing, making them suitable where traffic is frequent and wind pressure is limited.
A PVC fabric door can separate processing, packaging, staging, and warehouse areas without creating long delays.
The curtain should have a smooth, cleanable surface, and the frame finish should match the moisture and sanitation conditions around the opening.
Exhaust systems, air curtains, ventilation, and temperature differences can push a flexible curtain sideways.
An interior door without wind bars should be used where the pressure conditions remain suitable. Stronger airflow may require a different curtain structure or door type.
Self-repairing zipper doors are useful in busy routes where forklift contact may occur.
The flexible curtain can leave the side guides after certain impacts and reconnect during a later cycle, reducing downtime from minor collisions.
A damaged conventional door may need to remain open while maintenance is arranged.
A self-repairing system can restore normal environmental separation more quickly after a minor curtain release, helping protect hygiene and temperature control.
Food residue, packaging fragments, ice, and dirt can interfere with the zipper profile.
The guide entrances and curtain edges should be included in the regular cleaning and inspection schedule so the resetting function remains reliable.
Cold storage high speed doors are designed for chilled and frozen applications where temperature separation is a priority.
They may use insulated curtains, low-temperature components, heating systems, and improved perimeter seals.
A chilled preparation room and a deep-freeze storage room have very different requirements.
The supplier should know the indoor and surrounding temperatures, humidity, opening frequency, traffic type, and whether frost has occurred around the entrance.
Guide heaters, control-box heaters, or heated seals may be required where ice or condensation could interfere with operation.
Heating should support reliable movement, but it should not be used as a substitute for repairing air gaps or reducing excessive open time.
Spiral high speed doors use rigid aluminum slats and are suitable where stronger insulation, exterior resistance, or structural stability is required.
They may be used at external food-plant entrances, refrigerated warehouses, or areas exposed to wind and pressure.
Rigid slats can provide better stability and insulation than a lightweight single-layer curtain.
Their value is greatest where the opening must combine rapid operation with stronger resistance to external conditions.
A spiral door is heavier than a PVC fabric door and requires accurate guide alignment.
Lightweight sandwich panels may need additional steel reinforcement. The support structure should transfer the door weight and movement forces to the main building structure.
A door installed near food production may be exposed to splashes, foam, cleaning water, humidity, oils, and detergents.
The specification should reflect how the facility actually cleans the area, not just how the doorway looks during normal production.
Powder-coated steel, galvanized steel, and stainless steel provide different levels of corrosion resistance and cleanability.
The best choice depends on cleaning frequency, chemical exposure, humidity, and budget.
A dry packaging or finished-goods area may perform well with a high-quality coated or galvanized frame.
Using stainless steel everywhere may increase cost without providing proportional value. Material upgrades should focus on genuinely wet or aggressive environments.
Meat, seafood, dairy, beverage, and other wet-processing areas may expose the frame to water and cleaning chemicals frequently.
Stainless steel frames and protected hardware can help maintain surface condition and reduce corrosion-related maintenance.
A food-compatible curtain and frame do not automatically make the complete door suitable for washdown.
Sensors, switches, cables, motors, and control boxes must also tolerate the environment or be positioned away from direct spray.
Moisture can enter control boxes through poorly sealed cable glands, damaged conduit, or incorrectly routed wiring.
Once water enters the enclosure, corrosion and intermittent electrical faults may follow. Cable routes should be inspected as carefully as the control box itself.
A photocell installed directly where water and product residue collect may require constant cleaning.
Where possible, sensors should remain effective while being positioned away from unnecessary impact and direct spray.
Water collecting beneath the curtain or inside the guides can affect hygiene, sealing, and safe operation.
Floor slope, drainage, bottom-seal design, and guide details should be considered together.
A drain channel placed directly beneath the curtain may interrupt bottom-seal contact.
The drainage design should remove water without leaving a large continuous opening under the closed door.
Residue can collect inside side guides even when the visible curtain surface looks clean.
Inspection procedures should cover guide entrances, lower corners, seals, frame connections, and protective covers.
A high speed door must open conveniently without remaining exposed unnecessarily.
The activation system determines when the cycle starts, while the safety system controls what happens when traffic remains near the opening.
Radar is commonly used for hands-free activation in forklift and pedestrian routes.
Its effectiveness depends on detection distance, field shape, mounting angle, sensitivity, and direction settings.
A large detection field may open the door for employees working beside it or forklifts passing nearby.
This creates unnecessary cycles and weakens environmental control. The field should cover the approach route rather than the entire surrounding area.
A fast-moving forklift needs earlier detection than a slow pedestrian.
The sensor should provide enough time for the door to clear safely without requiring the vehicle to stop directly in front of the curtain.
An induction loop beneath the floor detects metal vehicles and can provide reliable forklift activation.
It is especially useful where the traffic path is fixed and pedestrian movement should not trigger the door.
A loop installed too close to the entrance activates the door late. One placed too far away may open the door for vehicles that turn before reaching it.
The final position should reflect approach speed, door height, and the required clear opening.
Later drilling, resurfacing, drainage work, or equipment installation may damage the loop cable.
The loop location should be documented so future contractors do not unknowingly cut through it.
Safety devices help detect people, vehicles, pallets, and products within the opening.
The required combination depends on the traffic type and door design.
A single low beam may detect wheels and legs but miss an object extending across the opening at a higher level.
Mixed traffic or irregular loads may require additional beams or a light curtain covering a larger vertical area.
A safety edge can stop or reverse the door when the lower bar contacts an obstacle.
It should support, not replace, non-contact detection. In busy food-processing routes, preventing contact is preferable to relying only on the bottom edge.
Many door problems begin with site conditions rather than defective components.
Impact, poor cleaning, incorrect sensor settings, pressure differences, and unsuitable traffic routes can all reduce performance.
Guide tracks, lower bars, sensors, and frame columns are vulnerable when forklifts turn close to the opening.
A self-repairing curtain can reduce some impact-related downtime, but traffic control remains necessary.
Bollards or flexible guardrails can protect frames, guides, sensors, and control boxes.
They should be positioned so they do not reduce the required clear opening, block photocells, or interfere with maintenance access.
If forklifts repeatedly hit one side of the entrance, the turning angle or aisle width may be unsuitable.
Adding stronger protection can help, but adjusting the traffic route may provide a more permanent solution.
Fans, exhaust systems, air curtains, and open loading entrances can create pressure differences across the doorway.
Flexible curtains may bow, rub against guides, or release from zipper tracks when the pressure is too high.
A curtain may look stable when production equipment is off but move strongly when extraction fans or ventilation systems start.
Commissioning and troubleshooting should therefore include normal operating conditions rather than an empty, inactive room.
Lower speed may reduce visible movement, but it does not remove the pressure acting on the curtain.
The facility may need airflow adjustment, a reinforced stacking door, or a rigid spiral door if the pressure exceeds the flexible door’s intended use.
The door should close fully and make suitable contact with the floor and side seals.
A changing stopping position can create permanent air gaps and allow dust, insects, or moisture to pass.
Encoder movement, loose couplings, altered limit settings, or mechanical slippage can cause the door to stop higher or lower over time.
Resetting the position may restore closing temporarily, but the mechanical cause should still be checked.
The door should not strike the floor aggressively to achieve a better seal.
Repeated impact can damage the bottom edge, curtain attachment, gearbox, motor brake, and frame. Correct sealing should come from accurate adjustment and suitable seal design.
A high speed door can support hygiene and temperature control only when it continues to close correctly and respond reliably.
Maintenance should reflect operating cycles, cleaning exposure, temperature, and impact risk.
Operators can often detect changes before the door fails.
They should report unusual noise, slow response, crooked movement, damaged curtain areas, false opening, or repeated sensor faults.
The inspection should include opening, full travel, closing, final sealing, and sensor response.
A door that reaches the correct final position may still hesitate, shake, or rub during another part of the cycle.
Water, chemicals, protective covers, and moved equipment may affect sensors or guides after sanitation work.
A short functional test before production restarts can identify problems before traffic becomes busy.
Cuts, hardened seals, damaged zipper edges, loose welding, and dirty guides can reduce environmental separation.
Small defects should be corrected before repeated movement makes them larger.
A small tear can spread as the curtain rolls, folds, or moves through the guides.
The repair should remain smooth and flexible so it does not create a new friction point.
A seal that remains permanently flattened, cracked, or hard may no longer follow the floor or frame.
Changing the controller position cannot restore the flexibility of an aged seal.
Sensor fields can change after racks, conveyors, barriers, or production routes are modified.
Closing delay and activation distance should also be reviewed when traffic conditions change.
Every unnecessary cycle adds wear to the motor, curtain, guides, and drive system.
Accurate sensor settings improve temperature control while also reducing maintenance demand.
If the door frequently requires controller resets, the original sensor, wiring, motor, position, or mechanical problem remains unresolved.
Fault codes and operating conditions should be recorded before resetting so technicians can identify the pattern.
The best results begin before the quotation is prepared.
The supplier needs accurate information about the doorway, production environment, cleaning process, traffic, and temperature conditions.
The opening size alone is not enough to select the correct door.
The project should also include room temperatures, humidity, traffic frequency, vehicle dimensions, wall structure, pressure conditions, cleaning methods, and available installation space.
A doorway between two dry ambient rooms has different requirements from one connecting a chilled production room to a warm, humid corridor.
Information from both sides helps determine curtain type, frame material, sealing, and condensation protection.
An opening may appear lightly used for most of the day but become extremely busy during shift changes, cleaning, or pallet transfer.
The motor, controls, and sensor logic should handle the busiest realistic operating period.
The supplier should understand whether the doorway is in a dry zone, splash area, frequent washdown zone, or restricted hygiene area.
This influences material selection and component protection.
Explain whether the area is wiped manually, foam cleaned, rinsed, or washed with pressurized water.
Also identify any aggressive chemicals that may contact the door materials.
Stainless steel may be appropriate in wet or corrosive environments, while galvanized or powder-coated steel may be sufficient in dry areas.
Choosing according to actual exposure helps balance performance and budget.
Final commissioning should use normal forklifts, pedestrians, loads, ventilation, and production equipment.
An empty doorway test cannot confirm the complete application.
The opening speed should match the detection distance and vehicle approach speed.
Increasing mechanical speed without improving activation timing may produce little real benefit.
Technicians and cleaning teams should be able to reach the guides, sensors, covers, and lower corners without dismantling unrelated equipment.
Easy access supports more consistent inspection and sanitation after installation.
High speed doors can help food processing facilities maintain cleaner zone separation, more stable temperatures, and smoother traffic flow.
The best results come from matching the door type, materials, sensors, safety devices, sealing, and cleaning compatibility to the actual production environment. When the doorway is planned as part of the complete hygiene and logistics process, it can support both food safety procedures and everyday operational efficiency.
