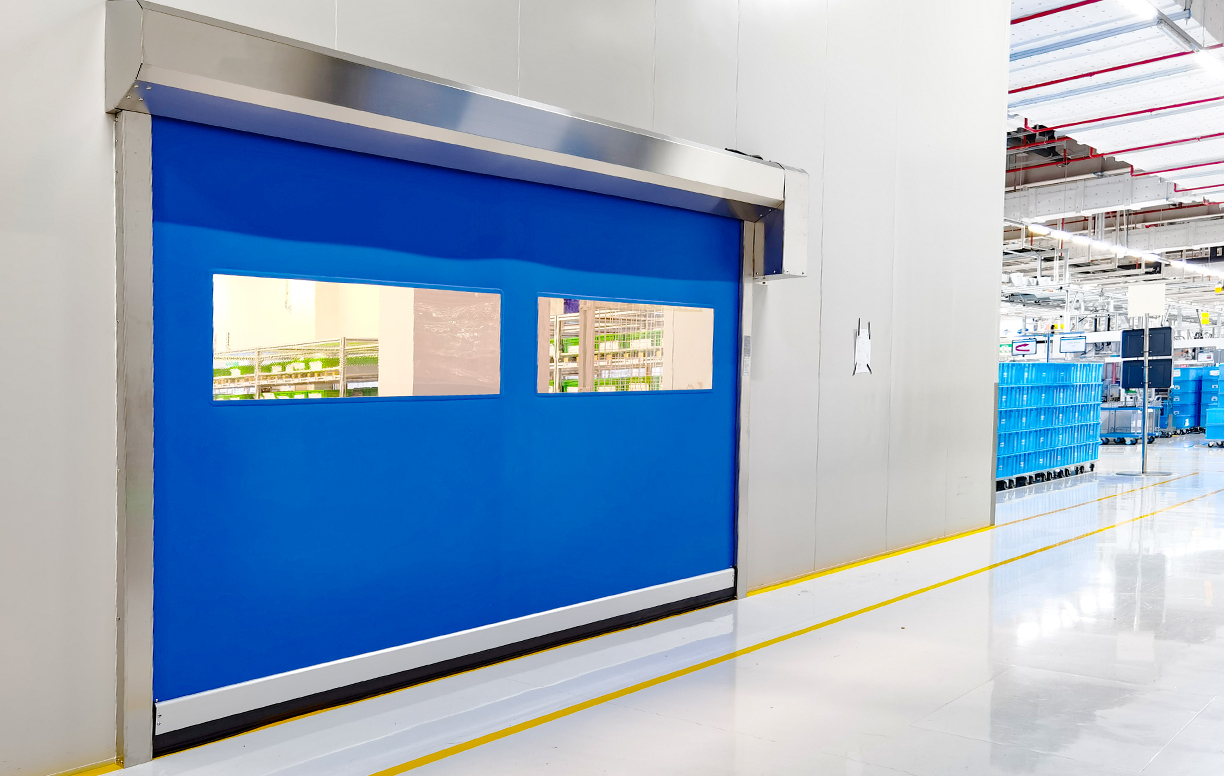

In a pharmaceutical facility, a doorway is not simply an entrance between two rooms. It may separate areas with different cleanliness levels, temperatures, humidity conditions, air pressures, access permissions, and material-handling procedures.
Every time the doorway opens, the environmental separation between those areas is temporarily weakened. Air can move across the opening, employees and equipment can carry particles between zones, and the pressure relationship created by the ventilation system can become less stable.
High speed doors help reduce these effects by opening quickly, responding automatically to authorized traffic, and closing soon after passage. However, speed alone does not make a door suitable for pharmaceutical use. The curtain, frame, seals, control system, activation devices, and installation details must match the actual environment.

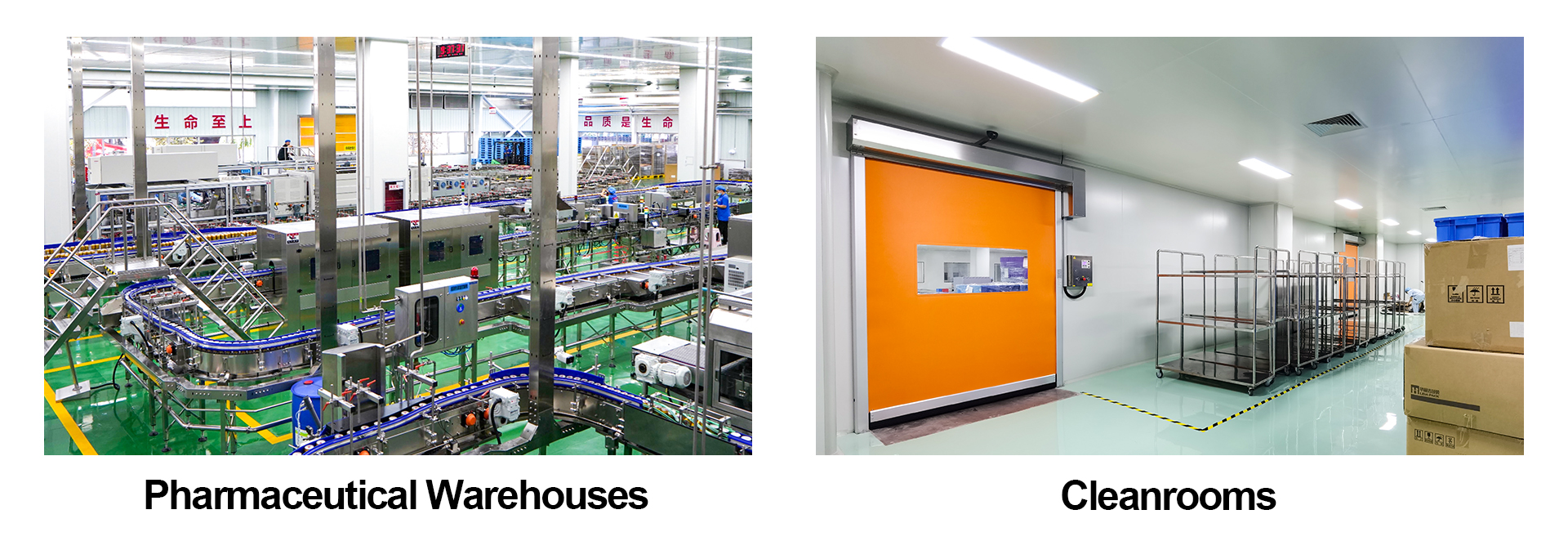

A pharmaceutical warehouse may focus on temperature stability, controlled access, efficient pallet movement, and separation between receiving, quarantine, approved, and dispatch areas.
A cleanroom places greater emphasis on particle control, pressure stability, cleanable surfaces, restricted access, and carefully managed personnel or material movement. The door specification should reflect these differences instead of using one standard design throughout the facility.
A warehouse doorway may handle frequent forklift traffic, pallet movement, packaging materials, and finished products. The door must provide enough speed and clearance to prevent queues while still closing reliably between passages.
Where temperature-controlled products are stored, unnecessary open time can also increase the load on the heating, cooling, or refrigeration system.
A cleanroom doorway may sit between areas with different pressure levels or cleanliness classifications. The door must limit uncontrolled air exchange while supporting the facility’s established gowning, transfer, and access procedures.
The door does not create the cleanroom condition by itself, but it can help the ventilation, filtration, and pressure-control systems maintain it.
An unreliable door can influence production flow, cleaning schedules, environmental stability, and access control at the same time.
If a curtain becomes damaged or a sensor repeatedly fails, employees may leave the opening exposed to keep operations moving. A minor door fault can therefore become a broader process-control problem.
A door that stops halfway may block trolleys, pallets, or cleanroom transfers. Staff may need to wait for maintenance, use an alternative route, or temporarily change the established movement procedure.
Reliable operation is particularly important where materials must follow a controlled path through the facility.
When employees regularly need to reset, hold, or manually close a door, performance begins to depend on individual behavior.
A correctly selected and commissioned high speed door should complete its cycle consistently without requiring operators to compensate for poor sensor settings or unreliable closing.
Contamination control depends on facility design, operating procedures, filtration, cleaning, personnel behavior, and material handling. A high speed door supports these controls by reducing the time an opening remains exposed and by helping direct traffic through designated routes.
The door should be positioned and programmed according to the contamination-control strategy rather than treated as an independent piece of equipment.
Air can carry dust, fibers, packaging particles, and other contaminants through an open doorway. The direction and volume of that movement depend on pressure differences, temperature, ventilation, and the duration of the opening.
A rapidly operating door reduces the time available for uncontrolled air transfer between adjacent spaces.
A slow door may remain partly or fully open while employees, carts, or forklifts wait to pass. During that period, the airflow pattern around the doorway is disturbed.
A high speed door can clear the required height quickly and begin closing after traffic leaves, reducing the duration of the disturbance.
A fast door that opens whenever someone walks nearby may create more environmental disturbance than a slower door with accurate activation.
Radar range, direction recognition, access control, and closing logic should be adjusted so the door responds to intentional traffic rather than unrelated movement.
Pharmaceutical facilities often establish separate routes for employees, raw materials, components, packaging, waste, and finished products.
The doorway should reinforce those routes instead of allowing convenient but uncontrolled shortcuts between areas.
Card readers, keypads, remote controls, or production-system signals can be connected to the door controller.
These devices can help limit access to authorized personnel or approved traffic. They should be integrated with the facility’s access procedures rather than used only as a basic opening switch.
Incoming materials, released products, rejected goods, and waste may follow different routes through a pharmaceutical warehouse.
Directional door activation and properly located entrances can reduce crossing traffic and help maintain clearer separation between these activities.
Frequently touched handles and switches can become additional contact points within controlled environments.
Automatic activation allows employees or material-handling equipment to enter without touching the curtain or frame.
Radar sensors, proximity devices, pull cords, foot switches, and access-control readers can activate the door without direct hand contact.
The best method depends on whether the opening serves pedestrians, cleanroom carts, pallet trucks, forklifts, or mixed traffic.
A contactless door should not open continuously because of movement near the entrance.
The detection field must be narrow and intentional enough to support contamination control. Unnecessary opening increases operating cycles and reduces the value of automatic closing.
Many cleanroom layouts use pressure differences to influence the direction of air movement. Cleaner areas may be maintained at a different pressure from surrounding corridors, while certain containment areas may use the opposite pressure relationship.
An open doorway temporarily reduces the resistance between the two spaces. The longer and larger the opening, the more difficult it becomes to maintain the intended pressure relationship.
A high speed door limits the time the doorway remains open, helping the ventilation system recover more quickly after each passage.
The actual result depends on the door opening size, speed, sealing, traffic frequency, and pressure difference between the connected areas.
The door should clear the required person, cart, or vehicle height without travelling farther than necessary.
Programming the door to open far above the required clearance increases movement time and leaves the opening exposed longer. A suitable open position improves both access and pressure recovery.
A long hold-open timer can cancel much of the benefit provided by fast opening.
The door should remain open long enough for safe passage, but it should begin closing once the opening is clear. Presence detection can often provide better control than a fixed long delay.

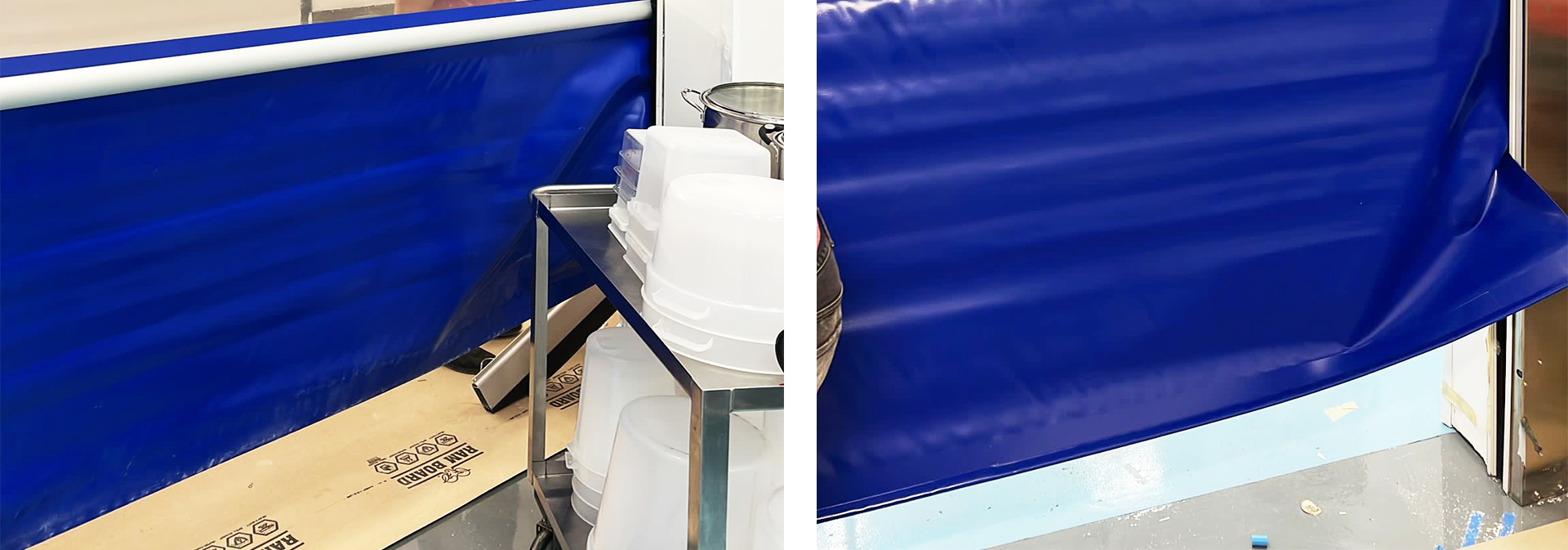

Pressure differences can push a flexible PVC curtain toward one side of the opening. If the force is strong enough, the curtain may bow, rub against the guides, or become unstable during movement.
This should be evaluated before the door type and guide structure are selected.
A curtain that bends inward or outward may be responding to the facility’s pressure conditions rather than suffering from weak material.
The pressure level, ventilation mode, exhaust systems, nearby doors, and airflow patterns should be reviewed before changing the curtain or motor settings.
A standard lightweight PVC door can work well where pressure differences are limited. Higher pressure may require reinforced guides, a more stable curtain design, or a rigid-panel door.
Reducing the operating speed alone does not remove the pressure acting across the opening.
The door remains closed for most of its operating life. Side seals, guide contact, header details, and the bottom seal therefore influence pressure stability beyond the opening cycle.
Even a narrow continuous gap can allow air leakage between areas.
Very loose guides may allow excessive leakage. Guides that are too tight can increase curtain wear and motor load.
The door should move freely while maintaining suitable perimeter contact for the required application.
An uneven floor can leave a visible gap under one side of the curtain or force the lower bar to close at an angle.
The floor level, bottom seal design, and closing position should be evaluated together. Increasing closing force is not a reliable solution to poor floor contact.
Cleanroom facilities may use two doors around an airlock, personnel air shower, material transfer area, or controlled corridor. Interlocking prevents both doors from remaining open at the same time under normal operating conditions.
A high speed door can shorten each stage of this process, but the control logic must be carefully coordinated.
The first door should normally close and provide the required confirmation before the second door is permitted to open.
Door position signals, controller communication, emergency release logic, and access permissions must work together.
The second door should not rely only on a timer that assumes the first door has closed.
An encoder, limit switch, or controller signal should confirm the actual position. If the first door is obstructed or stops halfway, the second door should respond according to the established control logic.
An unnecessarily long delay between doors can create queues and encourage employees to interfere with the process.
The delay should allow the pressure or environmental condition to stabilize without adding more waiting time than the system requires.
Interlocked doors must support routine control without preventing safe response during a power failure, equipment fault, or emergency.
The required behavior should be defined during project planning and coordinated with the building’s safety systems.
The facility should determine how employees exit or receive assistance if one door fails inside an airlock.
Manual release, emergency controls, alarm signals, or supervised override procedures may be required depending on the application.
A permanent bypass defeats the purpose of the interlock. Temporary override should be limited to authorized personnel and used only under defined conditions.
The control system may also need to provide a visible status or alarm when the normal sequence has been interrupted.
The complete airlock cycle includes door activation, opening, entry, closing, confirmation, pressure recovery, and release of the second door.
A faster curtain may reduce only one part of that sequence.
A door cannot begin moving until the access signal has been accepted and the interlock conditions have been checked.
Slow communication or poorly configured logic can create more delay than the mechanical opening movement itself.
A small personnel airlock and a large pallet transfer area have different timing and space requirements.
The doorway size, door speed, detection method, and interlock sequence should reflect the largest approved cart, pallet, or handling process.
Pharmaceutical warehouses may store materials and products under controlled environmental conditions. Door openings can allow conditioned air to escape and warmer, colder, or more humid air to enter.
High speed operation helps reduce exposure, but sealing, insulation, and traffic control remain equally important.
The useful measurement begins when traffic activates the door and ends when the doorway is fully closed again.
Detection delay, opening travel, passage time, closing delay, and reversal all influence total environmental exposure.
A forklift should be detected early enough for the door to clear the required height before the vehicle reaches the entrance.
Late activation forces the driver to brake and wait while the doorway remains partly open. Improving sensor distance may provide more benefit than simply increasing maximum speed.
A door may open quickly but remain fully raised after the pallet has passed.
Closing delay should be based on real traffic. Where several vehicles move together, presence detection can keep the door open during active passage and close it promptly afterward.
A lightweight fabric curtain supports rapid movement, but it does not provide the same stationary thermal performance as an insulated curtain or rigid panel system.
The appropriate design depends on the temperatures on both sides of the opening and the amount of time the door remains closed.
Opening speed reduces environmental exchange during passage. Insulation reduces heat transfer while the door is closed.
A suitable temperature-control strategy may require both rather than relying entirely on one characteristic.
Low temperatures can affect curtain flexibility, seals, sensors, wireless batteries, and lubricants.
The door should be specified according to the lowest actual operating temperature, not simply described as suitable for a general pharmaceutical warehouse.
Temperature and humidity differences can create condensation on curtains, frames, floors, sensors, and nearby surfaces.
Persistent moisture can affect cleanliness, visibility, floor safety, and electrical reliability.
Moisture appearing repeatedly along one guide or floor section may indicate a damaged seal or alignment gap.
Cleaning the water removes the visible result, but the leakage path should still be identified and corrected.

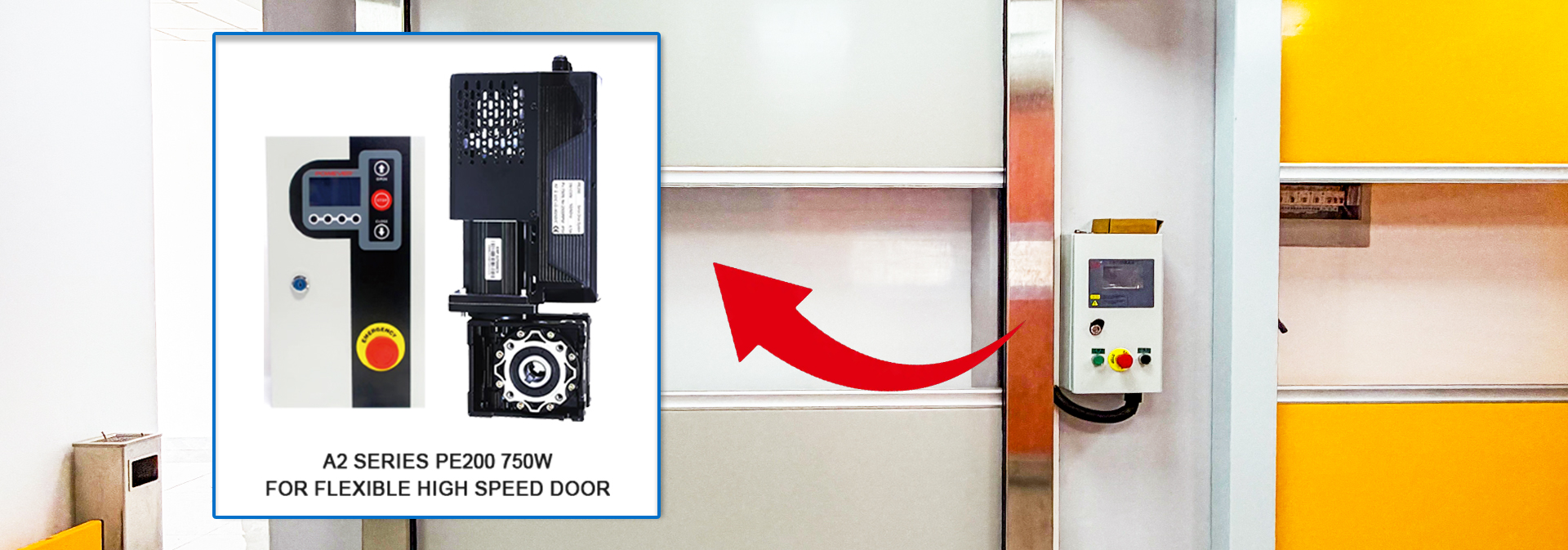

Condensation can enter control boxes through damaged seals or poorly installed cable glands.
The enclosure rating, cable entries, component location, and internal temperature conditions should be considered together.
Pharmaceutical environments often require surfaces that are easy to inspect and compatible with established cleaning procedures.
The appropriate material specification depends on the cleanliness level, moisture exposure, cleaning agents, and frequency of cleaning around the door.
Curtains, frames, covers, and seals should avoid unnecessary ledges, damaged coatings, and difficult-to-reach recesses.
The goal is not to create a door with no joints at all, but to make routine inspection and cleaning practical.
Scratched coatings, torn curtains, cracked seals, and open frame joints can collect residue more easily than smooth surfaces.
Small damage should be repaired before repeated cleaning or movement makes it worse.
A completely enclosed component may look clean but become difficult to inspect or repair.
Covers should protect moving and electrical parts while still allowing technicians to reach them without dismantling nearby walls or equipment.
Powder-coated steel, galvanized steel, and stainless steel provide different levels of corrosion resistance, appearance, and cost.
The choice should be based on actual exposure rather than applying one material to every pharmaceutical doorway.
A dry pharmaceutical warehouse may not require a full stainless steel frame.
A properly finished coated or galvanized structure may provide suitable service while keeping the project cost proportionate to the environment.
Where frequent wet cleaning or chemical exposure is expected, stainless steel or another corrosion-resistant specification may be more suitable.
The fasteners, brackets, motor covers, and control enclosures should be reviewed together rather than upgrading only the visible frame columns.
Disinfectants and cleaning chemicals may affect PVC curtains, transparent windows, seals, adhesives, paint, and sensor lenses.
Compatibility should be checked before the cleaning procedure is approved.
A chemical suitable for floors and stainless processing equipment may damage a flexible curtain or rubber seal.
The cleaning team should use products and concentrations that meet the facility’s procedure without unnecessarily shortening component life.
Direct spray should not be aimed at motors, photocells, switches, cable glands, or control boxes unless those components are designed for that exposure.
Protecting electrical equipment is part of maintaining reliable environmental separation.
Different pharmaceutical areas have different traffic, pressure, cleaning, temperature, and security requirements.
One facility may use several high speed door designs rather than applying the same model everywhere.

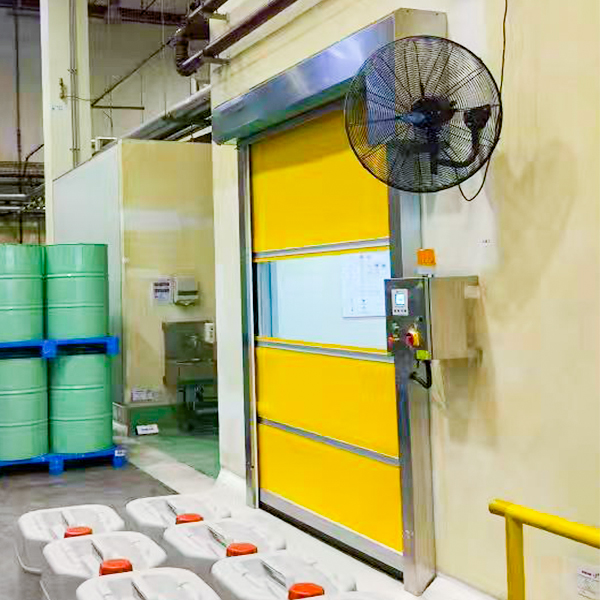

PVC fabric doors are lightweight and suitable for many interior passages with frequent traffic and moderate pressure differences.
They can support fast access between warehouse, staging, packaging, and internal production-support areas.
An interior PVC door can open and close quickly without requiring the heavy support structure of a rigid-panel door.
The curtain surface, frame finish, and sensor arrangement should still match the surrounding cleanliness and cleaning requirements.
A flexible interior curtain may move under strong pressure differences or ventilation airflow.
Where the pressure is higher, the project may require reinforced guides or another door structure rather than simply increasing curtain tension.
A zipper door uses flexible curtain edges that can reconnect with the side guides after certain impacts.
This design can be useful in pharmaceutical warehouse routes where forklifts or pallet-handling equipment create collision risk.
A minor impact that releases the curtain may not require immediate curtain replacement or guide repair.
Restoring normal operation quickly helps prevent the doorway from remaining open while maintenance is arranged.
The self-repairing function depends on the curtain edges entering the guides correctly.
Dust, packaging film, damaged zipper profiles, or poor alignment can prevent smooth resetting. Guide entrances should be included in routine inspection.
Spiral doors use rigid aluminum slats and can provide stronger insulation, wind resistance, security, and structural stability.
They may suit external pharmaceutical warehouse entrances, temperature-controlled loading areas, or openings requiring a more rigid barrier.
The panels move through precision side tracks and an upper spiral structure.
Frame movement or guide misalignment can create scratching, vibration, and panel wear. Installation accuracy is essential for reliable high speed movement.
A spiral door may require steel supports connected to the main building structure.
Lightweight insulated wall panels should not be expected to carry the complete door weight and operating forces without suitable reinforcement.
Cleanroom-focused high speed doors may use tighter sealing, smooth surfaces, controlled airflow behavior, and components selected for frequent cleaning.
The exact specification should be based on the cleanroom design and project requirements rather than on the product name alone.
A suitable curtain cannot compensate for gaps between the frame and wall, unsealed cable routes, or poorly aligned guides.
Frame connections, perimeter sealing, control components, and installation workmanship all influence the final result.
The supplier should understand the intended pressure relationship, cleaning procedure, traffic frequency, interlock logic, and environmental conditions before finalizing the door design.
Late changes to these requirements may affect the frame, controls, sensors, and installation space.
Efficient access means allowing approved traffic to pass without creating unnecessary waiting or repeated door cycles.
The door opening speed, activation system, safety devices, and traffic route must be planned together.
Employees should understand when the door will open, how long it will remain open, and what happens if they stop inside the opening.
A very wide automatic detection field can create frequent opening in busy corridors.
Directional radar can distinguish between people approaching the doorway and people walking beside or away from it.
This reduces unnecessary cycles while preserving hands-free access.
Card readers, proximity devices, and push buttons may be more suitable than radar where only authorized entry is allowed.
The device should be positioned so employees can activate the door without touching unnecessary surfaces or blocking the passage.
Cleanroom carts and pallet trucks may be lower and slower than forklifts.
Sensors should detect the traffic reliably without opening for unrelated movement outside the route.
A sensor installed only for taller forklift traffic may not respond correctly to lower carts.
The detection technology and mounting position should be tested with the actual equipment used at the facility.
The opening should accommodate the largest normal cart, pallet, or container with a suitable margin.
An oversized opening creates more air exchange, while an undersized one increases collision risk.
Forklifts should not stop directly beneath or in front of the curtain while waiting for the door to open.
The activation distance should allow the vehicle to approach smoothly and maintain a controlled speed.
A faster door may still cause waiting if the sensor detects the vehicle too late.
Moving the activation point farther from the opening may improve traffic flow more effectively than increasing the maximum motor speed.

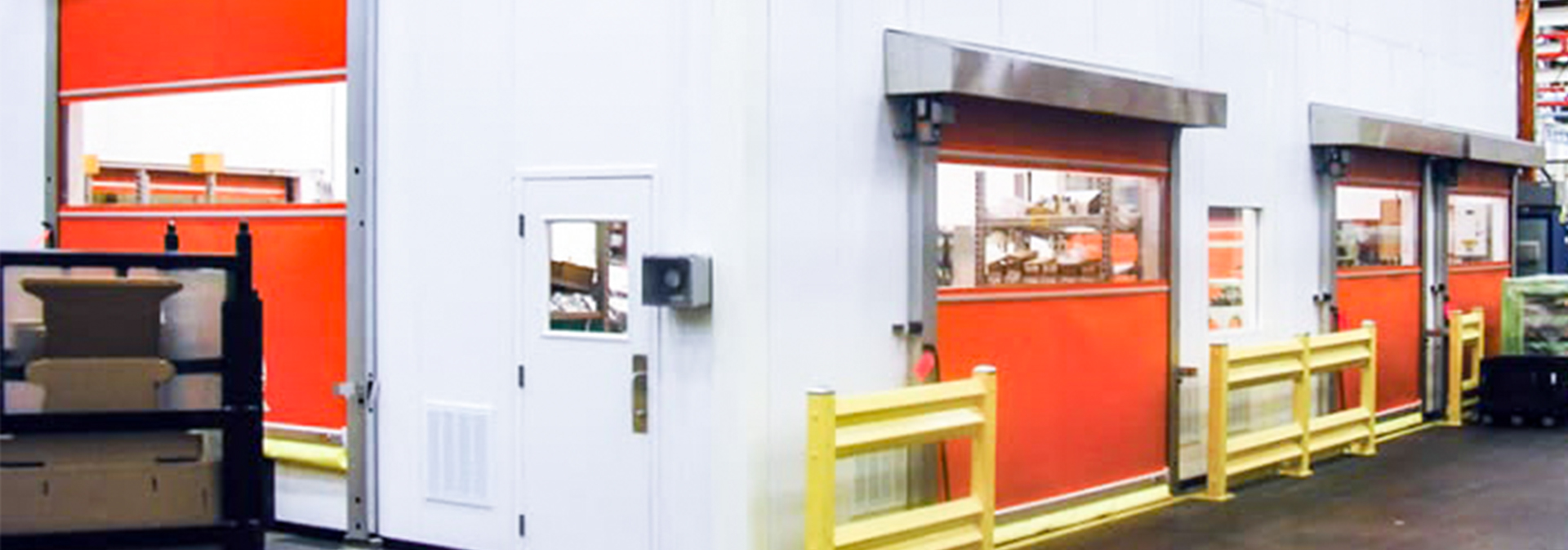

Bollards or flexible guardrails can protect guide tracks, sensors, control boxes, and frame columns.
They should be installed without blocking photocells, reducing clear width, or interfering with cleaning and maintenance access.
High speed doors operate around people, equipment, and valuable materials. Safety devices must detect obstacles without creating excessive false signals that leave the door open.
The protection system should match the traffic and the required operating speed.
Photocells create a beam across the doorway. If the beam is interrupted during closing, the controller can stop or reverse the door.
The position and number of beams should reflect the shape of the traffic.
A low beam can detect wheels, feet, and pallets near the floor, but it may not detect an object extending through the doorway at a higher level.
Additional beams or a light curtain may provide better coverage where carts and loads vary in shape.
A photocell may lose alignment when the door frame vibrates or when its bracket is disturbed during cleaning.
Sensor indicators should remain stable while the door and surrounding equipment are operating.
A safety edge on the lower bar can stop or reverse the door if physical contact occurs.
This provides an additional protection layer but should not replace non-contact detection in busy controlled areas.
Wireless safety edges rely on transmitters, receivers, and batteries.
Battery condition should be checked according to a planned interval. Waiting for complete signal loss can create unexpected downtime.
A bent lower bar can activate the safety edge unevenly or cause the curtain to close at an angle.
The assembly should be inspected after impact, even when the curtain remains visibly undamaged.
Light curtains use multiple beams to monitor more of the doorway height.
They can be useful where personnel, carts, pallets, and irregular loads share the same opening.
A light curtain can detect objects that pass above or below a single photocell beam.
This may reduce the risk of the door closing when part of a trolley or load remains inside the opening.
Dust, cleaning residue, condensation, or objects placed near the sensor can interrupt individual beams.
The complete height should remain clean and unobstructed, not just the most visible lower area.
A pharmaceutical door may need to communicate with access control, warehouse management, cleanroom interlocks, alarms, conveyors, or automated vehicles.
These integrations should be defined before the control panel and wiring are finalized.
An access system decides who or what may enter, while the door controller manages movement and safety.
A valid access signal should not override an active safety condition or unresolved door fault.
After access is approved, the door should open, remain available for the permitted passage, and close according to the configured logic.
A relay that stays active too long may hold the door open unnecessarily and disturb pressure or temperature control.
Employees should understand whether the door is locked, waiting for another interlocked door, or experiencing a fault.
Status lights, displays, or alarms can reduce repeated button pressing and unauthorized manual intervention.
Automated vehicles and conveyors depend on consistent timing and position confirmation.
The door must communicate when it is ready for entry and when the passage is clear.
A vehicle should not move forward simply because the controller has issued an open command.
The system should confirm that the door has reached the required clearance before allowing movement.
If the door stops halfway, loses position, or detects an obstacle, the connected handling system should respond safely.
This prevents vehicles or products from entering an opening that is not fully available.
Opening speed, closing speed, acceleration, limits, delay times, access logic, interlock conditions, and sensor settings should be documented.
These records support future maintenance and system changes.
A replacement controller may power the door but still lack the correct project-specific settings.
Without the original configuration, the door may open to the wrong height, remain open too long, or communicate incorrectly with other systems.
Adjusting a sensor or timer may affect pressure control, traffic, access, or interlock performance.
Control changes should be recorded and tested rather than made informally to solve one immediate inconvenience.
A high speed door can support contamination and pressure control only when it closes fully and operates consistently.
Maintenance should reflect operating cycles, environmental conditions, cleaning exposure, and traffic risk.
A stationary visual check cannot reveal every problem.
The curtain should be observed from fully closed to fully open and back again, including acceleration, full travel, deceleration, and final sealing.
Scraping, knocking, rattling, or motor strain can indicate guide contact, loose hardware, brake problems, or curtain misalignment.
Investigating new sounds early can prevent a small adjustment issue from developing into a larger fault.
Diagonal wrinkles, a tilted lower bar, or one side moving faster can indicate uneven tension or guide alignment.
A crooked curtain may no longer seal correctly even if it still completes the cycle.
Side seals, bottom seals, header details, and connections between the frame and wall should remain intact.
Damage can allow continuous air leakage when the door is closed.
A seal that has become cracked, flattened, or stiff may no longer follow the floor or frame.
Changing the closing limit cannot restore the flexibility of worn material.
New wiring, steel supports, sensors, or access equipment may require drilling or cutting around the opening.
Any gaps created during later work should be resealed and inspected.
Cleaning teams may move brackets, cover sensors, or leave moisture around electrical components. New racks, barriers, or production equipment can also change detection zones.
The door should be functionally tested after these changes.
A radar sensor reacting to nearby movement creates unnecessary door cycles.
Reducing false activation protects pressure stability, temperature control, and mechanical component life.
Resetting the controller may restore operation temporarily, but it does not correct dirty sensors, loose wiring, motor overload, or mechanical resistance.
Fault information should be recorded before the reset so repeated patterns can be identified.
Accurate site information is essential for selecting the right door.
Opening dimensions alone do not describe the pressure, cleaning, traffic, access, and integration requirements that determine the final specification.
The project team should identify whether the door separates warehouse zones, temperature areas, cleanroom classifications, an airlock, a material route, or an exterior entrance.
The purpose determines which performance characteristics matter most.
Provide the temperature, humidity, cleanliness level, pressure condition, and traffic on both sides.
A door between two dry warehouse areas has different needs from one connecting a clean corridor to a controlled processing room.
Average traffic may appear moderate while shift changes, material transfers, or dispatch periods create much higher cycle frequency.
The motor and control system should be selected for the busiest realistic operating period.
The supplier should know whether the door is located in a dry area, a frequently cleaned corridor, a low-temperature warehouse, or a pressure-controlled cleanroom.
This affects the curtain, frame, seals, electronics, and installation details.
Explain whether the door will be wiped, disinfected, foam cleaned, or exposed to water spray.
The chemicals, concentration, frequency, and application method may affect material selection.
State which side should normally remain at the higher or lower pressure and the expected pressure difference.
This helps determine whether a flexible curtain is suitable or whether a more stable structure is required.
Access readers, interlocks, building systems, automated vehicles, and alarms may require additional controller inputs and outputs.
These requirements should be confirmed before the control box and wiring are manufactured.
For interlocked systems, define which door opens first, what confirms closure, how long the delay should be, and how emergency override works.
A written operating sequence reduces confusion during installation and commissioning.
Record component models, controller parameters, wiring diagrams, and recommended spare parts.
Good documentation allows the maintenance team to restore operation without guessing how the original system was configured.
A factory test confirms basic operation, but final performance must be evaluated after installation.
The actual pressure, traffic, temperature, wall structure, and connected systems can change how the door behaves.
Before increasing speed or connecting complex access logic, confirm that the frame is level, the guides are aligned, and the curtain moves evenly.
The door should complete repeated cycles without scraping, shaking, or losing position.
Higher speed can make small alignment errors more visible and increase mechanical stress.
The final setting should provide efficient access without creating unnecessary vibration or curtain instability.
The curtain should reach the floor evenly and return to the correct side and header seals.
A door that closes quickly but leaves a gap does not provide effective environmental separation.
Commissioning should include the carts, pallets, forklifts, and access devices used in normal operation.
An empty-door test cannot confirm detection timing or traffic clearance.
Employees, pallet trucks, and forklifts may approach at very different speeds.
The activation system should respond early enough for normal traffic without opening for movement outside the route.
Observe what happens when two carts or vehicles pass with a short gap.
The door should not close between them unnecessarily, but it should also avoid remaining open long after both have left.
The final test should include pressure behavior, door sequence, sensor response, emergency stop, and connected system signals.
Several complete cycles should be completed rather than relying on one successful movement.
Observe whether the connected rooms return to their intended pressure relationship after the door closes.
If recovery is slow, review open time, sealing, opening size, and ventilation performance together.
Record speed, position limits, closing delay, sensor fields, interlock timing, and access logic.
These settings form the baseline for future maintenance, validation work, and troubleshooting.
High speed doors can help pharmaceutical warehouses and cleanrooms maintain cleaner separation, more stable pressure, controlled temperatures, and smoother access.
The best result comes from matching the door structure, sealing, materials, sensors, interlocks, and control logic to the actual environment. When the doorway is planned as part of the facility’s complete contamination-control and material-flow strategy, it can improve both environmental consistency and daily operational efficiency.
