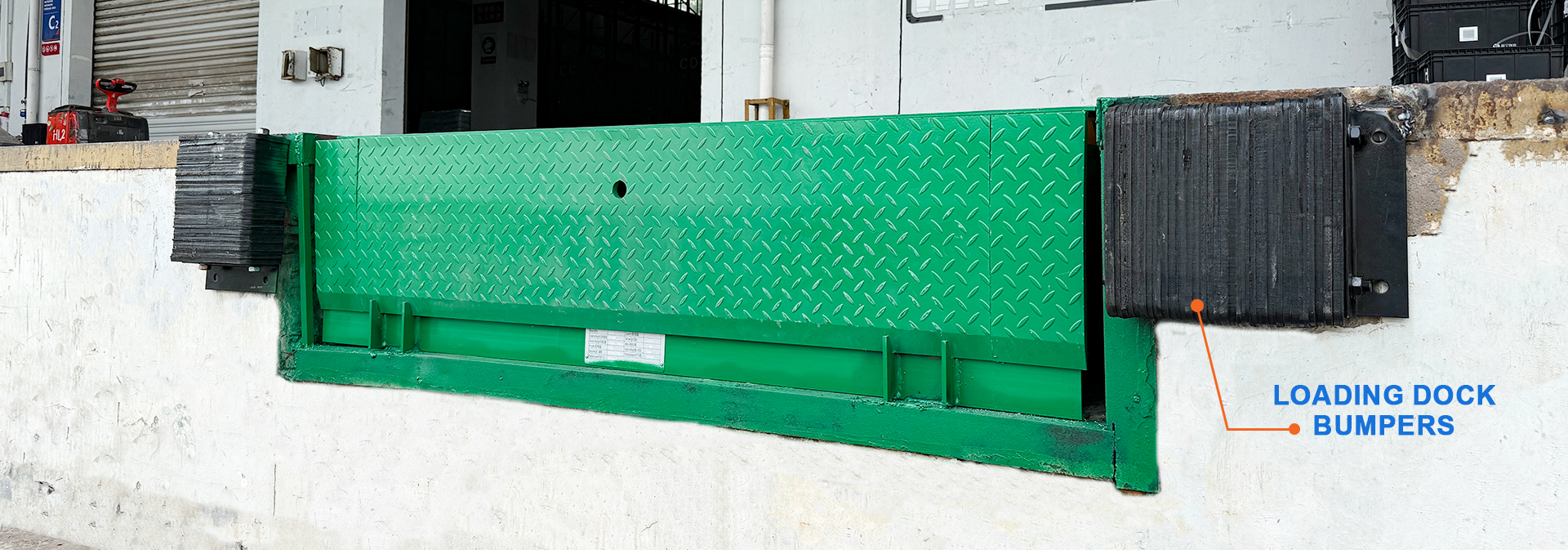

Loading dock bumpers are installed between the dock wall and the rear of a trailer. Their main purpose is to absorb part of the impact when a vehicle reverses into position and to maintain a suitable distance between the trailer and the building.
Although they are relatively simple components, dock bumpers affect the performance of the complete loading dock. Incorrect size, insufficient projection, poor installation, or excessive wear can allow trailers to strike the dock structure, damage other equipment, or stop in the wrong position.
Choosing the correct bumper therefore requires more than selecting a piece of rubber that fits the available space. The bumper type, thickness, height, mounting position, trailer fleet, traffic frequency, and surrounding dock equipment should all be considered together.
Each trailer arrival places force on the dock face. Without an effective bumper, that force may be transferred directly to the concrete wall, steel frame, dock leveler pit, or surrounding building panels.
Repeated low-level impacts can be just as damaging as one severe collision because small cracks and loose anchors may gradually develop over time.
The bumper creates a replaceable contact surface between the trailer and the building. When the trailer reverses into the dock, the bumper absorbs and distributes part of the force before it reaches the dock structure.
This does not mean the trailer can approach at unlimited speed. Dock bumpers are protective components, not substitutes for driver training, clear bay markings, and controlled reversing procedures.
Repeated trailer contact can damage concrete edges, loosen embedded steel, or deform mounting plates. Once the dock face is damaged, new bumpers may no longer sit flat or remain securely anchored.
A correctly selected bumper protects not only the visible wall surface but also the structural area supporting the leveler, door, shelter, and restraint system.
Dock bumpers also establish the stopping distance between the trailer and the building. This distance affects how the dock leveler lip reaches the trailer bed and how the dock shelter or foam dock seal contacts the vehicle.
If the bumper projects too little, the trailer may come too close. If it projects too far, the leveler lip may not overlap the trailer bed sufficiently.
The dock leveler lip must extend far enough onto the trailer bed to provide stable support during loading. Bumper projection directly influences this overlap.
A bumper that is much thicker than the original design may push the trailer away from the dock and reduce lip contact. This is why bumper replacement should not be treated as an isolated decision.
The stopped trailer position also affects the dock shelter, foam dock seal, dock light, vehicle restraint, and rear door clearance.
Changing bumper dimensions can alter how these systems interact with the trailer. Before selecting a new size, verify that the complete dock arrangement will still function correctly.

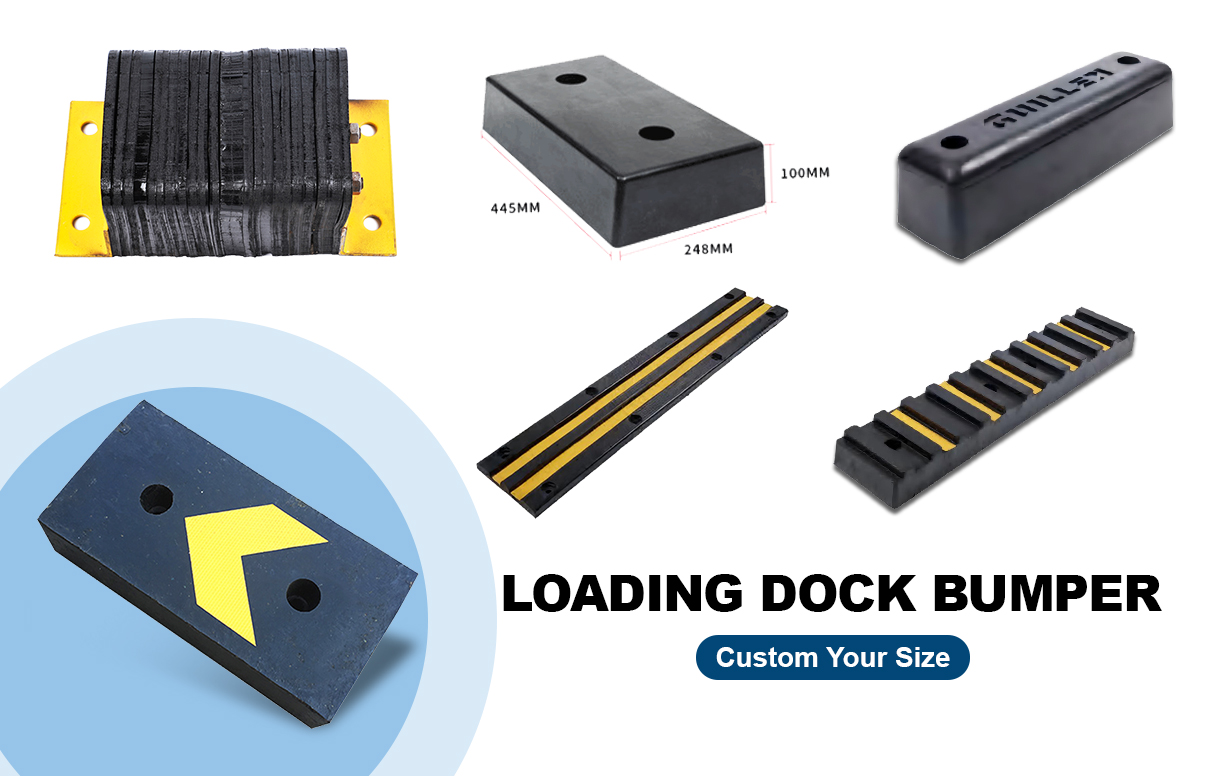

Loading dock bumpers are available in several structures. The correct type depends on traffic frequency, impact level, trailer movement, available installation space, and maintenance expectations.
No single bumper type is automatically best for every dock. A low-traffic warehouse and a busy distribution center may require very different solutions.
Laminated bumpers are made from multiple layers of rubber compressed and held together by steel rods, angles, or structural plates.
They are widely used because they provide a practical balance between impact resistance, replaceability, and cost.
The layered construction helps absorb repeated trailer contact while keeping the bumper relatively firm. Individual rubber layers can compress slightly under impact, reducing the force transferred to the dock wall.
Laminated bumpers are available in many standard dimensions, making them suitable for new projects as well as replacement work at existing loading docks.
They are commonly used at general warehouses, manufacturing plants, distribution centers, and commercial loading docks with regular trailer traffic.
They perform best when the trailer contacts the bumper reasonably squarely. Frequent scraping, severe vertical trailer movement, or very high cycle volumes may justify a more reinforced design.
Molded bumpers are produced as solid rubber units rather than assembled from separate layers.
Their simple shape provides a clean appearance and avoids exposed laminated edges, making them suitable for many standard loading applications.
A molded bumper has no individual rubber layers that can separate from one another. This can provide a compact structure for moderate-impact loading docks.
The smooth outer shape may also be easier to inspect and clean, especially where the loading area must remain visually tidy.
Solid rubber can still crack, split, harden, or permanently deform after repeated impact. A compact appearance does not mean the bumper will last indefinitely.
For busy docks with frequent heavy trailers, the maintenance team should compare the expected service life of molded bumpers with laminated or steel-faced alternatives.
Steel-faced bumpers combine a rubber impact body with an external steel contact plate.
The steel face protects the rubber from direct scraping and helps distribute trailer contact across a wider surface.
Trailers do not always contact the bumper perfectly straight. Suspension movement and loading changes can cause the rear of the trailer to move vertically against the bumper.
A steel face reduces direct abrasion on the rubber surface, making this design suitable for docks where repeated rubbing damages ordinary bumpers quickly.
Steel-faced bumpers are often considered for distribution centers, logistics hubs, and other busy facilities where trailers arrive frequently.
However, the mounting structure must be strong enough to support the more rigid assembly. Loose steel plates or damaged welds can create their own safety and maintenance problems.
Dock bumper size affects impact absorption, trailer position, equipment clearance, and replacement life.
The main dimensions usually considered are bumper projection, face width, face height, and mounting orientation.
Projection is the distance the bumper extends outward from the dock wall.
It is one of the most important dimensions because it establishes how close the trailer can approach the building.
A thicker bumper may appear to provide more protection, but it also moves the trailer farther away from the dock.
If the dock leveler was designed for a shorter projection, the lip may not reach far enough onto the trailer bed. Excessive projection can therefore create a loading problem while trying to solve an impact problem.
A bumper that is too thin may allow the trailer to contact the building, dock door, shelter frame, or other equipment.
It can also reduce the space available for trailer movement during loading. The correct projection must protect the dock while preserving sufficient leveler overlap.
The bumper face should be large enough to create reliable contact with the trailer’s rear structure.
A very small contact area concentrates impact force and may allow the trailer to miss or slide off the bumper.
A wider face spreads trailer impact across more rubber and mounting surface. This can reduce concentrated wear when trailers do not stop in exactly the same horizontal position every time.
However, a wider bumper also requires more clear mounting space and may interfere with other equipment if the dock layout is crowded.
A taller bumper can remain in contact as the trailer suspension compresses and rebounds.
This is particularly valuable when heavy forklifts repeatedly enter the trailer. The height should be selected according to the expected trailer movement rather than visual preference alone.
The same general bumper material may perform differently depending on whether it is installed horizontally or vertically.
Orientation should reflect trailer movement, dock layout, and the available mounting area.
Horizontal bumpers are widely used on conventional loading docks where trailer height variation is limited and the dock arrangement follows a standard design.
They are compact and easier to fit beside many dock leveler pits, but their vertical coverage is smaller.
Vertical installation provides more contact height and can better accommodate trailers that move significantly during loading.
The trade-off is that vertical bumpers may occupy space needed by dock shelters, control equipment, or vehicle restraint mechanisms. Coordination during design is essential.
Replacing a bumper with a unit that merely looks similar can create problems. Existing docks should be measured carefully before dimensions and mounting details are confirmed.
The original design may also have changed because of worn bumpers, damaged concrete, replaced levelers, or modified dock equipment.
Begin by examining the wall, steel plates, welds, anchors, and surrounding concrete.
The condition of the mounting surface determines whether the new bumper can be installed safely in the original position.
Cracked or broken concrete may not hold new anchors securely. Installing a new bumper over a weak surface can lead to loose hardware and repeated movement.
Structural repairs should restore a flat, stable mounting area before the replacement bumper is loaded by trailer impact.
Many bumpers are mounted to steel plates, channels, or embedded angles. These parts may be bent, corroded, cracked, or pulled away from the building.
A new rubber bumper will not solve a damaged steel support. The complete assembly should be inspected and repaired where necessary.
The dock should be designed around the vehicles that actually use it. Measure or record common trailer heights, rear-frame positions, suspension types, and vehicle categories.
Special vehicles should also be identified, even if they arrive less frequently.
Trailer height may change after cargo is removed or added. An unloaded trailer can sit differently from the same trailer under full load.
Bumper height and orientation should cover the expected operating range rather than one measurement taken from a stationary vehicle.
Straight trucks, refrigerated trailers, liftgate vehicles, and specialized delivery units may contact the dock differently from standard trailers.
If several vehicle types use the same bay, the bumper and dock procedure may need to accommodate a wider range of conditions.
Bumpers are normally installed on both sides of the loading position. The spacing should allow the trailer to contact them without interfering with the dock leveler or other equipment.
Incorrect spacing can cause uneven contact or allow the trailer to strike only one side.
The bumpers should align with strong contact points on the rear of the trailers using the dock.
If they are installed too far apart or too close together, the trailer may miss the bumper face or contact an unsuitable section of the rear frame.
If one bumper receives most of the impact, it will wear faster and may allow the trailer to sit at an angle.
Check dock alignment, pavement markings, bumper position, and driver approach rather than repeatedly replacing only the more damaged side.

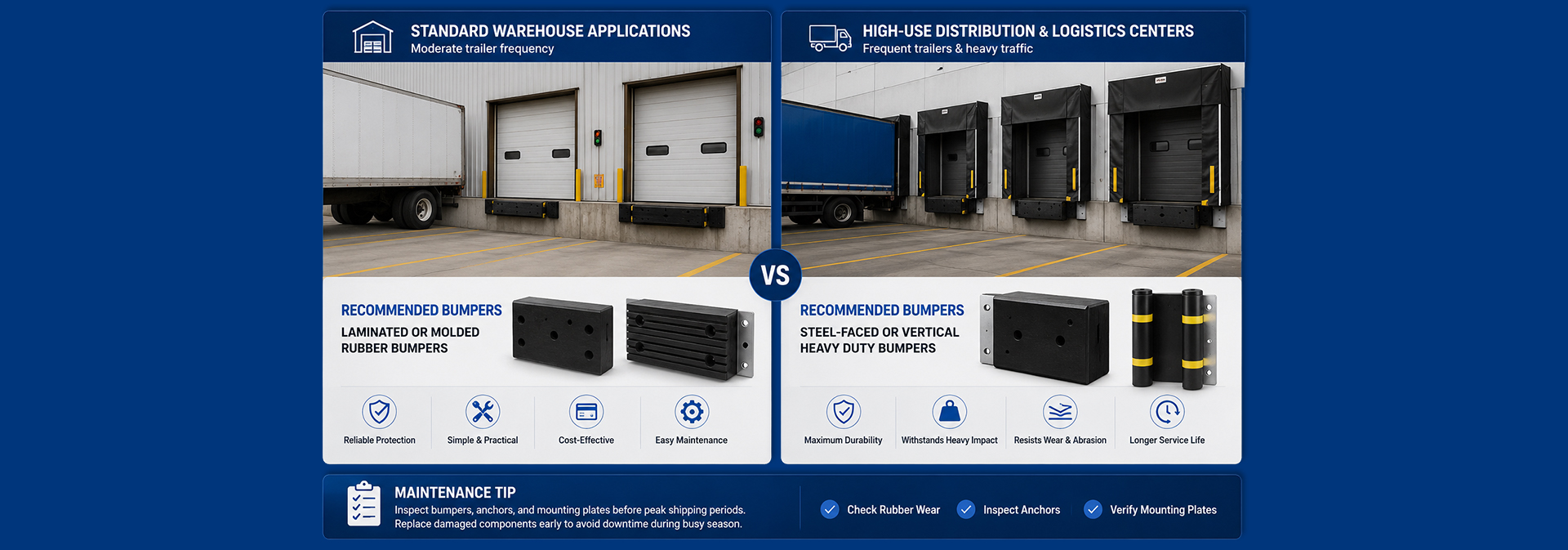

Traffic frequency and operating style strongly influence bumper life.
A bumper used by a few trailers each week faces very different conditions from one serving continuous distribution traffic throughout the day.
General warehouses with moderate trailer frequency can often use laminated or molded rubber bumpers.
The priority is reliable dock protection without unnecessary complexity.
For moderate traffic, proper projection, secure anchors, and correct trailer alignment may matter more than choosing the heaviest available bumper.
A well-installed standard bumper can perform reliably when drivers approach slowly and the dock face remains in good condition.
Even moderate-use facilities may experience seasonal loading peaks.
Inspect bumpers, anchors, and mounting plates before busy periods begin so damaged components can be replaced without disrupting shipping operations.
Busy distribution docks experience repeated impact, suspension movement, and trailer scraping.
Standard rubber surfaces may wear quickly if the bumper type does not match the cycle frequency.
A steel contact face can protect the rubber body from abrasion and repeated vertical rubbing.
This may extend service life where trailers move against the bumper during every loading cycle, although the steel face and mounting hardware must also be inspected regularly.
High bumper damage may result from fast reversing, angled approaches, uneven pavement, or poor bay markings rather than traffic volume alone.
Improving driver guidance and dock alignment can reduce replacement frequency even before the bumper type is upgraded.
Cold storage and food distribution docks may also use a mechanical dock shelter, inflatable dock shelter, or foam dock seal.
Bumper projection influences how these systems contact the trailer and seal the opening.
A foam dock seal depends on controlled trailer compression. If the bumper is too thin, the trailer may compress the seal excessively and damage the foam core or cover.
If the bumper projects too far, the trailer may not compress the seal enough to close the gaps around the opening.
Water, condensation, or ice around the bumper can affect mounting hardware and create slippery conditions near the dock face.
Corrosion-resistant components and regular cleaning may be needed where the loading area is frequently wet or exposed to freezing temperatures.
Dock bumpers should not be selected separately from the equipment around them.
The trailer stopping position affects the dock leveler, shelter, seal, vehicle restraint, dock door, and wall protection.
The leveler lip must reach the trailer bed while maintaining enough overlap for forklift traffic.
Any change in bumper projection changes the horizontal distance the lip must bridge.
If a replacement bumper is thicker than the original, calculate or physically verify the remaining leveler lip overlap.
A bumper upgrade should not create a situation where the lip barely reaches the trailer, especially when trailer movement occurs during loading.
Bumpers also help prevent the trailer from contacting the leveler pit edge or surrounding concrete.
Damaged or missing bumpers can allow repeated impact to loosen the pit frame and affect leveler alignment.
A mechanical dock shelter uses flexible curtains around the trailer, while a foam dock seal compresses against the trailer body.
Both depend on the correct trailer stopping distance.
If the trailer stops too far away, the shelter side curtains and top curtain may not contact the vehicle effectively.
If it stops too close, excessive pressure and scraping can damage the curtains, side frames, or support arms.
A foam dock seal requires enough compression to form a seal but not so much that the foam and fabric are crushed.
Bumper projection should be selected together with the seal projection and trailer dimensions.
Vehicle restraints may engage a trailer’s rear impact guard while the bumpers establish the trailer’s final stopping position.
The two systems must be physically compatible.
Increasing bumper projection moves the trailer rear impact guard farther from the dock face.
This may place it outside the preferred engagement range of an existing restraint. Compatibility should be confirmed before changing the bumper size.
Vertical bumpers, mounting plates, and steel faces must not block the restraint hook, sensors, or moving mechanism.
The equipment layout should provide enough space for engagement, inspection, and maintenance.
Even the correct bumper type and size can fail early if installation is poor.
The mounting surface, fasteners, alignment, welds, and clearances all influence long-term performance.
The bumper must transfer impact forces into a suitable part of the dock structure.
Loose concrete, thin wall panels, or damaged steel cannot provide reliable support.
Insulated wall panels or light cladding should not carry repeated trailer impact unless a suitable structural support is installed behind them.
The bumper load should be transferred to concrete, structural steel, or another approved building element.
A bumper installed over an uneven surface may twist when bolts are tightened.
This creates uneven stress in the rubber, steel rods, and mounting hardware. The surface should be repaired or leveled before installation.
The bolts, anchors, welds, and mounting plates should match the bumper design and dock structure.
Using convenient but undersized hardware may allow the bumper to loosen under repeated impact.
Once a bumper begins moving, each trailer impact enlarges the bolt holes and increases stress on the remaining hardware.
Tightening the same damaged connection repeatedly may not provide a lasting repair. The holes, anchors, and mounting plates should be inspected.
Steel-faced and heavy-duty bumper assemblies may use welded brackets or plates.
Cracked welds, corrosion, and bent steel can reduce the strength of the complete assembly even when the rubber remains in acceptable condition.
The left and right bumpers should be aligned so the trailer contacts them at the same time.
Uneven installation can cause the trailer to stop at an angle or concentrate impact on one side.
Installation height should be confirmed using the trailers that normally visit the dock.
A dimension copied from another site may not match the dock height, pavement slope, or vehicle fleet at the new location.
Measure the final distance from the dock face to the bumper contact surface.
Rubber compression, mounting plates, and steel faces can change the effective projection from the nominal product dimension.
Dock bumpers should be replaced before they lose the ability to protect the dock and maintain the correct trailer position.
Waiting until the bumper is completely destroyed can expose the building and surrounding equipment to direct impact.
Cuts, missing layers, deep cracks, hardening, splitting, and permanent deformation are common signs of wear.
The severity should be judged according to how much useful contact surface and projection remain.
When individual rubber layers tear away, the bumper becomes thinner and loses part of its impact-absorbing surface.
A few damaged edges may be monitored, but major layer loss changes trailer position and usually indicates that replacement is approaching.
Deep cracks can allow the rubber to separate under the next impact. Permanent compression reduces the bumper’s effective thickness even when no pieces are missing.
Compare the worn bumper with its original dimensions rather than judging only its outward appearance.
Sometimes the first warning is not visible rubber damage but a change in how trailers contact the dock.
New scraping marks, building impact, or reduced leveler overlap may indicate that the bumpers no longer maintain the designed stopping position.
If the trailer frame begins contacting concrete, steel, the dock door, or shelter components, the bumper may have lost too much projection.
This condition should be corrected promptly because each additional impact can damage more expensive equipment.
A thinner worn bumper allows the trailer to move closer to the dock, which may change the leveler angle and lip position.
Although additional overlap may appear beneficial, it can place the trailer too close to the building and disturb the original dock geometry.
The rubber may still appear usable while the steel rods, face plate, angles, bolts, or anchors have failed.
The complete bumper assembly must be inspected rather than only the contact surface.
A steel face that bends outward, separates from the rubber, or develops sharp edges should be repaired or replaced.
Loose plates can damage trailers, create noise, and transfer impact unevenly into the bumper body.
Cracked welds, enlarged bolt holes, pulled anchors, and moving brackets indicate that the assembly is no longer securely attached.
Replacing only the rubber will not correct the structural weakness. The supporting steel and dock face must also be repaired.
Damage may be more severe on one side of a dock because of trailer alignment, pavement slope, or repeated angled approaches.
However, replacing only one bumper can create unequal projection if the remaining unit is already compressed or worn.
Measure both bumpers from the dock face to the contact surface.
A new bumper installed beside an old compressed unit may cause the trailer to contact only the new side.
Unequal contact increases wear and may leave the trailer positioned at an angle.
If one bumper consistently fails earlier, examine bay markings, trailer approach, pavement condition, dock height, and bumper spacing.
Replacing both bumpers without correcting the cause may only restart the same wear pattern.
Bumpers are wear components, but their service life can be improved through controlled trailer approach, suitable product selection, and regular inspection.
Maintenance should focus on both the bumper and the conditions causing impact.
Clear dock numbers, center lines, reflective markings, mirrors, and adequate lighting help drivers reverse more accurately.
A square approach allows both bumpers to share the load instead of concentrating impact on one side.
Potholes, broken concrete, ice, and steep local changes in pavement can make trailer positioning more difficult.
Maintaining the approach area reduces angled contact and helps the trailer remain stable during loading.
High-traffic docks may need frequent visual checks, while lower-use docks can be reviewed at longer intervals.
Inspections should include rubber thickness, steel condition, anchors, welds, concrete, trailer marks, and compatibility with surrounding equipment.
Many bumper problems begin with incorrect product selection rather than poor rubber quality.
Avoiding a few common mistakes can reduce premature wear and prevent changes to dock performance.
A low-cost bumper may be suitable for a lightly used dock but uneconomical at a busy distribution center if it requires frequent replacement.
Selection should consider traffic, impact level, abrasion, and downtime as well as purchase price.
The existing bumper may already be the wrong size or may have been modified after installation.
Measure the complete dock and review leveler reach, trailer position, shelter compression, and restraint engagement before ordering a direct replacement.
Short bumpers may wear quickly when trailers move significantly up and down during loading.
Where this movement is common, taller or vertically installed bumpers may provide better contact coverage.
Changing bumper projection affects several other dock systems.
The replacement decision should be coordinated with the dock leveler, mechanical dock shelter, foam dock seal, vehicle restraint, and dock door.
Accurate site information helps the supplier recommend a bumper that fits the dock rather than offering only a general standard size.
The quotation request should describe both the existing dock and the actual operating conditions.
Include the opening width and height, dock height, existing bumper dimensions, bumper spacing, projection, mounting-hole arrangement, and available wall space.
Photos should show the complete dock face, leveler, shelter or seal, restraint, damaged bumper, and representative trailer position.
State the common trailer types, approximate number of arrivals, suspension conditions, and whether significant vertical movement or scraping occurs.
Also mention whether the area is dry, wet, refrigerated, corrosive, or exposed to outdoor weather.
A replacement recommendation will be more accurate when the supplier understands why the current bumper is being changed.
Explain whether it has cracked, lost layers, compressed, loosened from the wall, damaged trailers, or caused poor leveler overlap.
Choosing the right loading dock bumper requires matching the bumper type, projection, width, height, orientation, and mounting method to the dock’s real operating conditions.
The bumper must protect the building while preserving correct dock leveler overlap, dock shelter or foam dock seal contact, and vehicle restraint compatibility. Regular inspection and timely replacement help prevent small bumper damage from developing into more serious structural and equipment problems.
