A cold storage doorway is more than a route for forklifts and employees. Every time it opens, two environments with different temperatures, humidity levels, and air pressures are temporarily connected.
Cold air can escape from the room while warmer, moisture-laden air enters. The refrigeration system must then remove both the additional heat and the moisture that came through the opening. When this process happens hundreds of times per day, the doorway can become a major source of energy loss.
A high speed door helps by shortening the time the opening remains exposed. However, speed alone does not guarantee good performance. The door must also close at the right time, seal correctly, resist pressure differences, and continue operating reliably at low temperatures.
When a cold room door opens, air moves because of temperature and density differences. The colder air tends to flow outward near the lower part of the opening, while warmer air enters through the upper area.
This air movement can continue for as long as the opening remains exposed. A large doorway, strong temperature difference, or long hold-open time can increase the amount of exchanged air significantly.
Warm air entering the cold room increases the load on the refrigeration system. The cooling equipment must remove this heat before the room can return to its target temperature.
The issue is not limited to a visible rise on the temperature display. Repeated warm-air entry can make the compressor operate longer and reduce the stability of the storage environment.
Cold air leaving the room represents energy that has already been used by the refrigeration system.
Once that air escapes, the system must cool the replacement air. Reducing the duration and size of the opening therefore helps protect energy that has already been invested in maintaining the cold space.
Warm air often carries much more moisture than cold air. When it enters a chilled or frozen room, the moisture can condense or freeze on nearby surfaces.
The refrigeration system must remove both sensible heat from the air and latent heat associated with the moisture. This makes humid-air infiltration particularly costly.
Moisture may freeze on guide tracks, door seals, floors, walls, evaporators, and stored products.
As frost builds up, it can interfere with door movement, reduce sealing performance, and create slippery floor conditions. The door may then remain open longer or fail to close completely, increasing energy loss further.
Moisture entering the cold room may eventually collect as frost on evaporator coils.
Heavy frost reduces airflow and heat-transfer efficiency. The system may require more frequent defrost cycles, during which additional energy is consumed and cooling performance is temporarily interrupted.
The most direct way to reduce air exchange is to minimize the total time between the beginning of door opening and complete closing.
This does not mean setting every door to the highest possible speed. The complete cycle includes vehicle detection, controller response, acceleration, passage time, closing delay, and safe closing.
The opening speed should allow the door to clear the required vehicle or load height before traffic reaches the entrance.
A slow door may force forklift drivers to stop and wait, leaving the opening partly exposed for longer. A well-sized high speed door can begin opening early and provide clearance without interrupting traffic flow.
A catalogue may show the highest speed the door can reach, but the curtain still needs time to accelerate and decelerate.
On a relatively low opening, the door may not remain at maximum speed for long. Responsive acceleration and correctly timed activation may contribute more to actual performance than the maximum figure alone.
For regular forklift traffic, the door only needs to clear the highest part of the vehicle and load safely.
Programming the door to travel far above the required clearance increases opening time and cycle time. The upper limit should provide a safe margin without creating unnecessary movement.
After traffic has passed, the door should begin closing promptly. A long closing delay allows additional warm air and humidity to enter even though the passage is already clear.
However, a delay that is too short can cause the door to close between closely spaced vehicles, leading to frequent reversals and unnecessary cycles.
The correct closing delay depends on vehicle length, approach speed, traffic spacing, and whether several forklifts normally pass together.
Settings should be based on real operating conditions rather than using the same timer for every doorway in the facility.
A sensor that detects whether a vehicle remains in or near the opening can provide better control than a fixed timer alone.
The door can stay open while the passage is occupied and close soon after the vehicle leaves. This helps reduce open time without creating unsafe or inconvenient closing behavior.
A fast door provides little benefit if the activation device detects traffic too late or the controller waits too long before starting the motor.
The activation point should give the door enough time to open while the forklift continues moving at a controlled speed.
A radar sensor installed too close to the door may force drivers to brake before entering. A detection field that is too wide may open the door for traffic moving beside the entrance.
The sensor angle, distance, sensitivity, and direction recognition should match the actual approach route.
An induction loop can provide reliable activation for metal vehicles, but its position determines when the opening cycle begins.
A loop placed too close to the door creates late opening. One placed too far away may activate the door for vehicles that turn before entering the cold room.
Not every high speed door provides the same level of insulation, sealing, wind resistance, or low-temperature performance.
The correct choice depends on the room temperature, doorway dimensions, traffic frequency, pressure difference, and whether the opening connects to an interior staging area or a warmer exterior environment.

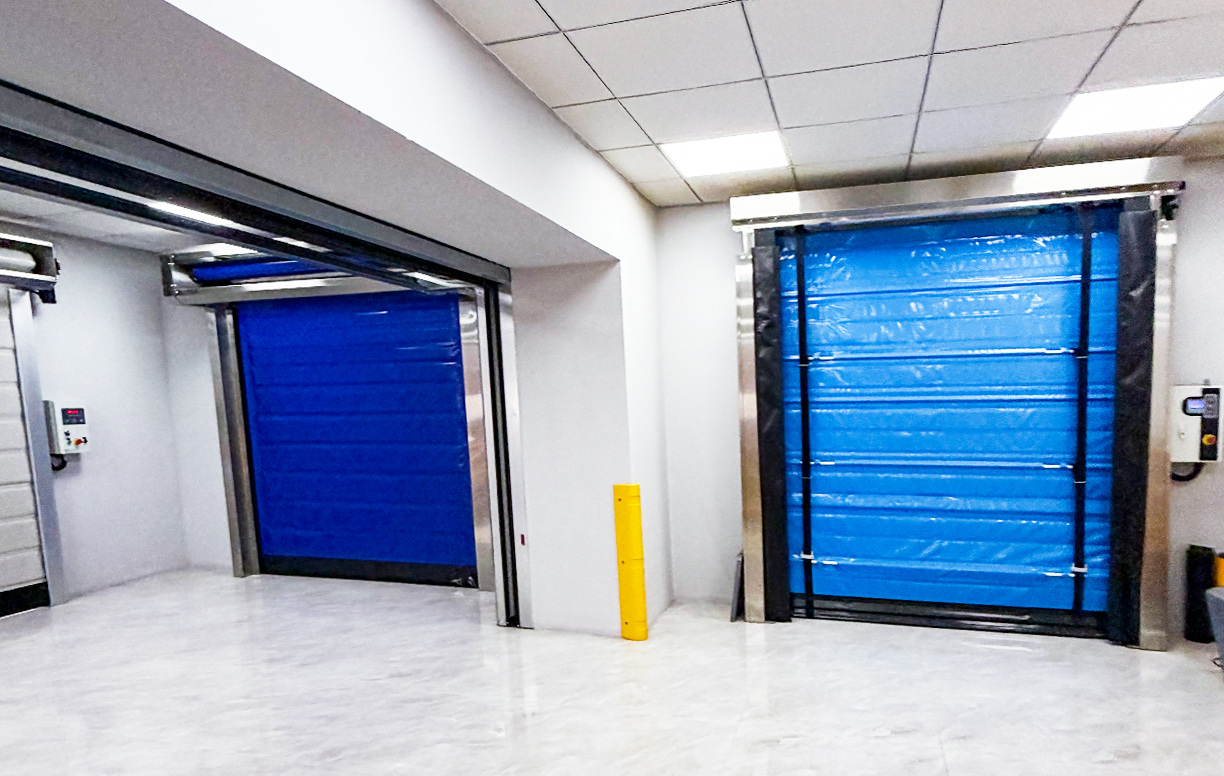

A flexible PVC high speed door can be effective for chilled production rooms, coolers, and internal temperature-controlled passages.
Its lightweight curtain supports rapid operation, and the structure is often suitable where traffic frequency is high but the temperature difference is moderate.
PVC fabric doors can open and close quickly, helping shorten the time the chilled space is directly connected to the surrounding area.
Their value is strongest when the curtain closes promptly after traffic and the guides and lower seal remain in good condition.
A standard PVC curtain is not the same as a thick insulated panel.
For deep-freeze rooms or openings with a very large temperature difference, rapid movement alone may not provide enough thermal performance. An insulated cold storage high speed door or a combined door system may be more appropriate.
A self-repairing zipper high speed door can reduce downtime in areas where forklift contact is possible.
After certain impacts, the flexible curtain can leave the guides and reconnect during a later operating cycle, avoiding some repairs associated with rigid lower bars or fixed curtain edges.
When a conventional door is damaged and remains open, the energy loss can continue until maintenance is completed.
A self-repairing design can restore the opening barrier more quickly after minor impact, helping the facility return to normal temperature separation.
Ice, dust, damaged zipper profiles, and packaging debris can interfere with the resetting process.
A self-repairing door is not maintenance-free. The guide entrances and curtain edges must remain clean and correctly aligned for reliable operation.
For frozen rooms and deep-freeze applications, an insulated curtain or specialized low-temperature door structure can provide better thermal separation.
These systems are designed to combine rapid cycling with improved insulation, sealing, and resistance to condensation or freezing.
Opening speed controls energy loss during traffic, while insulation controls heat transfer during the much longer period when the door remains closed.
A fast but poorly insulated door may perform well during opening cycles yet continue allowing heat transfer through the curtain.
Curtains, seals, cables, lubricants, and electrical components can become stiff or unreliable at very low temperatures.
The selected door should be designed for the actual room temperature rather than simply described as suitable for general cold storage.

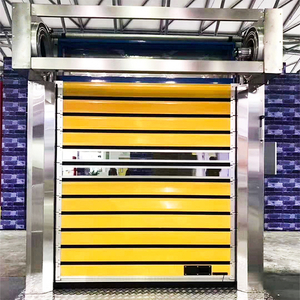

A rigid spiral high speed door can be suitable for external entrances requiring better insulation, wind resistance, and structural stability.
Rigid aluminum panels can provide stronger environmental separation than a standard single-layer flexible curtain.
Wind and building pressure can push against the door surface. A flexible curtain may move inside the guides if the pressure is too strong.
A rigid spiral system offers greater stability, but the tracks, frame, and steel supports must be installed accurately to maintain high speed operation.
A spiral door should not rely only on lightweight sandwich panels when the wall cannot support the door weight and operating forces.
Additional steel tubes or a reinforced frame may be required, with connections transferring the load to the main building structure.
A high speed door spends most of its time closed. Its sealing condition therefore has a major effect on long-term energy performance.
Even a small gap can allow continuous air leakage, particularly when pressure differences exist between the cold room and the surrounding space.
The curtain or rigid panels should move freely while still maintaining suitable contact with the side sealing system.
Worn, damaged, or incorrectly adjusted side seals can allow warm air to enter continuously.
Very tight guides may improve contact but increase motor load and curtain wear.
Very loose guides reduce friction but may create visible air gaps. The guide system should provide stable movement and effective sealing without excessive resistance.
Repeated frost formation in one area may reveal an air-leakage path.
The visible ice is not always the original problem. Inspect the guide alignment, seal condition, curtain edge, and wall connection before simply removing the frost.
The lower seal closes the gap between the door and the floor.
It should remain flexible and contact the floor evenly without requiring the lower bar to strike the ground with excessive force.
Industrial floors are not always level. One side of the seal may contact the floor while the other side leaves a gap.
The lower seal design, door position, and floor condition should be reviewed together. Reprogramming the closing limit alone may not solve a severe floor-level difference.
Low temperatures can make unsuitable seal materials stiff.
Once the seal loses flexibility, it may no longer conform to minor floor variations. Low-temperature-compatible materials are therefore important for frozen-room entrances.
Air can also leak through gaps between the door frame, header, wall panels, and surrounding steelwork.
These gaps may be less visible than a damaged bottom seal, but they can remain open continuously.
Cold room walls often use insulated sandwich panels. Door-frame connections should avoid creating unnecessary gaps or damaged panel edges.
Suitable trim, insulation, and sealant should be used around the opening while preserving the structural strength required for the door.
New steel supports, cable routes, sensors, and protective barriers may require drilling or cutting near the doorway.
Any exposed gaps should be resealed after the work is completed. A small unsealed penetration can become a condensation or frost point.
Frost is not only a maintenance problem. It is also evidence that moisture is entering the cold environment.
Controlling infiltration can reduce ice formation, improve door reliability, and lower the additional energy required for defrosting.
Heating elements may be installed in guide tracks, seals, control boxes, or other areas where freezing could prevent normal operation.
The heating system should be selected according to the actual room temperature and humidity conditions.
Ice inside a side guide can increase friction or prevent the curtain from closing completely.
A suitable heating system can help keep critical movement areas clear, but it should not be used to compensate for severe uncontrolled air infiltration.
Temperature differences can create condensation inside an electrical enclosure.
A correctly specified enclosure, sealed cable entries, and suitable internal heating can help protect controllers and terminals from moisture-related faults.
Removing ice from the floor or guides restores operation temporarily, but the frost will return if warm humid air continues entering.
The door cycle, seals, building pressure, and surrounding traffic should be reviewed together.
A door may open quickly but remain raised because of a long timer, overly wide radar zone, or continuous traffic.
Reducing unnecessary hold-open time often provides a more lasting improvement than increasing heater output.
A torn side seal or bottom gap directs warm air into a concentrated area.
The resulting frost may repeatedly appear at the same guide, floor section, or wall connection. Repairing the air path is more effective than repeatedly clearing the ice.
Water from cleaning, condensation, melting frost, or product handling can freeze near the door.
Ice on the floor can interfere with the lower seal, create safety risks, and prevent the door from reaching its correct closed position.
The floor design should prevent water from collecting directly beneath the curtain or inside the guides.
Drainage channels and floor slopes should be planned so they do not create large gaps under the closed door.
Washdown water should not be left around a freezer doorway.
Cleaning teams should understand where water can enter tracks, safety edges, sensors, and seals. Drying the area before temperatures fall again helps prevent repeated freezing.
Pressure differences can increase air movement through the doorway and affect flexible curtain stability.
The problem may come from refrigeration airflow, exhaust equipment, air-handling systems, or other doors opening elsewhere in the building.
A curtain that bows strongly inward or outward may indicate a pressure imbalance rather than a door defect.
Observe whether the movement changes when fans, evaporators, exhaust systems, or nearby loading doors operate.
An exhaust system may create negative pressure inside or near the cold room.
When the high speed door opens, the pressure difference can draw warm humid air through the opening more aggressively than expected.
The pressure around one cold storage doorway may change when another large entrance opens.
Door selection and sensor logic should therefore consider the surrounding building operation rather than treating each opening as an isolated system.
A lightweight interior fabric curtain may work well with limited pressure differences.
Higher pressure, exterior wind, or large openings may require a reinforced, stacking, or rigid door structure.
Lowering the operating speed may reduce curtain movement temporarily, but it does not remove the force acting across the opening.
If the door structure is unsuitable, the facility may need pressure control or a different door type.
A curtain that moves repeatedly inside the guides wears the sealing surfaces and may release from the tracks.
A properly selected guide system should keep the curtain stable without creating excessive friction during rapid operation.
Energy performance depends on how often the door opens, why it opens, and how long it stays open.
A high speed door should respond to intentional traffic rather than every movement near the doorway.
A radar sensor may detect forklifts passing beside the door, employees working nearby, or movement from equipment.
Each unnecessary cycle exchanges air and adds wear to the motor, curtain, and guide system.
Directional radar can distinguish between traffic approaching the door and traffic moving away or across the detection area.
This helps reduce false activation while maintaining convenient automatic access.
In some internal cold rooms, a push button, pull cord, remote control, or card reader may provide better control than automatic radar.
Intentional activation keeps the door closed until someone actually needs to pass.
Mixed traffic can force the door to remain open longer and may require a larger detection zone.
Where possible, separate pedestrian routes reduce unnecessary use of large forklift doorways.
Opening a full industrial doorway for one employee creates much more air exchange than using a smaller personnel entrance.
Traffic planning can therefore reduce energy loss without changing the main door itself.
When pedestrians and forklifts use different routes, the high speed door can be programmed more accurately for vehicle speed and passage time.
This reduces long closing delays caused by unpredictable mixed traffic.
Some cold storage facilities use a high speed door together with an insulated sectional door, sliding cold room door, or second high speed door.
The doors can serve different operating conditions rather than competing for the same function.
During busy production or loading periods, the high speed door can provide rapid access and automatic closing.
Its main purpose is to minimize exposure while maintaining traffic flow.
When the opening will not be used for an extended period, a thicker insulated door may provide better stationary thermal performance.
The combined system can balance rapid operation during work and stronger insulation during nights, weekends, or shutdown periods.
A cold storage high speed door may perform well when new but gradually lose efficiency as seals wear, sensors move, and frost collects.
Regular maintenance protects both mechanical reliability and energy control.
Cuts, worn edges, stiff seals, loose welding, and damaged panel connections can create air-leakage paths.
The inspection should cover the complete perimeter rather than only the most visible curtain area.
A small tear can grow during repeated opening and closing.
Early repair helps maintain sealing and prevents the damaged section from catching inside the guide system.
A seal that has become hard, cracked, or permanently deformed may no longer contact the floor or frame correctly.
Repeatedly adjusting the door position cannot restore the flexibility of an aged seal.
Dirty or misaligned sensors can hold the door open, cause unnecessary reversals, or trigger false opening cycles.
Sensor maintenance is therefore directly connected to energy performance.
Frost, dust, moisture, and product residue can affect sensor signals.
Cleaning should be performed with materials suitable for the lens and low-temperature environment.
New racks, conveyors, barriers, or traffic routes can change how the radar responds.
The sensor field should be reviewed whenever the area around the doorway is modified.
The curtain should open evenly and close completely without striking the floor.
A tilted lower bar, damaged guide, or changing stop position can reduce sealing and increase motor load.
If the door gradually stops higher than before, the lower seal may no longer reach the floor.
Inspect the encoder, limit settings, shaft couplings, and mechanical movement before simply changing the closed position.
A forklift impact can move the guides, bend the lower bar, or damage the curtain edge.
Even if the door still operates, the sealing condition and alignment may have changed.
Energy performance should not be judged only by the door’s maximum speed or insulation value.

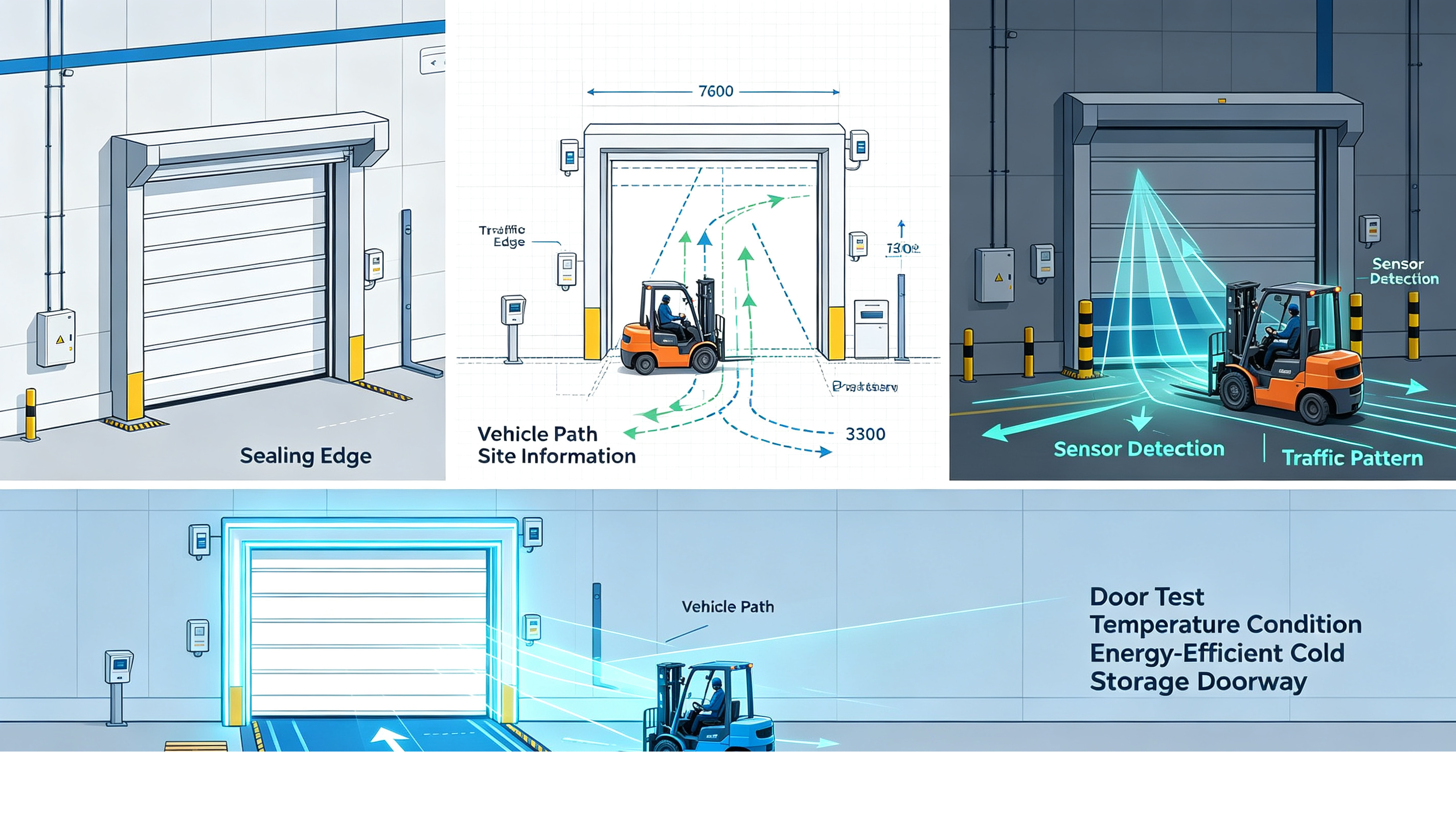

The complete doorway includes the traffic pattern, opening frequency, open time, sealing condition, temperature difference, humidity, and refrigeration response.
The total open time per cycle provides more useful information than opening speed alone.
A fast door with a long delay may expose the room longer than a moderate-speed door with accurate presence detection.
Include the sensor response, opening movement, vehicle passage, hold-open period, and closing cycle.
This reveals where unnecessary time is being added.
Door behavior may be efficient during isolated traffic but poor during shift changes or loading peaks.
Observe different operating periods before changing the control settings.
Frost patterns, condensation, fog, temperature instability, and long compressor operation can indicate that the doorway is losing energy.
These signs should be documented and compared with door usage.
Ice forming repeatedly at one side of the doorway may point to a damaged seal or misaligned guide.
Uniform fog across the opening may indicate a broader problem involving long open time or large pressure differences.
After heavy traffic, observe how long the room takes to return to its normal temperature.
A long recovery period may indicate excessive open time, poor sealing, high traffic volume, or refrigeration capacity operating near its limit.
Even a correctly selected high speed door can perform poorly when the surrounding system is not configured for the application.
Avoiding a few common mistakes can improve both energy performance and reliability.
Opening speed is important, but it does not control the full period of exposure.
Detection timing, passage time, closing delay, and false activation may have an equal or greater effect.
If the timer is set too long, the energy saved during rapid opening is quickly lost while the doorway remains fully exposed.
Control settings should therefore be commissioned together with the mechanical speed.
An aggressive closing setting may repeatedly meet vehicles or trigger safety devices.
The door then reopens and completes more cycles, increasing both air exchange and component wear.
A cooler, freezer, and deep-freeze room have different requirements.
A standard PVC door that performs well in a chilled space may not provide enough insulation or low-temperature reliability for a much colder room.
The supplier should know the room temperature, surrounding temperature, humidity, traffic frequency, and whether the door is installed inside or outside.
General descriptions such as “cold room use” are not enough for accurate selection.
Heating systems, low-temperature seals, sensor selection, and drainage are easier to plan before installation.
Adding them after the doorway has developed severe ice problems is usually more disruptive.
Misaligned guides and unstable frames can create gaps, friction, and repeated curtain problems.
The installation surface must support the door weight and movement.
Heavy doors should not be fixed only to insulated sandwich panels when those panels cannot carry the operating load.
A suitable steel frame helps maintain alignment and sealing over time.
A door that is slightly out of square may still operate, but the seals may not contact evenly.
Accurate measurement and commissioning are therefore part of energy control, not merely installation quality.
The most effective solution combines the right door, accurate control settings, reliable sealing, suitable traffic management, and regular maintenance.
The planning process should begin with how the opening is actually used.
Before selecting a door, record the opening size, room temperature, surrounding temperature, humidity, traffic type, cycles per hour, vehicle dimensions, wall structure, and available installation space.
These details determine whether the project needs a flexible, self-repairing, insulated, stacking, or rigid high speed door.
The clear opening should accommodate the highest and widest normal traffic with a suitable safety margin.
An oversized doorway, however, creates more air exchange every time it opens. The opening should be large enough for traffic without being unnecessarily large.
A doorway used by individual forklifts has different control needs from one serving continuous pallet movement.
Traffic direction, approach angle, peak periods, and spacing between vehicles all affect the sensor and closing strategy.
Final commissioning should include actual forklifts, loads, operating temperatures, and traffic routes.
An empty opening test cannot fully confirm the energy or traffic performance.
Increasing speed without changing the activation distance may provide limited benefit.
The radar or loop should trigger early enough for the selected opening speed and approach velocity.
The curtain should return to the floor and seals after traffic passes.
Repeated partial closing, reversal, or position drift can leave the doorway exposed even when the controller appears to complete the cycle.
The opening speed, closing speed, closing delay, detection zones, limit positions, and heating settings should be documented.
These records make it easier to restore efficient operation after repairs or controller replacement.
If open time, false activation, or frost gradually increases, compare the current settings and door condition with the original commissioning record.
This can reveal whether the problem developed through wear, impact, or later programming changes.
New forklifts, production schedules, room temperatures, or warehouse layouts may change the doorway requirements.
The door settings should be reviewed when the operating process changes significantly.
Reducing cold storage energy loss requires more than installing a fast-moving door.
The best results come from combining short opening times, accurate sensors, effective perimeter sealing, suitable insulation, frost control, stable structural support, and regular maintenance. When the complete doorway is designed around real traffic and temperature conditions, a high speed door can improve both energy efficiency and daily operations.
