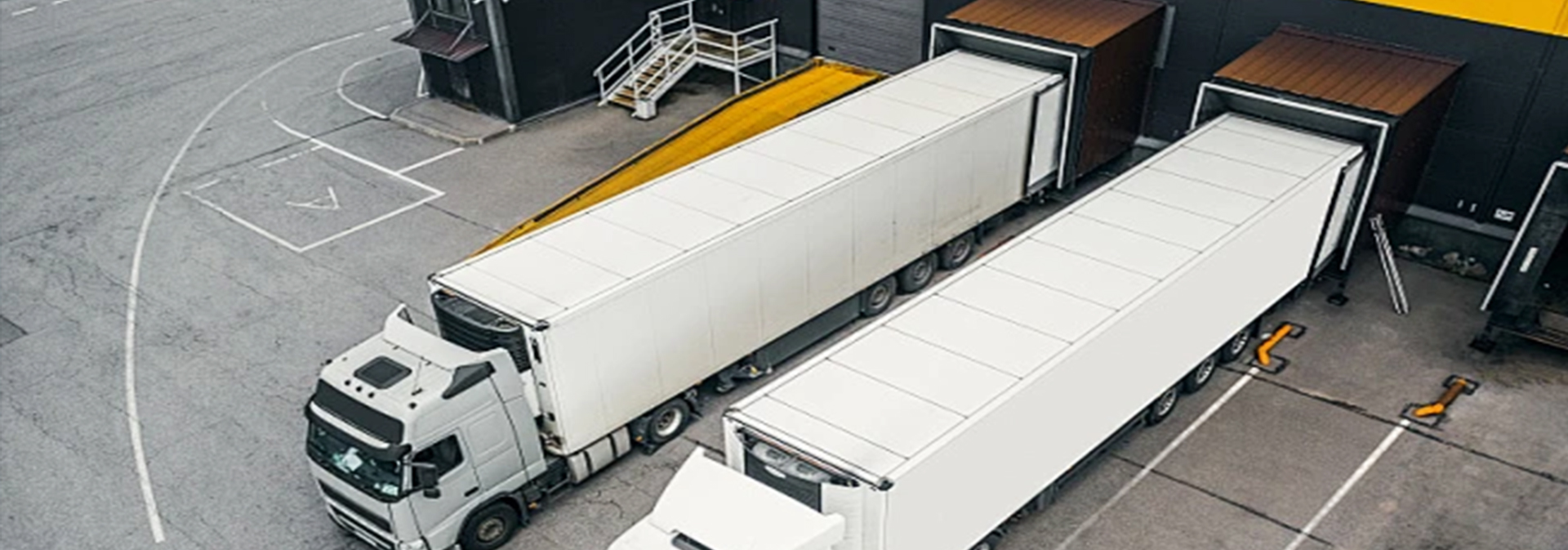

A loading dock connects two working areas that are physically close but often visually separated. The truck driver remains outside the building, while forklift operators and warehouse employees work inside the trailer and dock area.
These groups may not be able to see or speak to one another clearly. Noise, closed dock doors, trailer walls, language differences, shift changes, and busy schedules can all make communication more difficult.
A loading dock traffic light system provides clear visual instructions to both sides of the dock. By displaying different signals inside and outside, it helps drivers and warehouse employees understand whether the trailer must remain stationary, whether loading may begin, and when departure is permitted.
A driver may see only the exterior dock wall and signal light. The warehouse team may see the dock leveler, trailer interior, pallets, forklifts, and loading progress.
Because each side has different information, a single spoken instruction or hand signal may not provide enough control.
Once a trailer is backed into the dock, its walls block the driver’s view of the loading area.
The driver may not know whether a forklift is still inside, whether the dock leveler remains extended, or whether employees are completing an inspection. An exterior signal light provides a visible instruction without requiring the driver to enter the warehouse.
Employees inside the facility may not notice when a driver returns to the cab, starts the engine, or prepares to leave.
An interior traffic light provides status information based on the dock system rather than relying on employees to observe the truck continuously.
Loading dock accidents often develop when one person assumes another person has completed a required step.
A clear red or green signal replaces some of these assumptions with a consistent instruction.
An exterior red light normally tells the driver that the trailer must remain at the dock.
This signal may indicate that loading is active, the trailer is restrained, the dock leveler is still deployed, or the release sequence has not been completed.
An exterior green light normally indicates that the dock process has been completed and the driver may depart according to the facility’s procedure.
The green signal should appear only after all required safety conditions have been confirmed.

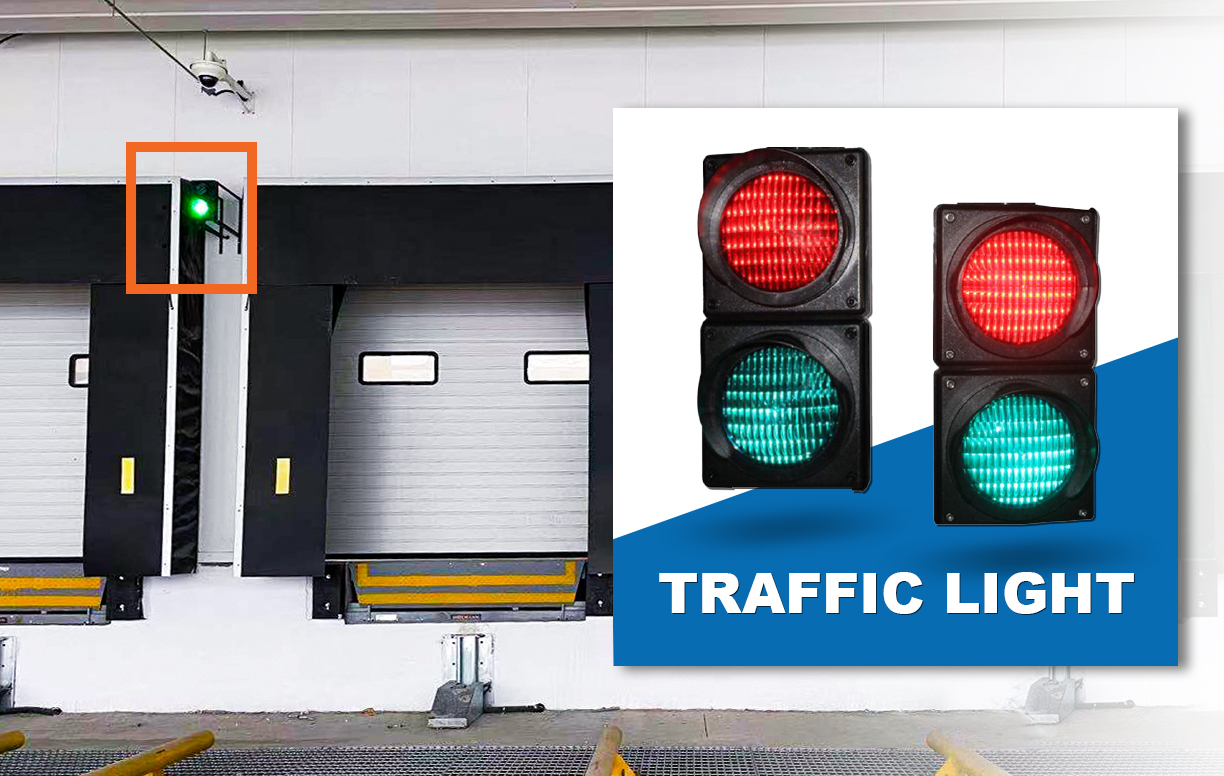

A basic system normally includes one exterior light for the driver and one interior light for dock employees.
The lights display opposite signals during normal operation. When employees are permitted to load, the driver is instructed to remain stationary. When the driver is permitted to leave, warehouse employees are warned not to enter the trailer.
The purpose of the system is not simply to display red and green lights. It is to communicate different instructions to two groups at the same time.
The signal sequence should match the actual dock operating procedure.
After the trailer reaches the dock and the required securing condition is confirmed, the interior light can change to green.
Warehouse employees may then begin loading, while the exterior red light tells the driver to remain in position.
Once loading is complete, the dock leveler is stored, and any vehicle restraint has been released, the signals can reverse.
The exterior green permits departure, while the interior red warns employees not to enter the trailer.
Some traffic light systems are controlled by a simple switch. Others are connected to a vehicle restraint, dock leveler, sectional door, or central dock controller.
The appropriate level of automation depends on the dock’s traffic, risk level, and operating procedure.
In a manual system, an employee changes the signals after checking the dock condition.
This arrangement is simple, but it depends on the operator remembering the correct sequence. Clear procedures and training are essential because the lights do not automatically verify equipment status.
An automatic system changes the lights according to signals from the vehicle restraint, dock door, leveler, or other sensors.
This reduces dependence on memory and helps ensure that the displayed signal matches the actual dock condition.
Premature departure occurs when a driver moves the trailer before loading or unloading has finished.
This can happen because of miscommunication, incorrect paperwork, unclear hand signals, or the driver assuming that a temporary pause means the work is complete.
A visible red light provides a continuous instruction throughout the loading process.
The driver does not need to rely on whether the dock appears quiet or whether an employee is standing nearby.
Forklift traffic may pause while employees inspect cargo, move pallets, or complete paperwork.
Without a clear signal, the driver may interpret this pause as the end of loading. The exterior red light confirms that the trailer must remain stationary.
Verbal instructions can be misunderstood or given to the wrong driver, especially at facilities with several adjacent dock positions.
A light installed at the correct bay provides a direct visual instruction connected to that specific loading position.
When the exterior signal changes to green, the interior signal should normally change to red.
This tells warehouse employees that the trailer is no longer in a secured loading condition.
An interior red signal indicates that the dock is not ready for trailer entry.
The trailer may be unrestrained, preparing to leave, not yet fully positioned, or absent from the dock.
The interior light helps separate the loading stage from the departure stage.
Employees can confirm that the dock has changed status before attempting another forklift or pallet transfer.
A traffic light system communicates instructions, but it does not physically stop a trailer from moving.
This distinction is important when buyers evaluate loading dock safety equipment.
If a driver ignores or fails to see a red light, a basic traffic signal cannot prevent the truck from departing.
Physical movement control requires a vehicle restraint, wheel chocks, or another approved securing method.
The traffic light communicates whether movement is permitted.
The restraint physically limits trailer movement. Using both systems together provides stronger protection than relying on communication alone.
Warehouse employees should not assume that an exterior red signal means the trailer is physically secured.
The interior status should distinguish between a confirmed restrained condition and a manual or override condition.
Signal lights support a safe process, but they do not replace trailer inspection, correct parking, dock leveler checks, employee training, or equipment maintenance.
The complete dock procedure should define what each signal means and what actions are required.
A light system is ineffective when employees are unsure whether green means the trailer is present, secured, or ready for entry.
The meaning of each signal should be documented and used consistently across all dock positions.
Drivers should be informed that exterior red means remain stationary and exterior green means departure may proceed according to site rules.
Signs near the light can reinforce the instruction, particularly at facilities serving international drivers.
A vehicle restraint and traffic light system are commonly operated together.
The restraint secures the trailer while the lights communicate the restraint status to the driver and warehouse team.
After the trailer backs into the dock, the restraint attempts to engage the rear impact guard or another suitable locking point.
When valid engagement is confirmed, the controller can change the interior signal to green and the exterior signal to red.
The interior green light should indicate more than movement of the restraint mechanism.
The controller should confirm that the hook or locking device has reached a valid secured position before authorizing normal loading.
If the restraint cannot secure the trailer, the system should not display the same condition as successful engagement.
A fault light, alarm, or override indication can inform employees that an alternative securing procedure is required.
At the end of loading, the restraint should remain engaged until the dock leveler and other equipment have returned to safe positions.
Only after the release sequence is complete should the exterior light change to green.
The exterior signal should remain red for the complete period that the trailer is mechanically secured.
This prevents the driver from attempting to pull away against the restraint and alerts the driver that dock activity is still in progress.
The green departure signal should appear after the restraint has released and the dock equipment has completed the required sequence.
Changing the light before mechanical release can create confusion and unnecessary force on the restraint.
The dock leveler creates the physical bridge between the warehouse floor and the trailer bed.
A trailer should not leave while the leveler lip remains supported by the trailer.
Position switches or controller signals can identify whether the leveler is stored or deployed.
This information can be used to prevent the exterior light from changing to green too early.
If the dock leveler lip remains on the trailer bed, the trailer must not depart.
Maintaining the exterior red signal helps communicate that the dock connection is still active.
After loading, the leveler should return to the pit and align with the warehouse floor.
A stored-position signal can then allow the restraint and traffic light system to continue the release sequence.
A more advanced control system can prevent the leveler from operating until the trailer has been secured.
It can also prevent the departure signal while the leveler remains outside its stored position.
Enabling the leveler only after restraint confirmation reduces the chance that employees will begin loading a trailer that can move freely.
Where the restraint cannot engage, a controlled override procedure should be required.
The safe sequence normally requires forklifts to exit, the leveler to store, the restraint to release, and the exterior light to turn green.
Automating this order reduces reliance on individual memory.
The dock door separates the warehouse from the exterior and provides another possible control point.
Its position can be included in the dock sequence to improve environmental control and reduce unsafe access.
The dock door can remain closed until the trailer is correctly positioned and secured.
This prevents employees from opening the dock and entering a trailer before the required securing procedure is complete.
When the interior signal remains red and the door is closed, warehouse employees receive both a visual and physical indication that loading has not been authorized.
This supports a more controlled operating sequence.
A position switch can tell the dock controller whether the door is fully open or closed.
This information may be used to coordinate leveler operation, restraint release, and signal changes.
Some facilities require the dock door to close before the restraint releases and the exterior signal turns green.
This helps separate the warehouse from the departing vehicle and confirms that loading access has ended.
Once the forklift and employees have left the trailer, the leveler is stored and the door can close.
The system can then proceed toward trailer release according to the approved control logic.
If the door fails to close, the traffic light system should not automatically display a safe departure condition unless the operating procedure allows it.
The controller should indicate the fault clearly and require an appropriate response.
Loading dock traffic lights may use two colors, three colors, flashing signals, audible alarms, or status displays.
The correct configuration depends on how much information the facility needs to communicate.
Red and green are the most common loading dock signals.
They provide a simple instruction: stop or proceed.
A limited number of signals reduces the chance of confusion.
This arrangement works well where the system has a clear normal sequence and does not need to show several fault conditions outside.
A two-color system may require a separate alarm, indicator, or control-panel message when the trailer cannot be restrained.
Otherwise, employees may not understand why the normal green loading signal has not appeared.
Some systems add yellow or amber to indicate caution, transition, override, or an incomplete condition.
The exact meaning must be defined by the facility.
An amber light may indicate that the restraint is moving, the trailer is not yet confirmed, or the dock equipment is changing position.
This helps employees distinguish between a normal red stop condition and an active transition.
One color should not represent several unrelated conditions unless the control panel provides additional explanation.
The signal logic should remain simple enough for drivers and employees to understand immediately.
Flashing signals and alarms draw attention to unusual or hazardous conditions.
They may be used for restraint faults, trailer movement, override operation, or incorrect equipment sequences.
A flashing red or amber light should have one documented meaning.
Employees should know whether it indicates failed engagement, an emergency condition, or a required inspection.
In noisy warehouses, a weak alarm may be ignored or unheard.
The sound level and alarm pattern should be suitable for the environment without becoming so frequent that employees stop responding to it.
The correct system depends on the number of docks, vehicle-restraint arrangement, existing controls, traffic volume, and desired level of automation.
Buyers should first define the operating sequence and then select the hardware required to support it.
Manual systems are simpler and may suit lower-traffic docks with established supervision.
Interlocked systems provide stronger sequence control and are more suitable where loading activity is frequent or several pieces of dock equipment must coordinate.
The facility should identify who is authorized to change the lights and what checks must be completed first.
If several employees can change the signals without a common procedure, the displayed status may become unreliable.
An interlocked controller can verify restraint engagement, door position, and leveler storage before changing the signals.
This makes the correct sequence part of equipment operation rather than an optional manual habit.
A new traffic light system may need to connect to an existing vehicle restraint, dock leveler, door controller, or building management system.
Signal voltage, relay type, input logic, and wiring requirements should be checked before installation.
An older leveler or restraint may operate correctly but have no available status output.
Additional switches, relays, or controller modifications may be required before automatic light control can be implemented.
The supplier and facility should agree on what conditions produce each interior and exterior signal.
A written operating sequence prevents different interpretations during installation and commissioning.
A basic system may later need vehicle restraints, central monitoring, data collection, or additional interlocks.
Planning spare control inputs and suitable wiring routes can reduce the cost of future upgrades.
Facilities with many dock positions may want supervisors to see which bays are occupied, secured, loading, faulted, or ready for departure.
This requires more than exterior traffic lights and should be considered during control-system planning.
Using the same signal logic and control layout across multiple docks helps employees transfer between bays without learning different procedures.
Standardization also makes maintenance and spare-parts management easier.
Loading dock lights are exposed to weather, vehicle exhaust, dust, vibration, moisture, and accidental impact.
The fixture design should match the installation environment.
Exterior fixtures may be exposed to rain, snow, sunlight, temperature changes, and washdown.
The enclosure and cable entries should provide suitable protection for the site.
Even a suitable light enclosure can fail if the cable gland, conduit, or rear mounting surface is not sealed correctly.
Installation details should prevent water from travelling along the cable into the fixture.
Direct sunlight can make a weak signal difficult for drivers to see.
The light output, lens design, hood, and mounting direction should provide clear visibility throughout the working day.
The interior fixture should be visible from the dock operating position and forklift approach route.
It should not be hidden behind the open dock door, control box, shelving, or structural columns.
A forklift operator should be able to confirm the dock status while approaching the leveler.
Placing the light only beside the control panel may not provide enough visibility from the traffic route.
Dust, oil, fading, and damage can reduce the difference between red and green signals.
The lenses should remain clean and should be replaced when discoloration makes the signal difficult to recognize.
Light fixtures may be damaged by trailers, forklifts, pallets, doors, or cleaning equipment.
Their location should provide visibility without placing them directly in common impact paths.
The fixture should be positioned away from the trailer body, rear doors, hinges, and moving dock shelter components.
A protected mounting position reduces repeated impact and vibration.
The fixture and bracket should not reduce the clear opening or create a sharp projection near forklift routes.
Protective guards may be appropriate where accidental impact remains possible.
Correct placement is essential because a signal that is difficult to see may be ignored even when the control logic is correct.
Installation should account for driver position, trailer dimensions, dock shelter projection, and nearby equipment.
The driver should be able to see the signal while parked at the dock and when preparing to depart.
The light should normally be placed beside the dock opening at a consistent location.
A fixture mounted too close to the center of the dock may become blocked by the trailer body or open rear doors.
The driver should have a clear viewing angle from the cab or designated waiting area.
Drivers can react more quickly when every dock uses the same light position and meaning.
Inconsistent placement increases the chance that a driver looks at the wrong fixture or fails to notice the signal.
A traffic light is more effective when nearby signage explains the required driver action.
This is especially important for facilities receiving drivers from different companies and countries.
A simple instruction such as “Red—Do Not Move” and “Green—Proceed With Caution” is easier to understand than a long technical explanation.
Symbols can also support communication where language differences are common.
Signage should not describe a signal sequence that differs from the controller operation.
When equipment logic changes, signs and driver instructions should be updated at the same time.
Equipment cannot improve communication when users do not understand the signals.
Training should cover normal operation, fault conditions, overrides, and the relationship between lights and physical trailer restraint.
Employees should know when loading may begin, who controls the dock equipment, and what to do if the expected signal does not appear.
The procedure should remain consistent across shifts.
Employees should know exactly which conditions are confirmed before the interior light turns green.
It should not mean “probably safe” at one dock and “trailer present but not restrained” at another.
When the interior light is red, forklifts and employees should not enter the trailer under the normal procedure.
Any exception should require a documented override process and additional controls.
Drivers may encounter different signal practices at different warehouses.
The facility should explain its system during check-in, through signs, or in driver documentation.
The instruction should make clear that the trailer must not move while the exterior signal is red.
The driver should not assume that receiving paperwork, closing the trailer doors, or a pause in activity replaces the traffic light signal.
An exterior green light permits departure according to the facility procedure, but the driver should still check the surrounding area and move carefully.
The signal does not guarantee that every external obstacle or pedestrian is visible.
Traffic light faults can create unsafe or confusing instructions.
Maintenance teams should treat inconsistent signals as operational issues rather than minor electrical inconveniences.
Interior and exterior green signals should not normally appear at the same time during a standard opposite-light sequence.
This condition can give both the driver and warehouse employees permission to move.
Stuck relays, incorrect wiring, failed outputs, or controller programming errors can produce conflicting signals.
The dock should be taken out of normal operation until the correct sequence is restored.
Telling employees and drivers to ignore a faulty light is difficult to control across shifts.
A damaged system should be isolated, clearly marked, and repaired before returning to normal service.
A light that remains red or green may have a failed lamp, damaged wiring, stuck relay, faulty position switch, or incorrect equipment status.
The cause should be diagnosed through the complete control sequence.
Technicians should determine whether the controller is sending the correct output before replacing the light fixture.
A functioning lamp cannot correct a missing or incorrect control signal.
The system may be intentionally holding the exterior light red because the leveler is not stored, the restraint remains engaged, or the dock door is open.
The traffic light fault may actually be an unresolved equipment condition.
A light can operate electrically while providing poor communication because of dirt, fading, sunlight, snow, physical obstruction, or incorrect mounting.
Visibility should be evaluated from the actual driver and operator positions.
Exhaust residue, dust, oil, and weather can gradually reduce light output.
Cleaning should be completed before visibility becomes noticeably poor.
A faded red lens may appear amber, while a cracked cover may allow water into the fixture.
Damaged lenses should be replaced rather than relying only on a stronger lamp.
Traffic light systems contain relatively few moving parts, but their safety value depends on reliable signals and correct control logic.
Inspections should include both the fixtures and the equipment inputs that control them.
Dock employees should confirm that the interior and exterior lights display the expected conditions at the beginning of operation.
Visible damage, weak illumination, or conflicting signals should be reported immediately.
Observe the lights during trailer arrival, securing, loading, equipment storage, release, and departure.
A light that works in one position may fail during another stage because of a faulty relay or switch.
Look for loose mounting bolts, bent guards, cracked lenses, exposed wiring, and signs of water entry.
Physical damage should be corrected before vibration or weather causes electrical failure.
The system should respond correctly to vehicle restraint engagement, leveler position, door position, and manual controls.
A status switch that is stuck can make the lights display an incorrect condition even when the fixtures are functioning.
Test that interior green appears only when the restraint confirms the intended secured condition.
Failed engagement should produce the defined fault or override indication.
Verify that the exterior light cannot turn green while the leveler remains deployed, where this interlock is part of the system design.
Any inconsistent result should be investigated before the dock returns to service.
Wiring diagrams, relay logic, controller parameters, and operating sequences help technicians diagnose faults accurately.
Without documentation, repairs may restore the lights while unintentionally changing the safety logic.
Changes to timers, relay assignments, input logic, or override functions should be documented.
This creates a clear baseline for later troubleshooting and safety review.
Replacement lamps, LED modules, relays, and switches should match the electrical and environmental requirements of the original system.
An incorrect component may operate temporarily but fail under vibration, moisture, or continuous use.
Commissioning confirms that the lights, connected equipment, and operating procedure work as one system.
Testing should be completed under realistic dock conditions rather than only by switching the lights manually.
The commissioning team should simulate trailer arrival, restraint engagement, door opening, leveler deployment, loading completion, equipment storage, restraint release, and trailer departure.
Each signal change should occur at the correct stage.
During normal loading, the interior and exterior lights should provide opposite instructions according to the approved sequence.
Any stage that creates simultaneous permission should be corrected.
Exterior green should appear only when all required release conditions have been met.
The team should verify the actual restraint, door, and leveler positions rather than relying only on control-panel indicators.
Normal operation does not confirm how the system behaves when engagement fails, a position switch is lost, or an override is used.
These conditions should be tested before employees begin routine operation.
Confirm that the system does not display the normal secured loading condition when the restraint fails to capture the trailer.
The fault indication and alternative procedure should be clear to employees.
The facility should understand which signals appear when power is lost and how the system restarts.
Lights and connected equipment should not automatically create an unsafe permission condition when power returns.
The exterior signal should be checked from the truck cab and approach route. The interior signal should be checked from the forklift approach and dock control station.
This practical test may reveal visibility problems that are not obvious from installation drawings.
Sunlight, shadows, exterior lighting, and nighttime conditions can change signal visibility.
The lights should remain recognizable throughout the facility’s operating schedule.
The final signs should match the actual red, green, amber, flashing, and override logic.
Employees and drivers should receive training based on the commissioned system rather than an earlier design concept.
Many traffic light problems begin with unclear operating logic rather than defective fixtures.
Buyers should avoid treating the system as a pair of lamps installed independently from the dock process.
The facility may purchase interior and exterior lights before deciding who controls them and what each signal confirms.
This often results in inconsistent manual operation.
First define the arrival, securing, loading, release, and departure sequence.
The controller, switches, interlocks, and signals can then be selected to enforce that procedure.
Red, green, amber, and flashing conditions should be documented.
A signal that means different things to different departments cannot provide reliable communication.
A traffic light can reduce miscommunication but cannot physically prevent departure or trailer creep.
Facilities should evaluate whether a vehicle restraint or another securing method is also required.
The driver must notice, understand, and follow the exterior red signal.
Mechanical restraint adds protection when human error or misunderstanding occurs.
The interior system should not make a manually controlled red exterior light appear equal to confirmed vehicle-restraint engagement.
Status indication should reflect the actual level of protection.
A system may operate well during normal trailer engagement but become confusing when an incompatible trailer arrives.
The buyer should define these exceptions before installation.
Employees should be able to distinguish between a mechanically restrained trailer and one loaded under an alternative procedure.
A separate indicator or alarm can support this distinction.
Repeated override use may mean the restraint is incompatible with the trailer fleet, the dock geometry is incorrect, or drivers are not parking correctly.
The underlying cause should be reviewed rather than accepting override as the normal mode.
A useful quotation should describe the fixtures, control method, equipment interfaces, signal logic, installation conditions, and fault indications.
Buyers should evaluate the complete communication system rather than comparing only the number of lights.
The supplier should explain which interior and exterior signals appear during trailer arrival, securing, loading, release, and departure.
This sequence should match the facility’s operating procedure.
Ask whether interior green confirms trailer presence, vehicle-restraint engagement, manual approval, or another condition.
The meaning should be precise because employees may rely on it before entering the trailer.
Ask which conditions must be completed before the driver receives permission to depart.
These may include leveler storage, door closure, restraint release, and operator approval.
Confirm whether the traffic lights can connect to the vehicle restraint, dock leveler, sectional door, alarm, or central control system.
The required inputs and outputs should be included in the controller specification.
A diagram helps the installer understand how fixtures, switches, relays, sensors, and dock equipment connect.
It also supports future maintenance and troubleshooting.
The light system should match the facility’s electrical supply and the signal types provided by existing equipment.
Adapters or additional relays may be required when different control voltages are used.
The exterior and interior fixtures may face very different conditions.
Buyers should confirm enclosure protection, temperature range, lens visibility, mounting method, and resistance to vibration.
Exterior lights should tolerate the expected rain, snow, sunlight, dust, and temperature conditions.
The complete installation, including cables and junction boxes, should provide suitable protection.
LED modules, lenses, relays, switches, and control components may require replacement during the system’s service life.
Clear part identification makes future maintenance faster and reduces dock downtime.
Loading dock traffic light systems improve safety by giving drivers and warehouse employees clear, opposite instructions throughout the loading process.
The strongest results come from integrating the lights with vehicle restraints, dock levelers, doors, alarms, and a defined operating procedure. When the signal logic is clear, visible, and properly maintained, the system can reduce miscommunication and support safer trailer arrival, loading, release, and departure.
