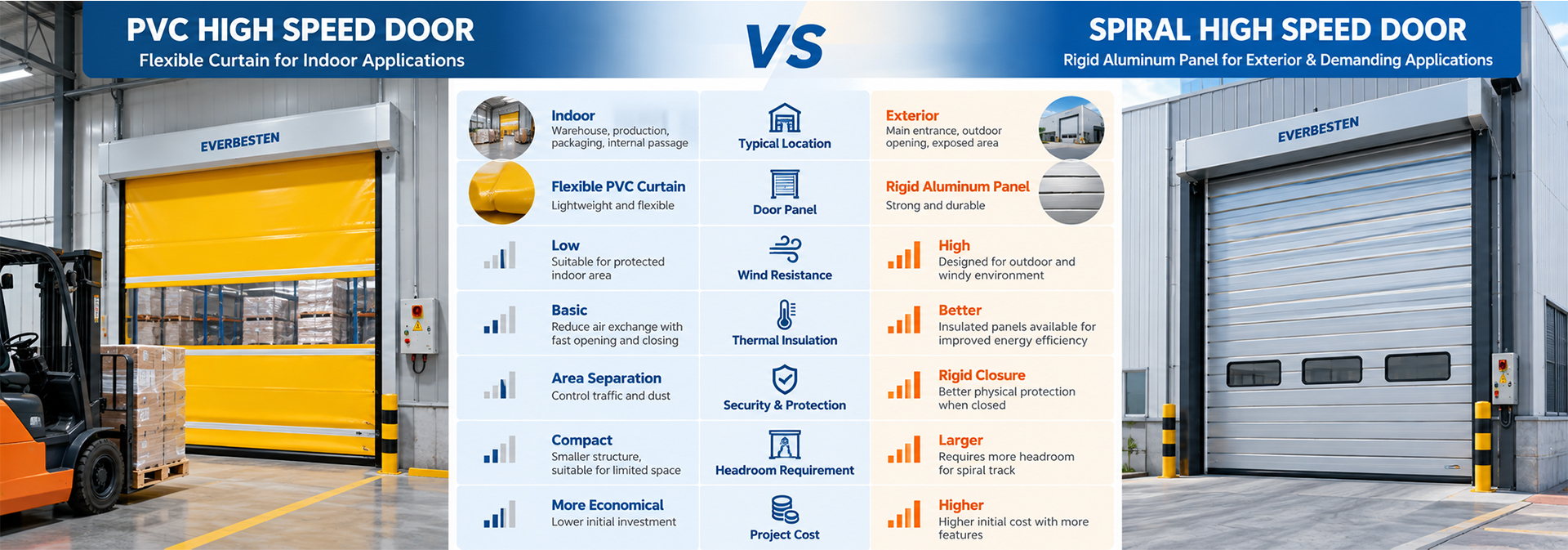

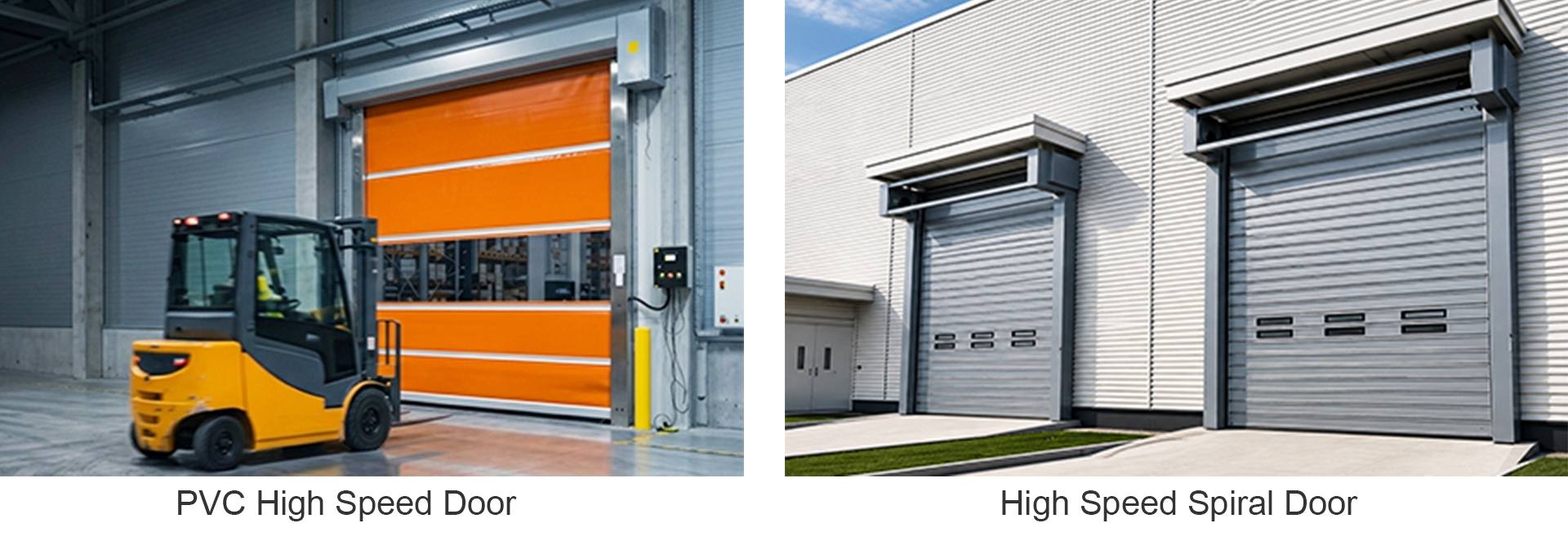

PVC High Speed Doors and Spiral High Speed Doors can both provide fast vehicle and material access, but they are designed around very different priorities.
A PVC High Speed Door is mainly an indoor traffic-control door. Its flexible curtain and relatively lightweight structure make it practical for warehouse passages, production zones, packaging areas, and other protected interior openings.
A Spiral High Speed Door is closer to a complete industrial entrance system. Its rigid insulated aluminum panels allow the opening to combine fast operation with better resistance to exterior conditions, stronger closed-door protection, and improved insulation.
The most useful question is therefore not:
Which door is better?
It is:
What does this opening need to do while traffic is moving, and what does it need to protect when it is closed?
That distinction usually makes the choice much clearer.
Many buyers compare opening speed first because both products belong to the high speed door category.
In practice, the installation position is usually more important.
A PVC High Speed Door is most useful when the opening sits inside a building and the main requirement is to keep forklifts, employees, or materials moving without leaving the doorway open unnecessarily.
Typical examples include:
Warehouse-to-production passages
Packaging areas
Internal logistics routes
Processing zones
Indoor material-transfer openings
The flexible curtain keeps the structure relatively simple and is suitable where strong outdoor wind and physical security are not the main concerns.
A Spiral High Speed Door uses rigid aluminum panels moving through a specialized guide and upper spiral system.
This allows the door to perform a different role.
It can provide fast vehicle access during working hours while also functioning as a rigid building closure when traffic stops.
If the opening mainly needs to separate two indoor working areas, start by considering PVC.
If the opening needs to protect the building from outdoor conditions when closed, Spiral becomes much more relevant.
Wind is one of the clearest boundaries between the two door types.
A standard interior PVC Fabric High Speed Door is not intended to provide the same wind stability as a rigid exterior door.
At an exposed opening, wind pressure can affect curtain movement, guide contact, sealing, and long-term wear.
For this reason, an interior PVC door should not be selected for an exterior entrance simply because its purchase price is lower.

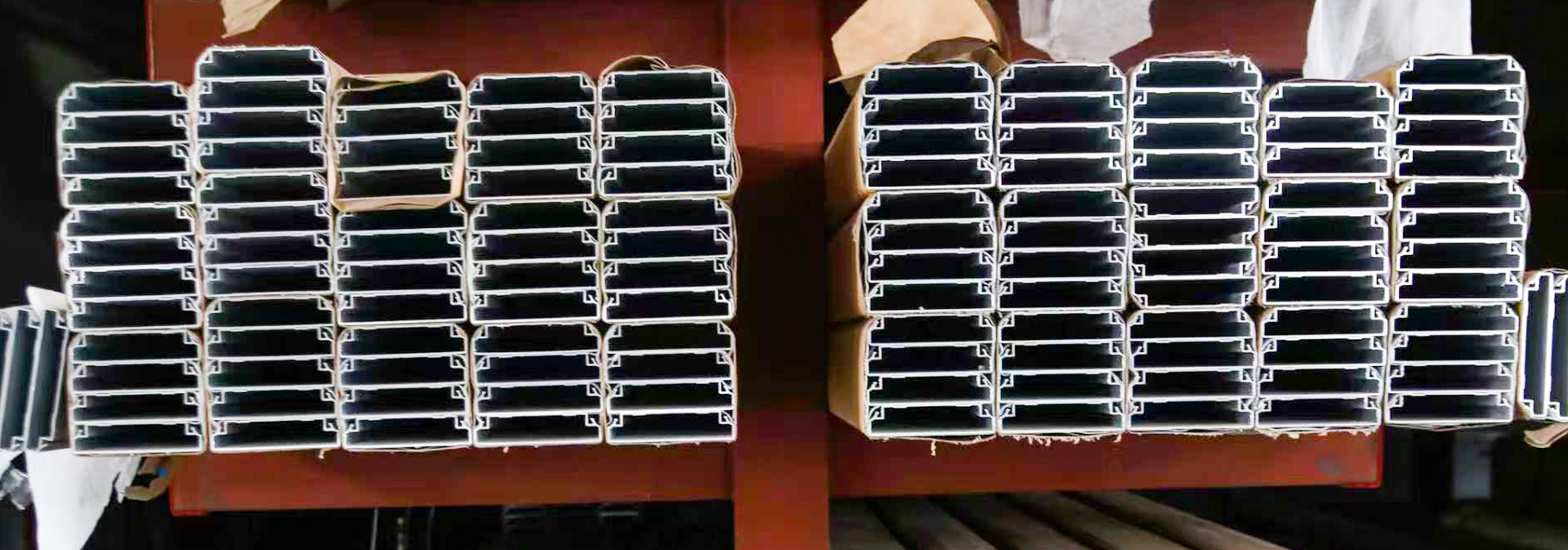

The rigid panel construction and stronger side guides make Spiral High Speed Doors more appropriate where outdoor wind is a significant site condition.
However, “Spiral” does not automatically mean every door has the same wind resistance.
Final performance depends on factors such as:
Opening width and height
Panel design
Guide structure
Reinforcement
Fixing method
Supporting steel structure
Building exposure
Actual site wind conditions
A large exposed entrance needs more detailed review than a smaller doorway protected by surrounding buildings.
This is where many comparisons become too focused on opening speed.
A door spends a significant part of its life closed, and the closed condition may determine which structure makes sense.
When closed, a PVC curtain helps separate indoor working zones and reduce unnecessary airflow, dust, or other environmental exchange.
However, the flexible curtain should not be treated as a rigid physical security barrier.
Connected aluminum panels provide a stronger physical closure.
This is useful at entrances that need to protect the building, equipment, inventory, or restricted working areas after normal traffic stops.
Both door types can use card readers, remote controls, sensors, or other access methods.
But electronic access control determines who can activate the door.
It does not change the physical strength of the curtain.
Where physical protection matters, the rigid structure of the Spiral Door becomes a separate selection factor.
Both doors can reduce the amount of time an opening remains exposed.
That does not mean their thermal performance is identical.
For a normal interior PVC High Speed Door, much of the environmental benefit comes from opening quickly and closing shortly after traffic passes.
This can be useful when separating indoor areas with moderate temperature differences.
Spiral High Speed Doors can use rigid insulated panels.
This means the door can address two different parts of thermal control:
shorter opening time + improved closed-door insulation.
If the main issue occurs only while forklifts pass through an internal doorway, a fast fabric door may be sufficient.
If the opening is an exterior entrance separating a conditioned warehouse from outdoor conditions for long periods, insulated rigid panels become more valuable.
It is tempting to think:
High traffic = Spiral
Lower traffic = PVC
That is not the right distinction.
Both systems can be selected for repeated industrial operation.
The more important question is what kind of traffic and environment surround the opening.
A protected internal route may still experience very frequent traffic.
A PVC High Speed Door can remain a practical solution because the primary requirement is rapid passage rather than exterior protection.
If accidental curtain impact is a frequent concern, a Zipper Self-Repairing High Speed Door may be worth evaluating instead.
At an exterior opening, frequent traffic may need to be combined with wind resistance, weather protection, insulation, and a rigid closed barrier.
That is where the Spiral High Speed Door provides a different type of value.
Two openings may each operate hundreds of times during a busy period yet still need different doors.
An internal production passage may suit a fabric system.
An exterior warehouse entrance may require a rigid Spiral system.
Traffic frequency is only one part of the decision.
A Spiral High Speed Door has a heavier and more demanding structure than a PVC Fabric Door.
Installation conditions therefore need to be checked early.
The mounting surface still needs to be stable and correctly aligned, but the flexible curtain and lighter door structure generally place lower demands on the building.
This can make PVC practical for many standard internal industrial openings.
Rigid panels, guide systems, drive components, and the upper track structure require a suitable installation base.
This becomes particularly important with lightweight walls.
A heavy Spiral Door should not simply be fixed to a lightweight sandwich panel when the panel cannot provide adequate structural support.
Additional steel tubes or a supporting steel frame may be needed, with the reinforcement connected to the main building structure.
The wall should therefore be checked before the final door configuration is confirmed.
The upper storage arrangement differs significantly between the two systems.
The flexible curtain moves into the upper door structure, making the system comparatively compact.
This can be useful where installation space is limited.
Rigid panels need sufficient room above the opening for the upper storage configuration.
Before choosing Spiral, confirm:
Clear opening width
Clear opening height
Headroom
Left side room
Right side room
Ceiling obstacles
Beams
Pipes
Cable trays
A technically suitable door can still become impractical if the building does not provide the required installation space.
Industrial doors operate around forklifts and material handling equipment, so accidental contact should be considered.
A flexible curtain can be torn by sharp forks, protruding goods, or direct impact.
Depending on the damage, repair or curtain replacement may be relatively straightforward.
If impact risk is high in an indoor location, a Zipper Self-Repairing High Speed Door may be a more suitable alternative to a standard PVC Fabric Door.
Rigid panels provide better normal structural protection, but a severe forklift collision can deform panels, guides, or other mechanical components.
Neither system should be specified on the assumption that it can absorb uncontrolled vehicle impact without damage.
Traffic layout, sensors, visibility, markings, and operator behavior remain important.
Instead of comparing specifications in isolation, consider three typical facility situations.
The door is completely indoors.
Forklifts pass regularly, there is little wind, and the main requirement is fast movement and basic environmental separation.
Better starting point: PVC High Speed Door.
A Spiral system would add rigid construction and exterior performance that may provide little operational benefit.
Forklifts enter from an outdoor yard.
The opening is exposed to weather, and the building needs a rigid closure after working hours.
Better starting point: Spiral High Speed Door.
The Spiral Door is not selected because the forklift moves faster.
It is selected because the same opening has to handle traffic while open and protect the building while closed.
The facility needs frequent access but also wants to reduce heat exchange while the entrance remains closed.
A Spiral High Speed Door with suitable insulated panels may provide a better balance between traffic speed and closed-door thermal performance.
A useful comparison should also explain when neither standard option is ideal.
If the primary challenge is chilled or frozen operation, a dedicated Cold Storage High Speed Door should be evaluated.
Low-temperature projects may require specific insulation, sealing, heated components, and condensation or frost considerations.
If the opening is indoors but the main concern is repeated accidental curtain contact, a Zipper Self-Repairing High Speed Door may make more sense than either upgrading directly to Spiral or repeatedly repairing a standard fabric curtain.
The correct sequence is:
Environment first → operational problem second → door type third.
Not:
choose a door model first → try to make it fit the site later.
A PVC quotation and a Spiral quotation should not be compared only from the final total.
The supplied configurations are fundamentally different.
Check the curtain, frame, motor and control system, activation method, safety devices, vision windows, and installation requirements.
Also review the rigid panel configuration, insulation, guide structure, headroom arrangement, structural reinforcement, safety system, and installation support.
A Spiral Door may require additional steel support that is not included in the basic door price.
This should be identified before comparing total project cost.
You usually do not need a very long specification at the first stage.
Answer these five questions:
Protected indoor → PVC is usually the first option to evaluate.
Exterior → Spiral becomes more relevant.
If yes, provide actual site and opening information rather than simply requesting a “wind-resistant door.”
Simple area separation and rigid exterior protection are different requirements.
If yes, panel construction becomes more important.
Check headroom, side room, wall material, and structural support.
Only after the correct door family is identified does it make sense to finalize speed, sensors, controls, safety devices, panel or curtain options, and other accessories.
Choose a PVC High Speed Door when the opening is a protected interior passage and the main goals are rapid traffic flow, area separation, compact structure, and sensible project cost.
Choose a Spiral High Speed Door when the opening must combine fast access with exterior performance, rigid closure, better wind stability, stronger physical protection, and improved closed-door insulation.
Neither is universally better.
A PVC door used in the correct indoor environment can be the more efficient investment.
A Spiral Door becomes more valuable when the building entrance needs functions that a lightweight fabric curtain was never designed to provide.
The most important difference between a PVC High Speed Door and a Spiral High Speed Door is not opening speed.
It is the role the opening plays in the facility.
A PVC High Speed Door is primarily an efficient internal traffic and separation solution.
A Spiral High Speed Door is a rigid high-speed entrance designed for more demanding conditions, particularly where wind, weather, insulation, security, and exterior exposure are part of the project.
Before choosing, ask two questions:
What does the door need to do while traffic is moving?
What does the entrance need to protect when the door is closed?
Those answers usually provide a much clearer decision than comparing feature lists alone.
