In an industrial building, a large doorway affects far more than vehicle access. It influences how space is used around the entrance, how indoor and outdoor conditions are separated, how loading equipment is arranged, and how easily the building can be operated and maintained.
This is why an industrial sectional door should not be selected only by width, height, or appearance. Its panel structure, track system, insulation, sealing, control method, and connection with the building all influence how well the doorway performs after installation.
When properly selected, a sectional door becomes part of the building envelope and the operating layout rather than simply a movable barrier.
When open, the door needs to provide enough clearance for vehicles, forklifts, equipment, or materials without occupying unnecessary floor space.
When closed, it becomes part of the external wall and needs to provide a stable physical barrier between the warehouse and outdoor environment. These two conditions place different demands on the same product.
The panels travel upward along tracks instead of swinging outward across the driveway or inward across the warehouse floor.
This helps keep the entrance area available for traffic, staging, and material movement. It is particularly valuable where the building has limited space immediately in front of or behind the opening.
Once closed, the sectional door separates the interior from wind, outdoor temperature, dust, and general weather exposure.
Panel insulation and perimeter sealing therefore matter even when the door is not being operated. In many industrial applications, the door spends much more time closed than moving, making closed-door performance an important part of the selection process.
One of the main differences between a sectional door and a traditional swing or sliding door is the way the panels move.
The connected sections rise vertically and then follow a track arrangement determined by the building structure. This allows the door to use overhead space rather than occupying a large area on the floor or wall beside the entrance.
Industrial entrances often sit close to forklift routes, vehicle staging areas, loading zones, shelving, or production equipment.
A door that requires a large swing radius can interfere with these operations. A sectional door avoids this by keeping most of its movement above the opening.
Because there is no large outward-opening leaf, vehicles can approach the building without leaving additional clearance for the door movement.
This can be particularly useful at warehouse entrances and loading docks where trailers or forklifts need to position close to the opening.
Inside the building, the floor area immediately behind the opening can remain part of the working layout.
The warehouse can use this space for traffic, temporary staging, or equipment movement instead of keeping it permanently clear for a swinging door.

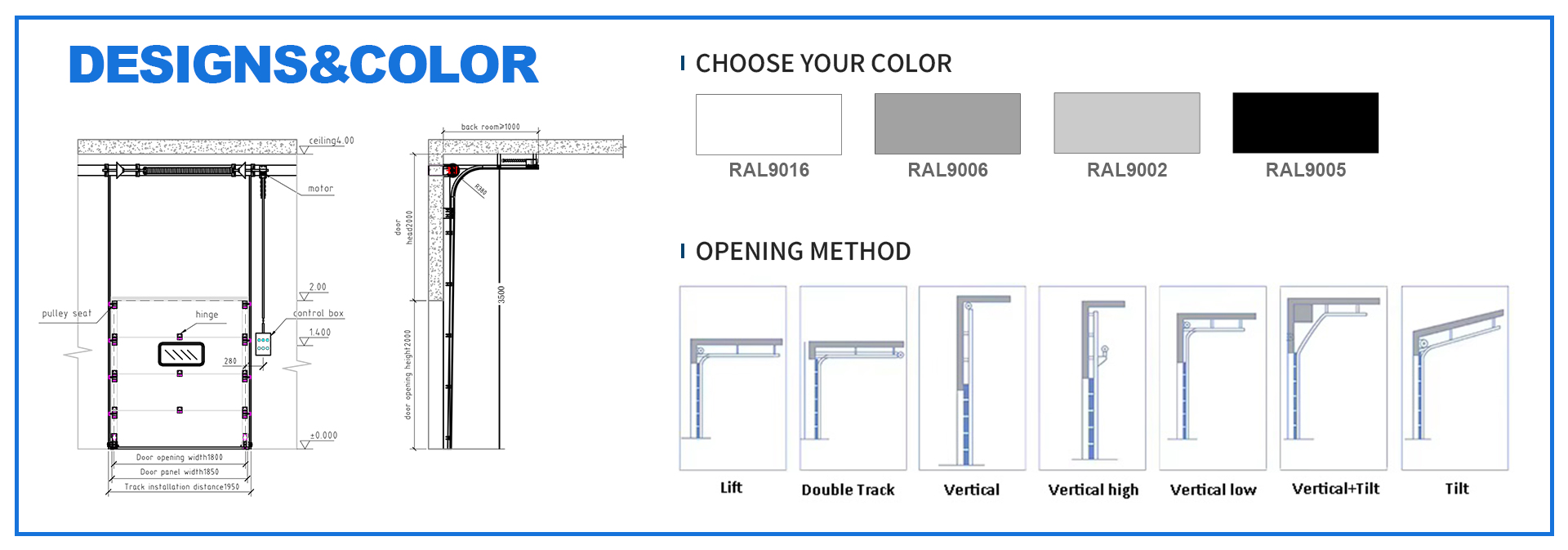

The door does not need to use the same track arrangement in every building.
Available headroom, ceiling height, beams, pipes, cranes, lighting, and other equipment can determine whether a standard lift, high lift, or vertical lift arrangement is more suitable.
This flexibility is one of the reasons sectional doors can fit a wide range of industrial buildings.
Track configuration is not simply an installation detail. It influences how much overhead space is used and whether the door interferes with other equipment inside the building.
The correct track system should be chosen before production, based on accurate site measurements.
A standard lift configuration moves the door upward and then turns the panels horizontally beneath the ceiling.
It is suitable where enough headroom exists above the opening and where the horizontal track does not interfere with lighting, shelving, pipes, or other building services.
For many warehouses and factory entrances, standard lift provides a straightforward balance between installation space and mechanical simplicity.
However, it should not be selected automatically. The ceiling area still needs to be checked carefully before finalizing the door.
A high lift track allows the panels to travel farther upward before turning toward the interior.
This raises the horizontal tracks and can keep more of the area directly behind the doorway clear.
Warehouses with tall walls but equipment close to the opening may benefit from keeping the horizontal tracks higher.
This can help avoid interference with racks, vehicles, suspended equipment, or other operational areas.
Where sufficient wall height exists above the opening, the panels can travel mainly or entirely upward.
This configuration uses the height of the building instead of extending tracks far into the interior.
Vertical lift can be useful where the area immediately behind the door must remain clear.
It is particularly relevant in tall industrial buildings where vertical wall space is available and internal ceiling space is needed for other systems.

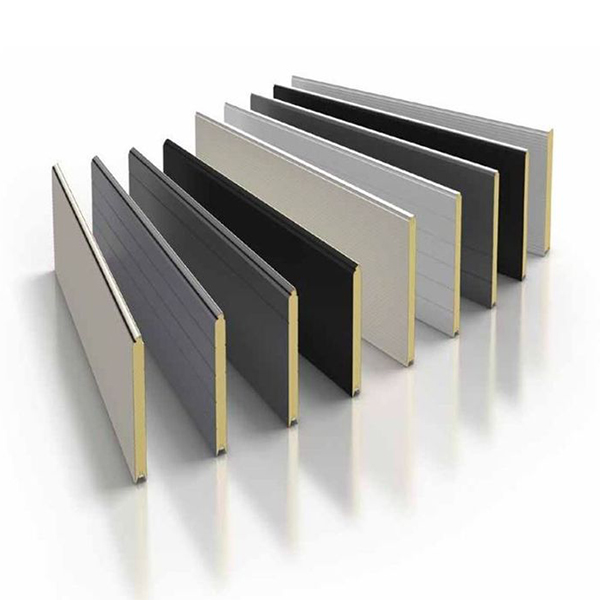

Industrial sectional doors commonly use sandwich panels that combine outer metal surfaces with an insulating core.
The purpose is not simply to make the door thicker. The panel construction helps reduce heat transfer through a large opening when the door is closed.
Different buildings have different thermal-control needs.
A general warehouse may only need moderate insulation, while a temperature-controlled storage area may place greater importance on reducing heat transfer through the door.
Selecting the thickest available panel is not always necessary. The panel should be chosen according to the building environment, expected temperature difference, door size, and budget.
A highly insulated panel provides limited value if large gaps remain around the frame or floor.
Panel performance should therefore be considered together with side seals, header seals, bottom sealing, frame installation, and the condition of the surrounding structure.
A sectional door is generally selected for rigid closure, insulation, and space-saving movement rather than extremely rapid cycling.
For entrances where thermal separation while closed is more important than very fast repeated access, insulated sectional panels can provide a practical solution.
The sections themselves cover most of the opening, but air can also move through gaps around the sides, top, and bottom.
Flexible seals help close these areas when the door reaches its final position.
The effectiveness of these seals depends on correct installation and long-term maintenance. A worn bottom seal or misaligned track can create leakage even when the panels remain in good condition.

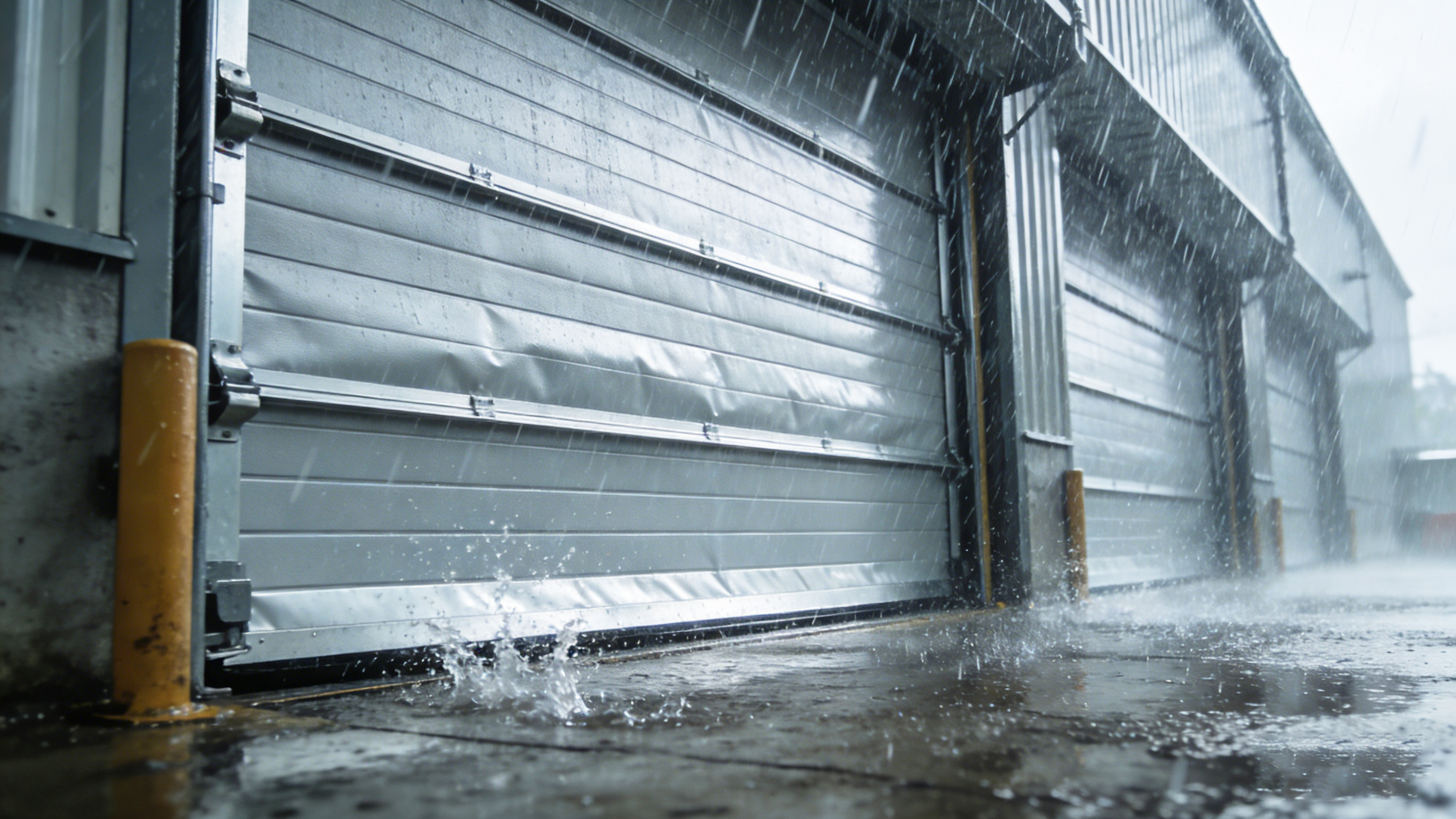

Warehouse and factory entrances are often directly exposed to wind, rain, dust, temperature changes, and yard conditions.
A sectional door provides a rigid closure across the opening and can help reduce direct exposure when access is not required.
Weather performance depends on the complete system.
Panel rigidity, track support, sealing, fixing structure, opening dimensions, and site exposure should all be reviewed before the door is selected.
Large industrial openings can experience significant wind pressure.
The larger the door, the more important it becomes to consider panel reinforcement, track design, structural support, and fixing conditions.
A door should be selected for the actual project environment rather than assuming that every sectional door provides the same wind resistance.
A closed sectional door can help limit direct dust entry from yards, roads, and outdoor working areas.
However, dust can still enter through damaged seals or gaps around an incorrectly installed frame. Regular inspection of the perimeter is therefore important where external dust exposure is high.
An interior loading area protected by a canopy does not require the same configuration as an exposed warehouse entrance facing strong wind and rain.
Site orientation, local weather exposure, building height, and doorway position should therefore form part of the door specification.

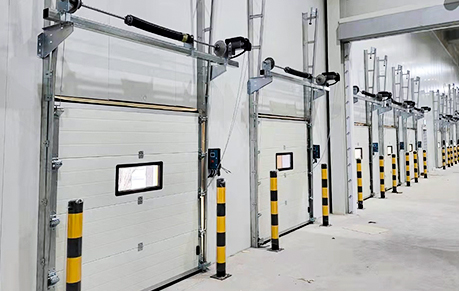

Loading docks are one of the most common applications for industrial sectional doors because the door can close the warehouse opening when no trailer is being loaded.
When loading begins, the door opens vertically and allows the dock leveler to connect the warehouse floor with the trailer bed.
At a dock position, the sectional door does not operate independently.
It shares the opening with dock bumpers, the dock leveler, trailer positioning, dock shelters or seals, and sometimes a vehicle restraint or traffic-light system.
Dimensions must therefore be coordinated so that one component does not interfere with another.
The bottom section and door tracks should remain clear of the leveler operating area.
When the leveler is deployed, forklifts need a clear and unobstructed path between the warehouse and trailer.
Poor coordination during design can create interference between the door, leveler, and surrounding steel structure.
Dock bumpers establish how close the trailer stops to the building.
This position influences dock leveler overlap, dock shelter contact, and the space between the trailer and door opening.
Changing bumper projection later can therefore affect other parts of the loading dock system.
A mechanical dock shelter, inflatable dock shelter, or foam dock seal can help reduce the open gaps around the trailer while loading takes place.
The sectional door remains the main closure for the building itself.
The two systems perform different functions and should be selected around the same trailer dimensions, dock height, opening size, and bumper position.
An industrial entrance may need to remain closed outside working hours or be opened only by authorized employees.
Because sectional doors use rigid panels and close across the full opening, they can form a substantial physical barrier at exterior warehouse and factory entrances.
The door may be operated using push buttons, remote controls, access readers, or other approved control devices depending on the project.
The correct method depends on who uses the entrance and how often controlled access is required.
A warehouse with occasional vehicle access may only need a simple control station or remote operation.
A more controlled facility may require access authorization before the motor receives an opening command.
Adding complex controls where they are not needed increases cost without necessarily improving the operation, so the system should be selected around actual use.
Selected panels can include viewing windows where employees need to see outside or check vehicle activity near the entrance.
This can reduce the need to open the complete door simply to inspect conditions on the other side.
Window quantity and position should still be balanced against insulation and structural requirements.

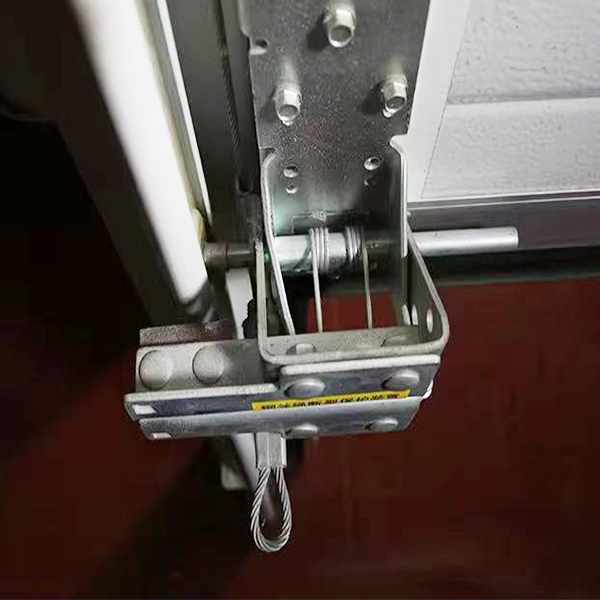

A sectional door contains panels, hinges, rollers, tracks, shafts, cables, springs, seals, and a drive system.
Safe and reliable movement depends on these components remaining correctly installed and maintained.

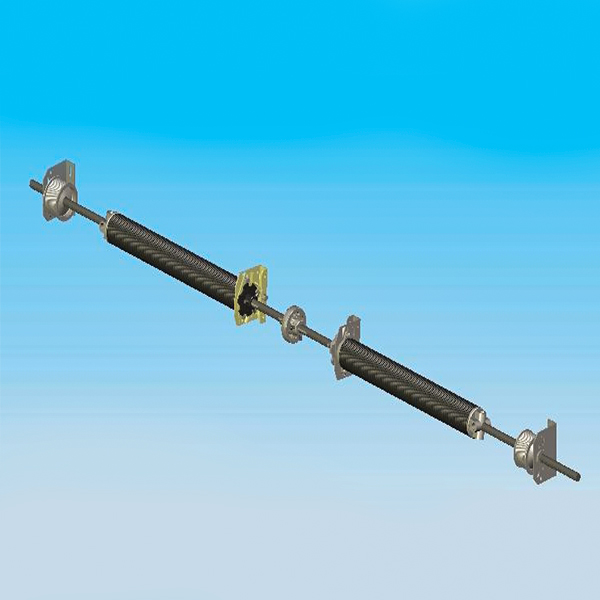

The counterbalance system helps manage the weight of the door as it travels through the tracks.
Correct balancing reduces the load on the motor and helps the panels move smoothly through the complete opening and closing cycle.
Counterbalance components can store significant mechanical energy.
Visible cable wear, uneven tension, unusual door balance, or spring problems should be handled by trained technicians rather than adjusted by general warehouse staff.

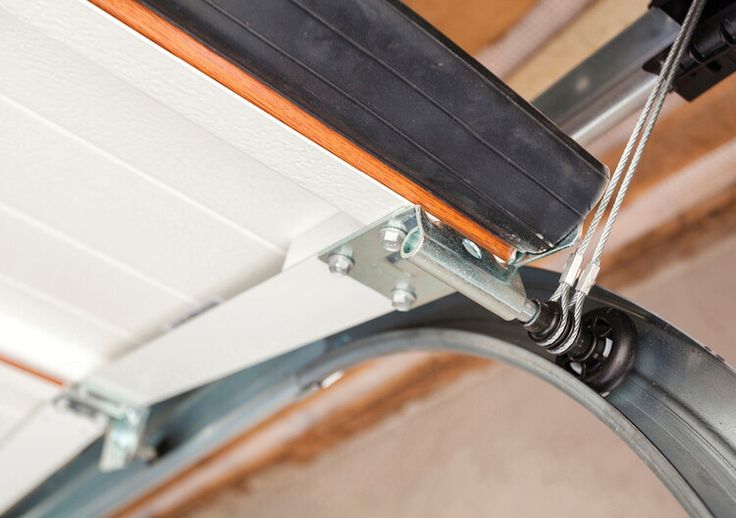

Rollers need to move smoothly through the side and overhead tracks.
Misalignment can create additional resistance, noise, uneven panel movement, and unnecessary wear. The surrounding steel or wall structure must also remain stable enough to maintain guide alignment.
Depending on the project, a powered door can include photocells, safety edges, emergency stops, or other detection devices.
These features support safe operation but do not replace correct installation and maintenance.
Sensors should be positioned according to the actual traffic route and checked regularly for damage, misalignment, or obstruction.
Customization is valuable when it solves a real building or operational requirement.
Industrial sectional doors can be adapted through panel selection, track configuration, window arrangement, control method, surface finish, and supporting structure.
The goal should be to create a door that fits the building rather than adding unnecessary options.
Steel insulated panels are suitable for many industrial applications because they combine rigidity and thermal separation.
Different panel constructions may be considered where appearance, corrosion resistance, natural light, or another site-specific requirement matters.
Windows can improve daylight or visibility, but more transparent area may also change insulation and panel structure.
The number and position of windows should therefore follow the actual operational need rather than being added only for appearance.
Coated steel can perform well in many general warehouse applications.
More demanding wet, corrosive, or exposed environments may require additional attention to materials and surface protection.
A sectional door can be manufactured for many industrial openings, but larger dimensions increase structural demands on panels, tracks, springs, shafts, fixings, and the surrounding building.
The proposed size should therefore be evaluated together with wind conditions, wall structure, available headroom, and operating method.
One reason industrial door specifications become unclear is that different door types are sometimes compared only by opening dimensions.
A sectional door and a high speed door can both provide vehicle access, but they are optimized for different priorities.
Sectional doors are particularly useful where the entrance needs a rigid insulated barrier, vertical opening, and efficient use of surrounding building space.
They are well suited to exterior warehouse entrances, factory buildings, and loading dock openings where the door remains closed for meaningful periods between access.
The operating pattern should be considered carefully rather than presenting the sectional door as a solution for every high-traffic opening.
Where vehicles move through the same opening repeatedly and reducing open time is the main requirement, a high speed door may be more appropriate.
This is common at internal logistics routes, production passages, and temperature-controlled transfer areas.
Some facilities use both products: a sectional door for exterior closure and another door type for frequent internal movement. The correct approach depends on what each doorway needs to accomplish.
A sectional door should not be manufactured from opening width and height alone.
The track system and structural support depend on the complete installation environment.
Before production, the project should confirm opening width, opening height, available side room, headroom, internal backroom, floor level, and surrounding building structure.
Obstacles such as beams, lights, pipes, cable trays, cranes, and ventilation systems should also be identified.
Limited headroom may require a different track solution from a tall warehouse with extensive vertical wall space.
Selecting the track before verifying the building conditions can lead to conflicts during installation.
The lowest panel closes against the finished floor.
An uneven threshold, drainage channel, or unfinished floor can leave permanent gaps beneath the bottom seal.
Final floor levels should therefore be confirmed before the door is commissioned.
Sectional door tracks, spring systems, and other components need secure fixing points.
Concrete, masonry, steel structures, and insulated sandwich panels have different support characteristics.
Where the opening is surrounded mainly by lightweight panels, additional structural steel may be required to transfer door loads to the main building frame.
Industrial doors operate in environments where dust, impact, vibration, weather, and daily traffic gradually affect mechanical components.
Routine maintenance is therefore part of preserving the door’s original performance.
Cables, springs, rollers, hinges, tracks, shafts, brackets, and fasteners should be inspected according to the door’s maintenance requirements.
The purpose is not only to prevent complete failure. Small changes in alignment or balance can increase wear on several other components before the door stops operating.
Scraping, rattling, hesitation, or one side moving differently from the other can indicate developing mechanical problems.
Continuing to operate the door without identifying the cause may increase wear on tracks, rollers, cables, and panels.
A bent panel may no longer travel correctly through the curved track section.
Damage can also influence hinges, rollers, seals, and neighboring panels, so significant impact should be inspected before normal operation continues.
Bottom, side, and top seals gradually age and deform.
They may lose environmental performance even while the main door structure remains mechanically sound.
Replacing damaged sealing material can sometimes restore closed-door performance without requiring major changes to the door itself.
A sectional door may perform poorly because the original product choice did not match the building, even when the door itself was manufactured correctly.
Avoiding these mistakes can prevent expensive modifications after installation.
Opening dimensions do not determine the track, panel, motor, wind requirement, or structural reinforcement by themselves.
The building and application must also be reviewed.
A sectional door should not automatically be specified simply because the opening requires vehicle access.
Where very frequent movement and short open time are the dominant requirements, another industrial door type may provide a better fit.
A door can fit the wall opening but still conflict with roof beams, lights, sprinklers, cranes, pipework, or racks.
These conditions should be identified before production.
Panel insulation is important, but final thermal performance also depends on seals, floor condition, frame installation, and how often the door remains open.
The complete doorway should be evaluated.
At a loading bay, the door, dock leveler, bumpers, shelter or seal, vehicle restraint, and trailer position all interact.
Changing one dimension can affect several other pieces of equipment.
Complete project information allows the door to be designed around the building rather than forcing installers to modify the system on site.
The supplier should understand the opening, structure, environment, and intended use before final production drawings are approved.
In addition to width and height, provide the available side room, headroom, backroom, and finished floor condition.
Interior and exterior photographs are useful because they can show obstacles that are difficult to communicate through basic dimensions.
Explain whether the door will be used at a warehouse entrance, factory building, loading dock, temperature-controlled area, or another industrial location.
The expected traffic pattern, vehicle type, indoor and outdoor environment, and preferred operating method should also be provided.
Where possible, explain whether the building has space for a standard, high lift, or vertical arrangement and whether push-button, remote, sensor, or access-control operation is required.
When this information is provided before production, the structural and control systems can be planned together.
The main value of a sectional door comes from combining several building functions in one system.
It provides vehicle access when open, uses vertical movement to preserve surrounding floor space, forms a rigid insulated barrier when closed, and can be adapted to different roof heights, wall structures, loading docks, and control requirements.
The best sectional door is therefore not necessarily the model with the thickest panel, most powerful motor, or longest option list. It is the door whose panel structure, track system, sealing, controls, and installation method match the actual building.
A sectional door can solve far more than the basic problem of opening and closing an industrial entrance. It can improve the use of space around the doorway, support thermal separation, provide a rigid exterior closure, coordinate with loading dock equipment, and adapt to different industrial building structures.
The key is correct application matching. When track configuration, panel construction, sealing, structural support, controls, and maintenance requirements are considered together, the sectional door becomes a functional part of the warehouse or factory design rather than simply another access product.
