Warehouse entrances are critical areas where indoor and outdoor environments frequently interact. Every opening cycle can cause temperature loss, dust infiltration, insect entry, and unnecessary energy consumption.

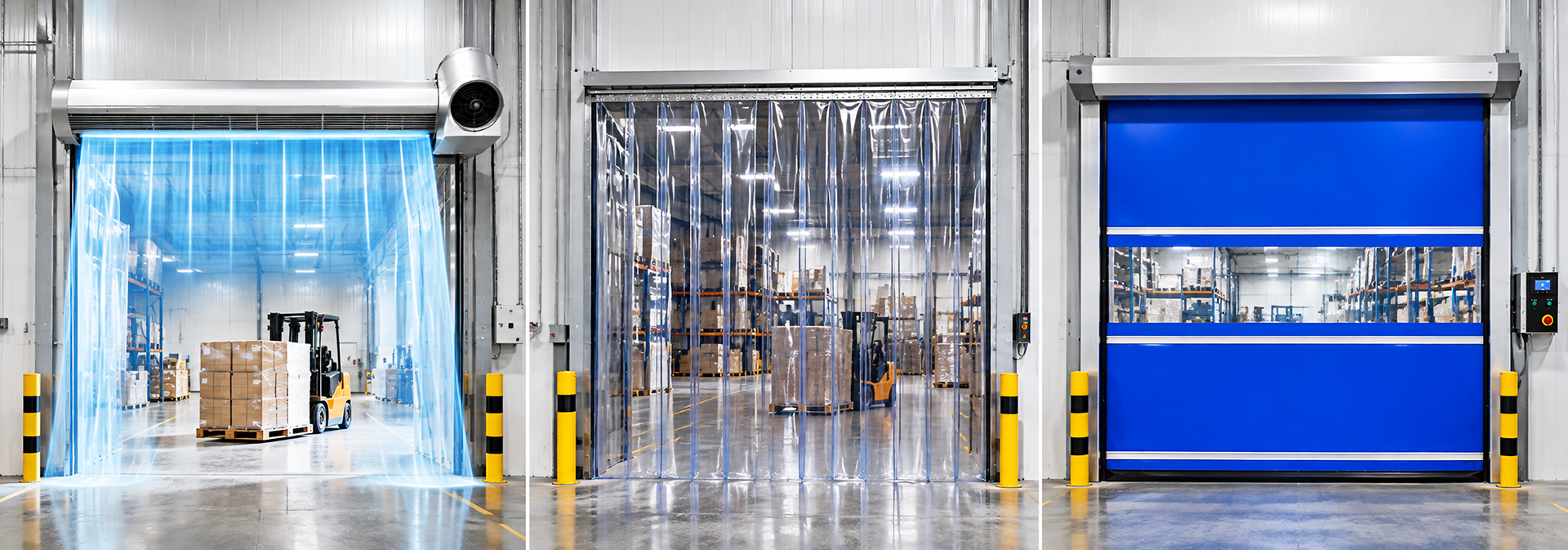

To control these challenges, warehouses commonly use three types of separation solutions:
Industrial air curtains
PVC strip curtains
High speed doors
Although these products are often compared together, they serve different purposes. An air curtain creates an invisible airflow barrier without physical contact, a PVC strip curtain provides simple physical separation, while a high speed door creates a complete automatic barrier with fast operation and better sealing performance.
The correct choice depends on the actual requirements of the warehouse opening, including:
Traffic frequency
Temperature control requirements
Environmental protection level
Door opening size
Operating conditions
This guide explains the differences between air curtain vs high speed door vs PVC strip curtain and helps determine the most suitable solution for different warehouse applications.
An industrial air curtain is a device that uses a high-speed airflow stream to create an invisible barrier across an open entrance.
Unlike physical doors, an air curtain does not block the passage area. Workers, forklifts, and vehicles can move through freely without touching any material.
This makes air curtains suitable for:
High-frequency warehouse entrances
Loading areas with continuous traffic
Production areas requiring open access
Areas where quick movement is important
The airflow generated by an air curtain helps reduce:
Hot air entering in summer
Cold air escaping from temperature-controlled areas
Dust and flying insects entering
However, because there is no physical barrier, an air curtain cannot provide the same sealing performance as a closed industrial door.
It should be considered as a supplementary protection solution rather than a complete replacement for an industrial door.
PVC strip curtains use overlapping flexible plastic strips installed across an opening to create a physical separation.
When people or forklifts pass through, the strips move aside and return to their original position afterward.
PVC strip curtains are commonly used for:
Internal warehouse separation
Cold room entrances
Dust control areas
Temperature zone separation
The advantages of PVC strip curtains include:
Low initial investment
Easy installation
Simple maintenance
Good visibility
However, frequent forklift movement may cause strip damage, deformation, and reduced sealing performance over time.
A high speed door is an automatic industrial door designed for frequent opening and closing cycles.
Compared with air curtains and PVC strip curtains, high speed doors provide:
Better air tightness
Stronger temperature separation
Improved dust protection
Higher environmental control
They are widely used in:
Logistics warehouses
Food processing plants
Cold storage facilities
Pharmaceutical facilities
Manufacturing workshops
A high speed door automatically opens when vehicles or personnel approach and closes quickly after passing.
This reduces:
Door opening time
Energy loss
Temperature fluctuations
Contamination risks
Assume the warehouse entrance size is:
4000 mm(W) × 4000 mm(H)
Performance Factor |
Industrial Air Curtain |
PVC Strip Curtain |
High Speed Door |
|---|---|---|---|
Barrier Type |
Airflow barrier |
Flexible physical barrier |
Automatic physical barrier |
Physical Contact |
No |
Yes |
No during operation |
Vehicle Passage |
Excellent |
Good |
Excellent |
Opening Speed |
Instant access |
Instant access |
Fast automatic opening |
Temperature Control |
Medium |
Medium |
Excellent |
Air Tightness |
Limited |
Moderate |
High |
Dust Protection |
Moderate |
Good |
Excellent |
Insect Prevention |
Good |
Moderate |
Excellent |
Wind Resistance |
Limited |
Moderate |
High |
Maintenance Requirement |
Low |
Low |
Regular maintenance required |
Suitable Application |
Open access areas |
Internal separation |
High-performance entrances |
For warehouses where forklifts operate continuously throughout the day, the opening system must prioritize efficiency.
A high speed door is usually more suitable because it provides:
Automatic operation
Fast opening and closing
Better environmental separation
An air curtain can be added above the door to reduce air exchange when the door opens.
For areas with occasional personnel movement, PVC strip curtains can provide a practical and economical solution.
Typical examples include:
Internal warehouse passages
Storage partitions
Production area entrances
Air curtains are effective when the entrance needs to remain open frequently.
Their main benefits include:
No physical obstruction
Continuous access
Reduced air exchange
Improved indoor comfort
Air curtains cannot provide:
Complete closure
Strong insulation
Security protection
Weather resistance
For applications requiring strict temperature control, an air curtain alone is usually insufficient.
PVC strip curtains create a basic physical barrier.
They can help with:
Dust reduction
Temperature separation
Visibility maintenance
Simple access control
Compared with industrial doors, PVC strips have weaker performance in:
Air tightness
Wind resistance
Long-term sealing
They are more suitable for indoor environments rather than exposed external entrances.
High speed doors provide the highest overall protection level among these three solutions.
They are suitable when the warehouse requires:
Temperature stability
Reduced energy consumption
Better hygiene control
Frequent operation
Industries that often require high speed doors include:
Food processing
Beverage production
Cold storage
Pharmaceutical manufacturing
These industries require better separation between different environmental zones.
Loading docks usually experience frequent opening cycles and outdoor exposure.
The combination provides:
Fast vehicle access
Reduced temperature loss
Improved dust control
Better working conditions
The high speed door provides physical separation, while the air curtain improves protection during opening periods.
Cold storage areas require stronger temperature control.
A high speed door provides:
Thermal separation
Reduced cold air leakage
Lower energy consumption
An air curtain can provide additional protection but cannot replace an insulated cold storage door.
For internal areas where strict sealing is not required, PVC strip curtains are often sufficient.
They are suitable for:
Separating production areas
Dividing storage zones
Creating simple temperature barriers
An air curtain improves environmental separation, but it does not create a closed structure.
It cannot replace industrial doors where the project requires:
Physical isolation
Strong insulation
Security
Weather protection
Applications such as cold storage, clean production, and food processing require a complete barrier.
In these situations, a high speed door provides functions that an air curtain cannot achieve.
Many modern warehouses use combined solutions.
This combination provides:
Better temperature control
Reduced energy loss
Improved operating efficiency
This combination provides:
Additional separation
Lower investment cost
Improved working environment
Before selecting a system, consider:
Number of opening cycles per day
Forklift traffic frequency
Personnel movement
Required access speed
High-frequency entrances usually require automatic door solutions.
Different requirements lead to different choices.
Requirement |
Recommended Solution |
|---|---|
Continuous open access |
Air Curtain |
Low-cost separation |
PVC Strip Curtain |
Temperature control |
High Speed Door |
Cold storage protection |
High Speed Door + Air Curtain |
Dust and hygiene control |
High Speed Door |
The cheapest initial option may not always be the most economical.
Consider:
Energy loss
Maintenance frequency
Product protection
Working efficiency
A correctly selected system can reduce operating costs and improve warehouse performance.
The opening size is one of the most important factors when choosing between an air curtain, PVC strip curtain, and high speed door.
A small personnel entrance and a large loading dock may have the same purpose of separating indoor and outdoor environments, but they require completely different solutions.
Door width, door height, installation condition, and traffic type should all be considered before selection. A high speed door selection should not only focus on size but also consider operating cycles, wind exposure, temperature difference, and sealing requirements.
Small openings are commonly found in:
Personnel entrances
Internal warehouse passages
Production area connections
Packaging rooms
For these applications:
Recommended solution: Air Curtain or PVC Strip Curtain
An air curtain is suitable when:
Frequent pedestrian access is required
The door needs to remain open for convenience
Temperature separation is needed but complete sealing is not critical
Typical examples include:
Warehouse staff entrances
Food preparation areas
Internal climate-controlled zones
PVC strip curtains are suitable when:
Budget is a priority
Traffic frequency is moderate
A simple physical barrier is required
They are commonly used between different warehouse areas where forklift traffic is limited.
Medium-size openings are commonly used for:
Forklift access
Warehouse receiving areas
Production logistics routes
Internal loading passages
For these applications:
Recommended solution: High Speed Door or High Speed Door + Air Curtain
For normal warehouse traffic:
Several hundred opening cycles per day
Forklift and pallet truck movement
Indoor application
A PVC high speed door is usually a suitable choice.
It provides:
Fast opening and closing
Better dust control
Improved workflow efficiency
Reduced air exchange
For entrances with frequent operation:
Continuous forklift movement
Long operating hours
Temperature-controlled environments
A high speed door combined with an air curtain can provide better performance.
The high speed door controls the opening time, while the air curtain reduces air exchange during operation.
Large industrial openings are usually found in:
Large logistics warehouses
Manufacturing plants
Distribution centers
Heavy equipment areas
For these applications:
Recommended solution: Industrial High Speed Door or Combination System
Large openings have greater challenges:
More air exchange
Stronger wind influence
Larger temperature differences
Higher energy loss
A simple air curtain may not be enough because it cannot create a complete physical barrier.
For large external openings:
High speed stacking door
Heavy-duty industrial high speed door
High speed door combined with air curtain
The final choice should consider wind exposure, traffic frequency, and required sealing performance.
Suitable for:
Less than 50 opening cycles per day
Personnel access
Internal separation
Main requirements:
Basic separation
Easy access
Low investment
PVC strip curtains are often sufficient because the opening does not frequently affect indoor conditions.
Suitable for:
50–300 cycles per day
Regular forklift operation
Warehouse logistics areas
A high speed door improves:
Operating efficiency
Temperature stability
Dust control
Compared with manual or traditional doors, automatic high speed doors reduce the time that openings remain exposed.
Suitable for:
Hundreds of cycles per day
Continuous forklift operation
Busy loading docks
Typical applications:
Distribution centers
Food warehouses
Automotive factories
The combination provides:
Fast traffic flow
Better environmental separation
Reduced energy consumption
For ambient warehouses where temperature control is not strict:
Suitable solutions include:
PVC strip curtains for internal separation
PVC high speed doors for frequent traffic
The main goals are:
Dust reduction
Workflow improvement
Basic environmental control
Examples:
Beverage storage
Food distribution areas
Air-conditioned warehouses
A high speed door helps reduce:
Cold air leakage
Temperature fluctuation
HVAC workload
An air curtain provides additional protection during opening periods.
Cold storage areas require stronger sealing performance.
A high speed door alone may not always replace an insulated cold storage door.
Important factors include:
Thermal insulation
Condensation prevention
Door opening frequency
Sealing around the frame
An air curtain can be used as an additional measure but should not replace a proper cold storage door system.
For freezer rooms and deep-freeze environments:
Priority should be given to:
Insulated door structure
Heated components
Anti-condensation design
Fast opening and closing
Air curtains have limited ability to maintain extremely low temperatures alone because they cannot provide complete closure.
Door Opening Condition |
Recommended Solution |
Main Reason |
|---|---|---|
Small personnel entrance |
Air Curtain |
Contact-free access and insect protection |
Internal warehouse partition |
PVC Strip Curtain |
Low cost and easy installation |
Medium forklift entrance |
High Speed Door |
Fast operation and better sealing |
High-frequency loading dock |
High Speed Door + Air Curtain |
Maximum efficiency and environmental control |
Temperature-controlled warehouse |
High Speed Door + Air Curtain |
Reduce energy loss |
Cold storage entrance |
Cold Storage High Speed Door |
Strong insulation requirement |
Large outdoor industrial opening |
Heavy-duty High Speed Door |
Wind resistance and sealing |
A suitable warehouse opening solution should consider:
Opening width and height
Traffic frequency
Temperature difference
Wind conditions
Dust and hygiene requirements
Indoor pressure conditions
Two warehouses with the same door size may require completely different solutions because their operating environments are different.
An air curtain is an effective solution for reducing air exchange while maintaining open access.
However, it cannot replace an industrial door when the project requires:
High insulation performance
Physical closure
Security protection
Weather resistance
For many warehouses, the best solution is a combination:
High Speed Door + Air Curtain
This provides both physical separation and additional airflow protection, creating a more efficient warehouse entrance system.
There is no universal answer when comparing air curtain vs high speed door.
An air curtain is ideal for situations requiring open access and reduced air exchange. PVC strip curtains provide an economical physical separation solution. High speed doors provide the highest level of sealing, insulation, and operational efficiency.
For many industrial facilities, the best solution is not choosing only one product, but combining different technologies according to the actual application.
A professional warehouse opening design may include:
High speed doors for complete separation
Air curtains for additional airflow protection
PVC strip curtains for simple internal partitioning
By selecting the right combination, warehouses can achieve better temperature control, improved efficiency, and a more stable working environment.
