High speed doors may complete hundreds of opening and closing cycles every day. Although each cycle lasts only a few seconds, frequent operation places continuous stress on the motor, curtain, guides, sensors, safety devices, and control system.
Regular maintenance helps identify small changes before they interrupt warehouse traffic, production, temperature control, or workplace safety. It also keeps the door moving smoothly, stopping accurately, and responding correctly to people and vehicles approaching the opening.
Many serious failures begin with small and easily overlooked symptoms. The door may become slightly louder, one side of the curtain may rise faster, or a sensor may respond more slowly than before. The door can often continue operating, so these changes may not receive immediate attention.
However, continued use places additional stress on connected components. A misaligned guide can increase curtain friction, which then raises the motor load and may eventually trigger overheating or overload faults.
Cleaning a sensor, tightening a bracket, or correcting minor guide alignment is usually straightforward. When these issues are ignored, they can develop into damaged curtains, worn motors, bent tracks, or repeated controller faults.
Maintenance should therefore focus on changes in performance rather than waiting until the door completely stops working.
A failed high speed door can block forklift routes, interrupt production movement, and leave controlled areas exposed. Employees may need to use alternative passages, while heated or cooled air continues escaping through the opening.
Preventive maintenance protects the complete workflow around the door, not just the equipment itself.
High speed doors often operate in mixed traffic areas where forklifts, pedestrians, carts, and production equipment use the same passage. The safety system must detect obstacles and respond correctly during every cycle.
A door that moves quickly but closes unpredictably or ignores a blocked photocell creates a serious operational risk.
A properly maintained door should accelerate smoothly, remain stable while moving, and decelerate before reaching the floor. Harsh starting or stopping places unnecessary stress on the curtain, shaft, gearbox, and frame.
Stable movement also gives people and vehicle operators a more predictable passage experience.
Photocells, safety edges, light curtains, and warning devices should be tested rather than judged only by their appearance. A clean sensor can still have a wiring or signal problem.
Controlled testing confirms that the door stops or reverses correctly when an obstacle is present.
Before maintenance begins, the door must be separated from normal traffic and protected against unexpected activation.
High speed doors combine electrical power, moving mechanical parts, and stored forces. Only trained technicians should open control boxes, remove motor covers, adjust drive systems, or repair structural components.
The maintenance area should be marked with barriers, cones, or warning signs. Forklift drivers and nearby workers should know that the door is temporarily unavailable.
This is especially important in busy passages where operators may approach the door automatically and expect it to open.
Radar sensors, remote controls, induction loops, pull cords, and access-control systems can activate the door without anyone standing directly beside it.
These devices should be disabled or isolated before work begins around the curtain, shaft, guides, or lower bar.
A partially open curtain or rigid panel should not be held in place only by the motor brake. If the brake or drive system releases, the door may move unexpectedly.
Use suitable mechanical supports whenever the door must remain in an open or intermediate position during maintenance.
The main power supply should be switched off and secured according to the facility’s lockout procedures. The technician should confirm that the door cannot restart before removing covers or touching electrical components.
This step is essential even when the problem initially appears to be mechanical.
Some doors have separate supplies for the motor, controller, sensors, backup battery, or building communication system. Turning off one switch may not isolate every circuit.
The wiring diagram should be reviewed before electrical work begins.
Take photos of wiring terminals, controller displays, switch positions, and important parameters before disconnecting components.
This makes it easier to restore the original configuration and reduces errors during reassembly.
Maintenance frequency depends on operating cycles, traffic, door type, and working environment.
A lightly used interior door does not experience the same wear as a freezer door, exterior entrance, or busy forklift passage. The schedule should be adjusted according to actual use rather than based only on calendar dates.
Operators who use the door every day are usually the first people to notice changes in performance. They do not need to perform technical repairs, but they should observe the door and report anything unusual.
A short daily observation can prevent a minor issue from remaining unnoticed for weeks.
Observe the door from fully closed to fully open and back again. Check whether both sides move evenly, whether the curtain remains stable, and whether the door stops at the correct positions.
Pay attention to hesitation, shaking, diagonal movement, or hard contact with the floor.
Grinding, scraping, rattling, or repeated clicking often provides an early warning of mechanical wear or loose components.
The sound should be recorded together with the position where it occurs because this can help technicians locate the problem.
Weekly checks should focus on cleanliness, visible damage, and basic operation. Monthly inspections should include functional testing of sensors, safety devices, activation systems, and controller status.
Frequently used doors may require shorter intervals.
Dust, packaging film, labels, grease, and product debris can collect inside guides or on sensor lenses. This may increase curtain friction or cause false sensor signals.
Use cleaning methods suitable for the guide design and operating environment.
Push buttons, pull cords, radar sensors, remote controls, card readers, and induction loops should all be tested separately.
A door may operate normally with one opening method while another has already become unreliable.
Professional service should include a more detailed inspection of the motor, brake, gearbox, drive components, wiring, controller, frame, and structural supports.
The correct interval depends on the door design and the number of operating cycles.
Two doors installed at the same time may have very different maintenance needs if one operates ten times more frequently.
When available, the controller’s cycle counter should be recorded and used to plan major servicing.
Cold storage, humid processing rooms, dusty factories, exterior entrances, and busy forklift routes accelerate wear and contamination.
These doors should be inspected more frequently than doors in clean, low-traffic interior areas.

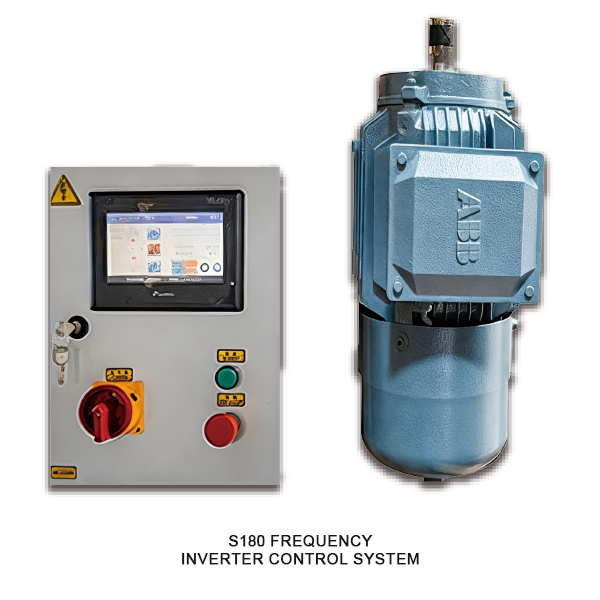

The motor provides the force required to move the curtain or panels, but motor faults are not always caused by the motor itself.
Guide friction, curtain misalignment, incorrect speed settings, or excessive cycling can place abnormal load on the drive system. The complete mechanical movement should be checked before expensive components are replaced.
The motor should operate with a stable sound and normal temperature. A sudden change in noise, vibration, or heat may indicate that the system is working harder than expected.
Compare the current behavior with previous service records whenever possible.
If the motor hums but the door does not move, avoid repeatedly sending opening commands. The brake, shaft, gearbox, curtain, or guide system may be blocked.
Repeated attempts can overheat the motor and damage the drive unit.
A hot motor does not always need replacement. Tight guides, a crooked curtain, worn bearings, or excessive operating frequency may be increasing the load.
Correcting the mechanical cause may return the motor to normal operation.
The gearbox transfers motor power to the door, while the brake holds the curtain or panels in position when movement stops.
Check for oil leakage, unusual backlash, delayed stopping, and movement after the stop command.
If the curtain slowly moves downward after stopping, the brake may no longer be holding correctly.
This affects positioning accuracy and should be investigated before the door returns to normal automatic operation.
Cleaning oil from the surface does not solve a damaged gearbox seal. The leakage source and lubricant level should be checked.
Operating a gearbox with insufficient lubricant can cause internal wear and overheating.
Belts, chains, lifting straps, cables, and couplings should be inspected for cracking, stretching, looseness, and abnormal wear.
These components transfer movement and must remain correctly aligned.
A loose belt may slip and affect stopping accuracy. An over-tightened belt can overload bearings and motor shafts.
Tension should be adjusted according to the door specification rather than by visual judgment alone.
Motor brackets, shaft supports, keys, and couplings should remain tight. Loose connections can create knocking sounds and uneven movement.
Repeated loosening may indicate misalignment or excessive vibration elsewhere in the system.
The curtain or panel system is continuously exposed to traffic, airflow, dirt, temperature changes, and accidental contact.
Damage can affect sealing, visibility, movement, and the load placed on the motor.
Check PVC curtains for cuts, punctures, cracking, stretched areas, loose welding, and damage around transparent windows.
The curtain should remain flexible and move without excessive wrinkling or resistance.
The lower section is most likely to contact pallets, carts, forklift forks, or uneven floors.
Damage near the bottom may also affect the safety edge, lower seal, and closing position.
A localized tear can often be repaired if the surrounding fabric remains strong. Continued cycling may cause the damaged area to grow rapidly.
The repair should remain smooth so it does not interfere with the guides.
The curtain should rise and descend evenly. Pulling toward one side, diagonal wrinkles, or a tilted lower bar may indicate guide, shaft, or attachment problems.
Alignment should be checked before the curtain becomes seriously damaged.
Repeated wrinkles appearing in the same area may show that one side of the curtain is tighter than the other.
Inspect guide spacing, curtain attachment, shaft level, and lower-bar balance.
Changing the opening or closing position may temporarily improve appearance, but it will not correct a crooked curtain or misaligned guide.
Mechanical causes should be repaired before control parameters are changed.
Zipper doors depend on the curtain edges entering the side guides correctly. The guide entrances should remain clean, undamaged, and properly aligned.
The self-repairing function should operate smoothly after controlled release.
The curtain may leave the guides after a forklift impact, but it should not release during normal operation.
Repeated release may indicate excessive air pressure, damaged curtain edges, dirty guides, or incorrect alignment.
After controlled release, the curtain should reconnect during the next opening cycle without folding or jamming.
An uneven reset suggests that the guide entrance or curtain edge requires adjustment.

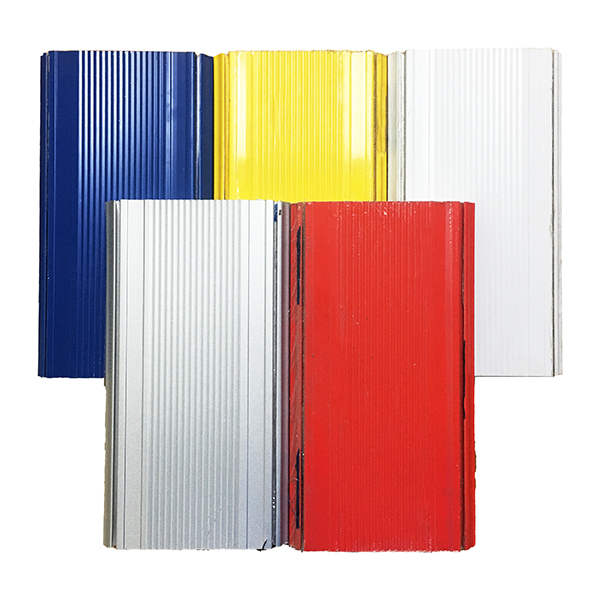

Rigid aluminum slats should be checked for dents, separation, loose end components, damaged seals, and unusual wear marks.
Because the panels move through a precise track system, even small deformation can affect operation.
Fresh scratches appearing on the same side of several panels usually indicate contact with the guide or spiral track.
Correct the alignment before the surface damage becomes more severe.
A deformed slat may interfere with the panels above and below it, causing vibration or restricted movement.
Damage should be evaluated according to its effect on panel connections, not only its appearance.
Guide tracks control curtain and panel movement. Even a powerful motor cannot operate the door correctly through dirty, bent, or misaligned guides.
The frame and building supports must also remain stable during repeated acceleration and stopping.
Remove dust, grease, labels, plastic fragments, ice, and other debris from the guide area.
Cleaning should be performed without damaging seals, coatings, or zipper profiles.
Some guides require a specific lubricant, while others are designed to operate dry. Applying grease to the wrong system can collect dust and increase contamination.
Follow the maintenance requirements for the actual door model.
A guide may appear straight near the floor while being twisted or out of parallel at the top.
Measure the distance between both guides at several points, especially after impact or structural work.
Check anchors, brackets, welds, covers, columns, and upper supports for looseness, corrosion, cracking, or deformation.
The frame should not shake excessively during starting or stopping.
Vibration can move sensors, change guide alignment, and loosen electrical terminals.
A frame problem may therefore appear as several unrelated faults.
If the same anchor continues loosening, the wall material may be damaged or the load may not be distributed correctly.
Simply tightening it again is unlikely to provide a permanent repair.
The door frame must transfer its weight and operating forces into a stable wall or steel structure.
This is particularly important for heavy spiral doors and large stacking doors.
Lightweight sandwich panels should not carry heavy doors without suitable support. Galvanized steel tubes or a reinforced frame may be required.
The reinforcement should connect to the main building structure rather than only to the panel surface.
A forklift collision can move the frame, guides, or anchors even when the door still operates.
Measure the opening and inspect structural connections after any significant impact.
Sensors can be affected by dust, vibration, sunlight, moisture, reflective surfaces, and incorrect positioning.
Troubleshooting should begin with cleaning, alignment, indicator lights, and controller input status before the sensor is replaced.
Photocell lenses should remain clean, aligned, firmly mounted, and free from obstruction.
Test whether the door stops or reverses when the beam is interrupted during closing.
A flashing or changing receiver light may reveal poor alignment, loose wiring, vibration, or signal interference.
Observe the indicator while the door and nearby machinery are operating.
A temporary bypass may assist controlled troubleshooting, but it should be removed before normal operation resumes.
The door should not close automatically without its required safety protection.
Check the radar lens, mounting angle, detection area, sensitivity, direction settings, and wiring.
Incorrect adjustment can cause unnecessary opening or delayed response.
The radar may respond to people walking beside the door, nearby machinery, rain, or vehicles moving away from the opening.
Narrowing or redirecting the detection zone may solve the problem without replacing the sensor.
A forklift should have enough distance to approach safely without stopping directly in front of the door.
Adjust the sensor so the door opens early enough while avoiding unnecessary activation.
Induction loops, push buttons, pull cords, and remote controls should provide stable and intentional activation.
Check whether the fault affects all devices or only one input.
Drilling, cutting, resurfacing, or installing new equipment near the door may damage the loop cable below the floor.
Recent building work should be considered during troubleshooting.
A damaged push button, pull switch, or access-control relay may continuously send an opening signal.
The door may appear unable to close even though the controller is responding correctly.
The lower bar is close to vehicles, floor irregularities, dirt, and moisture. It may contain the bottom seal, wireless transmitter, safety edge, or breakaway components.
Both its physical condition and electrical operation should be checked.
During a controlled closing test, the door should stop or reverse when the safety edge is activated.
The response should be immediate and consistent.
A safety edge may look normal but fail to send a signal because of internal damage, weak batteries, or receiver problems.
Functional testing is therefore essential.
Weak batteries can create intermittent faults, particularly in cold environments or on frequently used doors.
Record replacement dates instead of waiting for complete signal loss.
The bottom seal should remain flexible, straight, and capable of contacting the floor without excessive pressure.
Cuts, permanent deformation, and hardening reduce sealing performance.
A worn seal allows air, dust, insects, and light to pass beneath the curtain.
In temperature-controlled areas, this can increase energy loss and condensation.
If one side of the floor is higher, the lower bar may touch unevenly and become tilted.
Closing limits and seal design should reflect the actual floor condition.
The controller receives signals from sensors and activation devices, then controls the motor, speed, position, and closing sequence.
Fault information should be recorded before power is reset.
The display or indicator lights can show whether a sensor, emergency stop, motor fault, or opening signal is active.
This information helps technicians narrow the cause.
A motor overload code may result from guide friction. A photocell error may be caused by dirt or damaged wiring.
The code should guide the inspection rather than lead directly to part replacement.
Radar, safety edges, photocells, stuck buttons, and access-control relays may prevent the controller from closing the door.
Check input status before assuming the controller has failed.
Check terminals, cable insulation, grounding, cable entries, and the inside of the enclosure for looseness, corrosion, or moisture.
Cables should be supported and protected from movement or impact.
Repeated starting and stopping can gradually affect electrical connections.
Loose terminals may create intermittent faults that appear only during movement.
Replacing a corroded board will not solve the problem if water continues entering through cable glands or damaged seals.
Dry the enclosure and correct the entry point before installing new components.
The door should stop correctly at the fully open and fully closed positions and move at a stable speed.
Position drift should be investigated rather than repeatedly corrected through programming.
Encoder faults, loose couplings, slipping components, or moving limit switches may cause the stopping point to change.
Mechanical and feedback components should be inspected before resetting the position.
A door may slow down because of friction, overload, or protective controller settings.
Increasing the speed without identifying the cause can increase damage.
Troubleshooting should begin with the symptom, recent changes, controller status, sensor inputs, and mechanical movement.
Replacing parts randomly increases cost and may leave the original problem unresolved.
Check the electrical supply, emergency stop, fault display, activation signal, motor, brake, and mechanical movement.
Identify whether the problem affects the complete door or only one opening device.
If the push button works but the radar does not, the fault is likely limited to the radar circuit.
If no devices work, the issue may involve the controller, power supply, safety circuit, or motor.
Repeated opening commands can overheat the motor when the curtain, shaft, brake, or guides are jammed.
Stop testing until the mechanical blockage is located.
This is often caused by an active safety signal or a continuous opening command.
Start with the sensors and controller input display.
Dirty photocells, blocked light curtains, or active safety edges may prevent closing.
Clean and align these devices before replacing electronic components.
Radar sensors, stuck buttons, access-control relays, or building controls may continuously request that the door remain open.
Disconnect and test each input systematically.
Mid-cycle stopping may be caused by guide obstruction, motor overload, sensor interruption, encoder faults, or curtain misalignment.
The position where the door stops provides useful information.
Inspect the guide, curtain, panel, wiring, and track components at the height where the failure occurs.
A physical obstruction or damaged section is likely when the fault repeats in the same place.
Loose terminals, voltage changes, motor overheating, or unstable sensor signals can cause the door to stop at different positions.
Review the fault history and electrical connections.
A tilted lower bar, diagonal wrinkles, or one side moving faster normally indicates mechanical imbalance.
The lifting system and guide alignment should be inspected immediately.
Check belts, cables, curtain attachments, guides, and lower-bar connections for uneven tension or wear.
Small side-to-side differences can become more severe during repeated cycling.
Continued use can tear the curtain, bend the guides, and overload the motor.
The door should be isolated until the alignment is corrected.
Unexpected opening may result from radar detection, remote-control interference, access-control signals, or wiring problems.
Review the environment as well as the door components.
New machinery, reflective surfaces, ventilation, lighting, or nearby construction may affect sensor behavior.
The fault may begin even though no door component has been replaced.
Disconnect or disable one input at a time during controlled testing.
Changing several sensor settings at once makes it harder to identify the original cause.
Scraping, rattling, knocking, and grinding usually indicate contact, looseness, misalignment, or wear.
Record whether the sound occurs during starting, full-speed movement, or stopping.
Inspect motor brackets, shaft couplings, frame fasteners, covers, and top supports.
Loose components often move most noticeably when the door first accelerates.
Look for fresh wear marks on curtain edges, rigid panels, guides, belts, or the lower bar.
Correct the contact point before it damages surrounding components.
The decision should consider damage level, component age, spare-part availability, downtime, and the condition of surrounding parts.
A low-cost repair is not always economical if the same failure is likely to return soon.
Small PVC cuts may be repaired when the surrounding fabric remains flexible and strong.
Widespread cracking, stretching, or repeated patching may justify full replacement.
A curtain that has become brittle or permanently distorted may fail in another area shortly after repair.
Evaluate the condition of the complete curtain rather than only the damaged section.
A damaged spiral slat may affect connections and track movement even when the visible dent appears small.
Replace panels that no longer move smoothly or maintain correct alignment.
Sensors should be replaced after cleaning, alignment, wiring checks, and controller testing confirm that the device is unreliable.
Replacement parts must match the original electrical and signal requirements.
A sensor repeatedly hit by forklifts should be relocated or protected. A sensor damaged by water needs improved sealing.
Replacing the device without correcting the cause leads to repeated failure.
Confirm the voltage, output type, control logic, connector, and environmental protection rating.
A physically similar sensor may not communicate correctly with the existing controller.
Major drive and control components may be repaired or replaced depending on their condition and local support availability.
The fastest solution is not always the least expensive part.
A component-level repair may cost less but take longer if specialist labor or internal parts are unavailable.
For a critical door, replacing the complete assembly may restore operation sooner.
A new controller must be programmed for the correct motor, speed, positions, sensors, and operating logic.
Factory default settings rarely match every installation.
Different high speed doors share many maintenance principles, but each design has specific parts that need additional attention.
The inspection plan should reflect the actual door structure.
PVC doors require attention to curtain wear, welding, lower bars, guide cleanliness, and shaft alignment.
Zipper doors also depend on correctly shaped curtain edges and guide entrances.
Dust and debris can prevent the curtain edge from reconnecting smoothly after release.
Clean the entrance profile carefully without damaging the zipper shape.
Fans, air curtains, ventilation, and nearby loading openings can push the curtain sideways.
Repeated movement may increase guide friction even when the door is installed indoors.

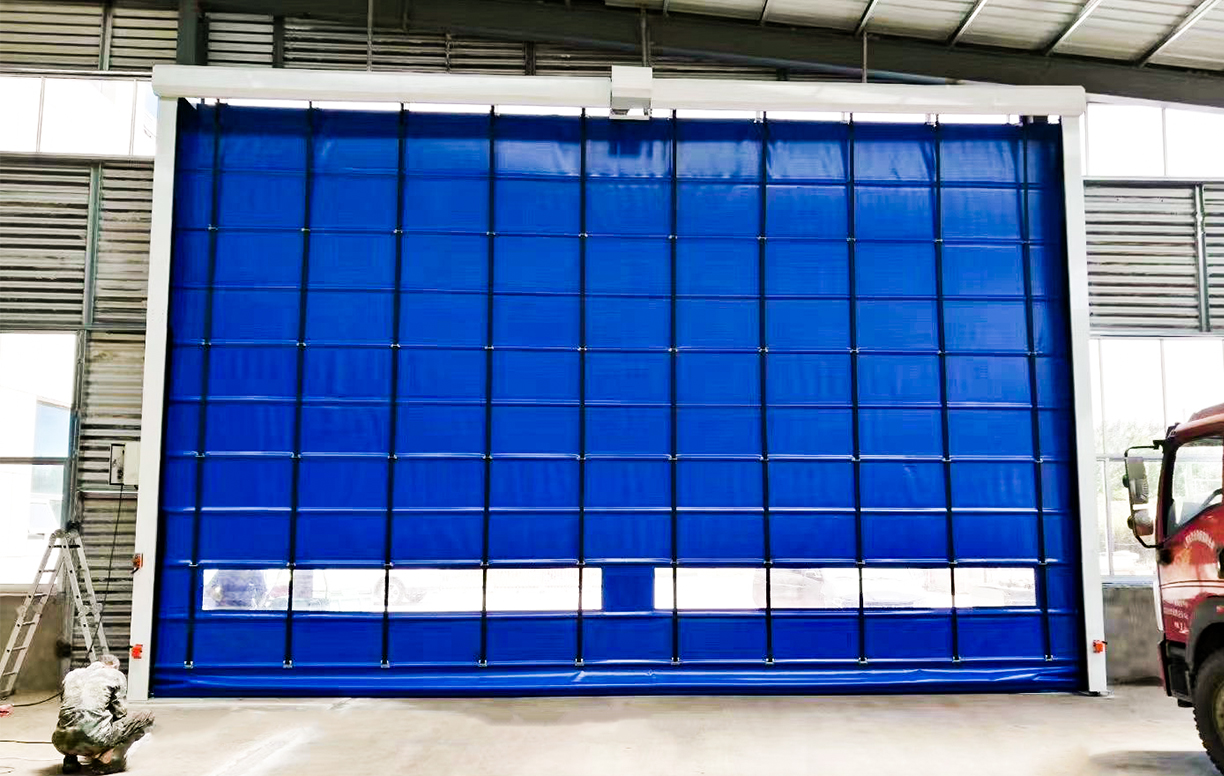

Stacking doors use lifting belts and reinforcement sections to fold the curtain above the opening.
Check the belts, wind bars, curtain pockets, and folding sequence.
If one side rises faster, the curtain may twist and place extra load on the belts.
Correct the balance before the fabric or lifting system is damaged.
Reinforcement sections should remain straight and secure.
A bent wind bar can jam in the guide or prevent the curtain from folding correctly.
Inspect rigid slats, panel seals, guide tracks, upper spiral storage, drive components, and structural supports.
Precision is especially important because the rigid panels cannot flex around alignment errors.
Small track errors can create repeated contact, scratching, noise, and vibration.
The guide and spiral system should be measured after any collision or structural work.
Check steel supports, brackets, and anchors for movement.
A strong door system cannot operate reliably when the supporting structure is unstable.
Inspect heating components, seals, curtain flexibility, condensation, ice, sensors, and low-temperature wiring.
Cold conditions can affect both mechanical movement and electrical signals.
Ice may result from failed heating components, poor sealing, long opening times, or warm air entering the room.
Removing the ice without correcting the cause provides only temporary improvement.
Heating cables, batteries, seals, and low-temperature sensors should be checked before the coldest season.
Preventive testing is easier than repairing a frozen door during production.
Maintenance becomes more effective when facilities also manage traffic, protect exposed components, and train operators to report problems early.
Many repairs can be prevented before they become maintenance issues.
Floor markings, mirrors, warning lights, speed limits, and one-way routes can reduce vehicle collisions.
Sensor positions should match the actual direction and speed of traffic.
The door should begin opening early enough for a forklift to pass safely without stopping.
At the same time, the detection field should not respond to unrelated traffic beside the opening.
A delay that is too short may close between closely spaced vehicles.
A delay that is too long leaves the opening exposed and increases unnecessary cycles and air exchange.
Guide tracks, sensors, control boxes, and frame columns can be protected with suitable barriers.
Protection is especially useful in tight forklift passages.
Protective posts should not interfere with photocells, guide movement, emergency access, or maintenance space.
The protection should reduce impact risk without creating a new obstruction.
A collision may cause hidden frame or anchor movement even when the door still operates.
Documenting the event helps technicians investigate later alignment or vibration problems.
Operators should know that unusual noise, delayed opening, crooked movement, false activation, and repeated resets are not normal.
Early reporting allows maintenance teams to respond before the fault becomes serious.
Continuing to cycle the door after a collision can enlarge curtain tears, bend tracks, and overload the motor.
The door should be inspected before returning to service.
A door that repeatedly needs resetting has an unresolved sensor, controller, or mechanical issue.
Resetting restores operation temporarily but does not correct the cause.
Basic cleaning and visual inspection may be performed by trained facility staff. Structural, electrical, motor, brake, gearbox, and control repairs should be handled by qualified technicians.
Knowing when to stop using the door is an important part of maintenance.
Professional service is required for bent frames, damaged anchors, motor overheating, brake faults, gearbox leakage, and severe curtain imbalance.
These problems can affect both safety and the surrounding structure.
A damaged door may continue operating for several cycles before a weakened connection fails.
Any significant impact should be followed by a complete inspection.
Burning smells, smoke, melted wiring, or repeated overload trips require immediate isolation.
Repeated resets can worsen the damage and remove useful diagnostic information.
Intermittent photocells, safety edges, light curtains, and stopping functions should receive priority attention.
The door should not continue automatic operation when its safety response is uncertain.
A bypass may be used during controlled diagnosis by qualified personnel.
It must not remain active after testing is complete.
Repairs should be followed by controlled opening, closing, stopping, reversal, sensor, and emergency-stop tests.
The door should return to normal use only after the full operating cycle has been verified.
A high speed door is a complete mechanical, electrical, and safety system. Reliable maintenance requires regular attention to the motor, brake, gearbox, curtain, panels, guides, frame, sensors, safety edge, wiring, controller, and structural supports.
The most effective maintenance process begins with observation. Changes in sound, speed, alignment, stopping position, or sensor response often reveal a developing problem before the door fails completely.
Troubleshooting should then follow a logical order. Record the fault, check controller inputs, inspect safety devices, observe mechanical movement, and identify the cause before replacing components.
Maintenance requirements should also match the door type and environment. PVC fabric doors, zipper doors, stacking doors, spiral doors, and cold storage doors each have different critical inspection points.
With routine checks, complete maintenance records, trained operators, and timely professional support, a high speed door can continue providing safe and efficient operation without unnecessary downtime or premature replacement.
