Sliding cold room doors are widely used in refrigerated warehouses, food processing facilities, freezer rooms, and temperature-controlled production areas. They provide insulated access while moving parallel to the wall, making them suitable for locations where the swing space required by a hinged door is limited.

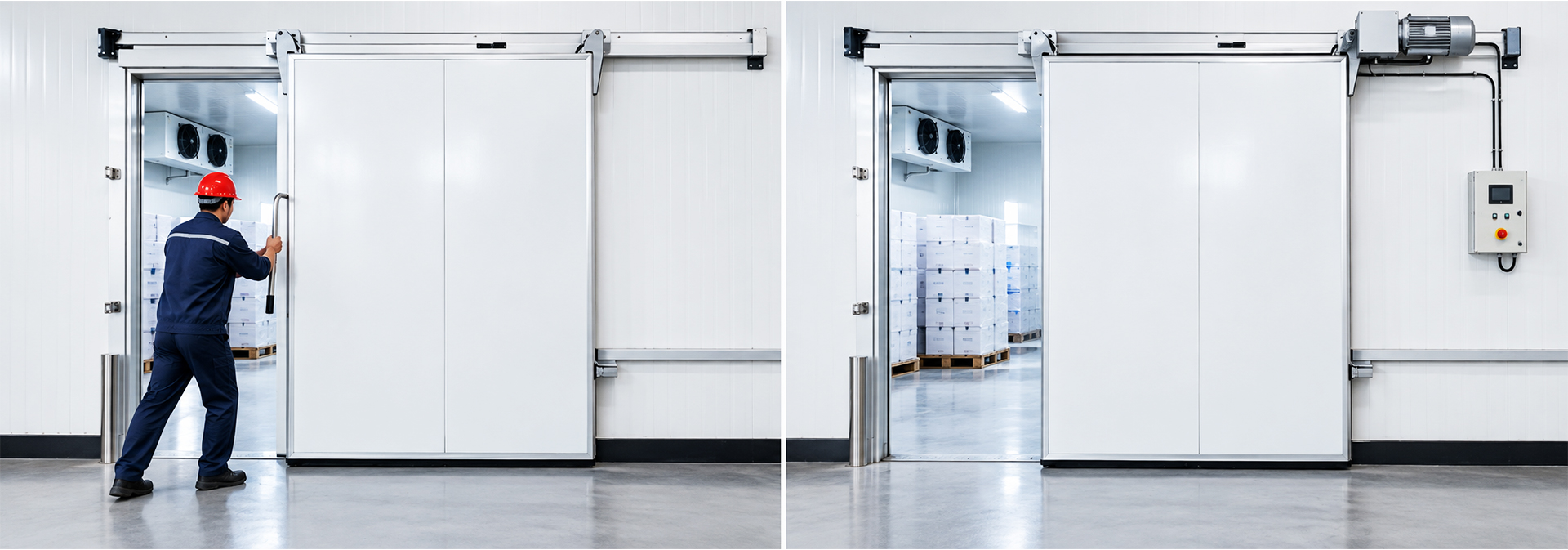

However, choosing between a manual and an electric sliding cold room door involves more than deciding whether to add a motor. The operating method affects traffic efficiency, installation requirements, electrical configuration, emergency access, maintenance, and the way the entrance is used throughout the day.
A manual sliding door may be suitable for a cold room with occasional access and straightforward operating requirements. An electric sliding door may be worth considering when the opening is used frequently, the door is large or heavy, or integration with an existing control system is required.
For successful manual vs electric sliding cold room door selection, buyers should evaluate:
Door opening dimensions and panel configuration
Daily traffic frequency and handling equipment
Required insulation and sealing performance
Available electrical supply and control requirements
Emergency opening and personnel access
Side clearance, overhead space, and installation conditions
Maintenance requirements and long-term operating costs
Neither operating method is automatically better for every cold room. The appropriate choice depends on the door specification and the actual operating environment.
A manual sliding cold room door is moved horizontally by an operator using a handle or other designated operating mechanism. The door travels along a track and closes against a frame and sealing system designed for the intended application.
Manual operation avoids the need for a powered drive system for normal door movement.
Manual sliding doors generally have a relatively straightforward operating arrangement, with components such as:
Insulated door panel
Sliding track and roller assembly
Door frame and closing mechanism
Perimeter gasket
Handle and locking hardware
The actual configuration varies by model and project requirements.
For example, EVERBESTEN's Manual Sliding Cold Room Door is listed with PU insulation, EPDM sealing, and panel thickness options of 75, 100, 120, and 150 mm. Surface options include color steel, stainless steel, and embossed aluminum, subject to the final configuration.
Manual operation may be suitable when the door is opened relatively infrequently, the opening size and operating force are manageable, and automatic operation is not necessary for the workflow.
Typical applications include smaller cold rooms, storage areas with occasional pallet movement, and refrigerated rooms where access is controlled rather than continuous.
An electric sliding cold room door uses a powered drive system to move the door between its open and closed positions. Depending on the design, operation may be controlled through push buttons, switches, sensors, or an integrated control system.
The motorized mechanism can reduce the physical effort required to move the door and support more consistent operation in busy environments.
Depending on the selected model, an electric system may include:
Insulated door panel and sliding track
Motor and drive transmission
Door controller
Operating switches or activation devices
Position detection and travel limits
Safety devices and emergency operating provisions
The availability and configuration of these components must be confirmed for the specific model.
Electric operation may be suitable when the door is opened frequently, the panel is large, or repeated manual movement creates unnecessary physical effort.
It may also be useful when the door needs to coordinate with production equipment, access-control systems, or other operational processes.
However, automation introduces additional requirements for electrical installation, control configuration, safety verification, and servicing.
The number of daily opening cycles is one of the most important factors in choosing the operating method.
If a cold room is accessed only occasionally, a manual sliding door may provide a practical solution without adding a motor and control system.
For these applications, the priority may be reliable sealing, suitable insulation, smooth movement, and straightforward maintenance.
When workers or material handling equipment pass through the opening repeatedly, electric operation may improve workflow by reducing the effort required for each cycle.
The benefit depends on the door's opening time, control arrangement, traffic flow, and the time the opening remains exposed.
An electric sliding door does not necessarily open faster than a manually operated door in every situation. Its main advantage is powered, repeatable movement rather than guaranteed higher opening speed.
The door's dimensions, mass, and mechanical design influence how easily it can be operated.
A suitably designed manual door may be practical for smaller openings where the operating force remains manageable.
The track, rollers, seals, and closing mechanism must still be selected correctly to ensure smooth movement.
A large insulated panel may require more effort to move, particularly when its sealing mechanism creates resistance near the closed position.
Electric operation may be beneficial for these applications, but the selected drive system must be suitable for the actual door mass, dimensions, travel, and operating frequency.
Door size alone does not determine the choice. The manufacturer's permitted dimensions and operating limits must be confirmed.
The operating method does not, by itself, determine the insulation performance of a cold room door.
Both manual and electric sliding doors can use insulated panels and perimeter sealing systems. Their actual thermal performance depends on the door construction, panel thickness, gasket design, frame details, and installation quality.
When closed, the door should provide appropriate insulation and sealing for the intended temperature difference.
The perimeter gasket must make suitable contact with the frame, and the closing mechanism must bring the panel into its intended sealed position.
Every opening allows some exchange of air between the cold room and its surroundings.
An electric door may improve operational consistency in high-traffic applications, but it does not eliminate air exchange. Traffic management, opening duration, room pressure, and environmental humidity remain important.
For freezer applications, buyers should also confirm whether frame or gasket heating is required and whether the selected door configuration is suitable for the target temperature.
Selection Factor | Manual Sliding Door | Electric Sliding Door |
|---|---|---|
Operating method | Moved manually | Powered drive |
Electrical supply | Not required for normal movement; accessories may need power | Required for the drive and controls |
Operator effort | Depends on door mass and mechanical design | Reduces manual effort during normal operation |
Low-frequency access | Often suitable | May be unnecessary unless other requirements justify it |
High-frequency access | Repeated manual operation may be less convenient | May improve operating consistency |
Insulation | Depends on panel and sealing configuration | Depends on panel and sealing configuration |
Automation integration | Requires a separate solution if needed | May support compatible control integration |
Maintenance | Track, rollers, seals, handle, and hardware | Mechanical components plus motor and controls |
Emergency operation | Depends on handle, locking, and release design | Must include a suitable emergency operating arrangement |
Initial investment | Generally simpler in configuration | Includes additional drive and control components |
This comparison describes general operating principles. Actual performance, available options, and limitations must be confirmed against the specific product specification.

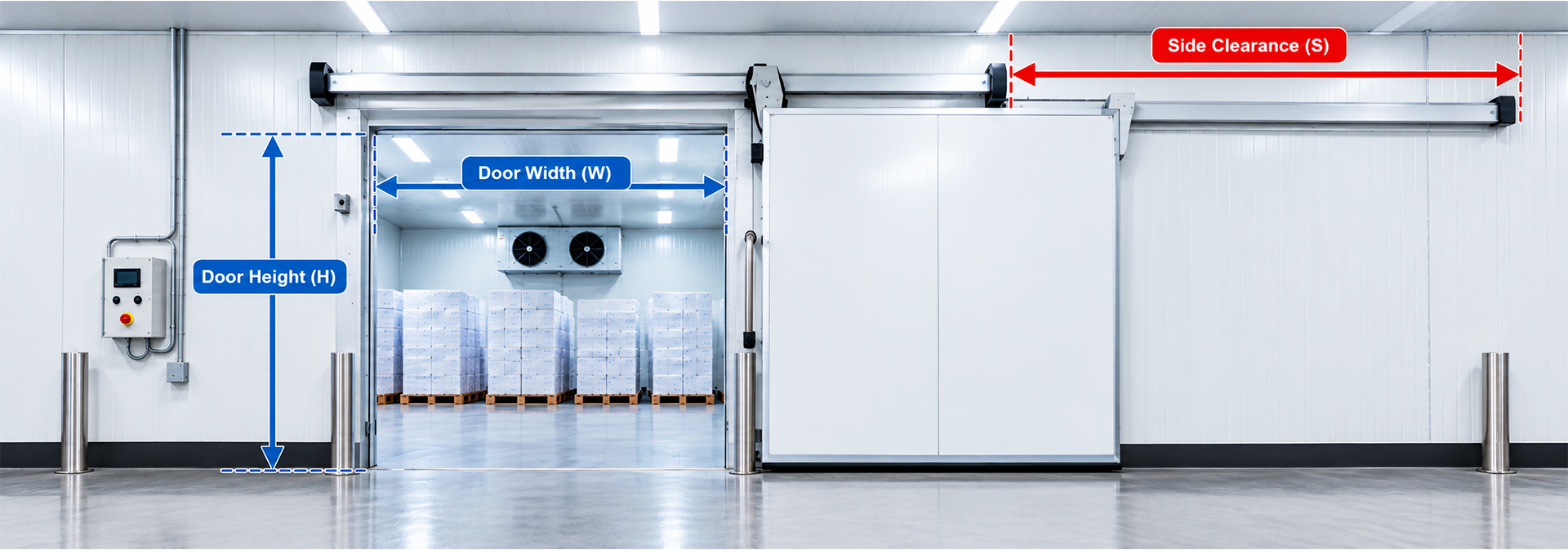

The required clear opening determines whether the door can accommodate the intended personnel, trolley, pallet, or forklift movement.
Measure the maximum width and height of the goods and handling equipment, including any protruding parts.
The clear opening should accommodate the intended movement with appropriate clearance. A door that is too small can restrict traffic, increase the risk of impact, and make material handling more difficult.
A single-leaf sliding door may be suitable for many standard openings. A double-leaf arrangement may be considered where a wider opening is needed or where the available side clearance makes it preferable.
The appropriate configuration depends on the available product design, opening dimensions, and space around the entrance.
Sliding doors move parallel to the wall, so the installation requires adequate space for the door panel to travel.
The available side clearance must accommodate the door's movement and any necessary track, frame, and operating components.
Nearby walls, shelving, machinery, pipes, and electrical equipment may restrict the available travel.
The supporting wall and surrounding structure must accommodate the track and other door components.
For insulated panel walls, the fixing arrangement must be suitable for the wall construction and the loads imposed by the door. Do not assume that thin-faced insulated panels can independently support every door configuration without appropriate structural provisions.
The door should be able to reach its intended open position without obstructing the workflow.
For example, a door parked beside a pallet staging area may interfere with forklift movement if the layout has not been considered.
The open position should therefore be confirmed on the site drawing before the final door configuration is approved.
Electric sliding doors require a compatible electrical supply for the motor and control system.
Before selecting an electric model, confirm the available voltage, phase, and frequency with the supplier.
The motor location, control-box position, cable routing, and available mounting space should be agreed upon before manufacturing and installation.
For projects in which electrical supply varies between sites or countries, the required configuration should be stated clearly in the technical specification.
Depending on the specific system, an electric door may use a push button, pull switch, sensor, or another compatible activation device.
Push-button control may suit controlled access points where an operator can initiate each opening cycle.
Sensor-based activation may be considered when the door needs to respond to approaching personnel or vehicles. Compatibility with the door controller and the required safety functions must be verified.
Not every electric sliding door supports every activation method. Confirm the available options rather than assuming they are standard.
An electric door should have a documented procedure for loss of power or drive-system failure.
Depending on the door design, emergency operation may involve a manual release mechanism or another manufacturer-approved procedure.
Buyers should confirm how the door can be opened when the motor or electrical supply is unavailable and whether the procedure can be carried out safely under the intended operating conditions.
An ordinary operating switch is not necessarily an emergency release. If personnel could become trapped or emergency egress is required, the door and surrounding access arrangement must meet the applicable safety and building requirements.
The emergency opening method should be documented, accessible, and appropriate for the specific installation.

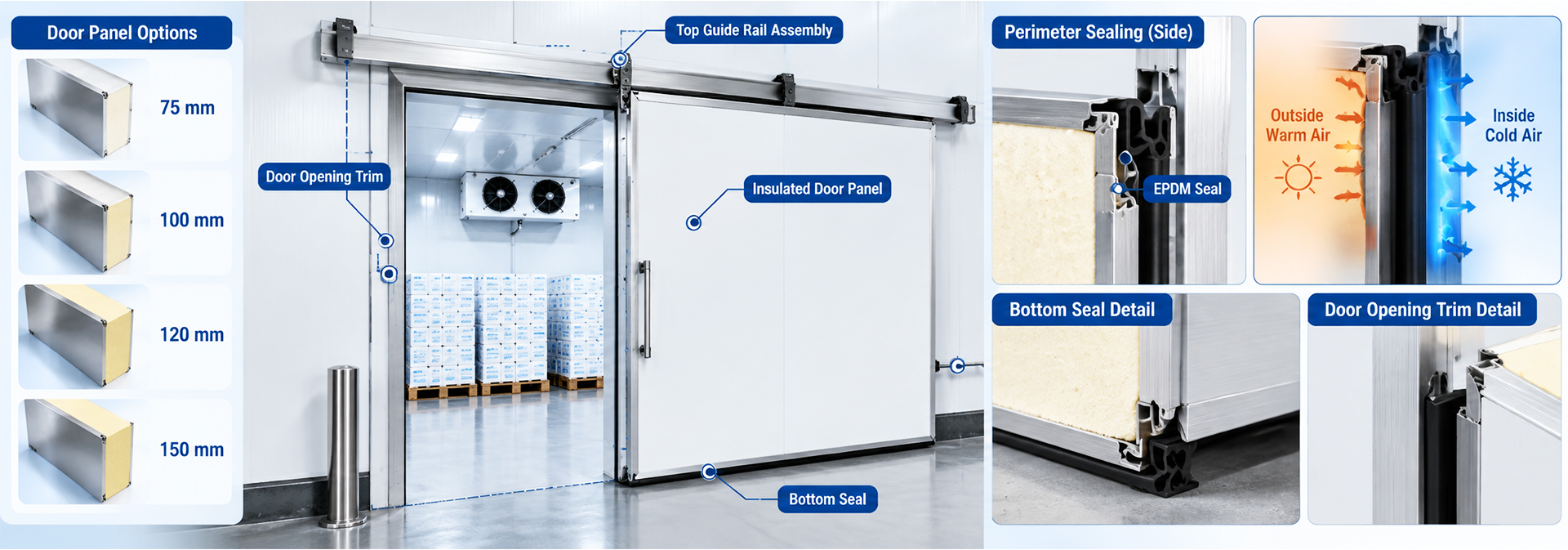

Cold room doors need sufficient insulation for the temperature difference between the room and the surrounding area.
The correct panel thickness depends on the target temperature, ambient conditions, door dimensions, and overall enclosure design.
Chilled rooms may use different panel specifications from freezers because the temperature difference and condensation conditions may be less demanding.
However, the actual thickness should still be selected according to the product specifications and project requirements.
Freezer applications require closer attention to thermal performance, perimeter sealing, and the risk of frost affecting door movement.
The supplier should confirm whether additional heating or other low-temperature provisions are required for the specific door design.
A well-insulated panel cannot provide its intended performance if the perimeter sealing is incomplete.
The top, sides, and bottom of the closed door should be evaluated for suitable contact with the sealing system.
Gaps, damaged gaskets, poor alignment, or incorrect closing adjustment can increase air leakage.
The door's closing arrangement should bring the panel into the intended sealing position without excessive force or abnormal mechanical resistance.
Manual and electric versions may use different operating and closing arrangements, so their sealing performance should be verified from the actual configuration rather than inferred from the operating method.
Manual doors have fewer powered components, but they still require routine inspection and maintenance.
Check for debris, visible wear, damage, or abnormal resistance during movement.
A poorly maintained track can make the door difficult to operate and may contribute to misalignment.
Inspect the perimeter gasket, handle, lock, and closing mechanism for damage or wear.
If the door no longer closes correctly or the seal is visibly damaged, the cause should be investigated and corrected.
Electric doors require maintenance of both the mechanical door system and the powered operating components.
Qualified personnel should inspect the drive, controller, wiring, switches, and applicable safety devices according to the manufacturer's maintenance instructions.
Abnormal movement, intermittent operation, or unexpected stopping should be investigated rather than ignored.
The designated emergency operating procedure and applicable safety functions should be tested in accordance with the manufacturer's instructions.
These checks are particularly important where the door is used frequently or forms part of a controlled access route.
The initial purchase price is only one part of the decision.
Manual doors generally have a simpler operating arrangement, while electric doors add drive components, controls, and electrical installation requirements.
However, the more appropriate choice depends on how the door is used.
If staff repeatedly move a large manual door throughout the day, the cumulative operating effort may justify considering a powered alternative.
Electric systems may require specialist diagnosis or replacement parts when the drive or controls fail. Manual systems can also experience wear or become difficult to operate if tracks, rollers, and seals are not maintained.
The purchasing decision should consider the expected traffic, maintenance resources, availability of service support, and the consequences of downtime.
A small chilled room used mainly for storing packaged goods may not require powered door movement if access is infrequent and the door can be operated comfortably.
A manual sliding door may be a practical choice when the opening dimensions, insulation, sealing, and available side clearance meet the application requirements.
The priority is reliable closure and suitable thermal performance rather than unnecessary automation.
A processing room with repeated trolley traffic may benefit from electric operation if frequent manual opening becomes inconvenient or slows down material movement.
The decision should account for the door's dimensions, trolley clearance, activation method, cleaning conditions, and required safety features.
Where hygiene is important, the surface material and sealing details should also be specified according to the cleaning process.
A large freezer door serving a busy pallet handling area requires careful evaluation of both the panel and operating system.
Electric operation may reduce the physical effort associated with moving a heavy panel, but the final design must also address low-temperature suitability, sealing, frost risk, emergency opening, and electrical installation.
If opening frequency is very high, compare the electric sliding door with other suitable cold storage door solutions based on the actual application rather than assuming that a sliding door is always the best option.
Where shelving, walls, or machinery restrict the space beside the opening, a conventional sliding configuration may not fit the available layout.
The door arrangement should be reviewed against the actual floor plan. A different leaf configuration or another suitable door type may be needed if the required sliding travel cannot be accommodated.
Provide the clear opening width and height, wall-panel thickness, available side clearance, and preferred opening direction.
A layout drawing or site photograph can help clarify nearby obstructions, supporting structures, and the intended open position.
Specify the room's operating temperature, the temperature on the opposite side, humidity conditions where known, and whether the door is exposed to washdown or cleaning chemicals.
These details help determine the required panel construction, sealing system, surface material, and any additional low-temperature provisions.
Explain how often the door will be used and what will pass through the opening.
Useful information includes the approximate daily opening frequency, trolley or forklift traffic, largest load dimensions, and whether automatic activation or control integration is required.
For electric doors, provide the available voltage, phase, and frequency, together with the preferred motor and control arrangement where specified.
Also confirm the required emergency opening method, applicable access requirements, and any site-specific safety provisions.
Neither is universally better. Manual doors may suit lower-frequency access and simpler operating requirements. Electric doors may be more convenient for frequent use, larger panels, or applications requiring compatible control integration.
Not automatically. Insulation depends on the panel construction, thickness, gasket, frame, joint design, and installation quality. Electric operation may improve operating consistency, but it does not by itself guarantee better sealing.
The required arrangement depends on the door design, applicable safety requirements, and intended use. Buyers should confirm the documented power-failure and emergency-opening procedure before ordering.
They can be suitable when the door's insulation, sealing, hardware, and any required heating provisions are designed for the target temperature. The manufacturer's specifications should be checked before selection.
Consider electric operation when the door is used frequently, the panel requires significant effort to move, or the workflow benefits from powered opening and closing. Confirm that the proposed model is suitable for the opening dimensions and operating environment.
Provide the opening dimensions, room temperature, surrounding temperature, traffic frequency, handling equipment, available installation space, preferred operating method, and electrical supply if applicable.
The choice between a manual and electric sliding cold room door should be based on the actual operating process rather than the assumption that one operating method is always superior.
Manual sliding doors can provide a straightforward solution for suitable low- and moderate-frequency applications. Electric sliding doors may improve convenience and workflow where access is frequent, panels are large, or powered operation is required.
In both cases, insulation, sealing, opening dimensions, side clearance, low-temperature suitability, emergency operation, and maintenance requirements remain essential selection factors.
For a project-specific recommendation, provide the door opening dimensions, target temperature, traffic frequency, installation drawing, and electrical requirements where applicable. These details allow the supplier to evaluate the appropriate configuration before confirming the final specification.
