A cold storage loading dock is one of the few places in a refrigerated warehouse where the building must repeatedly open itself to the outside environment.
A truck arrives. The trailer connects to the building. The loading door opens. Forklifts move between two spaces that may have very different temperatures. Once loading is complete, the entire interface must return to a closed and controlled condition.
That makes the loading dock more than a place for transferring pallets.
It is a working interface between transportation, refrigeration, building design, industrial doors, material handling equipment, and warehouse operations.
A complete loading dock solution for a cold storage warehouse should therefore be designed around how these systems interact. Dock levelers, shelters, seals, bumpers, restraints, industrial doors, and controls should not be selected independently.
The objective is to create a loading area that supports efficient vehicle handling while reducing unnecessary environmental exposure and providing a practical route for forklifts and warehouse personnel.
The most important difference between a general warehouse loading dock and a cold storage loading dock is the thermal boundary.
The exterior wall separates two very different environments. During loading, that boundary is temporarily interrupted.
The design challenge is to make this interruption as controlled as practical.
It is easy to focus only on insulation values.
In reality, a cold storage dock can lose environmental control in several different ways.
Once a truck is positioned at the dock, gaps may remain around the top and sides of the vehicle.
Warm outdoor air can move through these gaps while colder warehouse air escapes.
This is why the truck-to-building connection deserves as much attention as the door itself.
A well-insulated loading door provides value while it is closed.
But during loading, the amount of time that the opening remains exposed also matters.
A complete design should therefore consider both:
thermal performance when closed + operating time when open
rather than evaluating insulation alone.
Outside air does not bring only heat into the warehouse.
It may also bring moisture.
When warmer humid air enters a refrigerated environment and reaches sufficiently cold surfaces, condensation can develop.
In lower-temperature environments, that moisture may eventually contribute to frost or ice.
Potentially affected areas include:
Floor surfaces
Door thresholds
Dock equipment
Walls
Traffic areas
Reducing uncontrolled air infiltration can therefore support both temperature management and better loading-area conditions.
Cold storage loading docks often concentrate temperature differences around thresholds and transition areas.
The building's insulation, floor design, drainage, heating strategy where applicable, and door sealing should therefore be considered together.
Loading dock equipment cannot solve building-envelope problems by itself.
Many loading dock problems begin with dimensions rather than equipment quality.
A good dock leveler or shelter can still perform poorly if the truck stops in the wrong position relative to the building.
The geometry needs to be established before individual products are finalized.
The correct loading dock should be designed around vehicles that actually use the warehouse.
Collect information on:
Minimum truck height
Maximum truck height
Vehicle width range
Minimum trailer floor height
Maximum trailer floor height
Rear vehicle structure
Loading frequency
The average truck is useful.
The lowest and highest regular trucks are often even more important because they define the operating limits of the system.
A truck that uses the warehouse every day should influence the loading dock design more than an unusual vehicle that arrives once or twice a year.
Trying to make every loading bay accommodate every possible vehicle can create unnecessary compromises.
In some facilities, assigning particular bays to different vehicle groups provides a better solution.
Dock bumpers are usually described as impact protection.
But their dimensions also affect where the trailer stops.
If the bumper projects 100 mm from the dock face, the vehicle cannot occupy the same position it would with a 200 mm bumper.
That difference can influence:
Dock shelter compression
Dock leveler lip overlap
Vehicle restraint position
Distance between truck and building
Door clearance
For this reason, bumper dimensions should appear on the same system drawing as the leveler and shelter.
Dock bumpers experience repeated vehicle contact.
If they become heavily worn or compressed, the trailer may gradually stop closer to the building than originally designed.
Periodic inspection therefore protects more than the bumper itself—it helps maintain the intended loading dock geometry.
The space around the parked trailer is one of the largest potential openings in the loading area.

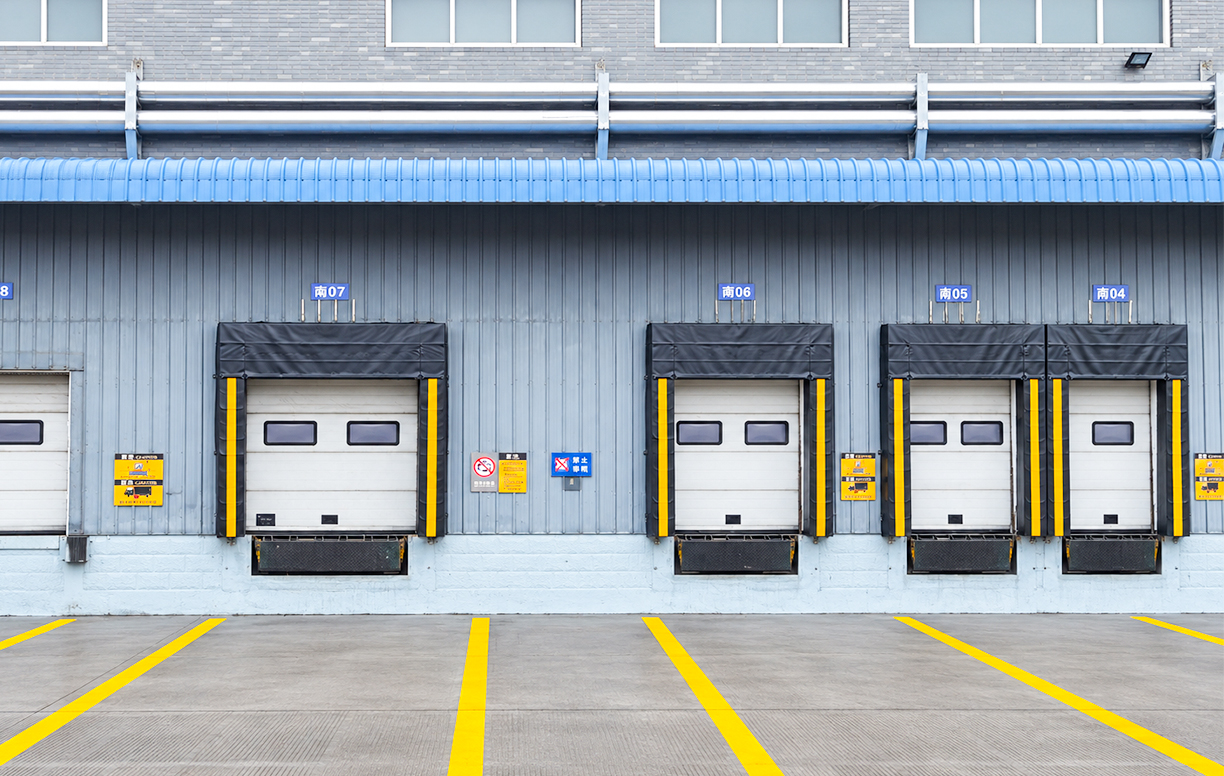

This is where dock shelters and dock seals become important.
The correct choice depends heavily on vehicle variation.
Mechanical dock shelters use flexible curtains around the trailer.
A mechanical shelter can be useful when a warehouse receives trucks with a reasonable range of heights and widths.
The curtains adapt to the vehicle rather than requiring the trailer to compress deeply into foam pads.
This makes mechanical shelters a practical option for many logistics operations.
However, the vehicle range still needs to remain within the shelter's intended dimensions.
Inflatable dock shelters expand toward the vehicle after it has reached the loading position.
For cold storage warehouses, inflatable shelters may be considered where reducing the open area around the vehicle is a higher priority.
Typical applications include:
Refrigerated distribution centers
Frozen food warehouses
Cold chain facilities
Temperature-controlled dispatch docks
The system should still be sized around the actual fleet.
Increasing air-bag size indefinitely is not a substitute for correct vehicle-range planning.
Dock seals work by compressing foam pads against the rear of the vehicle.
A dock seal can be effective when the facility handles relatively standardized trailers.
If vehicle widths and heights vary significantly, excessive or insufficient compression can reduce performance.
The decision between a dock shelter and dock seal should therefore begin with vehicle data rather than product preference.
Once the truck is correctly positioned and the loading interface is prepared, forklifts need a practical transition into the trailer.
This is the role of the dock leveler.
Hydraulic dock levelers are widely used for warehouse loading operations.
A hydraulic system allows the platform and lip to be positioned with powered controls rather than relying on a fully mechanical lifting sequence.
For regular loading operations, this can provide a convenient and repeatable process.
Selection should consider:
Platform dimensions
Trailer height range
Working angle
Pit dimensions
Rated capacity
Electrical supply
Loading frequency
A telescopic dock leveler uses an extendable lip rather than relying only on a hinged lip.
This configuration may be useful where:
Different trailer configurations use the dock
Pallets are positioned near the rear of the trailer
More lip overlap control is required
Loading conditions vary between vehicles
The extendable lip provides additional positioning flexibility, but the overall dock geometry must still be correct.
Dock leveler capacity is sometimes discussed only in terms of product weight.
That is incomplete.
The platform may carry:
Forklift + Driver + Pallet + Product + Attachments
Repeated travel, turning, braking, and movement also create dynamic loading conditions.
The required dock leveler capacity should therefore be evaluated according to the actual material-handling operation.
Traditional pit-mounted levelers normally store horizontally.
Cold storage warehouses may also consider vertical-storing designs depending on the project.
A vertical dock leveler can store upright when the loading position is not in use.
Depending on the complete system design, this arrangement can allow the loading door to remain closed while the vehicle approaches and is positioned outside.
That can be useful where controlling exterior exposure is particularly important.
Vertical dock levelers are therefore often discussed for cold storage and temperature-controlled loading applications.
They require appropriate building design and operating procedures, so they should be planned early rather than treated as a direct replacement for every conventional dock leveler.
The leveler lip must still establish appropriate contact with the trailer.
These three dimensions are directly related:
Bumper position → Trailer stopping position → Required lip reach
Changing one can affect the others.
This relationship should be confirmed in the technical drawings before production.
Cold storage warehouses usually need more than one type of industrial door.
The exterior loading bay and an internal refrigerated passage have different operating conditions.

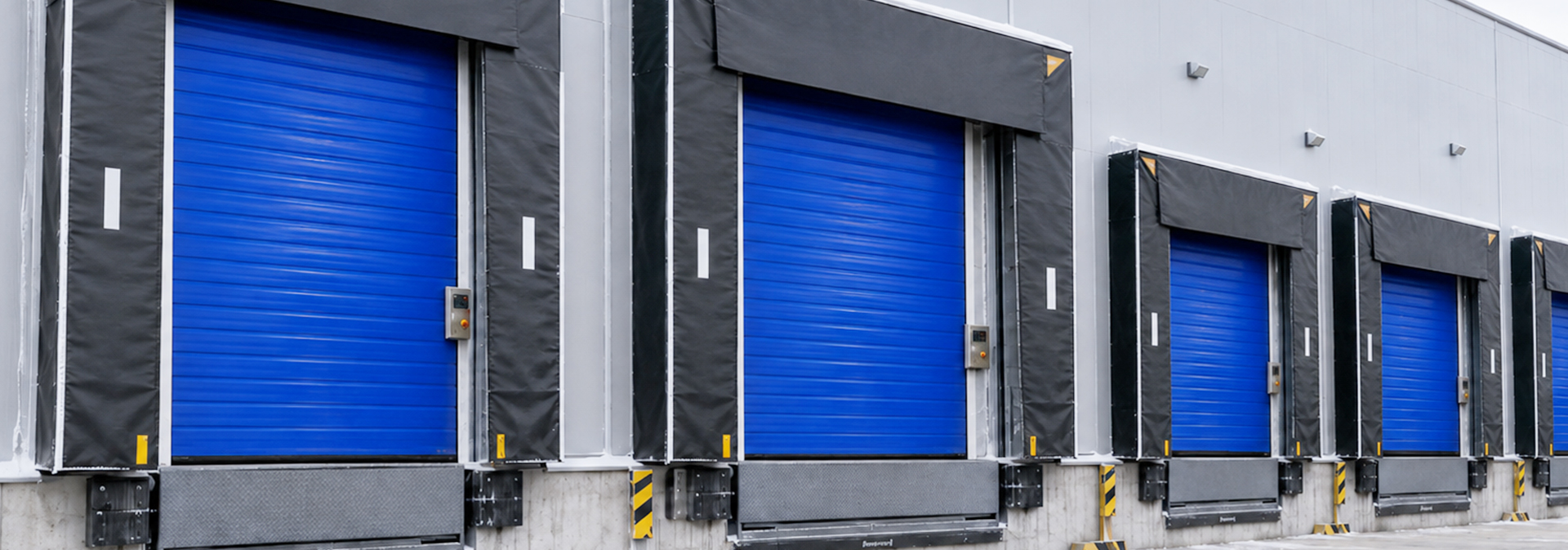

Sectional doors are commonly used at warehouse dock openings.
When the loading bay is not operating, insulated sectional panels can help form part of the building envelope.
The specification should consider:
Panel thickness
Perimeter sealing
Opening size
Track arrangement
Available headroom
The right panel thickness depends on the facility conditions rather than one universal cold-storage specification.
Sectional door track systems occupy space above and beside the opening.
Before manufacturing, confirm:
Clear headroom
Side room
Roof structure
Beams
Cable trays
Sprinkler pipes
Motor position
A correct door size is not enough if the track conflicts with the building.
Internal warehouse routes often experience much higher door-cycle frequency than exterior loading bays.
High speed doors can reduce the amount of time an internal opening remains exposed during forklift movement.
They can be used between:
Staging and cold storage
Ambient and refrigerated zones
Warehouse corridors
Processing and storage areas
Temperature-controlled logistics zones
The main advantage is not simply opening speed.
It is the ability to return the doorway to a closed condition soon after traffic passes.
A standard PVC fabric high speed door is not the correct solution for every refrigerated opening.
Where the temperature difference is significant, an insulated high speed door may be more appropriate.
Selection should consider:
Indoor temperature
Adjacent temperature
Traffic frequency
Opening dimensions
Humidity
Required insulation
Larger openings may appear more convenient for vehicles and forklifts.
But larger is not automatically better.
An unnecessarily large doorway creates a larger exposed area every time the door opens.
Door dimensions should accommodate:
vehicle or forklift width + load width + safe operating clearance
without being enlarged without operational reason.
A cold storage dock can have good individual products and still operate poorly if the sequence is wrong.
Controls and operating logic determine how the components work together.
The warehouse should not be opened earlier than necessary.
Where the equipment configuration allows it, the truck should first reach the correct dock position before the warehouse opening becomes fully exposed.
This reduces unnecessary door-open time while a driver is still maneuvering.
The exact sequence depends on the selected leveler and door system.
A vehicle restraint helps hold a compatible vehicle in position during loading operations.
Interior and exterior signal lights can communicate whether:
The vehicle is secured
Loading is allowed
The truck should remain stationary
Departure is permitted
This becomes particularly useful where multiple bays operate simultaneously.
Different dock components can also be coordinated through the control system.
Depending on the application, control logic may be designed so that certain equipment cannot operate until another condition is satisfied.
Examples could involve coordinating:
Industrial door
Dock leveler
Vehicle restraint
Traffic lights
The correct control logic should be developed around the facility's actual operating procedure.
Not every cold storage warehouse should open directly from the exterior dock into its coldest room.
Facility layout matters.
Some facilities use an intermediate loading or staging area between the truck and cold storage.
A staging zone can allow pallet handling, checking, or temporary positioning to occur without directly exposing the primary refrigerated storage area for the entire loading cycle.
Its suitability depends on:
Facility temperature strategy
Product requirements
Available space
Traffic volume
Refrigeration design
Facilities with highly varied vehicles can also use dock zoning.
If most trailers fall within one consistent range but a small number of unusually low or high vehicles occasionally arrive, dedicating one bay to those vehicles may be more practical than designing every shelter and leveler around the extremes.
This approach can simplify equipment selection across the rest of the warehouse.
The phrase "cold storage warehouse" covers several operating environments.
A chilled warehouse and a deep-freeze distribution center should not automatically receive the same dock specification.
Chilled facilities often combine temperature control with frequent logistics activity.
A typical solution may prioritize:
Flexible truck accommodation
Efficient dock leveler operation
Suitable shelter sealing
Insulated loading doors
Fast internal traffic doors
The exact balance depends on operating temperature and loading frequency.
Frozen warehouses face larger temperature differences in many climates.
In these environments, uncontrolled warm-air entry can become particularly important.
The design may place greater emphasis on:
Dock sealing
Door-open time
Insulated door systems
Loading sequence
Internal buffer zones
Moisture management
The loading dock should be coordinated with the building's refrigeration and environmental-control strategy.
Existing warehouses present a different challenge.
When replacing a dock leveler, confirm:
Pit width
Pit length
Front depth
Rear depth
Steel edge condition
Existing electrical supply
Different manufacturers and older installations may use different pit configurations.
A new leveler should be selected from actual site measurements.
Cold storage dock equipment operates under repeated vehicle contact, forklift loading, temperature differences, and environmental exposure.
Maintenance requirements should therefore be considered during equipment selection.
Some components naturally experience more wear than others.
Inspection should look for:
Torn shelter curtains
Damaged inflatable sections
Compressed foam
Loose mounting components
Worn bumpers
Abnormal vehicle-contact patterns
Early damage can change how the trailer interacts with the rest of the dock.
Mechanical and hydraulic equipment also requires routine attention.
Inspection areas may include:
Hydraulic hoses
Cylinders
Hinges
Platform structure
Door perimeter seals
Bottom seals
Sensors
Control components
Maintenance intervals should follow the specific equipment manufacturer's instructions and the facility's operating frequency.
A loading dock can appear correct during installation but still require adjustment once actual vehicles arrive.
Final commissioning should therefore include operating checks.
Do not test the dock leveler, door, and shelter only as individual products.
Where possible, test:
Truck approach
Final vehicle position
Bumper contact
Shelter or seal interface
Vehicle securing
Door opening
Dock leveler positioning
Forklift transition
Equipment return
Truck departure
This reveals how the complete system behaves under actual operating conditions.
If the warehouse uses multiple truck types, commissioning should reflect that variation.
A shelter that looks correct with the average truck may behave differently with a lower trailer.
Similarly, dock leveler working angles and lip positions can change with trailer height.
Checking the practical operating range before full-scale operation can identify problems earlier.
There is no single product that turns a standard loading bay into an effective cold storage loading dock.
The performance comes from the relationship between components.
A typical system may include:
Hydraulic Dock Leveler
Telescopic Dock Leveler
Vertical Dock Leveler
Mechanical Dock Shelter
Inflatable Dock Shelter
Dock Seal
Dock Bumper
Vehicle Restraint
Sectional Industrial Door
Insulated High Speed Door
Traffic Light and Control System
The correct combination depends on the facility.
Before selecting equipment, collect information about:
Loading bay dimensions
Truck dimensions
Trailer floor heights
Forklift specifications
Product flow
Warehouse temperature
Outdoor environment
Loading frequency
Available installation space
A coordinated elevation drawing should show the relationship between:
Truck + Bumper + Shelter + Leveler + Door + Building
This can reveal dimensional conflicts before equipment reaches the site.
For cold storage projects, that coordination is especially valuable because small changes at the truck interface can affect both loading operation and environmental separation.
EVERBESTEN provides industrial door and loading dock solutions for cold storage warehouses, refrigerated distribution centers, food facilities, and cold chain logistics projects.
Rather than applying one fixed loading dock package to every project, equipment can be configured according to the warehouse layout, truck fleet, dock dimensions, operating temperature, forklift requirements, and loading process.
The objective is to make the different systems work together.
The bumper controls vehicle contact.
The shelter or seal reduces open space around the truck.
The restraint helps control vehicle movement.
The dock leveler creates the forklift transition.
The exterior industrial door closes the building opening.
The internal high speed door manages frequent traffic between temperature zones.
When these functions are coordinated correctly, the loading dock becomes a more predictable part of the cold storage operation.
A complete loading dock solution for a cold storage warehouse begins with understanding the interface between the truck and the refrigerated building.
The design should account for vehicle dimensions, bumper projection, dock height, trailer floor range, leveler operation, shelter performance, door configuration, forklift load, temperature difference, humidity, and operating sequence.
The most effective solution is not necessarily the one with the largest number of products.
It is the one where every component has been selected around the same set of real operating conditions.
By planning the loading dock as one coordinated system rather than purchasing the leveler, shelter, door, and safety equipment separately, cold storage warehouses can create a loading environment that better supports temperature management, vehicle handling, forklift movement, and reliable long-term operation.
