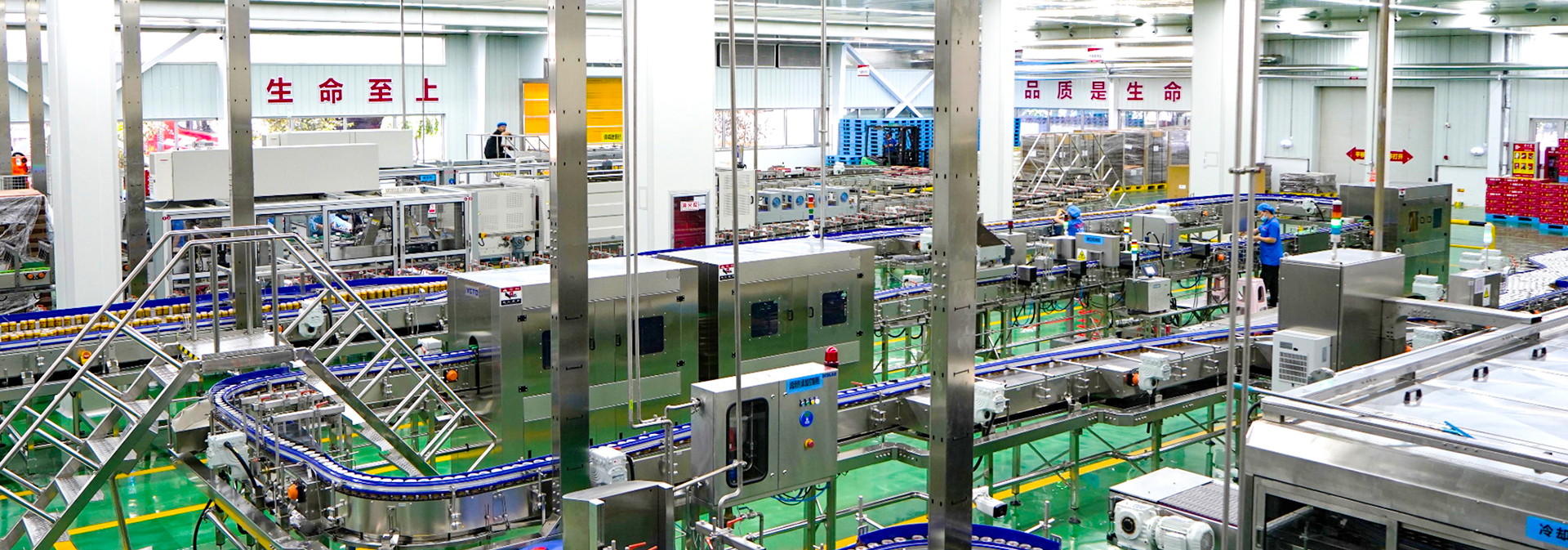

A food processing plant is rarely one single environment.
Raw materials may arrive through one side of the facility, packaging materials through another, while finished products leave through dedicated dispatch docks. Inside the plant, forklifts, pallet trucks, employees, ingredients, packaging, and finished goods may all move between areas with different temperatures and operating requirements.
Doors and loading dock equipment sit directly on these transition points.
When they are selected only according to opening size, problems can appear later: doors stay open too long, forklifts wait at access points, trailers do not match the loading bay, outside air enters controlled areas, or different traffic flows interfere with one another.
For food processing facilities, the better approach is to plan doors and dock equipment around the movement of materials through the plant.
From receiving to storage, processing, cold rooms, packaging, and dispatch, every transition has a different job to perform.
The main function of an industrial door is not simply to open and close.
Likewise, the function of a loading dock is not simply to connect a truck to a building.
Each opening represents a transition between two operating environments.
At one location, the priority may be weather protection. At another, temperature separation may be more important. In high-traffic internal areas, the main concern may be reducing waiting time for forklifts.
This means a single standard door or dock configuration is rarely suitable for an entire food processing plant.
A useful way to plan the facility is to follow the material route from beginning to end:
Incoming Truck → Receiving Dock → Raw Material Storage → Processing Area → Packaging Area → Cold Storage → Finished Goods Warehouse → Dispatch Dock
Every arrow in this sequence represents a transition.
Some transitions need environmental separation. Others need speed, impact resistance, insulation, or controlled vehicle access.
Instead of asking:
Which industrial door should be installed here?
A more useful question is:
What conditions exist on each side of this opening, and what traffic needs to pass through it?
This approach produces a more practical specification.
For many food processing plants, the first important transition occurs when raw materials arrive.
The loading dock must allow trucks to connect efficiently to the warehouse while supporting forklift movement and protecting the building.
Receiving areas may handle:
Ingredients
Raw food materials
Packaging materials
Palletized goods
Refrigerated products
Frozen products
The exact dock configuration depends on the types of vehicles and products arriving at the plant.
The warehouse platform and trailer floor are rarely at exactly the same height.
A dock leveler compensates for this difference and creates a transition for forklifts.
In a food processing facility, the leveler should be selected according to actual operations rather than only the dock pit size.
Important information includes:
Dock platform height
Minimum trailer bed height
Maximum trailer bed height
Forklift weight
Maximum cargo weight
Daily loading frequency
A forklift crossing a dock leveler creates a different loading condition from a stationary pallet.
The working load includes the combined weight of the forklift, operator, pallet, and product.
This is especially important where raw materials arrive in heavy palletized loads.
Not all trucks arrive in exactly the same position.
Different trailer bodies, loading methods, and pallet arrangements can affect how the dock leveler contacts the vehicle.
A telescopic dock leveler uses an extendable lip that can be moved farther into the trailer.
This gives operators greater control over the contact position.
1、Different trailer types use the same dock
2、Pallets are positioned close to the rear of the trailer
3、More precise lip placement is required
4、Vehicle positioning varies between deliveries
An extendable lip improves flexibility, but it cannot compensate for every possible truck height.
The loading bay should still be designed around the normal operating range of the vehicle fleet.
Once the truck is positioned at the dock, there is another issue to consider.
The trailer does not completely fill the building opening.
Gaps remain around the vehicle.
These gaps can allow:
Outside air
Rain
Dust
Humidity
Wind
to enter the loading area.
For food processing facilities, reducing unnecessary environmental exposure can be particularly important.
A dock shelter surrounds the top and sides of the trailer.
The most suitable type depends on vehicle dimensions and the degree of environmental separation required.
Mechanical dock shelters use flexible curtains that contact the trailer.
They are practical where different but reasonably similar vehicle sizes use the same dock.
They are often suitable for general receiving and dispatch areas.
Inflatable dock shelters use air-filled top and side sections that move toward the trailer.
This can create closer contact around the vehicle.
They can be considered for:
Refrigerated receiving areas
Cold chain loading docks
Temperature-controlled food facilities
Applications where improved environmental separation is required
However, the truck height range must be carefully reviewed.
An inflatable shelter should not be expected to accommodate an unlimited difference between the smallest and largest vehicles.
Not every food plant requires a dock shelter.
Where vehicle dimensions are relatively standardized, a dock seal may be suitable.
Foam pads compress against the rear of the trailer when the vehicle reverses into position.
Dock seals are commonly considered where:
Truck widths are similar
Trailer heights are consistent
Dock openings are standardized
Closer contact around the vehicle is required
If a facility receives many vehicle sizes from different logistics providers, a fixed seal may not contact every trailer correctly.
In that situation, a more flexible shelter configuration may be better.
One of the most common design mistakes is using the same door concept throughout the plant.
A door between the loading dock and warehouse has very different operating conditions from a door between a processing room and packaging area.
A sectional industrial door is often used at exterior loading docks.
It opens vertically and stores above the opening, keeping the loading area clear.
Insulated panel options can also help reduce heat transfer when the loading bay is closed.
Typical applications include:
Raw material receiving docks
Finished goods dispatch docks
Refrigerated warehouse loading bays
Packaging material receiving areas
Before production, the project should confirm:
Opening width
Opening height
Headroom
Side room
Wall structure
Motor position
Electrical supply
Track design should be selected according to the available building space.
Inside a food processing plant, speed often becomes more important.
Forklifts and personnel may repeatedly move between production, storage, packaging, and logistics zones.
A slow door can create traffic queues.
A door left open can weaken separation between adjacent areas.
A high speed door opens and closes quickly, allowing authorized traffic to pass while reducing the amount of time the opening remains exposed.
1、Raw material transfer areas
2、Internal warehouse passages
3、Packaging rooms
4、Processing support areas/5、Refrigerated storage entrances
5、Logistics corridors
Different areas may require different configurations.
An interior PVC fabric high speed door may be suitable for standard warehouse passages.
Other locations may require:
Self-repairing door systems
Insulated high speed doors
Stainless steel structures
Different safety sensor configurations
Additional sealing
The surrounding environment should determine the specification.
Food processing facilities often involve moisture, cleaning, and frequent washdown around certain areas.
These conditions can affect door frames, loading equipment, fasteners, and control components.
Depending on the installation environment, equipment may use:
Painted steel
Galvanized steel
Stainless steel
Stainless steel is often considered where corrosion resistance and cleaning requirements are more demanding.
Using stainless steel throughout the entire facility can significantly increase project cost.
A more practical approach is to identify areas with:
Frequent water exposure
Cleaning chemicals
High humidity
Corrosive conditions
and specify materials accordingly.
Dry warehouse areas may not require the same configuration as wet processing zones.
Food processing plants may include ambient, chilled, and frozen areas within the same building.
Every transition between these zones affects temperature stability.
A door serving a cold room has to balance two requirements:
Reduce unnecessary air exchange.
Allow efficient movement of people and materials.
If the entrance is used frequently, a slow-opening insulated door may create operational delays.
If the door opens quickly but provides poor insulation, temperature control may suffer when it is closed.
For frequently used temperature-controlled openings, an insulated high speed door may provide a useful balance between fast operation and thermal separation.
Selection should consider:
Internal temperature
Adjacent temperature
Door size
Daily operating cycles
Forklift traffic
Humidity
Required insulation
No door should be selected only because it is described as a "cold storage door."
The operating conditions still matter.
Food processing plants frequently separate the movement of raw materials, finished goods, employees, and waste.
Doors influence how well those routes can be maintained.
Consider a facility where incoming ingredients and finished packaged goods use the same corridor.
Even if the door itself performs well, the traffic layout may create unnecessary crossover.
A better door strategy should support the intended material route.
Depending on the facility layout, separate openings may be considered for:
Raw materials
Finished goods
Waste
Personnel
Packaging
Refrigerated products
This allows each door to be configured according to its own traffic and environmental requirements.
A doorway used mainly by employees has very different requirements from one crossed by forklifts hundreds of times per day.
Forklift routes should be identified early in the project.
High speed doors can be integrated with different activation methods depending on the application.
Possible options include:
Radar sensors
Pull cords
Push buttons
Remote controls
Loop detectors
Access control signals
A door that opens too late can force forklifts to stop.
A door that opens too early may remain exposed longer than necessary.
Sensor positioning should therefore be adjusted according to vehicle speed, approach direction, and site layout.
Fast-moving doors should also include appropriate safety protection.
The objective is not simply to make the door stop when an obstacle is detected, but to reduce unnecessary contact between the door and traffic.
Depending on the door type, safety systems may include:
Photoelectric sensors
Safety edges
Light curtains
Warning lights
A wide forklift entrance may require a different sensor arrangement from a smaller personnel doorway.
Door size, traffic direction, speed, and visibility should all be considered.
At the other end of the plant, finished products leave through the dispatch area.
Although the same types of loading dock equipment may be used, the operating priorities can be different.
Dispatch operations are often linked to delivery schedules.
Delays at the loading dock can affect downstream transportation.
For high-volume plants, a typical dispatch dock may combine:
Dock leveler
Vehicle restraint
Dock shelter or seal
Dock bumper
Sectional industrial door
Signal system
A clear operating sequence can reduce confusion:
Truck Positioning → Vehicle Securing → Door Opening → Dock Leveler Positioning → Loading → Door Closing → Vehicle Release
The specific sequence should match the site's operating procedures.
Vehicle movement during loading is a risk at both receiving and dispatch docks.
Forklift movement and trailer suspension changes can affect vehicle position.
Premature truck departure can create an even more serious hazard.
A vehicle restraint helps keep the truck or trailer secured at the loading dock until operations are complete.
It can also be integrated with signal lights.
Internal and external indicators can help communicate whether:
Loading is allowed
The truck is secured
The vehicle can leave
This becomes more important at large food processing plants with multiple loading bays operating at the same time.
Dock bumpers absorb repeated contact when trucks reverse toward the building.
They protect the loading dock structure and also influence the final stopping position of the vehicle.
If bumpers become heavily compressed or damaged, the trailer may move closer to the building than originally intended.
This can affect:
Dock shelter contact
Leveler lip positioning
Door clearance
Building structure
Dock bumper type should be selected according to:
Vehicle frequency
Truck size
Impact conditions
Dock height
Loading intensity
High-volume plants may require more durable bumper configurations than low-frequency receiving docks.
A food plant can contain several completely different operating environments under one roof.
Trying to use one door type everywhere may simplify purchasing but often creates compromises later.
Main priorities may include:
Vehicle access
Environmental protection
Forklift movement
Loading dock safety
Main priorities may include:
Fast opening
Controlled traffic
Easy cleaning
Reliable closing
Main priorities may include:
Insulation
Reduced air exchange
Fast traffic
Moisture control
Main priorities may include:
Truck turnaround
Vehicle securing
Efficient loading
Weather protection
The question is not which door is "best."
The correct question is which door or dock configuration is best suited to that particular transition.
Instead of preparing a product list first, divide the facility into operating zones.
For every opening, record four groups of information.
Confirm:
Indoor temperature
Adjacent temperature
Humidity
Cleaning conditions
Indoor or exterior exposure
Confirm:
Forklift or personnel
Vehicle dimensions
Daily operating frequency
Direction of travel
Confirm:
Width
Height
Headroom
Side clearance
Wall construction
Identify whether the main requirement is:
Speed
Insulation
Sealing
Vehicle access
Cleaning resistance
Safety
Space efficiency
Once this information is available, the product choice becomes much easier.
A door is no longer selected because it belongs to a certain category.
It is selected because its operating characteristics match the application.
The loading dock is connected to several building systems.
Concrete pits, door openings, steel structures, power supplies, traffic routes, and dock equipment all interact.
For new food processing plants, door and dock equipment should ideally be considered before the building structure is finalized.
This allows the project team to coordinate:
Dock pit size
Platform height
Door dimensions
Electrical requirements
Shelter installation space
Structural supports
Existing food plants often have additional constraints.
Before replacing doors or loading dock equipment, check:
Existing opening dimensions
Structural condition
Old dock pit dimensions
Available headroom
Power supply
Current vehicle sizes
A replacement product should fit current operating conditions, not simply match the dimensions of the equipment being removed.
Food processing plants do not need the largest number of industrial door and loading dock products.
They need the correct equipment at the correct transitions.
A typical facility may use a combination of:
Hydraulic Dock Levelers
Telescopic Dock Levelers
Mechanical Dock Shelters
Inflatable Dock Shelters
Dock Seals
Vehicle Restraints
Dock Bumpers
Sectional Industrial Doors
PVC High Speed Doors
Self-Repairing High Speed Doors
Insulated High Speed Doors
The correct combination is determined by:
Product flow
Temperature zones
Vehicle range
Forklift traffic
Cleaning conditions
Loading frequency
Building layout
EVERBESTEN provides industrial door and loading dock solutions for food processing plants, cold chain facilities, warehouses, distribution centers, and industrial projects.
By reviewing the facility layout, truck dimensions, operating temperatures, traffic routes, and loading requirements before equipment selection, each opening can be configured according to its actual role within the plant.
Industrial doors and loading dock equipment play an important role in how efficiently materials move through a food processing plant.
The receiving dock controls how goods enter the building. Internal doors manage movement between operating zones. Cold storage doors help separate different temperatures. Dispatch docks connect finished products back to transportation.
These openings should not be treated as isolated pieces of equipment.
The most effective approach is to follow the material flow through the facility and ask what each transition needs to accomplish.
When door speed, insulation, loading dock equipment, vehicle dimensions, forklift traffic, material selection, and building conditions are considered together, the result is a facility that supports more efficient movement and a more controlled operating environment.
