When a high speed door stops working, it is easy to assume that the motor, controller, or sensor has failed. However, the part displaying the fault is not always the part causing the problem.
For example, a motor overload warning may be caused by a curtain rubbing against the guide. A door that refuses to close may be receiving a continuous signal from a radar sensor. A position error may be caused by a loose shaft coupling rather than a defective controller.
Before replacing components, observe exactly what the door is doing. Note whether it fails during opening or closing, whether the fault occurs at the same position, and whether the problem is constant or intermittent.
A useful diagnosis begins with a clear description of the symptom. “The door does not work” is too general because it could mean that the controller has no power, the motor does not start, the curtain stops halfway, or the safety system prevents closing.
Observe one complete operating cycle if the door can still move. Record the position where the problem appears, the sound of the motor, the status of the sensor lights, and any error code shown on the controller.
If the door always stops or reverses at the same height, the problem is usually related to a specific part of the movement path.
Inspect the guide tracks, curtain edges, rigid panels, lifting belts, wiring, and seals at that position. A bent track section, damaged curtain edge, loose panel component, or cable obstruction may create resistance every time it reaches the same point.
The controller may report an overload or position error, but the original cause can still be mechanical.
A fault that appears at different heights is more likely to involve an unstable electrical signal, loose terminal, motor temperature, power fluctuation, or encoder feedback problem.
Intermittent faults can be difficult to reproduce during maintenance. Recording the operating conditions can help. Note whether the problem occurs after many cycles, during humid weather, after nearby equipment starts, or only when a particular sensor is active.
Modern high speed door controllers may display fault codes, input status, cycle counts, motor warnings, and position information.
This information should be recorded before the system is reset or powered off. Resetting the controller may restore operation temporarily, but it can also remove the most useful diagnostic clue.
A fault code usually describes what the controller detected, not necessarily which component should be replaced.
A photocell fault may be caused by dirt, misalignment, broken wiring, sunlight, or a failed sensor. A motor overload may result from guide friction, a jammed brake, excessive curtain tension, or an actual motor problem.
Use the fault code as the starting point for inspection rather than treating it as a final diagnosis.
Most controllers allow technicians to see whether an opening or safety input is active.
If the radar input remains active, the door may stay open. If the safety edge input is active, the controller may refuse to close. If an emergency-stop circuit is open, none of the activation devices may work.
Checking input status can prevent unnecessary replacement of motors, sensors, and control boards.
A high speed door combines electrical power with fast-moving mechanical components. The work area should be separated from forklifts, pedestrians, and production traffic before inspection begins.
Only qualified personnel should remove motor covers, open electrical enclosures, adjust brakes, repair structural supports, or work on the drive system.
Radar sensors, induction loops, pull cords, remote controls, card readers, and building management systems may activate the door unexpectedly.
These inputs should be disabled or isolated before anyone works near the curtain, guide tracks, lower bar, shaft, or rigid panels. A door that appears inactive can still move as soon as a sensor detects traffic.
A safety input may be temporarily bypassed during controlled testing by qualified technicians, but the bypass must be removed before normal operation resumes.
Operating the door without working photocells, safety edges, or emergency stops may restore movement, but it creates a serious safety risk and does not solve the original fault.

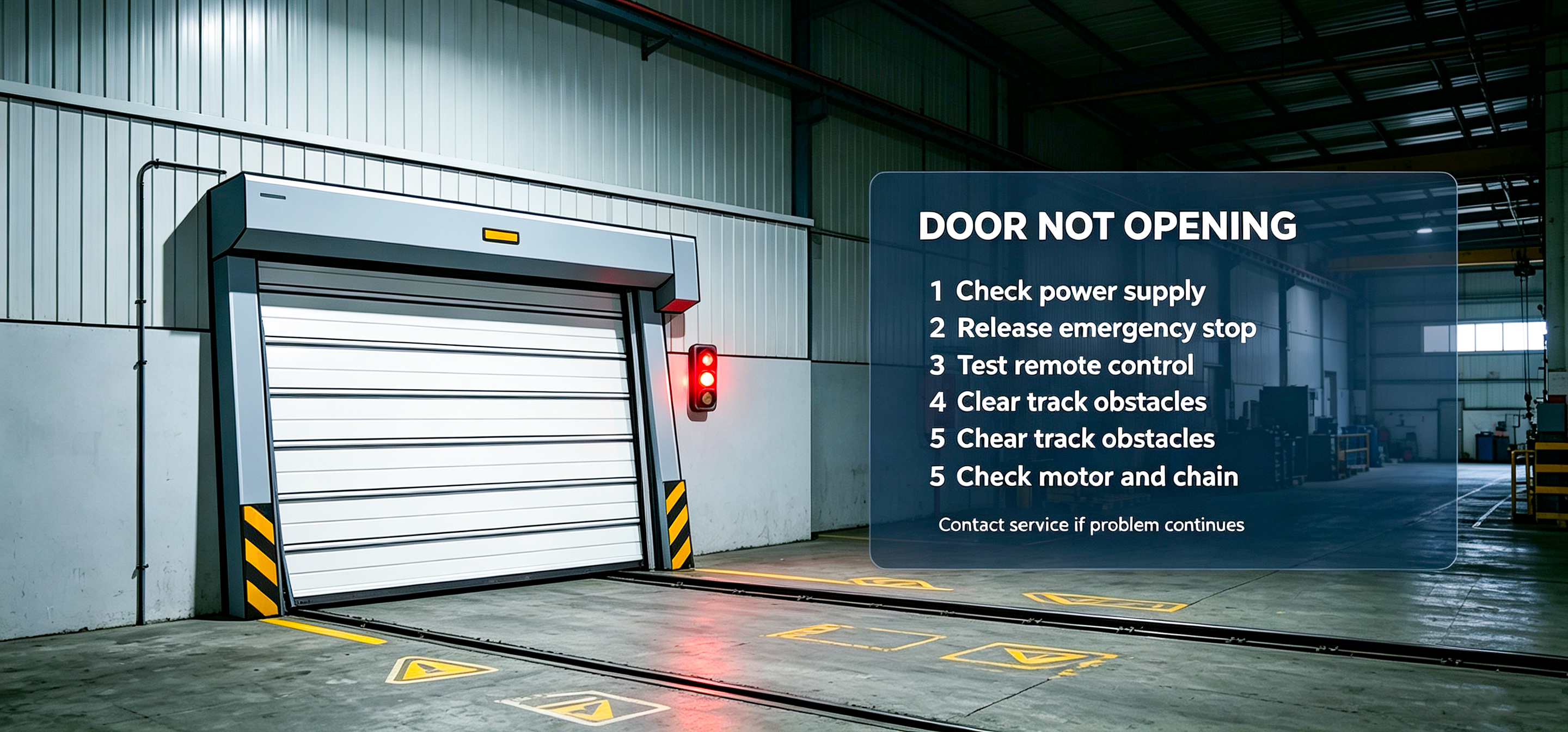

A door that does not open may have a power problem, emergency-stop condition, activation-device fault, controller issue, motor problem, brake fault, or mechanical blockage.
Begin with simple checks that do not require dismantling the equipment, then move toward the electrical and mechanical systems.
Confirm that the main isolator is switched on and that the control panel display is active. Check whether the emergency-stop button has been pressed or whether a breaker or overload device has tripped.
The facility’s voltage, phase, and frequency should also match the motor and controller requirements.
If the display and indicator lights are completely off, inspect the main supply, isolator, fuses, transformer, internal power supply, and incoming terminals.
A damaged controller is possible, but it should not be the first assumption. A loose cable, failed fuse, or tripped breaker can create the same symptom.
Electrical testing should be completed by qualified personnel using suitable equipment.
A breaker or overload device that trips repeatedly should not simply be reset each time.
Repeated tripping may indicate a short circuit, damaged motor cable, blocked drive system, motor overload, water inside the control box, or incorrect protection settings.
Each reset places the equipment under stress. The cause should be identified before the door returns to normal use.
A high speed door may be connected to several opening devices. Test the push button, pull cord, radar sensor, remote control, card reader, and induction loop separately.
This helps determine whether the whole door has failed or whether the problem is limited to one input.
If the push button opens the door but the radar does not, the motor, drive system, and main controller are probably functioning.
The fault is more likely related to the radar power supply, wiring, detection settings, relay output, or controller input. Cleaning and adjusting the radar may solve the issue without changing any major components.
If none of the activation methods work, check the power supply, emergency-stop circuit, controller status, motor circuit, and common safety logic.
It is unlikely that several independent opening devices failed at exactly the same time. A shared control condition is usually the more logical explanation.
The sound made after an opening command can help identify where the process stops.
A completely silent system may not be sending power to the motor. Humming, clicking, or struggling sounds suggest that the motor circuit is active but the mechanical system cannot move normally.
If the motor hums but the curtain remains still, stop sending repeated commands.
The brake may not be releasing, the gearbox may be jammed, the shaft may be blocked, or the curtain may be trapped in the guides. Continued operation can overheat the motor and damage the drive components.
The mechanical system should be inspected before the motor is replaced.
A brake that does not release can prevent the motor from moving the door. A damaged guide, frozen bottom seal, bent panel, or displaced curtain edge can create a similar symptom.
Inspect the complete movement path. Removing the obstruction may restore operation, but the affected guides, curtain, and drive components should still be checked for secondary damage.
When a high speed door opens normally but remains in the raised position, the problem is often related to a safety input, opening command, interlock, or control setting.
The controller is designed to keep the door open when it believes that a person, vehicle, or object is still in the passage.
Photocells normally include a transmitter and receiver installed across the opening. The receiver must maintain a stable signal for the controller to permit closing.
Dust, labels, packaging material, vibration, poor alignment, direct sunlight, and damaged brackets can interrupt this signal.
Clean both photocell lenses with a suitable material and remove any obstruction between them.
Check the indicator lights on the transmitter and receiver. A stable light normally indicates correct alignment, while flashing or changing indicators may show a weak or interrupted signal.
The sensor brackets should remain tight because even a small movement can interrupt the beam.
A photocell may appear aligned while the door is stationary but lose the signal when the frame vibrates during operation.
Direct sunlight, reflective surfaces, and nearby lighting can also affect some sensors. Observe the receiver indicator while the door and surrounding machinery are operating rather than testing only when everything is still.
The lower safety edge is intended to stop or reverse the door when it contacts an obstacle. It may communicate with the controller through a cable or wireless transmitter.
If the signal remains active, the controller may prevent closing even when nothing is beneath the door.
Wireless safety edges depend on stable communication between the moving transmitter and the receiver in the control system.
A weak battery may cause occasional faults before it fails completely. Cold temperatures can reduce battery performance further. Check the battery condition, receiver indicators, antenna position, and stored fault history.
A bent lower bar, damaged rubber profile, trapped debris, or uneven floor contact can keep the safety edge activated.
Inspect the complete bottom assembly rather than only the electrical signal. Physical damage may prevent the edge from returning to its normal position after contact.
The controller may be receiving a constant signal from radar, a push button, access control, or another connected system.
In this situation, the door is not failing to close. It is following the command to remain open.
A radar sensor may detect people walking beside the opening, forklifts travelling parallel to the door, moving machinery, rain, or nearby reflective surfaces.
Review the mounting angle, sensitivity, direction recognition, and detection distance. The opening zone should cover approaching traffic without reacting to unrelated movement.
A push button may look normal while its electrical contact remains closed. A card reader relay or building-management output may also remain active.
In an interlocked system, the door may wait for another door to close before it can move. Check the controller inputs and connected equipment before assuming the closing system has failed.
A door that begins moving but does not complete its cycle may be responding to guide resistance, sensor interruption, motor overload, panel damage, or incorrect position feedback.
The point where the door stops provides valuable information.
Guide tracks control the movement of the curtain or rigid panels. Dust, ice, labels, plastic fragments, bent sections, and poor alignment can create resistance.
A small obstruction may be enough for the controller to detect abnormal motor load and stop or reverse the door.
When the door repeatedly stops at exactly the same position, inspect the corresponding area of the guides and curtain.
Look for fresh scratches, folded fabric, bent metal, damaged zipper profiles, loose panel ends, and trapped debris. The visible fault code may relate to motor load, but the actual cause may be local guide resistance.
Some guide systems require a specific lubricant, while others are designed to operate dry.
Applying heavy grease to zipper guides or fabric-door tracks can collect dust and increase friction. Follow the maintenance requirements for the actual door design instead of assuming that every moving part needs lubrication.
The motor or drive system may stop when temperature, current, or operating load exceeds the permitted limit.
After the motor cools, the door may begin working again, making the problem appear temporary.
If the fault occurs mainly during busy periods, the motor may be reaching its thermal limit because the door is operating too frequently.
Review the number of cycles, automatic closing delay, sensor activation range, motor size, and ventilation around the drive unit. Unnecessary opening cycles can contribute significantly to overheating.
Guide friction, damaged curtain edges, brake drag, misalignment, and excessive tension can make a correctly sized motor work harder than expected.
Replacing the motor without correcting this resistance may cause the new motor to develop the same problem.
High speed doors may use encoders, limit switches, or motor feedback to determine where the curtain is located.
Incorrect feedback can cause the controller to stop, reverse, or display a position fault even when the mechanical movement appears normal.
Loose encoder couplings, damaged cables, moved limit switches, or unstable signals can cause inaccurate position information.
Inspect the mechanical connection between the encoder and shaft, as well as the wiring and mounting. A position setting that changes repeatedly usually indicates a deeper problem.
Reprogramming the opening and closing limits may restore operation temporarily, but it should not be used to hide mechanical movement.
If the curtain is crooked, the lower bar is tilted, or the shaft is slipping, correct those issues before resetting the controller positions.
A curtain that rises diagonally, wrinkles repeatedly, or comes out of the guides should not be treated as a minor appearance issue.
Uneven movement can damage the fabric, lifting system, lower bar, motor, and frame if the door continues operating.
Compare the movement on both sides of the door. The curtain should rise evenly and remain centered between the guides.
Differences in guide spacing, shaft level, curtain attachment, belt tension, or lower-bar condition can make one side move faster than the other.
Repeated diagonal folds usually indicate that the curtain is being pulled unevenly.
Inspect the curtain attachment to the shaft, guide alignment, lower-bar balance, and side clearances. Simply pulling the fabric straight by hand will not correct the cause.
A bent lower bar or uneven floor can cause one side of the curtain to reach the floor before the other.
This creates diagonal tension during closing and may activate the safety edge incorrectly. Check the floor level, bottom seal, lower-bar connections, and final stopping position.
A self-repairing zipper door is designed to reconnect after certain curtain impacts. However, the curtain should not repeatedly leave the guides during normal operation.
Frequent release indicates that the guide system, curtain edge, airflow, or alignment requires attention.
The zipper profile must enter the guide smoothly during the reset cycle.
Dust, labels, damaged plastic profiles, or small metal deformation can prevent correct entry. Clean the guide entrance carefully and check that the curtain edge has not stretched, torn, or changed shape.
Fans, air curtains, ventilation systems, and open loading bays can push flexible curtains sideways.
The problem may appear to be a weak curtain, but the real cause may be building pressure. Review the airflow before changing the guide or curtain specification.
Stacking doors rely on belts and wind bars, while spiral doors use rigid slats and precision tracks.
Uneven movement in either system can quickly affect several connected components.
Compare the lifting belts on both sides for stretching, wear, loose connections, and uneven tension.
Bent wind bars or damaged curtain pockets can prevent the curtain from folding correctly. Continued operation may twist the curtain and overload the lifting system.
Fresh scratches on aluminum slats often show where the panels are contacting the guides or upper spiral track.
Inspect track alignment, panel connections, end components, and structural supports. Replacing scratched slats without correcting the track will not prevent the damage from returning.
Unexpected operation may be caused by sensor detection, access-control signals, damaged wiring, remote-control interference, or controller faults.
Because uncommanded movement affects both safety and traffic flow, the door should be inspected promptly.
A sensor can begin behaving differently after changes to the surrounding environment, even when the sensor itself has not been replaced.
New machinery, reflective surfaces, ventilation, lighting, moving products, or changes to the traffic route can all affect detection.
Conveyors, fans, swinging materials, and vehicles moving beside the opening may enter the radar detection field.
Observe the sensor indicators while nearby equipment operates. Adjust the field only after identifying what movement is creating the signal.
Rain, snow, sunlight, moving branches, and reflections can trigger some exterior sensors.
The sensor should be suitable for outdoor use and mounted in a position that reduces direct exposure. Shielding or a different detection technology may be required in difficult locations.
Remote receivers, card readers, keypads, interlock relays, and building-management systems may send unexpected opening or closing signals.
The source of the command may be outside the local door controller.
During controlled troubleshooting, disconnect or disable individual inputs and observe whether the unexpected movement stops.
Testing one input at a time preserves the logic of the diagnosis. Changing several settings simultaneously may temporarily remove the symptom without revealing its source.
A central access-control panel may operate multiple entrances.
If several doors begin showing unusual behavior at the same time, investigate the shared system, communication network, or common power supply rather than inspecting each door separately.
Reduced speed and unusual noise are often early warnings of mechanical resistance, loose components, or drive-system wear.
Do not immediately increase the speed setting. The door may be slowing down because the controller is protecting the equipment.
Dirty guides, tight seals, bent tracks, or a brake that does not fully release can place constant resistance on the motor.
This can reduce speed, increase heat, and trigger overload faults.
Look for polished surfaces, fabric dust, scratches, damaged seals, and marks along the curtain edges or rigid panels.
These signs reveal where contact is occurring. Correct the alignment or damaged component before adjusting the operating speed.
A brake that partially releases can allow the door to move while still resisting the motor.
The door may become slower during repeated cycles, and the motor may overheat. Brake inspection and adjustment should be completed by qualified technicians.
Belts, chains, couplings, gearboxes, and control parameters all affect how quickly and smoothly the door moves.
A loose belt may reduce speed, while aggressive acceleration can create noise and vibration.
Belts should be checked for slipping, cracking, and correct tension. Couplings should remain tight and aligned.
An over-tightened belt can damage bearings, while a loose belt may cause delayed movement and inaccurate stopping.
The maximum possible speed may not be suitable for every door size or traffic condition.
The controller should provide smooth acceleration and deceleration. Excessive speed can increase curtain instability, frame vibration, and wear on the shaft, belts, and fasteners.
The timing of the sound can help identify its source.
A knock during starting may come from loose mounting. Continuous scraping usually indicates contact. A sharp sound during stopping may involve the brake or lower-bar impact.
Inspect motor brackets, shaft supports, frame fasteners, covers, couplings, and the brake.
These components experience the highest change in force during acceleration and deceleration. Loose hardware may remain quiet at full speed but move suddenly when the door starts or stops.
Continuous noise usually means that the curtain, panel, seal, belt, or lower bar is contacting another component.
Follow the sound through the complete cycle and look for fresh damage. Ignoring repeated contact can turn a minor alignment issue into a damaged curtain or track system.
A high speed door should open high enough for traffic and close gently against the floor.
Incorrect stopping positions can reduce clearance, create sealing gaps, or damage the lower bar and drive system.
A door that stops too low may interfere with forklifts, tall loads, or production equipment.
A door that travels too high may place excessive strain on the curtain, shaft, or upper track system.
Measure the tallest vehicle or load that uses the opening and confirm that the programmed open position provides safe clearance.
The door should not travel farther than necessary because additional movement increases cycle time and mechanical load.
If the open position gradually changes, inspect shaft couplings, belts, encoder connections, and mechanical fasteners.
Repeatedly reprogramming the position may hide a slipping component without correcting it.
The lower seal should meet the floor evenly without excessive force.
A door that stops too high leaves a gap, while a door that travels too low can strike the floor and overload the structure.
Many industrial floors are not perfectly level.
The bottom seal should accommodate moderate variation without forcing the lower bar into a tilted position. In severe cases, the floor condition or seal design may need to be modified.
The controller should reduce speed and stop the door smoothly.
Repeated impact against the floor can damage the lower seal, safety edge, curtain attachment, gearbox, brake, and frame.
Different high speed doors share similar motors, sensors, and control systems, but their curtain and track structures create different failure patterns.
Troubleshooting should reflect the actual door type instead of applying the same solution to every model.
PVC fabric doors commonly experience curtain tears, guide friction, lower-bar damage, and airflow-related movement.
Zipper doors add a self-repairing guide system that requires clean entrances and correctly shaped curtain edges.
Exhaust systems, air curtains, open loading docks, and temperature differences can push or pull the curtain.
If the curtain repeatedly moves sideways, inspect the airflow conditions before increasing fabric thickness or changing the guide system.
A zipper door can reconnect after certain impacts, but damaged edges, dirty guides, and poor alignment still require repair.
Repeatedly allowing the curtain to release and reset will eventually increase wear on the guide and curtain profile.
Stacking doors depend on balanced lifting belts and straight reinforcement bars. Spiral doors depend on rigid slats, precise tracks, and stable structural supports.
Both systems should be removed from service if movement becomes severely uneven.
A stacking curtain that lifts unevenly can twist and damage the belts. A spiral slat that contacts one side of the track can affect several connected panels.
Measure both sides and correct the source of imbalance rather than adjusting only the visibly affected component.
Heavy spiral doors require stable steel or building supports.
If the frame is mounted only to weak sandwich panels, movement and vibration can change the track alignment. Reinforcement should connect to the main building structure rather than only to the panel surface.
Cold storage doors can experience ice buildup, stiff curtains, heater faults, condensation, poor sealing, and unreliable wireless components.
Troubleshooting should include the temperature difference and moisture conditions around the opening.
Ice may result from damaged seals, failed heating cables, long opening times, or warm-air infiltration.
Removing the ice restores movement temporarily, but the fault will return unless the moisture and temperature source is corrected.
Wireless safety edges and sensors may lose performance at low temperatures.
Heating cables, control-box heaters, guide heaters, and batteries should be tested before the coldest operating period rather than after the door freezes.
Not every fault requires complete component replacement. However, repeated repairs are not always economical.
Consider the extent of damage, component age, spare-part availability, downtime, and condition of the surrounding system.
Small PVC cuts may be repairable when the surrounding fabric remains flexible and strong.
Large tears, damaged zipper edges, widespread cracking, or repeated old repairs may justify full curtain replacement.
A small tear can grow quickly during repeated rolling and unrolling.
The repaired area should remain smooth and flexible so it does not catch inside the guides or create a new tension point.
A dented spiral slat may look like a cosmetic issue, but its connecting profile may no longer move correctly.
Replace panels that affect the movement of adjacent slats, create repeated track contact, or prevent proper sealing.
Before replacing a sensor, complete basic cleaning, alignment, wiring, battery, and controller-input checks.
The fault may be caused by the installation condition rather than by the sensor itself.
A photocell repeatedly damaged by forklifts should be relocated or protected. A sensor repeatedly affected by water needs improved sealing or a better protection rating.
Replacing the same component without changing the environment leads to repeated failure.
Replacement sensors must match the voltage, output type, control logic, connector, and environmental requirements of the existing system.
A sensor that looks similar may not communicate correctly with the controller.
Major drive and control components may be repaired or replaced depending on local service support and parts availability.
The lowest component price is not always the lowest total cost when downtime is included.
A gearbox repair may cost less than a complete replacement but require a long wait for internal parts.
For a critical production entrance, replacing the complete drive unit may restore operation faster and reduce disruption.
Record speed, acceleration, deceleration, closing delay, sensor logic, position values, and interlock settings before replacing the controller.
A new control unit with factory settings will not automatically match the original installation.
A lasting repair should correct both the failed component and the operating conditions that caused the problem.
Traffic behavior, sensor placement, airflow, structural support, and control settings all influence long-term reliability.
Forklift routes should provide enough approach distance for the door to open safely.
Floor markings, mirrors, warning lights, speed limits, and protective posts can reduce vehicle impact and unnecessary opening cycles.
The radar should detect approaching vehicles early enough for smooth passage.
A detection field that extends too far may react to unrelated traffic, while one that is too short forces drivers to stop directly in front of the door.
Guide tracks, photocells, control boxes, and frame columns can be protected with barriers or bollards.
Protection should not block the safety beam, reduce the clear opening, or interfere with maintenance access.
Automatic closing time should reflect real traffic rather than using the same setting for every opening.
A simple fault history can also reveal patterns that are not obvious from one isolated incident.
A delay that is too short may close the door between closely spaced vehicles. A delay that is too long increases air exchange and leaves the opening exposed.
Observe real traffic before changing the timer.
Record the date, fault code, door position, operating conditions, repair, and replaced components.
If the same problem keeps returning, investigate alignment, moisture, impact exposure, vibration, airflow, and control logic rather than replacing the same part again.
Basic cleaning and visual checks may be completed by trained facility personnel. Structural repairs, electrical testing, brake adjustment, motor work, and controller replacement should be handled by qualified technicians.
The door should be taken out of automatic service when movement or safety response becomes unpredictable.
Bent frames, damaged anchors, gearbox leakage, motor overheating, brake faults, and severe curtain imbalance require professional inspection.
These problems can affect the door structure as well as surrounding equipment and traffic.
A forklift collision may move the guides, frame, anchors, curtain, sensors, and motor alignment even when the door still operates.
Successful movement does not confirm that the structure is safe. The complete opening should be measured and tested before normal traffic resumes.
Smoke, melted wiring, burning smells, or repeated overload trips should never be treated with repeated resets.
Disconnect the power and investigate the motor, wiring, brake, controller, and mechanical load before restarting the door.
Unreliable photocells, safety edges, light curtains, emergency stops, and reversal functions should receive immediate attention.
The door should not remain in automatic operation when the safety response is uncertain.
A bypass may be used briefly during controlled diagnosis, but it must never remain active during normal use.
Restoring door movement without restoring safety protection is not a completed repair.
After repairs, test the door through several complete cycles.
Confirm opening, closing, deceleration, stopping, reversal, emergency stop, sensor response, automatic closing, and final positions before returning the door to normal operation.
A high speed door fault should be diagnosed from the symptom rather than by replacing the most obvious component.
Check the controller inputs, safety devices, guide condition, curtain movement, motor load, and position feedback in a logical sequence. When the original cause is corrected—not simply reset—the door can return to reliable operation with fewer repeated faults and unnecessary repairs.
