Industrial air curtains are widely used at warehouse entrances, loading areas, factories, food processing facilities, and temperature-controlled environments to reduce air exchange, dust infiltration, and insect entry.
However, during actual operation, some users may find that the air curtain does not perform as expected:
Outdoor wind still enters the building
Dust passes through the entrance
Temperature separation is not effective
Airflow feels weak or uneven
One side of the doorway performs better than the other side
When these problems occur, the solution is not always replacing the equipment. In many cases, the issue is related to installation conditions, airflow direction, door size matching, or building pressure differences.
A professional industrial air curtain troubleshooting process should check the complete system, including:
Air curtain coverage width
Installation height
Airflow direction
Outdoor wind conditions
Indoor and outdoor pressure balance
Equipment operation status
An air curtain works by creating a controlled airflow across the opening to reduce the movement of outside air and contaminants. Its performance depends not only on the unit itself but also on the surrounding environment.
One of the most common complaints is that the air curtain is running, but strong outdoor wind still enters the warehouse.
The airflow generated by an air curtain needs to cover the entire opening area.
If the air curtain width is smaller than the door width:
Airflow cannot reach both sides of the entrance
Open gaps appear at the edges
Outside air enters through uncovered areas
For example:
A 5-meter-wide warehouse entrance installed with a 3-meter air curtain will leave side areas without effective airflow protection.
The first troubleshooting step is to confirm:
Actual door width
Air curtain discharge width
Number of units installed
Whether multiple units are required
Door height directly affects airflow performance.
A higher opening requires stronger airflow because the air stream must travel a longer distance before reaching the floor.
Common issues include:
Standard air curtain installed on a high industrial door
Insufficient air velocity at floor level
Weak airflow penetration
For large warehouse openings, the air curtain model should match the actual installation height rather than only the door width.

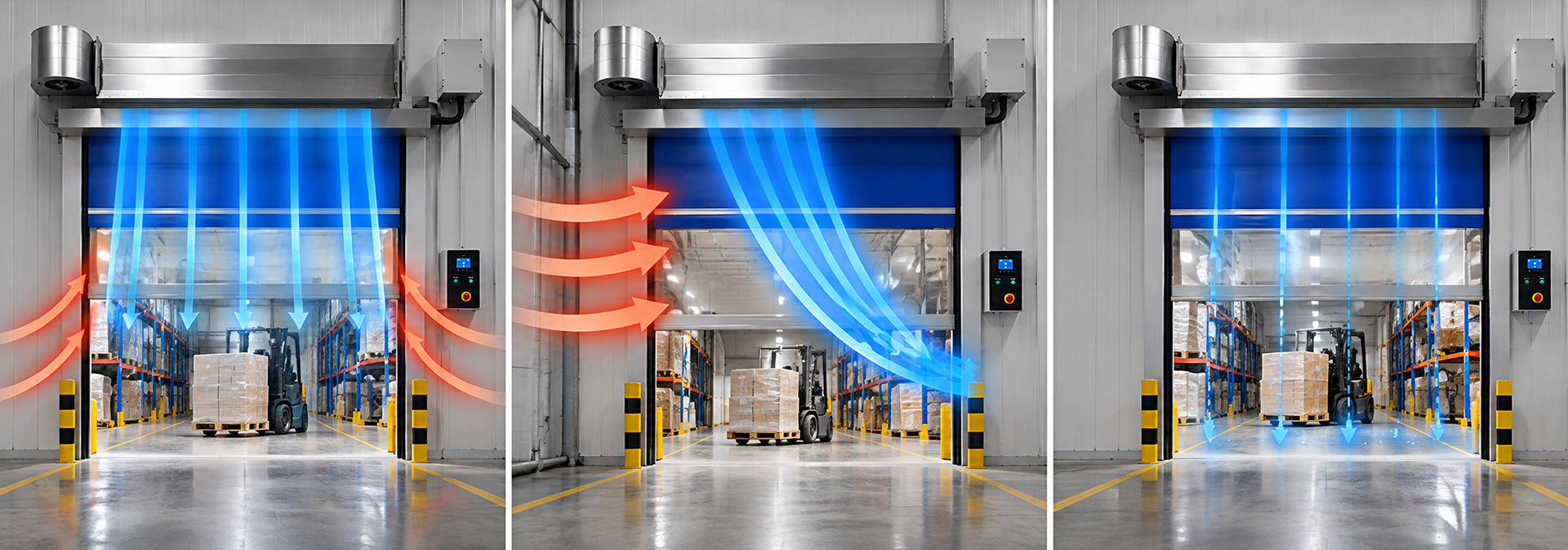

Outdoor wind is one of the biggest challenges for industrial air curtains.
When crosswind enters from one side:
The air stream is pushed away from the opening
One side becomes weaker
Dust and outdoor air can enter from the windward side
This situation is common in:
Open loading docks
Coastal warehouses
Factory entrances facing large open areas
For exposed entrances, troubleshooting should include checking wind direction and whether additional protection is required.
The installation location directly affects airflow distribution.
Common installation problems include:
Unit mounted too far away from the doorway
Incorrect mounting angle
Obstructions near the air outlet
Uneven installation across the opening
A properly installed air curtain should create a continuous airflow layer covering the entire entrance.
The airflow direction should be adjusted according to the actual site condition.
If the airflow is directed incorrectly:
The air stream may escape outside
Indoor air may be pushed unnecessarily
Protection efficiency decreases
For example, in a windy external entrance, the airflow angle may need adjustment to better resist outdoor air movement.
Large industrial entrances often require several air curtain units working together.
Incorrect installation may create:
Airflow gaps between units
Different airflow strengths
Weak areas across the doorway
When multiple units are installed, check:
Alignment between units
Consistent airflow direction
Complete width coverage

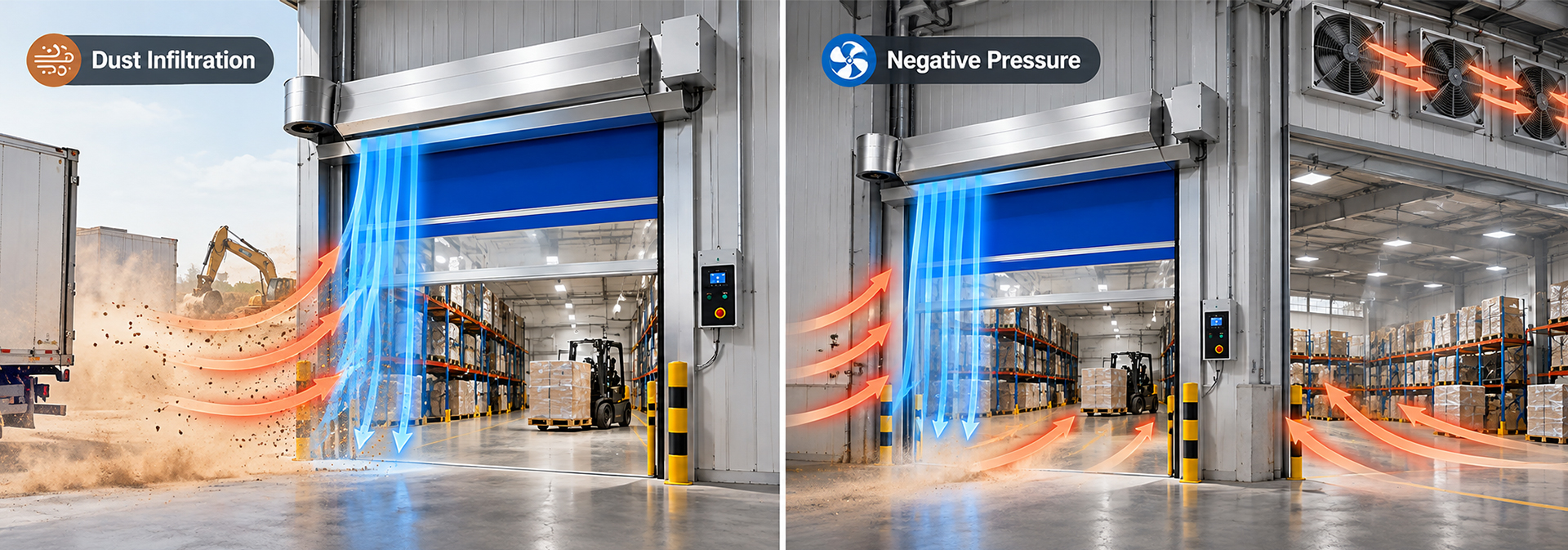

An air curtain can reduce dust entering through an open doorway, but it is not a complete filtration system.
If the environment has:
Heavy outdoor dust
Construction activity nearby
Frequent vehicle movement
additional solutions may be required.
Possible combinations include:
High speed doors
PVC strip curtains
Enclosed loading areas
Indoor pressure has a major influence on air curtain performance.
Negative pressure inside the building can continuously pull outdoor air inward, making it difficult for the air curtain to maintain separation.
Typical causes include:
Large exhaust systems
Insufficient fresh air supply
Manufacturing ventilation systems
In negative-pressure buildings:
Airflow adjustment alone may not solve the problem
Ventilation balance should also be reviewed
Air curtains generally perform best when pressure differences between indoor and outdoor areas are controlled.
Large temperature differences create stronger air movement through an open doorway.
Examples:

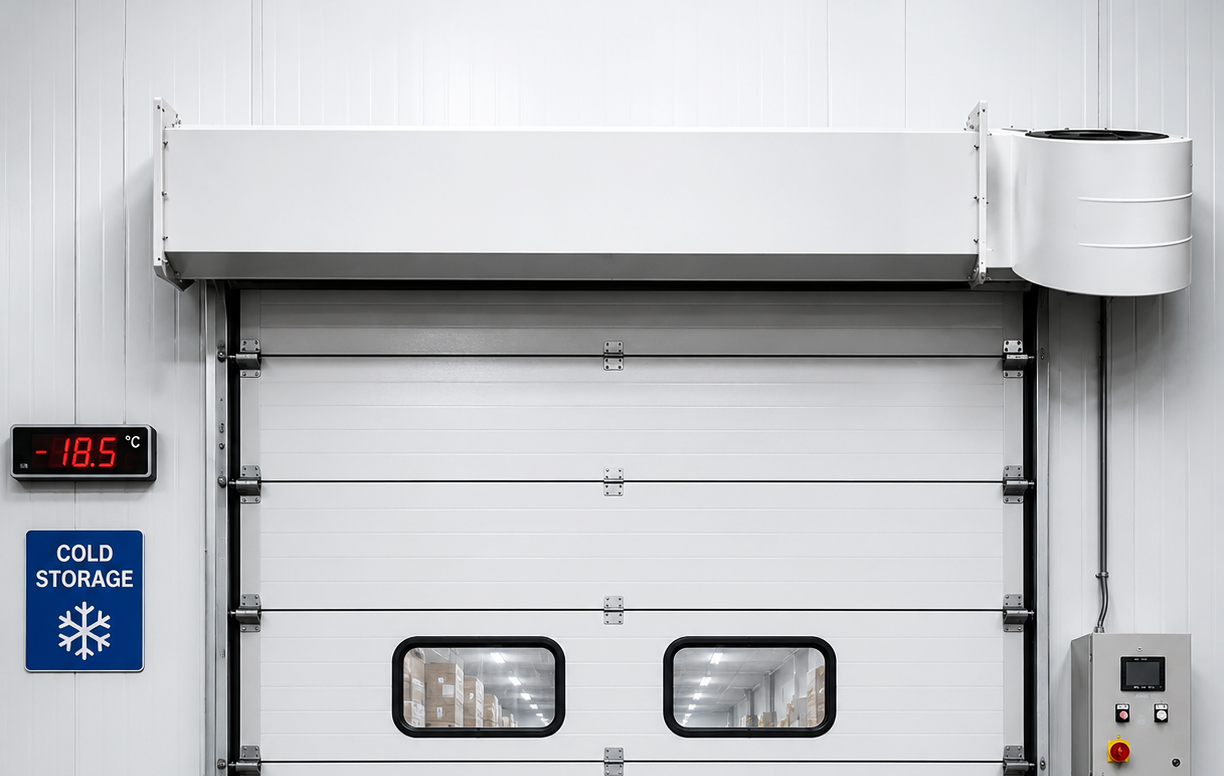

Cold storage room versus outdoor environment
Air-conditioned warehouse versus hot outdoor area
The greater the temperature difference, the more difficult it becomes for an air curtain alone to maintain separation.
A common misunderstanding is expecting an air curtain to provide the same performance as a physical industrial door.
An air curtain can help reduce air exchange when an entrance remains open, but it cannot provide:
Complete sealing
Thermal insulation
Security protection
For applications requiring strong temperature control, the recommended solution is usually:
Cold storage high speed door
Insulated industrial door
Air curtain as additional protection
Before changing equipment, confirm:
Inspection Item | Check Point |
|---|---|
Door Width | Does the air curtain cover the full opening? |
Door Height | Is airflow strong enough for the installation height? |
Opening Type | Personnel door, forklift door, loading dock? |
Traffic Frequency | Is the system suitable for daily operation cycles? |
Review:
Mounting height
Distance from doorway
Air outlet angle
Unit alignment
Air inlet blockage
The air inlet and outlet should remain clear because airflow obstruction can reduce performance.
Confirm:
Outdoor wind direction
Indoor pressure balance
Nearby exhaust systems
Temperature difference
Dust source
Many air curtain performance issues are caused by site conditions rather than equipment failure.
Even when the selected air curtain model is suitable, incorrect installation can significantly reduce its performance.
Common installation-related problems include:
Airflow not reaching the floor
Uneven airflow across the doorway
Wind entering from side gaps
Weak protection against dust and temperature exchange
Before replacing the equipment, a practical site inspection should be completed to verify whether the installation conditions meet the required performance standards.
The following checklist can help identify common installation problems and improve industrial air curtain operation.
The mounting height directly affects how effectively the airflow reaches the bottom of the doorway.
During inspection, check:
Distance from the air outlet to the floor
Distance from the unit to the door frame
Whether the installation height matches the selected model
If the air curtain is installed too high:
Air velocity decreases before reaching the floor
The airflow barrier becomes weaker
Outdoor air can pass underneath the airflow layer
For large warehouse entrances, the installation height should be evaluated together with:
Door height
Required airflow velocity
Outdoor wind conditions
The installation height should follow the product technical specifications.
If the actual installation height exceeds the recommended range:
A higher-capacity model may be required
Additional units may be needed
The installation position may need adjustment
A correct mounting height ensures that the airflow covers the complete opening instead of only the upper section.
The air curtain should be installed horizontally and aligned with the entrance.
During inspection, check:
Whether the unit is level
Whether the outlet direction is parallel with the doorway
Whether multiple units are installed in the same line
Incorrect alignment may cause:
Uneven airflow distribution
Strong airflow on one side
Weak airflow on the opposite side
For wide industrial openings requiring multiple air curtains:
Confirm that:
Units are installed at the same height
Air outlets are aligned continuously
No gaps exist between adjacent units
Poor alignment can create weak airflow zones where outdoor air enters easily.
The outlet angle should be adjusted according to the actual site conditions.
During inspection, check:
Airflow direction at the doorway
Whether airflow reaches the floor area
Whether outdoor wind changes the airflow path
For normal indoor applications:
The airflow should generally create a stable barrier directly across the opening.
For outdoor-facing entrances:
The airflow may require adjustment to better resist external wind pressure.
The airflow should be checked when:
The warehouse door is open
Forklifts are passing through
Outdoor wind is present
A simple airflow test can identify whether:
The air stream is pushed outside
The airflow is too vertical
The airflow cannot cover the entrance
The air curtain requires sufficient air circulation to maintain designed performance.
Check whether there are:
Ceiling structures blocking airflow
Pipes or cables near the outlet
Dust accumulation on the air inlet
Nearby equipment affecting airflow
Blocked airflow can cause:
Reduced air velocity
Uneven airflow
Increased fan load
The area below and around the air curtain should remain unobstructed.
Avoid placing:
Storage racks
Signs
Equipment
Materials
directly in the airflow path.
A clear airflow path helps maintain a stable air barrier.
The air curtain should cover the entire width of the entrance.
During inspection, measure:
Door opening width
Air curtain discharge width
Left and right side coverage
If side gaps exist:
Outdoor air can enter around the edges
Dust protection becomes weaker
Temperature separation decreases
For wide entrances, multiple air curtain units may be required to eliminate uncovered areas.
Sometimes the air curtain width is correct, but side leakage still occurs because of:
Uneven wall surfaces
Large gaps between door frame and structure
Open side areas near the entrance
In these situations, additional sealing solutions may be considered, such as:
Side panels
Physical doors
PVC strip curtains
Inspection Item | Check Method | Possible Problem | Recommended Action |
|---|---|---|---|
Mounting Height | Measure distance from outlet to floor | Weak airflow at floor level | Adjust height or select suitable model |
Unit Alignment | Check horizontal position and outlet direction | Uneven airflow | Reinstall and align the unit |
Outlet Angle | Observe airflow direction | Wind pushes airflow away | Adjust outlet angle |
Air Inlet Condition | Check for dust or blockage | Reduced airflow volume | Clean and remove obstacles |
Airflow Path | Inspect area below outlet | Airflow blocked | Remove nearby objects |
Side Coverage | Compare opening width and airflow width | Wind enters from edges | Increase coverage or add units |
Multiple Unit Connection | Check alignment between units | Airflow gaps | Reposition units |
After installation adjustment, the system should be tested under actual working conditions.
The final inspection should include:
Air curtain operation test
Door opening condition test
Forklift traffic test
Outdoor wind condition observation
Dust or airflow visualization test
A properly installed industrial air curtain should create:
Continuous airflow coverage
Stable air separation
Minimal side leakage
Effective reduction of outdoor air movement
Regular inspection after installation can also help maintain performance and identify problems before they affect warehouse operation.
A simple airflow test can help identify problems.
Common methods include:
Smoke testing
Light fabric strips
Airflow visualization tools
These tests can show:
Whether airflow reaches the floor
Whether crosswind affects the barrier
Whether gaps exist at both sides
For professional evaluation, check:
Air velocity distribution
Coverage across the opening
Difference between left and right sides
A good airflow pattern should be:
Continuous
Even
Stable during operation
The equipment is suitable but performance is affected by installation.
Typical solutions:
Adjust airflow direction
Correct mounting position
Remove airflow obstacles
Improve sealing around the opening
The application exceeds the capability of an air curtain.
Examples:
Very large external openings
Strong wind exposure
Extreme temperature requirements
Strict hygiene requirements
In these cases, consider:
High speed doors
Dock systems
Combination solutions
Problem | Possible Cause | Recommended Action |
|---|---|---|
Wind enters from both sides | Air curtain width insufficient | Increase coverage width or add units |
Wind enters from one side | Crosswind influence | Adjust airflow direction or improve entrance protection |
Dust enters warehouse | Negative pressure or strong outdoor dust | Check ventilation and combine with physical doors |
Weak airflow at floor level | Installation height too high | Select stronger model or adjust installation |
Poor temperature separation | Air curtain used alone | Add high speed door or insulated door |
Uneven airflow | Incorrect installation | Recheck mounting and alignment |
A successful installation starts with understanding:
Door dimensions
Environmental exposure
Wind conditions
Building ventilation
Temperature requirements
Selecting equipment without considering these factors often leads to poor results.
For many industrial applications, the best solution is not using an air curtain alone.
Examples:
Suitable for:
Loading docks
Cold storage
Food processing
Benefits:
Better sealing
Reduced energy loss
Faster operation
Suitable for:
Internal warehouse separation
Dust control areas
Benefits:
Additional physical barrier
Lower operating cost
When an industrial air curtain cannot effectively block wind, dust, or temperature exchange, the problem is usually related to matching, installation, or environmental conditions.
The troubleshooting process should focus on:
Coverage width
Installation height
Airflow direction
Crosswind influence
Indoor pressure balance
An air curtain is an effective solution for reducing air infiltration and maintaining comfortable working conditions, but it must be correctly selected and installed according to the actual site.
By combining proper equipment selection with field inspection and airflow testing, warehouses and industrial facilities can achieve better performance, lower energy loss, and a more stable operating environment.
