Automotive manufacturing facilities depend on continuous material movement, controlled production environments, and efficient logistics operations. From receiving raw materials and components to moving parts between production areas and shipping finished products, every entrance and loading area can affect the overall workflow of the plant.
For this reason, industrial doors and loading dock equipment should not be considered as separate building accessories. They are part of the facility's material handling and logistics system.
A properly planned solution may combine high speed doors, industrial sectional doors, dock levelers, dock shelters, dock seals, vehicle restraint systems, and safety controls according to the requirements of different areas.
The right combination can help improve traffic flow, reduce unnecessary air exchange, support forklift operations, protect loading areas from weather conditions, and create a more organized connection between the warehouse and delivery vehicles.
This guide explains how to select and combine industrial door and loading dock solutions for automotive manufacturing facilities.
Automotive plants usually operate very differently from standard warehouses.
A typical facility may include:
Component receiving areas
Raw material warehouses
Stamping and machining areas
Welding workshops
Painting and coating areas
Assembly lines
Parts storage areas
Quality inspection zones
Maintenance workshops
Logistics warehouses
Finished goods shipping areas
Each area has different requirements for traffic frequency, opening size, environmental separation, insulation, safety, and loading operations.
Using the same type of industrial door throughout the entire plant is therefore rarely the most practical solution.
Production facilities may have frequent movement of:
Forklifts
Automated guided vehicles
Material handling carts
Employees
Components
Packaging materials
Delivery vehicles
Internal passages generally require fast opening and closing, while external warehouse entrances may require better insulation, structural strength, and sealing performance.
Selecting the door according to the actual traffic pattern helps improve daily operations.
Automotive production facilities often contain different operational zones.
Dust, temperature differences, wind, noise, and outside air can move between areas when doors remain open for unnecessary periods.
High speed doors can help reduce the amount of time an opening remains exposed during normal traffic.
This makes them suitable for separating areas with different operating conditions.
Automotive manufacturing depends heavily on inbound components and outbound logistics.
The loading dock is the point where warehouse operations connect with trucks.
A properly configured loading dock solution can include:
Dock levelers
Dock shelters
Dock seals
Dock bumpers
Vehicle restraint systems
Signal lights
Safety devices
Industrial doors
Instead of selecting each product independently, the loading bay should be considered as one complete operating system.

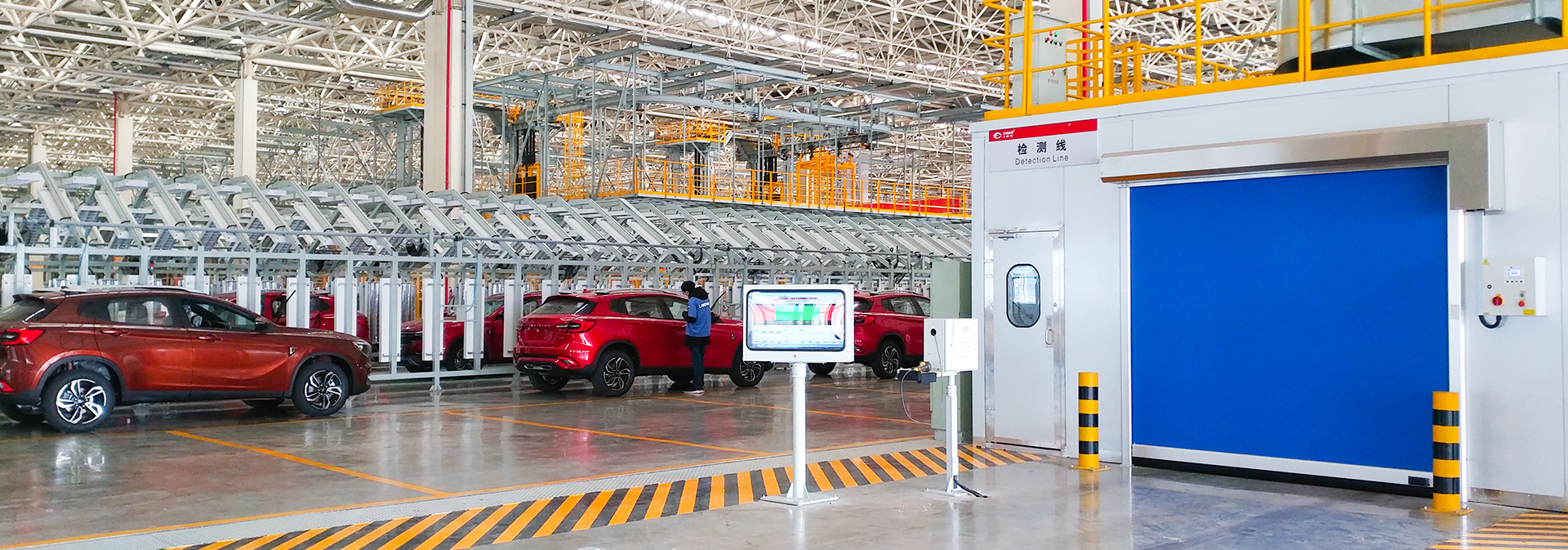

High speed doors are commonly used inside automotive plants where frequent vehicle or personnel movement requires rapid access between different work zones.
Unlike conventional industrial doors that may remain open for longer periods, high speed doors are designed for faster opening and closing.
This helps maintain smoother traffic flow while reducing unnecessary exposure between two areas.
Different manufacturing processes may require separation even when materials move regularly between them.
High speed doors can be installed between:
Production workshops
Assembly areas
Component warehouses
Packaging areas
Inspection zones
Internal logistics corridors
Forklifts and material handling equipment may pass through the same doorway hundreds of times during production operations.
A slow-moving door can create waiting time and traffic congestion.
High speed doors allow the opening to become accessible quickly and close soon after the vehicle passes.
Opening methods can include:
Radar sensors
Loop detectors
Pull cords
Remote controls
Push buttons
Access control systems
The activation method should be selected according to the type of traffic and the layout around the doorway.
Fast closing also helps limit the movement of:
Dust
Wind
Outside air
Heat
Cold air
This can be particularly useful when two production zones have different operating conditions.
However, door speed alone should not determine the final selection. Opening dimensions, wind conditions, operating frequency, temperature, and traffic type should all be evaluated.

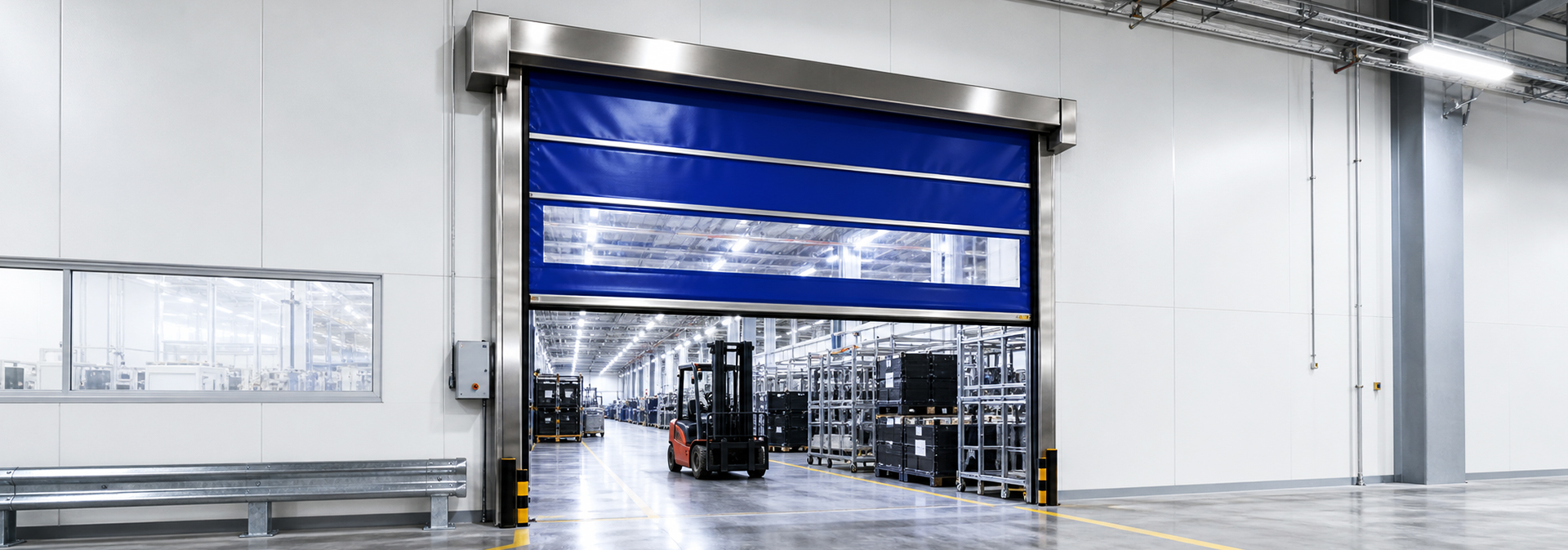

PVC high speed doors are a practical option for many interior openings in automotive manufacturing facilities.
They are commonly installed where frequent access is required but heavy exterior wind resistance is not the main requirement.
PVC high speed doors can be used for:
Internal logistics passages
Assembly areas
Component warehouses
Packaging areas
Production support zones
Material transfer passages
The flexible curtain allows the door to operate quickly while maintaining a lightweight structure.
Vision windows may also be integrated into the curtain to improve visibility between two sides of the opening.
For forklift traffic areas, improved visibility can help operators identify approaching vehicles or personnel before entering the doorway.
In areas where forklifts frequently pass through the opening, accidental contact with the curtain may occur.
A self-repairing high speed door, also known as a zipper high speed door, uses a curtain and guide structure designed to allow the curtain to return to the guide after certain types of impact.
This can reduce downtime caused by minor curtain displacement.
The final door configuration should still be selected according to opening size, wind pressure, installation location, and operating environment.
Not every high speed door application is located inside the building.
Larger entrances exposed to stronger air pressure may require a more stable curtain structure.

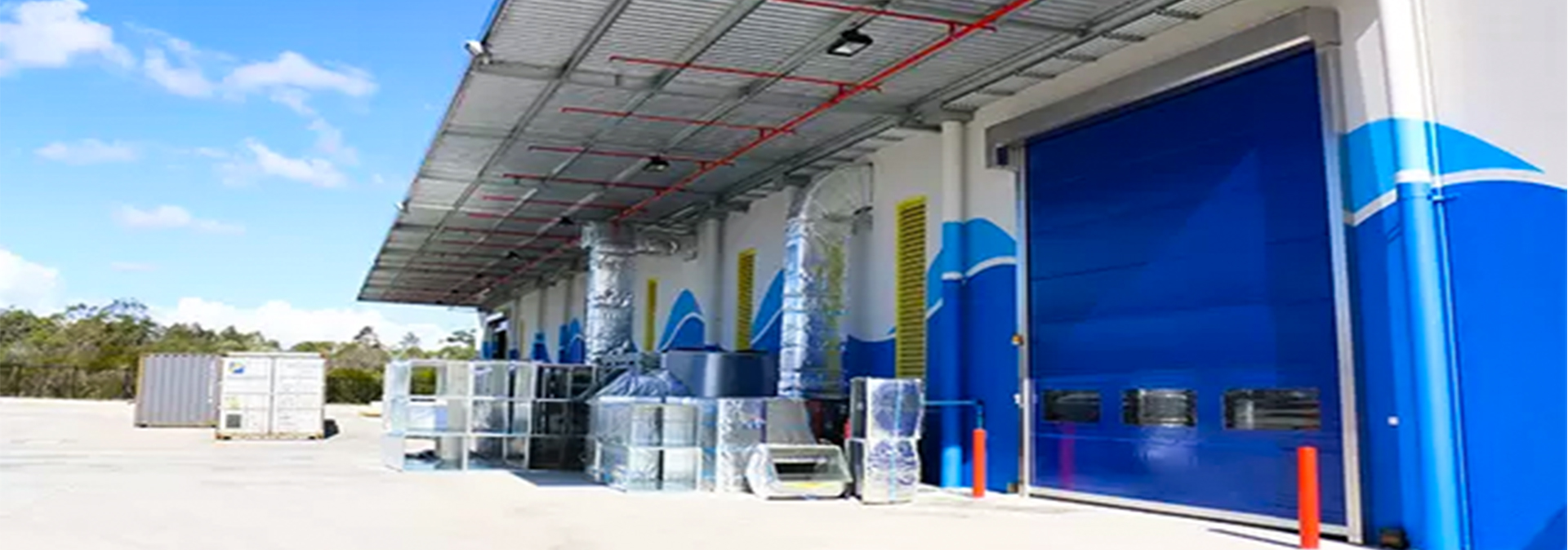

A high speed stacking door uses a folding or stacking lifting method combined with reinforcement elements to provide better stability for larger openings.
Typical applications may include:
Large workshop entrances
Logistics passages
Exterior production entrances
Warehouses
Large vehicle access points
Large openings create greater loads on the curtain, particularly when the entrance is exposed to wind.
For these applications, opening dimensions and local wind conditions should be reviewed before the door structure is selected.
A stacking design can provide an alternative when a standard lightweight interior high speed door is not appropriate.
Some automotive manufacturing facilities require a door that combines fast operation with a rigid door structure.
A high speed spiral door uses rigid insulated slats or panels rather than a flexible PVC curtain.
This makes it suitable for selected exterior entrances where insulation, appearance, structural stability, and faster operation are important.
High speed spiral doors can be considered for:
Main production entrances
High-value workshop entrances
Exterior logistics passages
Temperature-controlled production areas
Equipment access areas
The rigid door curtain provides more structural stability than a flexible fabric door.
Depending on the configuration, insulated sections can also help reduce heat transfer through the door opening when the door is closed.
Because spiral doors have different structural and installation requirements from flexible high speed doors, available headroom, side room, wall structure, door weight, and motor position should be confirmed during project planning.
Not every entrance requires high speed operation.
For warehouse entrances, maintenance buildings, workshops, and other exterior openings, industrial sectional doors can provide a practical combination of insulation, sealing, structural stability, and space utilization.
The door opens vertically and travels along tracks inside the building.
Industrial sectional doors can be used for:
Spare parts warehouses
Component storage areas
Maintenance workshops
Utility buildings
Logistics warehouses
Vehicle service areas
Insulated sectional door panels help reduce heat transfer between indoor and outdoor environments.
Panel thickness can be selected according to project requirements.
For facilities where indoor temperature stability is important, insulation performance should be evaluated together with:
Wall insulation
Roof insulation
Door opening frequency
Local climate
Building ventilation
The door should be treated as one part of the overall building envelope rather than as an isolated component.
Industrial buildings do not always have the same amount of headroom above an opening.
Depending on the building structure, sectional doors can use different track arrangements.
The correct configuration should be determined after reviewing:
Opening width
Opening height
Available headroom
Side room
Ceiling height
Roof structure
Pipes and utilities above the opening
This allows the door system to make better use of available building space.

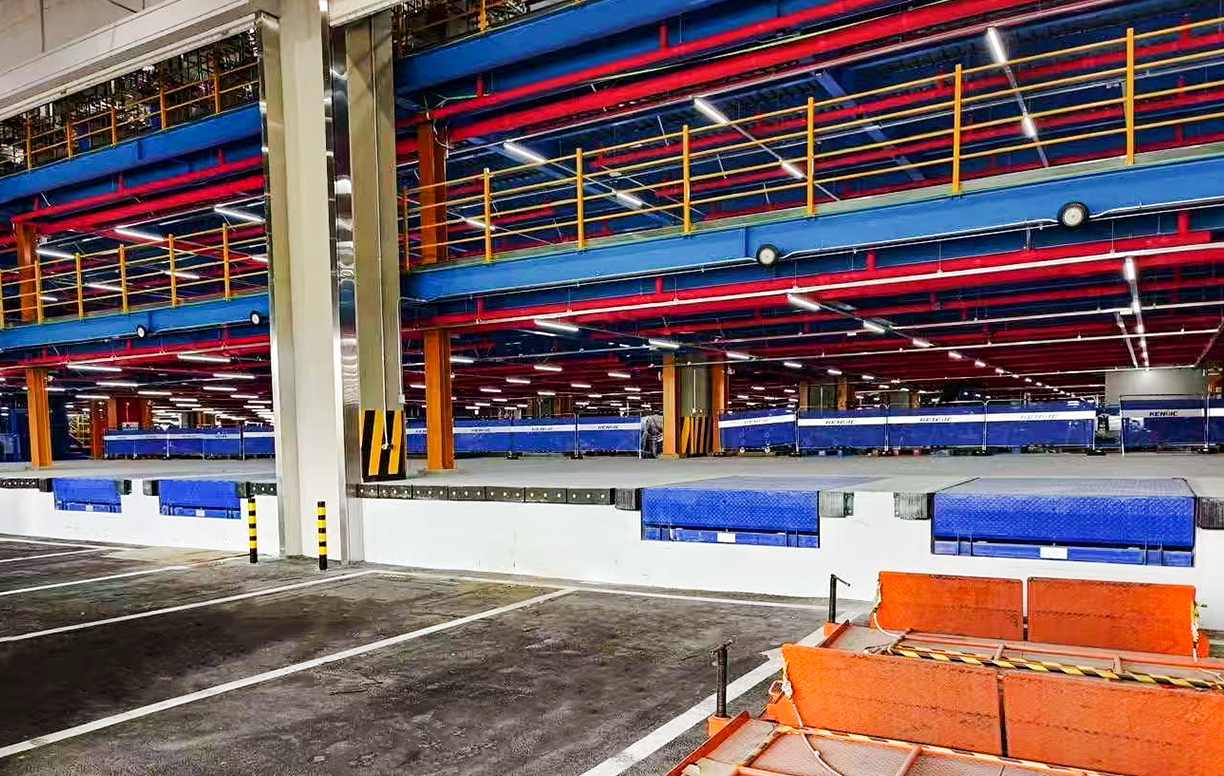

The loading dock plays an essential role in automotive manufacturing logistics.
Components may arrive from multiple suppliers throughout the day, while finished products or packaged parts need to leave the facility according to production and delivery schedules.
An efficient loading dock must allow forklifts and material handling equipment to move between the warehouse and vehicles with a stable transition.
A complete loading dock solution may include several pieces of equipment working together.

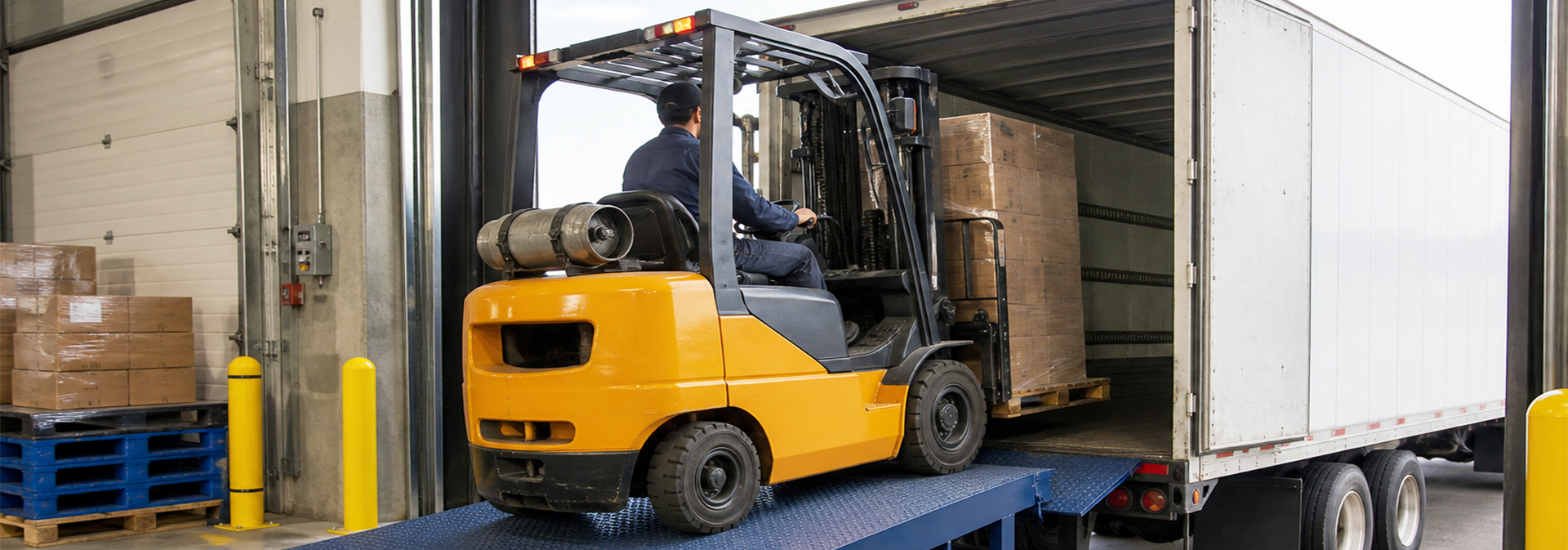

A hydraulic dock leveler bridges the height difference and gap between the warehouse platform and the truck bed.
When the truck is positioned at the loading bay, the platform rises and the lip extends or rotates onto the vehicle bed, creating a transition surface for material handling equipment.
Automotive components can be heavy, bulky, or transported in specialized packaging.
Forklifts frequently move pallets and component containers between trailers and warehouses.
A suitable dock leveler helps create a smoother transition between the two surfaces.
Before choosing a dock leveler, consider:
Rated load capacity
Forklift weight
Maximum transported load
Truck bed height range
Dock platform height
Platform dimensions
Lip length
Frequency of operation
Loading direction
Pit dimensions
The correct load capacity should be based on actual operating conditions rather than only the weight of the goods being transported.
The weight and movement of the forklift and load should both be considered during equipment selection.
A telescopic dock leveler uses an extendable lip rather than a conventional hinged lip.
The operator can extend the lip toward the truck bed, allowing more control over the contact position.
Telescopic dock levelers can be useful when:
Different vehicle types use the same dock
Precise lip positioning is required
Truck bed positions vary
Loads are positioned close to the rear of the trailer
Loading operations require greater control over the bridging area
The telescopic lip can be extended according to the position of the truck.
This provides more flexibility when the loading bay serves multiple types of delivery vehicles.
For automotive facilities receiving parts from different suppliers, this flexibility may help accommodate variations in truck configuration.
Certain automotive facilities may require better environmental separation between the warehouse and outside loading area.
A vertical dock leveler is stored in an upright position inside the building when it is not being used.
Because the leveler is stored vertically, the loading dock door can remain closed closer to the building opening until loading operations begin.
Vertical dock levelers may be considered for:
Temperature-controlled warehouses
Clean storage environments
Facilities requiring improved dock sealing
High-value component warehouses
Areas where outside exposure should be reduced
Final equipment selection should consider the operating sequence of the dock door, vehicle positioning, leveler, and safety system.
Even when a truck is correctly positioned at the loading dock, gaps remain between the vehicle and the building.
A dock shelter or dock seal helps reduce the open space around the truck during loading and unloading.
A properly selected system can help reduce the entry of:
Rain
Wind
Dust
Outside air
It can also improve working conditions around the loading area.
Mechanical dock shelters use flexible side and top curtains that contact the vehicle when it reverses into the dock.
Because the curtains can adapt to different truck body sizes, mechanical dock shelters are commonly used where multiple types of vehicles use the same loading bay.
Vehicle width, height, dock opening dimensions, and platform height should be checked before the shelter dimensions are confirmed.
Inflatable dock shelters use air-filled cushions around the truck after it has reached the loading position.
Inflatable systems can provide closer contact around the vehicle and may be suitable for facilities where environmental separation is more important.
Truck height range is particularly important.
If vehicle heights vary significantly, the required inflation range should be evaluated carefully to ensure the system can accommodate the actual fleet.
Loading dock operations involve forklifts, trucks, equipment, and personnel working in the same area.
For this reason, safety should be considered as part of the dock system design rather than as an additional accessory.
A vehicle restraint system can help secure a trailer in position during loading and unloading.
Unexpected truck movement can create a dangerous gap between the trailer and dock.
Vehicle restraint systems, wheel restraint methods, communication procedures, and signal systems can be incorporated according to the site's loading dock safety strategy.
A loading dock system can also integrate:
Interior signal lights
Exterior traffic lights
Dock leveler controls
Door controls
Vehicle restraints
Sensors
The operating sequence can be designed so that each stage of the loading process is clearly communicated to warehouse operators and drivers.
Specific safety procedures should always follow the equipment manufacturer's instructions, site risk assessment, and applicable local regulations.
The greatest operational benefit often comes from planning the entire loading bay as one system.
Instead of purchasing a dock door, leveler, shelter, and safety equipment independently, the components should be reviewed together.
A typical automotive warehouse loading bay may include:
Industrial sectional door
Hydraulic or telescopic dock leveler
Mechanical or inflatable dock shelter
Dock bumpers
Vehicle restraint system
Traffic lights
Safety controls
For example, an operating sequence may be designed around the following process:
Truck arrives → vehicle is correctly positioned → vehicle is secured → dock door opens → dock leveler connects to trailer → loading begins → loading finishes → leveler returns → door closes → vehicle is released.
The actual sequence should be customized according to equipment configuration and the facility's safety procedures.
This integrated approach can create a more organized loading process and reduce operational conflicts between different pieces of equipment.
Selecting the correct door begins with understanding how the opening will actually be used.
Determine whether the door is used for:
Internal area separation
Exterior building access
Forklift traffic
Employee traffic
Large vehicle access
Temperature-controlled areas
Warehouse loading bays
Interior and exterior doors experience different operating conditions.
Exterior openings may require greater attention to:
Wind pressure
Rain exposure
Temperature
Structural strength
Sealing
Interior openings may prioritize fast movement, traffic efficiency, and area separation.
Provide:
Opening width
Opening height
Left side space
Right side space
Headroom
Ceiling height
The supporting wall or steel structure should also be reviewed.
Large or heavy door systems may require suitable structural support around the opening.
Consider:
Number of operating cycles
Type of vehicles
Forklift dimensions
Direction of traffic
Pedestrian traffic
Door activation method
This information helps determine whether a PVC high speed door, self-repairing door, stacking door, spiral door, or sectional door is more suitable.
Evaluate:
Indoor temperature
Outdoor temperature
Wind conditions
Dust
Humidity
Cleanliness requirements
Insulation requirements
A door that performs well in an internal logistics corridor may not be suitable for an exterior opening exposed to strong wind.
Loading dock equipment should be selected according to both the building and the vehicles using the facility.
Important information includes:
Minimum truck height
Maximum truck height
Truck width
Truck bed height
Vehicle type
Rear door configuration
Designing the dock only around one truck size can create problems when other vehicles arrive.
Facilities that receive components from multiple suppliers should consider the realistic range of vehicle dimensions.
Provide:
Platform height
Dock opening dimensions
Existing pit dimensions
Distance between dock bays
Available building space
The dock leveler must operate within a suitable working range between the platform and truck bed.
Vehicle height variations should therefore be considered during project design.
A well-planned system can provide benefits throughout the automotive manufacturing facility.
Selecting appropriate doors for different traffic zones helps reduce unnecessary waiting at internal passages.
At the loading dock, correctly matched equipment helps forklifts move between the warehouse and trailers more smoothly.
Fast-closing doors and properly fitted dock shelters can help reduce unnecessary exposure to outside conditions.
This can support temperature control and improve working conditions in selected areas.
Vertical-opening industrial doors can help preserve usable space around entrances.
Different sectional door track configurations can also adapt to available ceiling and headroom conditions.
Planning doors, dock levelers, shelters, restraints, and controls together helps avoid conflicts between systems.
Dimensions, operating sequences, electrical controls, and safety devices can be reviewed before installation instead of being corrected later on site.
Automotive facilities often depend on uninterrupted logistics operations.
Preventive maintenance can help reduce unexpected equipment downtime.
Regular checks may include:
Door curtain or panels
Tracks and guides
Sensors
Safety edges
Motors
Control systems
Fasteners
Sealing components
Sensors and safety systems should be checked according to the manufacturer's maintenance instructions.
Damaged or incorrectly positioned safety devices should be addressed before normal operation continues.
Loading dock equipment should also be inspected regularly.
Areas to check may include:
Leveler platform
Lip mechanism
Hydraulic system
Hinges
Safety support devices
Dock bumpers
Shelter curtains
Vehicle restraints
Control systems
Maintenance intervals depend on equipment type, operating frequency, environment, and workload.
Always follow the equipment manufacturer's recommended maintenance and inspection procedures.
Every automotive manufacturing facility has a different building layout and logistics process.
The correct solution should therefore be based on project conditions rather than selecting equipment only from a standard catalog.
Important project information normally includes:
Door opening dimensions
Quantity
Installation location
Indoor or outdoor application
Vehicle dimensions
Truck bed height range
Dock platform height
Forklift type
Traffic frequency
Temperature conditions
Wind conditions
Available installation space
Electrical requirements
Safety requirements
Once this information is available, industrial doors and loading dock equipment can be configured as one coordinated solution.
For a large automotive project, preparing drawings before production can also help confirm dimensions, motor positions, installation clearances, dock layouts, and equipment interfaces.
The correct type depends on the installation area.
PVC or self-repairing high speed doors are commonly considered for internal production and logistics passages where fast access is required.
Stacking high speed doors or rigid high speed spiral doors may be more suitable depending on opening dimensions, wind conditions, insulation requirements, and building structure.
Yes.
Industrial sectional doors are commonly used for warehouses, workshops, service buildings, and exterior entrances where insulation, sealing, and vertical opening are important.
The track configuration can be selected according to available headroom and building structure.
Normally, the project should provide:
Dock height
Truck bed height range
Required load capacity
Forklift weight
Maximum transported load
Pit dimensions
Required platform size
Vehicle type
A dock leveler supports both the material handling equipment and the transported load during movement between the warehouse and trailer.
For this reason, rated capacity should not be selected based only on cargo weight.
Neither design is automatically better for every application.
A conventional hydraulic dock leveler is suitable for many standard loading bays and provides straightforward operation.
A telescopic design provides greater control over lip extension and can be useful where truck positions or vehicle configurations vary.
Selection should be based on actual loading conditions.
A dock shelter reduces the open gap between the truck and building during loading operations.
It can help limit rain, wind, dust, and outside air entering the loading area.
The correct shelter dimensions depend on vehicle width, vehicle height, dock height, and opening dimensions.
Yes, depending on the control system and equipment configuration.
Doors, dock levelers, vehicle restraint systems, sensors, and traffic lights can be integrated into a coordinated operating sequence.
The control logic should be designed according to the project's safety requirements and operating process.
Automotive manufacturing facilities require more than individual industrial doors or loading dock products.
They require a coordinated system that supports production traffic, warehouse operations, environmental separation, material handling, and vehicle loading.
High speed doors can improve access between frequently used production and logistics areas. Industrial sectional doors provide practical solutions for warehouses and exterior entrances. Dock levelers create a transition between warehouse platforms and trucks, while dock shelters, dock seals, vehicle restraint systems, and safety controls help complete the loading bay.
The most effective solution starts with understanding the actual project conditions.
Opening dimensions, traffic frequency, vehicle sizes, loading height, wind conditions, temperature requirements, installation space, and operational procedures should all be evaluated before equipment is selected.
By planning industrial doors and loading dock equipment as one integrated system, automotive manufacturers can create a more efficient, organized, and reliable material flow from receiving through production to final shipment.
