Freezer warehouses and cold storage facilities have much more demanding entrance and loading dock requirements than conventional warehouses.
Whenever a freezer door or loading dock is opened, warm and humid outside air can enter the refrigerated space while cold air escapes. This air exchange can increase refrigeration demand and may contribute to condensation, frost, or ice formation around entrances and loading areas.
For facilities operating at low temperatures, selecting a door simply because it opens and closes is not enough.
The entire entrance system should be planned around:
Indoor and outdoor temperature difference
Door opening frequency
Required insulation
Air leakage
Humidity
Condensation and frost control
Forklift traffic
Truck dimensions
Loading dock sealing
Equipment safety
Maintenance requirements
A complete cold storage solution may combine cold storage high speed doors, insulated industrial doors, vertical dock levelers, hydraulic or telescopic dock levelers, inflatable dock shelters, dock seals, vehicle restraint systems, traffic lights, and integrated controls.
This guide explains how to select and coordinate cold storage doors and loading dock equipment for freezer warehouses, refrigerated distribution centers, food warehouses, and other temperature-controlled logistics facilities.
A freezer warehouse entrance connects two environments that may have a very large temperature difference.
Unlike a conventional warehouse door, every opening can directly affect the temperature and humidity conditions around the doorway.
When a freezer door opens, temperature and pressure differences allow air to move between the cold room and surrounding area.
Warm air entering the freezer can carry moisture.
As this moisture meets colder surfaces, it may condense and eventually freeze.
A warehouse door that opens only several times per day presents a very different operating condition from a door used continuously by forklifts.
For frequently used passages, the design should consider both:
Insulation while the door is closed
How long the opening remains exposed during every operating cycle
This is why high speed operation can be important in busy cold storage applications.
Ice around a doorway is not only an energy issue.
It can affect:
Floor traction
Door tracks and guides
Sealing components
Sensors
Forklift traffic
Maintenance requirements
The appropriate solution depends on temperature, humidity, traffic frequency, and door location.
Possible measures may include insulated curtains or panels, heating components, improved sealing systems, reduced door opening time, and controlled air movement.
The correct configuration should be determined according to the actual freezer environment rather than using the same specification for every cold room.
Not every cold storage facility operates at the same temperature.
Door and dock requirements can differ significantly between chilled warehouses and deep-freeze facilities.
Chilled warehouses typically maintain products at temperatures above freezing.
Applications may include:
Fresh food
Dairy products
Beverages
Produce
Pharmaceutical products
Typical priorities include:
Fast opening
Reliable sealing
Moisture resistance
Easy cleaning
Safe forklift access
Insulation requirements may be less demanding than in deep-freeze environments, but frequent traffic can still create substantial air exchange.
Freezer warehouses operate below freezing and therefore require greater attention to insulation and frost control.
Typical applications include:
Frozen food storage
Meat processing
Seafood storage
Ice cream warehouses
Frozen distribution centers
A freezer operating at a very low temperature may require thicker insulated door structures, specialized sealing, heating around critical components, and additional condensation control.
For extremely low-temperature applications, door specifications should always be confirmed according to the actual operating temperature rather than relying on a standard cold storage configuration.
Cold storage high speed doors are designed for frequently used passages where reducing opening time is important.
They can be installed between different temperature zones or between a cold room and an adjacent logistics area.
A conventional door may remain open while forklifts approach, pass through, and move away.
A high speed door reduces the amount of time the opening remains fully exposed.
Cold storage high speed doors can be considered for:
Freezer entrances
Chilled warehouse passages
Food processing areas
Cold chain distribution centers
Forklift traffic corridors
Temperature-controlled production areas
They are particularly useful when frequent movement makes a slow-opening insulated door inefficient for normal traffic.
Opening speed is only one part of cold storage door performance.
When the door remains closed, the curtain or panel should provide appropriate insulation for the temperature difference.
Cold storage doors may use insulated flexible curtains, rigid insulated panels, or multi-layer structures depending on the application.
A mildly refrigerated warehouse does not require the same door structure as a deep-freeze warehouse.
When selecting the door, provide:
Indoor operating temperature
Outdoor or adjacent-area temperature
Required opening frequency
Door size
Humidity conditions
This information allows the door construction to be matched more accurately to the project.
Forklift traffic is common in freezer warehouses and refrigerated distribution centers.
A door should allow efficient movement while maintaining separation between temperature zones.
Automatic activation can reduce unnecessary delays.
Depending on the facility, activation options may include:
Radar sensors
Loop detectors
Pull cords
Remote controls
Push buttons
Access control systems
A sensor that activates too early may keep the door open longer than necessary.
A sensor that activates too late may cause forklift operators to slow down or stop before the doorway.
Sensor position and detection range should therefore be adjusted according to approach speed, traffic direction, and available space.
Fast-moving industrial doors should include appropriate safety systems.
Photoelectric or infrared sensors can detect objects or people in the doorway.
The safety system can stop or reverse the closing movement when an obstacle is detected.
Sensor locations should be kept clean and inspected regularly, particularly in environments where condensation or frost may occur.
Some high speed doors use a safety edge along the lower part of the curtain.
When the edge contacts an obstacle, the door can reverse or stop according to the control configuration.
Safety devices should be tested during commissioning and included in routine maintenance.
Forklifts occasionally make contact with flexible door curtains.
In a busy logistics operation, even minor collisions can interrupt traffic if the door requires manual repair.

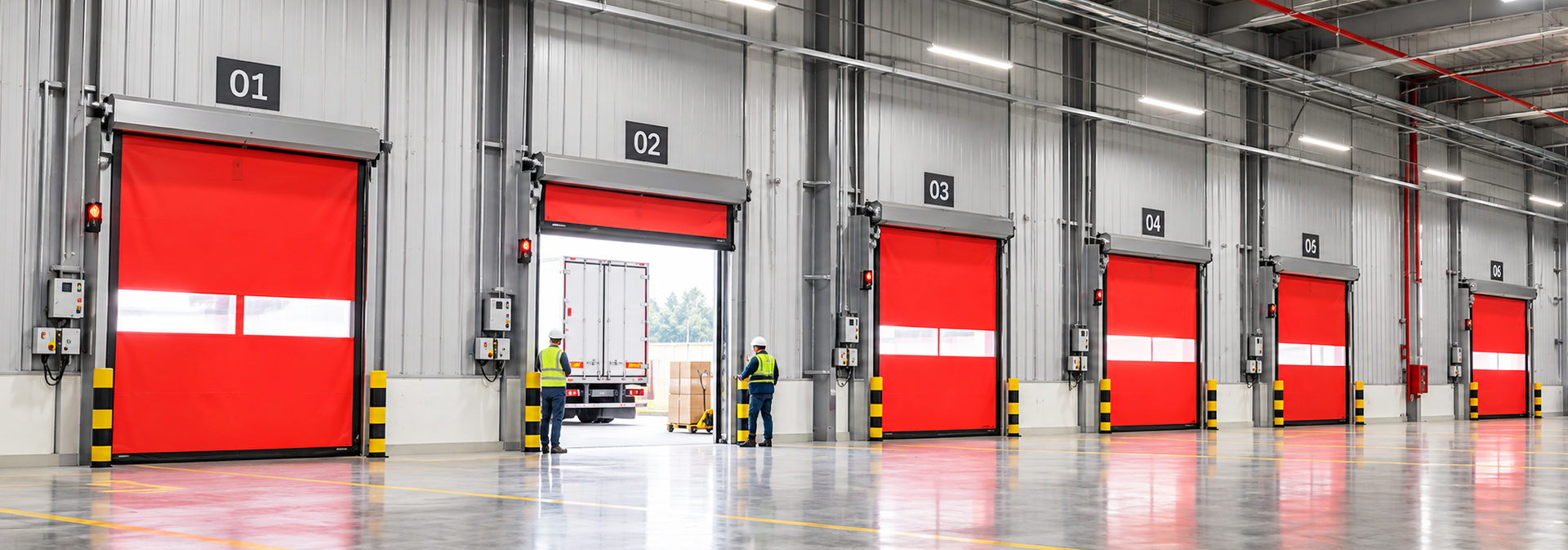

A self-repairing high speed door uses a flexible curtain and zipper-style guide structure.
After certain types of curtain displacement, the curtain can return to the guides during operation.
This design can be useful in busy freezer warehouses where forklift movement is frequent.
However, the suitability of a self-repairing structure should still be evaluated according to:
Temperature
Door dimensions
Pressure difference
Wind exposure
Traffic conditions
Very low-temperature warehouses require more specialized solutions than normal refrigerated rooms.
As temperatures decrease, several factors become more important:
Heat transfer
Air leakage
Ice formation
Material flexibility
Motor and control performance
Heated components
For deep-freeze projects, the supplier should know the actual minimum operating temperature.
A door designed for moderate cold storage may not provide the same performance in a warehouse operating at extremely low temperatures.
The complete door specification should be reviewed according to the project's actual thermal and operational conditions.
Not every freezer entrance requires a high speed door.
Some openings are used less frequently and place greater priority on insulation when closed.
Typical applications include:
Equipment access
Large maintenance entrances
Low-frequency external openings
Service areas
A highly insulated door that operates slowly may be appropriate for an opening used only occasionally.
For a forklift passage operating continuously, however, a faster door may provide a better balance between traffic efficiency and environmental separation.
The loading dock is one of the most challenging areas in a cold storage facility.
It must allow goods to move efficiently between trucks and the warehouse while limiting exposure to external temperature and humidity.
A cold storage loading bay may include:
Insulated dock door
Dock leveler
Dock shelter
Vehicle restraint
Dock bumpers
Traffic lights
Control system
An insulated door will provide limited benefit if large gaps remain around the trailer during loading.
Similarly, a high-performance shelter cannot maintain the environment if the dock door remains open unnecessarily.
The door, leveler, shelter, building structure, and operating sequence should therefore be designed together.
Vertical dock levelers are particularly relevant to temperature-controlled loading docks.
Unlike conventional levelers that are stored horizontally across the loading pit, a vertical leveler is stored upright inside the building.
With the leveler stored vertically, the dock door can remain closed closer to the loading opening before loading begins.
A cold storage loading process may follow this sequence:
Truck approaches → truck reaches the dock → vehicle is secured → dock shelter is activated → dock door opens → vertical dock leveler lowers into position → loading begins.
After loading, the process is reversed before the truck leaves.
This sequence can help reduce the amount of time the warehouse interior is directly exposed to outside conditions.
Environmental control is not the only reason to use a vertical leveler.
Because the leveler can be raised vertically, the pit area beneath the platform can be more accessible.
Facilities handling food often place greater emphasis on cleaning and maintaining loading areas.
Improved access around the pit can support housekeeping and maintenance procedures.
A standard hydraulic dock leveler can still be suitable for many refrigerated warehouse applications.
They may be appropriate when:
Environmental separation requirements are moderate
The loading bay uses a conventional dock configuration
Trucks operate within a predictable range
The door and shelter provide sufficient sealing for the application
The decision between a conventional hydraulic leveler and a vertical leveler should not be based solely on equipment cost.
Temperature, loading frequency, required sealing, hygiene requirements, construction layout, and operational procedures should all be considered.
Telescopic dock levelers use an extendable lip that can be positioned more precisely onto the vehicle bed.
Cold chain distribution centers may receive different trailer configurations from suppliers and logistics providers.
The telescopic lip can provide additional positioning flexibility when vehicle locations vary.
Selection should consider truck bed height, bumper arrangement, trailer configuration, required overlap, and loading process.
A truck positioned against a warehouse does not automatically create a sealed loading connection.
Gaps around the vehicle can allow warm outside air and moisture to enter.
Dock shelters help reduce these openings.
Inflatable dock shelters are particularly suitable for applications where environmental separation is a priority.
After the vehicle reaches the loading position, inflatable cushions expand around the sides and top of the truck body.
Because the cushions inflate toward the trailer, they can create closer contact than some conventional curtain systems.
Inflatable dock shelters can be considered for:
Freezer warehouses
Refrigerated distribution centers
Food processing facilities
Cold chain logistics centers
Pharmaceutical cold storage
They are particularly useful where reducing outside air infiltration during loading is important.
An inflatable shelter must accommodate the actual range of vehicles using the loading dock.
If the height variation is too large, one shelter configuration may not seal effectively around every truck.
The project should provide:
Minimum truck height
Maximum truck height
Truck width range
Dock platform height
Door opening dimensions
These values help determine shelter frame dimensions and the required inflatable range.

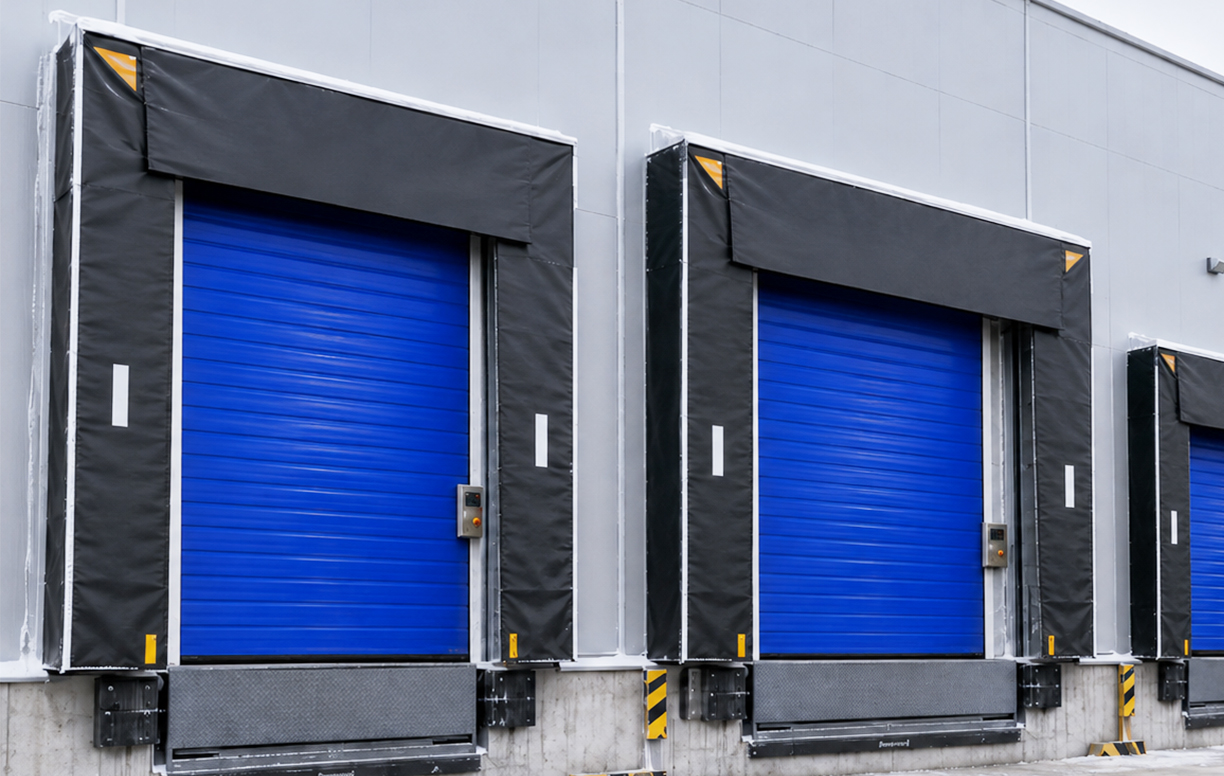

Mechanical dock shelters use flexible side and top curtains around the vehicle.
They can accommodate a range of truck sizes and may be suitable where sealing requirements are less demanding.
They can be considered for:
Chilled warehouses
General refrigerated distribution
Loading docks with mixed vehicles
Areas without extreme temperature differences
Mechanical shelters generally offer good vehicle flexibility.
Inflatable shelters may provide closer sealing.
The correct choice depends on truck variation, temperature difference, loading frequency, building conditions, and the required environmental control.
Dock seals use compressible pads around the loading opening.
The trailer contacts the pads when it reaches the dock.
Dock seals can work effectively when the fleet has relatively consistent truck body dimensions.
If vehicle heights and widths vary significantly, fixed pads may not provide an equally suitable fit for every truck.
An adjustable or inflatable solution may provide greater flexibility in such cases.
Condensation is a major design consideration where warm humid air meets cold surfaces.
During loading, large openings can temporarily connect the freezer environment directly with outside air or a warmer staging area.
The design should aim to minimize uncontrolled air exchange.
Possible approaches include:
Keeping dock doors closed until vehicles are ready
Using suitable dock shelters
Using fast internal doors
Coordinating equipment operation
Improving perimeter sealing
Condensation control should be considered as part of the entire building and refrigeration strategy.
Dock bumpers protect the dock structure from repeated truck contact.
They also influence how the vehicle is positioned relative to the loading platform and shelter.
Incorrect bumper dimensions may position the truck too far from or too close to the dock.
Bumper selection should be reviewed together with:
Dock leveler lip reach
Vehicle rear structure
Shelter position
Dock platform
Trailer geometry
This becomes particularly important when the dock requires close sealing around the truck.
Forklifts moving between the warehouse and trailer require the vehicle to remain in a stable loading position.
Vehicle restraint systems can form part of the loading dock safety strategy.
Unexpected trailer movement can create a dangerous separation between the vehicle and dock.
Depending on the system design, the vehicle restraint can be connected to:
Traffic lights
Dock door controls
Dock leveler controls
Warning signals
Sensors
This allows the loading sequence to be more clearly controlled.
Cold storage applications can particularly benefit from equipment interlocking because unnecessary door opening directly affects environmental separation.
One possible control sequence is:
Vehicle secured → shelter activated → dock door enabled → leveler enabled → loading begins.
When equipment is coordinated, operators do not need to open the door significantly earlier than required.
The exact interlock logic should always be designed according to equipment specifications, site procedures, and applicable safety requirements.
Cold storage loading docks introduce additional operating challenges because moisture may contribute to wet or icy surfaces.
Floors and leveler surfaces should be kept clean and inspected for slippery conditions.
Areas near doors and loading docks experience significant temperature and humidity changes.
Regular inspections should focus on:
Ice
Water
Condensation
Damaged anti-slip surfaces
Obstructions
Any unsafe condition should be addressed before normal loading continues.
When a truck is not at the dock and the door is open, the loading platform creates an exposed edge.
Depending on facility design and local requirements, measures may include:
Safety barriers
Warning markings
Guarding systems
Loading dock gates
Operating procedures
Clear lighting and visual markings can help forklift operators recognize dock edges, particularly where traffic moves between differently lit environments.
Door size affects both operational efficiency and environmental performance.
A larger door opening exposes more area every time the door operates.
Consider:
Forklift width
Forklift height
Maximum load dimensions
Required safety clearance
Traffic direction
The objective is to provide sufficient operating clearance without creating an unnecessarily large opening.
The door supplier should review surrounding building conditions before manufacturing begins.
Provide:
Opening width
Opening height
Left-side clearance
Right-side clearance
Headroom
Wall thickness
Ceiling height
Cold rooms frequently use insulated sandwich panels.
The supporting structure and installation method should be evaluated carefully, particularly for heavier rigid door systems.
Additional steel support may be required depending on the door size, weight, and wall structure.
Low-temperature equipment should be selected and installed according to the actual environment.
Important information includes:
Voltage
Phase
Frequency
Motor location
Control location
Cable routing
Control boxes, sensors, cables, and other components may be exposed to humidity or condensation near temperature transition zones.
Suitable protection and installation locations should be considered during project design.
Preventive maintenance is particularly important in freezer environments.
Small sealing or alignment problems can affect both operation and environmental separation.
Inspection points may include:
Curtain or panels
Guides
Seals
Sensors
Safety edges
Motor
Control system
Fasteners
Ice around guides, floor areas, sensors, or sealing surfaces should be investigated rather than simply removed repeatedly.
Recurring ice may indicate an air leakage, moisture, heating, or operating issue that requires further evaluation.
Dock levelers and shelters should also be included in preventive maintenance plans.
Typical inspection areas include:
Platform
Lip
Hinges
Hydraulic system
Safety support devices
Electrical controls
Anti-slip surface
A cold storage distribution center operating multiple shifts will generally require more frequent inspection than a low-volume warehouse.
Maintenance intervals should follow manufacturer recommendations and actual operating conditions.
Mechanical and inflatable shelter components are exposed to repeated contact with vehicles.
Check:
Side curtains
Top curtains
Inflatable cushions
Fans
Air hoses
Mounting structures
Wear areas
Damage that creates gaps can reduce shelter effectiveness and should be repaired promptly.
Cold storage door problems often result from incorrect application rather than a single product defect.
"Cold storage" can describe very different operating environments.
A door supplier should know both the lowest indoor temperature and the temperature on the opposite side of the opening.
A thicker door does not automatically create a more efficient entrance.
A highly insulated door that remains open for long periods can still allow significant air exchange.
Insulation, opening speed, sealing, and operating frequency should be evaluated together.
Temperature alone does not determine condensation risk.
Warm humid air entering a freezer can create significantly different conditions from dry air at the same temperature.
The surrounding environment should therefore be considered during design.
A vertical leveler, insulated door, or inflatable shelter cannot achieve its full benefit if the surrounding loading bay is poorly coordinated.
The door, leveler, shelter, bumper, restraint, building structure, and controls should be reviewed together.
There is no universal solution for every freezer warehouse.
However, several configurations can provide a useful starting point.
A typical configuration may include:
Insulated sectional door
Hydraulic dock leveler
Mechanical dock shelter
Dock bumpers
Vehicle restraint system
This configuration can work well for refrigerated facilities where sealing requirements are important but the dock does not operate under extreme freezer conditions.
For more demanding freezer warehouses, the system may include:
Insulated dock door
Vertical dock leveler
Inflatable dock shelter
Dock bumpers
Vehicle restraint
Integrated controls
The combination allows the dock door to remain closed longer and provides closer sealing around the vehicle during loading.
Where different trailer types use the same loading bay, the system may include:
Insulated dock door
Telescopic dock leveler
Adjustable or inflatable dock shelter
Vehicle restraint
Traffic lights
Integrated controls
Vehicle height range, rear bumper design, truck body width, and dock leveler lip reach should all be confirmed before finalizing the configuration.
Providing complete project information helps avoid incorrect equipment selection.
Provide:
Opening width and height
Quantity
Indoor temperature
Temperature on the opposite side
Traffic frequency
Forklift dimensions
Installation space
Required voltage
For existing facilities, photographs can help identify wall construction, ceiling space, nearby equipment, and installation limitations.
For new projects, architectural drawings can support early coordination.
The loading dock requires additional information.
Provide:
Dock platform height
Pit dimensions
Minimum truck bed height
Maximum truck bed height
Minimum truck body height
Maximum truck body height
Truck width
Vehicle rear configuration
Useful information includes:
Forklift weight
Maximum cargo load
Loading frequency
Required sealing level
Warehouse temperature
Local environmental conditions
This allows the door, leveler, and shelter to be considered as a coordinated solution.
There is no single best door for every freezer application.
Frequently used forklift passages may benefit from a cold storage high speed door, while lower-frequency openings may require a more heavily insulated door.
Deep-freeze applications require additional attention to insulation, heating, materials, and frost control.
A high speed door reduces the amount of time the opening remains exposed during each operating cycle.
No.
The best solution should balance opening speed, insulation, sealing, safety, and actual traffic frequency.
Vertical dock levelers are stored upright inside the building.
The dock door can remain closed closer to the loading opening until the truck is positioned and the loading process is ready to begin.
This can support better environmental separation.
The correct shelter depends on vehicle dimensions and sealing requirements.
Inflatable dock shelters are often considered when closer vehicle sealing is important, particularly in freezer, refrigerated, food, and temperature-controlled logistics applications.
Frost should be treated as a system issue rather than simply a door issue.
Potential areas to review include:
Door opening duration
Perimeter sealing
Humidity
Air pressure
Heated components
Floor conditions
Door operating sequence
A recurring frost problem should be investigated to identify the actual source.
Yes, depending on equipment configuration.
Interlocking can help establish a defined loading sequence and reduce unnecessary equipment operation or open-door time.
The final logic should follow site procedures and applicable safety requirements.
Freezer warehouse door and loading dock design requires a different approach from conventional warehouse projects.
Large temperature differences, humidity, air infiltration, condensation, frost, forklift traffic, and frequent loading operations all influence equipment selection.
For frequently used entrances, cold storage high speed doors can reduce unnecessary opening time while maintaining efficient forklift access. For very low-temperature applications, insulation, sealing, heated components, materials, and actual operating temperature should be reviewed carefully.
At the loading dock, vertical dock levelers can help keep the building closed for longer before loading begins, while inflatable dock shelters can improve sealing around the vehicle. Hydraulic and telescopic dock levelers remain practical options depending on the loading process and vehicle range.
Vehicle restraints, traffic lights, dock bumpers, safety systems, and integrated controls can then be added according to the facility's operating requirements.
Most importantly, a freezer warehouse should not treat the door, dock leveler, and shelter as separate products.
The most effective cold storage loading dock is a coordinated system designed around:
Actual operating temperature
Humidity conditions
Door opening frequency
Vehicle dimensions
Forklift loads
Required insulation
Required sealing
Safety procedures
Building structure
Maintenance requirements
By evaluating these factors during the design stage, freezer warehouses can create loading areas that support efficient logistics while improving temperature control, equipment reliability, and long-term operational performance.
