A loading dock designed for one standard trailer height may perform well for a dedicated fleet but become difficult to use when different vehicle types share the same bay.
This is common in distribution centers, retail logistics, food warehouses, and mixed-delivery operations where full-size trailers, box trucks, rigid trucks, and liftgate vehicles may all arrive at the same facility.
Planning a loading dock for different truck heights starts with understanding the real vehicle fleet rather than assuming one standard truck dimension.
The key questions are:
How much do vehicle bed heights vary?
Can the dock leveler reach both the highest and lowest vehicles?
Will liftgates interfere with bumpers or dock equipment?
Can forklifts and pallet trucks safely cross the resulting slope?
Which vehicles should not use the same loading bay?
A mixed-fleet dock should be designed around actual vehicle data, not nominal truck categories alone.
The first step is to understand the range of vehicles using the loading dock.
A vehicle fleet may include similar-looking trucks with very different cargo floor heights.
Measure the truck bed height from the yard surface to the loading floor of the vehicle.
This should be done for representative vehicles across the fleet.
Actual operating height may change because of:
Vehicle load
Suspension type
Tire condition
Vehicle model
Trailer configuration
Yard slope
Site measurements are therefore more useful than relying only on catalogue data.
A simple fleet table makes height differences easier to evaluate before selecting dock equipment.
Vehicle Type | Typical Bed Height | Liftgate | Frequency | Dock Compatibility |
|---|---|---|---|---|
Full-size trailer | ___ mm | No | High | To be confirmed |
Box truck | ___ mm | Optional | Medium | To be confirmed |
Rigid truck | ___ mm | No | Medium | To be confirmed |
Small delivery truck | ___ mm | Yes | Low | Special review |
Other vehicle | ___ mm | ___ | ___ | ___ |
The objective is not simply to identify the lowest and highest truck.
The frequency of each vehicle type also matters.
If 90% of traffic falls within a narrow height range, it may not be practical to design the main loading bay around a rare extreme vehicle.
Very low trucks or vehicles with unusual rear structures may require a separate loading method.
Once the vehicle range is known, compare it with the finished loading dock height.
The difference between the dock height and vehicle bed height determines how far the dock leveler must travel above or below dock level.
When the truck bed is higher than the dock floor, the dock leveler must operate upward.
The leveler must still provide suitable lip engagement while operating at the required angle.
Lower trucks require the dock leveler to operate downward.
Smaller box trucks and local delivery vehicles can sit significantly lower than standard trailers.
The resulting slope must be checked carefully.

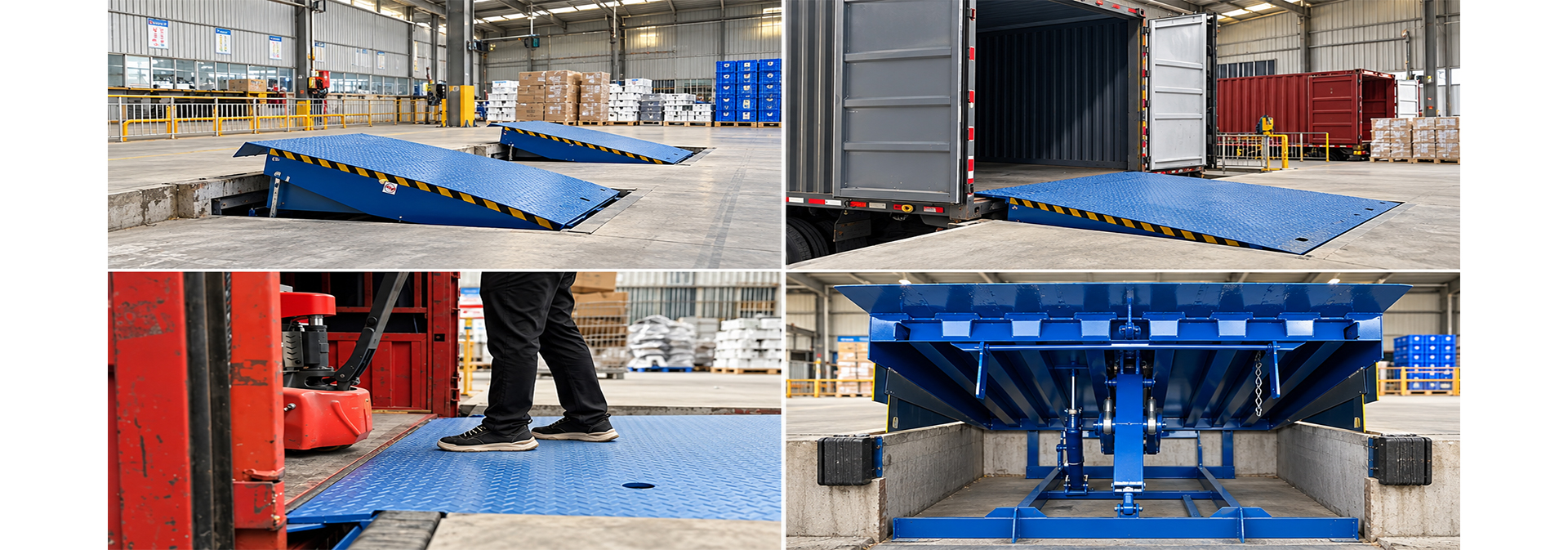

A dock leveler may physically fit the loading bay but still be unsuitable for the full vehicle range.
The useful range depends on the leveler geometry, platform length, lip design, and installation height.
A leveler that can technically reach a truck bed may still create an impractical transition angle for material-handling equipment.
For the same vertical difference, a longer platform generally creates a more gradual transition than a shorter platform.
The correct design should consider both vehicle reach and equipment movement.
The dock leveler is not used by the truck alone.

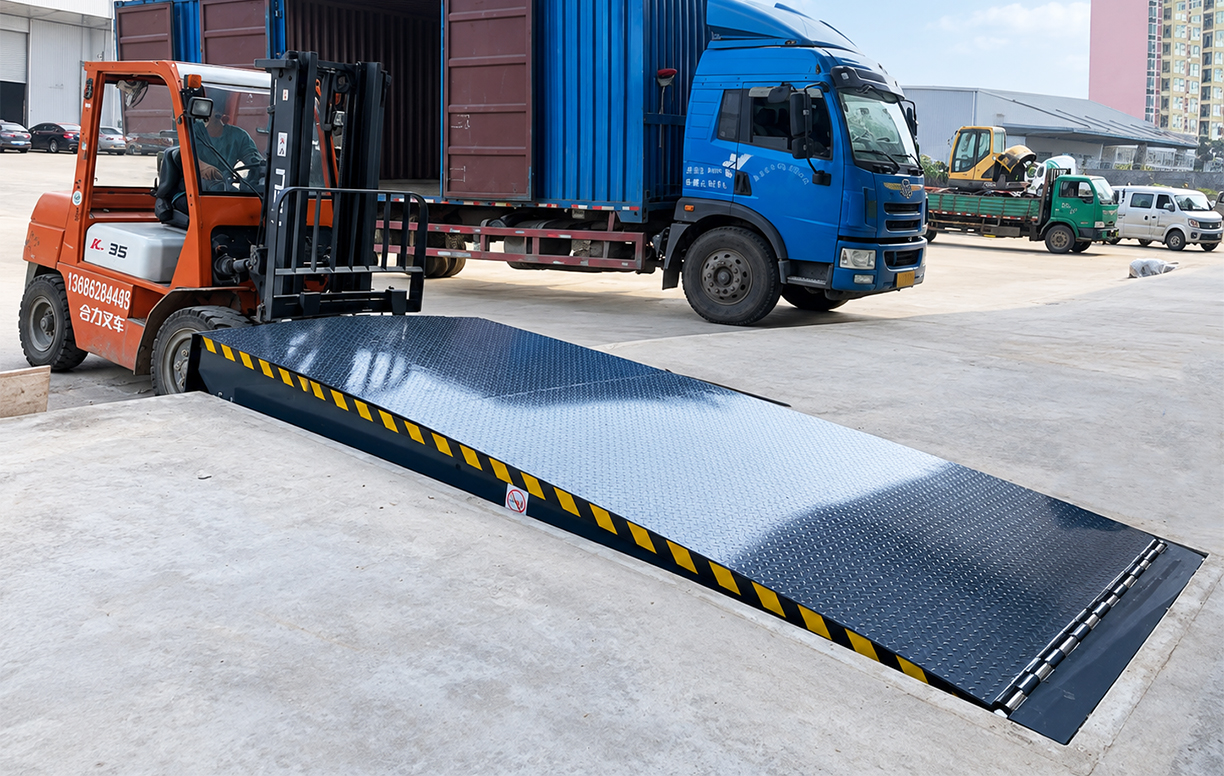

The slope must also be suitable for the equipment crossing between the warehouse and the vehicle.
Forklifts may handle moderate transitions better than equipment with smaller wheels or lower ground clearance.
A steep transition can create contact points beneath the forklift.
Electric pallet trucks can be more sensitive to sudden changes in angle.
A vehicle height difference that appears acceptable on paper may still create difficulty for small-wheel equipment.
Manual pallet trucks are particularly sensitive to steep gradients.
Even when a pallet truck can physically cross the leveler, excessive slope can make loaded movement difficult.
Liftgates are one of the most common compatibility problems in mixed fleets.
A rear liftgate can occupy the same space normally used by dock bumpers, the dock face, or the leveler lip.
Liftgate designs vary significantly.
Some fold below the vehicle floor, while others remain behind the rear of the vehicle.
The important question is not only whether the truck has a liftgate, but where the liftgate sits when the vehicle approaches the dock.
Standard dock bumpers position the truck at a defined distance from the dock face.
A liftgate may prevent the vehicle from reaching this position.
The rear-most structure of the liftgate should be measured relative to the truck bed.
If the liftgate contacts the bumper before the truck reaches the required loading position, standard dock operation may not be possible.
Even when the vehicle reaches the dock, the liftgate may interfere with the lip path.
The dock leveler lip needs a clear and suitable surface on the vehicle bed.
The liftgate structure may not be designed as a normal dock leveler landing area.
Vehicle manufacturer and project requirements should be reviewed where necessary.
Truck height is only one part of compatibility.
Rear-frame construction, underride guards, bumpers, doors, and tail structures can all affect docking.
Some trailers have structures below the bed that may interfere with dock equipment.
A side-view dimensional drawing helps identify possible conflicts.
Swing doors and roll-up doors create different operating conditions.
For some vehicles, rear doors must be opened before the truck reaches the final dock position.
For mixed fleets, a side-view drawing is one of the most useful planning tools.
It should show the relationship between:
Yard surface
Dock height
Truck bed height
Dock bumper
Trailer rear
Liftgate
Dock leveler
Leveler lip
Vehicle bed
Show the maximum expected truck bed height relative to the dock.
Confirm that the operating angle and lip engagement remain suitable.
Repeat the same check for the minimum expected bed height.
The transition between dock floor, leveler, and vehicle floor should be reviewed for the intended handling equipment.
Liftgate vehicles should not be represented by the same drawing as a standard trailer.
This makes interference much easier to identify before installation.
Vehicle bed height at the dock is affected by the yard approach.
A sloped yard can change the relative height and angle of the vehicle as it backs into position.
The rear of the vehicle may sit differently compared with a level yard.
Do not use measurements taken elsewhere in the yard.
Uneven pavement can also change trailer position.
A truck may technically be within the leveler's working range but still approach at an unfavorable angle.
Some vehicles change height during loading and unloading.
Air suspension can alter vehicle bed height depending on operating condition.
The fleet operator should define whether suspension is maintained, adjusted, or lowered during loading.
Truck height can differ before and after cargo transfer.
The dock leveler should remain compatible throughout the loading cycle.
Not every mixed fleet should be forced onto one standard loading bay.
Sometimes the total height range or vehicle geometry is simply too broad.
Small delivery trucks may sit far below a standard dock.
An alternative loading method may be more practical.
Some liftgate configurations prevent the truck from reaching the required dock position.
The correct solution depends on the fleet and loading method.
A single leveler has a practical operating range.
If unusual vehicles represent only a very small percentage of traffic, a dedicated handling method may be preferable to compromising the main dock operation.
When certain vehicles cannot safely use the main dock, they should be identified during planning.
Some small vehicles may be better served from ground level.
The loading method should match the cargo and material-handling process.
A lower loading position can serve smaller delivery vehicles more effectively.
This can simplify equipment selection and reduce operating compromises.
Certain facilities use lifting equipment where vehicle heights vary significantly.
The equipment capacity, platform size, travel height, and loading procedure must be selected for the actual application.
Vehicle compatibility cannot be evaluated separately from the equipment used for loading.
Confirm:
Forklift type
Rated load
Ground clearance
Wheelbase
Maximum acceptable gradient
The combination of slope, vehicle movement, and concentrated wheel loads should be considered.
For pallet trucks, check wheel size and transition sensitivity.
Abrupt changes in angle can create operating difficulty even where height range is technically acceptable.
Before selecting the dock equipment, review the following information.
Record:
Minimum truck bed height
Maximum truck bed height
Most common truck bed height
Vehicle type
Rear structure
Liftgate type
Vehicle frequency
The actual truck mix should guide the design.
Record:
Finished dock height
Yard slope
Bumper projection
Existing pit dimensions
Available leveler working range
This is especially important for retrofit projects.
Record:
Forklift type
Pallet truck type
Load weight
Ground clearance
Wheel characteristics
The vehicle, dock leveler, and handling equipment must work as one system.
A practical review can be summarized in a simple table.
Condition | Trailer A | Box Truck B | Liftgate Truck C |
|---|---|---|---|
Bed height | ___ mm | ___ mm | ___ mm |
Difference from dock | ___ mm | ___ mm | ___ mm |
Leveler within working range | Yes / No | Yes / No | Yes / No |
Bumper interference | Yes / No | Yes / No | Yes / No |
Liftgate interference | N/A | ___ | ___ |
Forklift suitable | Yes / No | Yes / No | Yes / No |
Pallet truck suitable | Yes / No | Yes / No | Yes / No |
Recommended for this bay | Yes / Review | Yes / Review | Yes / Review |
This kind of table is more useful than simply stating that a dock is suitable for “different truck sizes.”
Several problems appear repeatedly in mixed-fleet loading docks.
A standard trailer height may represent only part of the actual fleet.
The equipment should be selected only after the vehicle distribution is understood.
Liftgates are often discovered as a problem only after installation.
Side-view measurements can identify interference early.
Reaching the truck does not automatically mean the loading condition is practical.
Forklifts and pallet trucks may have different slope limitations.
An extreme vehicle can force unnecessary compromises into the main dock design.
A dedicated alternative may provide a better operating result.
A successful loading dock for different truck heights begins with a clear picture of the vehicles that actually use the facility.
Truck bed height, liftgate geometry, bumper position, yard slope, dock leveler working range, and material-handling equipment all influence compatibility.
For mixed fleets, the most useful planning documents are a real fleet data table and side-view dimensional drawings showing the highest, lowest, and most difficult vehicle configurations.
These checks make it possible to identify which vehicles can share the same loading bay, which require special operating procedures, and which should use a different loading method.
The goal is not to make one dock serve every possible vehicle.
The goal is to define a practical operating range that matches the vehicles and handling equipment used most often.
