PVC high speed doors and spiral high speed doors are both designed to improve traffic flow, reduce the time an opening remains exposed, and support more efficient facility operations. However, they are built for different working conditions and solve different operational problems.
A PVC high speed door uses a lightweight, flexible fabric curtain that rolls around an upper shaft. Its relatively simple structure allows it to open and close quickly, making it particularly suitable for internal passages with frequent pedestrian, forklift, or material-handling traffic.
A spiral high speed door uses rigid aluminum slats rather than a flexible curtain. During opening, the slats travel upward through side tracks and enter a spiral-shaped track above the opening. This rigid construction provides greater wind resistance, security, durability, and thermal performance.
Although both products belong to the high speed door category, choosing between them is not simply a matter of comparing opening speeds. The correct selection depends on the installation position, wind exposure, traffic conditions, temperature requirements, building structure, security expectations, available installation space, and long-term operating costs.
A PVC high speed door is a powered industrial door made with a flexible PVC fabric curtain, side guide tracks, an upper shaft, a motor system, and an automatic control unit. It is mainly used to separate indoor working areas while allowing people, forklifts, carts, and materials to move through the opening efficiently.
The lightweight curtain allows the door to operate quickly without requiring a large or heavy supporting structure. This makes PVC high speed doors a practical solution for production facilities, warehouses, food processing plants, clean working areas, packaging rooms, and internal logistics routes.
When the opening signal is activated, the motor rotates the upper shaft and lifts the flexible curtain. After the passage is clear, the door closes automatically according to a preset delay or closing signal.
The door can be connected to different activation devices depending on the traffic pattern. Common options include radar sensors, pull cords, push buttons, remote controls, induction loops, card readers, and access control systems.
For forklift routes, radar sensors or induction loops can help reduce waiting time and unnecessary manual operation. For pedestrian passages, push buttons, card readers, or separate access controls may be more suitable.

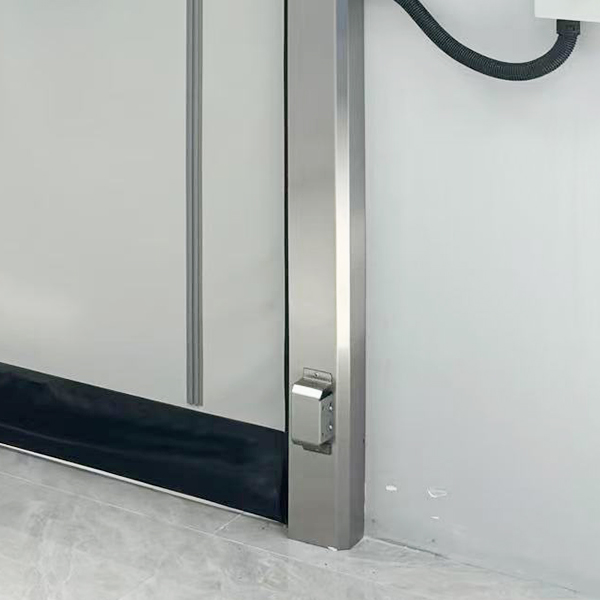

Safety photocells are normally installed across the opening. If a person, vehicle, or object blocks the light beam while the door is closing, the door stops or reverses. A wireless safety edge can also be installed at the bottom of the curtain to provide additional protection.
The main advantage of a PVC high speed door is efficient indoor traffic management. Its fast operation reduces waiting time and helps maintain smooth movement between production, storage, and logistics areas.
Because the opening remains exposed for less time, the door can also reduce airflow exchange between different zones. This helps control dust, insects, odors, air pressure, and temperature differences.
PVC high speed doors are commonly used where different production areas must remain separated without slowing down daily operations. In food processing, packaging, clean production, and general manufacturing, this separation can support a cleaner and more controlled working environment.
The relatively simple structure also helps keep the initial investment lower than that of a rigid spiral door. Installation is usually more straightforward, and replacement of curtain components is comparatively convenient.
A standard PVC fabric door is mainly designed for interior use. It should not be expected to provide the same wind resistance, weather protection, security, or insulation as a rigid exterior door.
When installed on an exposed exterior opening, a flexible curtain may move under wind pressure, experience excessive friction, or leave the side guides. Repeated wind loading can also accelerate wear on the curtain and related components.
The curtain can be damaged by sharp forklift forks, protruding loads, or direct vehicle impact. Although the damaged fabric can normally be repaired or replaced, repeated collisions may increase maintenance costs and interrupt normal operation.
PVC fabric also provides limited thermal insulation. The main energy-saving benefit comes from the rapid opening and closing cycle rather than from the insulation value of the curtain itself.
A spiral high speed door is a rigid high speed entrance system constructed with connected aluminum slats. Instead of rolling the door panels tightly around a shaft, the slats move upward through side tracks and enter a spiral-shaped track above the opening.
This non-contact movement reduces friction between the slats and helps protect the panel surfaces. It allows the door to combine fast operation with rigid construction, making it suitable for exterior entrances and demanding industrial environments.

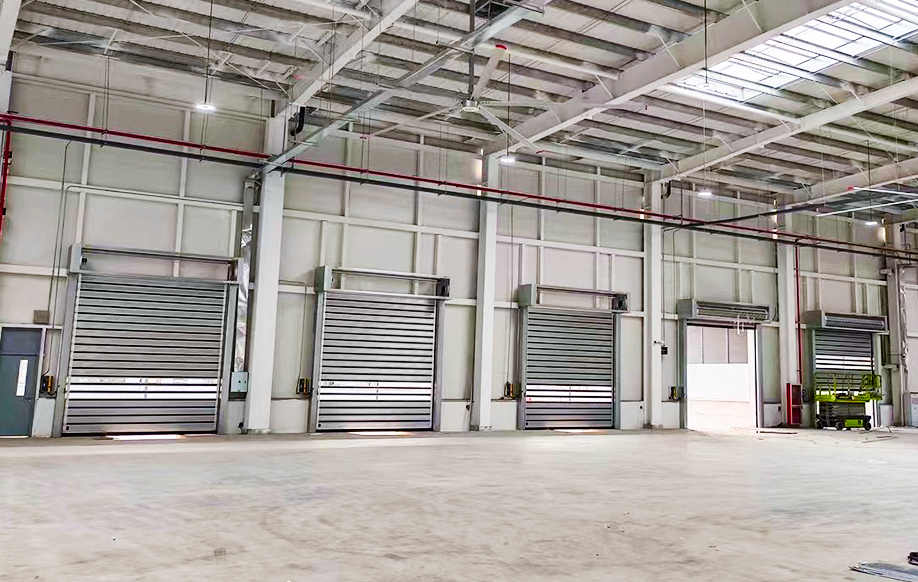

Spiral doors are often installed at factory entrances, logistics centers, automotive facilities, controlled production areas, and buildings where the entrance must provide both rapid access and reliable protection.
When the door opens, the aluminum slats move upward through the vertical side tracks. Once they reach the upper section, they enter a spiral track that stores the panels without tightly rolling them against one another.
Because the slats remain separated inside the spiral, surface contact and friction are reduced. This helps maintain a clean panel appearance and supports smoother operation over time.
The rigid slats, strong side tracks, and reinforced drive system allow the door to operate quickly while maintaining better structural stability than a flexible fabric door.
The exact track design may vary according to the available headroom and building structure. However, spiral doors normally require more installation space and stronger structural support than PVC high speed doors.
One of the most important advantages of a spiral high speed door is its wind resistance. The rigid aluminum slats and reinforced guides provide greater stability when the door is installed on an exterior wall.
The door also provides better physical security. When fully closed, the connected aluminum slats create a stronger barrier than a flexible PVC curtain. This is particularly important for entrances protecting equipment, materials, valuable inventory, or restricted production areas.

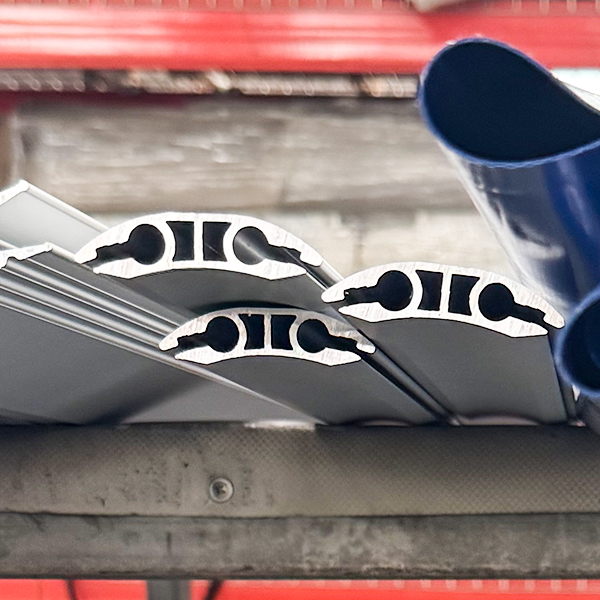

Many spiral doors use insulated aluminum slats. These panels help reduce heat transfer through the closed opening and improve environmental control in air-conditioned factories, temperature-controlled warehouses, and production buildings.
Another advantage is the appearance. The rigid aluminum panels create a clean and modern exterior surface. For logistics centers, automotive facilities, modern factories, and visible building entrances, the spiral door can provide both operational and architectural value.
The main limitation of a spiral high speed door is the higher initial investment. The system requires rigid panels, precision tracks, stronger drive components, reinforced frames, and more complex installation.
The wall structure must also be evaluated carefully. Spiral doors are heavier than PVC doors and should not be fixed only to weak wall materials or lightweight sandwich panels without reinforcement.
When installing a spiral door on a sandwich panel wall, additional galvanized steel tubes or a supporting steel frame may be required. The reinforcement should transfer the weight and operating forces to the main building structure rather than relying only on the sandwich panels.
Spiral doors also require precise installation and commissioning. Incorrect track alignment, insufficient structural support, or poor adjustment can affect the movement of the rigid slats and reduce the service life of the system.
Although PVC and spiral high speed doors both provide rapid opening and closing, they differ significantly in construction, installation requirements, environmental resistance, security, insulation, and total cost.
Understanding these differences can help facility managers avoid selecting a door that is unsuitable for the working environment or more expensive than the application actually requires.
A PVC high speed door uses a lightweight and flexible fabric curtain. During opening, the curtain rolls around an upper shaft, allowing the system to move quickly without placing a heavy load on the supporting wall.
A spiral high speed door uses connected rigid aluminum slats. During opening, the slats travel through the side tracks and enter the upper spiral system.
The flexible construction of the PVC door makes it practical for internal area separation. The rigid construction of the spiral door makes it more suitable for exterior protection, security, wind resistance, and improved insulation.
The difference in curtain construction affects almost every other aspect of the door, including installation, maintenance, performance, cost, and application range.
PVC high speed doors are mainly used for interior openings. Common applications include passages between production areas, warehouses, packing rooms, clean zones, temperature-controlled sections, and internal forklift routes.
These locations normally require fast passage and environmental separation but do not require the door to resist strong outdoor wind or provide building security.
Spiral high speed doors are more suitable for exterior entrances or demanding internal openings. They are commonly installed at factory entrances, logistics facilities, automotive workshops, controlled production areas, and high-value storage zones.
A spiral door can function as both a rapid-access door and a rigid building entrance. A standard PVC high speed door is primarily an internal separation system.
Wind resistance is one of the clearest differences between the two door types.
A standard interior PVC fabric door is not intended for strong exterior wind conditions. The flexible curtain can move under pressure, create additional friction, or become unstable inside the guide tracks.
A spiral high speed door uses rigid panels and reinforced guides. This construction allows it to maintain greater stability under wind pressure and makes it more suitable for exposed exterior openings.
Wind resistance should not be evaluated only according to the door model. Door dimensions, building orientation, local weather, surrounding buildings, indoor pressure, and the position of nearby loading entrances can all affect the actual pressure acting on the door.
Large openings generally require stronger panels and supporting structures because the wind acts across a greater surface area.
An entrance facing an open yard or coastal environment may experience greater wind pressure than an opening protected by nearby buildings. Site conditions should therefore be reviewed before the door configuration is confirmed.
Both door types can help reduce energy loss because fast operation shortens the time the opening remains exposed.
However, a PVC high speed door mainly reduces air exchange through rapid opening and automatic closing. The flexible curtain itself offers limited resistance to heat transfer.
A spiral high speed door can use insulated aluminum slats. These rigid panels provide better thermal performance when the door is fully closed.
For an interior passage with only a moderate temperature difference, a PVC door may provide sufficient environmental control. For an exterior entrance serving an air-conditioned or temperature-controlled facility, a spiral door normally offers better overall protection.
A door’s energy performance depends on both its opening cycle and its closed condition.
Fast opening and closing reduce the duration of air exchange. Insulated panels reduce heat transfer while the door remains closed.
PVC doors mainly provide the first benefit. Spiral doors can provide both rapid operation and improved closed-door insulation.
A PVC high speed door is designed primarily for traffic control and environmental separation. It can be connected to card readers, remote controls, and access management systems, but its flexible curtain is not a strong physical security barrier.
A spiral high speed door provides a rigid closed surface. The connected aluminum slats and reinforced side guides create a stronger barrier against unauthorized access.
This makes spiral doors more suitable for exterior entrances, restricted areas, valuable goods storage, technical rooms, and facilities that require greater protection outside normal operating hours.
Electronic access control determines who is permitted to operate the door, but it does not change the strength of the door curtain.
A PVC high speed door can use an advanced access control system while still remaining a lightweight fabric door.
A spiral high speed door combines controlled activation with a rigid physical barrier. Facilities should therefore evaluate both authorization requirements and physical protection.
PVC high speed doors are particularly suitable for busy internal passages. Their lightweight curtains support rapid movement and help reduce delays for forklifts, carts, employees, and production materials.
They are often selected when the main objective is to separate working areas without interrupting internal logistics.
Spiral doors can also support frequent operation. However, they are usually chosen when the entrance must provide several functions at the same time, including fast access, wind resistance, weather protection, insulation, security, and a rigid closed barrier.
The selection should not be based only on which door opens faster. The facility should determine whether the opening requires simple high-speed separation or a complete exterior entrance solution.
PVC high speed doors have a relatively lightweight structure. They can normally be installed on standard industrial openings as long as the wall is stable, level, and capable of supporting the frame, motor, and operating forces.
Spiral high speed doors are heavier and require a stronger installation base. Their rigid panels, precision tracks, and drive systems place greater loads on the wall or supporting steel structure.
When the opening is built with lightweight sandwich panels, a spiral door should not normally be fixed only to the panel surface.
Additional galvanized steel tubes or a reinforced steel frame may be required. The reinforcement should be securely connected to the roof structure, columns, or main building frame.
The available headroom and side room must also be checked. The upper spiral system normally requires more installation space than the compact shaft arrangement of a PVC door.
PVC high speed doors have a relatively simple structure. Routine maintenance normally includes checking the curtain, guide tracks, motor, safety photocells, lower safety edge, fasteners, and control settings.
If the curtain is torn or damaged, the affected fabric section or complete curtain can often be replaced without changing the entire door system.
Spiral high speed doors require more precise mechanical maintenance. The aluminum slats, guide tracks, drive components, seals, safety devices, and upper spiral system should be inspected regularly.
The rigid panels are more durable during normal operation, but repairs may be more complex if the door is hit by a forklift or if the track system is damaged.
PVC high speed doors have a simple and functional appearance. Different curtain colors and transparent vision sections can be selected to suit factories, warehouses, and internal production areas.
Spiral high speed doors provide a more modern architectural appearance. Their rigid aluminum panels create a clean exterior surface that can complement modern factories, logistics centers, automotive buildings, and corporate production sites.
Where the entrance is visible from outside the facility, the appearance of a spiral door may provide additional value beyond its technical performance.
PVC high speed doors normally have a lower initial purchase price. Their flexible curtains, lightweight frames, and simpler operating structures make them an economical option for indoor applications.
Spiral high speed doors require rigid aluminum slats, stronger drive components, precision tracks, structural reinforcement, and more complex installation. Their initial investment is therefore higher.
However, the lowest purchase price does not always result in the lowest long-term cost.
Installing a standard PVC door at an exposed exterior entrance may lead to curtain damage, repeated maintenance, operational interruptions, and early replacement. In this situation, a spiral door may provide better long-term value despite its higher purchase price.
At the same time, installing a spiral door in a simple interior passage may add wind resistance, insulation, and security features that the facility does not need. A properly selected PVC door may offer better value for that application.
For most standard interior applications, a PVC high speed door is the more practical choice.
It provides rapid opening, a compact structure, a relatively low initial cost, and flexible activation options. The lightweight construction also places less demand on the building structure.
In warehouses, PVC high speed doors can separate picking areas, storage sections, packing zones, and forklift routes.
Rapid opening helps reduce waiting time, while automatic closing prevents the opening from remaining unnecessarily exposed.
Radar sensors or induction loops can be used for vehicle traffic. For areas shared by forklifts and pedestrians, the activation system should be adjusted carefully to reduce unnecessary opening and improve safety.
PVC high speed doors are commonly used in food processing and clean production environments because they help reduce dust movement, airflow exchange, insects, odors, and cross-area contamination.
For facilities with hygiene or washdown requirements, stainless steel frames and suitable electrical protection can be selected.
The final configuration should match the cleaning method, humidity level, chemical exposure, and environmental requirements of the facility.
Manufacturing facilities often need to separate areas with different dust levels, temperatures, air pressures, noise conditions, or production processes.
A PVC high speed door creates this separation without slowing the movement of people or materials.
Its compact design is also useful where the building structure does not require or cannot support a heavier rigid high speed door.
A PVC high speed door can also be used between internal areas with moderate temperature differences.
Its rapid cycle reduces the amount of warm or cold air exchanged during passage. However, for low-temperature rooms or areas requiring stronger insulation, a specialized cold storage high speed door may be more appropriate than a standard PVC fabric model.
For exposed exterior openings, a spiral high speed door is normally the more reliable choice.
The rigid slats, reinforced tracks, improved sealing, and stronger structure allow the door to function as a true building entrance rather than only an internal partition.
A factory entrance may need to resist wind, rain, temperature changes, dust, and unauthorized access.
A standard interior PVC door cannot provide the same level of protection as a rigid spiral system.
A spiral door can open quickly during production hours and provide a rigid closed barrier when traffic stops. This combination may remove the need to install one door for speed and another door for security.
Logistics buildings often experience frequent forklift traffic while still requiring environmental control.
A spiral high speed door can reduce waiting time and limit the amount of external air entering the building.
For openings located near loading docks, wind conditions should be evaluated carefully. Open dock positions, moving vehicles, and pressure differences inside the building may create strong airflow around the entrance.
Automotive workshops, equipment service centers, and technical facilities often require a door that opens quickly while providing a durable exterior barrier.
The rigid slats of a spiral door can provide greater protection than a fabric curtain. Transparent vision sections can also be added to improve visibility through the closed door.
Spiral doors are suitable for locations where security is more important than in a normal internal passage.
These may include valuable material storage areas, equipment rooms, controlled manufacturing zones, technical workshops, and restricted production spaces.
The rigid curtain provides stronger protection while still supporting rapid daily operation.
Maintenance requirements should be considered before the door is purchased, not only after problems occur.
A door that is suitable for the working environment normally requires fewer unexpected repairs and provides more stable long-term performance.
A PVC high speed door should be inspected regularly for curtain wear, loose fasteners, guide track damage, sensor alignment, motor performance, and control system settings.
The curtain should move smoothly without excessive friction or unusual noise.
Photocells and the lower safety edge should be tested to confirm that the door stops or reverses correctly when an obstacle is detected.
A spiral high speed door requires regular inspection of the rigid slats, guide tracks, drive system, seals, panel connections, safety sensors, and upper spiral structure.
Because the slats must move precisely through the tracks, correct alignment is especially important.
Any unusual vibration, sound, or movement should be checked early before it develops into a more serious mechanical problem.
PVC curtains are more vulnerable to direct contact with forklifts and protruding loads. Light contact may not cause serious damage, but sharp or heavy impact can tear the fabric or damage the lower bar.
Rigid spiral slats are stronger during normal use, but severe impact may deform individual panels or damage the side tracks.
Repair costs for spiral doors can be higher because the components and operating structure are more complex.
Preventive traffic management is therefore important for both door types. Floor markings, warning lights, protective barriers, speed limits, and properly adjusted sensors can reduce accidental collisions.
A high-quality door can still perform poorly if it is installed incorrectly.
PVC doors require level mounting, aligned side guides, correct curtain tension, and properly positioned safety devices.
Spiral doors require even more precise alignment because the rigid slats must travel smoothly through the vertical tracks and upper spiral system.
The supporting wall or steel frame must also be strong enough to carry the door weight and the dynamic forces generated during operation.
The purchase price is an important part of the selection process, but it should not be the only factor.
PVC high speed doors generally have a lower initial cost and are well suited to interior applications where wind resistance, rigid security, and panel insulation are not required.
Spiral high speed doors have a higher initial cost but provide additional value in exterior and demanding applications.
A PVC high speed door provides strong value when it is used for the correct indoor application.
It can improve traffic flow, support environmental separation, reduce unnecessary air exchange, and provide reliable automatic operation without adding unnecessary structural complexity.
For internal warehouse routes, production passages, packing rooms, and clean working areas, the additional cost of a rigid spiral system may not be necessary.
A spiral door provides better value when the entrance requires speed and exterior protection at the same time.
Its wind resistance, security, insulation, durability, and rigid construction may reduce the need for a second exterior door.
It may also reduce maintenance problems that could occur if a lightweight interior door were installed in an unsuitable exposed location.
Before comparing quotations, the facility should confirm the opening dimensions, installation position, wind exposure, operating frequency, temperature difference, wall structure, required security level, available headroom, and control method.
The included configuration should also be reviewed carefully.
Motor systems, control boxes, safety devices, curtain materials, panel insulation, frame finishes, sensors, structural accessories, installation services, and warranty coverage can vary between suppliers.
Two quotations with different configurations should not be compared only according to the final price.
The selection process should begin with the working environment rather than with the door model.
A door should be selected according to what the entrance must achieve during normal traffic and what it must protect when fully closed.
A PVC high speed door is usually suitable when the opening is located indoors and the primary goal is to improve traffic flow while separating different working zones.
It is particularly practical when wind exposure is limited, the security requirement is moderate, and the project requires a lower initial investment.
PVC doors are also suitable when the facility needs flexible activation methods, a lightweight structure, and convenient curtain replacement.
A spiral high speed door is normally suitable when the opening is located on an exterior wall or exposed to wind and weather.
It should also be considered when the entrance requires stronger security, improved insulation, a rigid closed barrier, a more durable structure, or a modern exterior appearance.
A spiral door is often the better choice when one entrance must provide both fast daily access and reliable protection after operating hours.
Before selecting a spiral high speed door, inspect the wall material and supporting structure.
Concrete, brick, and structural steel normally provide a stronger installation base than lightweight sandwich panels.
When the opening is built with sandwich panels, additional steel reinforcement may be necessary. The supporting steel should be connected to the building structure rather than fixed only to the panels.
PVC doors are lighter, but the mounting surface must still be stable, level, and capable of supporting the frame and drive system.
Many buyers focus mainly on opening speed because it is easy to compare. However, the closed-door condition is equally important.
Does the entrance only need to separate two indoor zones? Must it resist external wind? Must it secure the building overnight? Must it reduce heat transfer? Must it withstand rain and outdoor weather?
The answers to these questions usually make the correct choice much clearer.
A standard PVC high speed door should not be expected to provide the same wind resistance, security, insulation, and weather protection as a rigid spiral door.
Although the lower purchase price may appear attractive, using the wrong door in an exposed location can increase maintenance requirements and operational risk.
Spiral doors require sufficient space for the upper track system and supporting structure.
The lintel height, side clearance, ceiling obstacles, pipes, cable trays, lights, beams, and nearby equipment should be checked before production begins.
A detailed site drawing can help prevent installation problems and design changes.
A spiral high speed door is heavier than a PVC fabric door.
Fixing it directly to a weak wall or sandwich panel surface without reinforcement may lead to vibration, instability, misalignment, or structural damage.
The supporting structure should be confirmed before the door design is finalized.
Opening speed alone does not guarantee safe operation.
The door should include suitable sensors and control logic for the actual traffic pattern.
Areas shared by forklifts and pedestrians may require photocells, warning lights, radar adjustment, access control, or separate pedestrian routes.
The lowest quotation may exclude important safety devices, structural reinforcement, installation accessories, suitable sensors, or the correct motor and control configuration.
A complete comparison should include the supplied components, installation requirements, maintenance expectations, warranty, and suitability for the operating environment.
PVC high speed doors and spiral high speed doors are designed for different applications.
A PVC high speed door is an efficient and economical solution for indoor passages where frequent traffic, environmental separation, and fast operation are the main priorities. Its lightweight structure, flexible control options, and straightforward maintenance make it suitable for warehouses, production areas, clean environments, packaging rooms, and internal logistics routes.
A spiral high speed door is a stronger and more complete entrance system for exterior or demanding applications. Its rigid aluminum slats provide better wind resistance, security, insulation, durability, and architectural appearance.
It is more suitable for factory entrances, logistics buildings, automotive facilities, restricted areas, and openings that must provide both rapid access and reliable protection.
The correct choice depends on what the door must do while it is moving and what it must protect when it is closed.
By evaluating the installation location, wind exposure, temperature requirements, traffic conditions, wall structure, security needs, available space, and long-term operating costs, facility managers can select a high speed door that performs reliably without paying for unnecessary features or accepting avoidable risks.
