Replacing an old dock leveler is rarely as simple as removing one unit and installing another of the same nominal size.
In an existing loading dock, the pit has already been exposed to years of vehicle traffic, water, impact, corrosion, repairs, and possible structural movement. Even when the original dock leveler was listed as a standard size, the actual pit dimensions and site conditions may no longer match the original drawings.
For this reason, a successful dock leveler replacement in an existing pit should begin with a retrofit survey.
The purpose of the survey is not only to measure pit width, length, and depth. It should also determine whether the existing pit structure can be reused, whether repairs are required, and whether the new dock leveler will be compatible with the existing dock height, electrical supply, drainage, bumpers, door position, and operating conditions.
This guide explains what should be checked before selecting a replacement dock leveler for an existing loading dock.
A replacement project is very different from installing equipment in a newly constructed pit.
With a new loading dock, the pit dimensions can normally be prepared according to the manufacturer's construction drawings. In a retrofit project, the equipment must adapt to an existing structure.
The old pit may have dimensional tolerances, concrete damage, modified steel angles, accumulated debris, drainage problems, or undocumented repairs.
That means the original drawings should be treated as reference information rather than the final basis for production.
Over time, loading docks are frequently repaired or modified.
Concrete edges may have been rebuilt. Embedded steel may have been replaced. The pit floor may have received additional concrete or coatings. Previous equipment may also have been installed with custom brackets or welded supports.
A physical site measurement is therefore necessary before confirming a replacement dock leveler.

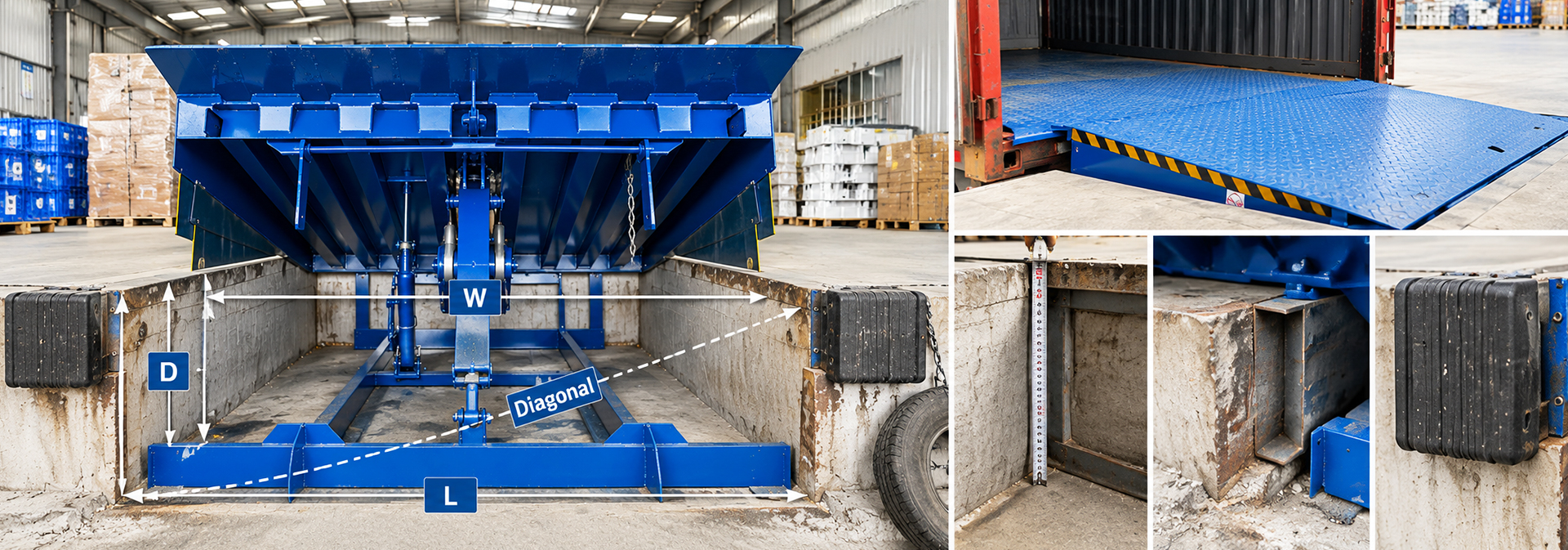

A dock leveler described as 2000 × 2500 mm does not automatically mean that the existing pit opening is exactly the same size.
The actual usable width and length should be measured at several points.
Measure diagonally across the pit where possible.
A difference between the two diagonal measurements may indicate that the pit is not square, which can affect installation clearance and frame positioning.
Do not measure only the front opening.
The pit width should be checked at the front, middle, and rear because older concrete walls may not be perfectly parallel.
A retrofit survey should provide enough information for the equipment supplier to understand the existing structure before manufacturing the replacement unit.
At minimum, measurements, photographs, and interface conditions should be recorded.
Measure the clear internal width at several locations.
Record the smallest usable dimension rather than only the largest measurement.
Old brackets, repair plates, anchors, or concrete repairs may reduce the available installation space.
These areas should be shown clearly in photographs.
Measure from the front pit edge to the rear structural face.
Confirm whether there are any obstructions at the rear that could interfere with the new frame or hydraulic system.
Some replacement levelers may use a different rear-frame arrangement from the original unit.
The existing support position therefore needs to be compared with the replacement design.
Pit depth is particularly important because it affects equipment geometry and installation height.
Measure from the finished dock floor level to the pit floor.
An old pit floor may not be level.
Measure near the front, center, and rear of the pit to identify differences.
The height from the yard surface to the dock floor should also be recorded.
This measurement helps determine the working range required from the replacement dock leveler.
If the vehicles using the dock have changed since the original installation, the replacement leveler may need a different operating range.
The steel surrounding the pit provides an important interface between the dock leveler frame and the concrete structure.
It should be inspected carefully before deciding whether the existing structure can be reused.
Look for rust, section loss, flaking steel, or severe surface deterioration.
Minor surface corrosion may be repairable, while heavily degraded steel may require replacement.
The front pit edge is exposed to repeated impacts and vibration.
Damage in this area can affect both bumper mounting and dock leveler installation.
Inspect visible welds and attachment points between the steel frame and embedded components.
Previous repair welds should also be documented.
The condition and location of existing welded connections may not match the fixing requirements of the replacement dock leveler.
Impact from trailers, forklifts, or the previous dock leveler can distort embedded steel.
Any deformation should be measured and photographed.
A replacement dock leveler should not be installed onto severely damaged concrete without first addressing the structural condition.
Look for broken corners, cracks, exposed reinforcement, or loose concrete.
Different surface textures or patches may indicate previous damage.
These repairs should be checked for stability before installation.
Side-wall damage can reduce the usable pit width and interfere with the new dock leveler frame.
Raised concrete, repair mortar, or misaligned pit walls can create installation problems even when the nominal dimensions appear correct.
The floor should be checked for cracks, settlement, water accumulation, and damaged areas.
Large cracks, separation around embedded steel, or significant level differences may require further engineering assessment before installing new equipment.
Water is one of the most common problems inside older dock leveler pits.
Poor drainage can accelerate corrosion of structural steel, hydraulic components, electrical parts, and fixing points.
Inspect the pit during or after rainfall if possible.
If water regularly remains in the pit, the cause should be identified before installing the replacement equipment.
Possible sources include rainwater, damaged external drainage, washing operations, snow melt, or groundwater.
Confirm whether the pit includes a drain, channel, or sump.
Hydraulic cylinders, power units, frames, and supports should not interfere with the existing drainage path.
Where the pit environment is frequently wet, additional corrosion-resistant treatment may be appropriate.
This should be discussed during equipment specification rather than after installation.
Dock bumpers influence the relationship between the trailer and the dock leveler.
They should always be included in a retrofit survey.
Record how far the bumper projects from the dock face.
A thicker or thinner bumper changes the final position of the truck relative to the dock leveler lip.
This can affect lip engagement.
Measure the installation height and horizontal location.
Excessively compressed or damaged bumpers can allow trailers to move too close to the dock face.
The new dock leveler must provide suitable overlap with the truck bed.
This is especially important if the existing dock bumpers or vehicle types differ from the original project.
If possible, measure the old lip before removing the leveler.
This provides useful reference information.
A longer lip is not automatically better.
Lip geometry must remain compatible with the leveler structure, dock bumper projection, and truck positioning.
If possible, photograph a representative truck parked at the dock.
This helps confirm whether the replacement leveler's lip reach will be appropriate.
Electrical compatibility is another common retrofit issue.
The existing power supply should be checked rather than assumed.
The replacement control system and hydraulic power unit must match the available electrical supply.
Do not rely only on old electrical drawings or previous equipment labels.
Confirm where the incoming cable enters the pit or control area.
Cable size, condition, protective devices, and local electrical regulations should be reviewed before reuse.
Modern dock levelers may use different controls from older equipment.
A retrofit survey should therefore identify any existing interfaces.
Some loading bays have dock doors, dock shelters, traffic lights, vehicle restraints, or other equipment operating around the dock leveler.
If the dock leveler is connected to another device, these interfaces should be documented before removing the old equipment.
Check for limit switches, interlocks, emergency stops, or external signals.
The replacement system does not necessarily need to duplicate every old component, but required operating logic should be defined before production.
Even if the new dock leveler fits inside the pit, surrounding equipment can affect installation.
Measure nearby door tracks, columns, wall structures, and control boxes.
Maintenance personnel should be able to reach key components after installation.
Look for pipes, conduits, steelwork, dock shelters, and other structures.
Wide-angle photographs often reveal conflicts that individual pit measurements cannot show.
Replacement work also requires a practical removal plan.
Older equipment may be welded, bolted, cast into surrounding steel, or modified during previous repairs.
This helps estimate removal work and avoid unexpected delays.
Confirm whether a forklift, crane, hoist, or other lifting equipment can reach the loading bay.
Removal equipment should be selected according to the actual dock leveler configuration and site conditions.
A loading dock replacement normally requires taking the bay out of service.
For busy warehouses, the available shutdown window should be discussed early in the project.
Confirm whether the dock can be unavailable for several hours, one day, or longer.
Do not calculate downtime based only on installing the new dock leveler.
Removing the old unit and repairing concrete or steel may require additional time.
Older pits often reveal hidden damage after the original equipment is removed.
Where possible, allow additional time for minor welding, concrete repair, cleaning, and alignment.
After completing the survey, the pit can usually be classified into one of three conditions.
The pit dimensions, structural steel, concrete, drainage, and interfaces are compatible with the replacement equipment.
Installation may involve only normal cleaning, leveling, welding, anchoring, and electrical connection.
The pit can still be reused, but some work is required before installation.
Possible work may include repairing concrete, replacing embedded steel, adding support plates, adjusting fixing points, modifying drainage, or adapting electrical connections.
In some projects, the existing structure cannot safely or practically accommodate the required replacement equipment.
If the pit is severely damaged or significantly different from the new equipment requirements, rebuilding part of the pit may provide a more reliable long-term solution.
Before requesting a final replacement dock leveler quotation, prepare a complete set of site information.
Item | Existing Site Measurement | Replacement Requirement | Status |
|---|---|---|---|
Pit clear width | ___ mm | ___ mm | Confirm / Modify |
Pit clear length | ___ mm | ___ mm | Confirm / Modify |
Pit depth | ___ mm | ___ mm | Confirm / Modify |
Dock height | ___ mm | ___ mm | Confirm |
Front edge steel | Good / Repair | Required condition | Confirm |
Side steel | Good / Repair | Required condition | Confirm |
Concrete condition | Good / Repair | Suitable substrate | Confirm |
Drainage | Yes / No | Required clearance | Confirm |
Bumper projection | ___ mm | ___ mm | Confirm |
Bumper height | ___ mm | ___ mm | Confirm |
Existing lip length | ___ mm | ___ mm | Reference |
Power supply | ___ V / ___ Ph | ___ V / ___ Ph | Confirm |
Control interfaces | Yes / No | Required functions | Confirm |
Available shutdown | ___ hours | Estimated work window | Confirm |
This type of comparison helps identify potential conflicts before the replacement unit enters production.
Photos are just as important as measurements in a retrofit project.
Take one photo showing the complete dock opening, dock door, bumpers, shelter, and surrounding structure.
A wider view helps identify relationships between different pieces of dock equipment.
Photograph the platform in both stored and operating positions if it is safe to do so.
These areas help the supplier understand the existing equipment layout.
Once the old equipment has been removed, photograph the complete pit.
Front, rear, left, and right views can reveal structural conditions that are difficult to describe in measurements alone.
Photograph corrosion, cracks, damaged steel, drainage problems, and previous repairs.
Including a scale in the photograph makes damage easier to evaluate remotely.
The final equipment specification should be checked against the site survey before manufacturing begins.
The replacement frame must allow for realistic installation clearance.
Use the smallest confirmed usable dimensions where appropriate.
Verify whether the replacement frame can be supported by the existing pit structure.
If additional steelwork is required, it is better to prepare it before the installation team arrives.
The new power unit, cylinders, hinges, and support structures may differ from the old design.
An existing pit may contain pipes, conduits, drainage lines, or old steelwork that could interfere with moving components.
A clear retrofit package reduces repeated communication and helps avoid incorrect equipment selection.
The information should normally include:
Existing pit width, length, and depth
Dock floor height
Diagonal pit dimensions if available
Existing dock leveler dimensions
Bumper size and projection
Typical truck or trailer information
Available power supply
Photos of the complete loading bay
Photos of the existing leveler
Photos of the empty pit where available
Concrete and embedded steel condition
Drainage information
Required shutdown window
Existing control interfaces
Any known site restrictions
With this information, the equipment supplier can evaluate whether the old pit can be reused directly or whether modifications should be included in the retrofit plan.
Many replacement problems can be traced back to incomplete site information.
The previous dock leveler's model number does not confirm the current pit condition.
Years of repair and use can change the actual installation environment.
A retrofit survey requires more than two dimensions.
Without them, the replacement frame may fit horizontally but still be incompatible with the pit.
Bumper projection changes the trailer's stopping position.
This is especially important when vehicle types have changed.
Installing new equipment without correcting drainage can shorten its service life.
Replacement is an opportunity to improve the entire pit environment.
Older controls and wiring may not suit the new dock leveler.
This helps prevent unnecessary installation delays.
When replacing a dock leveler in an existing pit, the most important question is not simply:
What size dock leveler do we need?
The better question is:
Can the existing pit safely and practically accept the new dock leveler?
A detailed retrofit survey provides the answer.
By checking pit dimensions, embedded steel, concrete condition, drainage, dock bumpers, electrical interfaces, vehicle position, and available shutdown time before production, many installation problems can be identified while they are still easy to solve.

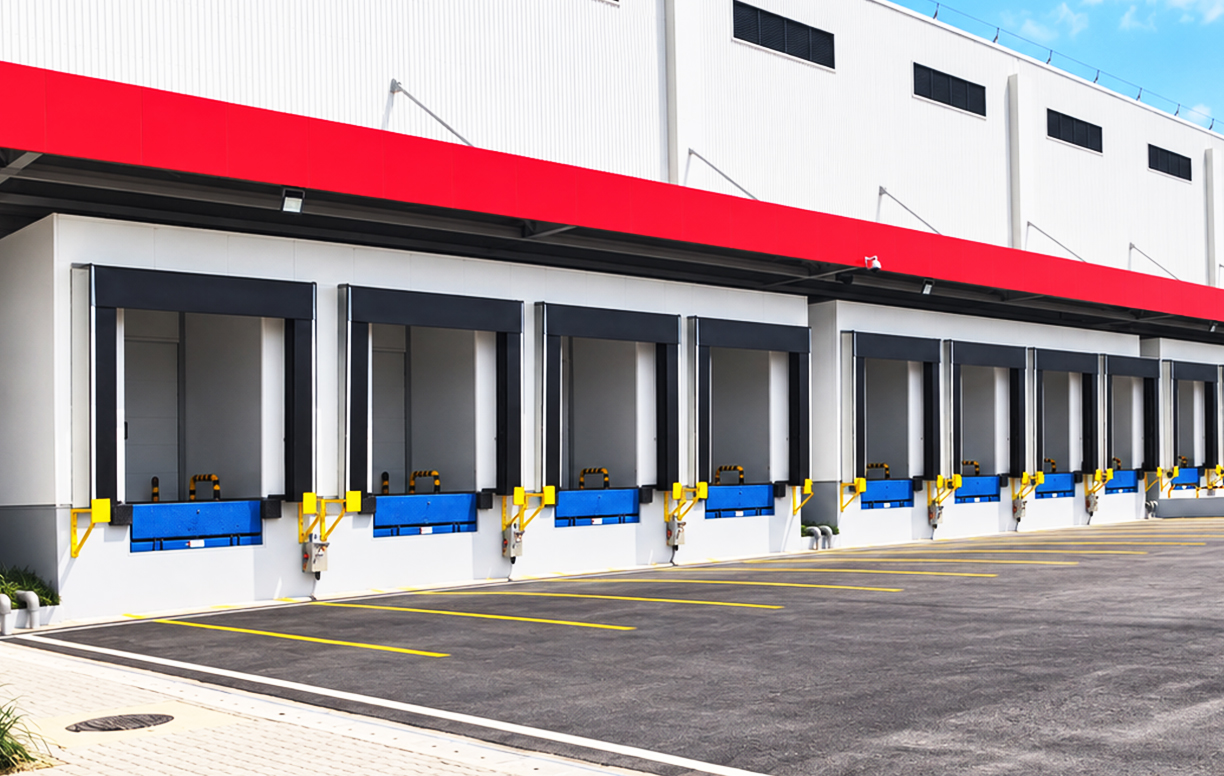

For existing loading docks, proper measurement and condition assessment are the foundation of a reliable replacement project.
Before selecting a replacement unit, prepare a clear measurement drawing, current pit photographs, and a dimension comparison table. These three items give the manufacturer the information needed to determine whether the old pit can be reused directly, modified locally, or partially reconstructed.
For retrofit projects involving hydraulic dock levelers, mechanical dock levelers, telescopic dock levelers, or other loading dock equipment, EVERBESTEN can review your existing pit dimensions and site conditions and help determine a suitable replacement configuration.
