A dock leveler is a loading dock equipment used to bridge the height difference between a warehouse floor and a truck bed. In daily warehouse operations, trucks do not always stop at the same height. Different vehicle models, cargo weights, suspension conditions, and loading positions can all cause the truck bed to be higher or lower than the dock floor. A dock leveler solves this problem by creating a smooth and stable transition between the two surfaces.
Without a dock leveler, forklifts and pallet trucks may have difficulty moving goods safely in and out of the truck. Workers may need extra time to adjust the loading process, and the risk of product damage or workplace accidents may increase. For modern warehouses, logistics centers, cold storage facilities, and manufacturing plants, a dock leveler is one of the most important pieces of loading dock equipment.
Dock levelers are widely used because they make loading and unloading faster, safer, and more organized. Instead of relying on temporary plates or manual handling, a dock leveler provides a fixed and reliable platform that supports forklifts, workers, and cargo during the loading process.
The main purpose of a dock leveler is to compensate for height differences and allow material handling equipment to move smoothly between the warehouse and the truck. It helps reduce bumps, gaps, and unsafe angles during loading.
Dock levelers are usually installed at warehouse loading bays, distribution centers, industrial buildings, cold storage warehouses, food processing facilities, and manufacturing plants. They are often used together with dock shelters, dock seals, sectional doors, high speed doors, and vehicle restraints to form a complete loading dock system.

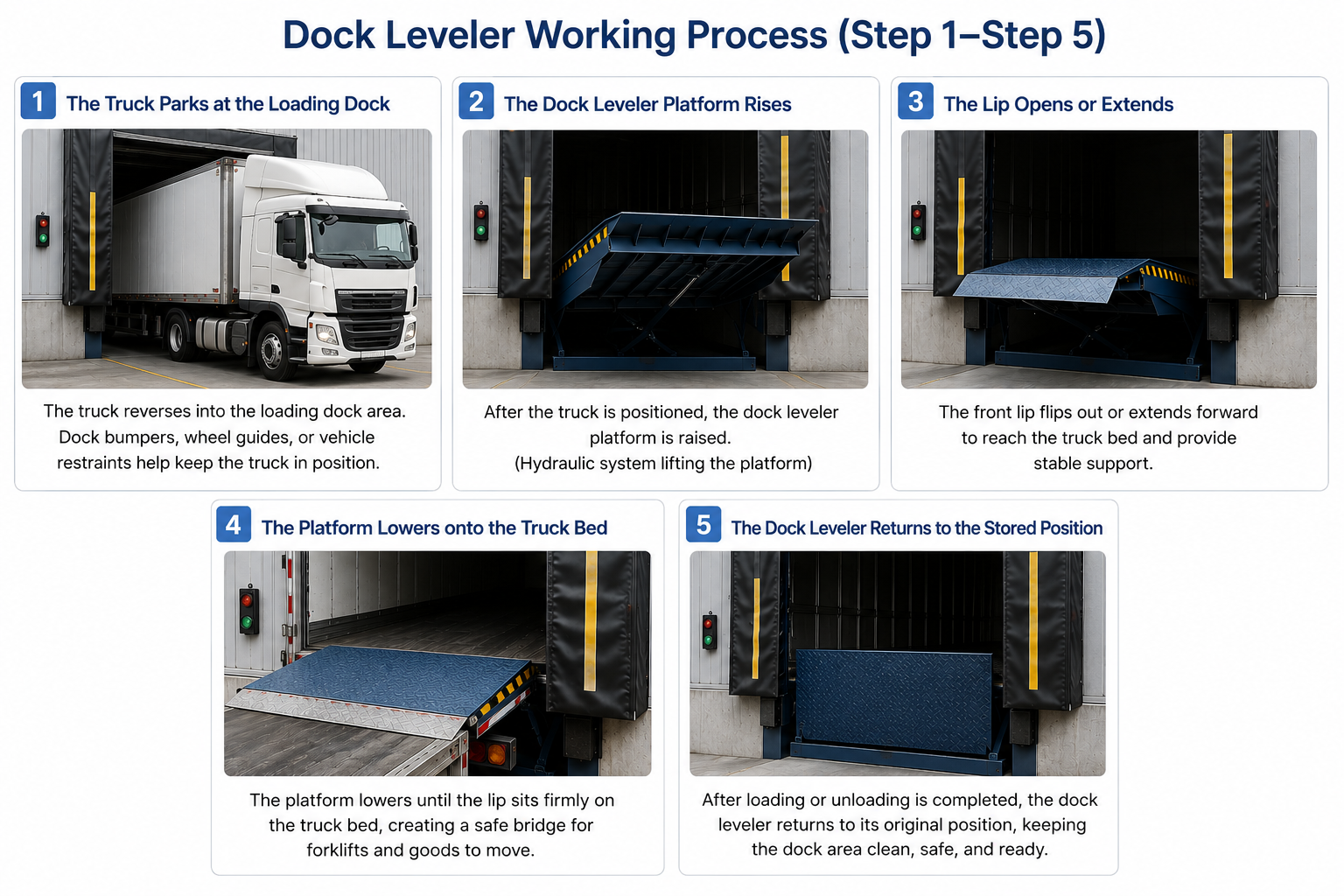

A dock leveler works by raising its platform, extending the lip, and then lowering the platform until the lip rests on the truck bed. Once the dock leveler is in position, forklifts and pallet trucks can move across it to load or unload goods.
After the loading process is finished, the dock leveler returns to its stored position. In this position, the platform is level with the warehouse floor, so the loading area remains clear and safe when not in use.
The exact working method depends on the dock leveler type, but the basic principle is similar. The platform first rises from the pit. Then the front lip opens or extends. After that, the platform slowly lowers and the lip lands firmly on the truck bed. This creates a bridge between the warehouse and the truck.
The truck first reverses into the loading dock area. In many warehouses, dock bumpers are installed on the dock wall to protect both the building and the truck from impact. Some facilities also use wheel guides or vehicle restraints to help keep the truck in the correct position.
After the truck is positioned, the dock leveler platform is raised. For a hydraulic dock leveler, this is usually done by pressing a control button. For a mechanical dock leveler, the operator may pull a release chain or use manual force, depending on the structure.
The lip is the front part of the dock leveler that rests on the truck bed. On a standard hinged-lip dock leveler, the lip flips out. On a telescopic dock leveler, the lip extends forward. The lip must have enough contact with the truck bed to provide stable support during loading.
Once the lip is in the correct position, the platform lowers until the lip sits firmly on the truck bed. At this point, the dock leveler creates a safe bridge for forklifts and goods to move between the warehouse and the truck.
After loading or unloading is completed, the dock leveler is returned to its original position. This keeps the dock area clean, safe, and ready for the next truck.
The platform is the main deck of the dock leveler. It supports forklifts, pallet trucks, workers, and goods during loading and unloading. Because it carries repeated heavy loads, the platform must be strong enough for daily industrial use.
The platform needs to handle not only static weight but also moving loads. When a forklift enters and exits a truck many times a day, the dock leveler experiences impact, vibration, and pressure. A strong steel platform helps improve safety and service life.
The lip is the front plate that connects directly with the truck bed. It is a key part of the dock leveler because it supports the transition between the dock and the vehicle.
A hinged lip flips out and rests on the truck bed. It is common and suitable for many standard warehouse applications. A telescopic lip extends forward and allows more accurate positioning, which is useful for containers, refrigerated trucks, and vehicles with limited contact space.
The lifting system controls how the dock leveler moves. Different systems affect operation comfort, maintenance requirements, and cost.
Hydraulic dock levelers use hydraulic cylinders and a power unit to lift the platform and operate the lip. They are easy to use and suitable for high-frequency loading areas.
Mechanical dock levelers rely on springs or manual mechanisms. They are simple in structure and do not need a power supply, but they require more manual operation.
A dock leveler usually includes safety supports, side plates, and other protective structures. These parts help improve safety during operation and maintenance.
Because loading docks are busy areas, safety features are very important. A well-designed dock leveler should reduce risks caused by sudden platform movement, gaps, unstable truck positions, or incorrect operation.
Hydraulic dock levelers are one of the most popular choices for modern warehouses. They are operated by button control, which makes them easier and safer to use compared with manual systems. The platform and lip movement are controlled by a hydraulic system, so the operation is smooth and efficient.
Hydraulic dock levelers are suitable for warehouses with frequent truck loading and unloading. They are often used in logistics centers, distribution centers, cold storage warehouses, food factories, and manufacturing plants.
Hydraulic dock levelers are best for facilities with medium to high loading frequency, heavier goods, and a need for easier operation.
Their main advantages include simple button control, stable performance, reduced manual labor, and better efficiency for busy loading docks.
Mechanical dock levelers are usually operated manually. They do not require electrical power, so they can be used in facilities where power supply is limited or where loading frequency is not very high.
Although mechanical dock levelers require more physical operation than hydraulic models, they are still widely used because of their simple structure and relatively lower cost.
Mechanical dock levelers are suitable for warehouses with lower loading frequency, limited budgets, or projects where power supply is not convenient.
Their advantages include simple structure, no power requirement, and lower initial investment.
A telescopic dock leveler has an extendable lip instead of a standard hinged lip. This design allows the lip to reach further into the truck bed and provide more accurate positioning.
This type is especially useful when the warehouse handles different truck types or requires precise loading. It is often used for container loading, refrigerated trucks, and facilities with higher sealing or safety requirements.
Telescopic dock levelers are best for warehouses that need more flexible truck matching, better positioning, or improved loading safety.
Their main advantages include accurate lip positioning, better adaptability to different vehicles, and improved support during loading.
An edge-of-dock leveler is installed at the edge of the loading dock instead of inside a pit. It is usually smaller than a pit-mounted dock leveler and is suitable for light to medium-duty loading.
This type is often used when the facility cannot build a standard dock leveler pit or when loading requirements are not very heavy.
Edge-of-dock levelers are suitable for smaller warehouses, lower loading frequency, and applications where pit construction is difficult.
They are compact, easier to install, and usually more cost-effective for light-duty loading applications.
A dock leveler helps forklifts move directly between the warehouse floor and the truck bed. This reduces manual handling and shortens loading time. For warehouses that handle multiple trucks every day, even small time savings can make a big difference.
When loading becomes smoother, trucks can leave faster, workers can complete tasks more easily, and the entire logistics process becomes more efficient.
A smooth loading process helps reduce truck waiting time and improves daily shipment capacity. This is especially important for distribution centers and logistics warehouses with tight delivery schedules.
Loading docks can be dangerous if the height difference between the truck and the dock is not properly handled. Gaps, slopes, and unstable plates can increase the risk of accidents. A dock leveler helps create a safer path for workers and equipment.
A dock leveler reduces the risk of forklifts hitting uneven surfaces or goods falling during movement. It also helps operators maintain better control when entering and exiting the truck.
Unstable loading conditions can damage goods, packaging, and handling equipment. A dock leveler creates a smoother transition, reducing impact during movement.
For heavy machinery, palletized goods, food products, cold chain cargo, and fragile packaging, stable loading is very important. A suitable dock leveler helps reduce vibration, collision, and product loss.
Not all trucks have the same loading height. A warehouse may receive container trucks, refrigerated trucks, standard cargo trucks, or delivery vehicles. A dock leveler gives the loading dock more flexibility.
With the right dock leveler, a warehouse can handle different trucks more easily. This is especially helpful for facilities that work with multiple carriers or international logistics operations.
The first question is how often the dock leveler will be used. If your warehouse loads only a few trucks per day, a mechanical dock leveler may be enough. If your facility handles frequent loading, a hydraulic dock leveler is usually more suitable.
For low-frequency loading, simple operation and lower investment may be more important. Mechanical dock levelers or edge-of-dock levelers can be practical options.
For high-frequency loading, efficiency, durability, and easy operation are more important. Hydraulic dock levelers or telescopic dock levelers are better choices for busy loading docks.
Load capacity is one of the most important factors. The dock leveler must support the forklift, the operator, and the cargo at the same time. Choosing a model with insufficient capacity can create safety risks and shorten equipment life.
It is better to leave a safety margin when choosing load capacity. Daily loading creates repeated impact and pressure, so the dock leveler should be strong enough for long-term use.
Before choosing a dock leveler, you need to know what types of trucks will use the loading dock. Truck bed height, truck width, rear door type, and parking position can all affect the final solution.
If your warehouse handles different trucks, a telescopic dock leveler may be more suitable because the extendable lip can match different loading conditions more accurately.
The installation site must be checked before production. Important details include pit size, dock height, warehouse floor condition, wall structure, power supply, and available installation space.
Incorrect dimensions can cause installation problems, poor operation, or safety risks. Before ordering, it is better to provide site photos, drawings, or detailed measurements to the supplier.
A dock leveler usually works together with other loading dock equipment. For example, a dock shelter improves sealing, a sectional door protects the opening, and a vehicle restraint keeps the truck in position.
The best solution is not just one product. A complete loading dock system should consider loading efficiency, sealing performance, safety, and long-term maintenance together.
Logistics centers usually have frequent truck movement and fast loading requirements. Hydraulic dock levelers are commonly used because they are easy to operate and suitable for high daily use.
For logistics centers, hydraulic dock levelers, dock shelters, sectional doors, and vehicle restraints can create a safer and more efficient loading system.
Cold storage warehouses need to control temperature loss during loading. A dock leveler should work together with insulated doors and sealing equipment to reduce cold air leakage.
For cold storage, hydraulic or telescopic dock levelers, inflatable dock shelters, and insulated sectional doors are often recommended for better temperature control.
Food and beverage warehouses often require clean and efficient loading conditions. The dock area should reduce dust, insects, and outside air entering the facility.
A well-sealed dock system with a suitable dock leveler, dock shelter, and fast-operating door can help maintain a cleaner loading environment.
Manufacturing plants may handle heavy materials, finished products, and industrial equipment. The dock leveler must be strong enough to support heavy-duty loading.
For manufacturing plants, a heavy-duty hydraulic dock leveler with reinforced structure is often a practical choice.
A lower price may look attractive at first, but it may not provide the right performance for your warehouse. If the dock leveler is not strong enough or does not match the site, it may cause higher costs later.
A good dock leveler should reduce downtime, improve safety, and support daily operations for many years. Long-term reliability is often more important than the lowest initial price.
Some buyers only provide the warehouse opening size but forget to confirm truck details. This can lead to poor matching between the dock leveler and the vehicle.
Truck bed height is a key factor in dock leveler selection. If the height range is not correct, the platform angle may become too steep and affect forklift safety.
A dock leveler is important, but it should not work alone. Safety accessories help create a safer loading area.
Vehicle restraints, dock bumpers, warning lights, safety barriers, and anti-slip surfaces can all improve dock safety and protect workers, trucks, and goods.
A dock leveler should be inspected regularly to make sure all parts work properly. The platform, lip, hinges, hydraulic system, control box, and safety supports should be checked.
Operators should look for oil leakage, loose bolts, damaged plates, abnormal noise, unstable movement, or worn parts. Small problems should be repaired early before they become serious.
Dust, stones, packaging materials, or other debris may fall into the dock leveler pit. If the pit is not cleaned, it may affect the movement of the platform or damage components.
Regular cleaning helps the dock leveler move properly and reduces unnecessary wear.
Even a good dock leveler can become unsafe if it is used incorrectly. Operators should understand the correct working process and safety rules.
Workers should make sure the truck is correctly positioned, the lip is fully supported, and the loading path is safe before using forklifts.
A dock leveler is an essential piece of loading dock equipment that connects the warehouse floor with the truck bed. It helps solve height differences, improves loading efficiency, protects goods, and creates a safer working environment for warehouse operations.
Different types of dock levelers are suitable for different applications. Hydraulic dock levelers are ideal for frequent loading, mechanical dock levelers are suitable for lower-frequency use, telescopic dock levelers provide better flexibility, and edge-of-dock levelers are practical for light-duty loading areas.
When choosing a dock leveler, warehouses should consider loading frequency, load capacity, truck types, site dimensions, safety requirements, and the complete dock system. A well-selected dock leveler can improve daily workflow, reduce risks, and support long-term warehouse performance.
