Want to Easy Setup for Your High Speed Door Control System?
Setting up a high speed door control system doesn’t have to be complicated.
With the S180 FU industrial door controller, installers can quickly set the door's top and bottom positions through a simple and intuitive interface.
The parameter setup process is designed to be easy — almost like adjusting settings on a smartphone.
After completing the basic door wiring, only a few simple steps are needed to finish the setup and get the door running.
The S180 FU controller also provides multiple standard terminals to support different warehouse door automation requirements.
This makes it easy to connect the door with other equipment commonly used in logistics facilities.
Typical integration options include:
output signal connections
door interlock systems
traffic light systems
vehicle restraint systems
induction loop sensors
air curtain systems
Because of this flexible design, the S180 FU controller can easily integrate with modern warehouse and loading dock systems.
The wiring diagram shows how the electrical components of the high speed door control system are connected and how they work together to control the door operation.
In this system, the door is powered by an ABB industrial motor and controlled by the S180 FU intelligent control system. The S180 FU controller is designed specifically for high speed industrial doors that require stable performance and high-frequency operation. We choose ABB motor and also Yaskawa/ Mitsubushi Inverter and our owned innovated Main board to suppor the door in a fast, stable and smooth operation after a long run using life.
The electrical system integrates multiple modules that coordinate the operation of the door, ensuring smooth movement, reliable control, and safe operation in demanding industrial environments.Still, our control system are perfect to meet some conutries different power supply demand.
For ABB motor, we equip with the brake to avoid the door to release in some emergency status/conditions.
A typical high speed door control system includes several key components:
frequency inverter drive
ABB motor connection
S180 FU main control board
safety sensor input interfaces
signal output terminals
manual control inputs
These components work together to manage the opening and closing of the door while maintaining stable and safe performance.
The door drive system uses a frequency inverter to regulate the motor speed.
Instead of directly powering the motor, the inverter controls the voltage and frequency supplied to the motor. This allows the door to start smoothly, accelerate quickly, and stop accurately.

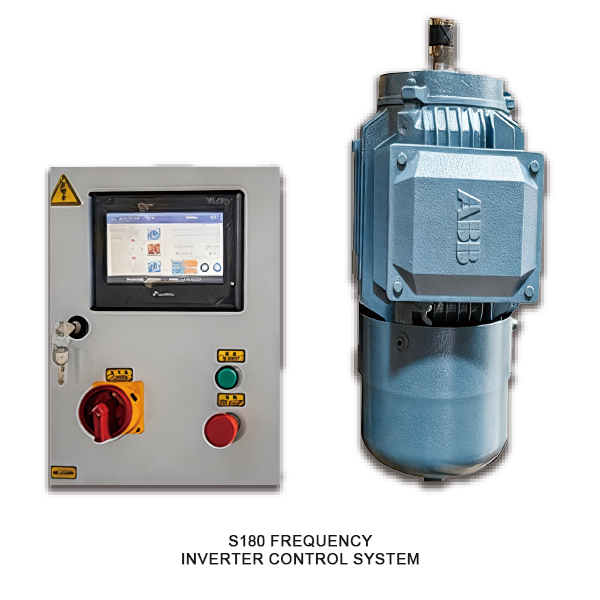

ABB+S180 FU Controller

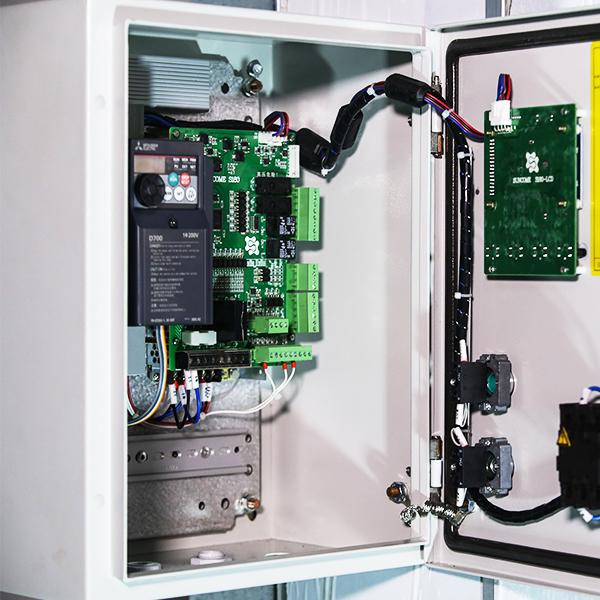

Controller inside
Combined with the ABB industrial motor, the system ensures stable torque output and smooth door movement. This is particularly important for industrial fast doors used in warehouses and logistics facilities where doors may operate hundreds or thousands of cycles per day.
The inverter system also helps reduce mechanical stress on the door components and extends the service life of the entire system.
At the center of the electrical system is the Everbesten S180 FU intelligent control unit.
The S180 FU controller acts as the main control hub for the high speed door, managing communication between the motor drive, sensors, and external devices.
The controller performs several important functions:
controlling door opening and closing
processing sensor signals
managing safety protection systems
monitoring door position and speed
communicating with external automation equipment
The S180 FU control system also supports RS485 communication and external display interfaces, allowing easy configuration, monitoring, and integration with automated warehouse systems. Suncome Series -S180FU which makes the door system suitable for modern logistics environments where reliable automation and stable operation are required.
High speed doors installed in warehouses must operate safely in environments with frequent forklift traffic.
The S180 FU control system supports multiple safety sensor connections, including:
photoelectric safety sensors
light curtain protection systems
wireless safety bottom edges
radar motion sensors
These sensors continuously monitor the doorway area. If an obstacle is detected while the door is closing, the control system immediately stops or reverses the door movement.
This safety logic helps prevent accidents and protects both workers and equipment.
In addition to automated operation, the S180 FU control system also supports several manual control devices.
Typical control inputs include:
push button control stations (Up / Stop / Down)
emergency stop buttons(Standard)
pull cord switches(Option)
remote control transmitters(Option)
These manual controls allow operators to manage the door system during maintenance, troubleshooting, or emergency situations.
For high speed doors used in logistics centers, the reliability of the control system is critical.
The S180 FU intelligent controller, combined with an ABB motor and Yaskawa/Mitsubushi inverter drive/Standard Main Board/Terminals, provides several advantages:
smoother door movement
precise motor control
improved safety protection
easier diagnostics and maintenance
compatibility with warehouse automation systems
Because of this advanced electrical architecture, the door system can maintain stable performance even in high-frequency warehouse operations.
