Selecting the right cold room panels is essential for maintaining temperature stability, controlling energy consumption, preventing condensation, and ensuring the long-term performance of a cold storage facility.
However, cold room panel selection involves more than choosing a panel thickness based on the required storage temperature. Two projects operating at the same temperature may require different panel specifications because of differences in ambient conditions, room dimensions, door-opening frequency, humidity, refrigeration capacity, and construction details.
For example, a refrigerated room operating above freezing has different insulation requirements from a freezer operating at −25°C or a low-temperature storage facility operating at −45°C. The panel core, joint design, surface material, and installation details must all be evaluated against the intended application.
A practical selection process should consider:
Required room temperature and surrounding ambient conditions
Panel thickness and thermal conductivity
PU versus PIR insulation core
Panel dimensions and room configuration
Joint design, sealing, and thermal bridging
Facing materials and hygiene requirements
Condensation control, vapour barriers, and fire performance
This guide explains how to evaluate these factors during project planning, helping buyers provide the right technical information before requesting a quotation.
For product specifications and available configurations, visit the EVERBESTEN Cold Room Panels page.
The first step in cold room panel selection is identifying the intended operating temperature. This establishes the thermal conditions that the insulation system must accommodate.
Chilled rooms commonly operate above freezing, depending on the stored products and process requirements. Typical applications include fresh food storage, beverage storage, and temperature-controlled distribution.
Panel selection should consider the temperature difference between the room and its surroundings, the required temperature stability, and the expected frequency of door opening.
Frozen storage rooms operate below 0°C and require greater attention to heat transfer, vapour control, and joint integrity.
As the temperature difference increases, heat gain through the insulated enclosure can become more significant. The selected panel thickness must be evaluated together with the refrigeration system, floor insulation, ceiling construction, and door performance.
Rooms operating at −25°C, −35°C, or lower require a project-specific assessment of the complete insulated enclosure.
For very low-temperature facilities, such as rooms operating at −45°C, panel thickness alone cannot guarantee the required performance. The design should also address thermal bridging, vapour migration, floor frost protection, joint sealing, and the suitability of the refrigeration system.
The outdoor or adjacent-room environment affects the thermal load on the cold room.
A cold room installed in a hot, humid climate may experience a different moisture load from one installed in a cool, dry environment.
High humidity increases the risk of condensation at poorly insulated surfaces and air leakage points. The design should account for the expected temperature and humidity conditions around the enclosure.
An indoor cold room surrounded by conditioned spaces may have different requirements from an external cold storage building exposed to sunlight, rain, wind, and changing ambient temperatures.
External installations may require additional consideration of weather resistance, surface coatings, structural support, and the durability of joints and flashings.
Different stored products create different demands on the enclosure.
Food facilities may require smooth, cleanable surfaces, sealed joints, corrosion-resistant finishes, and details that minimize areas where moisture or contaminants can accumulate.
Pharmaceutical and other controlled environments may require close temperature monitoring, reliable vapour control, cleanable surfaces, and documented building-envelope performance.
Panel selection should support the facility's validated operating conditions, but the panels alone do not establish compliance with all hygiene or pharmaceutical requirements.
Panel thickness influences heat transfer through the insulated enclosure. In general, a thicker panel with the same core material and comparable construction provides greater thermal resistance.
However, thermal performance depends on more than thickness. The insulation core, panel joints, fixings, thermal bridges, and installation quality all affect the performance of the completed room.
The following ranges are preliminary guidance for project discussions, not universal design requirements.
Application | Illustrative Panel Thickness | Key Considerations |
|---|---|---|
Chilled room, approximately 0°C to +10°C | 50–100 mm | Ambient conditions, humidity, door traffic |
General freezer, approximately −18°C to −25°C | 100–150 mm | Heat gain, joint integrity, vapour control |
Low-temperature freezer, approximately −25°C to −40°C | 150–200 mm | Thermal bridging, enclosure continuity, floor design |
Deep-freezing room, approximately −40°C to −45°C | Project-specific, often 150–200 mm or more | Detailed thermal assessment, floor frost protection, refrigeration load |
Actual requirements may fall outside these ranges. The final specification should be determined from the room temperature, surrounding climate, dimensions, refrigeration design, energy targets, and applicable regulations.
Thermal conductivity, commonly expressed in W/(m·K), indicates how readily heat passes through a material. A lower value generally means better insulating performance for the same thickness.
Thermal resistance depends on both conductivity and thickness. However, a panel's declared core conductivity should not be confused with the overall thermal transmittance of the installed enclosure.
When comparing cold room panels, request the manufacturer's documented thermal conductivity value and clarify:
Whether the value refers to the insulation core or the complete panel
The measurement method and relevant test conditions
Whether the value is a declared or typical value
Whether the comparison uses the same measurement basis
For procurement, values should be compared on a consistent basis rather than relying on marketing descriptions such as “high insulation” or “energy-saving panel.”
A cold room loses efficiency when heat enters through the entire enclosure, not just through the panel core.
The thermal assessment should consider the wall and ceiling panels, insulated floor where required, door openings, refrigeration penetrations, and structural connections.
A well-insulated wall cannot compensate for an inadequately insulated floor or poorly sealed door opening.
Frequent door opening allows warm, moist air to enter the cold room. This increases the refrigeration load and may lead to frost, condensation, and temperature fluctuations.
Where traffic is high, the project may benefit from appropriate door systems, air management measures, and operational controls in addition to selecting suitable panels.
PU, or polyurethane, is widely used as the insulating core in cold room sandwich panels.
Its low thermal conductivity makes it suitable for many chilled and frozen storage applications.
PU panels can provide effective insulation with relatively low panel weight. They are commonly used in food storage, distribution facilities, processing rooms, and general cold storage projects.
The final suitability depends on the manufacturer's product specifications, operating conditions, facing materials, and joint construction.
PU may be a suitable option when the project prioritizes thermal performance, weight, and cost-effectiveness, and the panel's documented properties meet the relevant project requirements.
Buyers should confirm the required temperature range and any additional fire, hygiene, or regulatory requirements before selecting a product.
PIR, or polyisocyanurate, is a related rigid foam insulation material used in building-envelope applications.
PIR formulations can provide different fire-response characteristics from conventional PU formulations. However, actual performance depends on the complete panel assembly and its tested configuration.
PIR may be considered where thermal insulation and specific fire-performance requirements must be evaluated together.
It is important to distinguish between the material's general properties and the verified performance of a finished sandwich panel.
PIR can be an option for projects where the documented characteristics of a specific PIR panel meet the design requirements.
The decision should be based on valid test evidence, the intended application, applicable building regulations, and the requirements of the project insurer or authority where relevant.
Selection Factor | PU Panel | PIR Panel |
|---|---|---|
Thermal insulation | Can provide very good insulation | Can provide very good insulation |
Core formulation | Polyurethane-based | Polyisocyanurate-based |
Fire performance | Must be verified for the specific panel | Must be verified for the specific panel |
Cost | Depends on supplier and specification | Depends on supplier and specification |
Temperature suitability | Confirm the manufacturer's operating specifications | Confirm the manufacturer's operating specifications |
Application suitability | Depends on thermal, hygiene, and regulatory requirements | Depends on thermal, fire, hygiene, and regulatory requirements |
Neither PU nor PIR should automatically be considered suitable or unsuitable solely because of the core material name. Buyers should compare actual thermal data, fire-test documentation, panel construction, and project requirements.
Fire performance is an important consideration when specifying insulated sandwich panels, particularly in commercial, industrial, and food storage facilities.
A fire classification or test result should apply to the relevant product configuration, including the core, facings, thickness, joints, and other conditions covered by the test.
A classification for one panel configuration should not automatically be applied to every thickness or product in the manufacturer's range.
Different tests evaluate different aspects of fire behaviour. A reaction-to-fire classification is not interchangeable with a fire-resistance rating.
For this reason, buyers should request valid reports or certificates that identify the applicable standard, classification, product configuration, and limitations.
Where a supplier cannot provide the relevant evidence, a specific fire-performance claim should not be treated as verified.
The dimensions of the cold room influence panel quantities, joint positions, structural support, and installation efficiency.
Before requesting a quotation, provide the internal or external room dimensions and identify which measurement basis is being used.
The supplier should confirm the panel arrangement, including wall heights, ceiling spans, corner connections, and openings.
Large cold rooms may require additional structural support or a specific ceiling arrangement depending on the panel design and span.
The allowable span should be confirmed from the manufacturer's technical documentation, taking into account loading conditions, support spacing, and any applicable structural requirements.
Doors, pipes, electrical conduits, refrigeration lines, and other penetrations can interrupt the insulated enclosure.
Door dimensions and positions should be confirmed before manufacturing wherever possible. Changes made after panel production may require cutting, reinforcement, or additional sealing work.
Penetrations should be detailed to maintain insulation continuity and control moisture movement. The appropriate sealing method depends on the temperature, penetration type, materials, and applicable fire or hygiene requirements.

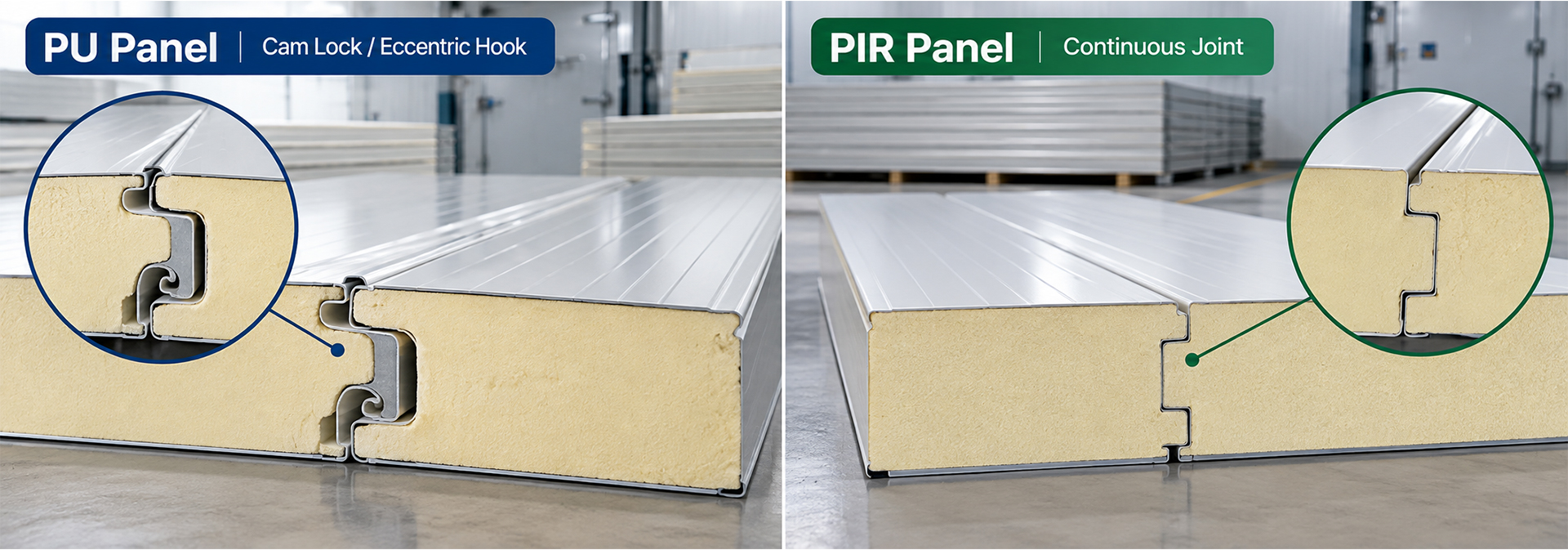

Cold room panels are assembled through joints that connect adjacent panels and help form a continuous insulated enclosure.
The exact joint profile varies by manufacturer and panel system.
Interlocking joints help align adjacent panels and provide a connection between their edges. Depending on the system, they may also accommodate gaskets, sealants, or other sealing components.
Buyers should confirm the manufacturer's recommended assembly procedure rather than assuming that all interlocking joints provide the same airtightness or thermal performance.
Joints should be installed and sealed according to the panel system's instructions. Poorly sealed joints can allow warm, moist air to enter the enclosure and may contribute to condensation or frost formation.
The required sealing method should reflect the operating temperature and surrounding humidity.
A thermal bridge is a local area where heat transfers more readily than through the surrounding insulation.
Potential locations include:
Wall-to-ceiling connections
Wall-to-floor connections
Door frames
Metal support connections
Panel joints and penetrations
These areas should be reviewed during design because they can affect both energy performance and surface temperature.
The objective is to minimize uninsulated gaps and unnecessary conductive paths through the enclosure.
The panel manufacturer's connection details should be coordinated with the building structure, floor design, and refrigeration openings before installation.
When warm, humid air contacts a sufficiently cold surface, moisture may condense or freeze.
Particular attention should be paid to poorly sealed joints, damaged gaskets, door openings, and penetrations.
At sub-zero temperatures, moisture ingress may produce frost or ice that affects the enclosure and may conceal developing installation defects.
After the cold room is commissioned, inspect accessible joints and connections for visible gaps, condensation, frost, or other abnormal conditions.
Any suspected defect should be investigated and corrected using the manufacturer's recommended procedure.
Prepainted steel is commonly used for cold room panels in warehouses, distribution facilities, and many food storage applications.
Its suitability depends on the coating system, steel specification, cleaning requirements, and exposure conditions.
Areas exposed to moisture, cleaning chemicals, or corrosive substances may require a more suitable coating or facing material.
The buyer should provide information about the cleaning agents, washing frequency, humidity, and any chemical exposure so the manufacturer can recommend an appropriate specification.
Stainless steel may be considered for food processing, pharmaceutical, or other environments requiring specific surface hygiene or corrosion resistance.
Different grades have different corrosion-resistance characteristics. The appropriate grade depends on the environment, chemicals, cleaning methods, and required service life.
The term “stainless steel” alone is not sufficient to determine suitability.
A cleanable surface is only one part of hygienic design. Joints, corners, fasteners, penetrations, and transitions should also be considered to minimize areas where contamination or moisture may accumulate.
Before finalizing the panel specification, establish whether the room will be cleaned by wiping, spraying, or more intensive washdown procedures.
The facing, sealants, joint components, and accessories should be compatible with the intended cleaning process.
A chilled storage room operating at approximately +2°C may require moderate insulation thickness, depending on the surrounding environment and room dimensions.
The project should assess panel thickness, humidity, door traffic, and surface cleanability.
A suitable PU or PIR panel may be selected after confirming its thermal specifications and any applicable fire or hygiene requirements.
A freezer operating at approximately −25°C requires greater attention to insulation continuity, vapour control, and joint sealing.
Panel thickness should be determined as part of the overall thermal design. Door-opening frequency and floor insulation must also be considered.
The selected panel system should have documented thermal parameters and suitable connection details for the operating conditions.
A room operating at −45°C requires a more detailed project assessment than a general freezer.
The design should consider wall and ceiling insulation, floor insulation, frost protection, vapour barriers, thermal bridges, and the refrigeration system's operating conditions.
The final panel thickness should be confirmed by the project designer or supplier based on documented material parameters and the full enclosure design. A standard thickness recommendation alone cannot establish suitability for this temperature.
Provide the room length, width, height, and the relevant internal or external measurement basis.
Include drawings showing door openings, corners, ceiling arrangements, and service penetrations.
State the target room temperature, expected surrounding temperature and humidity, and whether the room operates continuously or intermittently.
Also identify the type of products stored and any special hygiene or cleaning requirements.
Specify any known requirements for:
Panel thickness
PU or PIR core
Thermal conductivity
Facing material and coating
Joint configuration
Fire classification or other applicable performance standards
Any required fire classification should be supported by the relevant project requirements and verified documentation.
Provide information about the building structure, support spacing, floor construction, and ceiling arrangement where available.
The supplier should review these details before confirming panel dimensions, connection methods, and any special reinforcement requirements.
Start with the operating temperature, surrounding climate, room dimensions, and required energy performance. Then evaluate the panel's thermal conductivity, joint design, and the insulation requirements of the floor, ceiling, and doors.
No. The better option depends on the actual thermal specifications, documented fire performance, cost, operating conditions, and project requirements. Compare specific tested products rather than relying solely on the core material name.
Not necessarily. Frozen rooms generally have a larger temperature difference from their surroundings and may require greater insulation. The final thickness should be established through project-specific thermal assessment.
Joints affect the continuity of insulation and the control of air and moisture movement. Poorly sealed connections may contribute to heat gain, condensation, frost, and reduced enclosure performance.
No. Fire classification depends on the tested panel configuration and the applicable test standard. A valid report or certificate must support any specific fire-performance claim.
Provide room dimensions, operating temperature, surrounding conditions, panel thickness requirements if known, core preference, facing material, joint requirements, door openings, and available layout drawings. Additional information may be needed to confirm the final specification.
Successful cold room panel selection requires a coordinated assessment of temperature, panel thickness, insulation core, room dimensions, joint details, facing material, and installation conditions.
PU and PIR panels can both be suitable for cold storage applications, but their suitability must be established from the specific product specifications and supporting evidence. Likewise, a thicker panel does not automatically guarantee better overall performance if joints, penetrations, or other parts of the enclosure are poorly designed.
The most reliable approach is to begin with the operating requirements, compare documented thermal properties, confirm joint and facing specifications, and verify any required fire classification against valid test reports.
For project-specific recommendations, provide the room dimensions, target temperature, surrounding conditions, and available drawings to the supplier before confirming the panel configuration.
