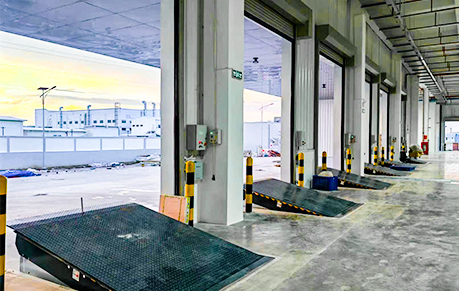

A dock leveler is one of the most important pieces of loading dock equipment in a warehouse. It connects the warehouse floor with the truck bed, allowing forklifts, pallet trucks, and workers to move goods safely and efficiently. But even if the dock leveler itself is well designed, it will not perform properly if the installation site is not prepared correctly.
In many loading dock projects, installation problems do not come from the product itself. They often come from incorrect pit dimensions, unclear power supply, weak civil construction, poor site preparation, or missing safety checks. These issues can delay installation, increase extra costs, and affect long-term operation.
That is why checking the site before installation is so important. A dock leveler is not just placed into the floor. It needs to match the pit size, dock height, truck type, forklift operation, power conditions, and surrounding building structure.
A dock leveler carries heavy loads every day. During loading, it supports the forklift, operator, cargo, and repeated movement impact. If the pit is not level, the support structure is weak, or the platform is not installed correctly, the dock leveler may become unstable over time.
Proper installation helps the dock leveler work smoothly, reduces wear, and improves safety. It also makes future maintenance easier. For warehouses with frequent loading and unloading, good installation is not optional. It is part of the whole loading dock solution.
The goal is simple: make sure the dock leveler fits the site, works safely, and supports daily warehouse loading without unnecessary problems. Before installation starts, all important details should be checked clearly.
A dock leveler pit is the recessed space built into the loading dock floor where the dock leveler is installed. For most pit-mounted dock levelers, the platform sits inside this pit when stored. When a truck arrives, the platform rises, the lip opens or extends, and the dock leveler connects the warehouse floor with the truck bed.
The pit must be prepared according to the dock leveler model and size. If the pit is too small, the equipment may not fit. If it is too large, extra fixing work may be needed. If the pit is not level or not strong enough, the dock leveler may not operate smoothly.
Before ordering or installing a dock leveler, the basic pit dimensions must be confirmed. These usually include pit length, pit width, pit depth, dock height, front beam position, and the surrounding floor condition.
The supplier should provide a pit drawing before installation. The buyer or contractor should check whether the actual site matches the drawing. This step is very important, especially for new warehouse construction and retrofit projects.
Pit length should match the dock leveler platform length. The platform length affects the working slope between the warehouse floor and the truck bed. If the platform is too short for the height difference, the slope may become too steep for forklifts.
A longer platform usually creates a smoother transition, which is better for forklift movement and cargo safety. This is especially important when the warehouse handles heavy goods or different truck heights.
Pit width should match the dock leveler width and allow proper installation clearance. The dock leveler should be wide enough for forklift and pallet movement, but it must also fit the civil construction.
When confirming pit width, do not only consider the door opening. You also need to consider forklift width, pallet size, cargo width, and the working space required by the operator.
Pit depth affects how the dock leveler sits in the floor. If the pit is too shallow, the platform may not be level with the warehouse floor. If it is too deep, extra adjustment may be required during installation.
A correct pit depth helps the dock leveler stay flush with the warehouse floor when it is in the stored position. This makes the dock area safer and easier to use when no truck is present.
Dock height is the vertical distance between the warehouse floor and the outside ground level where the truck parks. It directly affects dock leveler selection and installation.
Different trucks have different bed heights. If the truck bed is much higher or lower than the warehouse floor, the dock leveler needs to compensate for that height difference. If the height difference is too large, forklift movement may become unsafe.
Before installation, collect the lowest and highest truck bed heights used at the loading dock. This helps confirm whether the selected dock leveler size and working range are suitable.
For warehouses that handle mixed truck fleets, this step is especially important. A dock leveler should not be selected based on only one truck type if the warehouse receives different vehicles every day.
The dock leveler must be installed on a strong and stable structure. The pit walls, floor, front beam, and surrounding concrete must be able to support the dock leveler and daily loading impact.
If the concrete is weak, cracked, uneven, or not properly reinforced, installation may be unsafe. This is especially important for heavy-duty dock levelers used with forklifts and heavy cargo.
The warehouse floor around the dock leveler should be flat and strong enough for forklift movement. Uneven flooring can affect loading safety and cause additional impact when forklifts enter or leave the dock leveler.
Before installation, check whether the floor surface is damaged, loose, or too uneven. If necessary, repair the floor before installing the dock leveler.
The pit should be clean before installation. Remove dust, stones, packaging waste, water, oil, or any other debris. A dirty pit can make installation more difficult and may affect the movement of the platform later.
Water inside the pit is also a problem. It may affect electrical components, steel structure, and long-term maintenance. If the dock area is exposed to rain or washing water, drainage should be considered.
A clean pit makes it easier to position the dock leveler correctly. It also helps technicians check the structure, fixing points, and bottom clearance more clearly.
A dock leveler usually works together with a dock door, dock shelter, dock seal, or vehicle restraint. The door opening size and door position should be checked before installation.
If the door is too close to the dock leveler, or if the door track interferes with the equipment, installation and operation may be affected. The dock leveler should also match the dock shelter or dock seal layout if sealing performance is required.
A loading dock is not just one product. The dock leveler, sectional door, dock shelter, dock seal, dock bumper, and vehicle restraint should work together. Checking only the dock leveler pit is not enough if the full loading dock system needs to perform well.
Hydraulic dock levelers, telescopic dock levelers, airbag dock levelers, and many automatic safety systems require power supply. Mechanical dock levelers usually do not require electrical power for basic operation.
Before installation, it is important to confirm the voltage, phase, frequency, power location, and control box position. If these details are not clear, installation may be delayed.
The buyer should confirm the local power standard before production or installation. Different countries and regions may use different voltages and phases. The dock leveler control system should be matched accordingly.
The power cable route should also be planned in advance. The control box should be installed in a position that is easy for operators to use but protected from impact, water, and dust.
Common industrial power options may include different voltage and phase requirements depending on the project. The exact configuration should be confirmed with the supplier before production.
Do not assume the standard power supply is the same for every country or warehouse. A wrong voltage can cause installation problems and may damage electrical components.
The control box should be installed where the operator can clearly see the dock area and operate the equipment safely. It should not be placed behind obstacles or in a position where forklifts may hit it.
For better operation, the control box is usually installed near the loading dock door or dock leveler, but the final position should follow the site layout and safety requirements.
Electrical cables should be protected from forklift traffic, sharp edges, water, and mechanical damage. If the loading dock is busy, exposed cables can become a safety risk.
Cable routing should be planned before installation, not after the dock leveler is already fixed in place.
Before testing the dock leveler, all electrical connections should be checked by qualified personnel. The power supply should match the equipment requirements, and all wiring should be secure.
If the dock leveler is connected with other systems, such as dock lights, vehicle restraints, sectional doors, or interlock controls, these connections should also be tested carefully.
After installation, test the lifting, lowering, lip operation, emergency stop, limit control, and any safety interlock functions. Do not allow regular warehouse operation until the equipment works correctly.
The dock leveler should be placed into the pit carefully and aligned with the warehouse floor and dock opening. The platform should sit evenly, and the surrounding gaps should be controlled according to installation requirements.
If the dock leveler is not centered or not level, it may affect operation and create uneven wear over time.
Good alignment helps the platform move smoothly and keeps the lip properly positioned on the truck bed. Poor alignment may cause noise, unstable movement, or difficulty returning to the stored position.
After positioning, the frame and support points should be fixed according to the installation drawing. Welding, bolting, or embedded parts may be used depending on the dock leveler design and site condition.
The fixing points must be strong enough to handle repeated loading impact. Weak fixing can cause movement, deformation, or safety problems later.
The installation drawing is not just a reference. It should guide the placement, fixing points, welding areas, and structural support. Any site change should be confirmed before installation continues.
When the dock leveler is in the stored position, the platform should be level with the warehouse floor. This allows forklifts to move across the area safely when the dock leveler is not being used.
If the platform is higher or lower than the floor, it may create a bump or trip hazard. It can also affect forklift movement and long-term equipment performance.
The stored position is often ignored, but it matters a lot. A dock leveler spends most of its time stored. It should sit properly, support floor traffic safely, and be ready for the next loading operation.
After installation, the platform should be tested several times without loading. It should rise smoothly, lower steadily, and return to the stored position correctly.
There should be no abnormal shaking, blocking, scraping, or unusual noise. If the movement is not smooth, the issue should be checked before using the dock leveler with a forklift.
A dock leveler that moves smoothly is easier and safer for operators to use. Unstable movement may indicate problems with alignment, hydraulic pressure, mechanical structure, or installation clearance.
The lip must open, extend, or return properly depending on the dock leveler type. It should rest securely on the truck bed during loading.
Poor lip operation can create gaps or unstable contact with the truck. This is dangerous for forklift loading.
Before loading starts, the operator should check whether the lip has enough contact with the truck bed. The lip should not sit on the edge too narrowly or hang without proper support.
For hydraulic dock levelers, inspect the hydraulic power unit, cylinders, hoses, fittings, and oil condition. There should be no leakage or abnormal pressure loss.
Hydraulic operation should be smooth and controlled. If the platform drops too quickly or cannot hold position properly, the system should be checked immediately.
Even small hydraulic oil leakage can become a bigger problem over time. It may affect lifting performance, create floor hazards, and increase maintenance cost.
Dock levelers usually include safety supports or maintenance struts. These are used during maintenance to prevent accidental platform movement.
Before regular operation, make sure these safety devices are present and functioning properly. Maintenance should never be done under an unsupported platform.
A dock leveler is heavy equipment. Any inspection or repair under the platform should be done only after the platform is safely supported.
Dock bumpers are installed on the dock face to protect the building, truck, and dock leveler. When trucks reverse into the dock, bumpers absorb impact and help maintain the correct distance.
Without proper bumpers, trucks may hit the building structure or dock equipment directly. This can cause damage over time.
Dock bumpers also help protect the dock leveler lip and platform from truck impact. They are small accessories, but they play an important role in long-term dock safety.
A vehicle restraint helps secure the truck during loading. It reduces the risk of truck movement or separation from the dock while forklifts are entering and exiting the trailer.
For busy loading docks or facilities with strict safety requirements, vehicle restraints are strongly recommended.
If the truck moves unexpectedly during loading, a dangerous gap may appear between the dock and the vehicle. A vehicle restraint helps reduce this risk and improves worker safety.
Warning lights, signal systems, and clear operation signs can help drivers and warehouse workers communicate better. They show when the dock is safe to use and when the truck should not move.
For high-traffic warehouses, these visual signals can reduce confusion and improve safety.
Many loading dock accidents happen because the truck driver and warehouse operator do not have the same information. Simple signal systems can make the loading process clearer and safer.
One of the most common problems is that the actual pit does not match the dock leveler drawing. If the pit is too small, the dock leveler may not fit. If the pit is too deep or uneven, extra adjustment is needed.
This can delay installation and increase site cost.
Before production or delivery, confirm the pit dimensions carefully. For retrofit projects, site photos and measurements are very important.
Some projects only check pit size but ignore the relationship between dock height and truck bed height. This can lead to a platform slope that is too steep for forklift operation.
A dock leveler should be selected and installed according to the real truck height range used at the warehouse.
Before installation, confirm the truck types, truck bed heights, and loading methods. This helps make sure the dock leveler works safely after installation.
If the electrical details are not confirmed early, the dock leveler may arrive with the wrong configuration. This can cause delays and extra modification work.
Voltage, phase, frequency, control box position, and cable route should all be confirmed before production.
Power supply preparation should be part of the installation plan from the beginning. It is much easier to prepare wiring before the equipment is installed.
A dirty or wet pit can make installation difficult and affect future operation. Debris inside the pit may block moving parts or cause damage.
Before installation starts, clean the pit and surrounding area. This gives technicians a safer and clearer working space.
Before final testing, check whether the pit dimensions are correct, the concrete is strong, the floor is level, and the dock height matches the design.
The pit should be clean, dry, and free of loose materials. The surrounding floor should be safe for forklift traffic.
Confirm pit length, width, depth, dock height, concrete strength, embedded parts, drainage, and floor flatness.
Check whether the power supply matches the dock leveler requirements. Confirm the control box position, cable protection, grounding, and all electrical connections.
For systems with interlock functions, test the connection between the dock leveler, dock door, vehicle restraint, or signal lights.
Confirm voltage, phase, frequency, wiring route, control box location, emergency stop, and safety interlock functions.
Test the platform lifting, lowering, lip movement, stored position, safety supports, and emergency control. The dock leveler should move smoothly and return correctly.
Do not use the dock leveler for daily loading until all tests are completed.
Check platform alignment, lip contact, hydraulic movement, abnormal noise, oil leakage, and smooth return to stored position.
Make sure operators understand how to use the dock leveler correctly. Safety instructions should be clear, and workers should know what to check before loading.
If dock bumpers, vehicle restraints, or warning lights are installed, they should also be tested before the loading dock is put into use.
Even a well-installed dock leveler can become unsafe if workers use it incorrectly. Basic training helps reduce accidents and improves daily operation.
After installation, regular inspection is necessary. A dock leveler works under repeated pressure, so small problems should be found early.
Check the platform, lip, hinges, hydraulic system, control box, safety supports, and pit condition regularly.
Loose bolts, oil leakage, abnormal noise, damaged plates, or slow movement should not be ignored. Early maintenance can prevent bigger repairs later.
During daily warehouse operation, dust, packaging materials, stones, and water may enter the pit. If not cleaned, these materials may affect movement and increase wear.
A clean pit helps the dock leveler operate smoothly and makes inspection easier. For busy warehouses, pit cleaning should be included in the maintenance schedule.
Operators should know how to check the truck position, lip support, platform movement, and safety area before loading. These simple checks can prevent many problems.
Correct operation reduces unnecessary impact and equipment damage. It also protects workers, forklifts, trucks, and goods.
Dock leveler installation is not only about placing the equipment into a pit. It starts with proper site preparation, accurate measurements, suitable power supply, strong civil construction, and careful safety checks.
If the pit size is wrong, the power supply is unclear, or the site is not ready, even a good dock leveler may not work as expected. But when everything is prepared correctly, installation becomes smoother and the equipment can perform better in daily warehouse operations.
Before installation, confirm pit size, dock height, truck height, power supply, floor condition, safety accessories, and operation requirements. After installation, test all functions carefully and train operators before daily use.
A well-installed dock leveler can improve loading efficiency, protect workers, reduce maintenance problems, and support long-term warehouse performance. For any warehouse that depends on safe and efficient loading, proper installation preparation is always worth the effort.
