High speed doors are often selected because they can open and close quickly, but door speed is only one part of the operating system.
In daily use, the way a door detects approaching vehicles or personnel has a major effect on convenience, traffic flow, safety, and unnecessary door cycles.
For this reason, high speed door sensors should not be selected only by asking which sensor can open the door.
A better approach is to separate two different functions:
Opening activation — detecting that a vehicle or person is approaching and sending an open command.
Safety protection — detecting an obstacle or unsafe condition so the door does not close onto people, vehicles, or goods.
These two functions may use completely different devices.

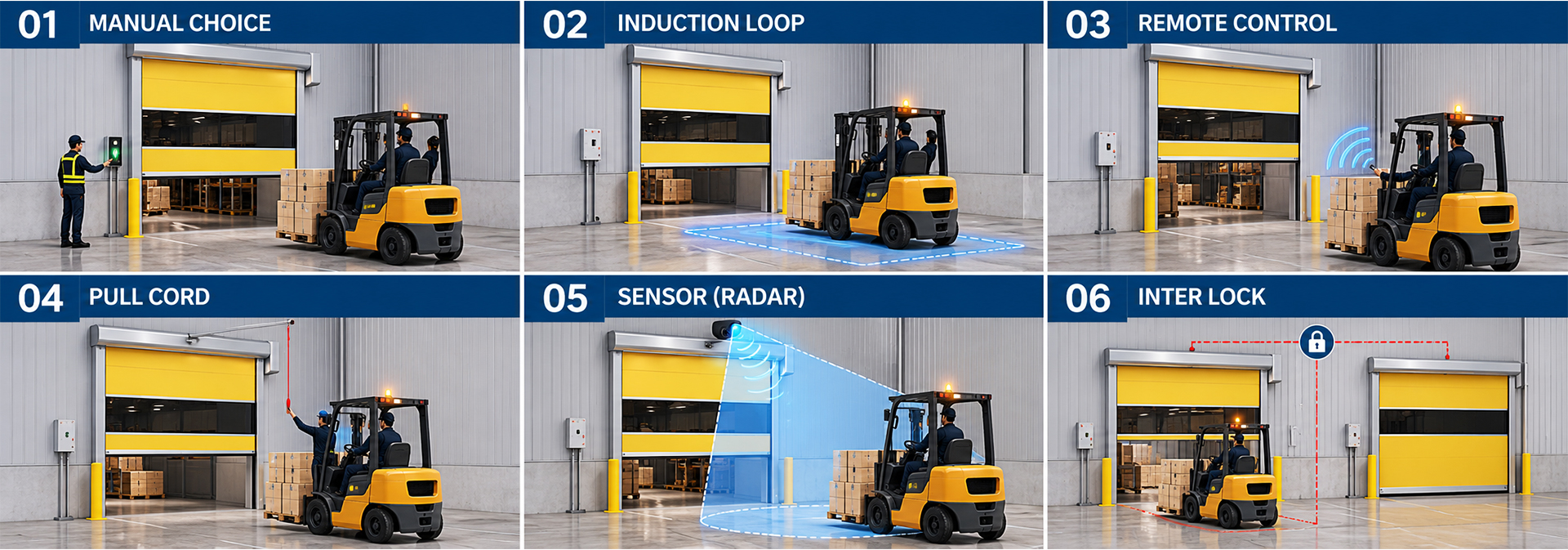

Radar sensors, induction loops, pull cords, push buttons, photoelectric sensors, and safety light curtains can all be part of a high speed door control system, but they serve different purposes and suit different traffic conditions.
One of the most common misunderstandings in high speed door selection is treating every sensor as a safety device.
In reality, many sensors are primarily designed to trigger the door to open.
A radar sensor mounted above the opening, for example, can detect an approaching forklift and send an opening signal. An induction loop embedded in the floor can do the same when a vehicle enters its detection zone.
These devices improve automation, but they do not automatically provide complete protection around the closing door.
Safety devices have a different role.
They monitor the doorway while the door is operating and respond when a person, vehicle, pallet, or other object enters a protected area.
A typical high speed door may therefore use one device to trigger opening and another device to protect the opening during closing.
This distinction should be made before selecting any sensor.
Radar is one of the most common activation methods for high speed doors.
A radar sensor is normally installed above or near the doorway and creates a detection zone in front of the opening. When movement is detected inside this zone, the controller receives an opening signal.
Radar is particularly useful where forklifts or vehicles approach the door frequently and operators should not need to stop to press a button.
Radar is commonly used for:
Warehouse traffic lanes
Forklift routes
Production areas
Logistics centers
Indoor high speed doors
Vehicle passages requiring automatic opening
Its main advantage is convenience.
Because the sensor works without physical contact, the vehicle can approach continuously and the door can begin opening before it reaches the doorway.
This can improve traffic efficiency, especially where the high speed door is opened many times during a shift.
However, the detection area needs to be adjusted correctly.
If the zone is too large, the door may open for nearby traffic that is not actually entering the doorway. If it is too small, the sensor may detect the vehicle too late.
A radar sensor should not simply be set to its maximum sensitivity.
The detection zone should match the actual approach direction.
For example, a door beside a busy pedestrian route may need a narrower detection area than a door at the end of a dedicated forklift lane.
In facilities with cross traffic, directional radar can also help distinguish movement toward the door from movement passing across it.
The final settings should be tested under real operating conditions after installation.
An induction loop is installed in or beneath the floor and detects the presence of a vehicle through changes in the electromagnetic field.
Unlike radar, it does not primarily detect movement in the air around the doorway.
This makes induction loops useful where the customer wants the door to respond specifically to vehicles.
A loop can be positioned at a defined distance from the door so the opening command is sent before the vehicle reaches the opening.
Induction loops are commonly considered for:
Forklift traffic
Vehicle-only entrances
Warehouses with significant pedestrian activity
Areas where unwanted radar activation should be minimized
Because pedestrians normally do not activate the loop, the door can remain closed when people walk nearby.
This can be an advantage in temperature-controlled areas or production environments where unnecessary opening should be reduced.
The main limitation is installation.
The loop normally requires work in the floor, so it is easier to plan during new construction or during a floor renovation than after a finished facility is already operating.
The floor structure, reinforcement, surface material, and installation location should be checked before selecting this method.
Loop placement affects when the door starts opening.
If the loop is too close to the door, a fast-moving forklift may need to slow down before the opening is clear.
If it is too far away, the door may remain open longer than necessary.
The appropriate distance depends on vehicle speed, door opening speed, traffic direction, and the size of the detection area.
A pull cord is one of the simplest ways to activate a high speed door.
The cord is normally suspended at a height that allows a forklift operator or worker to pull it when approaching the doorway.
Unlike radar or induction loops, the door opens only when someone deliberately activates the switch.
This makes pull cords useful where automatic detection is unnecessary or where the customer wants more control over when the door opens.
Pull cords are simple, easy to understand, and relatively easy to install.
They can work well in:
Lower-traffic warehouses
Forklift-only internal routes
Areas where false automatic activation should be avoided
Facilities where operators already stop or slow before the doorway
The disadvantage is that they depend on operator action.
They are therefore less suitable for high-frequency passages where stopping or reaching for a cord would reduce efficiency.
Pull cords are activation devices, not safety devices. They should not be used as a substitute for photoelectric protection or other required safety systems.
Photoelectric sensors are mainly used as safety devices rather than primary opening triggers.
A transmitter and receiver, or a reflective sensing arrangement, creates a detection beam across the doorway.
If the beam is interrupted while the door is closing, the controller can stop or reverse the door according to the control logic.
This helps protect people, forklifts, pallets, and other objects passing through the opening.
Photoelectric sensors are particularly important because a high speed door closes automatically and may begin closing soon after traffic has passed.
A simple system may use one photoelectric beam at a selected height.
This can provide basic obstacle detection.
However, a single beam only protects one horizontal line.
An object above or below the beam may not be detected.
This means the mounting height should be selected according to the application.
A single beam may not provide complete coverage when the opening is used by:
Different vehicle heights
Pedestrians and forklifts together
Low pallets
Protruding loads
Irregular cargo
For these applications, a larger protected detection area may be more appropriate.
A safety light curtain uses multiple infrared beams to create a vertical detection field.
Instead of protecting only one line across the opening, it can monitor a much larger area.
This provides better coverage for mixed pedestrian and vehicle traffic.
Light curtains are often considered where the doorway has frequent movement or where different object heights make a single photocell less suitable.
A light curtain can be useful for:
Busy logistics areas
Mixed forklift and pedestrian traffic
Wide high speed doors
Openings carrying irregular loads
Applications requiring a larger protected zone
The exact configuration depends on the door design and controller.
The light curtain should be positioned so that its protection area corresponds to the actual door movement and traffic path.
As with other safety devices, controller compatibility must be confirmed before selection.
The easiest way to understand the differences is to compare each device by its main purpose.
Device | Main Function | Detects | Typical Application | Key Limitation |
|---|---|---|---|---|
Radar sensor | Opening activation | Moving people / vehicles | Automatic traffic routes | Can trigger from unwanted movement if poorly adjusted |
Induction loop | Opening activation | Vehicles | Forklift or vehicle-only routes | Requires floor installation |
Pull cord | Manual opening activation | Operator action | Lower traffic, controlled access | Requires deliberate activation |
Photoelectric sensor | Safety protection | Object crossing beam | Doorway protection | Single beam covers limited height |
Safety light curtain | Safety protection | Objects across multiple beams | Mixed traffic and wider protection | Requires compatible controller and correct installation |
This table also shows why choosing only one sensor type is often not enough.
A radar sensor may provide excellent automatic opening but still need a separate safety photocell.
Likewise, an induction loop can identify a forklift approaching the door, but it does not necessarily protect a pedestrian standing in the doorway during closing.
The correct high speed door sensor depends on who uses the doorway and how they approach it.
A forklift-only route has different requirements from a pedestrian corridor or a shared warehouse passage.
For frequent forklift traffic, radar or induction loops are often used for automatic activation.
The main decision is usually whether the facility wants open movement detection or vehicle-specific detection.
Radar is easier to install and adjust.
Induction loops are more selective for vehicles but require floor work.
A separate safety device should then protect the doorway during closing.
Mixed traffic requires more careful planning.
A radar sensor may detect both people and vehicles, depending on configuration, but the detection zone should be controlled to avoid unnecessary opening.
Safety protection also becomes more important because pedestrians and forklifts may occupy different parts of the opening.
A multi-beam safety device may provide more appropriate coverage than one photocell in these conditions.
For doors that are used only occasionally, automatic sensors may not be necessary.
A pull cord, push button, remote control, or another manual activation method may provide a simpler solution.
The safety system should still operate independently from the opening command.
Sensor location can be just as important as sensor type.
A high speed door sensor should not be positioned simply according to the easiest mounting point.
The detection zone should correspond to the real path of approaching traffic.
For a forklift route, this means considering:
Approach direction
Vehicle speed
Turning radius
Distance required for the door to open
Nearby cross traffic
Pedestrian paths

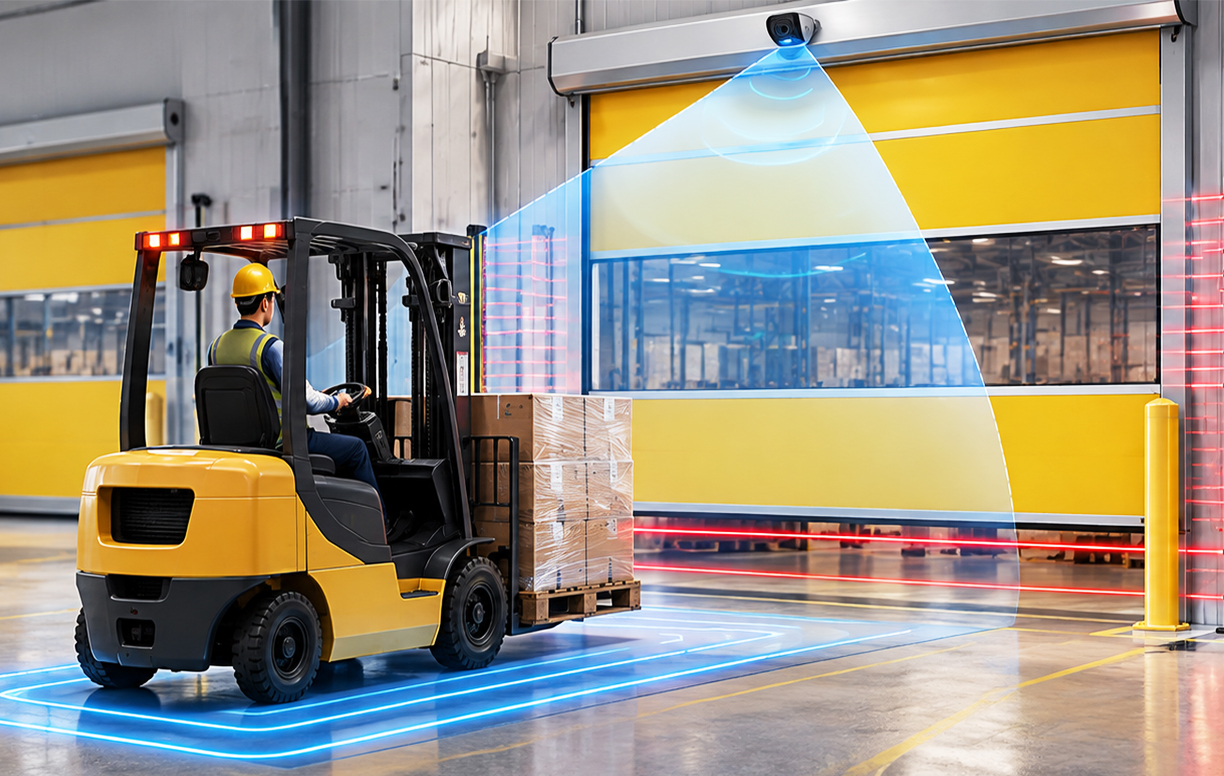

A sensor layout drawing is useful for showing these relationships.
A radar detection zone can be marked in front of the door, while an induction loop can be shown in the floor at the required activation distance.
Photoelectric or light curtain protection should be shown directly across or around the doorway.
This type of drawing makes the operating logic much clearer than showing the sensor alone.
A poorly configured automatic sensor can cause the door to open much more often than necessary.
This is especially common with radar sensors installed near busy working areas.
Forklifts passing beside the doorway, pedestrians walking near the entrance, or movement from adjacent operations can trigger unwanted opening.
Frequent unnecessary cycles can reduce environmental separation and increase mechanical usage.
This is particularly important for:
Cold storage
Air-conditioned production areas
Clean environments
Dust-controlled rooms
High-traffic warehouses
The solution is not always to replace the radar.
Adjusting the detection zone, direction sensitivity, activation distance, or traffic route may solve the problem.
Sensor commissioning should therefore include observation of real site traffic rather than only a basic functional test.
Not every sensor can be connected to every high speed door controller in the same way.
Before adding or replacing a sensor, the control interface should be checked.
Important information includes:
Controller model
Available input type
Sensor supply voltage
Signal type
Required relay or interface
Safety input requirements
Existing accessories connected to the controller
This is particularly important for safety devices.
A standard opening input and a monitored safety input may perform very different functions even if both receive an electrical signal.
The wiring arrangement should follow the approved control diagram for the specific door and controller.
A blog article can explain the function of sensors, but it should not be used as a universal wiring guide.
Different control systems may use different terminals, voltages, logic conditions, and safety circuits.
When adding a new sensor to an existing high speed door, the existing controller should be identified first.
The supplier should confirm whether the proposed sensor is compatible and whether additional interface components are required.
Many high speed doors use more than one sensing method.
For example, a warehouse door may use radar to trigger automatic opening and photoelectric protection across the doorway.
A forklift-only entrance may use an induction loop for activation together with a safety light curtain.
A lower-frequency door may use a pull cord for opening while retaining photoelectric protection for closing.
The best combination depends on traffic, operating frequency, environment, and controller capability.
The goal is not to install the largest number of sensors.
It is to assign each device a clear function.
Opening sensors should make access efficient.
Safety devices should monitor the doorway during movement.
When these functions are separated clearly, it becomes much easier to select the correct sensor arrangement.
A useful sensor selection process starts with four questions:
What should trigger the door to open?
Should the door detect vehicles, people, or both?
What area needs safety protection while the door is closing?
Which devices are compatible with the existing or proposed controller?
From there, sensor selection becomes much more practical.
Radar sensors are well suited to convenient automatic activation.
Induction loops are useful when vehicle-specific detection is preferred.
Pull cords provide simple manual control.
Photoelectric sensors and safety light curtains provide protection around the doorway.
For a reliable high speed door system, these devices should not be treated as interchangeable.
The most effective configuration combines the right activation method with the right safety protection for the actual traffic pattern.
For project selection, sensor layout photos, detection-area drawings, and controller information should be reviewed together before the final configuration is confirmed.
