A Complete Guide To Using And Maintaining Hydraulic Dock Levelers Safely And Efficiently

In modern warehouses and logistics centers, efficient loading and unloading operations depend heavily on reliable dock equipment. Among these, hydraulic dock levelers play a inportant role in bridging the height gap between warehouse floors and truck trailers.

While hydraulic dock levelers are designed for durability and high performance, proper operation, correct installation, and regular maintenance are essential to ensure safety and long-term reliability. This guide combines practical usage knowledge with real installation and wiring considerations to help you get the most out of your equipment.

What Is Hydraulic Dock Leveler and How Does It Work?

Hydraulic dock leveler is a loading dock system powered by a hydraulic unit that raises and lowers a platform to match the height of different vehicles.

Key Components:

• Main platform (deck)

• Lip plate (hinged extension)

• Hydraulic cylinders (main + lip cylinder)

• Motor and control box

• Safety support structure

The platform is lifted hydraulically, and the lip extends automatically to connect with the truck bed, ensuring smooth forklift movement.

How Do You Safely Operate a Hydraulic Dock Leveler?

Hydraulic manual English.pdf

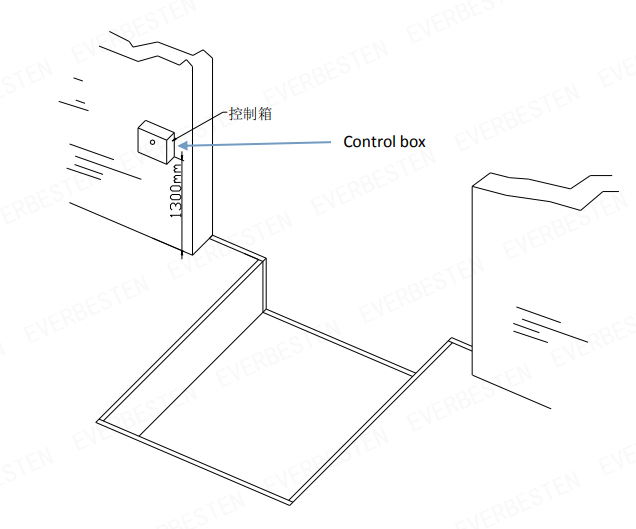

Step 1: Pre-Operation Check

• Ensure the truck is securely parked

• Use wheel chocks or restraints

• Keep the area clear of people and obstacles

Operation is not allowed if people or objects are on the platform.

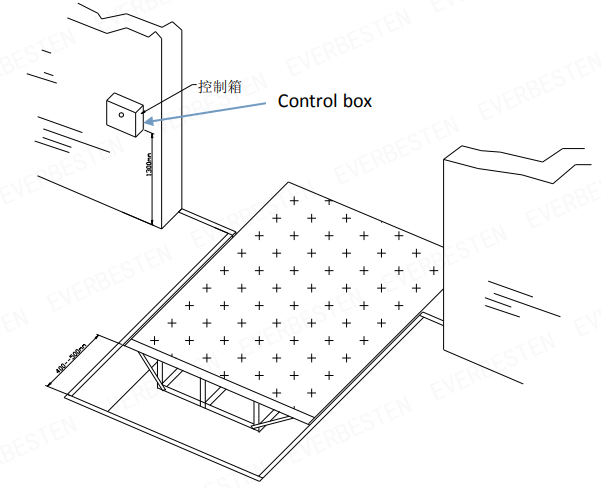

Step 2: Raise the Platform

• Press and hold the UP button

• The platform rises

• The lip extends automatically at the top

Step 3: Position the Lip

• Release the button

• The platform descends

• The lip rests on the truck bed

Ensure full contact before operation

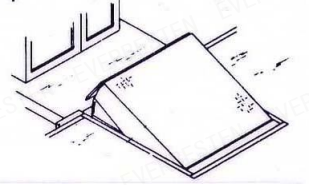

Step 4: Loading and Unloading

• Forklifts can move safely

• Maintain stable operation

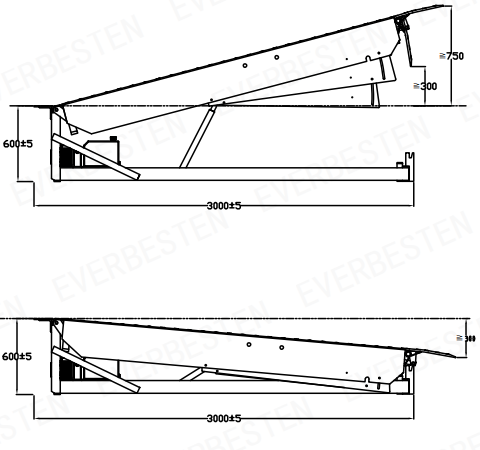

Step 5: Return to Rest Position

• Press UP again

• Platform rises slightly

• Lip retracts

• System returns to original position

What Safety Measures Must Be Followed?

• Do not stand on the platform during operation

• Never stand between truck and dock

• Keep hands away from moving parts

• Do not operate damaged equipment

• Do not move the platform manually

• Ensure truck stability

Electrical work must be performed by qualified personnel only.

How Is Installation and Wiring Properly Handled?

Installation Requirements

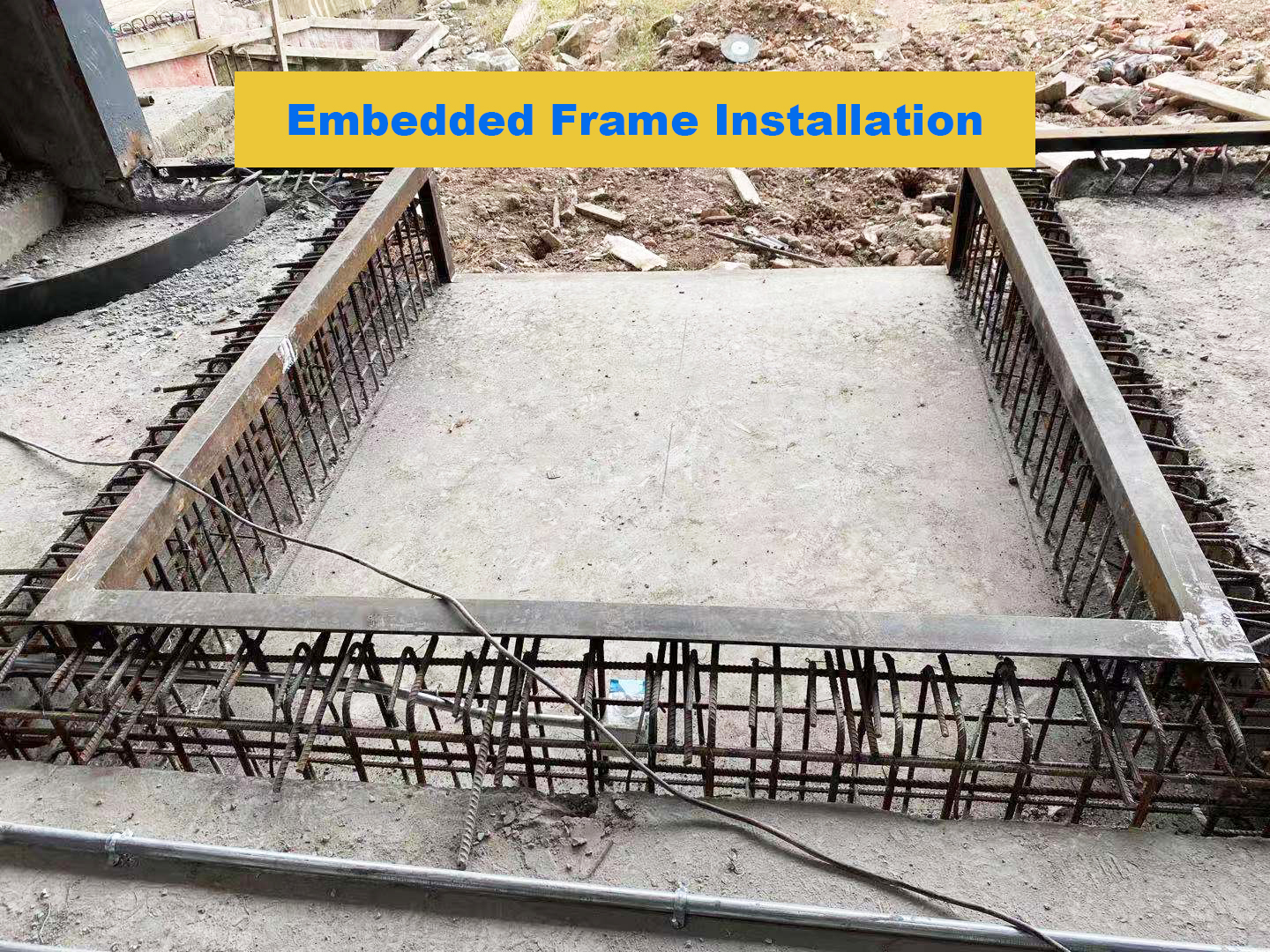

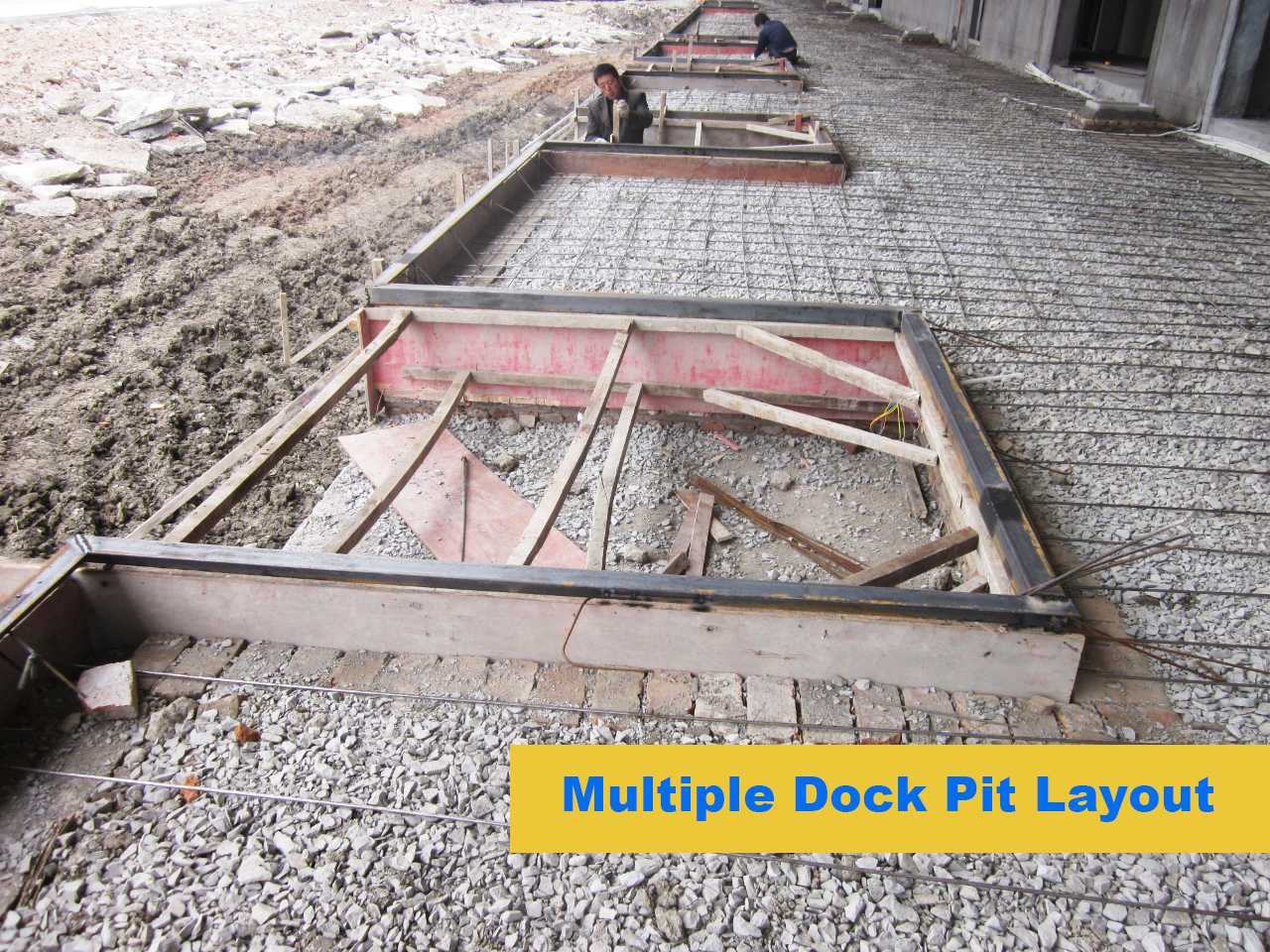

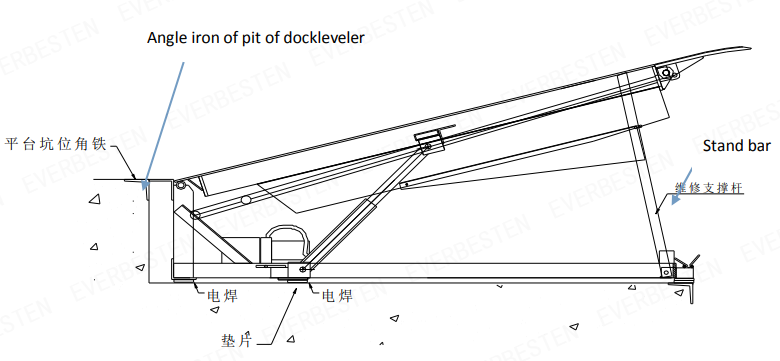

• Verify pit dimensions before installation

• Ensure correct positioning and leveling

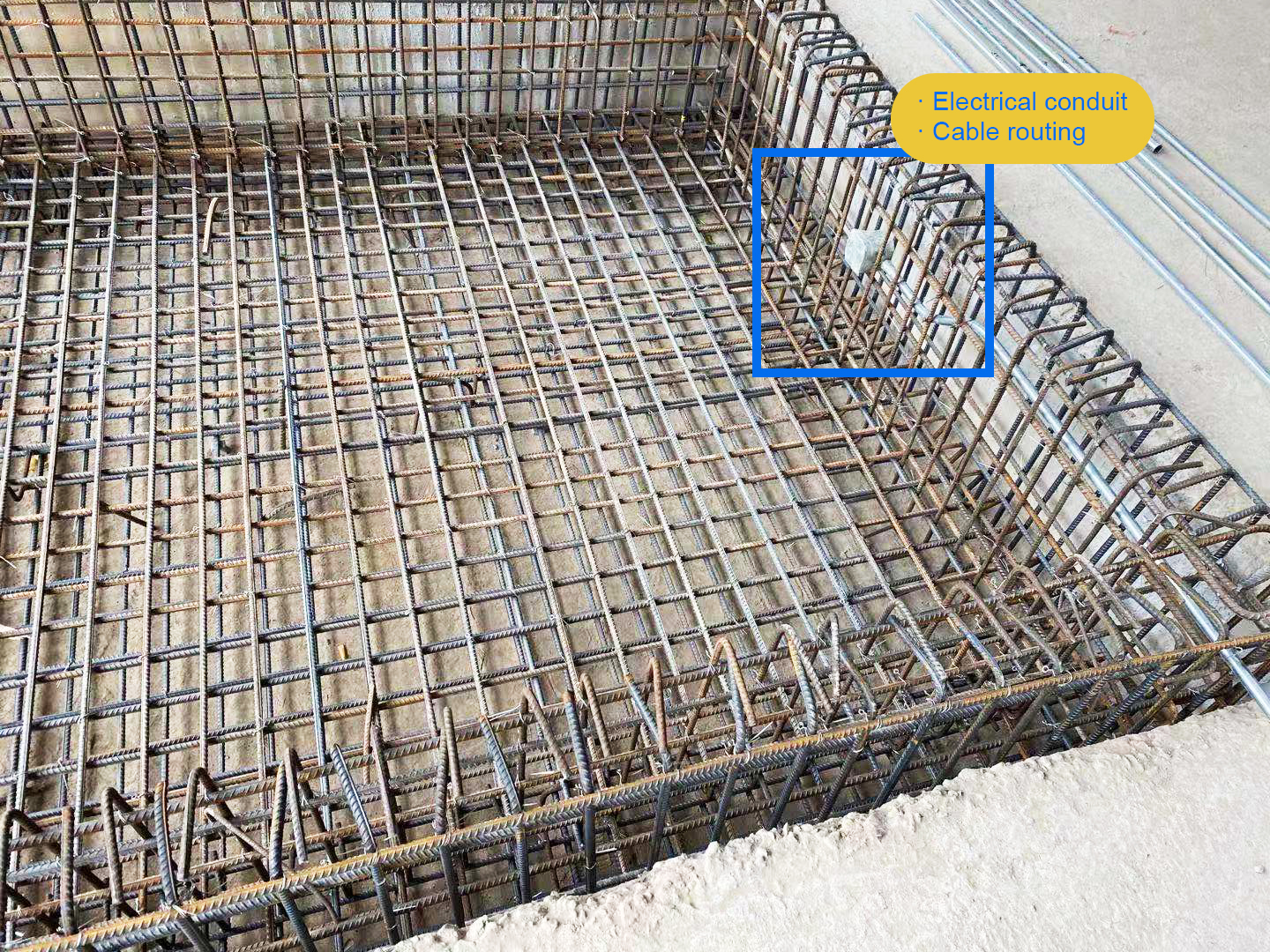

• Reserve 400–500 mm space at the rear for wiring

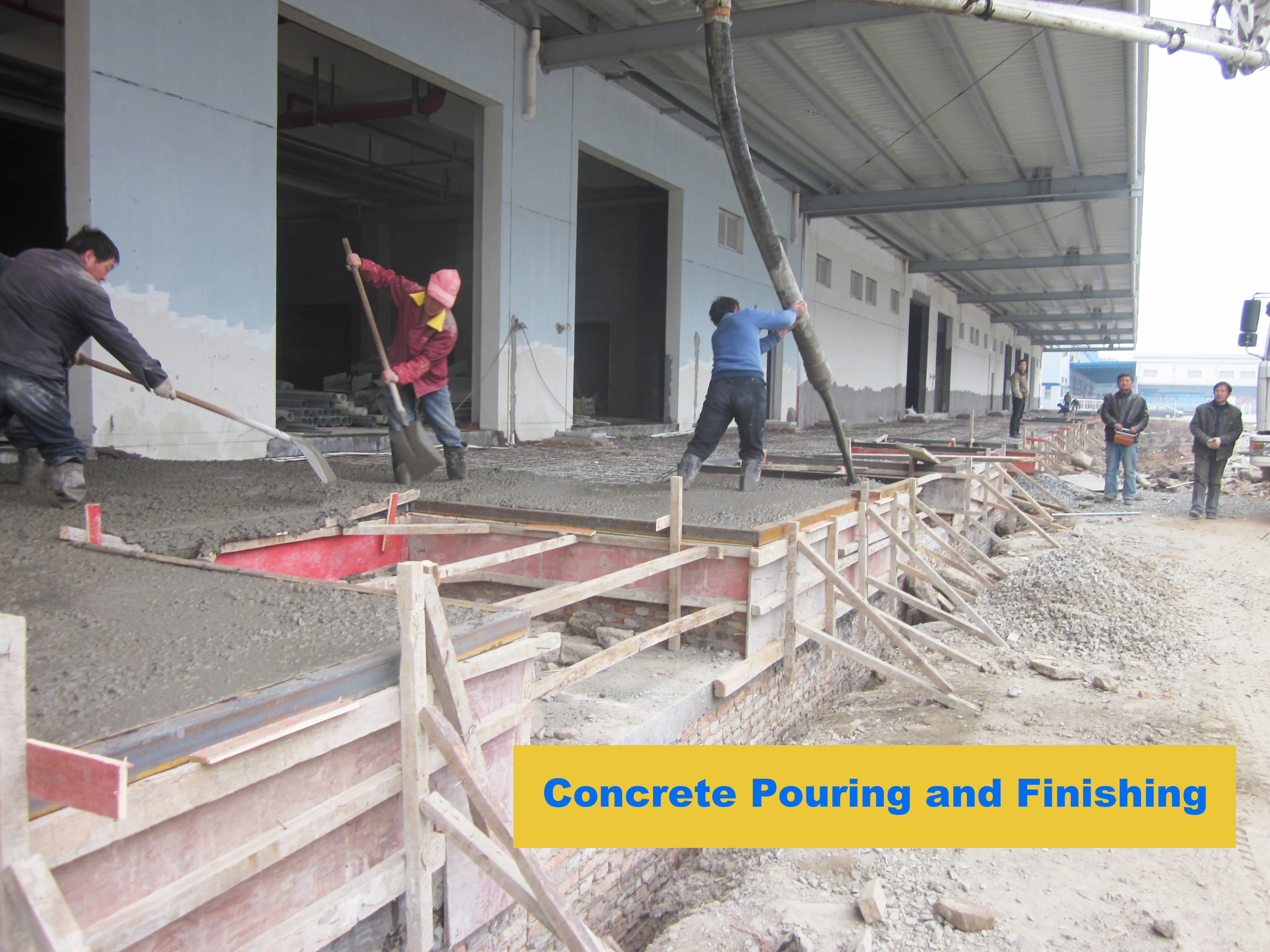

• Weld securely and apply anti-rust treatment

Electrical System Overview

• Includes motor, control box, and push button

• Some wiring is pre-installed

• Power supply must be connected on-site

Correct phase connection is essential

Wiring Notes

• Separate internal wiring and external power supply

• Follow the wiring diagram strictly

• Ensure stable and safe connections

Hydraulic System Overview

• Main cylinder (lifting)

• Lip cylinder (extension)

• Direction valve (~90 bar)

• Relief valve (50–210 bar)

• Throttle valve (controls speed)

Pre-adjusted before delivery

How Should You Maintain a Hydraulic Dock Leveler?

diagram for dock leveler.pdf

Daily Inspection

• Check for damage or deformation

• Inspect hydraulic hoses

• Ensure smooth operation

Routine Maintenance

• Lubricate every 90 days

• Tighten components

• Clean platform and pit

Hydraulic Maintenance

• Use 46# anti-wear hydraulic oil

• Replace oil annually

• Check filters and reservoir

• Inspect seals and cylinders

What Are Common Problems and How Can They Be Avoided?

Problem	Possible Cause	Solution	Prevention Tip
Dock leveler does not lift	Power supply failure or incorrect phase connection	Check power supply and ensure correct wiring phase	Regularly inspect electrical connections and power supply
Slow or weak lifting	Low hydraulic oil level or oil contamination	Refill or replace hydraulic oil	Check oil level periodically and use recommended oil
Abnormal noise during operation	Lack of lubrication or loose components	Lubricate moving parts and tighten connections	Perform routine lubrication every 90 days
Oil leakage	Worn seals or damaged hydraulic hoses	Replace seals and repair or replace hoses	Inspect hydraulic system regularly for early signs of wear
Platform does not return properly	Hydraulic system issue or obstruction	Check hydraulic system and remove any obstacles	Keep pit and platform clean and clear
Lip does not extend or retract properly	Hydraulic cylinder malfunction or improper operation	Inspect lip cylinder and control system	Follow correct operating procedures and avoid misuse

Why Is Proper Use and Maintenance So Important?

Improper operation can lead to:

• Equipment damage

• Safety risks

• Downtime

• Increased costs

Proper management ensures:

✔ Stable performance

✔ Longer lifespan

✔ Safer operations

Conclusion

Hydraulic dock levelers are essential for efficient warehouse operations. Their performance depends not only on design and manufacturing quality but also on proper usage, correct installation, and regular maintenance.

By following standardized procedures and ensuring proper electrical and hydraulic setup, businesses can significantly improve safety, reduce downtime, and maximize operational efficiency. A well-maintained dock leveler is a key component of a reliable and productive logistics system.
