When buyers ask for a high speed door quotation, the first information they usually provide is the opening size. Width and height are certainly important, but they are only the beginning of the pricing process.
A high speed door is not simply a piece of curtain material covering an opening. It is a complete operating system that includes the curtain or rigid panels, side guides, frame, motor, control unit, safety devices, activation system, structural supports, and installation accessories.
Two doors with the same dimensions may have very different prices because they are expected to perform under completely different conditions.
One may be installed between two indoor warehouse zones with little air pressure and moderate forklift traffic. Another may be installed on an exterior wall facing strong wind, rain, dust, and frequent vehicle movement. The opening sizes can be identical, but the technical requirements are not.
The price depends on what the door needs to achieve in daily operation.
Some doors only need to separate two interior areas. Others must reduce temperature loss, resist wind pressure, improve hygiene control, prevent unauthorized access, or recover automatically after a forklift collision.
The more functions the door must provide, the more specialized its structure becomes.
A low-priced quotation does not always mean that one supplier is offering the same door for less money.
It may mean that the supplier has quoted a simpler door type, thinner material, fewer safety devices, a basic motor, or an indoor configuration for an exterior opening.
Before comparing prices, buyers should first confirm whether every quotation is based on the same application and technical scope.
The final cost is normally made up of several layers.
These include the basic door structure, customized dimensions, motor and control system, safety configuration, activation devices, frame material, environmental protection, packaging, transportation, installation, and after-sales service.
A quotation that looks more expensive may already include components that another supplier lists as optional extras.
Some quotations begin with an attractive base price but exclude sensors, remote controls, safety edges, export packaging, structural steel, or commissioning support.
This approach can make the initial number look lower, but the final project cost may increase after the missing items are added.
A more useful quotation clearly explains what is included from the beginning.
The phrase “high speed door” covers several very different products.
PVC fabric doors, self-repairing zipper doors, stacking doors, spiral doors, and cold storage high speed doors do not use the same materials or operating structures. They also do not serve the same applications.
The selected door type often creates the largest difference in the quotation.
A standard PVC fabric high speed door is generally one of the more economical options.
It uses a flexible curtain that rolls around an upper shaft. Because the curtain is lightweight, the door does not require the same heavy frame, rigid panel system, or structural support as a spiral door.
This design is commonly used for interior passages in factories, warehouses, packing rooms, clean areas, and logistics routes.
The flexible curtain is easier to manufacture and transport than rigid aluminum panels.
The frame is also lighter, and the drive system normally handles less weight. Installation is often more straightforward because the door places less load on the wall structure.
These factors reduce material, engineering, shipping, and installation costs.
Not every PVC high speed door uses the same configuration.
Curtain thickness, fabric quality, transparent windows, frame finish, motor brand, control system, safety photocells, wireless safety edge, radar sensors, and operating speed can all change the price.
One supplier may quote a basic indoor door, while another includes a stainless steel frame and a complete automatic traffic-control system.
A zipper high speed door uses flexible curtain edges that reconnect with the guide system after certain types of impact.
This design is useful in busy forklift passages where accidental contact may happen. After the curtain is displaced, the door can often restore itself during the next opening cycle.
The self-repairing structure normally costs more than a standard fabric door.
The main value of a zipper door is not simply its appearance or guide shape.
Its purpose is to reduce the need for manual curtain reset and emergency repair after minor impacts. In a warehouse where forklift contact happens regularly, this can save maintenance time and keep the passage operational.
A self-repairing design may not provide much value in a controlled pedestrian passage with little collision risk.
In that situation, a standard PVC high speed door may provide the required separation at a lower cost.
The zipper system should be selected because the traffic conditions justify it, not simply because it is a more advanced model.
A stacking high speed door lifts the curtain upward in folds rather than rolling it tightly around a shaft.
Horizontal reinforcement sections or wind bars help support the curtain, making this design suitable for larger openings and environments requiring stronger wind resistance.
The additional reinforcement, lifting belts, larger frame, and more powerful drive system increase the price.
When an opening becomes very wide, a standard flexible curtain may move excessively under air pressure.
A stacking structure helps control the curtain, but it also requires more components. The frame, lifting system, guide tracks, and motor must all be designed for the larger load.
This is why the cost can increase quickly as the door width grows.
Wind bars improve curtain stability, but they increase curtain weight and create more connection points.
The drive system must lift both the fabric and the reinforcement sections. Maintenance and installation are also more involved than with a basic fabric curtain.
The added cost is justified when the opening genuinely needs the extra stability.

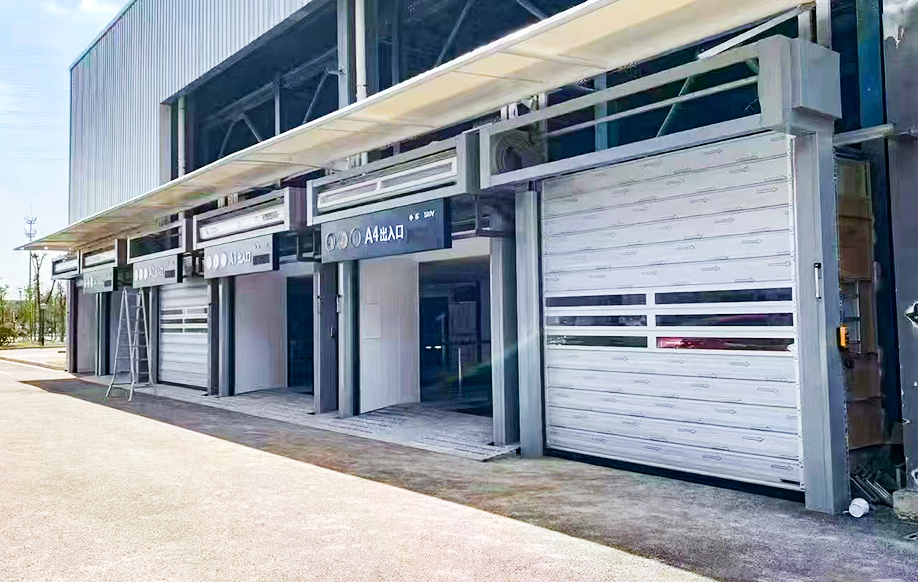

A spiral high speed door uses rigid aluminum slats instead of a flexible curtain.
The panels move upward through side tracks and enter a spiral-shaped track above the opening. Because the panels are not rolled tightly against each other, the system can combine fast operation with a rigid door surface.
Spiral doors are generally much more expensive than PVC fabric doors.
The aluminum slats are more expensive than PVC fabric, but they are not the only reason for the higher price.
A spiral door also requires precision guides, reinforced frames, a stronger drive system, more complex controls, and a carefully engineered upper track arrangement.
Installation accuracy is also more important because the rigid slats must travel smoothly through the complete track system.
Some spiral doors use double-wall aluminum slats with internal insulation.
These panels improve thermal performance when the door is closed, but they require more material and a more complex manufacturing process.
The price can also increase when the project requires customized panel finishes or additional transparent slats.
A spiral door may provide wind resistance, weather protection, better security, insulation, and a modern exterior appearance in one system.
This can remove the need to install a fast interior door together with a separate exterior security door.
The initial cost is higher, but the door may perform several functions at once.
Cold storage high speed doors are designed for areas where temperature control is critical.
They may include insulated curtains, heated guide systems, improved seals, low-temperature electrical components, anti-condensation measures, or specialized motors.
These features increase the price compared with a standard indoor PVC door.
A chilled room operating slightly below normal room temperature does not have the same requirements as a deep-freeze room.
As the temperature difference becomes greater, condensation and icing risks increase. The curtain, guides, sensors, seals, and control system may all require special protection.
The supplier should know the actual operating temperature before selecting the door.
Using a normal fabric door in a low-temperature environment may appear cheaper at the purchasing stage.
However, curtain stiffness, poor sealing, ice accumulation, sensor failure, and condensation can create repeated operating problems.
A specialized cold storage door may cost more initially but reduce maintenance and energy loss over time.
Door dimensions are an important part of the price, but the calculation is not simply based on square meters.
As the opening becomes larger, the structure, motor, shaft, guides, lower bar, reinforcement, packaging, and installation method may all need to change.
This means that the price does not always increase in a perfectly straight line.
A wider curtain has a larger surface area exposed to air pressure.
Even inside a building, ventilation systems, open loading bays, and pressure differences can cause a wide curtain to move or flex.
The manufacturer may need to strengthen the lower bar, shaft, guide tracks, or complete frame.
Two doors may have a similar total area, but the wider opening may require a much stronger design.
For example, a narrow and tall door can place different loads on the system than a wide and low door. The wider door is often more sensitive to curtain deflection and wind pressure.
This is why square-meter pricing alone can be misleading.
A buyer may initially request a standard PVC door.
After the opening width and wind conditions are reviewed, the supplier may recommend a stacking door or reinforced model instead.
The higher quotation is not necessarily an upsell. It may reflect a necessary change in structure.
A taller opening requires a longer curtain and longer guide tracks.
The motor must move more material through a greater distance. The shaft may need to store a larger roll, and the upper structure may require more space.
Installation also becomes more difficult because technicians may need lifting equipment or scaffolding.
A taller curtain adds weight and increases the duration of each operating cycle.
The motor must be selected according to the curtain weight, opening speed, cycle frequency, and door structure.
An undersized motor may overheat or operate inconsistently, while an unnecessarily large motor increases cost without providing meaningful benefit.
Even when the factory price increase is moderate, installation expenses can rise significantly.
The project may require lifting platforms, cranes, additional workers, longer cables, and more time for track alignment.
These site-related costs should be considered separately from the door price.
Industrial openings are rarely perfectly standardized.
Custom manufacturing is normal, but unusual dimensions can require special drawings, modified components, custom panel layouts, and additional structural checks.
Buyers often assume that a smaller door must always be cheaper.
However, an unusually narrow door may require a specially arranged motor position, compact frame, modified cover, or customized guide design.
The amount of material is lower, but the engineering work may increase.
Very large doors should not be selected from a standard catalogue alone.
The manufacturer may need to evaluate wind pressure, structural deflection, motor torque, emergency operation, installation supports, and transport limitations.
This engineering work becomes part of the project cost.
The same door opening can require a very different configuration depending on where it is installed.
Indoor passages, exterior walls, clean production rooms, humid processing areas, and cold storage zones all create different demands.
An interior warehouse opening normally has limited exposure to rain and strong wind.
If the main goal is to improve forklift flow and separate work zones, a standard PVC fabric door may be sufficient.
The frame, curtain, sealing, and drive system can remain relatively simple.
Some interior openings experience strong pressure differences because of exhaust systems, large fans, air curtains, or nearby loading bays.
A door may be located inside the building but still require reinforced guides or a stronger curtain.
The actual airflow conditions matter more than the indoor label.
An exterior high speed door must deal with weather, wind, sunlight, dust, moisture, and possible unauthorized access.
A basic interior fabric door may not provide enough stability or security.
Exterior applications often require stronger guides, rigid panels, corrosion-resistant materials, improved sealing, and reinforced installation structures.
A buyer may request a PVC fabric door because it appears more economical.
After reviewing the site, a supplier may recommend a spiral high speed door because the opening faces strong wind or requires nighttime security.
The price increase comes from the change in required performance, not simply from using a more expensive name.
Direct sunlight, temperature changes, rain, and dust can shorten the service life of materials that were originally intended for protected indoor use.
Exterior-grade components and finishes may cost more, but they help the door maintain performance over a longer period.
Food processing and clean production environments may involve water, steam, detergents, or frequent washdown.
Standard painted steel may not provide the same long-term durability as stainless steel in these conditions.
The frame, fasteners, control box, motor cover, and electrical protection may all need to be upgraded.
A quotation may describe a door as stainless steel, but buyers should check which components are included.
Some doors only use stainless steel covers, while others use stainless steel for the complete frame, side guides, fasteners, lower bar, and protective housings.
The amount and grade of stainless steel have a major effect on the price.
Stainless steel is not selected only because it looks clean.
Its corrosion resistance and washdown suitability can help reduce rust, peeling coatings, and contamination risks.
A cheaper material may require more frequent repair or replacement in a demanding hygiene environment.
The door curtain is the most visible part of the product, but buyers should look beyond color and thickness.
Material quality affects flexibility, strength, sealing, cleaning, visibility, temperature performance, and service life.
A thicker curtain usually contains more material and may provide better strength.
However, thickness alone does not determine curtain quality. The base fabric, coating, tear resistance, flexibility, and surface bonding are also important.
An unnecessarily heavy curtain adds load to the shaft and motor.
For a moderate indoor opening, the thickest available fabric may increase cost without providing a practical advantage.
The correct curtain should match the door size, traffic conditions, and environment.
Two suppliers may offer curtains with the same stated thickness but different internal fabric reinforcement and coating quality.
One curtain may remain flexible and stable over time, while another may crack, stretch, or separate more quickly.
Price comparisons should include material quality, not only the thickness number.
Transparent windows help people and forklift operators see movement on the other side of the opening.
This can improve traffic awareness, especially in busy passages.
The number, size, height, and arrangement of the windows influence the price.
A standard row of vision panels is easier to manufacture.
Large windows, multiple rows, unusual heights, or special shapes require more cutting, welding, and alignment.
These custom details increase production time and cost.
A very large transparent section may improve visibility, but it can also affect curtain strength and privacy.
The layout should be designed around traffic safety rather than simply maximizing the transparent area.
Spiral high speed doors use formed aluminum slats with connection systems, seals, and surface finishes.
These components require more precise production than a flexible PVC curtain.
Standard panel colors and finishes are generally more economical.
Customized powder coating, anodized finishes, special colors, or architectural surface treatments may require additional production steps.
Small orders in non-standard colors can be especially expensive because the material cannot be produced efficiently in a large batch.
Rigid transparent sections use specialized materials and panel structures.
Adding several rows of clear slats can noticeably increase the quotation.
The buyer should decide how much visibility is actually required rather than adding transparent panels without a clear purpose.
The frame supports the door guides, drive system, covers, sensors, and moving curtain.
It must remain stable during thousands of opening and closing cycles.
Material thickness, steel quality, surface treatment, and corrosion resistance all influence price and durability.
For general industrial environments, galvanized steel with powder coating provides a reasonable balance between cost, strength, and corrosion resistance.
It is suitable for many warehouses, workshops, and dry production areas.
Two frames may look identical in product photos but use different material thicknesses.
A thinner frame reduces the initial cost but may be more sensitive to vibration, deformation, or damage during installation.
Buyers should confirm the material specification rather than judging only by appearance.
Powder coating performs best when the metal surface is properly cleaned and prepared.
Poor preparation can lead to peeling, bubbling, or rust beneath the coating.
The difference may not be visible when the door is new, but it becomes important after long-term use.
Stainless steel is commonly selected for food, pharmaceutical, clean production, humid, and corrosive environments.
The raw material costs more, and cutting, welding, and polishing require suitable equipment and skilled workmanship.
Painted steel may need touch-up work if the coating is scratched or exposed to repeated washing.
Stainless steel does not depend on an external painted layer for corrosion resistance in the same way.
Although the purchase price is higher, maintenance requirements may be lower in the correct environment.
Not every indoor door needs a stainless steel frame.
In a dry warehouse, galvanized and powder-coated steel may provide reliable service at a lower cost.
Material upgrades should be based on moisture, chemicals, cleaning processes, and hygiene requirements.
The motor and control system determine how the door starts, accelerates, stops, reverses, and responds to safety signals.
A high speed door may look simple from the outside, but its operating quality depends heavily on the drive and control components.
Motor selection depends on the curtain weight, opening dimensions, speed, operating frequency, and mechanical arrangement.
The motor should be neither too small nor unnecessarily large.
A motor that is too small may overheat, lose performance, or require frequent maintenance.
It may also struggle to maintain the required speed during busy operating periods.
The lower initial price can lead to shorter service life and more downtime.
An oversized motor may increase the quotation without improving the actual operation.
Door performance depends on correct matching, control programming, braking, and mechanical balance rather than motor power alone.
Servo systems can provide smooth acceleration, accurate stopping, controlled deceleration, and efficient high-speed operation.
They are often selected for doors that operate frequently or require precise movement.
Sudden starting and stopping create stress on the shaft, curtain, belts, fasteners, and frame.
A well-programmed servo system reduces mechanical shock and can support longer component life.
The added value is not limited to speed.
The fastest possible opening speed is not always the best setting.
A smaller pedestrian door and a large forklift entrance may require different speed profiles.
The control system should balance traffic efficiency, safety, curtain stability, and component wear.
A basic control panel may support push buttons, photocells, and automatic closing.
A more advanced system may include radar integration, interlocking, access control, warning lights, remote monitoring, fault records, or communication with building systems.
Some facilities require two doors to operate as an interlock so that one door cannot open until the other is closed.
Other projects require separate logic for pedestrians and forklifts.
These functions may need additional hardware, relays, communication modules, and programming, all of which increase the cost.
Adding access control or automation after installation can be more difficult if the original control panel has limited inputs and outputs.
A slightly more capable controller may cost more initially but simplify future upgrades.
High speed doors can be opened by push buttons, pull cords, remote controls, radar sensors, induction loops, card readers, or integrated management systems.
Each method changes the cost and operating experience.
Push buttons and pull cords are simple and reliable.
They work well when operators can intentionally activate the door and traffic volume is manageable.
In some locations, manual activation is more efficient than automatic sensing.
A push button can prevent unnecessary opening when people frequently walk near the door without passing through it.
The simplest solution may also be the most appropriate.
Radar sensors detect movement approaching the door and trigger automatic opening.
They are useful in busy forklift routes where stopping to press a button would reduce efficiency.
A simple radar sensor may react to pedestrians, forklifts, nearby movement, or traffic moving away from the door.
This can cause unnecessary opening cycles.
More advanced sensors offer adjustable detection zones and directional recognition, but they cost more.
A more accurate sensor can prevent the door from opening when access is not required.
This reduces air exchange, operating cycles, noise, and mechanical wear.
A higher-priced sensor may therefore reduce long-term operating costs.
Induction loops are installed beneath the floor and detect metal vehicles.
They can provide reliable vehicle activation in forklift or truck routes.
The door supplier may provide the loop cable and controller, but the floor still needs to be cut, wired, sealed, and tested.
These civil works may be performed by another contractor and priced separately.
Reinforcement bars, floor heating, drainage, or thick concrete can make loop installation more difficult.
The site should be checked before choosing this activation method.
Card readers, keypads, warehouse systems, remote controls, and building management systems can all communicate with the door control panel.
This is valuable when access must be restricted or recorded.
An access control system decides who can open the door.
Safety devices decide whether the door can close without hitting a person or object.
Both systems may be required, and one cannot replace the other.
Safety equipment should not be treated as decorative accessories.
High speed doors move quickly and are often installed in mixed traffic areas. The safety configuration should match the opening size, traffic pattern, and operating speed.
Photocells create a beam across the opening.
If a person, forklift, or object interrupts the beam while the door is closing, the door can stop or reverse.
A single photocell near the floor can detect many obstacles, but it does not monitor the complete height of the opening.
Loads extending from a forklift or objects positioned above the beam may require additional protection.
A poorly positioned photocell can be blocked unnecessarily or fail to monitor the most important traffic area.
The installation design should reflect the actual movement of people, vehicles, and loads.
A wireless safety edge is installed along the lower part of the moving curtain.
If it contacts an obstacle, the control system can stop or reverse the door.
A safety edge only reacts after contact occurs.
Photocells can detect an obstacle before the curtain reaches it.
Using both devices can provide more complete protection in busy applications.
A light curtain uses multiple beams to create a larger detection field.
It can provide better protection in mixed pedestrian and vehicle passages.
The increased price comes from the larger sensing area and more advanced control.
For a simple low-risk opening, a standard photocell may be sufficient. For a busy passage, the wider detection field may be worthwhile.
Warning lights, audible alarms, and traffic lights can show when the door is moving or when passage is permitted.
They are especially useful where drivers cannot see the opposite side clearly.
A simple red and green traffic light may cost far less than repairing a door damaged by two vehicles entering from opposite directions.
The value of these devices should be considered in relation to the traffic risk.
The factory door price does not always include every site requirement.
Wall strength, available space, electrical preparation, lifting equipment, and local labor all affect the final budget.
A lightweight PVC door places less load on the building than a rigid spiral door.
However, every high speed door still needs a stable and level installation surface.
A heavy spiral door should not normally be fixed only to a lightweight sandwich panel wall.
Additional galvanized steel tubes or a supporting steel frame may be required. This support should connect to the main building structure rather than only to the panel surface.
Some buildings already have suitable steel columns and beams around the opening.
Others require a complete support frame to be fabricated and installed.
The same door can therefore have very different installation costs at two sites.
The motor, shaft, covers, guide tracks, and spiral system all require installation space.
Beams, pipes, cable trays, lights, and ventilation ducts may interfere with the standard arrangement.
A standard door may no longer fit when the available space above the opening is restricted.
The manufacturer may need to modify the shaft position, motor arrangement, cover design, or track system.
Customization adds engineering and production cost.
Sometimes it is cheaper to relocate a light or cable tray than to redesign the complete door.
In other cases, building equipment cannot be moved, and a custom door configuration becomes necessary.
Site planning should compare both options before production begins.
Large doors may require scaffolding, lifting platforms, cranes, or additional workers.
These expenses are often separate from the factory quotation.
A PVC curtain door is normally easier to lift and position than a rigid spiral system.
Heavy frames and long guide tracks require more careful handling, especially in narrow or active production areas.
Installation is slower when the facility cannot stop operations or clear the work area.
Technicians may need to work in stages, protect nearby equipment, or follow limited working hours.
These site conditions can increase the installation cost even when the door itself is standard.
High speed doors are often long and bulky rather than extremely heavy.
Guide tracks, shafts, covers, rigid panels, and frames require protective packaging and significant transport space.
International transport involves repeated loading, container movement, port handling, and long-distance shipping.
Wooden cases, protective film, steel frames, moisture protection, and internal supports help prevent damage.
A guide track may be lightweight but very long.
Shipping companies often consider both weight and package dimensions. Oversized lengths can create handling surcharges or reduce container-loading efficiency.
Weak packaging may lower the quoted price but increase the risk of bent guides, scratched panels, damaged covers, or missing components.
Repairing transport damage at the destination is usually more expensive than using suitable packaging from the start.
EXW, FOB, CIF, DDU, and DDP prices cover different parts of the delivery process.
A low factory price cannot be compared directly with a delivered price.
An EXW price usually requires the buyer to arrange collection, export handling, freight, customs clearance, taxes, and final delivery.
The door price may look low, but many costs remain outside the quotation.
A DDP price may include freight, customs handling, taxes, and delivery to the agreed address.
Buyers should still confirm unloading conditions, remote-area charges, installation, and any services excluded from the delivery scope.
Larger orders often receive better unit pricing because production, engineering, packaging, and purchasing become more efficient.
However, the saving depends on how standardized the order is.
When several doors use the same size, curtain, frame, motor, controls, and sensors, materials can be prepared in batches.
Drawings, programming, and testing procedures can also be repeated.
Changing dimensions, materials, or control logic requires production adjustments.
A batch of identical doors involves fewer changes and lower setup costs, which can improve the unit price.
Using the same sensors, motors, control panels, and curtain materials across a facility makes maintenance easier.
The buyer can keep fewer spare parts and technicians only need to understand one main system.
An order may include many doors, but every unit may have different dimensions, frame materials, activation systems, and environmental requirements.
In that case, the manufacturer still needs to treat each door as a customized project.
The material volume may be larger, but engineering and production cannot be fully standardized.
The buyer may still receive some quantity benefit, but not the same discount as a repeated model.
High speed doors may need to meet electrical, safety, import, or project-specific requirements.
Certification and quality control require engineering, component selection, testing, and documentation.
A certificate is only useful when it applies to the door type and configuration being supplied.
Buyers should check whether the certification covers the product rather than only the manufacturer.
Motors, control units, electrical parts, and safety devices from recognized manufacturers may cost more.
However, they can simplify project approval and reduce uncertainty about performance and compliance.
Testing may include repeated operating cycles, sensor checks, emergency stop verification, curtain alignment, motor operation, and control programming.
A small adjustment inside the factory may take minutes.
The same issue can become expensive after the door has been packed, shipped, installed, and connected overseas.
Reliable testing adds value even though it is not visible in the final product.
Production drawings, wiring diagrams, installation manuals, packing lists, and maintenance instructions are part of a professional project.
A detailed drawing can show the mounting points, required clearances, cable positions, and component layout.
This information helps local installers prepare the site and reduces the risk of incorrect assembly.
The purchase price is paid once, but the door may operate every day for years.
Warranty terms, spare parts availability, installation support, and troubleshooting response all influence long-term value.
A long warranty sounds attractive, but the coverage must be clear.
Impact damage, consumable parts, incorrect installation, electrical supply problems, and unauthorized modification may not be covered.
A useful warranty explains which components are covered, for how long, and what evidence is required when a problem occurs.
This makes support easier for both the buyer and supplier.
Curtains, sensors, seals, control components, and drive parts may eventually need replacement.
The speed at which spare parts can be identified and supplied matters.
A door using traceable motors, sensors, and electrical parts is usually easier to maintain.
Undocumented components may be cheaper initially but difficult to source after several years.
For international projects, local installation teams may need guidance during wiring, commissioning, or troubleshooting.
Videos, diagrams, online support, and clear instructions can prevent mistakes.
Buyers often compare only visible materials.
However, engineering support can be the difference between a door that is installed correctly and one that experiences repeated problems.
A high speed door affects traffic, temperature control, production continuity, and workplace safety.
The cheapest purchase may not produce the lowest total cost.
When a critical passage is blocked, forklifts may need to use longer routes, production may slow down, and controlled areas may remain open.
These costs continue until the door is repaired.
A door that repeatedly needs adjustment may not appear completely broken.
However, short interruptions, manual resets, and operator complaints can consume many hours over time.
Reliable daily operation has real financial value.
A door that opens unnecessarily or closes too slowly allows conditioned air to escape.
The effect may not be obvious on the first day, but it appears in monthly energy costs.
A poorly adjusted radar may open the door whenever someone walks nearby.
A better detection system can reduce unnecessary cycles and limit air exchange.
The sensor price should be considered alongside the energy it can save.
A standard indoor fabric door installed in a windy exterior opening may need repeated curtain adjustment.
A door without impact recovery may require frequent service in a busy forklift passage.
A spiral door is not necessary for every interior opening.
A stainless steel frame is not required in every dry warehouse.
The goal is not to select the most expensive configuration. It is to select the configuration that matches the actual risk.
The quality of the quotation depends on the quality of the project information.
Opening dimensions are essential, but they are not enough.
Measure the clear width and height of the opening.
Also provide the available space above and beside it.
Existing industrial openings may have uneven floors, sloped walls, or structural obstructions.
Photos and multiple measurements help the supplier identify possible installation issues before production.
State whether the opening is interior or exterior.
Describe wind, rain, sunlight, humidity, dust, washing, and temperature conditions.
Photos of both sides of the opening can reveal beams, pipes, wall materials, equipment, and available installation space.
A short site video can also help the supplier understand traffic and airflow conditions.
Explain whether the opening is used by pedestrians, forklifts, trucks, automated vehicles, or production equipment.
Estimated operating cycles per hour or per day are also helpful.
A one-way forklift route may require different detection logic from a two-way passage shared with pedestrians.
The activation and safety system should match how traffic actually approaches the door.
Voltage, phase, and frequency should be provided before production.
The supplier can then select the correct motor and control components.
A door built for the wrong electrical supply may require replacement parts or additional transformers.
Confirming the power conditions early prevents avoidable changes at the site.
Once several quotations have been received, buyers should compare the complete configuration rather than only the final number.
Make sure every supplier is quoting the same product category.
A standard PVC fabric door should not be compared directly with a zipper, stacking, spiral, or cold storage door.
Some suppliers use broad product names without clearly describing the guide system, curtain structure, or wind resistance.
Ask for technical drawings and configuration details before assuming that the products are equivalent.
Check the curtain material, thickness, frame material, surface finish, panel construction, transparent sections, and reinforcement.
Confirm whether stainless steel is used for the complete frame or only for visible covers.
This single detail can create a significant price difference.
Review the motor, control panel, radar, photocells, safety edge, remote controls, warning lights, and access-control interfaces.
A quotation may appear cheaper because it includes only push-button control and one photocell.
Another may include vehicle radar, wireless safety edge, warning lights, and remote controls.
The final numbers cannot be compared fairly until the scope is aligned.
Check whether packaging, freight, customs clearance, unloading, structural steel, electrical work, installation, and commissioning are included.
A higher quotation may include export packaging, delivery, and technical support.
A lower quotation may leave all these costs to the buyer.
The complete project budget is more important than the factory price alone.
High speed door prices are influenced by far more than the width and height of the opening.
The door type, curtain or panel material, frame construction, wind resistance, insulation, motor, control system, activation method, safety devices, installation conditions, shipping method, certification, quantity, warranty, and after-sales support all affect the final cost.
This is why two high speed doors with the same dimensions can have very different quotations.
A standard PVC fabric door may be the right choice for economical indoor separation. A self-repairing zipper door may reduce downtime in a busy forklift passage. A stacking door may be necessary for a large opening, while a spiral high speed door may be more appropriate for an exterior entrance requiring wind resistance, insulation, and security.
The most useful buying question is not simply, “Which supplier has the lowest price?”
A better question is, “Which configuration matches the actual working environment, and what is included in the quotation?”
Once the application, traffic pattern, installation conditions, safety requirements, and service scope are clearly defined, high speed door prices become much easier to compare.
The right door is not necessarily the cheapest or the most expensive. It is the one that performs reliably without including unnecessary features or removing components the application genuinely needs.
