Proper dock leveler installation begins long before the equipment is placed into the loading bay.
The concrete pit, embedded steel, electrical conduits, dock height, power supply, and surrounding loading dock equipment all need to be coordinated before installation begins.
A dimensional error in the pit can prevent the leveler from fitting correctly. Incorrect electrical preparation can delay commissioning. Poor coordination between the leveler, industrial door, dock bumpers, and truck position can create operating problems even when the dock leveler itself is correctly manufactured.
For new warehouse projects, installation requirements should therefore be reviewed during the civil construction stage rather than after the loading dock has already been completed.
For renovation projects, the existing pit and building structure should be carefully measured before a replacement dock leveler is ordered.
This guide explains the main requirements for dock leveler installation, including pit dimensions, embedded steel, electrical preparation, hydraulic connections, commissioning, and final safety checks.
The manufacturer's installation drawing should be the main reference for civil construction and equipment installation.
Dock levelers may look similar from above, but different models can require different pit dimensions, support points, electrical routes, and mounting details.
Before constructing the pit, confirm:
Dock leveler type
Platform width
Platform length
Rated capacity
Lip type
Power unit configuration
Control box location
There is no single pit dimension that applies to every dock leveler.
Pit dimensions depend on the actual model and structure.
Always use the final approved installation drawing before concrete construction begins.

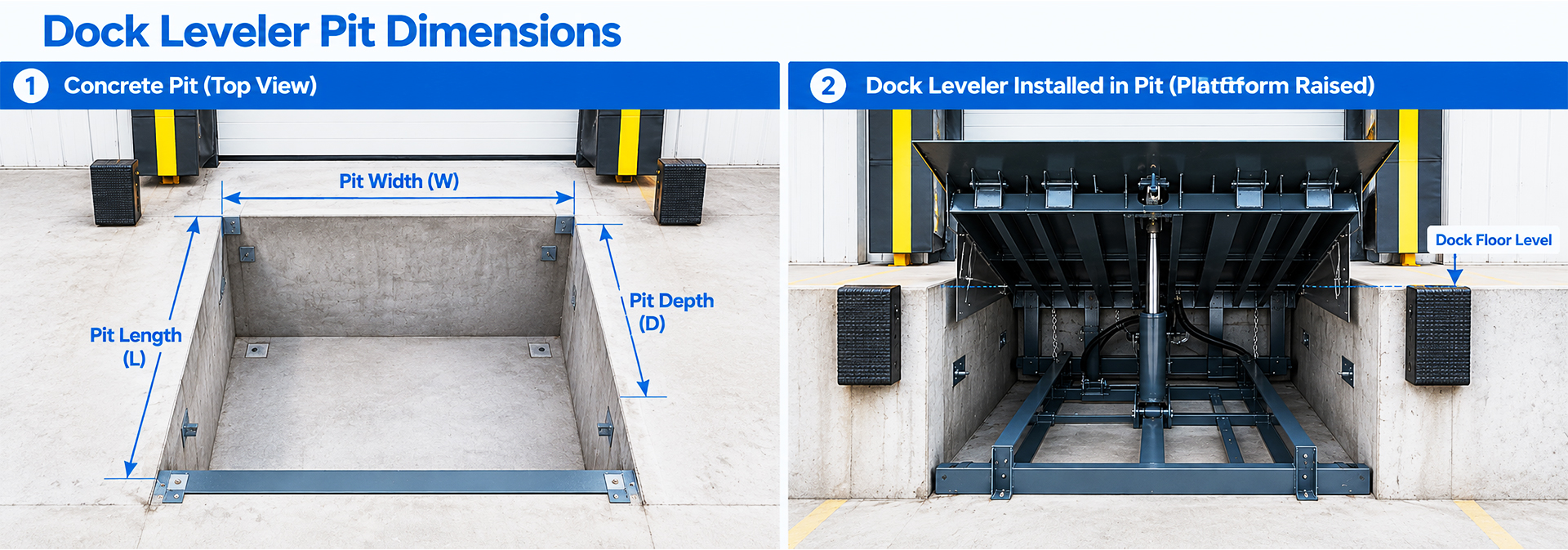

For a conventional pit-mounted dock leveler, the concrete pit forms the installation space beneath the platform.
Three dimensions are particularly important:
Pit width
Pit length
Pit depth

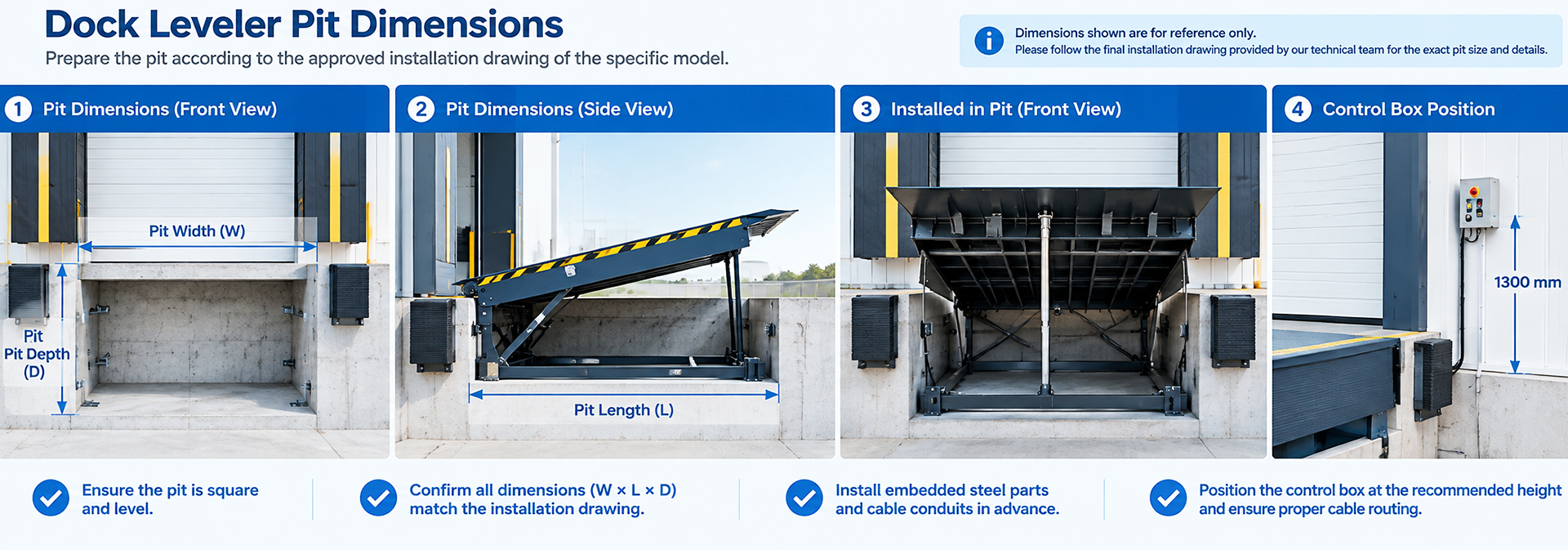

The pit width must accommodate the dock leveler frame while allowing the equipment to be correctly positioned and secured.
An incorrect width can cause alignment problems or leave excessive gaps around the platform.
Pit length is normally related to the overall platform structure and rear mounting arrangement.
The leveler must fit completely inside the prepared pit while maintaining the correct relationship with the front dock edge.
Pit depth determines the final stored position of the leveler.
When properly installed, a conventional dock leveler should return to a stored position coordinated with the surrounding warehouse floor.

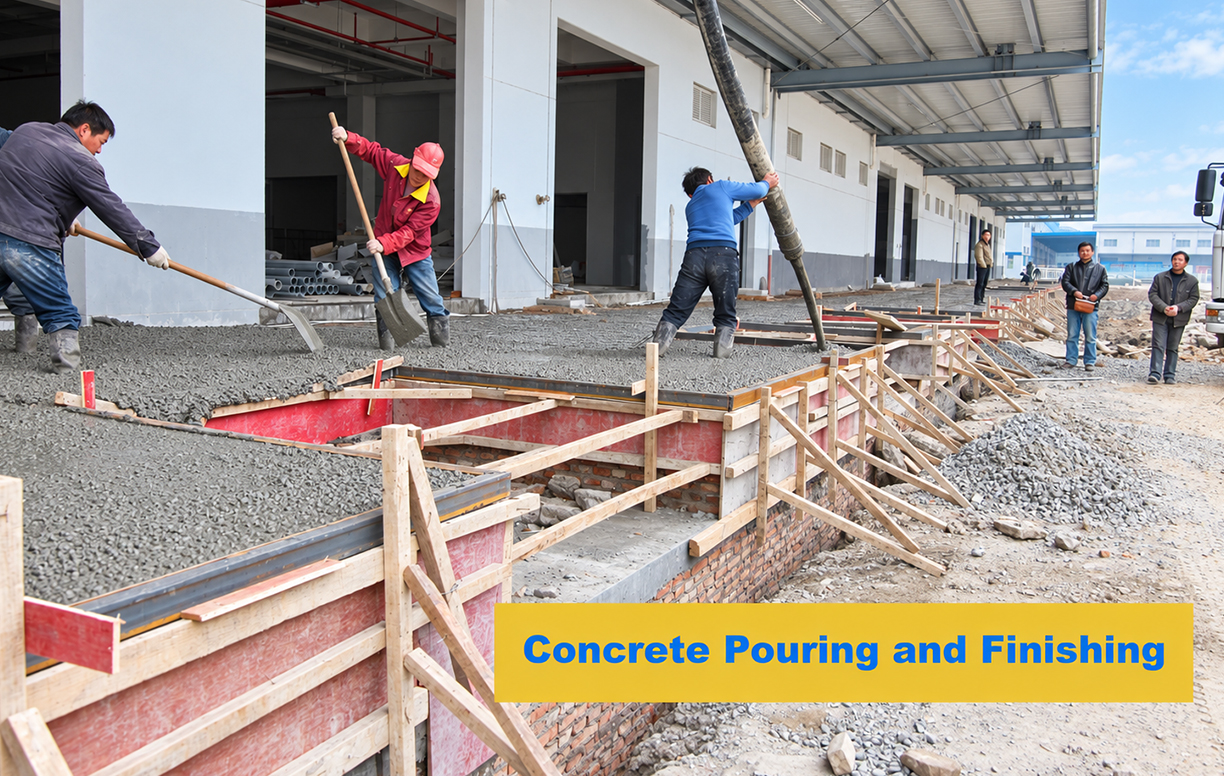

Before pouring concrete, verify:
Pit Width × Pit Length × Pit Depth
against the latest approved drawing.
Measurements should be checked at several positions because concrete pits may not always remain perfectly square during construction.
Correct nominal dimensions are not enough.
The pit should also be properly formed.
Checking diagonal dimensions helps determine whether the pit is square.
A pit that is wider at one end or significantly out of square can make installation difficult.
The surrounding warehouse floor and dock edge should also be checked.
The dock leveler must align correctly with the finished loading platform after installation.
Significant concrete dimensional problems should be corrected before the leveler is installed.
Trying to compensate for major pit errors during equipment installation can affect alignment and long-term operation.
Embedded steel is commonly used around the pit to provide suitable mounting and structural connection points.
Its exact configuration depends on the dock leveler design.
The front edge of the loading dock is an important structural area because it is close to the dock leveler lip, bumpers, and truck interface.
The embedded steel should be installed according to the approved civil drawing.
Rear and side mounting points may also require embedded steel or other structural preparation.
It is much easier to position embedded components correctly before concrete work than to modify the pit after construction.
Before pouring concrete, confirm:
Embedded steel dimensions
Position
Elevation
Welding areas
Anchor requirements
Electrical preparation should be incorporated into the pit construction.
A PVC conduit or other suitable cable route is commonly prepared so that power and control wiring can reach the dock leveler without exposed cables crossing the loading area.
The conduit may need to connect:
Dock leveler pit → control box → electrical supply.
The exact route depends on where the control panel and hydraulic power unit are located.
Before installation, check that the conduit:
Is not blocked by concrete
Has sufficient internal space
Reaches the intended control location
Does not create sharp bends that make cable installation difficult
Providing a pull wire inside the conduit can also simplify later electrical work.
Powered dock levelers require the correct electrical supply.
The required voltage depends on the selected motor, hydraulic power unit, control system, and destination market.
Important information includes:
Voltage
Phase
Frequency
Control voltage
Available electrical supply
For international projects, never assume that the warehouse uses the same voltage as the equipment supplier's domestic market.
The control box should be installed where the operator can access it conveniently while maintaining a clear view of the loading bay where practical.
It should not interfere with:
Industrial door tracks
Dock shelter structure
Forklift movement
Other wall-mounted equipment
Electrical supply, cable conduits, isolators, and control positions should ideally be prepared before installation.
This avoids having the mechanical installation completed while the equipment remains unavailable because electrical work is unfinished.
The dock leveler and industrial sectional door operate within the same loading bay.
Their dimensions and operating movements should therefore be reviewed together.
Confirm that:
Door tracks do not conflict with dock equipment
The bottom door section clears the loading area
The control boxes do not overlap
Required headroom is available
Depending on the project, the controls can be configured so that the dock leveler is enabled only after the industrial door reaches the required open position.
This helps establish a more controlled loading sequence.
Dock bumpers protect the dock structure when vehicles reverse toward the loading bay.
They also determine the final distance between the truck and dock.
If the bumpers project too far from the dock, the trailer remains farther away.
This can reduce the effective overlap between the dock leveler lip and truck bed.
If the truck sits too close, other equipment may not have sufficient clearance.
Before final installation, evaluate:
Truck rear structure → dock bumper → leveler lip → trailer bed.
This is particularly important when vehicles have unusual rear bumpers, underride guards, or tail lift structures.
Once the civil and electrical preparation has been verified, the leveler can be positioned into the pit.
The equipment should be handled using appropriate lifting equipment and according to the manufacturer's installation procedure.
Before final fastening or welding, confirm that the leveler is:
Centered in the pit
Correctly aligned with the dock edge
At the required elevation
Stable at all support points
Depending on the model, installation may involve welding, anchoring, or a combination of structural attachment methods.
The approved installation drawing should define where these connections are required.
Hydraulic dock levelers normally include a power unit, cylinders, hoses, and control components.
These parts should be checked before commissioning.
Confirm that:
Hoses are correctly connected
Connections are tight
Hoses are not twisted
Components are protected from moving structures
There are no visible leaks
Hydraulic hoses should not rub against sharp edges or moving components during platform operation.
The routing should be checked through the full operating movement of the leveler.
Electrical work should be completed by qualified personnel according to the manufacturer's wiring diagram and applicable local electrical requirements.
Before full operation, confirm that the controls operate the equipment in the intended sequence.
Check:
Main power
Control buttons
Emergency stop where provided
Motor operation
Limit or position signals
Interlocks where applicable
Electrical protection should match the equipment and local installation requirements.
Damaged cables, exposed conductors, or temporary wiring should not remain in the final installation.
After mechanical, hydraulic, and electrical installation is complete, the dock leveler should be commissioned before normal warehouse use.
Initial testing can confirm whether the platform and lip move correctly without obstruction.
Observe:
Platform lifting
Lip movement
Platform lowering
Return to stored position
Unusual noise
Hydraulic leakage
After basic operation is confirmed, the leveler should be checked with a representative truck.
Check whether:
The lip reaches the vehicle correctly
Adequate overlap is achieved
The platform follows the expected truck height
The transition angle is suitable for the intended forklift
The equipment returns correctly after loading
Testing with an actual vehicle is particularly useful where truck rear structures or bumper arrangements are unusual.
A leveler may operate mechanically without necessarily providing the correct transition for every forklift.
During commissioning, consider the forklift's:
Ground clearance
Wheelbase
Load dimensions
Maximum operating weight
The transition from the warehouse floor to the leveler and from the leveler to the truck bed should be evaluated.
Large differences between dock height and truck bed height can create a steeper operating angle.
This should be considered during equipment selection and confirmed during commissioning.
Safety checks should be completed before the dock leveler enters normal operation.
OSHA's current dockboard requirements state that dockboards must be capable of supporting the maximum intended load and include requirements related to preventing vehicles or dockboards from moving out of a safe position during use.
Inspect:
Platform
Lip
Hinges
Welded connections
Anchor points
Hydraulic components
Safety supports
Electrical controls
The truck should remain in the correct position while the dock leveler is being used.
Depending on the site, this may involve vehicle restraints, wheel control procedures, traffic lights, or other operating controls.
Before normal use, test the intended sequence:
Truck positioned → vehicle secured → door opened → dock leveler deployed → loading → leveler stored → door closed → vehicle released.
The exact sequence should follow the equipment configuration and applicable site safety requirements.
Maintenance beneath a raised dock leveler creates a serious hazard if the platform is not mechanically secured.
Before entering or working beneath a raised platform, the manufacturer's maintenance support device or specified mechanical support procedure should be used.
Hydraulic pressure alone should not be treated as a maintenance support.
Electrical and hydraulic energy should be controlled according to applicable site maintenance procedures before servicing the equipment.
Only trained personnel should perform maintenance work.
Before the dock leveler is handed over for normal operation, complete a final inspection.
Confirm:
Correct pit dimensions
Platform alignment
Secure mounting
Correct dock height relationship
Bumper position
Lip overlap
Confirm:
Correct voltage
Control operation
Cable protection
Hydraulic connections
No visible leakage
Correct platform and lip movement
Confirm:
Dock door clearance
Truck compatibility
Forklift transition
Safety devices
Equipment interlocking if applicable
Correct return to stored position
Keeping commissioning records can provide a useful reference for future inspection, maintenance, and troubleshooting.

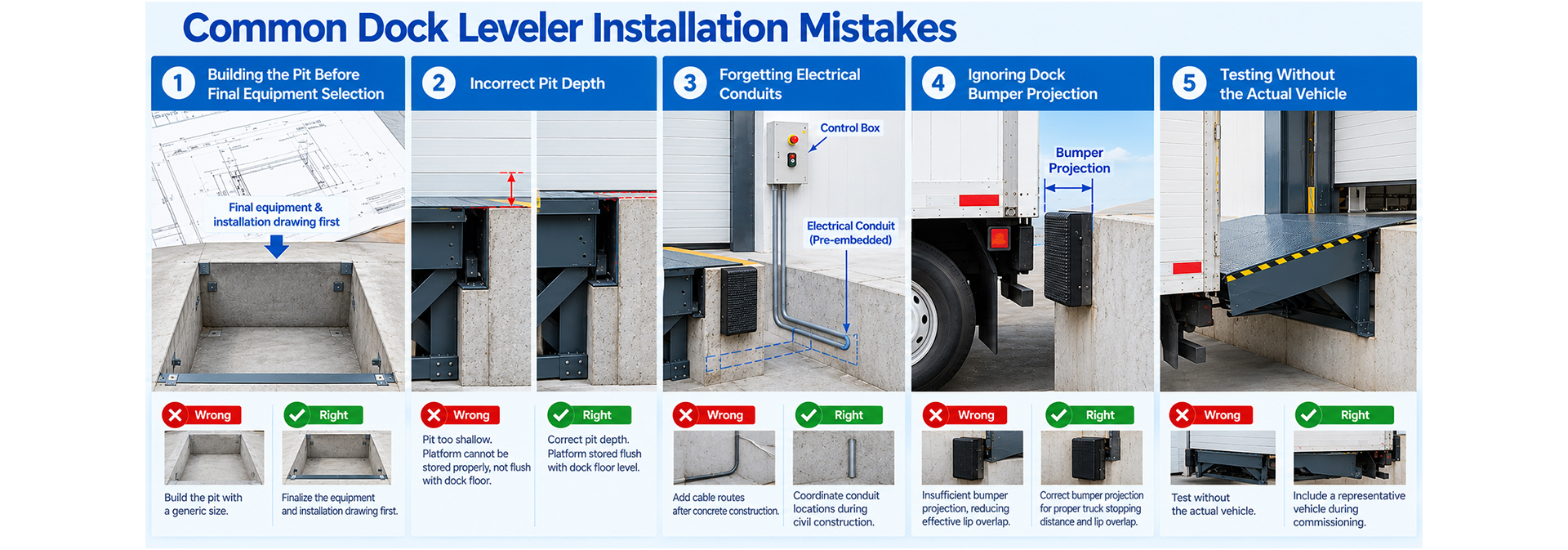

Several common problems can be avoided with better preparation.
A generic pit may not match the final dock leveler.
Better approach: finalize the equipment and installation drawing first.
Incorrect depth can affect the stored platform position and installation alignment.
Better approach: verify elevation before pouring concrete.
Adding cable routes after concrete construction can create unnecessary work.
Better approach: coordinate conduit locations during civil construction.
Incorrect vehicle stopping distance can reduce effective lip overlap.
Better approach: review the truck, bumper, and leveler as one system.
The leveler may operate normally but still have compatibility issues with the site's trucks.
Better approach: include a representative vehicle during commissioning whenever practical.
Installation planning differs between new and existing warehouses.
For new construction, confirm the dock leveler before completing:
Concrete pits
Embedded steel
PVC conduits
Door openings
Dock bumpers
Electrical preparation
This provides the greatest flexibility and reduces later modifications.
For replacement projects, measure:
Existing pit width
Pit length
Pit depth
Dock height
Door dimensions
Bumper projection
Available power supply
Photographs showing the actual truck positioned at the dock can also help identify compatibility issues before production.
There is no universal pit size.
Pit width, length, and depth depend on the dock leveler model, platform dimensions, capacity, and structural design.
Always build the pit according to the approved installation drawing.
Power requirements depend on the motor and control system.
Confirm voltage, phase, and frequency before production rather than assuming a standard electrical supply.
Yes, whenever possible.
Planning cable conduits during civil construction usually simplifies the later electrical installation.
Often yes, but the existing pit dimensions and structure must first be compared with the requirements of the new equipment.
Yes, commissioning with a representative vehicle is useful for confirming lip overlap, working height, and the actual loading transition.
Yes, depending on the control configuration.
Interlocking can help coordinate the operating sequence between the industrial door, dock leveler, vehicle restraint, and traffic signals.
Successful dock leveler installation depends on preparation as much as the equipment itself.
The most important requirements should be confirmed before installation begins:
Pit width, length, and depth
Embedded steel
Dock platform height
PVC conduit and cable routes
Power supply
Control box position
Industrial door clearance
Dock bumper position
Truck configuration
Hydraulic connections
Safety devices
For new warehouse projects, the dock leveler should ideally be selected before concrete construction so that the pit, embedded steel, electrical preparation, and loading dock layout can be coordinated from the beginning.
For renovation projects, existing dimensions should be carefully surveyed before replacement equipment is manufactured.
After installation, mechanical alignment, hydraulic operation, electrical controls, lip overlap, vehicle compatibility, forklift transition, and safety systems should all be tested before the equipment is put into normal service.
Most importantly, always use the manufacturer's approved installation drawing and instructions as the final reference for construction and installation.
A correctly prepared pit and properly coordinated loading dock can significantly reduce installation problems and help the dock leveler provide reliable long-term operation.
