Choosing the correct dock shelter size is essential for creating an effective connection between a warehouse loading dock and the vehicles using it.
A dock shelter that is too small may interfere with truck positioning or fail to accommodate larger vehicles. A shelter that is too large may leave excessive gaps around smaller trucks and reduce sealing performance.
The correct size therefore cannot be determined from the loading dock door opening alone.
A proper dock shelter selection should consider the complete relationship between:
Truck width
Truck body height
Dock platform height
Door opening width and height
Dock shelter width and height
Shelter projection
Dock bumper projection
Vehicle stopping position
Side curtain overlap
Top curtain position
Minimum and maximum vehicle dimensions
This guide explains how to size a dock shelter and how to evaluate truck compatibility for warehouses, distribution centers, manufacturing facilities, food warehouses and temperature-controlled loading docks.
Dock shelter size normally refers to the overall dimensions of the shelter structure installed around the loading dock opening.
The main parameters are:
Overall width
Overall height
Projection
Internal clear opening
Side curtain dimensions
Top curtain dimensions
These measurements must work together with the building opening and expected vehicle range.
Overall width is the outside width of the dock shelter structure.
It determines how the shelter frame fits around the loading dock opening.
The dock shelter normally extends beyond the left and right sides of the door opening.
For this reason, the warehouse must provide sufficient wall space beside the door for the shelter frame and mounting structure.
Overall height is the total installed height of the dock shelter.
It should provide sufficient coverage above the expected vehicle body while remaining compatible with the building structure.
Shelter height should be coordinated with dock platform elevation and the actual truck body heights using the loading bay.
Do not select the shelter simply from the door height.
Truck dimensions are the most important information for dock shelter sizing.
A shelter is designed to interact directly with the vehicle, so actual vehicle data should be collected before the equipment is finalized.
Truck body width determines how the side curtains contact the vehicle.
If several vehicle types use the same dock, provide the complete width range.
A shelter designed around only the widest vehicle may provide poor coverage around narrower trucks.
Vehicle body height determines how the top section of the shelter interacts with the truck.
The important measurement is the vehicle body position when the truck is actually at the loading dock.
Vehicle suspension and loading conditions can influence the final relationship between the trailer and dock.
Truck height cannot be evaluated independently from dock height.
A vehicle standing at ground level in front of a raised warehouse dock has a different vertical relationship with the door than its total height alone might suggest.
The dock shelter is installed relative to the warehouse loading platform.
Truck body height should therefore be evaluated together with the platform elevation.
For accurate dock shelter selection, provide:
Dock platform height
Minimum truck body height
Maximum truck body height
Door opening height
These measurements allow the top curtain position to be evaluated more accurately.
The door opening remains an important part of the design even though it should not be used alone to determine shelter size.
The shelter should leave a practical loading opening while providing sufficient side curtain contact around the truck.
If side curtains extend too far into the opening, they may interfere with loading operations or become exposed to excessive vehicle contact.
The final clear opening should be reviewed together with truck and forklift requirements.
The door needs sufficient height for loading operations, while the shelter top section needs to provide coverage around the vehicle.
A top curtain positioned incorrectly may interfere with tall trucks or provide inadequate coverage for lower vehicles.
Door height and vehicle range should therefore be reviewed together.
Projection is one of the most important and frequently misunderstood dock shelter dimensions.
It describes how far the shelter projects outward from the building or dock face.
The shelter needs to reach toward the vehicle so that the side and top curtains can engage with the truck body.
If the vehicle stops farther from the building, the shelter may require greater reach.
If the shelter projects too far, the vehicle may place excessive pressure on the structure.
The correct projection should match the actual truck-to-building distance.
Dock bumpers determine where the truck stops when it reverses toward the loading dock.
This makes them an important part of dock shelter sizing.
A thicker bumper holds the truck farther from the dock face.
This changes the amount of contact between the truck and shelter curtains.
When requesting a dock shelter, provide the bumper projection or a drawing showing the final truck stopping position.
Do not evaluate the shelter projection independently from the bumpers.
Some trucks have rear bumpers, underride guards, tail lifts or other structures that influence how close the body can approach the warehouse.
The most useful value is the real distance between the truck body and dock face when the vehicle is fully positioned for loading.
This often provides more useful information than vehicle specifications alone.
The side curtains are designed to contact the left and right sides of the vehicle.
Their dimensions influence both sealing and truck compatibility.
The curtain should extend sufficiently toward the vehicle body to reduce open gaps.
Excessive curtain overlap can increase wear and may interfere with loading operations.
The objective is suitable contact, not maximum possible coverage.
A mixed fleet creates a challenge because narrower and wider vehicles interact differently with the same curtains.
Where truck widths vary substantially, the shelter should be selected according to both ends of the range.
An adjustable or alternative shelter configuration may be more suitable when the variation becomes too large.
The top curtain helps cover the gap above the truck body.
Its position is particularly important when vehicles with different heights use the same loading dock.
A tall vehicle requires sufficient clearance below the shelter structure.
The shelter should not interfere with vehicle access or place excessive pressure on the top curtain when taller trucks reverse into position.
A shelter designed only for tall trailers may leave too much open space above lower vehicles.
Minimum truck height is just as important as maximum truck height.
For facilities handling a wide height range, an adjustable top curtain or inflatable top section may provide better adaptability.
Mechanical dock shelters use flexible side curtains and a top curtain mounted to a supporting frame.
They are widely used in warehouses that handle a reasonable range of truck dimensions.
Typical applications include:
General warehouses
Manufacturing facilities
Distribution centers
Retail logistics
Standard loading docks
Mechanical shelters provide flexibility, but they cannot compensate for unlimited differences in truck width and height.
The actual vehicle range should always be reviewed.
Inflatable dock shelters use air-filled side and top cushions that expand toward the vehicle after it reaches the loading position.
They can provide closer contact around the truck body.
Because the cushions must physically reach the vehicle, inflation range must match the expected fleet.
Provide both minimum and maximum:
Truck width
Truck height
Truck stopping distance
This helps determine whether one inflatable shelter configuration can cover the entire fleet.
Inflatable shelters are often considered for:
Cold storage
Freezer warehouses
Food distribution
Pharmaceutical logistics
Temperature-controlled facilities
Vehicle position, door closure, dock leveler arrangement, bumper position and loading procedures all influence overall environmental separation.
A correctly sized shelter is only one part of the complete loading dock system.
Some loading docks regularly receive vehicles with large variations in height.
An adjustable dock shelter can provide additional flexibility.
The top sealing section can be repositioned according to the truck body height.
Before selecting an adjustable system, confirm the minimum and maximum truck heights it needs to accommodate.
The adjustment range should be matched to actual site vehicles rather than selected simply because the shelter is described as adjustable.
Distribution centers and logistics warehouses frequently receive vehicles from several transportation providers.
This makes truck compatibility one of the most important shelter selection factors.
Instead of sending only one truck size to the supplier, create a simple fleet table.
Include:
Vehicle | Body Width | Body Height | Bed Height | Frequency |
|---|---|---|---|---|
Truck A | Actual size | Actual size | Actual size | High |
Truck B | Actual size | Actual size | Actual size | Medium |
Truck C | Actual size | Actual size | Actual size | Low |
If one loading bay cannot perfectly accommodate every possible vehicle, the design should prioritize the trucks that use the dock most frequently while maintaining safe compatibility with the remaining fleet.
Truck body height is important for shelter sizing, while truck bed height is important for the loading dock as a whole.
Different bed heights influence dock leveler position and the vertical location of the trailer relative to the loading opening.
For a complete loading bay, provide:
Minimum truck bed height
Maximum truck bed height
Dock height
Truck body height range
This allows the dock shelter and dock leveler to be reviewed as one system.
Cold storage facilities place greater emphasis on reducing uncontrolled outside-air entry.
Dock shelter sizing therefore becomes particularly important.
Large gaps around the truck can allow warm humid air to enter the loading area.
Where temperature control is a priority, an inflatable shelter may provide closer contact around the vehicle than a conventional mechanical design.
The final choice should still reflect truck variation and operating requirements.
General warehouses may prioritize vehicle flexibility and weather protection rather than very high sealing performance.
A mechanical dock shelter often provides a good balance between flexibility and protection for mixed warehouse traffic.
A more complex shelter is not automatically better.
The appropriate design should match:
Vehicle variation
Climate
Loading frequency
Environmental requirements
Project budget
The building must provide enough space to install the shelter structure around the loading opening.
Structural columns, adjacent dock doors or wall-mounted equipment may limit available width.
In facilities with closely spaced docks, confirm that two shelter frames do not interfere with each other.
The center-to-center distance between loading bays should be reviewed during design.
The shelter frame requires installation space above the opening.
Check for:
Beams
Canopies
Pipes
Sprinklers
Cable trays
Signs
Lighting
These should be identified before the shelter dimensions are finalized.
Some warehouse loading docks include an external canopy or other building projection.
This can influence dock shelter installation.
The shelter should be mounted on a suitable supporting structure.
A side elevation showing the building wall, bumper, shelter projection and truck position is especially useful for projects with unusual building geometry.
For renovation projects, actual site measurements are essential.
Do not rely only on old construction drawings.
Record:
Door width
Door height
Dock height
Wall space
Existing shelter size
Bumper projection
Record:
Minimum truck width
Maximum truck width
Minimum truck height
Maximum truck height
Bed height range
A photograph showing the actual vehicle fully positioned can reveal:
Side gaps
Top gaps
Bumper contact
Shelter contact
Vehicle alignment
This is often one of the most useful references for replacement shelter selection.
Many dock shelter problems begin with incomplete project information.
The door opening does not define the truck dimensions.
Better approach: provide both building and vehicle data.
This may leave excessive gaps around smaller vehicles.
Better approach: review the complete vehicle range.
The bumper controls truck stopping distance.
Better approach: include bumper dimensions in the shelter design.
A tall shelter may work well with large trailers but poorly with smaller trucks.
Better approach: provide minimum and maximum body heights.Assuming “Adjustable” Means Universal
Adjustable shelters still have defined operating ranges.
Better approach: confirm the actual required adjustment range.
The most reliable shelter specification comes from actual truck dimensions, dock geometry and loading frequency rather than a generic standard size.
Providing complete information allows the supplier to recommend a more suitable shelter size.
Provide:
Door opening width
Door opening height
Dock platform height
Available wall space
Bumper projection
Provide:
Minimum truck width
Maximum truck width
Minimum truck height
Maximum truck height
Truck bed height range
Rear vehicle configuration
Provide:
Indoor or outdoor environment
Required sealing level
Loading frequency
Cold storage requirements
Vehicle mix

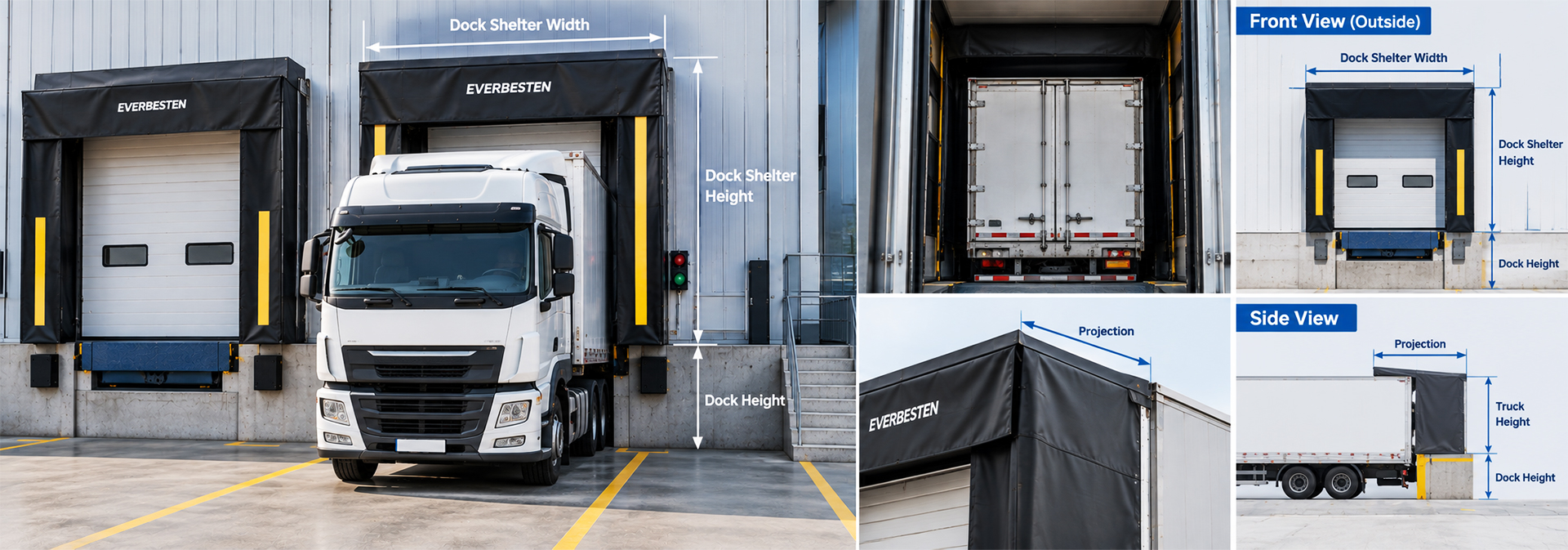

A front view and side view of the loading dock can help confirm:
Shelter width
Shelter height
Projection
Vehicle relationship
Installation clearances
This is particularly helpful for customized projects.
Before confirming a dock shelter, check the following:
Parameter | Information Required |
|---|---|
Door | Width and height |
Dock | Platform height |
Truck Width | Minimum and maximum |
Truck Height | Minimum and maximum |
Truck Bed | Height range |
Bumper | Projection from dock face |
Shelter | Width, height and projection |
Environment | General, cold storage or controlled |
Fleet | Standardized or mixed vehicles |
This information provides a much stronger basis for selection than door dimensions alone.
The correct width depends on the door opening, truck width range, side curtain design and available wall space.
There is no single width suitable for every loading dock.
Shelter height should be selected according to door height, dock platform height and the minimum and maximum vehicle body heights.
Projection is the distance the shelter extends outward from the dock or building face.
It should be coordinated with dock bumper projection and the truck's final stopping position.
Yes, within the shelter's designed compatibility range.
Mechanical and adjustable shelters can accommodate vehicle variation, while inflatable systems can provide additional sealing when their inflation range matches the fleet.
At minimum, provide door dimensions, dock height, truck width range, truck height range and dock bumper projection.
Ideally, yes.
The shelter, leveler, industrial door, bumpers and vehicle all interact within the same loading bay.

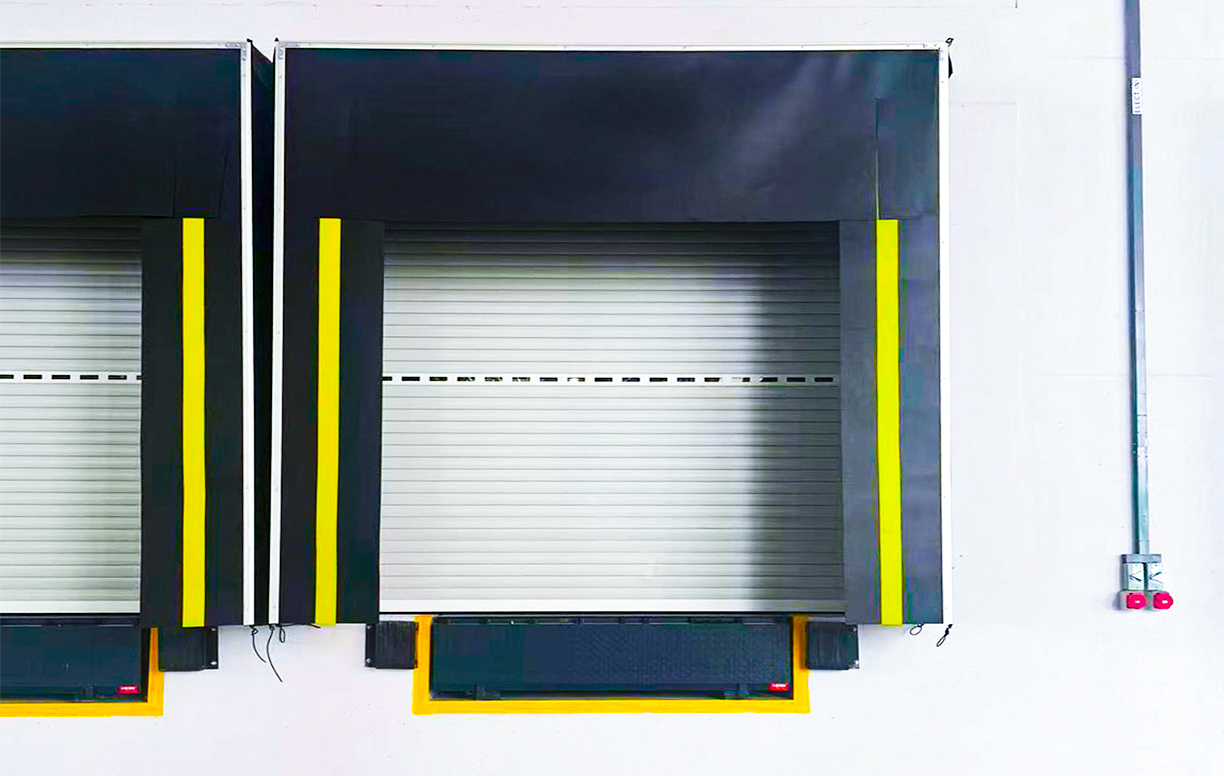

Correct dock shelter sizing requires more than matching a frame to the warehouse door opening.
The shelter must fit the truck and loading dock as one complete system.
The most important dimensions include:
Door opening width
Door opening height
Dock platform height
Shelter width
Shelter height
Shelter projection
Minimum truck width
Maximum truck width
Minimum truck height
Maximum truck height
Dock bumper projection
Final vehicle stopping position
For facilities with relatively consistent trucks, a standard dock shelter or dock seal may provide a practical solution.
Warehouses serving mixed fleets may require a mechanical or adjustable shelter with greater vehicle flexibility, while cold storage and temperature-controlled facilities may benefit from an inflatable dock shelter where closer sealing is required.
Most importantly, do not select a dock shelter from door dimensions alone.
Truck dimensions, dock height, bumper projection and vehicle position determine how the shelter actually interacts with the vehicle.
By collecting this information before production and reviewing the loading bay from both front and side views, warehouses can select a dock shelter that provides better truck compatibility, weather protection, sealing and long-term operating performance.
