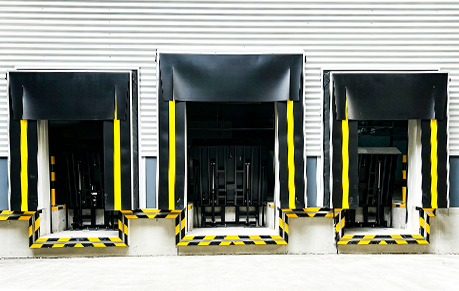

A dock shelter may look like a simple product installed around the loading dock door, but the actual installation depends on many site details. The door opening, dock height, wall space, trailer size, dock bumper projection, and truck parking position all affect whether the dock shelter can seal properly.
In this article, “dock shelter” mainly refers to a mechanical dock shelter. A mechanical dock shelter usually includes a front frame, side curtains, and a top curtain. When the truck backs into the dock, the curtains cover the sides and upper part of the trailer to reduce rain, wind, dust, and outdoor air entering the warehouse.
If the dock shelter is measured correctly, it can improve sealing, protect goods, and make loading work smoother. If the measurements are wrong, the shelter may not fit the wall, may not contact the trailer properly, or may block the loading opening. In some cases, a wrong size can even cause curtain damage, frame deformation, or poor sealing from the first day of use.
Many loading dock problems happen because the dock shelter is selected based only on the door opening size. The door size is important, but it is not enough. A dock shelter must also match the truck body and the surrounding installation space.
For example, the door opening may be 3000 mm wide, but the trailer width may be much larger. If the shelter width is selected only according to the door opening, the side curtains may not cover the truck correctly. Or the wall above the door may not have enough space for the top frame, which means the shelter cannot be installed as planned.
Before ordering a dock shelter, the warehouse should provide accurate site measurements, truck information, and photos. This helps the supplier recommend the right size and reduce installation risk.
A dock shelter is often customized according to the loading dock. Even when standard sizes are available, the final choice should still be checked against real site conditions. Accurate measurement saves time, reduces modification costs, and helps the dock shelter work properly after installation.
The frame is the main support structure of the dock shelter. It is installed on the wall around the dock door opening. The frame must fit the available wall space and be strong enough to support the shelter during daily truck docking.
The frame size depends on the door opening, trailer size, side curtain width, top curtain position, and projection. If the wall space is limited, the frame may need to be customized. If the wall is not strong enough, additional support may be required before installation.
The frame decides the overall size of the dock shelter. If the frame is too small, the shelter may not cover the trailer properly. If it is too large, the curtains may not contact the truck body well, and sealing performance may become weak.
Side curtains are installed on the left and right sides of the shelter. Their job is to cover the side gaps between the trailer and the dock opening. Good side curtain coverage helps reduce wind, rain, dust, and air exchange during loading.
The curtain width should be selected carefully. If the side curtains are too narrow, they may not cover the truck sides enough. If they are too wide, they may reduce the clear loading opening and affect forklift operation.
Side curtains should provide enough overlap with the trailer body, but they should not block the path for forklifts, pallets, or goods. A good dock shelter size should balance both sealing performance and loading access.
The top curtain covers the upper part of the trailer opening. It helps reduce air leakage, rainwater entry, and dust from the top gap. This is especially important when trailer heights vary or when the warehouse needs better sealing performance.
The top curtain height should match the trailer height range. If it is too short, it may not seal lower trailers. If it is too long, it may hang too low and block part of the truck opening.
Many buyers focus on the shelter width but forget the top curtain. In real loading conditions, the upper gap can be a major source of air leakage. Measuring trailer height and door height correctly helps avoid this problem.
Projection refers to how far the dock shelter extends outward from the building wall. It is one of the most important dimensions because it affects how the shelter contacts the truck body.
The truck does not usually touch the wall directly. Dock bumpers keep the truck at a certain distance from the wall. Because of this, the dock shelter must project far enough to reach the trailer body and create proper sealing.
If the dock bumper is thick but the shelter projection is too short, the curtains may not reach the truck properly. Before confirming the shelter projection, always measure the bumper thickness and truck stopping distance.

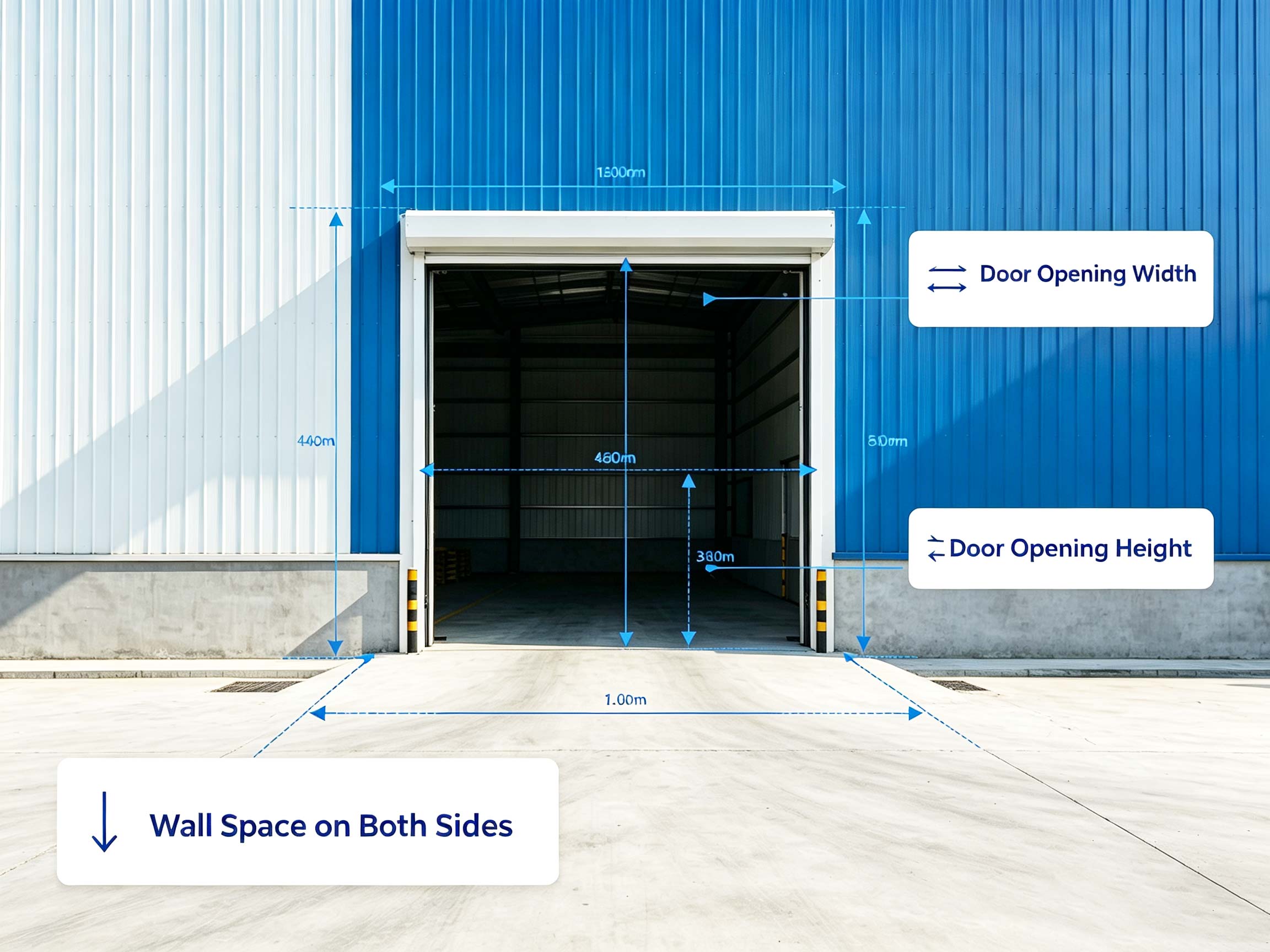

Door opening width is one of the first measurements to take. It refers to the clear width of the loading dock door opening. This measurement affects forklift access, pallet movement, trailer opening clearance, and dock shelter positioning.
When measuring door width, measure the clear opening from the left inner edge to the right inner edge. Do not include the wall surface, frame cover, or decorative edge. The measurement should reflect the actual space available for loading.
However, the dock shelter width should not be selected only by door opening width. The trailer width is also important. The shelter must be wide enough to match the truck body and provide proper side coverage.
Measure the door opening width at the top, middle, and bottom. If the wall or frame is not perfectly straight, use the smallest clear width as the reference for loading clearance.
Door opening height is the clear vertical height from the finished floor level to the top of the door opening. This measurement affects truck access, forklift clearance, door operation, and top curtain design.
If the opening is too low, tall cargo or forklift masts may be affected. If the opening is much higher than the trailer, the top sealing area may need special attention.
Door height should be measured from the finished warehouse floor, not from an unfinished ground level. If the floor will be changed later, the final finished floor height should be confirmed before production.
Measure the clear door height on both the left and right sides. If there is a difference, record both values and provide photos to the supplier.
The dock shelter frame needs installation space on both sides of the door opening. If there is not enough wall space, the side frame may not fit properly. Pipes, columns, lights, signs, electrical boxes, or other obstacles can also affect installation.
Measure the distance from the left edge of the door opening to the nearest obstacle. Then measure the same distance on the right side. This helps confirm whether the dock shelter can be installed in a standard way or whether a customized structure is needed.
A dock shelter is not installed inside the door opening. It is installed around the opening. Without enough side wall space, the frame may interfere with other equipment or may not be fixed securely.
Headroom is the space above the door opening. This area is needed for the top frame and top curtain. If the headroom is too small, the dock shelter may not have enough installation space, or the top curtain may not be positioned correctly.
Measure the distance from the top of the door opening to the nearest ceiling, beam, pipe, light, sign, or other obstacle. If there is an industrial sectional door, check whether its tracks, springs, or other components occupy the upper area.
Many loading docks already have industrial doors installed. The door tracks, control box, cables, and other hardware may affect dock shelter installation. Site photos are very useful for checking these details.
Dock height is the vertical distance from the outside truck parking ground to the warehouse floor level. It affects how the trailer aligns with the door opening and dock shelter.
If the dock height is suitable for the truck fleet, the trailer will align better with the loading dock. If the dock height is too high or too low compared with the truck bed, the truck position and dock leveler angle may be affected.
For dock shelter selection, dock height helps determine how the truck body sits relative to the door opening and top curtain.
Measure from the outside ground where the truck parks to the finished warehouse floor level. Make sure the ground is the real truck parking surface, not a temporary construction level.
Dock bumpers are installed at the dock face to protect the wall and control the truck stopping distance. The thickness of the bumper directly affects dock shelter projection.
If the bumper is thick, the truck stops farther from the wall. The shelter must extend far enough to reach the truck body. If this is ignored, the shelter may be installed correctly on the wall but still fail to seal the trailer.
Measure the bumper thickness from the dock wall outward to the outer face of the bumper. Also check whether the bumper is vertical, damaged, loose, or uneven.
The distance from the door opening to the dock edge affects truck positioning and shelter projection. In some loading docks, the door is close to the dock face. In others, there may be a setback or special wall structure.
This measurement helps the supplier understand how far the truck body will be from the door opening and how the shelter should be positioned.
The dock shelter must connect the building opening and the trailer body. If the wall structure is unusual, standard projection may not work well. Measuring the dock edge relationship helps avoid poor sealing.
Trailer width is one of the most important measurements for dock shelter selection. The shelter must be wide enough to receive the trailer and allow the side curtains to overlap the truck body correctly.
If your warehouse uses different truck types, measure the width of the narrowest and widest trailers. This range helps decide the shelter width and curtain design.
Do not only measure the truck cab. The dock shelter seals the trailer body, so the trailer body width is the key dimension.
Measure the outside width of the trailer body. If multiple truck types are used, provide the minimum, maximum, and most common trailer width.
Trailer height affects the top curtain and overall shelter height. If trucks have different heights, the top curtain must be designed to cover the upper gap without blocking the trailer opening too much.
For refrigerated trailers, container trucks, and standard cargo trailers, the body height may be different. The same loading dock may need to handle several trailer heights, so real truck data is important.
Measure the outside height of the trailer body from the ground to the top of the trailer. Also record the truck bed height because it affects how the trailer aligns with the dock.
Truck bed height is the height from the ground to the trailer floor. This measurement is important for dock leveler operation, but it also affects the relationship between the trailer and dock shelter.
If truck bed height changes significantly, the trailer body position may also change. This can affect top sealing and side curtain contact.
A truck with a lower bed height may align differently from a truck with a higher bed height. For mixed fleets, provide the full bed height range so the supplier can check compatibility.
The rear structure of the truck affects how the dock shelter contacts the trailer. Some trailers have rear doors that swing outward. Some refrigerated trucks may have special frames or rear sealing structures. Container trucks may have corner frames and rear door hardware that affect the contact area.
Before selecting the dock shelter, check whether any part of the trailer rear may interfere with the side curtains or top curtain.
Rear-view photos of the trailer can help the supplier understand the truck structure. This is especially useful for refrigerated trailers, container trucks, and special vehicles.
Many warehouses handle more than one truck size. In this case, do not provide only one trailer measurement. The dock shelter should be selected according to the full range of trailers used in daily operation.
If the range is small, a standard mechanical dock shelter may work well. If the range is very large, an adjustable dock shelter or different dock positions may be needed.
Ask the warehouse team which trucks use the dock most often. The most common trailer size should be the main reference, but the smallest and largest vehicles should also be considered.
The dock shelter must be fixed to the building wall. The wall structure affects installation strength and fastening method. Common wall types include concrete wall, brick wall, steel structure, sandwich panel, and cold room panel.
A strong concrete wall is usually easier for installation. If the wall is made of sandwich panel or insulated panel, additional steel support may be needed. The dock shelter should not be fixed only to a weak panel if the panel cannot support long-term load and truck impact vibration.
Before installation, confirm whether the wall can support the dock shelter. If the wall structure is weak, add steel frame support connected to the main building structure.
The wall around the dock opening should be checked for flatness. If the wall is uneven, the dock shelter frame may not sit properly. This can affect sealing, installation strength, and appearance.
Uneven walls are common in old warehouses, renovated loading docks, or buildings with damaged concrete surfaces. If the wall is not flat, the installer may need to use shims, support plates, or customized brackets.
A dock shelter needs stable contact with the wall. If the frame is twisted or uneven after installation, the curtains may not align with the truck properly.
Before installation, check whether there are obstacles around the door opening. These may include lights, pipes, cables, control boxes, signs, cameras, fire equipment, wall columns, or door tracks.
Even small obstacles can affect installation. A pipe near the side of the door may block the shelter frame. A light above the door may interfere with the top frame. A control box may need to be moved before installation.
Photos from the front, left side, right side, and inside of the dock opening help identify obstacles quickly. This reduces the chance of installation surprises.
The outside ground condition affects truck positioning. If the ground is uneven, sloped, damaged, or too narrow, the truck may not park straight. Poor truck positioning directly affects dock shelter sealing.
Check whether trucks can reverse smoothly and stop centered at the dock. Also check whether water collects near the dock area, because drainage problems can affect loading safety and equipment service life.
Even a correctly sized dock shelter cannot perform well if trucks cannot park properly. The outside yard layout should support straight and stable truck docking.

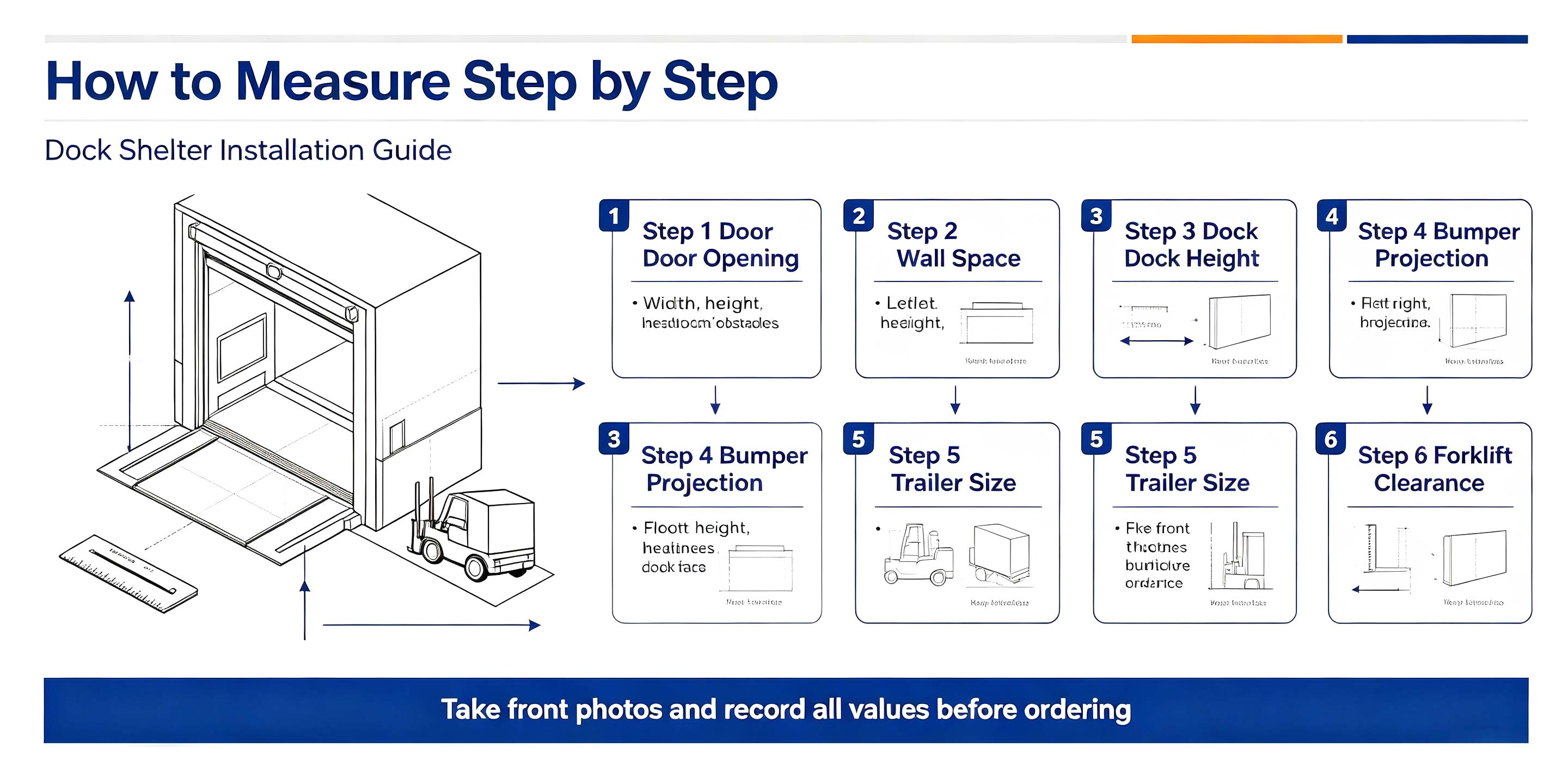

Start with the clear door opening width and height. Measure carefully from finished wall edge to finished wall edge, and from the finished floor to the top of the clear opening.
Record the width at several points, because old dock openings may not be perfectly square. If the measurements are different, record all values instead of only the largest one.
Record clear width, clear height, left and right height difference, and whether the opening is square. Photos should be taken straight from the front.
Next, measure the wall space around the door. Check the left side, right side, and top area. This confirms whether the shelter frame can be installed without interference.
If there are obstacles, measure their position and distance from the door opening. Do not ignore pipes, lights, cables, door tracks, or control boxes.
Record left side clearance, right side clearance, headroom, obstacle position, and wall structure type.
Measure the dock height from the truck parking ground to the warehouse floor. Then check the dock face condition. Look at the bumper position, dock edge, concrete condition, and whether there is enough space for the shelter projection.
The dock face is important because this is where the truck stops and where the dock shelter must align with the trailer.
Record dock height, bumper size, bumper position, dock face condition, and distance from door opening to dock edge.
Measure how far the dock bumper extends from the wall. This determines how far the truck will stop from the building. The dock shelter projection must match this distance.
If the bumpers are worn or damaged, consider replacing them before installing a new dock shelter. Damaged bumpers can affect both sealing and safety.
Record bumper thickness, bumper height, bumper width, bumper position, and whether the bumper is damaged or loose.
Measure the trailers that use the dock. If there are several truck types, collect the most common trailer size and the size range.
Trailer width and height help determine shelter width, shelter height, side curtain overlap, and top curtain coverage. Truck bed height helps check dock alignment.
Record trailer outside width, trailer outside height, truck bed height, rear door structure, and whether the truck is standard cargo, refrigerated, container, or special vehicle.
Dock shelter selection should not only focus on sealing. Forklifts and goods still need enough space to move safely. If side curtains or top curtains block too much of the opening, loading efficiency may be affected.
Check the forklift width, pallet size, cargo width, and typical loading method. This is especially important when handling large pallets, wide goods, or special equipment.
Record forklift width, pallet width, cargo width, maximum cargo height, and whether forklifts need to turn near the dock opening.
This is the most common mistake. The door opening is important, but the dock shelter seals the truck, not only the door. If trailer dimensions are ignored, the dock shelter may not match the truck body.
A shelter selected only by door size may look correct from the front, but it may fail during actual loading. The side curtains may not touch the trailer, or the top curtain may be too high or too low.
Measure both the door opening and the truck body. The dock shelter should match the relationship between the building and the trailer.
Dock bumpers decide how far the truck stays from the wall. If the bumper thickness is not considered, the shelter projection may be wrong.
A short projection may leave gaps. A projection that is too long may increase the risk of truck impact damage.
Always measure bumper thickness before confirming shelter projection. The shelter, bumper, and truck position should be checked together.
Some warehouses have sandwich panel walls or insulated panels around the dock opening. These panels may not be strong enough to support a dock shelter by themselves.
If the dock shelter is fixed only to a weak panel, it may loosen over time. This can create safety risks and affect sealing performance.
Check the wall structure before installation. If needed, add steel support connected to the main building structure.
Obstacles are easy to miss during measurement. A small pipe, light, cable tray, or door control box may block the shelter frame during installation.
This can delay installation or require on-site modification.
Take wide-angle photos around the door opening and mark all obstacles before production.
Old building drawings are useful, but they may not match the current site. The dock may have been modified, the floor level may have changed, or equipment may have been added later.
Relying only on drawings can lead to wrong dimensions.
Use drawings as a reference, but always confirm with real site measurements and current photos.
Standard cargo trailers are common in general warehouse loading. For these trailers, a mechanical dock shelter usually works well if the trailer width and height are within a normal range.
Measure the trailer body width, body height, and bed height. Also check whether the rear doors swing open normally without interfering with the shelter.
Focus on trailer width, trailer height, door opening size, dock height, and bumper projection.
Refrigerated trailers often need better sealing because they carry temperature-sensitive goods. Their rear structure may also be different from standard cargo trailers.
When measuring for refrigerated trailers, pay attention to trailer height, rear frame, door structure, and whether any refrigeration-related structure affects the dock contact area.
Focus on top sealing area, side sealing contact, trailer height range, and whether stronger sealing solutions are required.
Container trucks may have rear corner frames, door locking bars, and special rear structures. These details can affect how the dock shelter contacts the vehicle.
For container loading, photos are very important. A supplier should check the rear structure before recommending the final shelter size.
Focus on container width, container height, rear frame structure, dock leveler compatibility, and truck stopping position.
Mixed truck fleets are more challenging because one dock must handle different vehicle sizes. The dock shelter should be selected based on the most common truck size, but it should also consider the minimum and maximum vehicle range.
If the size range is too large, one standard dock shelter may not seal every truck perfectly. In this case, different dock bays or customized solutions may be needed.
Focus on the full vehicle size range, not only one truck. Record the smallest, largest, and most frequently used trailer dimensions.
A front view photo helps the supplier understand the overall door opening, wall space, dock face, and bumper position. The photo should be taken straight in front of the loading dock, not from a sharp angle.
This photo is useful for checking whether the wall space is enough for the shelter frame and whether there are visible obstacles.
Stand far enough away to include the full door opening, wall area, dock bumpers, and ground in one photo.
A side view photo helps show the relationship between the wall, dock bumper, dock edge, and truck stopping position. It is useful for checking projection and installation space.
If the wall has a special structure or the dock face is not flat, the side view can help identify it.
Take photos from both left and right sides if possible. This helps confirm whether the dock structure is symmetrical.
The inside view helps check door tracks, cables, control boxes, beams, and other equipment that may affect installation. This is especially important when an industrial sectional door is already installed.
The dock shelter is installed outside, but inside door hardware can still affect the overall loading dock arrangement.
Take photos showing the inside top area, side tracks, control box, and clear loading path.
A truck rear view photo helps the supplier understand trailer structure. This is useful for refrigerated trailers, container trucks, and special vehicles.
The photo should show the rear doors, frame, bumper, trailer width, and any special parts that may affect sealing.
Take the photo when the truck is parked straight and close to the dock if possible. This helps show the real docking condition.
Before ordering a dock shelter, prepare all building-related dimensions. These include door opening width, door opening height, side wall space, headroom, dock height, wall structure, wall flatness, and obstacle locations.
These measurements help confirm whether the dock shelter can be installed and whether a standard size or customized design is needed.
Building measurements decide the installation feasibility, frame size, fixing method, and whether additional support is required.
Dock equipment also affects shelter selection. Prepare dock bumper thickness, bumper position, dock leveler type, vehicle restraint position, dock edge condition, and truck stopping distance.
These details help determine shelter projection and how the shelter will contact the truck body.
Dock equipment controls truck position. Truck position controls sealing performance. That is why bumper and dock equipment measurements are so important.
Prepare trailer width, trailer height, truck bed height, rear door structure, and vehicle type. For mixed fleets, provide the full range of trailer sizes.
Truck data helps decide whether the selected shelter can match the vehicles used in daily operation.
The dock shelter must fit the truck, not only the wall. Without truck data, the shelter size may not match real loading conditions.
Prepare loading frequency, sealing requirement, warehouse temperature condition, forklift size, pallet size, cargo type, and whether the site needs rain, dust, wind, or temperature protection.
These details help the supplier recommend the correct structure, curtain size, material, and sealing level.
A dock shelter should match real operation. A warehouse with frequent truck traffic needs a different design focus than a low-frequency storage facility.
Measuring a loading dock before dock shelter installation is not difficult, but it must be complete. You should not only measure the door opening. You also need to check wall space, headroom, dock height, bumper thickness, projection distance, trailer width, trailer height, truck bed height, wall structure, and possible obstacles.
A mechanical dock shelter works best when it matches the real relationship between the building and the truck. Correct measurements help improve sealing, reduce installation problems, protect the shelter from damage, and support smoother loading operations.
A dock shelter is part of a complete loading dock system. It works together with the industrial door, dock leveler, dock bumper, truck positioning, and trailer size. Before ordering, collect accurate dimensions and clear site photos. With the right information, the dock shelter can be designed and installed more smoothly, giving your warehouse better sealing, safer loading, and longer service life.
