A well-designed loading dock creates an efficient connection between the warehouse, trucks, forklifts, and material handling operations.
The design may look simple from the outside: a raised platform, an industrial door, and a dock leveler. In practice, however, several dimensions must work together.
The dock height affects the angle of the dock leveler. Truck dimensions influence the required working range. Door dimensions determine vehicle clearance, while dock bumpers affect how close the truck can reach the building.
For this reason, loading dock design should begin before the concrete platform and door openings are finalized.

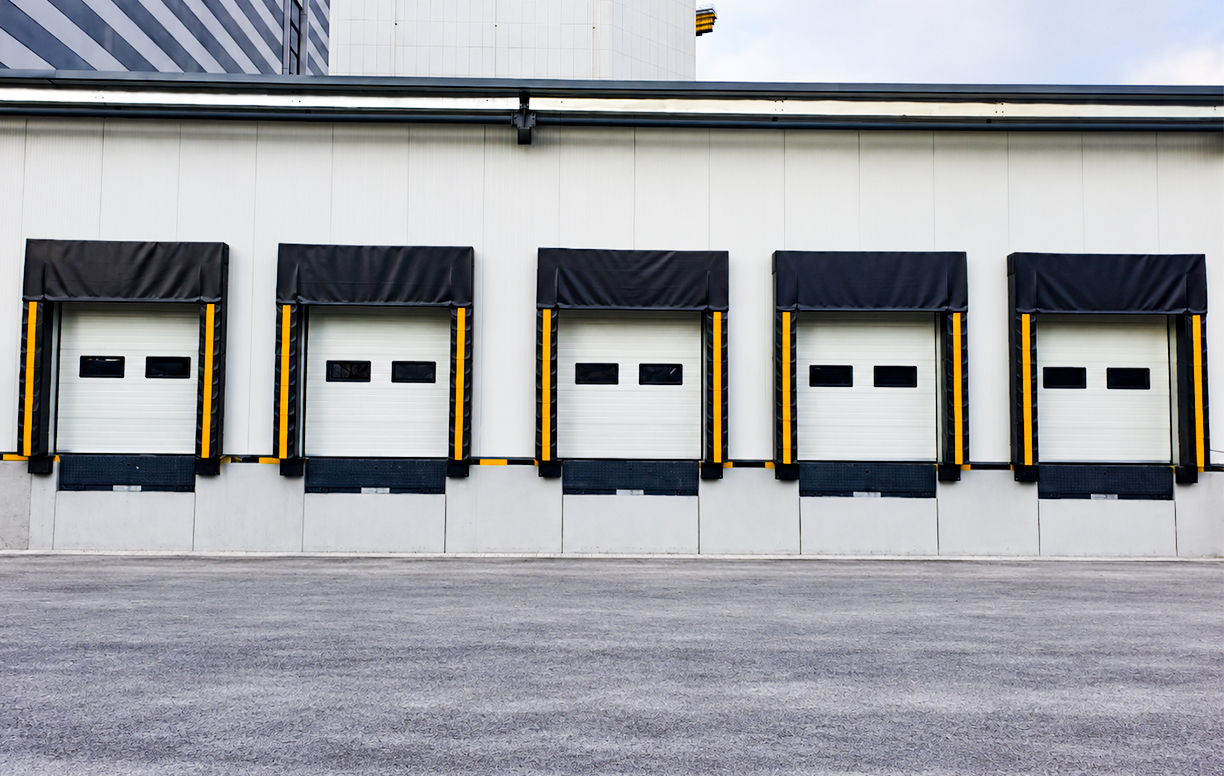

A typical loading bay may include:
Industrial sectional door
Dock leveler
Dock shelter or dock seal
Dock bumpers
Vehicle restraint system
Traffic lights
Control system
This guide explains the main factors to consider when planning loading docks for warehouses, distribution centers, manufacturing facilities, and logistics buildings.
The truck should be one of the first considerations in loading dock design.
Different vehicles can have different bed heights, body dimensions, rear structures, suspension systems, and loading requirements.
Before determining dock height or equipment dimensions, confirm:
Minimum truck bed height
Maximum truck bed height
Truck body width
Truck body height
Rear bumper or underride structure
Rear door configuration
Tail lift, if applicable
A loading bay may serve vehicles from several carriers or suppliers.
Designing around one standard trailer can create problems when lower, higher, or differently configured vehicles arrive.
The loading dock should therefore be planned around the realistic vehicle range expected at the facility.
Dock height is the vertical distance between the loading platform and the external ground level.
It is one of the most important fixed dimensions in the loading dock.
Once the building is constructed, changing dock height can be difficult and expensive.
Ideally, the dock platform should be reasonably close to the typical truck bed height.
The dock leveler then compensates for the remaining difference.
When the trailer is higher than the dock, the leveler operates above dock level.
When the trailer is lower, it operates below dock level.
Do not use only the average truck height.
The design should consider:
Lowest truck bed ↔ Dock height ↔ Highest truck bed
This range helps determine the required dock leveler length and operating range.
The dock leveler creates a slope whenever the truck bed and warehouse platform are at different elevations.
That slope influences forklift movement.
Important information includes:
Forklift type
Wheelbase
Ground clearance
Maximum loaded weight
Load dimensions
A forklift with low ground clearance may be more sensitive to changes in angle than equipment designed with greater clearance.
The transition occurs at two important points:
Warehouse floor → dock leveler
and
Dock leveler → truck bed.
A suitable dock height and leveler length can help create a more practical transition.
The loading dock door should provide sufficient clearance for loading operations without being unnecessarily oversized.
The final dimensions depend on the truck, warehouse layout, dock shelter, and loading process.
Door width should be coordinated with:
Truck width
Dock shelter opening
Dock leveler width
Forklift traffic
Building structure
Enough clearance should be provided for practical operations, but an excessively wide opening can increase unnecessary exposure between the warehouse and outside environment.
Door height should consider the vehicle body and loading dock configuration.
The opening must also coordinate with the selected dock shelter or seal.
The industrial door defines the building opening.
The dock shelter defines the interface around the truck.
If these products are selected independently, the final loading opening may not fit the expected vehicle range correctly.
The visible opening dimensions are only part of the industrial door requirement.
The door also needs installation space around the opening.
Before finalizing the building structure, check:
Left-side clearance
Right-side clearance
Headroom
Ceiling height
Structural beams
Pipes
Cable trays
Sprinkler systems
Different sectional door track arrangements require different amounts of installation space.
For a new warehouse, these clearances should be coordinated before mechanical and electrical services occupy the area above the loading doors.
Once the dock height, vehicle range, and basic building dimensions are understood, the dock leveler can be selected.
There is no single dock leveler type suitable for every loading bay.
Hydraulic dock levelers are widely used for conventional warehouse and distribution center loading bays.
They provide controlled platform movement and are suitable for regular forklift loading operations.
A hydraulic hinged-lip leveler is often a practical starting point when:
Truck types are relatively predictable
A conventional dock pit is available
Regular forklift loading is required
Simple push-button operation is preferred
A telescopic dock leveler uses an extendable lip that moves toward the truck.
The operator can control the lip extension more precisely than with a conventional hinged lip.
A telescopic leveler may be considered when:
Different truck types use one dock
Truck positioning varies
Precise lip overlap is important
Cargo is positioned close to the trailer rear
Additional control over the truck connection is required
Vertical dock levelers remain stored upright inside the building when they are not being used.
This allows the warehouse door to remain closed closer to the loading opening before loading begins.
Vertical levelers are commonly considered for:
Cold storage
Freezer warehouses
Food logistics
Pharmaceutical facilities
Temperature-controlled warehouses
They can also improve access to the loading pit for selected cleaning and maintenance operations.
Dock leveler size should be determined according to the loading operation rather than simply selecting the most common platform dimension.
The width should coordinate with:
Forklift width
Cargo width
Trailer width
Door opening
Pit width
Platform length influences the operating slope.
For the same height difference, a longer leveler generally creates a more gradual transition.
This can become important when the facility handles trucks with a wider range of bed heights.
Dock leveler capacity should not be selected using cargo weight alone.
The platform supports the forklift and cargo together while they move across the equipment.
Provide:
Empty forklift weight
Maximum cargo weight
Maximum loaded forklift weight
Wheel configuration
Daily loading frequency
Number of operating shifts
A dock leveler crossed occasionally is exposed to different service conditions from a leveler operating continuously across several shifts.
High-throughput warehouses should therefore consider both maximum load and repeated operating cycles.
Most conventional hydraulic and telescopic dock levelers are installed inside a concrete pit.
The pit should be designed according to the selected equipment.
The installation drawing normally specifies:
Pit width
Pit length
Pit depth
Embedded steel
Electrical conduit position
Mounting requirements
Do not finalize concrete work using a generic dock leveler pit size.
Different models and manufacturers may require different dimensions.
For new warehouses, the preferred sequence is:
Dock design → Equipment selection → Approved drawing → Pit construction.
Building the pit first and trying to find equipment that fits later can unnecessarily restrict equipment selection.
Dock bumpers protect the building when trucks reverse toward the loading platform.
They also determine the final truck-to-dock distance.
A thicker bumper keeps the trailer farther away from the leveler.
Vehicle rear protection structures can increase this distance further.
As a result, the actual lip overlap inside the trailer may be less than expected.
Review the following together:
Truck rear structure → Dock bumper → Leveler lip → Truck bed
This is especially important for trucks fitted with unusual bumpers, tail lifts, or rear protection structures.
Simply increasing lip length without evaluating the complete geometry is not always the appropriate solution.
The leveler bridges the floor, while the shelter or seal reduces the open space around the vehicle.
Selection should be based on vehicle dimensions and required environmental protection.
Mechanical dock shelters use flexible side and top curtains.
They are commonly used where the loading bay serves a range of vehicle sizes.
Inflatable shelters expand around the truck after it reaches the loading position.
They can provide closer vehicle sealing and are particularly relevant where environmental separation is a higher priority.
Dock seals use compressible pads around the opening.
They can work well when the vehicle fleet has relatively consistent dimensions.
The most important principle in loading dock design is coordination.
The individual products all operate within the same limited space.
A complete loading bay may include:
Industrial sectional door
Dock leveler
Dock shelter or dock seal
Dock bumpers
Vehicle restraint
Traffic lights
Control system
The drawing should show the relationship between:
Building
Door
Leveler
Pit
Shelter
Bumpers
Truck
Control equipment
This is one of the most effective ways to identify dimensional conflicts before construction or production begins.
Powered doors, hydraulic dock levelers, shelters, restraints, and traffic lights may all require electrical connections.
Important information includes:
Voltage
Phase
Frequency
Control voltage
Control box location
For international projects, site voltage should always be confirmed before equipment production.
The loading dock controls can be designed to coordinate different equipment.
For example:
Truck secured → Door enabled → Dock leveler enabled → Loading begins.
The actual sequence should follow the equipment design, site procedures, and applicable safety requirements.
Safety should not be added only after the loading bay has been completed.
The design should consider truck movement, forklift traffic, dock edges, pedestrian routes, visibility, and equipment operation.
The trailer should remain correctly positioned while the dock leveler is being used.
Depending on the facility, this can involve vehicle restraints, wheel control procedures, traffic signals, and operating rules.
The leveler should be suitable for the maximum intended operating load and the forklift travel path should remain clear and properly maintained.
When no truck is present, the loading dock may have an exposed edge.
Appropriate barriers, markings, warning systems, or other protection should be considered according to the facility design and applicable regulations.
New construction gives the project team the most flexibility.
Loading dock equipment should ideally be considered before structural and civil dimensions are finalized.
A practical design sequence is:
Identify vehicle types
Confirm truck bed height range
Determine dock height
Define door dimensions
Select dock leveler type
Confirm platform size and capacity
Select shelter and bumpers
Finalize pit dimensions
Confirm electrical requirements
Review coordinated drawings
Following this sequence helps reduce later modifications.
Existing loading docks require a different approach because many building dimensions are already fixed.
Measure:
Dock height
Existing pit
Door opening
Side room
Headroom
Bumper projection
Electrical supply
Also record the trucks currently using the loading bay.
For renovation projects, photographs showing an actual truck fully positioned against the loading dock can help reveal:
Truck-to-building distance
Bumper relationship
Lip reach
Shelter fit
Existing structural limitations
These relationships may not always be obvious from individual measurements.
Several common design errors can be avoided during the planning stage.
Better approach: collect the minimum and maximum vehicle dimensions.
Better approach: compare the dock elevation with the full truck bed height range.
Better approach: coordinate the door with the truck, shelter, and leveler.
Better approach: calculate how the final truck stopping position affects leveler overlap.
Better approach: finalize the equipment drawing first.
Better approach: include forklift weight, cargo, wheel configuration, and operating frequency.
A supplier or loading dock designer can make a more accurate recommendation when complete project information is available.
Provide:
Dock platform height
Door opening dimensions
Available headroom
Side clearances
Existing or proposed pit dimensions
Provide:
Minimum truck bed height
Maximum truck bed height
Truck width
Truck body height
Rear bumper structure
Provide:
Forklift weight
Maximum cargo weight
Loading frequency
Number of trucks per day
Number of operating shifts
Provide:
Indoor temperature
Outdoor conditions
Required sealing
Moisture exposure
Cold storage requirements if applicable
There is no universal dock height suitable for every warehouse.
The correct height should be determined from the actual truck bed height range and loading operation.
The correct door width depends on truck width, shelter configuration, dock leveler width, and required operating clearance.
The objective is to provide practical clearance without unnecessarily oversizing the opening.
Hydraulic dock levelers are suitable for many conventional warehouse loading bays.
Telescopic levelers may provide greater flexibility for mixed vehicles, while vertical levelers are particularly useful for selected temperature-controlled applications.
Yes, whenever possible.
The final dock leveler drawing should define pit width, length, depth, embedded steel, and electrical preparation.
The bumper determines how far the truck stops from the loading platform.
That distance directly influences the effective overlap between the dock leveler lip and truck bed.
Effective loading dock design begins with the relationship between the truck, building, and material handling operation.
The most important design parameters include:
Truck bed height range
Dock platform height
Door width and height
Available headroom
Dock leveler type
Platform dimensions
Load capacity
Lip reach
Dock bumper projection
Shelter configuration
Electrical and control requirements
These values should not be determined independently.
The truck height affects dock height. Dock height affects the leveler operating range. Door dimensions influence the shelter and vehicle clearance. Dock bumpers affect the final truck position and dock leveler lip overlap.
For new warehouse projects, these relationships should ideally be resolved before concrete construction begins.
For existing loading docks, accurate site measurements, vehicle data, photographs, and coordinated drawings can help determine which equipment can be integrated with the existing structure.
By designing the loading dock as one complete system rather than a collection of separate products, warehouses can create a more efficient connection between trucks, forklifts, and the building while reducing dimensional conflicts during construction and installation.
