Choosing the correct dock leveler size and load capacity is essential for efficient forklift loading and unloading.
A dock leveler does more than bridge the physical gap between a warehouse platform and a truck. During operation, it must support a loaded forklift moving repeatedly between two surfaces that may be at different heights.
This means dock leveler selection should not be based only on truck size or cargo weight.
The correct specification depends on several factors working together:
Forklift weight
Maximum cargo weight
Forklift wheel configuration
Loading frequency
Truck bed height range
Dock platform height
Platform width and length
Lip length and vehicle overlap
Existing pit dimensions
Actual loading conditions
This guide explains how to determine the appropriate dock leveler dimensions and load capacity for warehouse forklift operations.
Dock levelers are available in different platform widths and lengths because loading bays do not all operate under the same conditions.
The correct dimensions should allow the forklift to move comfortably between the warehouse and trailer while keeping the operating angle within a suitable range.

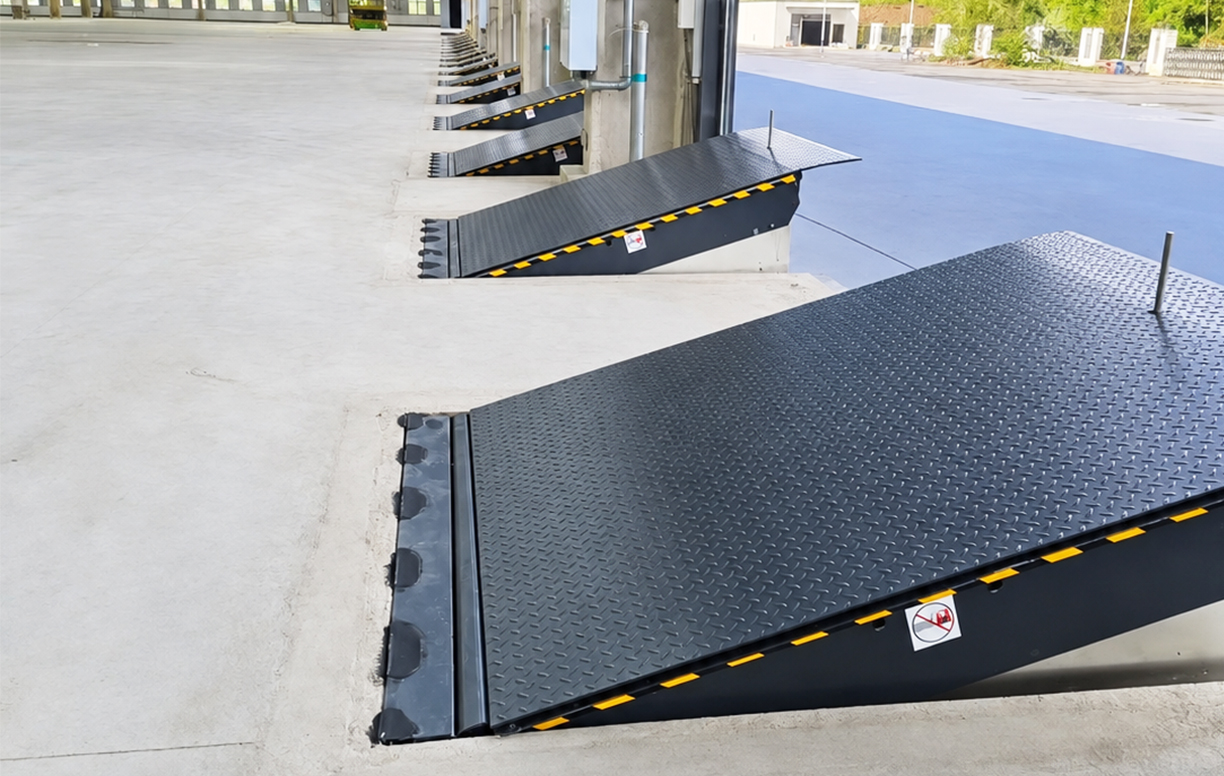

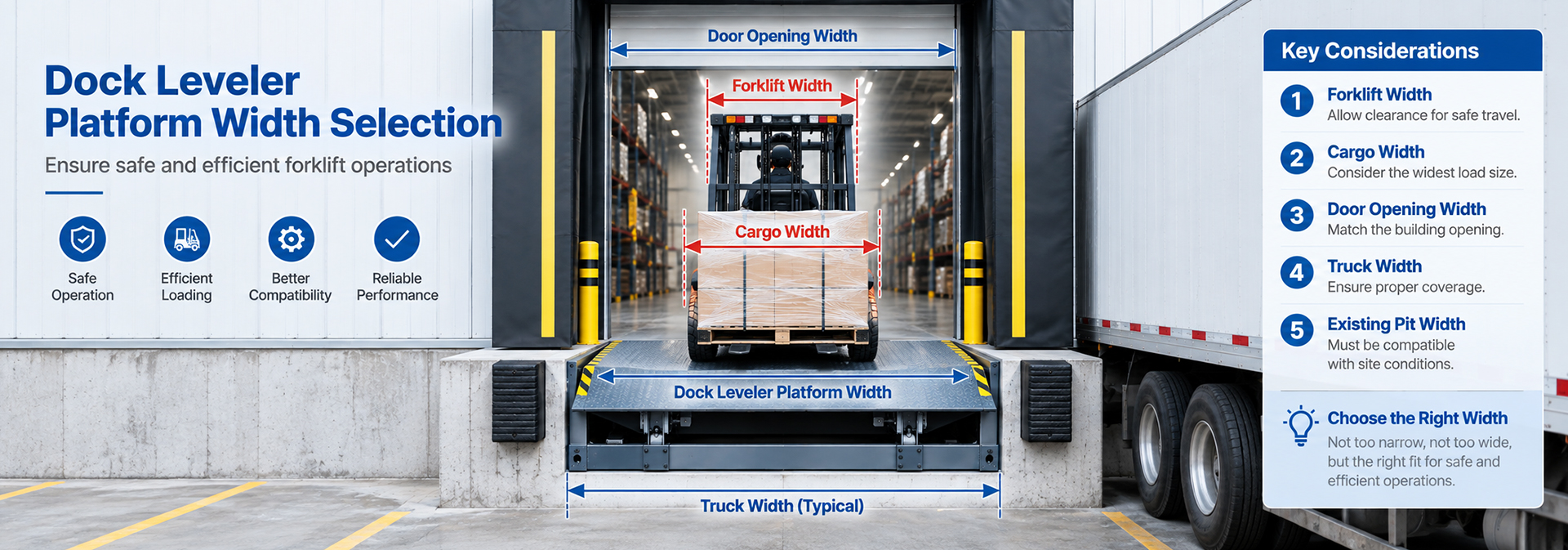

Dock leveler width should match the loading bay, truck, and material handling equipment.
A platform that is unnecessarily narrow may provide limited clearance for forklift movement, while an oversized platform may not match the existing pit or dock layout.
When determining platform width, check:
Forklift overall width
Maximum load width
Door opening width
Truck body width
Existing pit width
The objective is to provide sufficient working clearance while keeping the leveler properly aligned with the trailer.
Platform length has an important influence on the operating angle of the dock leveler.
When the truck bed is above or below the warehouse platform, the leveler forms a slope between the two surfaces.
A longer platform generally creates a more gradual transition for the same height difference.
When a warehouse handles trucks with a wide range of bed heights, platform length becomes particularly important.
The design should consider:
Dock height
Lowest truck bed
Highest truck bed
Forklift ground clearance
Pallet stability
Required operating angle
Selecting the shortest possible platform is therefore not always the best approach.
Before determining dock leveler dimensions, confirm the height of the warehouse loading platform.
Dock height is the fixed reference point for the entire loading system.
If most trucks arrive at approximately the same height as the warehouse platform, the dock leveler operates relatively close to horizontal.
If trucks are significantly higher or lower, the leveler needs a greater working range.
For accurate selection, provide:
Warehouse dock height
Minimum truck bed height
Maximum truck bed height
Do not provide only the average truck height.
A leveler needs to accommodate the realistic vehicle range expected at the loading bay.
Load capacity is one of the most important dock leveler specifications, but it is also one of the most commonly misunderstood.
A dock leveler does not support only the cargo.
It supports the forklift and cargo together while they are moving across the platform.
Suppose a forklift weighs 4,000 kg and carries a 2,000 kg pallet.
The dock leveler is not handling a 2,000 kg operating load.
The combined moving weight is already approximately 6,000 kg before other operating factors are considered.
When requesting a dock leveler quotation, provide:
Empty forklift weight
Maximum cargo weight
Maximum loaded forklift weight if known
Forklift model
Loading frequency
This gives the supplier a much better basis for recommending an appropriate rated capacity.
Total forklift weight is important, but the way that weight reaches the dock leveler is also significant.
Forklift loads are transferred through the tires rather than being evenly distributed across the entire platform.
A heavy forklift can place substantial load on relatively small areas of the steel platform as its wheels move across the leveler.
Different forklift configurations may distribute load differently.
Factors can include:
Number of wheels
Front axle loading
Tire type
Wheel spacing
Attachments
Cargo position
If the loading operation uses unusually heavy forklifts, concentrated wheel loads, specialized attachments, or non-standard material handling equipment, these details should be provided to the dock leveler manufacturer.
Rated capacity alone should not replace an application-specific assessment.
Two warehouses can use the same forklift and carry the same pallet weight but place very different demands on their dock levelers.
The difference is how often the equipment is used.
A warehouse receiving several trucks each day normally creates fewer repeated loading cycles.
Standard equipment may be sufficient if the load and vehicle range are also conventional.
Distribution centers and manufacturing warehouses may operate loading docks throughout multiple shifts.
The same leveler may be crossed hundreds of times during daily operations.
For high-frequency operations, selection should consider:
Number of daily loading cycles
Working shifts
Forklift type
Load pattern
Platform structure
Required durability
Repeated loading can be just as important as the maximum individual load.
Dock leveler width should support the forklift travel path without creating unnecessary mismatch with the loading bay.
A suitable width depends on:
Forklift width
Cargo dimensions
Trailer width
Dock door opening
Pit dimensions
For existing warehouses, the current pit width may significantly limit available choices.
The forklift itself may fit comfortably on the platform while a wide pallet or unusual load creates less clearance.
Both should be considered.
Leveler length should be selected in relation to the height difference it must accommodate.
When the same vertical difference is spread over a longer platform, the transition becomes more gradual.
This can be important for forklifts with:
Low ground clearance
Long wheelbases
Low-mounted components
Loads sensitive to tilting
A steep transition can create clearance problems at the points where the forklift moves:
Warehouse floor → dock leveler → truck bed.
For applications with large height differences or low-clearance equipment, these transitions should be evaluated carefully.

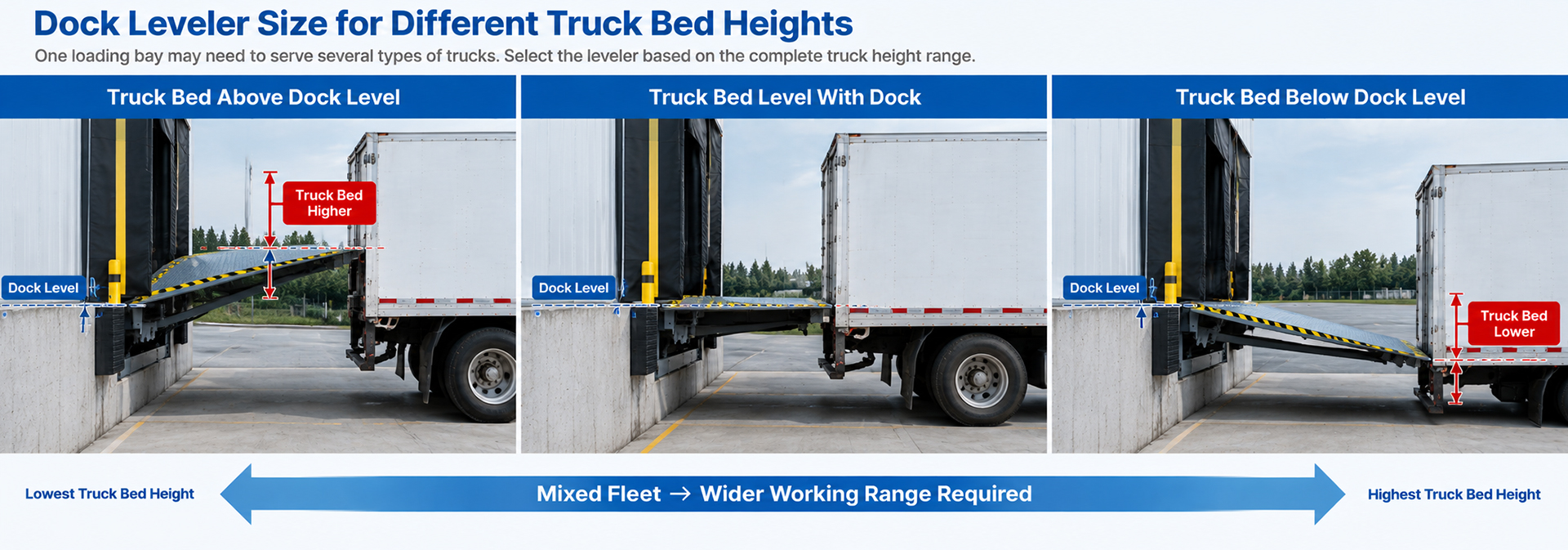

One loading bay may need to serve several types of trucks.
This is common in warehouses using different carriers or receiving vehicles from multiple suppliers.
When the truck bed is higher than the warehouse platform, the dock leveler operates upward toward the vehicle.
When the truck bed is lower, the platform slopes downward.
The greater the difference, the greater the transition angle.
If the warehouse serves both relatively low and high vehicles, the leveler should be selected around the complete height range rather than the most common truck.
In some applications, a different leveler configuration may be more appropriate if the vehicle variation is especially large.
The lip is the section of the dock leveler that extends or rotates onto the truck bed.
It creates the final overlap between the leveler and trailer.
A nominally long lip does not automatically mean there will be a large overlap inside the truck.
Effective overlap depends on:
Lip length
Dock bumper thickness
Truck rear bumper
Tail lift
Vehicle rear structure
Final truck stopping position
The dock leveler should be evaluated together with the actual truck.
If bumpers or vehicle protection structures hold the trailer farther away from the warehouse, the effective lip overlap may be reduced.
Simply extending the lip without reviewing the complete movement geometry is not always an appropriate solution.
Dock bumpers protect the building when trucks reverse toward the loading bay.
However, they also define how close the truck can get to the dock.
A thicker bumper creates a greater distance between the vehicle and warehouse structure.
This can influence:
Lip overlap
Leveler reach
Dock shelter compression
Vehicle restraint position
Before confirming dock leveler dimensions, review:
Truck → bumper → dock leveler → industrial door → dock shelter.
These components share the same loading bay geometry and should not be selected independently.
When replacing a dock leveler in an existing warehouse, the concrete pit is often already fixed.
This changes the selection process.
Important dimensions include:
Pit width
Pit length
Pit depth
Front frame condition
Embedded steel
Dock height
The existing structure should also be inspected before a replacement leveler is finalized.
Two dock levelers with similar nominal platform sizes may have different structural or installation requirements.
The manufacturer's installation drawing should be checked before equipment is ordered.
New construction provides more flexibility because the pit can be designed around the selected equipment.
Where possible, confirm:
Leveler size
Pit dimensions
Dock height
Door opening
Bumper position
Electrical requirements
before completing the loading dock structure.
Changing pit dimensions after concrete work has been completed is considerably more difficult than adjusting the design during the drawing stage.
Loading dock equipment should therefore be included early in warehouse planning.
Forklift ground clearance is sometimes overlooked when selecting a dock leveler.
A forklift must transition across changes in angle at both ends of the platform.
Clearance issues can occur where:
Warehouse floor meets the leveler
Leveler meets the truck bed
Long-wheelbase or low-clearance equipment may be more sensitive to these transitions.
A dock leveler can have sufficient rated capacity but still be unsuitable if the operating angle creates clearance problems for the forklift.
Platform length, truck height range, and forklift geometry should therefore be evaluated together.
Not every warehouse uses a conventional counterbalance forklift.
Material handling equipment can include:
Electric forklifts
Reach trucks
Pallet trucks
Heavy-duty forklifts
Specialized industrial vehicles
Different machines have different wheel sizes, ground clearance, axle loads, and operating characteristics.
For heavy or unusual equipment, detailed vehicle information should be supplied before final dock leveler selection.
Dock leveler sizing and capacity are also connected to loading safety.
The equipment must be suitable for the maximum intended load and maintained in proper operating condition.
The rated capacity should be clearly understood by warehouse operators.
Actual forklift and cargo combinations should remain within the approved operating limits.
The forklift travel path should remain:
Clear
Clean
Stable
Free from excessive water or ice
Free from damaged or loose materials
A suitable dock leveler cannot compensate for poor loading dock housekeeping.
Several mistakes occur repeatedly during warehouse projects.
A 2-ton pallet does not mean a 2-ton dock leveler requirement.
The forklift must also be included.
The lowest and highest truck bed heights determine the actual operating range.
A leveler may reach the truck but create an unsuitable transition angle.
The bumper affects vehicle position and therefore effective lip overlap.
Two warehouses may appear similar but use completely different forklifts, trucks, loads, and loading frequencies.
The most reliable dock leveler specification is based on the actual building, vehicle, and material handling conditions of the project.
Before requesting a quotation, prepare the following project information.
Provide:
Dock platform height
Existing pit width
Existing pit length
Existing pit depth
Door opening dimensions
Provide:
Minimum truck bed height
Maximum truck bed height
Vehicle width
Rear bumper or protection structure
Tail lift information if applicable
Provide:
Forklift model
Forklift empty weight
Maximum cargo weight
Loaded forklift weight if available
Wheel configuration
Daily loading frequency
For existing loading docks, photographs showing a truck fully positioned at the dock can be particularly useful.
For new projects, architectural or loading bay drawings help coordinate the leveler with the building before production.
Before confirming the equipment, check these five areas:
Item |
Information to Confirm |
|---|---|
Dock |
Platform height and pit dimensions |
Truck |
Minimum and maximum bed height |
Forklift |
Weight, dimensions and wheel configuration |
Cargo |
Maximum load weight and dimensions |
Operation |
Daily cycles and working shifts |
These values provide a much better basis for dock leveler selection than simply requesting a standard platform size.
The correct width depends on the forklift, cargo, trailer, dock door, and pit dimensions.
The platform should provide sufficient operating clearance without being unnecessarily oversized.
Platform length depends largely on the height difference between the dock and expected truck beds.
Greater height differences or low-clearance forklifts may require a longer platform to create a more suitable transition.
Capacity should consider the loaded forklift, not cargo alone.
Forklift weight, cargo weight, wheel configuration, loading frequency, and operating conditions should all be evaluated.
The forklift's empty weight and cargo weight should both be considered.
For equipment selection, providing the maximum combined operating weight is preferable whenever available.
Yes, within its designed above-dock and below-dock operating range.
If the vehicle range is especially wide, the platform dimensions and leveler type should be evaluated carefully.
Possibly, but the pit width, length, depth, dock height, structure, and installation requirements should be checked against the new equipment drawings before ordering.
Choosing the correct dock leveler size and load capacity requires more than selecting a standard platform from a catalog.
For forklift operations, the main factors are:
Dock platform height
Minimum and maximum truck bed heights
Platform width
Platform length
Forklift weight
Maximum cargo weight
Wheel configuration
Loading frequency
Forklift ground clearance
Lip overlap
Dock bumper projection
Existing pit dimensions
The most important capacity principle is simple: consider the complete loaded forklift, not only the cargo.
For dimensions, the relationship between dock height, truck bed height, and platform length determines the operating transition, while platform width should provide appropriate clearance for the forklift and load.
Lip length and overlap must also be evaluated together with dock bumpers and the actual vehicle rear structure.
By reviewing these factors as one complete loading system, warehouses can select a dock leveler that better matches their forklift traffic, vehicle range, and long-term loading requirements.
