Cold storage loading docks are difficult areas to control because they repeatedly connect a refrigerated building with trailers and outdoor conditions.
During loading, the warehouse door may remain open while forklifts move between the cold storage area and the trailer. Even when the vehicle is correctly parked, gaps can remain along the sides, above the trailer, and around the loading interface.
Dock Shelter Measurement Guide: How to Measure a Loading Dock Before Installation
Warm and humid outdoor air can enter through these gaps while cold indoor air escapes.
The result is not simply higher refrigeration demand. Uncontrolled air exchange can also contribute to temperature fluctuation, condensation, frost, wet floors, and unstable conditions around the loading area.
For this reason, effective cold storage dock sealing should be treated as a complete loading interface, not as one individual product.
Trailer dimensions, dock shelter or dock seal, industrial door, dock leveler, dock bumpers, vehicle position, loading duration, and operating sequence all influence the final result.
Before choosing sealing equipment, it is useful to understand where the cold storage envelope becomes exposed during loading.
A trailer does not completely fill the warehouse opening.
Even after it reaches the dock, open areas may remain along both sides and above the vehicle.
These gaps provide a direct path between the refrigerated interior and the outside environment.
A narrower trailer naturally leaves more space between the vehicle and building.
Poor alignment can make the problem worse. If the trailer is positioned too far to one side, one sealing element may make good contact while the opposite side leaves a larger gap.
This is why both vehicle dimensions and parking accuracy matter.
Trailer roof height may vary between vehicle types.
A sealing system that works well with a high refrigerated trailer may leave a gap above a lower vehicle.
Top sealing therefore needs to be designed around the actual trailer-height range rather than one assumed standard vehicle.
Even with good sealing around the trailer, the warehouse door remains an important part of the cold-storage envelope.
If the door opens too early or remains open after loading is complete, additional air exchange can occur.
The dock shelter or dock seal reduces the open space around the trailer.
The industrial door controls how long the building opening remains exposed.
Both need to be considered.
A stronger shelter cannot fully compensate for a door that remains open unnecessarily.
Cold storage loading docks often focus on preventing cold air from escaping.
However, warm and humid air entering the refrigerated area can be equally important.
When outdoor air enters a refrigerated area, the cooling system must remove the added heat.
If that air also contains significant moisture, the moisture can condense when it reaches colder surfaces.
Possible locations include:
Floor surfaces
Door frames
Metal components
Dock equipment
Walls
Trailer interface areas
The appearance of condensation near a loading dock may indicate that warm humid air is entering the controlled space.
In lower-temperature environments, moisture can freeze on cold surfaces.
This can affect walking conditions, door operation, sensors, seals, and loading equipment.
Dock sealing therefore supports both temperature management and moisture control, although it cannot replace the facility’s refrigeration or airflow design.
One of the most important selection steps is understanding which trailers will actually use the loading dock.
The sealing system must fit the vehicle, not simply the warehouse door.
Collect the:
Minimum regular trailer width
Maximum regular trailer width
Most common trailer width
This helps determine how the side sealing elements will contact the vehicle.
If several carriers use the dock, trailer dimensions may vary.
A fixed sealing system optimized around one vehicle can perform poorly with another.
This is why mixed refrigerated fleets often require a sealing system with a larger usable vehicle range.
Trailer height is especially important for the top sealing system.
Collect the:
Lowest regular trailer height
Highest regular trailer height
Most common trailer height
A larger top-sealing stroke is not automatically better.
Inflatable and adjustable systems still have practical operating limits.
If the smallest and largest trailers differ significantly, it may be more reliable to divide vehicle groups between different loading positions instead of forcing one dock to accommodate every vehicle.
Refrigerated trailers may include rear doors, hinges, locking bars, bumpers, refrigeration-related structures, or other components that affect sealing contact.
Trailer dimensions explain size, but photographs often reveal potential contact points that drawings do not show.
For mixed fleets, provide several representative vehicles rather than only one example.

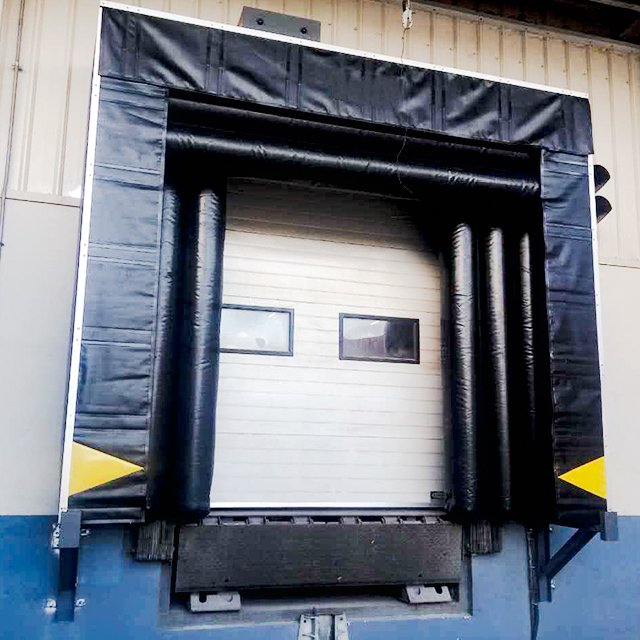

An Inflatable Dock Shelter uses inflatable side and top sections that extend toward the trailer after the vehicle reaches the loading position.
This operating principle makes it particularly relevant where stronger sealing and vehicle flexibility need to be combined.
The trailer first reverses toward the loading dock and stops against the dock bumpers.
Only after the vehicle reaches the intended position should the inflatable system extend toward the trailer body.
Trailer positioning and trailer sealing are separate functions.
Dock bumpers establish the vehicle stopping position.
The inflatable sections then close the surrounding gaps.
Using the inflatable components as impact surfaces can increase unnecessary wear or damage.
The side bags extend toward the trailer rather than relying on one fixed compression point.
This makes them useful where refrigerated trailer width varies.
The inflatable sections still have a maximum effective reach.
If the narrowest trailer is too far from the bags, sealing may be incomplete.
If the widest trailer leaves insufficient clearance, the system may experience excessive contact.
The shelter should therefore be designed around a known vehicle envelope.
The top inflatable section moves downward toward the trailer roof.
This can provide greater flexibility than a fixed top pad.
A large difference between the tallest and shortest trailers can require excessive top-bag travel.
Very long inflatable sections may take longer to inflate and can become less stable during repeated operation.
The maximum usable range should therefore be confirmed with the manufacturer rather than simply increasing the airbag length.
A Foam Dock Seal creates sealing contact through compression.
When the trailer reverses into the loading position, the rear of the vehicle compresses the side and top foam pads.
Foam seals work particularly well when the warehouse operates its own refrigerated fleet or receives trailers with similar dimensions.
The predictable vehicle envelope allows the pads to be sized around a consistent contact area.
Too little compression can leave gaps.
Too much compression can increase wear, deform the foam, damage the outer cover, and reduce loading clearance.
Bumper projection and foam depth must therefore be coordinated.
Because the pads compress around the rear of the trailer, they can occupy part of the usable loading opening.
Compare:
Trailer rear opening width
Foam pad thickness
Expected compression
Forklift width
Pallet width
Cargo overhang
Good sealing should not create an impractically narrow loading route.

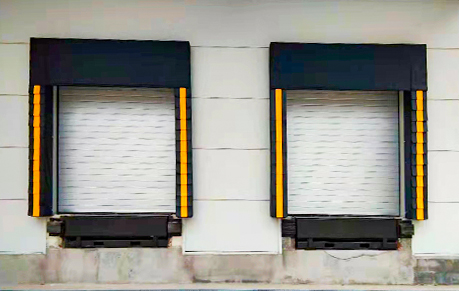

A Mechanical Dock Shelter uses flexible side curtains and a top curtain rather than inflatable sections or thick foam compression pads.
It provides practical protection from outdoor conditions and can accommodate a reasonable amount of trailer variation.
Not every refrigerated loading dock requires the same sealing performance.
Where the temperature difference is moderate and the facility mainly needs to reduce rain, wind, dust, and general air exchange, a mechanical shelter may provide a practical solution.
Flexible curtains do not normally create the same close-fitting interface as a properly designed inflatable system.
For low-temperature frozen storage or facilities with very strict environmental control, the required sealing level should be evaluated carefully before selecting a standard mechanical shelter.
Compared with a Foam Dock Seal, the flexible curtain arrangement can accommodate more variation in vehicle dimensions.
However, minimum and maximum trailer dimensions still need to be confirmed.
Dock bumpers are sometimes treated only as impact protection.
In reality, they determine where the trailer finally stops relative to the building.
That position directly affects sealing performance.
A thicker bumper keeps the trailer farther away from the warehouse wall.
A thinner bumper allows it to move closer.
If the trailer stops farther away than expected, the side or top inflatable sections may need greater reach.
If the shelter was designed without considering the actual bumpers, the system may appear correctly installed while failing to make proper vehicle contact.
For a Foam Dock Seal, the bumpers determine how deeply the trailer compresses the pads.
Incorrect bumper projection can create either insufficient or excessive compression.
Even if a dock was correctly designed initially, bumper wear can gradually change the trailer stopping position.
This may explain why a sealing system that once worked well begins to show larger gaps or uneven wear.
A sealing system can only perform consistently when trailers arrive in a reasonably predictable position.
A trailer parked too far to one side can create:
Excessive compression on one side
Weak contact on the opposite side
Uneven curtain wear
Uneven foam compression
Air leakage
Higher risk of structural contact
If the same side of the shelter repeatedly wears or tears, replacing the fabric may not solve the real problem.
Check trailer approach, wheel guides, parking markings, bumpers, and shelter alignment.
A Vehicle Restraint can help secure a compatible trailer during loading, but it does not automatically correct a trailer that has backed into the dock at the wrong lateral position.
Vehicle guidance and trailer restraint should therefore be treated as separate parts of the loading process.
The dock shelter controls the space around the parked trailer.
The industrial door controls the warehouse opening when loading is not taking place.
An insulated sectional door can provide rigid closure and thermal separation when the loading bay is not being used.
Panel insulation, perimeter seals, bottom contact, and installation quality all affect closed-door performance.
A thick insulated panel cannot compensate for gaps around the sides or floor.
Check:
Side seals
Top sealing
Bottom rubber
Door alignment
Floor condition
Panel joints
Inside a cold storage facility, some openings may be crossed repeatedly by forklifts.
A Cold Storage High Speed Door can reduce the amount of time these internal openings remain exposed.
A dock shelter reduces the gap between the trailer and building.
A high speed door reduces opening duration.
Using both can be appropriate in some facilities, but they should not be treated as interchangeable products.
The dock leveler bridges the warehouse floor and trailer bed.
Its main function is material transfer, but its geometry also affects how the trailer connects with the loading dock.
A wide difference between dock floor height and trailer bed height creates a steeper leveler angle.
This can affect forklift movement and loading efficiency.
Trailer dimensions, dock height, leveler working range, shelter, bumpers, and door opening should be reviewed together.
One correctly specified product cannot compensate for poor geometry elsewhere in the dock.
Where refrigerated trailers or containers require more precise lip placement, a telescopic dock leveler may be considered.
The actual benefit depends on trailer geometry and loading procedure.
Equipment selection is only part of cold storage performance.
The way employees operate the loading dock can significantly influence how long the refrigerated building remains exposed.
Where the facility procedure allows, truck positioning and required securing steps should be completed before exposing the cold storage opening.
This avoids opening the building while drivers are still adjusting vehicle position.
For an Inflatable Dock Shelter, the trailer should be correctly parked before the air bags extend.
Visible gaps or obvious misalignment should be identified before prolonged loading begins.
This is particularly important when a different trailer type uses the dock.
The warehouse door should not remain open simply because a trailer is present.
Opening and closing should follow the actual loading sequence.
Once loading is complete, inflatable sections should return to the retracted position before normal trailer departure.
Depending on the project, door controls, dock levelers, vehicle restraints, traffic lights, and inflatable shelters can be coordinated.
The purpose is not automation for its own sake.
The objective is to make incompatible actions less likely and help employees follow a repeatable operating sequence.
A facility does not always need sophisticated instrumentation to recognize obvious sealing problems.
Visual and operational observations can reveal where further investigation is needed.
Inspect representative trailers while they are parked.
Look at:
Both side sealing areas
Top sealing
Upper corners
Trailer rear structures
Contact around doors and hinges
One correctly fitting truck does not prove that the system fits the whole fleet.
Check representative high, low, narrow, wide, and frequently used vehicles.
Recurring condensation can indicate excessive warm humid air infiltration, although other building and airflow conditions can also contribute.
The full environment should be evaluated rather than assuming the shelter alone is responsible.
Persistent ice formation near the opening may indicate a combination of moisture infiltration, low surface temperature, long opening times, or airflow problems.
Removing frost restores the working area temporarily.
If warm humid air continues to enter, the problem may return.
The sealing system, door sequence, and airflow conditions should also be checked.
If employees can feel significant air movement around a parked trailer, inspect the contact between the vehicle and sealing system.
Large visible side or top gaps often indicate sizing, positioning, or equipment-condition problems.
Cold storage environments can be demanding on dock equipment.
A system that was correctly installed can lose performance if contact surfaces, controls, or structural components deteriorate.
Inspect:
Side airbags
Top airbag
Fabric
Seams
Air ducts
Blower
Control components
Inflation speed
Retraction
Mounting structure
If one section inflates more slowly or no longer reaches the trailer correctly, check for leakage, obstruction, fabric damage, or system faults.
Inspect:
Foam rebound
Permanent deformation
Fabric cover wear
Uneven compression
Torn surfaces
Mounting points
Moisture damage
If one area is repeatedly over-compressed, check whether vehicle dimensions or truck positioning differ from the original design.
Inspect:
Side curtains
Top curtain
Curtain overlap
Frame
Brackets
Fasteners
Signs of impact
Inspect the industrial door separately.
A damaged shelter and a poorly sealing door can create different leakage paths.
The complete dock envelope should remain part of the maintenance program.
Instead of selecting equipment only from the industry name, start with temperature requirement and trailer consistency.
A properly designed Inflatable Dock Shelter is often worth considering because it can combine stronger sealing with a defined amount of trailer variation.
Do not assume an inflatable shelter can accommodate every refrigerated vehicle.
Provide actual minimum and maximum trailer dimensions.
A Foam Dock Seal can be effective where trailer dimensions and stopping positions are consistent and enough loading clearance remains after compression.
A Mechanical Dock Shelter may provide an appropriate balance where sealing requirements are moderate and trailer flexibility is important.
A Cold Storage High Speed Door may be more relevant than a dock shelter because the primary problem is repeated internal opening time rather than trailer-to-building sealing.
This distinction is important:
Trailer gap problem: Dock shelter or dock seal
Closed exterior opening: Insulated industrial door
Repeated internal traffic: Cold Storage High Speed Door
Dock-to-trailer bridge: Dock leveler
Trailer movement: Vehicle restraint
A well-designed cold storage facility assigns each product to the problem it is intended to solve.
Several recurring mistakes can reduce performance even when high-quality equipment is installed.
Vehicle dimensions should come before shelter selection.
Inflatable sections still have a defined operating range.
The compression geometry may become inconsistent.
The bumper establishes where the trailer stops and therefore affects every sealing contact point.
A strong trailer seal cannot eliminate losses caused by unnecessarily long door exposure.
Sealing equipment should not obstruct normal loading.
Moist warm air entering through the dock can contribute to the problem.
Very large vehicle variation may be better managed through different dock positions.
Identify which vehicles represent most loading activity.
Optimize the dock for that regular fleet and develop another procedure for unusual vehicles where necessary.
Good equipment selection requires both loading and temperature information.
Provide:
Minimum trailer width
Maximum trailer width
Typical trailer width
Minimum trailer height
Maximum trailer height
Typical trailer height
Trailer bed height
Rear opening dimensions
Rear photographs
Rear door structure
Special vehicle features
One trailer photograph is not enough when several carriers use the dock.
Representative examples help establish the true vehicle envelope.
Provide:
Door opening width
Door opening height
Side room
Headroom
Wall structure
Distance from door to dock edge
Provide:
Dock height
Dock bumper projection
Bumper dimensions
Dock leveler type
Dock leveler size
Trailer stopping distance
Vehicle restraint position where applicable
Bumper projection directly determines the final trailer position.
Without it, the supplier cannot accurately evaluate airbag reach, curtain overlap, or foam compression.
Provide:
Cold storage operating temperature
Adjacent area temperature
Approximate outdoor design conditions where relevant
Chilled or frozen application
Required temperature stability
Provide:
Number of trucks per day
Typical loading duration
Forklift traffic
Fixed or mixed trailer fleet
Forklift dimensions
Pallet dimensions
Maximum cargo dimensions
Required sealing level
Available electrical supply
Maintenance capability
This allows the supplier to evaluate the complete loading interface rather than selecting a shelter from the warehouse temperature alone.
The final decision should follow a sequence.
First, establish the required temperature conditions.
Second, define the regular trailer envelope.
Third, confirm dock height, bumper projection, door opening, and loading clearance.
Fourth, determine how frequently the dock operates and how long it remains open.
Only then should the sealing product be selected.
It is generally worth considering when:
Stronger trailer-to-building sealing is required
Refrigerated trailer dimensions vary within a defined range
Cold-chain loading occurs frequently
Powered inflation and control are acceptable
The facility can follow a controlled loading sequence
The available airbag range matches the fleet
It may be suitable when:
Trailer dimensions are consistent
The vehicle stopping position is predictable
Rear loading clearance remains sufficient
A passive compression seal is preferred
The fleet is dedicated or highly standardized
It may be practical when:
Temperature-control requirements are moderate
Trailer sizes vary within a reasonable range
General weather protection is required
A simpler flexible curtain system is preferred
Very tight sealing is not necessary
Do not select the product from one factor alone.
The most useful relationship is:
Temperature requirement → Trailer envelope → Dock height → Bumper projection → Door opening → Sealing range → Loading duration → Operating sequence
When these conditions are understood, the correct equipment becomes much easier to identify.
Cold storage dock sealing is not simply about covering the visible gap between a trailer and warehouse.
Effective temperature control depends on the complete loading interface.
Inflatable Dock Shelters can provide stronger, more adaptable sealing for a defined range of refrigerated trailers. Foam Dock Seals can provide effective compression sealing where vehicles are consistent. Mechanical Dock Shelters can provide practical flexibility where environmental requirements are more moderate.
At the same time, the insulated industrial door controls the building when the dock is not in use, Cold Storage High Speed Doors reduce exposure at frequently used internal openings, dock bumpers establish trailer position, and dock levelers create the loading bridge.
The best cold storage loading dock solution is therefore the one that matches actual trailer dimensions, temperature conditions, door opening, bumper projection, loading frequency, and operating sequence.
When these elements are planned together, the loading dock can reduce unnecessary air exchange, support more stable refrigerated conditions, and operate more consistently throughout daily loading activity.
