A scissor lift table is widely used in warehouses, manufacturing facilities, assembly lines, packaging areas, and material handling operations. It raises or lowers goods to a required working height, helping operators transfer materials, position products, and reduce unnecessary manual handling.
However, choosing the right scissor lift table involves more than matching the rated load to the weight of the goods. A table that can lift the required weight may still be unsuitable if its platform is too small, its lowest height prevents pallet truck access, its lifting travel is insufficient, or its hydraulic system cannot support the required operating frequency.
A practical scissor lift table selection process should evaluate the complete application, including:
Load weight and centre of gravity
Platform dimensions and load distribution
Required lifting travel and working height
Minimum lowered height
Loading and unloading methods
Operating frequency and duty cycle
Installation space and safety requirements
These factors determine the appropriate lift table configuration and help prevent costly changes after installation.
This guide focuses on selecting and specifying a scissor lift table for internal material handling applications, from initial load assessment to final installation requirements.

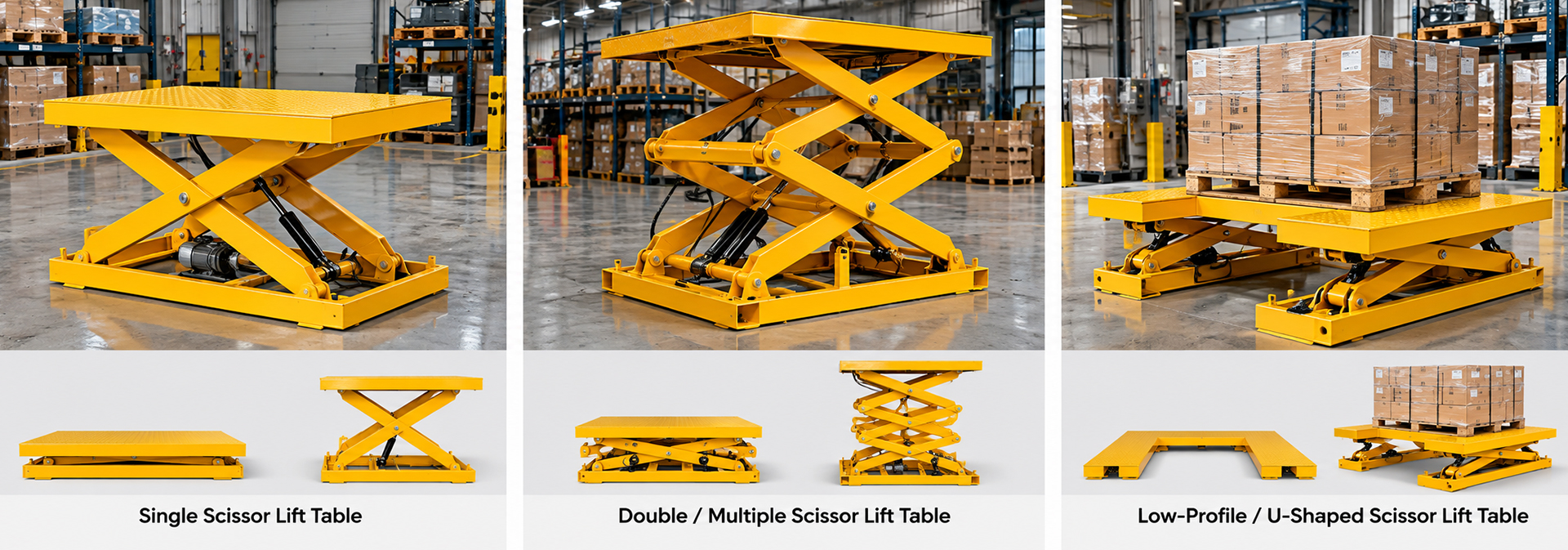

A single scissor lift table uses one set of crossed support arms to raise a platform vertically. It is a common solution for production workstations, pallet handling, assembly operations, and material positioning.
A single scissor design is suitable when the required lifting travel, platform size, and load capacity can be achieved within the available installation space.
Typical applications include:
Raising pallets to an ergonomic working height
Positioning components beside production equipment
Feeding goods onto conveyors
Supporting repetitive loading and unloading tasks

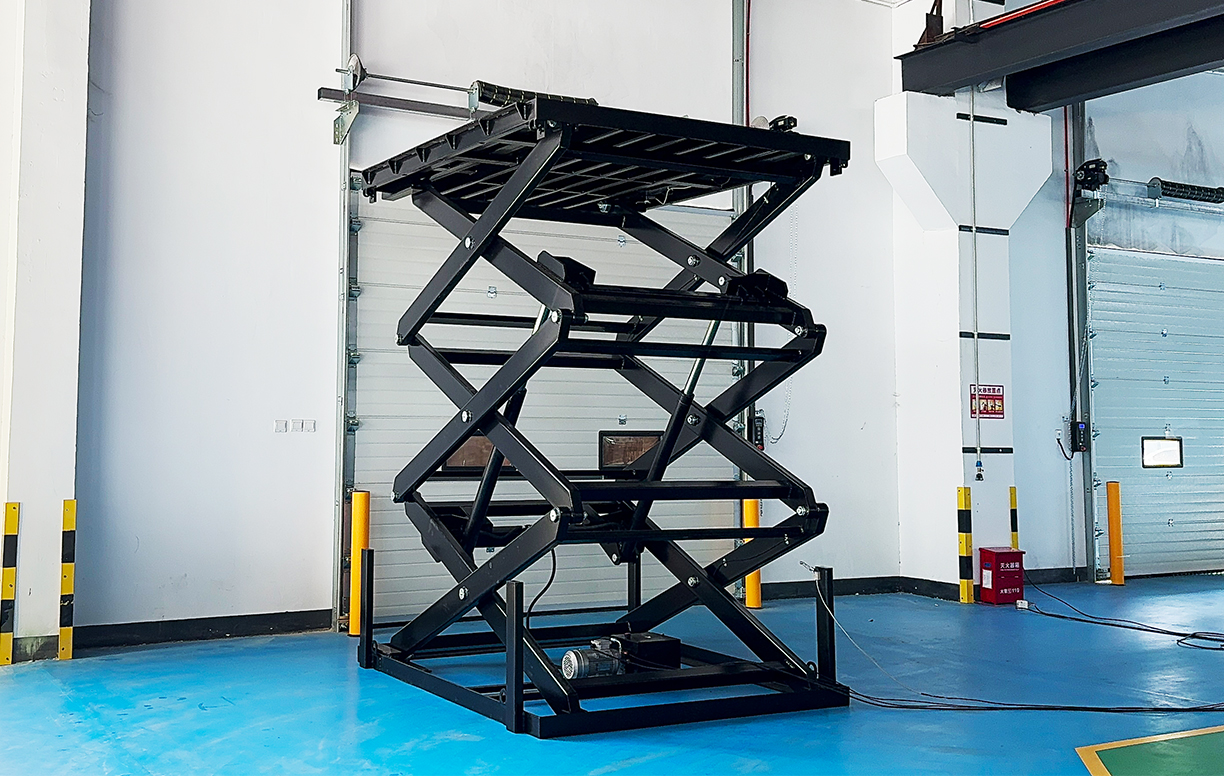

Double and multiple scissor designs use additional sets of support arms to achieve greater vertical travel. Depending on the design, they can provide a higher lifting height or accommodate particular load and platform configurations.
Consider this configuration when goods must be raised to a high working level, transferred between different elevations, or positioned at an elevated workstation.
The final design must account for stability, structural requirements, lowered height, available floor space, and the intended load distribution. A multiple scissor design is not automatically better; it should be selected according to the required lifting geometry.
Low-profile and U-shaped lift tables are designed for applications where conventional platform height makes loading difficult.
A low-profile table reduces the height difference between the floor and the platform. Depending on its design, it may allow easier loading with pallet trucks or other handling equipment.
A U-shaped platform provides an open central area that allows compatible pallet truck forks to enter the lifting area from the floor. The pallet is then positioned on the supporting platform.
These designs are useful when a floor pit is undesirable or unavailable, but the platform shape, pallet dimensions, wheel locations, and load distribution must be checked before selection.
Load capacity is one of the most important factors in scissor lift table selection. However, the weight used for sizing must represent the complete load handled by the platform, not just the main product.
The total working load may include:
Goods or workpieces
Pallets, bins, or containers
Fixtures and handling accessories
Any other load that the table is designed to support
For example, a 700 kg product loaded onto a 30 kg pallet creates a total static load of 730 kg before other accessories are considered.
The selected lift table must be rated for the actual working load and the applicable load distribution. Allowances for off-centre loading, rolling loads, impact, or other operating conditions must be determined according to the manufacturer's specifications and engineering assessment.
The rated capacity of a lift table generally applies to a defined loading configuration. A load positioned centrally and distributed evenly may produce a different structural response from the same weight concentrated at one edge.
Pallets, boxes, and workpieces should be positioned within the permitted loading area. The centre of gravity should remain within the limits specified for the table.
Long components, heavy machinery, and partially loaded pallets may place greater loads on one side of the platform.
For these applications, the supplier needs to evaluate:
Load dimensions and weight distribution
Centre of gravity in both directions
Position of the load relative to the scissor mechanism
Any horizontal forces generated during loading or unloading
A table with a nominal capacity of 1,000 kg should not automatically be assumed suitable for every 1,000 kg load configuration.
The platform must provide adequate support for the goods throughout the lifting cycle.
Measure the maximum length and width of the load, including any pallet, container, fixture, or projecting component. Then determine the required platform dimensions based on the support arrangement and the manufacturer's design requirements.
Compact loads may be handled on a relatively small platform, provided that the load remains within the permitted support area and the centre of gravity is acceptable.
Long products, pipes, profiles, and machinery components may require an extended platform or a specially designed multi-scissor arrangement.
The platform must support the load without creating excessive overhang or an unsuitable distribution of forces.
The required platform size also depends on how goods enter and leave the table.
For example, pallet truck loading requires suitable entry clearance and a compatible platform configuration. Conveyor transfer may require additional space for rollers, guides, or transfer mechanisms.
The usable platform dimensions should therefore be confirmed together with the loading equipment, rather than selected from the product dimensions alone.
A custom platform may be appropriate when standard dimensions cannot accommodate the load or the surrounding equipment.
Typical reasons include:
Oversized workpieces
Non-standard pallets
Long products requiring additional support
Integration with production lines
Special access or transfer arrangements
Any increase in platform length or width can affect structural loads, stability, and the lifting mechanism. Custom dimensions should be confirmed through engineering review.

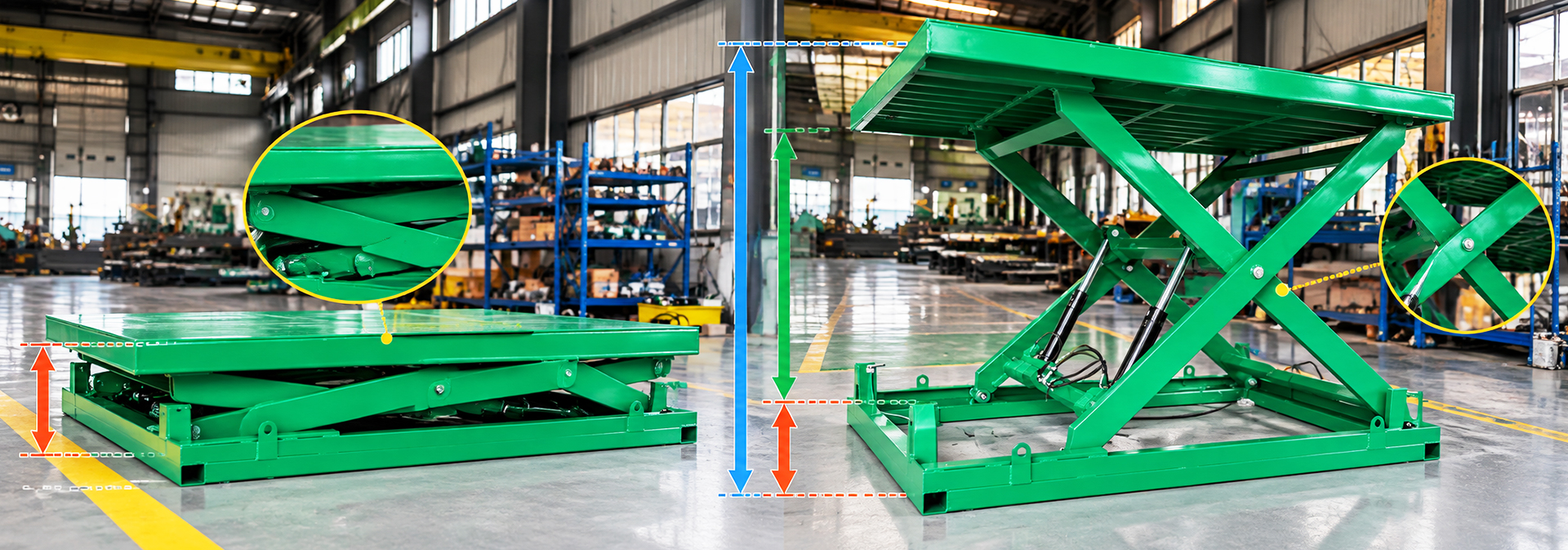

Three dimensions are particularly important when specifying a scissor lift table.
Parameter | Meaning | Why It Matters |
|---|---|---|
Lowered height | Height of the platform at its lowest position | Determines loading access and installation requirements |
Maximum height | Height of the platform at its highest position | Determines the highest working or transfer level |
Lifting stroke | Vertical distance travelled by the platform | Determines the available lifting movement |
For a conventional vertical lift, the stroke is the difference between the maximum platform height and the lowered platform height.
For example, if a table has a lowered height of 300 mm and a maximum platform height of 1,200 mm, its lifting stroke is 900 mm.
Always confirm whether a supplier's stated travel refers to the lifting stroke or the overall platform height. These are different specifications.
Determine the height at which operators need to access the product. The lift table should position the load at the required working level throughout the process.
Measure the receiving or discharge height of the connected equipment. Consider the actual transfer interface and the need to align the load or platform with rollers, conveyors, or machine tables.
Confirm the height of the receiving surface, together with any variation in vehicle bed height or other transfer equipment.
The required maximum height should be based on the actual operating range, not an approximate estimate.
A standard lift table may have a lowered platform height that prevents a pallet truck from loading a pallet directly from floor level.
In such cases, consider a low-profile model, a U-shaped platform, a compatible loading ramp, or a recessed installation.
Each solution has different implications for access, floor construction, and installation cost.
A floor-mounted table is installed on top of the existing floor. It is often simpler to install but leaves the platform elevated above floor level even when fully lowered.
A pit-mounted table sits within a prepared floor recess, allowing its platform to approach floor level when lowered.
This option may suit applications where loading equipment can accommodate the platform height or where a suitable access ramp can be installed.
A pit can improve floor-level access, but it requires coordination with civil works, drainage, underground services, and the table's structural dimensions.
The pit depth and dimensions must be confirmed against the actual equipment drawing before construction begins.
When a pallet truck is used, confirm the platform's lowered height, fork entry clearance, pallet dimensions, and exit direction.
A low-profile or U-shaped lift table may be suitable, depending on the pallet and handling equipment.
Forklift loading introduces additional considerations, including approach clearance, fork positioning, load placement, and the forces generated when placing or removing a load.
The lift table should not be assumed suitable for direct forklift impact or loading forces unless its design specifically accommodates those conditions.
When goods move between a lift table and a conveyor, the transfer heights, platform surface, and load movement must be coordinated.
Roller platforms or other transfer accessories may be appropriate when required by the process.
For operators manually loading products, consider platform height, reach distance, working posture, and the weight and shape of individual items.
The goal is to position the load conveniently without creating additional ergonomic or access problems.
Duty cycle describes how frequently and how intensively the lift table operates within a defined period.
A table that raises a load a few times per shift has different requirements from a table integrated into a continuous production line.
Operating frequency can affect the selection of the motor, hydraulic power unit, cooling capacity, and other components.
For occasional lifting and positioning, an appropriately rated manual or powered lift table may be suitable, depending on load capacity and the required working height.
The selection should account for how often operators raise and lower the platform, not only the maximum load.
For regular material handling, an electric-hydraulic lift table is often worth considering because it provides powered lifting and controlled operation.
The supplier should confirm that the proposed model supports the required cycles and operating duration.
For automated lines or applications operating throughout multiple shifts, duty cycle becomes a major engineering consideration.
Provide the supplier with the expected number of lifting cycles per hour, operating hours per shift, shifts per day, and typical load during operation.
A table designed for intermittent use should not be assumed suitable for continuous operation merely because its rated load is sufficient.
Different applications require different combinations of platform geometry, travel, loading method, and operating frequency.
Application | Important Selection Factors | Potential Configuration |
|---|---|---|
Pallet positioning | Pallet dimensions, load weight, working height | Stationary single scissor |
Floor-level pallet loading | Lowered height, pallet truck access | Low-profile or U-shaped table |
Long workpiece handling | Load length, centre of gravity, support points | Extended or specially engineered platform |
High-level transfer | Required elevation, stability, installation space | Double or multiple scissor design |
Production line feeding | Transfer height, cycles per hour, interface dimensions | Powered lift table with compatible transfer surface |
Repetitive assembly work | Ergonomic height, operating frequency, load range | Powered workstation lift table |
These are preliminary application guidelines rather than final model recommendations. The actual configuration must be confirmed against the manufacturer's available designs and technical specifications.
For powered scissor lift tables, provide the available voltage, phase, and frequency. These requirements must be compatible with the selected motor and control system.
If the equipment will operate in another country or be integrated into an existing production line, confirm the electrical requirements before ordering.
Depending on the application and design, relevant safety provisions may include:
Emergency stop controls
Overload protection
Mechanical maintenance supports
Protection against accidental lowering
Hose-failure protection where applicable
Anti-pinch protection around moving parts
Guarding or access protection for the installation
The appropriate provisions depend on the table configuration, operating environment, applicable regulations, and risk assessment.
Dust, moisture, cleaning chemicals, and outdoor exposure can influence the choice of surface treatment, enclosure protection, and other components.
For example, washdown environments may require different materials and protection measures from a dry indoor assembly area. The selected design should match the actual operating conditions.
Consider a warehouse that needs to raise palletized goods from a low loading position to a production workstation.
The initial application information is:
Parameter | Example Requirement |
|---|---|
Product weight | 700 kg |
Pallet weight | 30 kg |
Total known static load | 730 kg |
Pallet dimensions | 1,200 × 1,000 mm |
Required working height | 1,000 mm |
Loading method | Pallet truck |
Operating frequency | 12 lifting cycles per hour |
Installation | Indoor, floor-level access preferred |
The known static load is 730 kg, excluding any additional fixtures or accessories.
The final rated capacity must account for the manufacturer's permitted load distribution, the centre of gravity, and the actual loading method. The next available rated capacity cannot be selected solely by rounding the static load upward.
The platform must adequately support the 1,200 × 1,000 mm pallet and accommodate the intended loading and unloading arrangement.
The supplier should confirm whether a standard rectangular, low-profile, or U-shaped configuration is most suitable.
The required maximum height is 1,000 mm, but the lowered height must also be confirmed.
If floor-level loading is essential, a conventional raised platform may not be appropriate without a compatible loading solution.
At 12 cycles per hour, the application requires an explicit check of the selected model's duty-cycle specification. The supplier should confirm its suitability for the intended operating hours and load profile.
This example illustrates how several requirements must be assessed together before a model can be selected.
Start with the maximum weight of the goods, then include pallets, containers, fixtures, and other supported items. The final rated capacity must also account for load distribution, centre of gravity, and the manufacturer's design limits.
Measure the largest load footprint and consider how it will be loaded, positioned, and unloaded. The platform must support the load within its permitted loading area and accommodate any handling equipment.
The lifting stroke is the distance the platform travels vertically. Maximum height is the platform's height above the reference floor at its highest position. The lowered height is needed to understand the full working range.
No. A low-profile design is useful when loading equipment needs access close to floor level. Other applications may prioritize greater lifting travel, higher capacity, or a different platform geometry.
Rated capacity describes the permitted load under defined conditions. Duty cycle describes how frequently and intensively the equipment can operate. A table may support a particular load but still be unsuitable for the intended operating frequency.
Provide the maximum load and its dimensions, pallet or container size, required lifting stroke, lowered and maximum heights, loading method, operating frequency, installation arrangement, and available power supply. A site photograph and layout drawing can also help the supplier assess the application.
Successful scissor lift table selection requires more than choosing a capacity and platform size. Load distribution, centre of gravity, lifting travel, lowered height, loading method, and duty cycle all affect the final design.
The most effective approach is to begin with the actual material handling process, establish the required dimensions and operating conditions, and then match those requirements to a verified product configuration.
By confirming these details before ordering, warehouse operators and manufacturers can reduce installation changes, improve workflow, and select lifting equipment that is better suited to long-term operation.
For a project-specific recommendation, the supplier should review the actual load information, platform dimensions, required heights, operating frequency, and installation drawings before confirming the final configuration.
